Quick selector

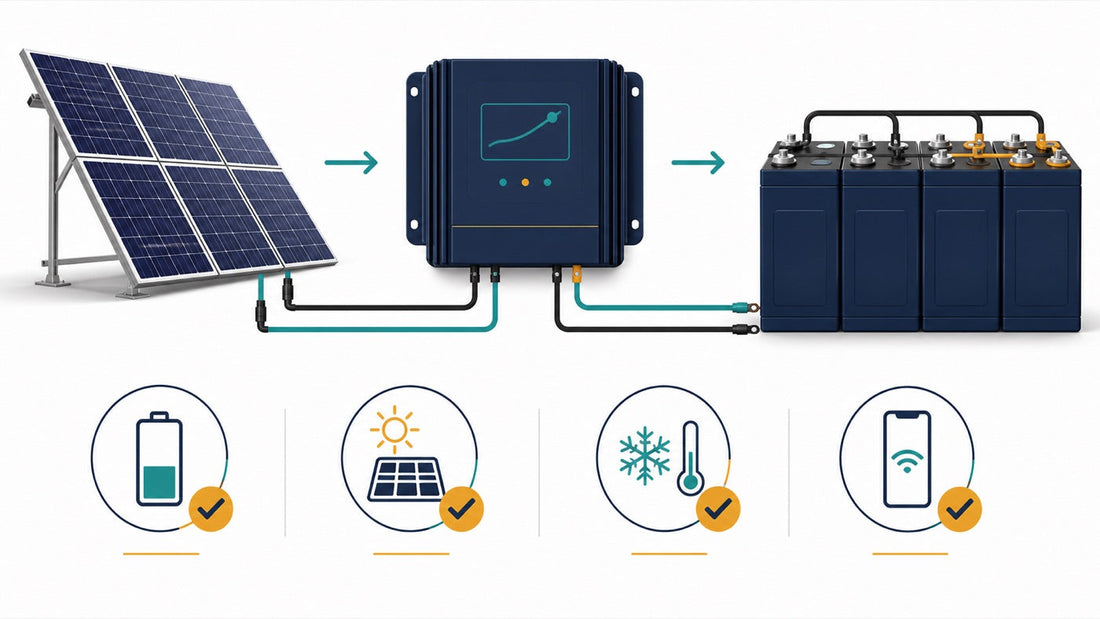

Choose a Renogy Rover by four limits: battery-bank voltage, charge current, allowed solar wattage at that battery voltage, and cold-weather-corrected PV open-circuit voltage. A 20A or 30A controller is a logical starting point for many compact 12V systems; 40A covers larger 12V/24V arrays; 60A and 100A models extend into 36V and 48V banks. That is only a first filter—the exact array and exact controller revision still decide.
Do not choose from amps alone. The same 60A controller can accept substantially more panel wattage on a 48V bank than on a 12V bank, while a cold solar array can exceed a controller's voltage limit even when its nameplate watts look acceptable.
The four numbers that choose a Rover controller
1 · Battery bank
12V, 24V, 36V or 48V?The controller must support the bank voltage and the battery's required charge profile.
2 · Charge current
20A, 30A, 40A, 60A or 100A?The battery must accept the controller's possible charging current, and wiring/protection must be sized accordingly.
3 · Solar power
How many PV watts?Use the manufacturer's allowed solar input power for the selected battery voltage—not one universal watt number.
4 · PV voltage
What is cold string Voc?Series voltage rises in cold conditions. Correct panel Voc for the site's lowest design temperature.
Renogy Rover 20A vs. 30A vs. 40A vs. 60A vs. 100A
This table is a shopping comparison for the current Torven listings and linked Renogy documents reviewed in August 2026. It is not permission to connect an array. Recheck the exact SKU page and manual before purchase and installation.
| Current Torven model | Battery bank | Rated current | Published max solar input | Published PV-voltage limit |
|---|---|---|---|---|
|
Rover 20A G2 controller only |
12/24V | 20A | 260W / 520W | 95V on the current Torven G2 listing |
| Rover 20A G3 with Bluetooth | 12/24V | 20A | 260W / 520W | 95V on the current bundle listing |
| Rover 30A G3 | 12/24V | 30A | 400W / 800W | 100V |
| Rover 40A G3 | 12/24V | 40A | 520W / 1,040W | 100V |
| Rover 60A G1 | 12/24/36/48V | 60A | 800W / 1,600W / 2,400W / 3,200W | 150V at 25°C; 140V at −25°C |
| Rover 100A G1 | 12/24/36/48V | 100A | 1,300W / 2,600W / 3,900W / 5,200W | 150V at 25°C; 140V at −25°C |
Power values are listed in ascending 12V/24V/36V/48V order where applicable. The 20A–40A models support 12/24V only. Published temperature-specific voltage limits are upper limits, not design targets; leave appropriate engineering margin.
Why controller wattage changes with battery voltage
A controller's output current is limited in amps. Because electrical power is voltage multiplied by current, a higher-voltage battery bank can receive more watts at the same current. That is why the 60A table moves from 800W on 12V to 3,200W on 48V.
Approximate current (A) = charging power (W) ÷ charging voltage (V)
Use this only to understand the relationship. Final sizing must follow the controller's published PV-power table and the battery's charge-current limits.
Illustrative example: 800W ÷ 24V = about 33A
That simple nominal-voltage calculation points a buyer toward the 40A class, but it is not a design result. Actual battery charging voltage, controller conversion, array conditions, allowed overpaneling, conductor ampacity and protection still need to be checked.
PV open-circuit voltage: the limit buyers miss
Panel watts and panel voltage are different constraints. Wiring panels in series adds voltage; wiring identical strings in parallel adds current. A controller can therefore be within its watt limit and still be exposed to excessive string voltage.
Solar-module open-circuit voltage (Voc) normally rises as cell temperature falls. Use the module's Voc and temperature coefficient, the site's lowest reasonable design temperature, panels per series string and the controller manual. Never compare a warm-weather panel Voc total directly with the controller headline limit and call the design complete.
Bluetooth, BT-1, BT-2 and controller ports
“Rover with Bluetooth” is a package description, not a universal feature across every listing. Some Torven pages sell the controller alone; others include the compatible monitoring option. Renogy generations can use different communication ports and accessories.
Buying a new controller
Read the package contents on the exact product page. If Bluetooth is important, choose a bundle that explicitly includes it or confirm the exact compatible module before ordering.
Adding monitoring later
Use the controller model code, generation and a clear photo of its communication port. Do not assume BT-1 and BT-2 are interchangeable because both are Renogy products.
Which Rover should you compare for an RV, cabin or larger bank?
Start with 20A or 30A after checking total panel watts, cold string Voc and the battery's allowed charge current.
The 40A class is a common comparison point when 20A/30A limits are too small, but it remains a 12/24V controller.
Compare the 60A and 100A models; then check array power, 140/150V temperature-specific limits, terminals, wire and battery charge current.

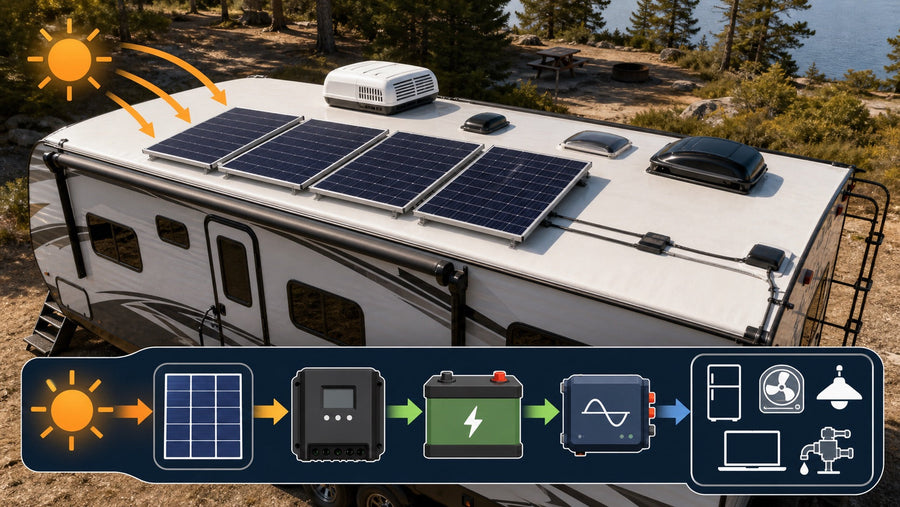

Use-case labels do not determine electrical fit. Two RVs can have very different arrays and banks, while a cabin can be smaller than a mobile system. The measured design values matter more than the application name. For bundled mobile systems, also compare current RV solar kits.
Array-to-controller worksheet
Record these values before buying. If any value is unknown, stop at “needs verification” rather than filling the gap with a guess.
| Input | Where to find it | What to compare |
|---|---|---|
| Battery nominal voltage and chemistry | Battery label/manual | Supported bank voltage and approved charging profile |
| Battery max/desired charge current | Battery manual | Controller output plus all other charging sources |
| Panel watts, Voc, Isc and temperature coefficient | Module label/datasheet | Controller power, voltage and input-current limits |
| Panels in series and strings in parallel | Planned array layout | Cold string Voc and combined string current |
| Exact controller code/generation | Product page and label | Correct manual, ports, terminals and accessories |
Before installation
- Confirm the controller's exact manual and current package contents.
- Set a battery profile approved by the battery manufacturer; “lithium” is not one universal charge profile.
- Size PV and battery conductors, terminals, disconnects and overcurrent protection for the actual design.
- Observe required mounting orientation, ventilation, clearances and torque values.
- Follow the manual's connection and disconnection sequence.
- Have a qualified installer review unfamiliar, high-current or code-regulated work.
Estimate your daily energyShop charge controllers
Frequently asked questions
What size Renogy Rover charge controller do I need?
Match the battery-bank voltage first, then compare the array's allowed wattage, cold-corrected string Voc and current with the limits for the exact Rover model. Also confirm the battery can accept the planned charge current.
How many watts can a Rover 20A, 40A or 60A handle?
It depends on battery voltage. Current listings publish 260W/520W for the 20A on 12/24V, 520W/1,040W for the 40A on 12/24V, and 800W/1,600W/2,400W/3,200W for the 60A on 12/24/36/48V. Recheck the exact SKU manual before designing the array.
Can the Rover 60A or 100A charge a 48V battery bank?
The current 60A and 100A G1 specifications support 12/24/36/48V nominal systems. Compatibility still depends on the battery's required charging profile, voltage range, current limit and installation requirements.
Is Bluetooth included with every Renogy Rover?
No. Some listings are controller-only and others are bundles. Confirm the package contents and the communication port for the exact controller generation.
Can I exceed the published solar wattage because an MPPT controller clips output?
Do not assume overpaneling is allowed. Some manufacturers permit a defined amount under specific conditions, but the exact manual controls. PV voltage and current limits must never be exceeded.
Does a LiFePO4 setting work for every lithium battery?
No. Use charge voltages and settings approved by the battery manufacturer, and confirm whether communication or temperature restrictions apply.
Sources and further reading
- Renogy Rover 20A/30A/40A manual
- Renogy Rover 20A specifications
- Renogy Rover 40A specifications
- Renogy Rover 60A specifications
- Renogy Rover 60A manual
- Renogy Rover 100A datasheet
- Renogy app and compatibility guidance
Last reviewed August 2026. Specifications can change by revision and package. This buyer's guide provides planning information, not a wiring diagram or final electrical design. Follow the exact product manuals and applicable codes.
