Quick answer
Size an RV solar kit from daily watt-hours—not from the RV's length or the biggest array that fits. Add each appliance's watts × hours per day, allow for inverter and charging losses, then divide that energy target by realistic peak-sun-hours and a conservative system factor. After that, confirm the panels physically fit, the controller accepts the exact array and the battery can support the inverter load.
A 200W array can be a useful maintenance or light-load system. A 400W array is a common planning tier for efficient daily loads. A 600W or 800W array offers more recovery potential—but only when roof space, shading, controller limits, battery capacity and actual solar conditions cooperate.

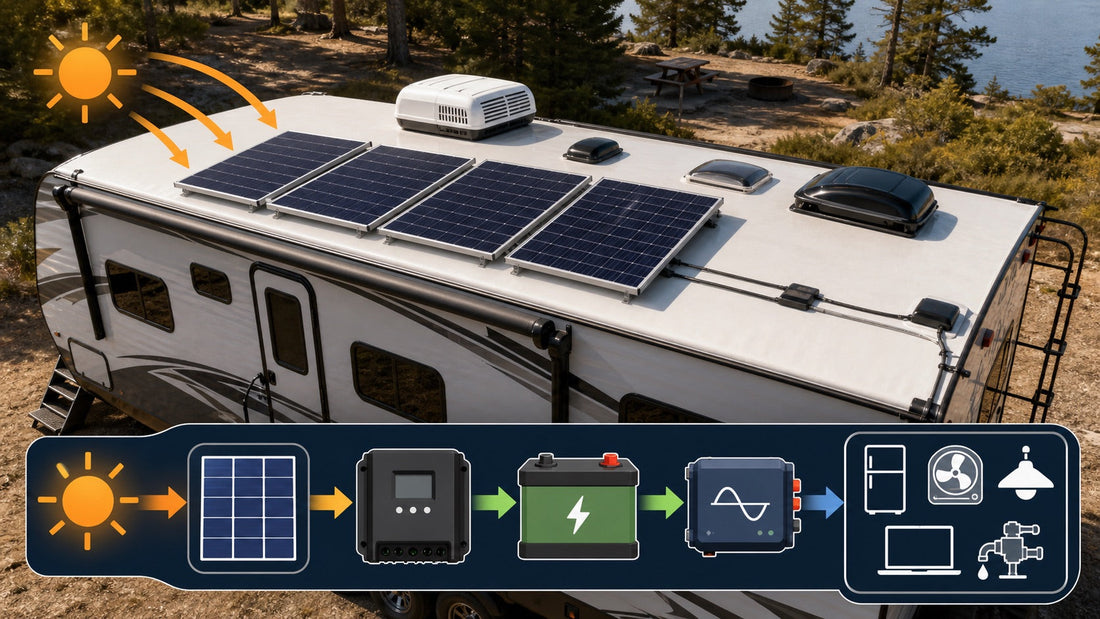

RV solar sizing is a five-part energy flow
Panel watts, battery watt-hours and inverter watts solve different problems. A balanced system moves energy through every stage without asking one component to do another component's job.
Daily loads
Wh needed each day
Solar array
Daily energy recovery
Charge controller
PV limits and battery profile
Battery
Stored Wh and DC current
DC and AC output
Direct loads or inverter
The order matters: begin with the loads, then size storage and recovery. Buying an 800W array does not create an 800W appliance budget at night, and buying a 3,000W inverter does not create 3,000W of solar or all-day runtime.
Step 1: calculate daily RV energy use
Daily energy (Wh/day) = Σ appliance watts × hours used per day
For AC appliances, divide device-side watt-hours by expected inverter efficiency to estimate battery-side energy.
Use a battery monitor, plug-in meter, DC clamp meter or manufacturer data when possible. Refrigerators cycle, pumps run intermittently and heating appliances can dominate the total even when used briefly.
| RV load | Illustrative power | Equivalent use/day | Device-side Wh/day | What changes the result |
|---|---|---|---|---|
| 12V compressor refrigerator | 45W while running | 8 equivalent hours | 360Wh | Weather, thermostat, ventilation and door openings |
| Roof vent fan | 25W | 6 hours | 150Wh | Fan speed and temperature |
| LED lighting | 30W combined | 4 hours | 120Wh | Number and brightness of fixtures |
| Water pump | 60W | 0.5 hour total | 30Wh | Flow rate and household use |
| Phones and tablets | 40W combined | 2 hours | 80Wh | Device count and charger losses |
| Laptop | 80W | 2 hours | 160Wh | Workload, charger and AC-inverter loss |
| Coffee maker, optional | 1,000W | 6 minutes | 100Wh | Actual brew time and inverter draw |
| Microwave, optional | 1,200W input | 10 minutes | 200Wh | Input watts can exceed advertised cooking watts |
Worked daily-load example: 900Wh/day before optional cooking loads
The refrigerator, fan, lights, pump, mobile devices and laptop above total 900Wh/day. Adding 15% for uncertainty produces a 1,035Wh/day planning target. Coffee makers, microwaves, induction cooktops, air conditioning and electric heat should be added from their measured use; they can change the system size quickly.
Step 2: convert daily watt-hours into array watts
Array watts = daily energy target ÷ (peak-sun-hours × system factor)
The system factor allows for temperature, flat mounting, wiring, controller and charging losses. Shade requires a separate, often larger penalty.
Worked example: 1,035Wh/day ÷ (4.5 peak-sun-hours × 0.75) = about 307W of array nameplate. A 400W tier creates more planning margin, but it does not guarantee the target every day. A shaded campsite, smoke, clouds, winter sun, a flat roof and high panel temperature can reduce harvest substantially.
| Array tier | MEGA 200 panels | Illustrative daily harvest* | Bare panel area | Panel weight before mounts |
|---|---|---|---|---|
| 200W | 1 | About 420–750Wh/day | 10.9 ft² | 24 lb |
| 400W | 2 | About 840–1,500Wh/day | 21.8 ft² | 48 lb |
| 600W | 3 | About 1,260–2,250Wh/day | 32.8 ft² | 72 lb |
| 800W | 4 | About 1,680–3,000Wh/day | 43.7 ft² | 96 lb |
*Illustrative range uses 3 peak-sun-hours × 70% at the low end and 5 peak-sun-hours × 75% at the high end. It is not a forecast. Panel area uses the manufacturer-published 58.7 × 26.8-inch MEGA 200 dimensions and excludes gaps, mounts, walkways and obstacles.
Step 3: make sure the array actually fits the RV roof
Square footage is only the first filter. One MEGA 200 panel is published at 58.7 × 26.8 × 1.2 inches and 24 lb. Measure the roof in two dimensions and map every obstruction, shadow and required service path.
CSS roof-fit sketch — panel footprint only, not an installation drawing
- Map air conditioners, vents, skylights, antennas, racks and future accessories.
- Mark the shadow path from tall equipment across morning and afternoon sun.
- Allow the clearances required by the panel, mount, roof equipment and sealant system.
- Verify roof structure, approved attachment points, wind loading and total installed weight—not panel weight alone.
- Plan a protected cable route before choosing final panel positions.
Basic RV solar kit versus complete kit
Basic kit
Generation and charging foundation
Panels + listed controller + core mounting/wiring items. Battery and inverter are selected separately.
Complete kit
Solar, storage and AC conversion
Adds the specified battery and inverter to the panel/controller package. It is still a permanent system, not a plug-in power station.
Project-specific
Items the final design may still need
Disconnects, overcurrent protection, distribution, grounding, roof sealants, cable routing and other installation-specific hardware.
Read the exact “kit includes” list. “Complete” describes the named major components; it does not eliminate electrical design, mounting, weather sealing or code requirements.
Current Torven RV solar kits by array size
All seven products below were live in Torven's RV Solar Kits collection at the time of review. Product cards summarize the current Torven listing; verify the current package list and model labels before ordering.
Basic panel-and-controller kits
Complete kits with battery and inverter
Step 4: size the battery, controller and inverter together
Battery storage
Nominal battery Wh = battery-side Wh/day × days of autonomy ÷ planned usable fraction
Using the 1,035Wh/day example and a 90% usable fraction: one day requires about 1,150Wh nominal; two days require about 2,300Wh. Temperature, aging, battery limits and reserve can justify more.
A 12V 100Ah battery is about 1.28kWh nominal; a 12V 200Ah battery is about 2.56kWh nominal. Amp-hours only become comparable after voltage is included. Confirm battery chemistry, charging profile, maximum charge current and continuous-discharge/BMS limits.
Charge controller
A quick current estimate can show why exact controller details matter: 400W ÷ 14.4V is about 27.8A before considering the controller's published limits and design conditions. Final selection must check the exact controller's maximum PV open-circuit voltage, input current, charge current, permitted array wattage, battery voltage/profile and cold-weather voltage.
Controller specification needs confirmation
Do not guess whether the current Complete 400W kit ships with a 30A or 40A controller. Torven's current product listing identifies the BRAVO 30A (RS-MPPT30PB). RICH SOLAR's current Complete 400W page has conflicting information: its marketing paragraph says 40A, while the itemized package list and specification/download section identify the BRAVO 30A.
Before ordering, have Torven confirm the exact shipped controller model for the selected package. Before designing strings or protection, verify the label and use that exact controller manual. This guide does not resolve the conflict by inference.
Compare current solar charge controllers, but never substitute a controller simply because the amp rating looks similar. Connector, PV-voltage range, battery profiles, temperature limits and package contents can differ.
Inverter output
Size the inverter from simultaneous AC running watts and the largest startup surge. Then check what that AC load demands from the battery. As an illustration:
Approximate DC amps = AC watts ÷ (battery volts × inverter efficiency)
A 1,500W AC load at 12.8V and 90% efficiency calculates to about 130A from the battery. The battery, BMS, cables, fuse, disconnect and connections all have to support the actual design. A 2,000W or 3,000W inverter label does not mean every included battery can supply that output indefinitely.
Compare current inverters and 12V batteries, then follow the exact manuals and qualified design guidance.
Series, parallel, shading and wiring concerns
Panel voltage adds. Cold-weather open-circuit voltage must remain below the controller limit with design margin.
Current adds. Verify input-current and short-circuit-current limits, connectors and required protection.
A vent or air-conditioner shadow can reduce output from more than the covered cells, depending on string layout and bypass behavior.
Plan for vibration, abrasion, water entry, strain relief, protected penetrations and service access—not only electrical loss.
Do not choose series/parallel layout from a generic diagram. Use the exact panel and controller electrical specifications, the site's cold design temperature, conductor and protection requirements and the manufacturer's permitted configurations.
RV solar-kit planning and installation checklist
- Measure daily device watt-hours, including inverter losses for AC loads.
- Choose a low-sun planning case and decide how many days of battery autonomy matter.
- Lay out exact panel rectangles around vents, air conditioners, shadows and service access.
- Verify roof structure, wind loading, mounts, penetrations and installed weight.
- Confirm panel Voc, Isc, series/parallel layout and cold-weather voltage.
- Confirm the exact controller SKU, PV limits, charge current and battery profile.
- Check battery nominal energy, BMS current, charging limits and temperature requirements.
- Check inverter continuous output, surge, DC input current, ventilation and grounding.
- Plan cable routing, abrasion protection, disconnects, fuses/breakers, torque and weather sealing from the applicable manuals.
- Review the final design and installation with a qualified professional.
Start with the loads, then choose the kit
Use the Power Planner to organize appliance watts and runtime. Then compare that energy target with roof fit, realistic solar recovery, battery capacity and the exact kit component list.
Frequently asked questions
Is 200 watts of solar enough for an RV?
It can be enough for light, efficient loads or battery maintenance when daily energy use and solar conditions support it. It is often too small for heavy AC use or fast recovery after a high-consumption day. Calculate watt-hours and use a poor-sun case before deciding.
What can a 400-watt RV solar system run?
Panel wattage does not directly “run” a fixed appliance list. A 400W array produces variable daily energy that charges a battery; the battery and inverter supply the loads. Under the illustrative assumptions in this guide, 400W models about 840–1,500Wh/day, but shade and weather can push production below that range.
When does an 800-watt RV solar kit make sense?
It is worth comparing when measured daily use is higher, faster solar recovery matters, the roof can fit four panels without severe shading and the controller/battery can accept the array. It does not replace load management or another charging source during poor solar conditions.
How many solar panels fit on an RV roof?
Measure exact panel rectangles around every roof obstruction and required clearance. With the current MEGA 200 dimensions, one to four panels occupy about 10.9–43.7 square feet before gaps and mounts, but roof shape usually matters more than total square footage.
What is the difference between a basic and complete RV solar kit?
A basic kit provides the listed panels, charge controller and core connection/mounting items; battery and inverter are separate. A complete kit adds specified storage and AC conversion, but the project can still need installation-specific protection, distribution, grounding and sealing.
Does every RV solar kit include a battery and inverter?
No. The four current Torven Basic kits do not include a battery or inverter. The current Complete 200W, 400W and 800W kits do. Always read the exact package list.
How do I choose an RV solar charge controller?
Match battery voltage and charging profile, array watts, cold-corrected PV open-circuit voltage, input current and required charge current to the exact controller manual. Confirm the exact shipped model when a kit page contains conflicting specifications.
Can I add more panels later?
Only within the controller's voltage, current and wattage limits and the manufacturer's approved array configurations. Roof space, connectors, wire, protection and battery charge limits may also change. Plan expansion before selecting the first kit.
How much solar should I expect on cloudy days or in shade?
There is no dependable universal percentage. Cloud type, season, angle, temperature and shade geometry all matter. Treat modeled production as a planning range and retain another charging option for critical loads.
Sources and further reading
- U.S. Department of Energy/FEMP: Photovoltaic system load and sizing reference
- National Renewable Energy Laboratory: PVWatts Calculator
- U.S. Energy Information Administration: Measuring Electricity
- RICH SOLAR: MEGA 200 panel specifications
- RICH SOLAR: Basic 200W kit specifications and downloads
- RICH SOLAR: Basic 600W kit specifications and downloads
- RICH SOLAR: Basic 800W kit specifications and downloads
- RICH SOLAR: Complete 400W kit specifications, package list and downloads
- RICH SOLAR: Complete 800W kit specifications and downloads
Methodology and review note: Torven's live RV-kit catalog and the linked manufacturer pages were checked in August 2026. Daily-yield ranges are illustrative calculations using the assumptions stated in the table, not field-test results or production guarantees. Product comparisons are based on published specifications. Confirm the exact shipped components, current manuals and final installation design before ordering.
