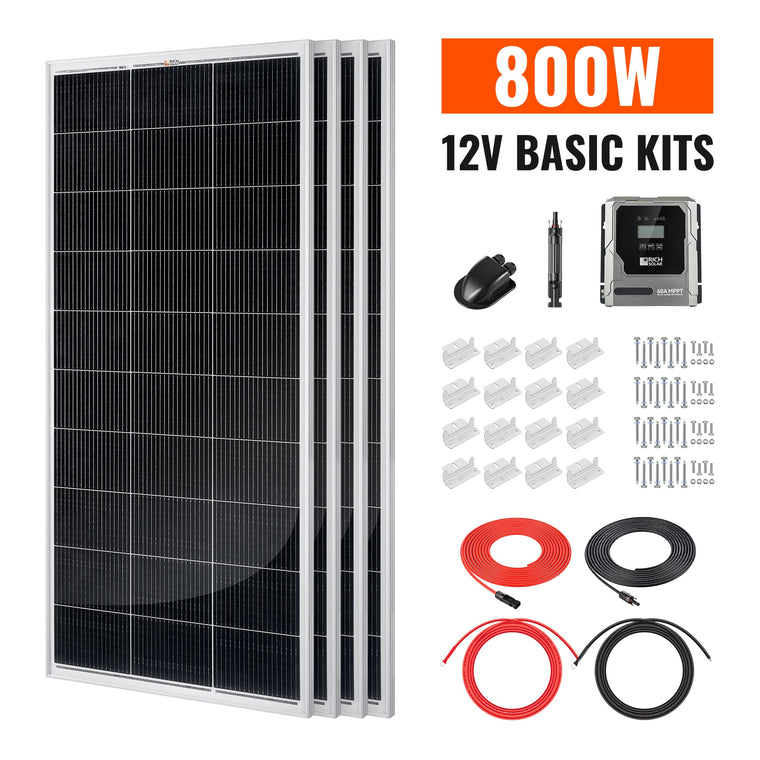

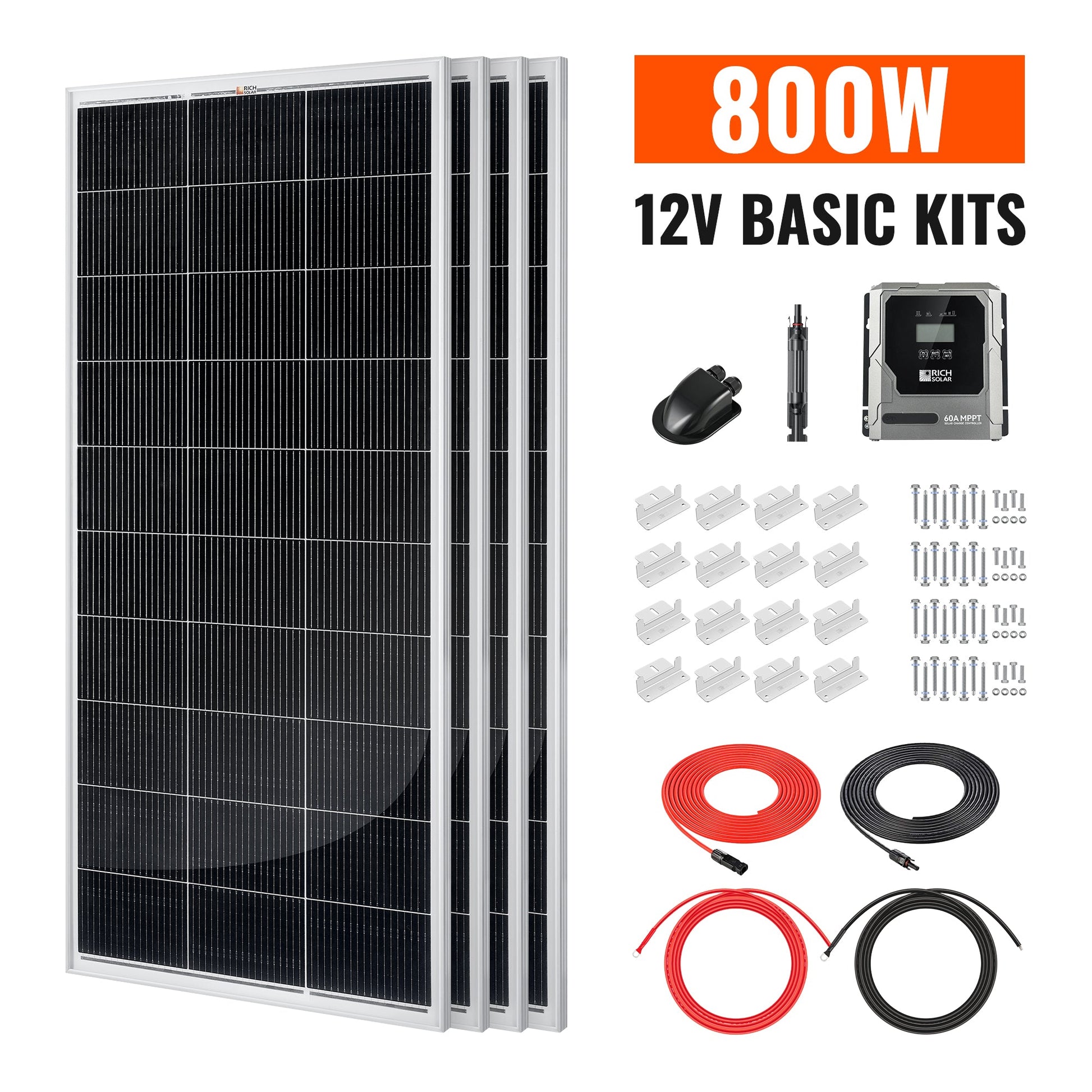

RICH SOLAR Basic 800W Solar Kit Solar Panel & Charge Controller Kit for RVs, Vans & Off-Grid Applications
RICH SOLAR Basic 800W Solar Kit Solar Panel & Charge Controller Kit for RVs, Vans & Off-Grid Applications
SKU: RS-K8004
- Regular price
- $1,399.99
- Regular price
- Sale price
- $1,399.99
- Unit price
- per
Couldn't load pickup availability
In stock — available to order
- Free standard shipping on eligible Lower-48 orders. See shipping details
- 30-day return requests for eligible items after delivery. Review the return policy
- Price Match Guarantee for qualifying identical offers. Check eligibility
- Warranty information is listed in this product's details.
Need help before ordering?
Call 888-495-5870
Contact our support team
An 800W array-and-controller foundation
Start a 12V or 24V charging system with four 200W panels and a 60A MPPT controller.
The RICH SOLAR RS-K8004 is a generation-and-charging kit built around four MEGA 200 panels and a BRAVO 60A MPPT controller. It includes core mounting and cable items but no battery or inverter, making it a flexible base when storage and AC power will be selected separately.
At a glance
The numbers that define this system
800WRated solar array
60AMPPT charge controller
12V / 24VAuto-detected battery system
100VMaximum controller PV Voc
Battery and inverter are not included
Choose a compatible battery bank, protection and inverter around the 12V or 24V system design. The controller’s current settings and battery profile must match the exact battery chemistry.
System fit

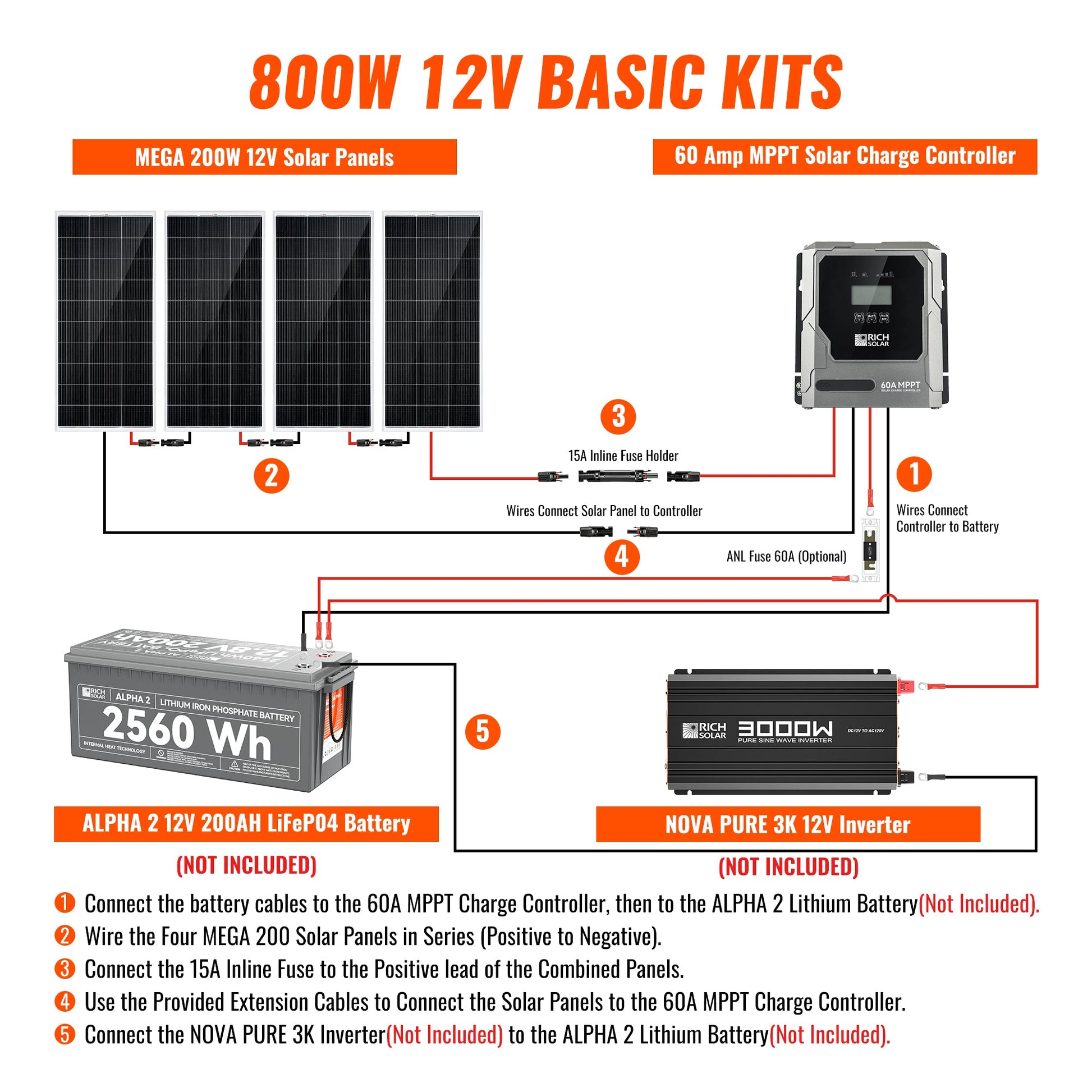

Design the panel strings and battery bank together.
The BRAVO 60 is rated for a 100V maximum PV open circuit voltage, 60A charging and recommended PV input up to 900W at 12V or 1,800W at 24V. Verify cold-weather Voc and battery charge settings before wiring.
Good-fit projectsRVs, vans, cabins, boats and DIY off-grid systems where the buyer will choose a compatible 12V or 24V battery and optional inverter.
Critical checksFour-panel mounting area, string Voc/Isc, battery profile, 60A output conductor/fuse sizing, cable lengths and site-specific mounting/protection.

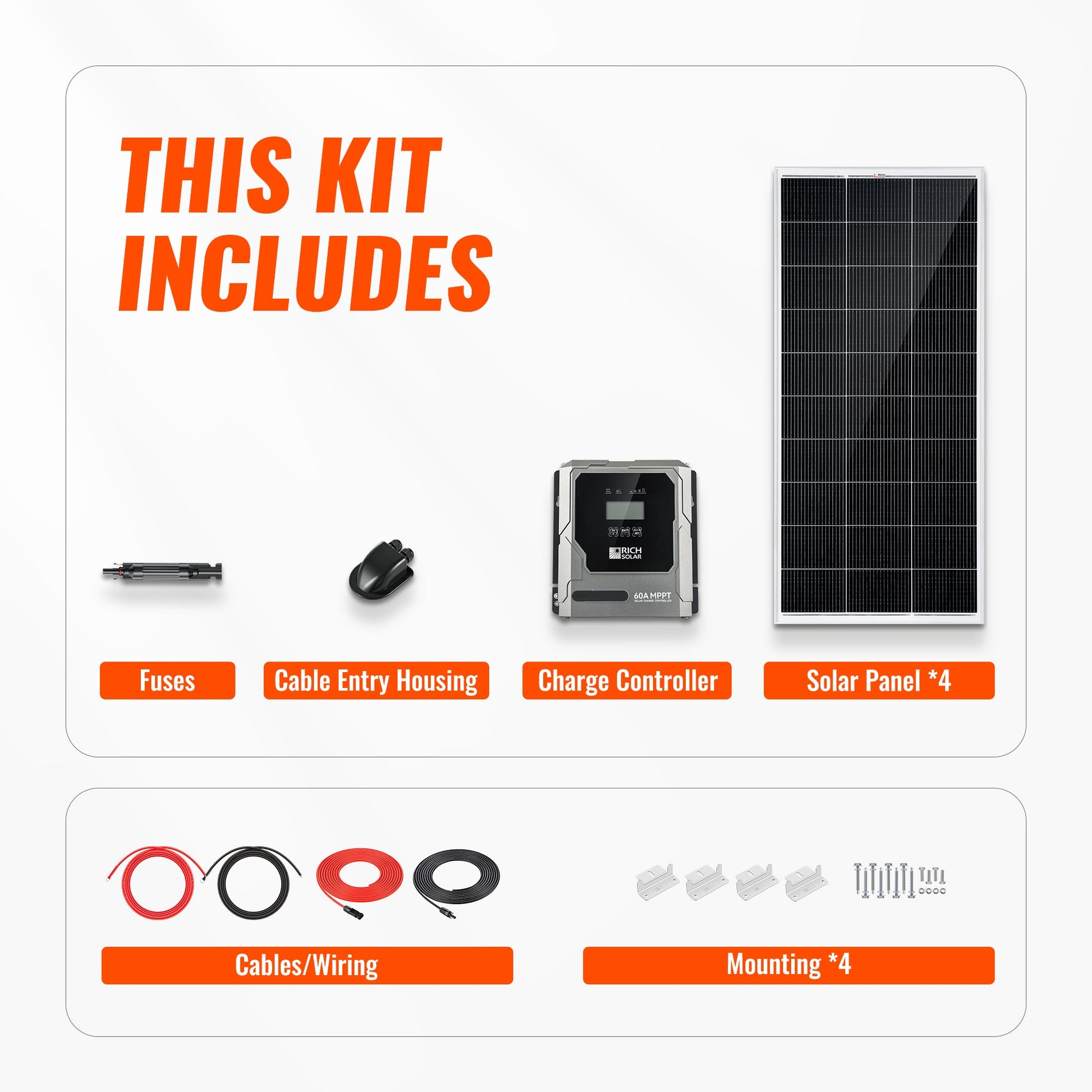

In the box
What the current product configuration includes
- 4 × MEGA 200W solar panels (RS-M200)
- 1 × BRAVO 60A MPPT controller (RS-MPPT60PB)
- RICH SOLAR lists “4 × Mounting Z Brackets (one set)” (RS-ZB4C); confirm the delivered bracket count
- 1 × cable entry housing and 15A inline PV fuse holder
- 1 × 30 ft 10AWG panel-to-controller cable set
- 1 × 10 ft 10AWG controller-to-battery cable set
No battery, inverter, battery fuse/disconnect, battery monitor, transfer equipment or installation labor is listed as included.
Product confidence
Long panel coverage plus a two-year MPPT-controller term.
RICH SOLAR’s current limited warranty lists 25-year power-output and 10-year workmanship coverage for rigid panels and two-year coverage for MPPT controllers. The written prorated schedules, proof-of-purchase, installation, exclusions and remedies control eligibility.
Common questions
Before you build around this product
Does this kit include a battery?
No. It includes panels, charge controller and listed mounting/cable items. Select a compatible battery bank separately.
Can I use it with a 24V battery bank?
The BRAVO 60 supports 12V/24V auto detection. Verify the exact battery profile and wire the array within the controller limits.
Can I add an inverter?
Yes, an appropriately sized inverter can be added to the battery side. Match system voltage, battery current capability, surge load, cabling and protection.
How much power will 800W of panels produce?
800W is the standard-test nameplate rating. Actual production varies with sun, angle, temperature, shading, wiring and charging conditions.
Product Data
Technical Specifications
| Manufacturer model | Basic 800 Watt Solar Kit | Solar Panel & Charge Controller Kit for RVs, Vans & Off-Grid Applications | Expandable Solar Charging |
|---|---|
| Listed SKU count | 1 |
Available configurations
| Option | SKU |
|---|---|
| Standard Kit | RS-K8004 |
Included major-component specifications: panel, controller, inverter, and battery ratings are shown below when those products are part of this kit. Minor cables, protection devices, connectors, and mounting hardware remain listed in the Description tab.
4 × MEGA 200 200W 12V Solar Panel (RS-M200)
| Maximum Power(Pmax) | 200W |
|---|---|
| Maximum Power Voltage(Vmp) | 18.4V |
| Maximum Power Current(Imp) | 10.9A |
| Open Circuit Voltage(Voc) | 21.8V |
| Short Circuit Current(Isc) | 11.6A |
| Temperature Range | -40 ~ +185°F |
| Maximum Series Fuse Rating | 15A |
| Weight | 24 lb |
| Dimensions | 58.7 x 26.8 x 1.2 in |
1 × BRAVO 60 60A MPPT Solar Charge Controller (RS-MPPT60PB)
Official model-family specifications are shown for the controller named by the kit SKU; confirm the delivered hardware revision before installation.
| System Nominal Voltage | 12/24V Auto |
|---|---|
| Max PV Open Circuit Voltage | 100V DC |
| Charging Technology | MPPT |
| Max PV Charging Current | 60A |
| Max. Recommended PV Input Power | 900 Watt (12V) / 1800 Watt (24V) |
| Charge Conversion Efficiency | ≤98% |
| MPPT Tracking Efficiency | >99.5% |
| Battery Type Preset | Crystal, Gel, AGM, WET, Calcium / LCO, LFP, LTO |
| Housing Case Color | Black / Grey |
| IP Grade | IP43 for Inside PCBA, IP22 for Connection Area |
| Net Weight | 1.90kg / 4.18lb |
| Dimensions (L×W×H) | 201×195×85mm (7.9×7.7×3.3in) |
Manufacturer Documentation
Official Manuals, Specifications & Certifications
Use these current RICH SOLAR documents for installation, compatibility, limits, and revision-specific details. The delivered product label and its exact manual are the controlling sources.
Basic 800 Watt Solar Kit | Solar Panel & Charge Controller Kit for RVs, Vans & Off-Grid Applications | Expandable Solar ChargingDocument: RS M200 M200B 20260717 (PDF)Specification: RS MPPT60P Specification 250610 (PDF)Manual: RS MPPT60P Manual 241227 compressed (PDF)
Review RICH SOLAR’s current warranty terms
Review the current manufacturer manual for your exact model before installation or use.
