RICH SOLAR Complete 200W Solar Kit with Battery & Inverter Off-Grid Solar Power System for RVs, Vans, Cabins & Backup Power
RICH SOLAR Complete 200W Solar Kit with Battery & Inverter Off-Grid Solar Power System for RVs, Vans, Cabins & Backup Power
SKU: RS-CK200
- Regular price
- $1,199.99
- Regular price
- Sale price
- $1,199.99
- Unit price
- per
Couldn't load pickup availability
In stock — available to order
- Free standard shipping on eligible Lower-48 orders. See shipping details
- 30-day return requests for eligible items after delivery. Review the return policy
- Price Match Guarantee for qualifying identical offers. Check eligibility
- Warranty information is listed in this product's details.
Need help before ordering?
Call 888-495-5870
Contact our support team
A compact all-in-one starting point for 12V off-grid power
Capture 200W, store 1.28kWh and run up to 2,000W of compatible 120V loads.

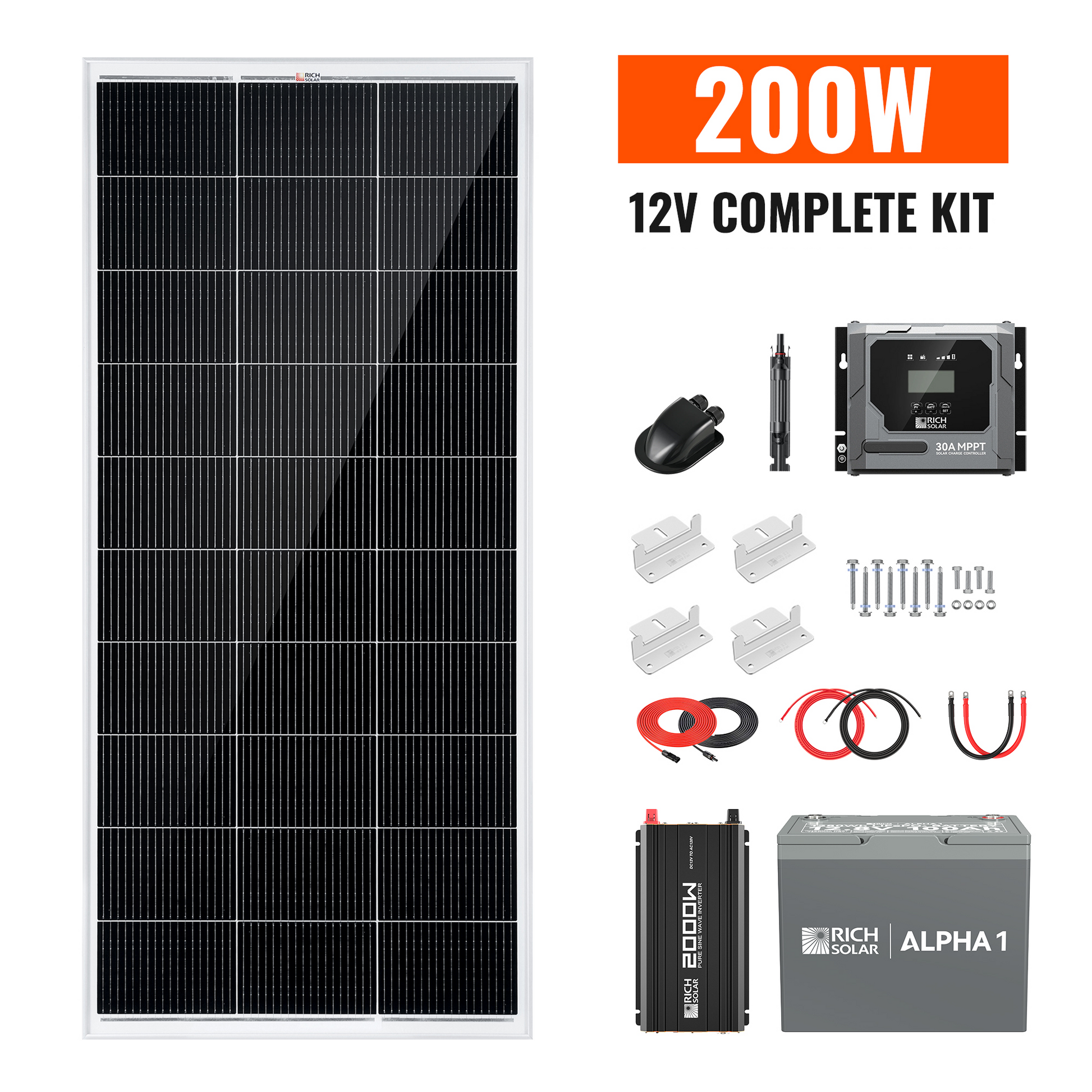

The RICH SOLAR RS-CK200 brings together one MEGA 200 panel, a BRAVO 30A MPPT controller, an ALPHA 1 12V 100Ah battery and a NOVA PURE 2K inverter. It is a coordinated starter system for an RV, van, trailer, small cabin or selected backup loads with modest daily energy use.
At a glance
A small solar array with useful battery and inverter headroom
200WRated solar array
1.28kWhNominal battery energy
2,000WContinuous AC output
12VBattery architecture
A 2,000W inverter does not mean 2,000W all day
The inverter can support compatible short-duration loads up to its continuous rating, but runtime is governed by the 1.28kWh battery and actual energy use. Build a watt-hour plan before choosing appliances.
System fit
Best for selected loads and measured runtimes.
Lighting, electronics, refrigeration and other efficient loads can be a good fit when their combined start-up watts and daily watt-hours stay inside the inverter and battery limits. High-draw heating, cooking or air-conditioning can drain a single 100Ah battery quickly.
Good starting applicationsRV and van house power, small-cabin essentials, portable work setups and backup for a short list of critical 120V loads.
Confirm before orderingPanel mounting area, appliance surge, expected runtime, wire routing, battery location, grounding and any site-specific AC distribution or transfer equipment.

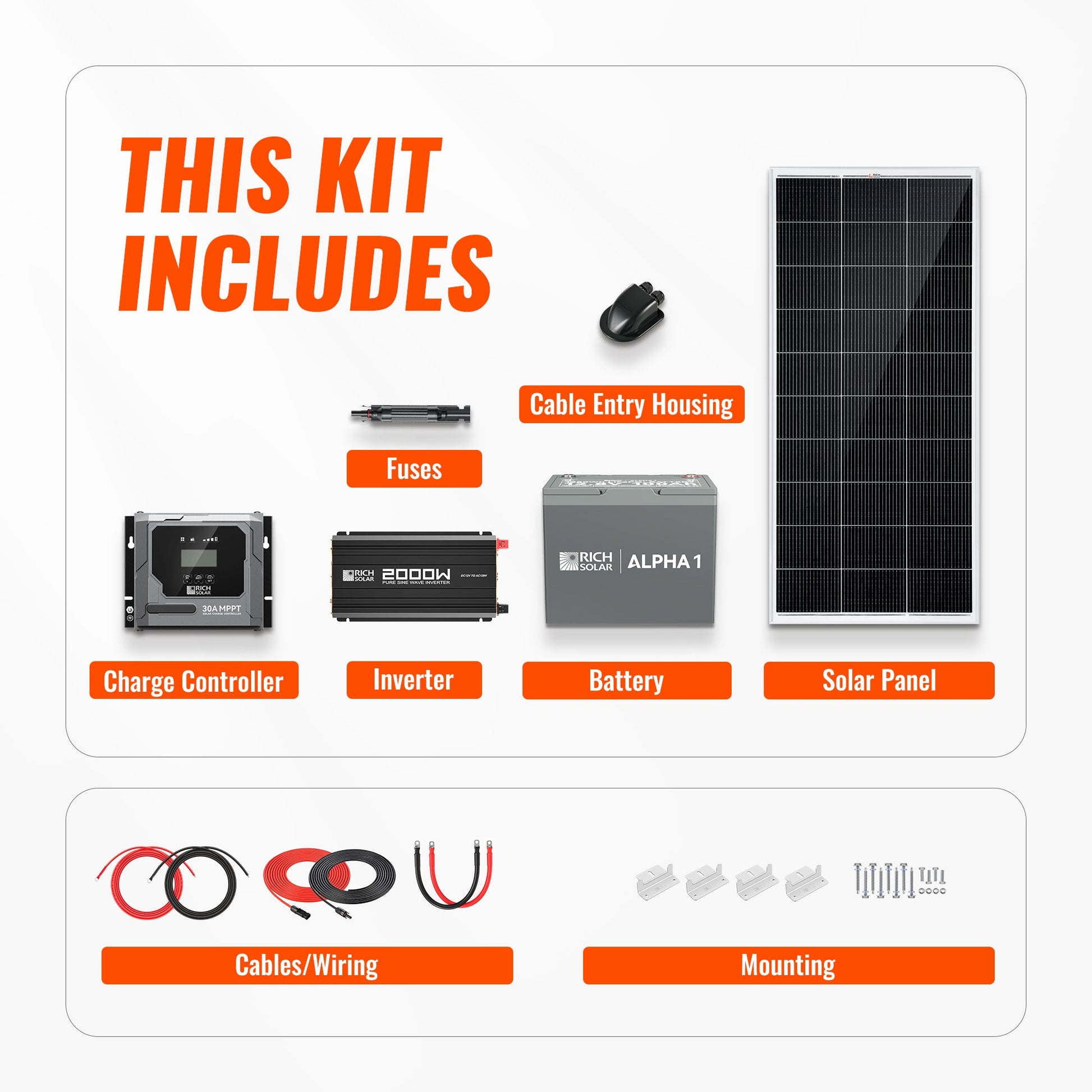

In the box
What the RS-CK200 package lists
- 1 × MEGA 200W panel (RS-M200)
- 1 × BRAVO 30A MPPT controller (RS-MPPT30PB)
- 1 × ALPHA 1 12V 100Ah battery (RS-B121S)
- 1 × NOVA PURE 2K 12V inverter (RS-V2P12)
- 1 × RS-ZB4C Z-bracket set and 1 × RS-C2B cable-entry housing
- 1 × 15A inline PV fuse holder (RS-SC15F)
- 1 × 30 ft 10 AWG panel-to-controller cable set and 1 × 10 ft 10 AWG controller-to-battery cable set
- 1 × 4 ft 2/0 AWG inverter-to-battery cable set with 3/8 in lugs
Installation labor, permits, roof sealant, site-specific AC distribution, transfer equipment, grounding and any additional disconnects or protection are not listed as included.
Product confidence
Coverage follows each included component
RICH SOLAR applies separate warranty periods and eligibility rules to the panel, controller, battery and inverter. Review the current written terms for installation, registration, operating conditions, exclusions and remedies.
Common questions
RS-CK200 buying questions
How much can this system run?
It depends on simultaneous watts, start-up surge and hours of use. The inverter is rated for 2,000W continuous output, while the battery stores 1.28kWh nominal; both limits matter.
Will one 200W panel recharge the battery in one day?
Not reliably in every location or season. Production changes with peak-sun hours, angle, temperature and shading. Compare expected daily solar watt-hours with the energy used and leave margin for losses.
Can I run an air conditioner?
Some small units may start within the inverter surge rating, but runtime from one 100Ah battery can be short. Check measured start-up watts and watt-hours rather than assuming compatibility from inverter size alone.
Does the kit include installation?
No. The listing covers the equipment and named connection parts. Mounting, sealing, electrical distribution, permits and labor remain project-specific.
Product Data
Technical Specifications
| Manufacturer model | Complete 200W Solar Kit with Battery & Inverter | Off-Grid Solar Power System for RVs, Vans, Cabins & Backup Power | Complete Energy Solution |
|---|---|
| Listed SKU count | 1 |
Available configurations
| Option | SKU |
|---|---|
| Single configuration | RS-CK200 |
Included major-component specifications: panel, controller, inverter, and battery ratings are shown below when those products are part of this kit. Minor cables, protection devices, connectors, and mounting hardware remain listed in the Description tab.
1 × MEGA 200 200W 12V Solar Panel (RS-M200)
| Maximum Power(Pmax) | 200W |
|---|---|
| Maximum Power Voltage(Vmp) | 18.4V |
| Maximum Power Current(Imp) | 10.9A |
| Open Circuit Voltage(Voc) | 21.8V |
| Short Circuit Current(Isc) | 11.6A |
| Temperature Range | -40 ~ +185°F |
| Maximum Series Fuse Rating | 15A |
| Weight | 24 lb |
| Dimensions | 58.7 x 26.8 x 1.2 in |
1 × BRAVO 30 30 Amp MPPT Solar Charge Controller (RS-MPPT30PB)
Official model-family specifications are shown for the controller named by the kit SKU; confirm the delivered hardware revision before installation.
| RVs & Campers | : Perfect for keeping 12V or 24V battery banks topped off while traveling. |
|---|---|
| Trailers & Vans | : Compact form factor fits tight control spaces in mobile living setups. |
| Marine Installations | : Suitable for boats and dockside battery banks with moisture resistance. |
| Off-Grid Cabins | : Reliable solar regulation for remote, self-sufficient power systems. |
| DIY Solar Kits | : Great for pairing with 100W to 1000W solar arrays and lithium battery banks. |
| Specification | Details |
| System Nominal Voltage | 12V / 24V Auto |
| Max. PV Open Circuit Voltage | 100V DC |
| Charging Technology | MPPT (Maximum Power Point Tracking) |
| Max PV Charging Current | 30A |
| Charge Conversion Efficiency | ≤98% |
| MPPT Tracking Efficiency | >99.5% |
| Max. Recommended PV Input Power | 500W (12V system) / 1000W (24V system) |
| Battery Type Presets | Crystal, Gel, AGM, WET, Calcium / LCO, LFP, LTO |
| Housing Case Color | Black / Grey |
| Protection Rating | IP43 (Inside PCBA), IP22 (Connection Area) |
| Net Weight | 0.8 kg / 1.76 lb |
| Dimensions (L × W × H) | 180 × 140 × 73 mm / 7.0 × 5.5 × 2.9 in |
1 × ALPHA 1 12V 100Ah LiFePO4 Battery (RS-B121S)
| Manufacturer model | ALPHA 1 | 12V 100Ah LiFePO4 Battery | Powerful 12V Lithium Battery for RVs, Trailers, Vans, Boats, Off-Grid | 5,000 Lifetime Cycles | Bluetooth and Internal Heat Technology |
|---|---|
| Listed SKU count | 1 |
1 × NOVA PURE 2K 2000W (2kW) 12V Industrial Pure Sine Wave Inverter (RS-V2P12)
| Model | RS-V2P12 |
|---|---|
| Rated Voltage | 12V DC |
| Continuous Power | 2000W |
| Peak Surge | 4000W |
| Waveform | Pure Sine Wave |
| Input Voltage | 12V DC |
| Output Voltage | 120V AC |
| Output Frequency | 60 Hz |
| Output Efficiency | ＞88% |
| AC Output Sockets | 3 |
| USB Power Port | 5V / 2.1A |
| Power Output Control | AC On/Off Switch |
| Operating Temperature | 14°F to 122°F |
| Dimensions | 16.1 x 9.6 x 4.0 (in) / 410 x 244 x 102 (mm) |
| Weight | 10.1 (lb) / 4.6 (kg) |
| Certifications | UL 458, CSA C22.2 |
Manufacturer Documentation
Official Manuals, Specifications & Certifications
Use these current RICH SOLAR documents for installation, compatibility, limits, and revision-specific details. The delivered product label and its exact manual are the controlling sources.
Complete 200W Solar Kit with Battery & Inverter | Off-Grid Solar Power System for RVs, Vans, Cabins & Backup Power | Complete Energy SolutionDocument: RS M200 M200B 20260717 (PDF)Specification: RS MPPT30PB 40PB Specifications 251014 (PDF)Specification: ALPHA 1 Specifications 20250620 (PDF)Document: NOVA PURE 1K 2K 3K (PDF)Manual: RS MPPT30P Manual 250319 (PDF)Manual: ALPHA 1 User Manual 260702 (PDF)Manual: RS V2P12 RS V2P24 USER MANUAL 260323 (PDF)
Review RICH SOLAR’s current warranty terms
Review the current manufacturer manual for your exact model before installation or use.
