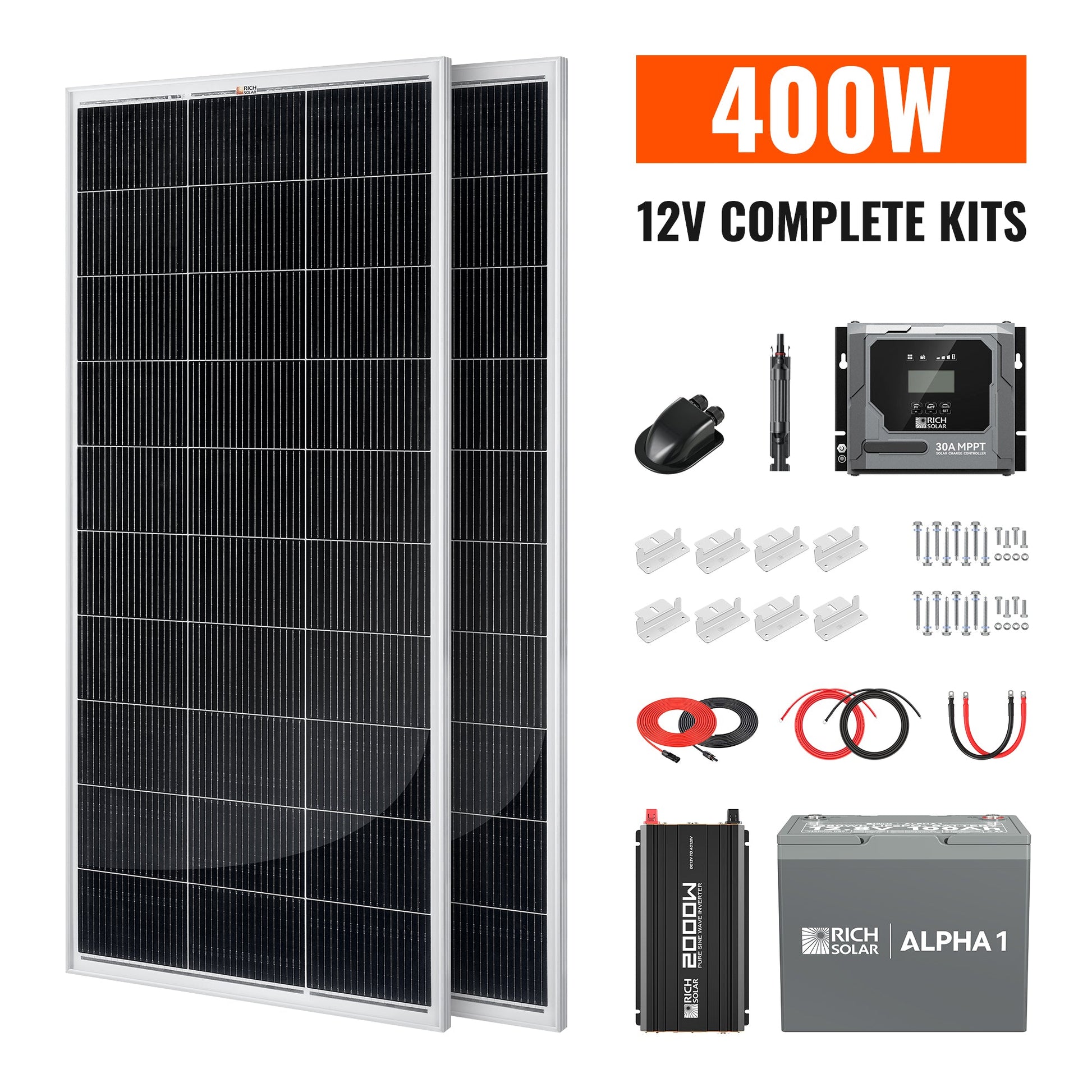

• RICH SOLAR 400W 12V complete kit with two panels, controller, inverter, battery, cables and mounts

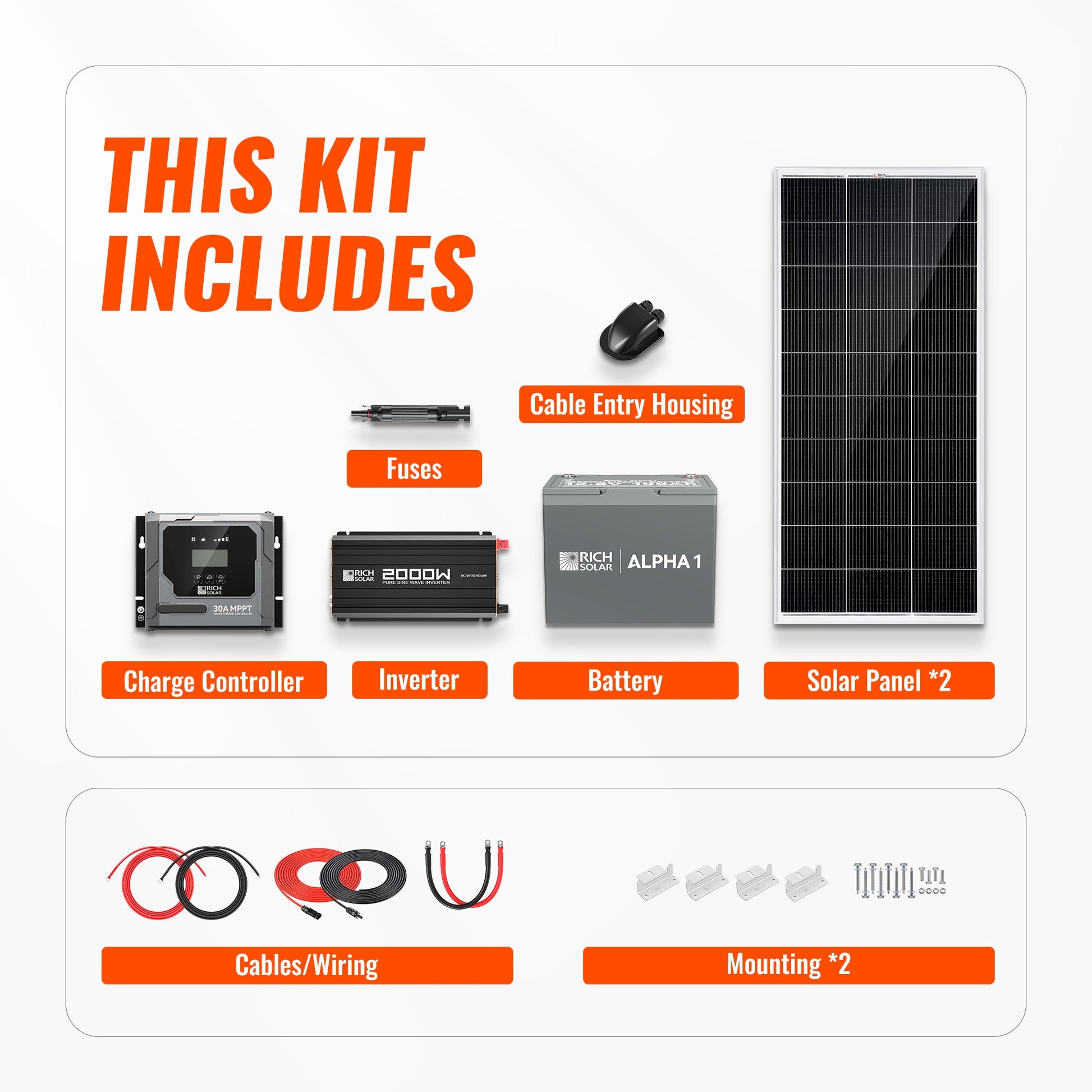

  • Included components and mounting hardware for the RICH SOLAR 400W 12V complete solar kit

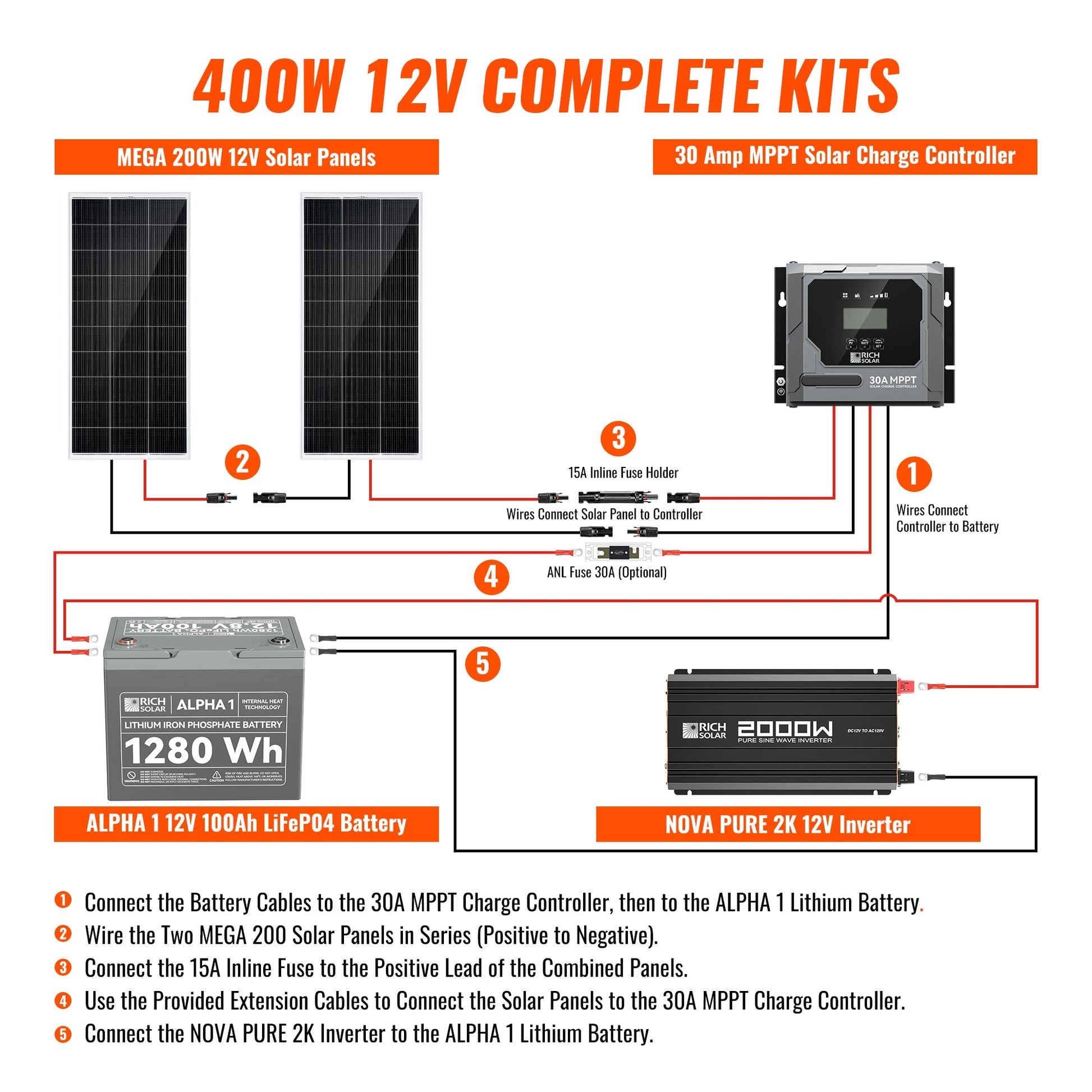

  • Wiring diagram for the RICH SOLAR 400W kit connecting two panels, controller, battery and inverter

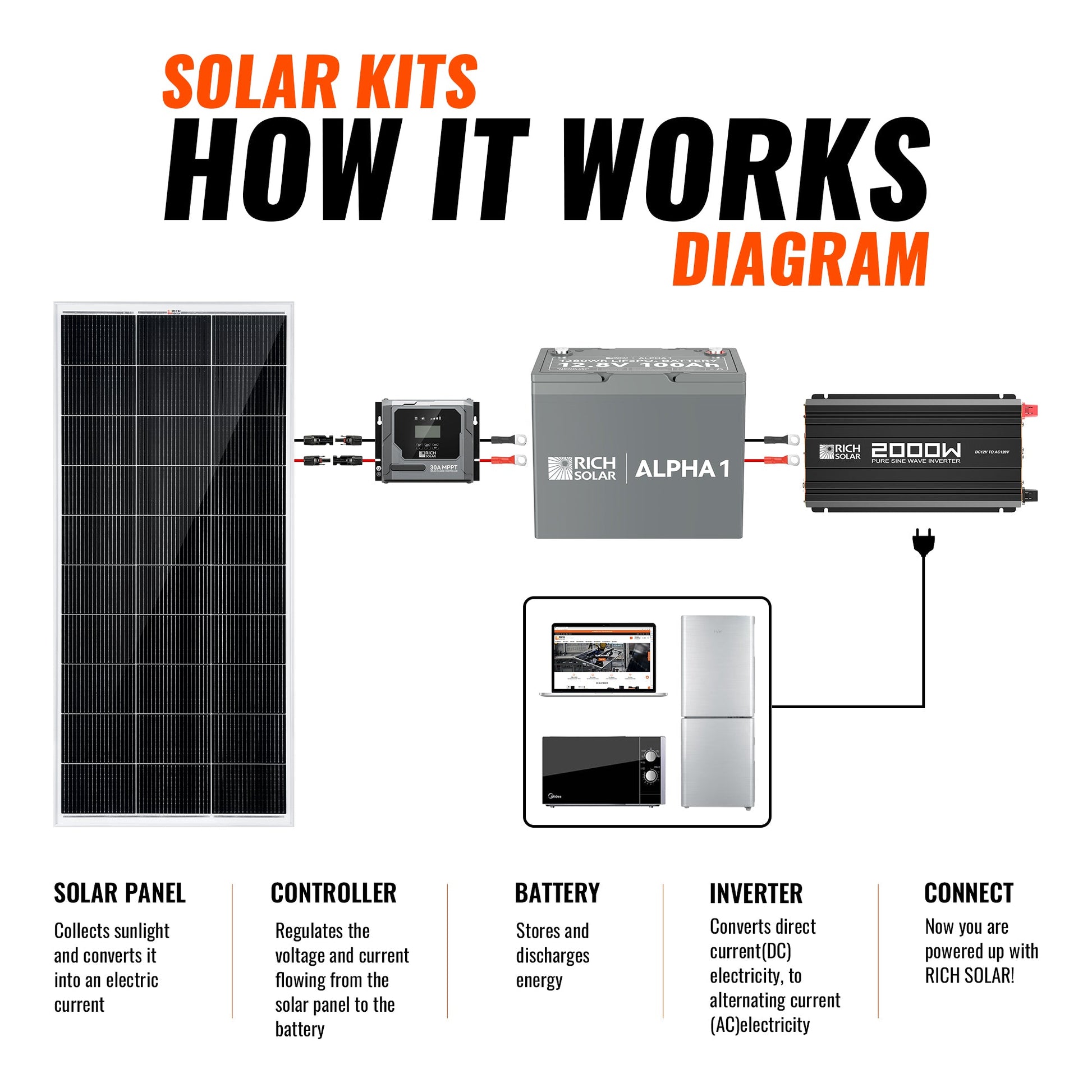

  • Energy-flow diagram for the RICH SOLAR 400W kit from solar panel through controller, battery and inverter

RICH SOLAR

RICH SOLAR Complete 400W Solar Kit with Battery & Inverter Off-Grid Solar Power System for RVs, Vans, Cabins & Backup Power

RICH SOLAR Complete 400W Solar Kit with Battery & Inverter Off-Grid Solar Power System for RVs, Vans, Cabins & Backup Power

SKU: RS-CK400

$1,599.99
$1,599.99
View Cart

In stock — available to order

Need help before ordering? Call 888-495-5870 Contact our support team

A complete 12V system in one coordinated kit

Turn 400 watts of roof-ready solar into stored energy and clean 120V power.

The RICH SOLAR RS-CK400 brings together two MEGA 200 panels, a BRAVO 30A MPPT controller, one ALPHA 1 12V 100Ah LiFePO4 battery and a NOVA PURE 2K inverter. It is a practical starting point for an RV, van, small cabin or planned backup circuit when you want the major components matched before installation.

RICH SOLAR RS-CK400 complete 400W solar kit components

At a glance

The numbers that define this system

400WRated solar array
1.28kWhNominal battery energy
2,000WContinuous AC output
12VBattery-system voltage
Designed as a complete kit—not a plug-in power station

Permanent wiring, overcurrent protection, grounding, mounting and load planning still matter. Have a qualified installer verify the final design and all code requirements.

RICH SOLAR complete 400W kit component overview

Why it stands out

A compact complete system for daily essentials and measured backup loads.

Capture useful daily solarTwo rigid 200W panels provide 400W of rated input for recharging the included battery through the MPPT controller.
Store 1.28kWh nominalThe included ALPHA 1 battery is a 12.8V, 100Ah LiFePO4 battery with Bluetooth monitoring and internal heat.
Run clean AC loadsThe included NOVA PURE 2K converts 12V DC to 120V pure sine wave AC with 2,000W continuous output.

System fit

Best when your real load plan fits a 2,000W inverter and a single 100Ah battery.

This system is sized around one 1.28kWh battery. Runtime depends on battery state of charge, inverter losses, surge demand, temperature and the actual wattage of every connected load. It is not sized by the array wattage alone.

Good starting applicationsRV and van house power, a small cabin, lighting, electronics, refrigeration and other loads that stay within the inverter and battery limits.
Verify before orderingRoof space for two 58.7 × 26.8 in panels, 12V system architecture, appliance surge requirements, wire runs, mounting surface and local electrical rules.

In the box

What the current product configuration includes

  • 2 × MEGA 200W 12V solar panels (RS-M200)
  • 1 × BRAVO 30A MPPT solar charge controller (RS-MPPT30PB)
  • 1 × ALPHA 1 12V 100Ah LiFePO4 battery (RS-B121S)
  • 1 × NOVA PURE 2K 12V pure sine wave inverter (RS-V2P12)
  • 2 × Z-bracket sets (RS-ZB4C)
  • Cable entry housing, 15A inline PV fuse holder and listed panel/controller/battery/inverter cable sets

The current RS-CK400 configuration includes one BRAVO 30A MPPT solar charge controller (RS-MPPT30PB). Confirm installation compatibility against the delivered model label and current manufacturer manual.

Product confidence

Coverage follows the included components and current written terms.

RICH SOLAR publishes component-specific warranty periods rather than one blanket term for every piece in this kit. Panel, battery, controller and inverter eligibility, registration requirements, exclusions and remedies are governed by the manufacturer’s current written warranty.

Common questions

Before you build around this product

How much can the 400W kit power?

It depends on simultaneous watts, start-up surge and required runtime. The inverter is rated for 2,000W continuous output, while the battery stores 1.28kWh nominal; use both limits when building a load plan.

Can I use this as whole-home backup?

This compact 12V kit is not a typical whole-home system. It is better suited to selected loads whose combined demand and runtime fit the inverter and battery.

Does the kit include installation labor?

No. The listing is for the equipment and listed balance-of-system parts. Installation, permitting and any site-specific hardware or protection are not listed as included.

Are the panels wired in series or parallel?

The final configuration must stay within the controller’s voltage and current limits in the coldest expected conditions. Follow the current controller manual and have the array design verified before wiring.
