RICH SOLAR Complete 800W Solar Kit with Battery & Inverter Off-Grid Solar Power System for RVs, Vans, Cabins & Backup Power
RICH SOLAR Complete 800W Solar Kit with Battery & Inverter Off-Grid Solar Power System for RVs, Vans, Cabins & Backup Power
SKU: RS-CK800
- Regular price
- $2,699.99
- Regular price
- Sale price
- $2,699.99
- Unit price
- per
Couldn't load pickup availability
In stock — available to order
- Free standard shipping on eligible Lower-48 orders. See shipping details
- 30-day return requests for eligible items after delivery. Review the return policy
- Price Match Guarantee for qualifying identical offers. Check eligibility
- Warranty information is listed in this product's details.
Need help before ordering?
Call 888-495-5870
Contact our support team
More solar, storage and inverter headroom
Build a serious 12V off-grid system around 800W of solar and 2.56kWh of LiFePO4 storage.

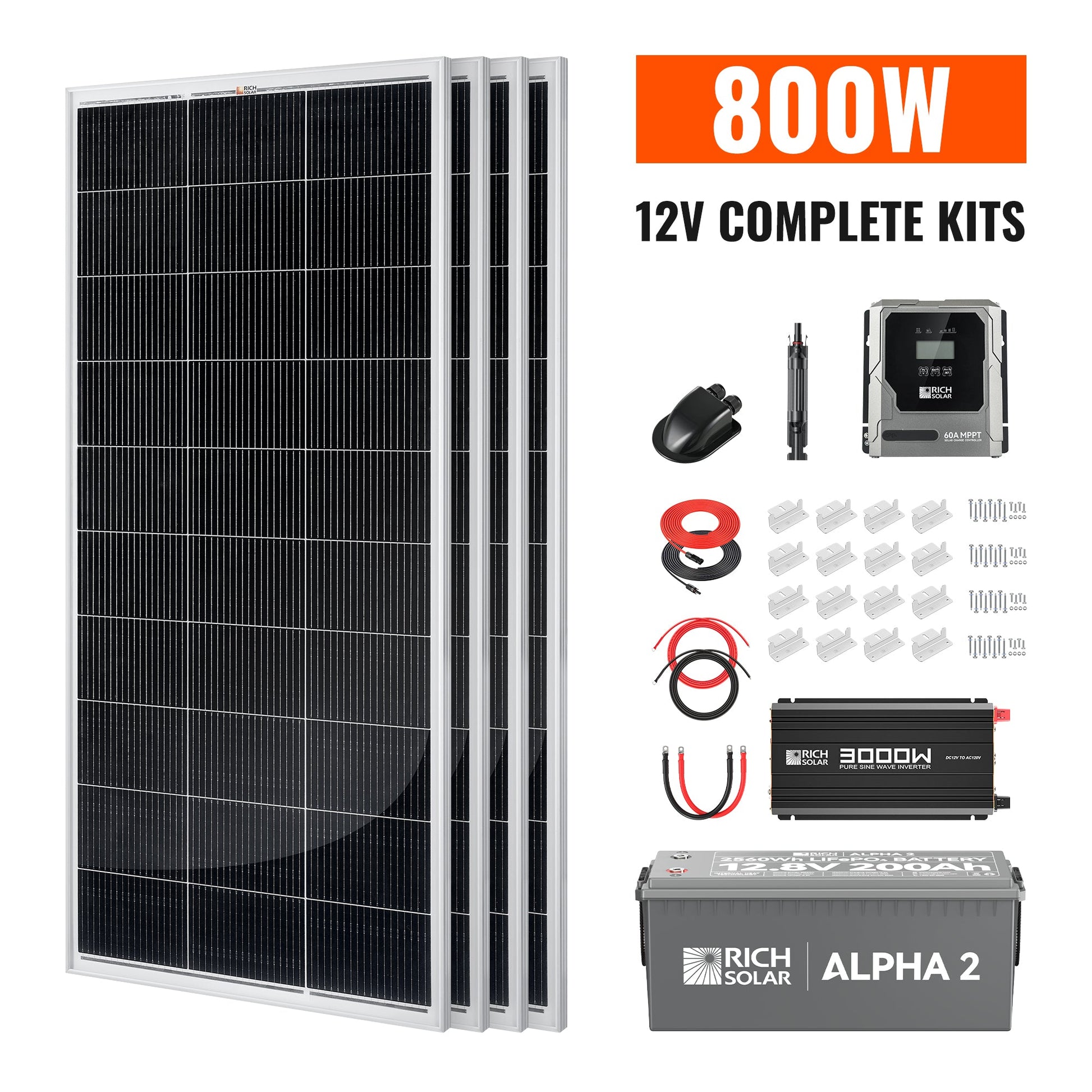

The RICH SOLAR RS-CK800 combines four MEGA 200 panels, a BRAVO 60A MPPT controller, one ALPHA 2 12V 200Ah battery and a NOVA PURE 3K inverter. It is aimed at larger RV, van, cabin and selected-backup projects that need more charging power, more runtime and higher AC capacity than the 400W complete kit.
At a glance
The numbers that define this system
800WRated solar array
2.56kWhNominal battery energy
3,000WContinuous AC output
60AMPPT charge controller
Higher output still requires a real system design
At 3,000W, a 12V inverter can draw very high DC current. Cable size, fuse selection, battery limits, ventilation, grounding and connection torque must follow the current manuals and applicable code.
System fit
Choose it for higher-demand 12V builds—not because 800W guarantees a specific daily runtime.
Solar production changes with location, season, weather, temperature and shading. Battery runtime depends on load, depth of discharge and conversion losses. Size the system from an appliance-by-appliance energy audit.
Strong use casesLarger RVs, work vans, off-grid cabins, refrigeration, electronics, pumps and other planned loads within the inverter and battery limits.
Critical checksFour-panel mounting area, array string design, 12V high-current cabling, surge load, battery charge settings, equipment clearances and local code.

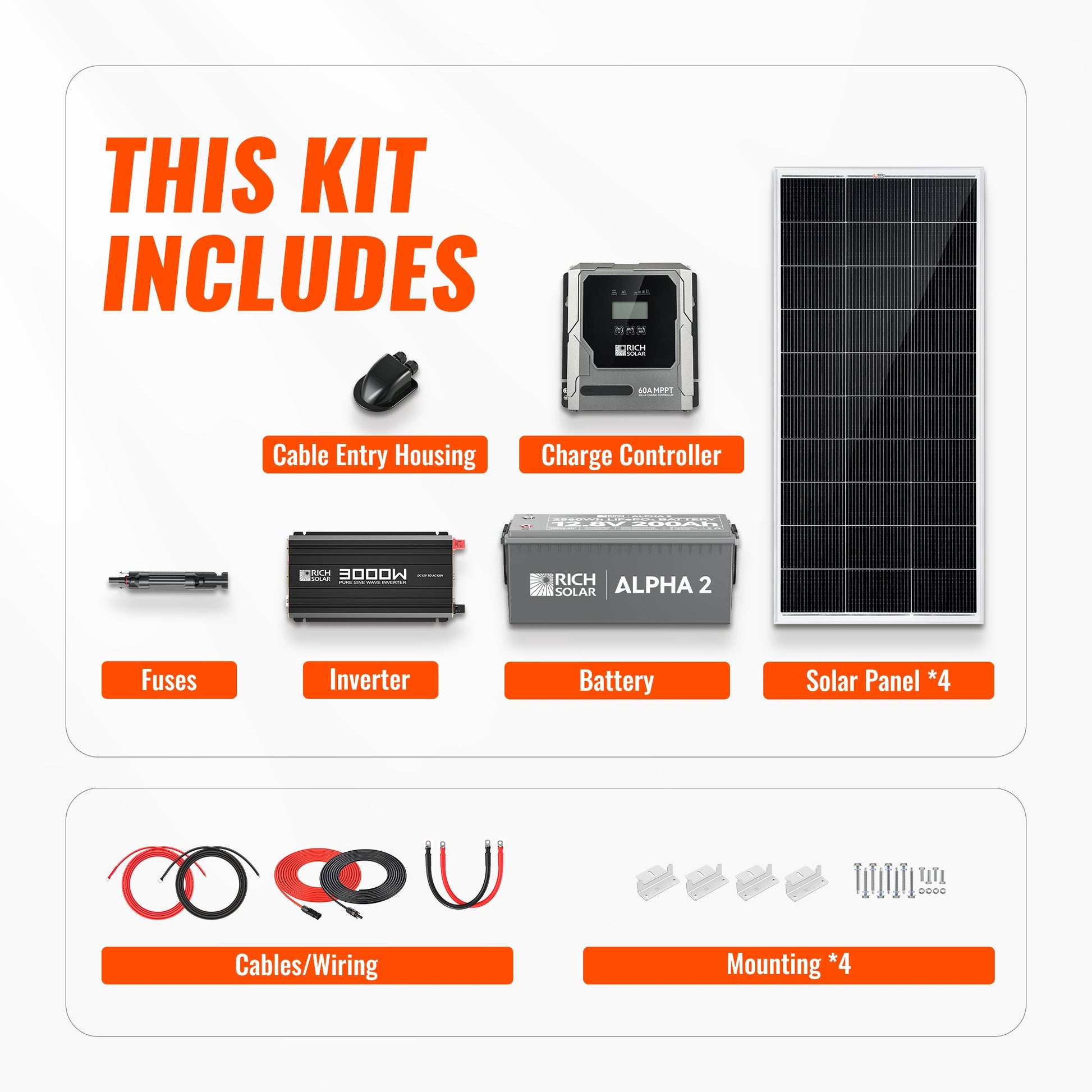

In the box
What the current product configuration includes
- 4 × MEGA 200W 12V solar panels (RS-M200)
- 1 × BRAVO 60A MPPT solar charge controller (RS-MPPT60PB)
- 1 × ALPHA 2 12V 200Ah LiFePO4 battery (RS-B122S)
- 1 × NOVA PURE 3K 12V pure sine wave inverter (RS-V3P12)
- 4 × Z-bracket sets (RS-ZB4C)
- Cable entry housing, 15A inline PV fuse holder and listed panel-to-controller and controller-to-battery cable sets
This kit is listed with the 3,000W RS-V3P12 inverter. One older RICH SOLAR marketing paragraph says 2,000W; contact Torven Power before ordering if the exact inverter revision is important to your project, and we will confirm the included model.
Product confidence
Each major component carries its own written coverage.
RICH SOLAR publishes different warranty terms for panels, batteries, controllers and inverters. Coverage length, registration, exclusions and remedies are controlled by the current manufacturer warranty for each delivered component.
Common questions
Before you build around this product
Is this a 12V or 24V kit?
RS-CK800 is a 12V battery-system kit. The included ALPHA 2 battery and NOVA PURE 3K inverter are 12V models.
Can it run an air conditioner?
Possibly, but no universal promise is safe. Verify running wattage, compressor start-up surge, desired runtime and the inverter and battery limits for the exact air conditioner.
What is not included?
Installation labor, permits and site-specific hardware beyond the published component list are not included. Additional breakers, disconnects, grounding or mounting parts may be required.
Can I add more batteries later?
Only within the battery manufacturer’s current parallel-connection rules and with matching supported batteries, protection and cabling. Review the exact battery manual before expansion.
Product Data
Technical Specifications
| Manufacturer model | Complete 800W Solar Kit with Battery & Inverter | Off-Grid Solar Power System for RVs, Vans, Cabins & Backup Power | Complete Energy Solution |
|---|---|
| Listed SKU count | 1 |
Available configurations
| Option | SKU |
|---|---|
| Single configuration | RS-CK800 |
Included major-component specifications: panel, controller, inverter, and battery ratings are shown below when those products are part of this kit. Minor cables, protection devices, connectors, and mounting hardware remain listed in the Description tab.
4 × MEGA 200 200W 12V Solar Panel (RS-M200)
| Maximum Power(Pmax) | 200W |
|---|---|
| Maximum Power Voltage(Vmp) | 18.4V |
| Maximum Power Current(Imp) | 10.9A |
| Open Circuit Voltage(Voc) | 21.8V |
| Short Circuit Current(Isc) | 11.6A |
| Temperature Range | -40 ~ +185°F |
| Maximum Series Fuse Rating | 15A |
| Weight | 24 lb |
| Dimensions | 58.7 x 26.8 x 1.2 in |
1 × BRAVO 60 60A MPPT Solar Charge Controller (RS-MPPT60PB)
Official model-family specifications are shown for the controller named by the kit SKU; confirm the delivered hardware revision before installation.
| System Nominal Voltage | 12/24V Auto |
|---|---|
| Max PV Open Circuit Voltage | 100V DC |
| Charging Technology | MPPT |
| Max PV Charging Current | 60A |
| Max. Recommended PV Input Power | 900 Watt (12V) / 1800 Watt (24V) |
| Charge Conversion Efficiency | ≤98% |
| MPPT Tracking Efficiency | >99.5% |
| Battery Type Preset | Crystal, Gel, AGM, WET, Calcium / LCO, LFP, LTO |
| Housing Case Color | Black / Grey |
| IP Grade | IP43 for Inside PCBA, IP22 for Connection Area |
| Net Weight | 1.90kg / 4.18lb |
| Dimensions (L×W×H) | 201×195×85mm (7.9×7.7×3.3in) |
1 × ALPHA 2 12V 200Ah LiFePO4 Battery (RS-B122S)
| Manufacturer model | ALPHA 2 | 12V 200Ah LiFePO4 Battery | Powerful 12V Lithium Battery for RVs, Trailers, Vans, Boats, Off-Grid | 5,000 Lifetime Cycles | Bluetooth and Internal Heat Technology |
|---|---|
| Listed SKU count | 1 |
1 × NOVA PURE 3K 3000W (3kW) 12V Industrial Pure Sine Wave Inverter (RS-V3P12)
| Model | RS-V3P12 |
|---|---|
| Rated Voltage | 12V DC |
| Continuous Power | 3000W |
| Peak Surge | 6000W |
| Waveform | Pure Sine Wave |
| Input Voltage | 12V DC |
| Output Voltage | 120V AC |
| Output Frequency | 60 Hz |
| Output Efficiency | ＞88% |
| AC Output Sockets | 3 |
| USB Power Port | 5V / 2.1A |
| Power Output Control | AC On/Off Switch |
| Operating Temperature | 14°F to 122°F |
| Dimensions | 18.7 x 9.6 x 4.0 (in) / 475 x 245 x 102 (mm) |
| Weight | 12.1 (lb) / 5.5 (kg) |
| Certifications | UL 458, CSA C22.2 |
Review the current manufacturer manual for your exact model before installation or use.
Manufacturer Documentation
Official Manuals, Specifications & Certifications
Use these current RICH SOLAR documents for installation, compatibility, limits, and revision-specific details. The delivered product label and its exact manual are the controlling sources.
Complete 800W Solar Kit with Battery & Inverter | Off-Grid Solar Power System for RVs, Vans, Cabins & Backup Power | Complete Energy SolutionDocument: RS M200 M200B 20260717 (PDF)Specification: ALPHA 2 Specifications 20250620 (PDF)Document: NOVA PURE 1K 2K 3K (PDF)Specification: RS MPPT60P Specification 250610 (PDF)Manual: ALPHA 2 Manual 240925 (PDF)Manual: RS V3P24 RS V3P12 USER MANUAL 260323 (PDF)Manual: RS MPPT60P Manual 241227 compressed (PDF)
