Quick answer
A 48V-class server-rack LiFePO4 battery is a modular DC energy-storage component—not a complete backup system. Choose one by verified voltage window, usable energy, continuous current, temperature behavior, inverter communication, rack fit and installation rating. Then use only the exact matching modules and connection method the manufacturers approve.
Most current rack batteries in this comparison are 51.2V, 100Ah and 5.12kWh nominal. The legacy RICH SOLAR ALPHA 5 is 48V, 100Ah and 4.8kWh, so its charger settings and bank design should not be copied from a 51.2V model.
Quick selector: start with the installation constraint
Climate-controlled room
A non-heated indoor model can be appropriate when the documented charging-temperature range is maintained.
Cold, protected space
Compare exact heater logic and charger requirements. A heater does not make an IP20 battery weatherproof.
Existing 48V equipment
Match the inverter's full battery-voltage and charge window. “48V-class” on a label is not enough.
Closed-loop communication
Verify protocol, port, pinout, firmware and settings for the exact battery-and-inverter pair.
The six specifications that decide whether a rack battery fits
The familiar “51.2V 100Ah” label answers only part of the question. Read the six checks below as a compatibility stack: every layer must work in the same system.
Nominal energy is voltage multiplied by amp-hours. A 51.2V, 100Ah module is 5,120Wh, or 5.12kWh nominal. It is not a promise of 5.12kWh at the AC outlets: reserve settings, BMS limits, inverter losses, wiring losses, temperature and load all affect delivered energy.
Current is a separate limit. Two batteries can hold the same 5.12kWh yet have different allowed charge current, heater behavior or short-duration output. The inverter's DC demand must stay inside the approved battery-bank, conductor, busbar and protection limits.
48V and 51.2V are not automatically interchangeable
“48V battery” is often used as a broad market category. In this catalog, however, the legacy RICH SOLAR ALPHA 5 is rated 48V and 4.8kWh, while the ALPHA 5 PRO is rated 51.2V and 5.12kWh. Their published charging windows and platform documentation are different.
| Concrete example | Legacy ALPHA 5 | ALPHA 5 PRO |
|---|---|---|
| Nominal platform | 48V, 100Ah | 51.2V, 100Ah |
| Nominal energy | 4.8kWh | 5.12kWh |
| Published charge setting | 52.0–52.5V on the current official product page | Use the PRO manual and inverter protocol file |
| Bank rule | Do not mix the two. Treat each as a separate platform unless the manufacturers expressly document an exact configuration. | |
How many 5.12kWh server-rack batteries do you need?
Size energy first, then perform a separate current check. This prevents a common mistake: selecting enough kWh for runtime while leaving too little BMS output for the inverter.
Required nominal bank kWh = critical-load kWh ÷ usable fraction ÷ AC-system efficiency
Then add any planning reserve and round up to a permitted number of matching modules.
Worked energy example
Critical loads require 8.0kWh. Planning assumptions: 90% usable fraction and 90% system efficiency.
8.0 ÷ 0.90 ÷ 0.90 = 9.88kWh nominal
Two matching 5.12kWh modules provide 10.24kWh nominal, before any additional reserve. That is a planning result—not confirmation that two modules meet the inverter's output, surge, temperature or communication requirements.
Current check
Ideal DC current = inverter AC watts ÷ nominal battery voltage
Example: 5,000W ÷ 51.2V = 97.7A before conversion and wiring losses. Actual battery current is higher, and surge is a separate check. A single 100A-continuous battery would leave little planning margin in that simplified example.
Parallel modules can increase the bank's available current only when the exact model, BMS architecture, connection topology and manufacturer instructions support it. Do not assume perfect current sharing, multiply a nameplate limit blindly or use an unsupported module count.
If the critical-load number is still unknown, use the home battery backup sizing guide to build the load list and outage-duration target before choosing a module count.
5.12kWh modular capacity ladder
Nominal totals for matching 5.12kWh modules only. They do not apply to the 4.8kWh legacy ALPHA 5. Usable AC energy is lower, and every model has its own approved parallel limit.
Sizing worksheet
| Planning input | Your figure | How to use it |
|---|---|---|
| Critical-load energy | ________ kWh | Measured or calculated watts × hours |
| Planned usable fraction | ________ % | Use the exact manual/settings; do not assume 100% |
| Estimated system efficiency | ________ % | Account for DC-to-AC and wiring losses |
| Nominal capacity result | ________ kWh | Energy ÷ usable fraction ÷ efficiency |
| Maximum simultaneous AC load | ________ W | Check inverter and bank continuous power |
| Largest startup event | ________ W / sec | Check battery, inverter and protection behavior |
| Approved matching module count | ________ | Round up, then verify every remaining compatibility layer |
Current Torven 48V-class server-rack battery comparison
This is a specification comparison, not a hands-on ranking. Facts below were checked against current Torven listings and manufacturer materials in August 2026. Product revisions, firmware, accessories and warranty terms can change; confirm the delivered unit and its current documents before design or purchase.
| Current model | Nominal energy | Published current | Heat / location | Communication / expansion | Size, weight, warranty |
|---|---|---|---|---|---|
|
RICH SOLAR ALPHA 5 PRO 3U |
51.2V, 100Ah 5.12kWh |
100A max charge 100A max continuous discharge |
No integrated heater stated; charging protection below 32°F (0°C). Ingress rating not stated in the current verified specification, so plan a protected indoor location. | CAN/RS485 to inverter; RS232 and monitoring functions listed. The current specification states up to 15 matching units in parallel; manual wording differs, so confirm the supported count for the delivered revision. No series. | 17.7 × 17.8 × 5.2 in 99.2–100.9 lb across current manufacturer materials 10-year warranty listed |
|
SOK SK48V100N 3U |
51.2V, 100Ah 5.12kWh |
50A recommended charge; maximum charge differs between current official documents—verify the delivered revision 100A continuous discharge |
100W built-in heater IP20 indoor module |
CAN/RS485, Bluetooth/OTA, pre-charge circuit. The current exact-model manual publishes up to 48 matching units in parallel and prohibits series; confirm the inverter profile. | 19.14 × 16.95 × 5.22 in and 100 lb in the newer specification; exact-model manual differs 7-year warranty listed |
|
Epoch SR48100H 3U |
51.2V, 100Ah 5.12kWh |
70A max charge 100A continuous discharge |
Self-heating IP20, protected dry location |
CAN/RS485. Current manufacturer materials publish up to 32 matching batteries in parallel; parallel only, no series. | 17.4 × 18.1 × 5.2 in 101 lb 11-year warranty listed |
|
RUiXU RX-LFP48100 3U |
51.2V, 100Ah 5.12kWh |
50A recommended; 70A max charge 100A max discharge |
Non-heated IP20 indoor module |
CAN/RS485. Current manufacturer page publishes up to 32 matching units in parallel. | about 18.9 × 18.1 × 5.2 in 101–103.6 lb across current materials 10-year warranty listed |
|
RUiXU RX-LFP48100-H 3U |
51.2V, 100Ah 5.12kWh |
50A recommended; 70A max charge 100A max discharge |
480W integrated heater; starts at or below 41°F (5°C), stops at or above 53.6°F (12°C) IP20 indoor module |
CAN/RS485. Current manufacturer page publishes up to 32 matching units in parallel. | about 18.9 × 18.1 × 5.2 in 101–103.6 lb across current materials 10-year warranty listed |
|
RICH SOLAR ALPHA 5 Legacy 3U platform |
48V, 100Ah 4.8kWh |
100A maximum charge 100A continuous discharge on current official page |
No integrated heater stated Protected indoor installation; verify delivered-revision documents |
RS485/RS232/CAN listed. A current maximum parallel count is not stated on the verified product page; follow the exact manual. | 19 × 17.7 × 5.2 in 92.6 lb 5-year warranty listed |
Dimensions are presented as published and should not be treated as a cabinet order drawing. Verify orientation, rail/shelf requirements, connector clearance and the latest mechanical drawing. Warranty coverage is subject to each manufacturer's terms, exclusions and any registration requirements.
Current product paths
Self-heating battery or climate-controlled room?
LiFePO4 charging at low cell temperature requires protection. There are two common ways to stay inside the manual: keep the installation within its permitted temperature range, or select a battery whose documented heater behavior fits the environment and charging source.
Self-heating module
The BMS/heater follows model-specific start, stop and power-source conditions before or during charging. The SOK page publishes a 100W heater; RUiXU publishes 480W with specific thresholds; Epoch identifies the SR48100H as self-heating.
Still required: protected installation, enough charger power, clearances and the exact temperature instructions.
Non-heated module
A temperature-controlled battery room can keep a non-heated module inside its documented charging range without asking the battery to warm itself.
Still required: reliable environmental control and a plan for what happens when building heat or power is unavailable.
CAN, RS485 and closed-loop inverter communication
CAN and RS485 name physical communication families; they do not create a universal battery language. Two products may have RJ45-style sockets and still use different pins, protocols, baud rates or master-device rules.
The inverter must support the exact battery protocol selected in both devices.
Use the specified port and pin mapping—not any convenient network patch cable.
DIP switches or software IDs can identify modules and the master battery.
Battery-to-battery links can differ from the battery-to-inverter connection.
The first/last module and termination rules must match the manual.
A listed pairing can still require minimum firmware or a specific battery type code.
If closed-loop communication is unavailable, do not invent voltage settings. Use open-loop operation only when both manufacturers document it and a qualified designer applies the exact charge, discharge and cutoff values.
Start from the battery manual, inverter manual and both manufacturers' current compatibility materials. The hybrid inverter collection is a shopping starting point—not a declaration that every listed inverter supports every rack battery.
Rack, cabinet, busbar and cable planning
A 3U label describes nominal rack height—three rack units, about 5.25 inches—not the complete installation envelope. Current manufacturer materials for the modules compared here span roughly 93–106 pounds each, with some revision conflicts. A six-module bank can exceed 550 pounds before the cabinet, shelves, busbars or conductors are counted.
| Plan item | What to verify | Why it changes the system design |
|---|---|---|
| Rack/cabinet | 19-inch fit, usable U-space, rated static load, rail or shelf support, anchoring and floor loading | A nominal 3U faceplate does not prove depth, connector or weight compatibility |
| Service space | Door swing, breaker/terminal access, cable-bend radius, ventilation and removal path | A module must be connectable, inspectable and safely replaceable |
| Busbars | DC voltage, continuous/fault current, connection count, covers and mounting | The bank's combined current can exceed one module's rating |
| Branch conductors | Equal electrical path where required, ampacity, insulation, temperature, routing, lugs and torque | Unequal paths can contribute to unequal sharing; undersized conductors can overheat |
| Protection | Manufacturer-required branch protection, main disconnect, interrupt rating and coordination | A BMS does not automatically replace every required disconnect or overcurrent device |
| Communication harness | Port purpose, cable pinout, master/secondary order, termination and separation from power wiring | The wrong harness can prevent closed-loop control even when DC voltage is present |
Parallel-bank rules
- Use the same exact manufacturer model and follow its permitted age, state-of-charge and firmware requirements.
- Equalize module state of charge only by the documented procedure before paralleling.
- Follow the specified positive/negative topology, branch length, busbar connection and power-up order.
- Assign addresses and master/secondary roles exactly as the communication manual shows.
- Never assume the maximum published quantity is appropriate for the selected inverter, cabinet, busbar or site.
- Do not connect these rack modules in series unless the exact manufacturer documentation expressly allows it; the models with verified instructions here prohibit series connection.

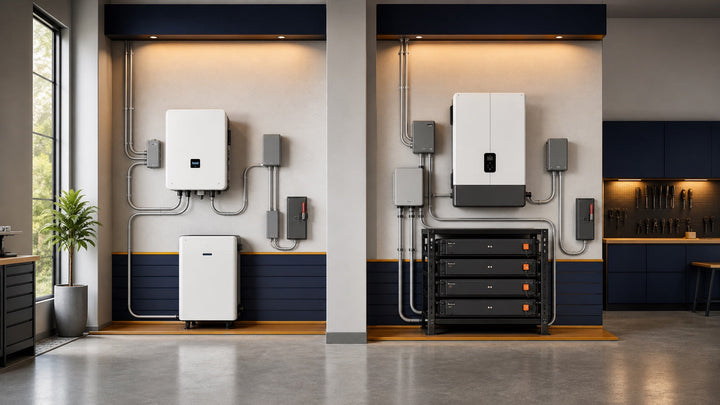

Server-rack versus wall-mounted solar batteries
Server-rack modules
Useful when: stepwise capacity, front service access and a cabinet-based layout fit the project.
Plan for: rack load, shelves/rails, multiple DC branches, busbars, protection, addressing and more connection points.
Compare server-rack batteries →Wall-mounted batteries
Useful when: fewer, larger enclosures and a wall-based footprint fit the project.
Plan for: wall structure, lifting/handling, mounting hardware, clearances, wiring access and exact inverter communication.
Compare wall-mounted batteries →Neither form factor is inherently more compatible or safer. Compare the exact equipment, installation environment and service plan.
Pre-purchase checklist
- Critical-load kWh and reserve
- Maximum simultaneous watts and surge
- Exact battery voltage/charge window
- Continuous charge/discharge current
- Approved matching module count
- CAN/RS485 protocol and pinout
- Firmware and inverter setting code
- Temperature and heater behavior
- Ingress rating and indoor location
- Rack depth, U-space and total weight
- Busbars, cables and protection design
- Current manuals, warranty and permits
Turn the guide into a load plan
Estimate the energy and power your critical loads actually need.
Use the result to shortlist capacity—then verify current, voltage, communication and installation details with the exact manuals.
Open the Power PlannerCompare current modelsFrequently asked questions
How many 5.12kWh server-rack batteries do I need for backup power?
Divide the critical-load energy by the planned usable fraction and system efficiency, add reserve, then divide by 5.12kWh and round up. After the energy calculation, confirm the matching modules can collectively supply the inverter's continuous current and surge under the manufacturer's approved parallel architecture.
Is a 48V rack battery the same as a 51.2V rack battery?
No. “48V” is often used as a category name, but exact nominal voltage, charge range and cutoff settings differ. The legacy ALPHA 5 in this guide is 48V/4.8kWh; the ALPHA 5 PRO and the other current modules compared are 51.2V/5.12kWh.
Can I mix different brands or models in one battery bank?
Do not mix them unless the manufacturers expressly document the exact configuration. Differences in cell count, voltage curve, BMS logic, state of charge, age, firmware, current limits and communication can make a mixed bank unsafe or unreliable.
Will any CAN or RS485 battery communicate with any inverter?
No. The exact protocol, connector pinout, port, addressing, termination, firmware and settings must match. A shared connector shape or the words “CAN/RS485” do not establish compatibility.
Do server-rack LiFePO4 batteries need heating?
They need to remain inside their documented charging-temperature range. A heater may help in a cold protected space if its power and operating logic suit the system. A climate-controlled room may be the better approach for a non-heated module. Follow the exact manual.
Can an IP20 rack battery be installed outside?
Not as an exposed outdoor installation. IP20 does not provide water protection. A separate enclosure does not automatically solve temperature, condensation, ventilation, access or code requirements, so use only a manufacturer-approved installation design.
Do I need a cabinet, busbar, disconnect and separate inverter?
You need a complete system architecture, but the exact components depend on the battery, module count and inverter. A rack or cabinet, busbars, branch protection, a main disconnect, communication harnesses and a separate inverter/charger are common. Confirm what is included and what the manuals require.
What is the difference between server-rack and wall-mounted batteries?
Rack batteries divide capacity into smaller modules installed in a rack or cabinet; wall batteries often place more capacity in fewer enclosures. Rack systems can support stepwise expansion and module-level service, while wall systems can reduce floor-space use and connection count. The exact products and installation matter more than the form-factor label.
Official sources and further reading
- SOK SK48V100N official product specifications
- SOK SK48V100N official specification sheet (PDF linked from SOK)
- SOK SK48V100N exact-model manual (linked by SOK)
- RICH SOLAR ALPHA 5 PRO specifications and downloads
- RICH SOLAR legacy ALPHA 5 official specifications
- RUiXU RX-LFP48100 official specifications and manuals
- RUiXU RX-LFP48100-H official self-heating specifications
- Epoch official SR48100H manuals, datasheet and safety resources
- U.S. Department of Energy: Solar Energy and Storage Basics
Last reviewed August 2026. Catalog and manual claims were checked against the pages linked above; this is a published-specification comparison, not a laboratory or hands-on test. Product revisions can change. This guide provides planning information, not a final electrical design. Follow the current battery and inverter manuals, manufacturer compatibility guidance and applicable codes.
