RUiXU RX-LFP48100-H 5.12kWh Self-Heating LiFePO4 Server Rack Battery
RUiXU RX-LFP48100-H 5.12kWh Self-Heating LiFePO4 Server Rack Battery
SKU: RUIXU-RX-LFP48100-H
- Regular price
- $1,099.00
- Regular price
- Sale price
- $1,099.00
- Unit price
- per
Couldn't load pickup availability
In stock — available to order
- Free standard shipping on eligible Lower-48 orders. See shipping details
- 30-day return requests for eligible items after delivery. Review the return policy
- Price Match Guarantee for qualifying identical offers. Check eligibility
- Warranty information is listed in this product's details.
Need help before ordering?
Call 888-495-5870
Contact our support team

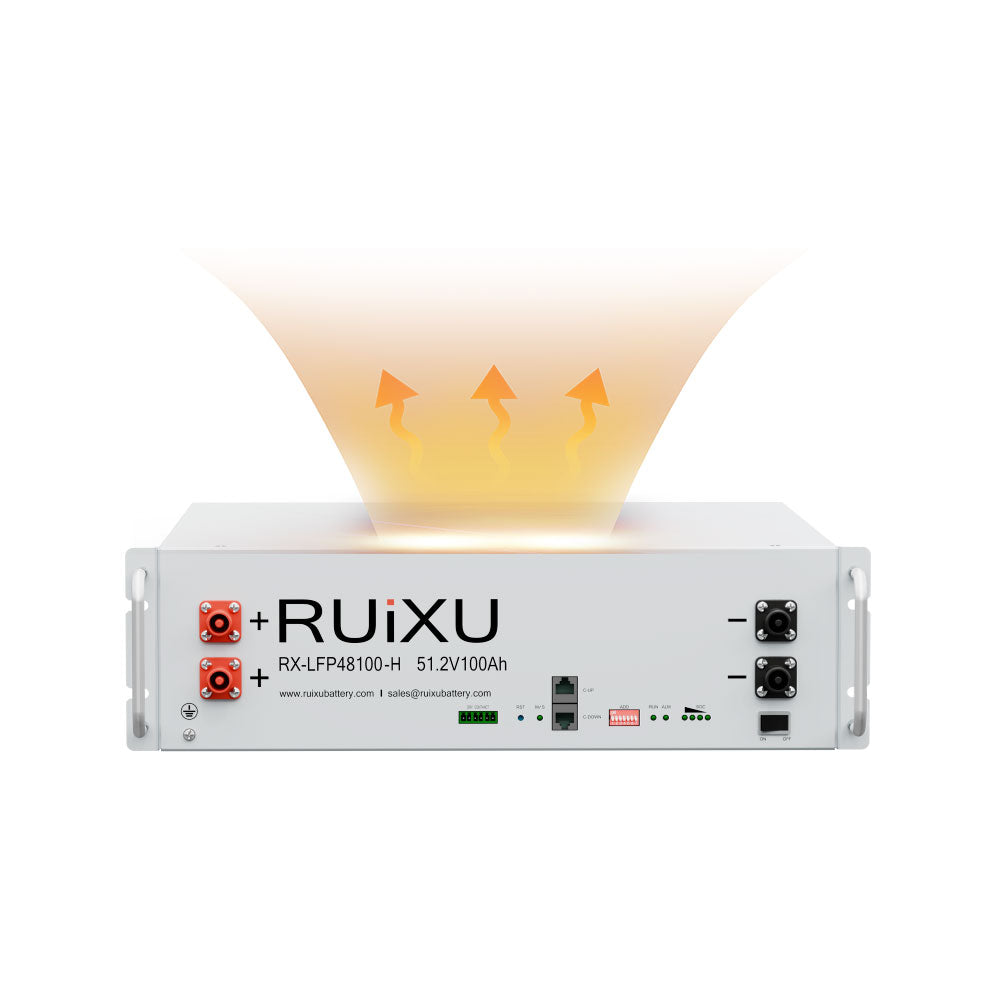

5.12kWh self-heating 3U server-rack battery
Keep modular 48V storage charging when the battery room gets cold.
The RUiXU RX-LFP48100-H stores 5.12kWh at 51.2V and 100Ah in a compact 3U LiFePO4 module with integrated self-heating. It is built for expandable home-backup and off-grid banks that need supported inverter communication plus a deliberate low-temperature charging strategy.
At a glance
The numbers that shape the system decision
5.12kWhNominal energy
51.2V / 100AhBattery platform
480WIntegrated heater

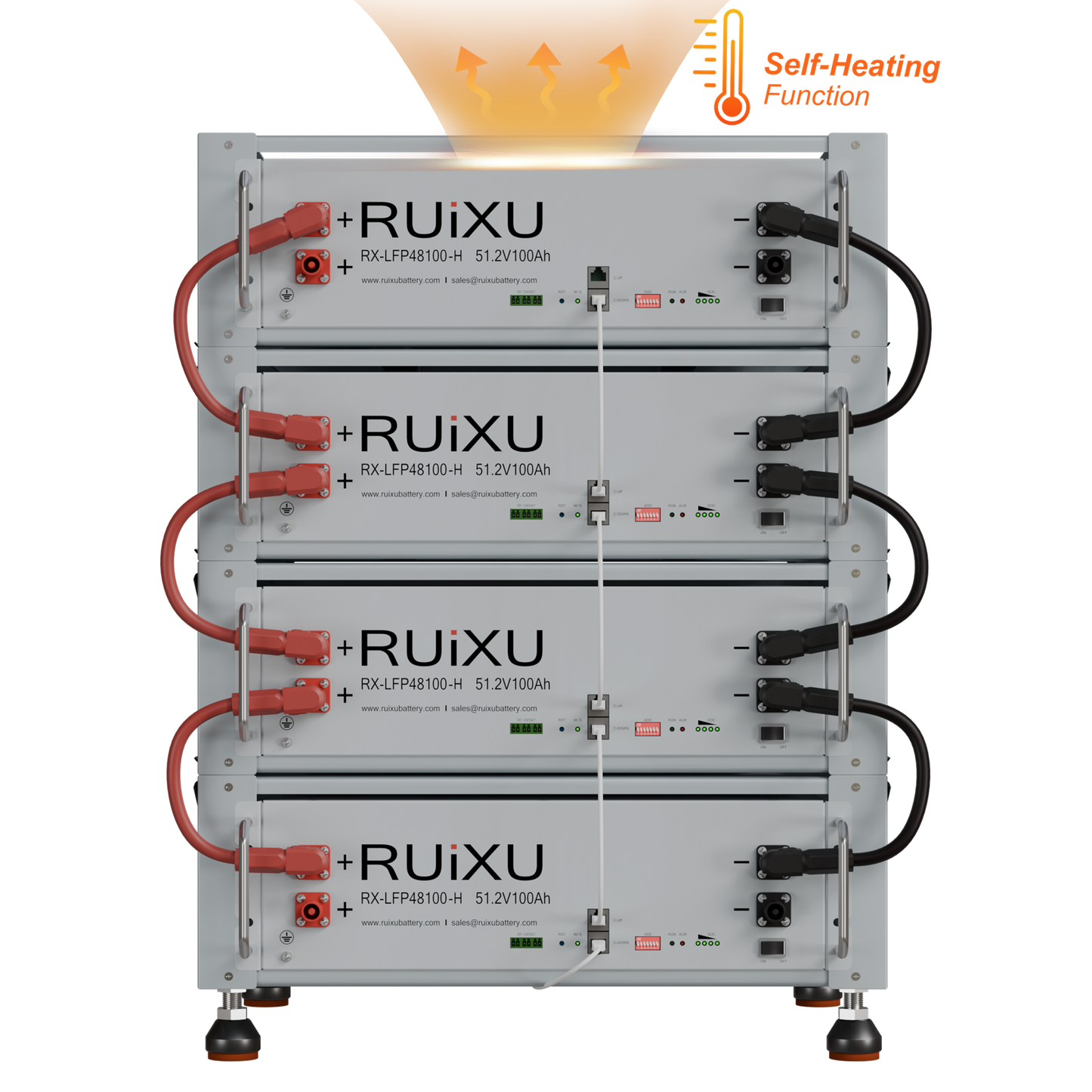

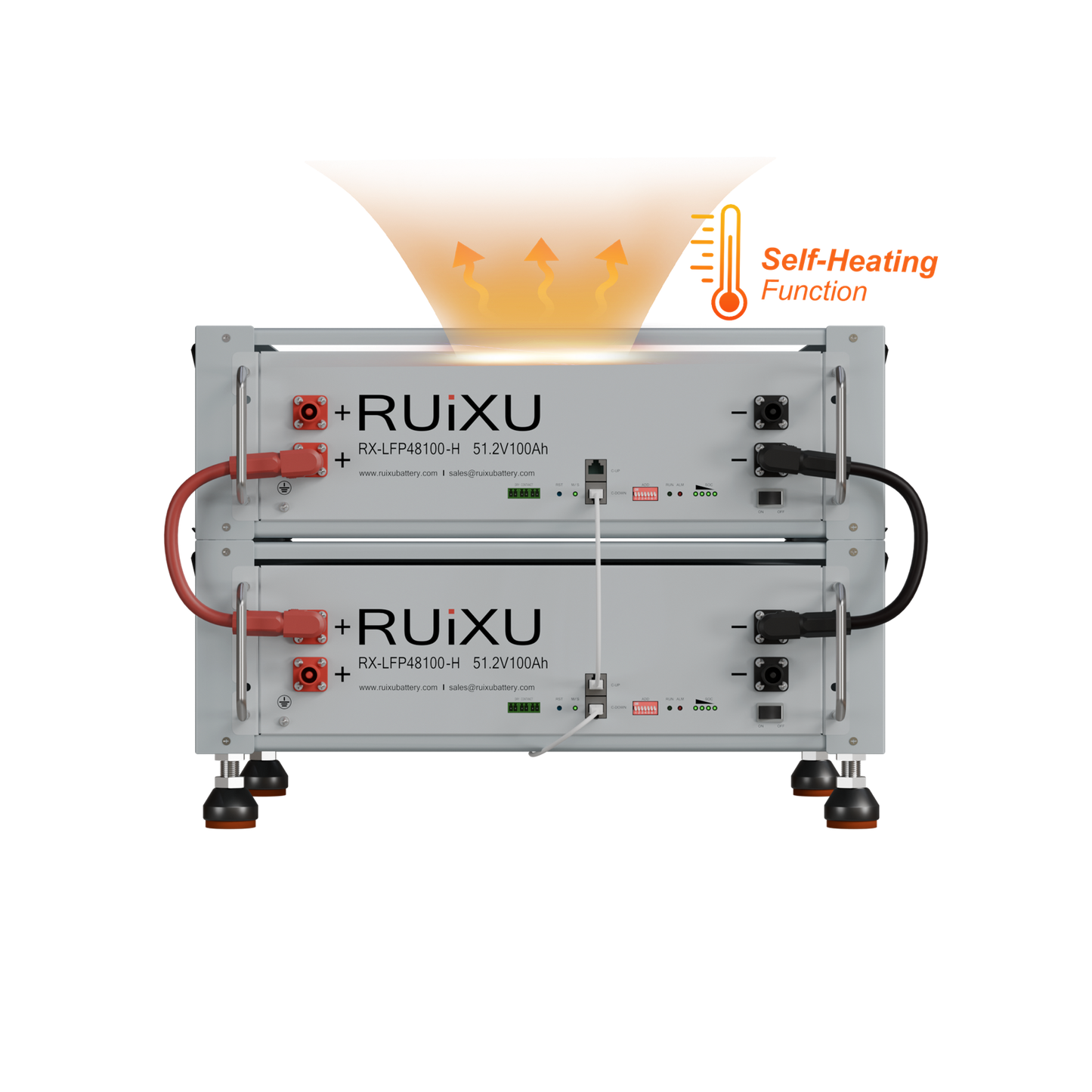

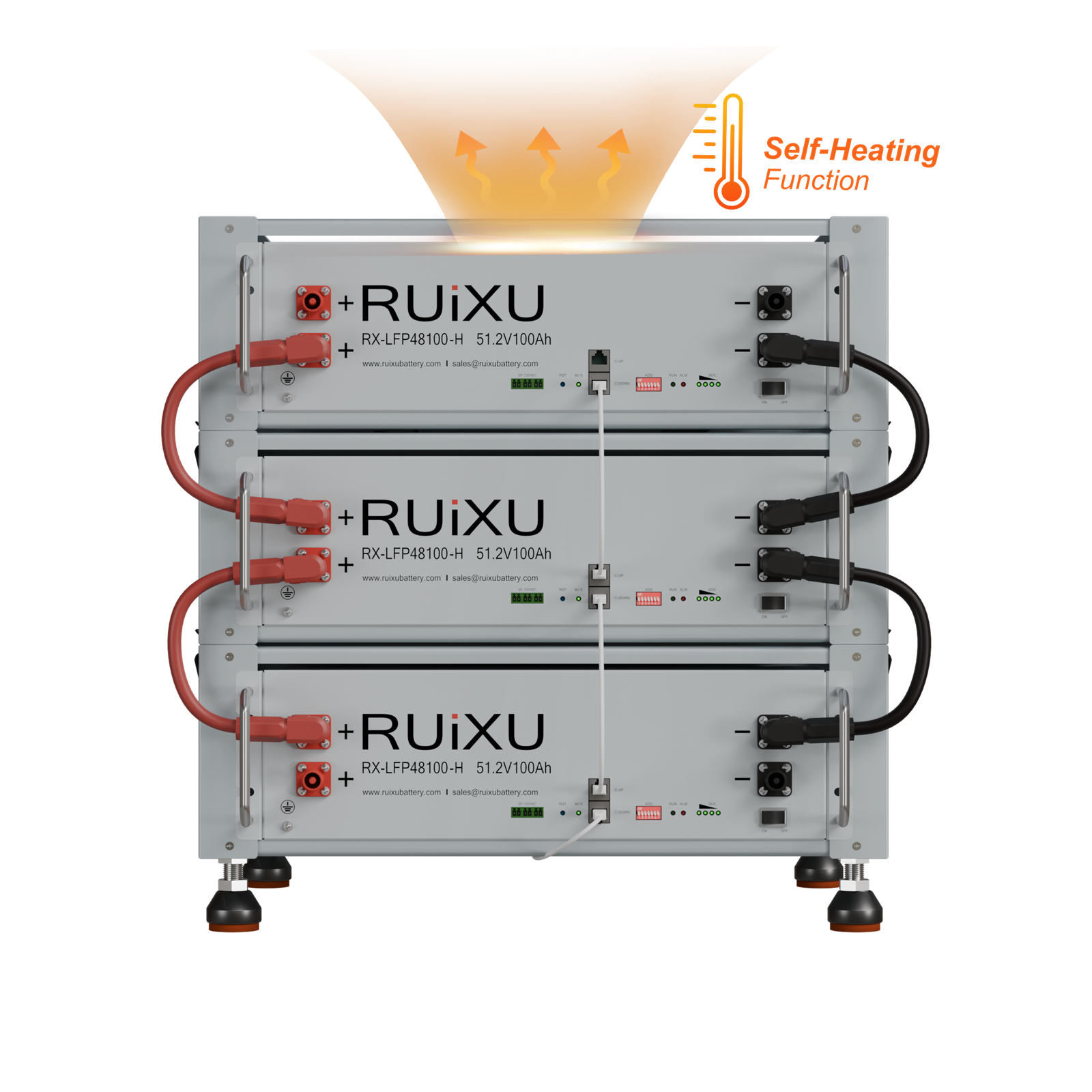

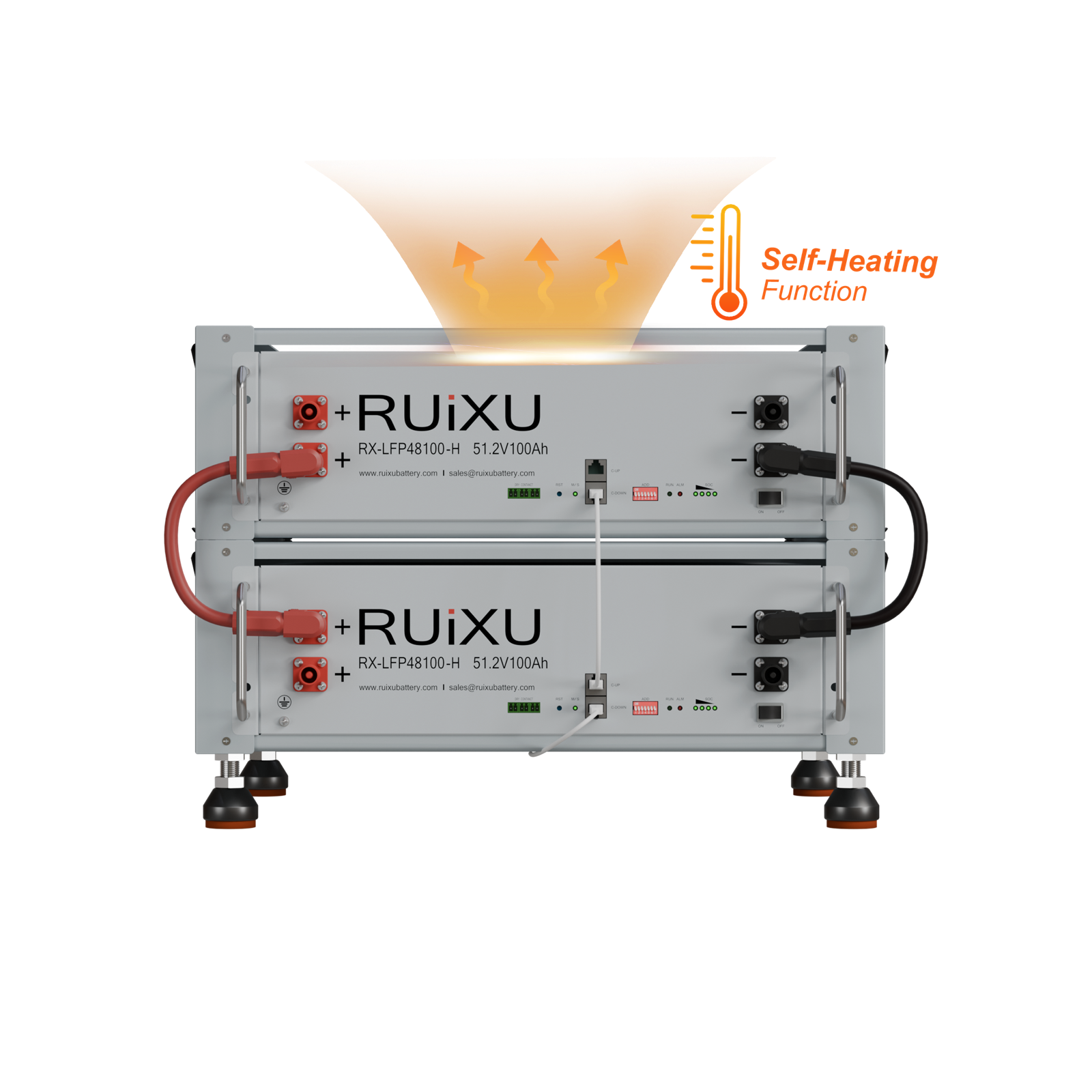

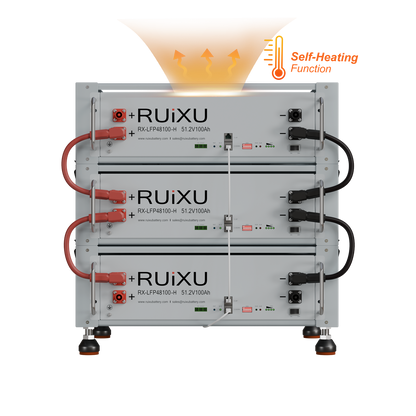

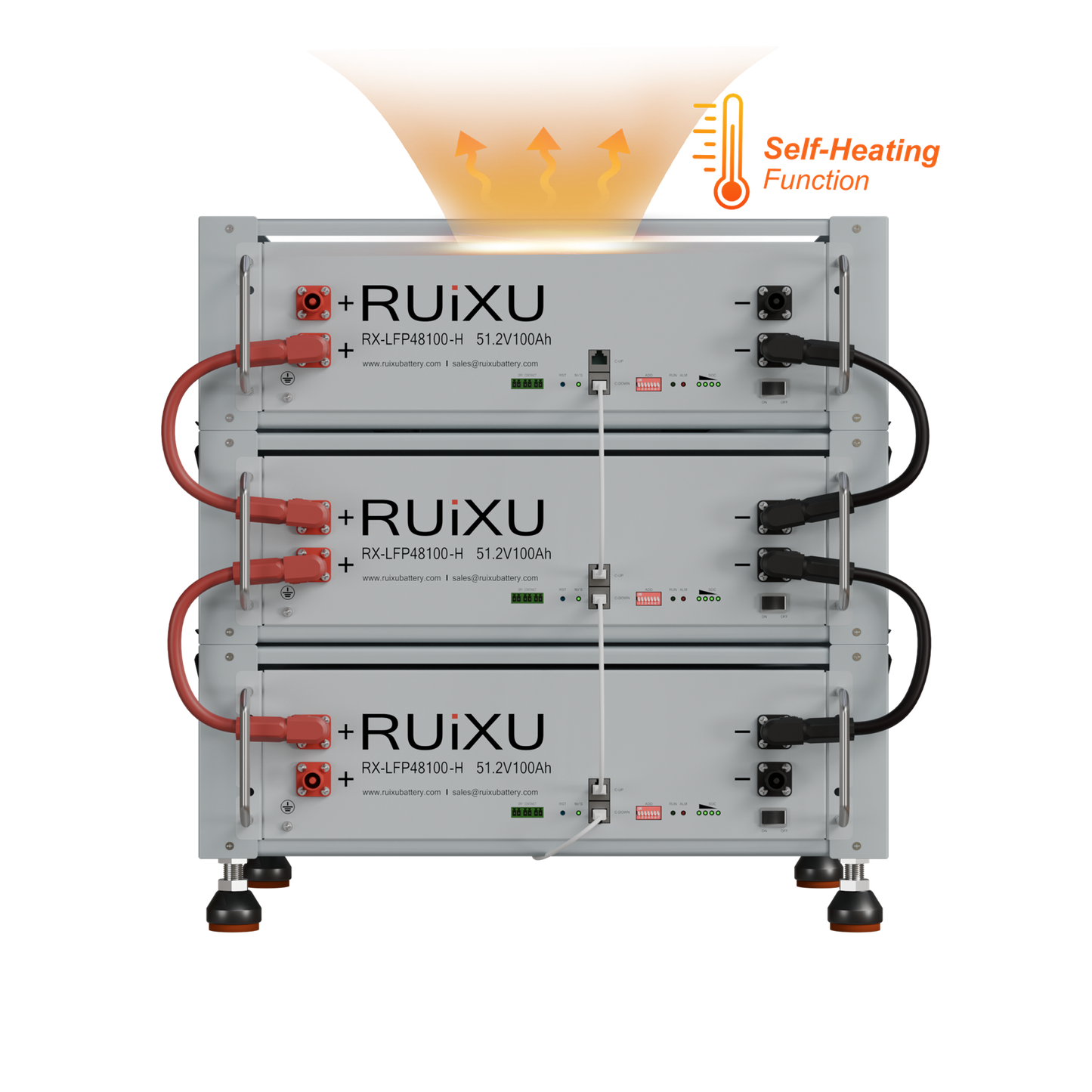

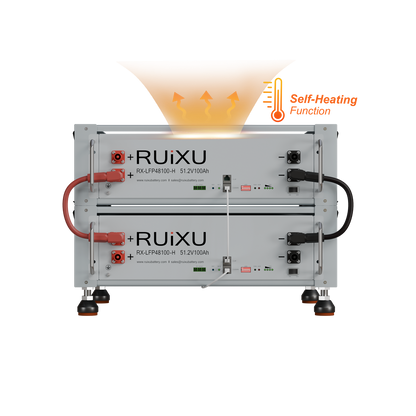

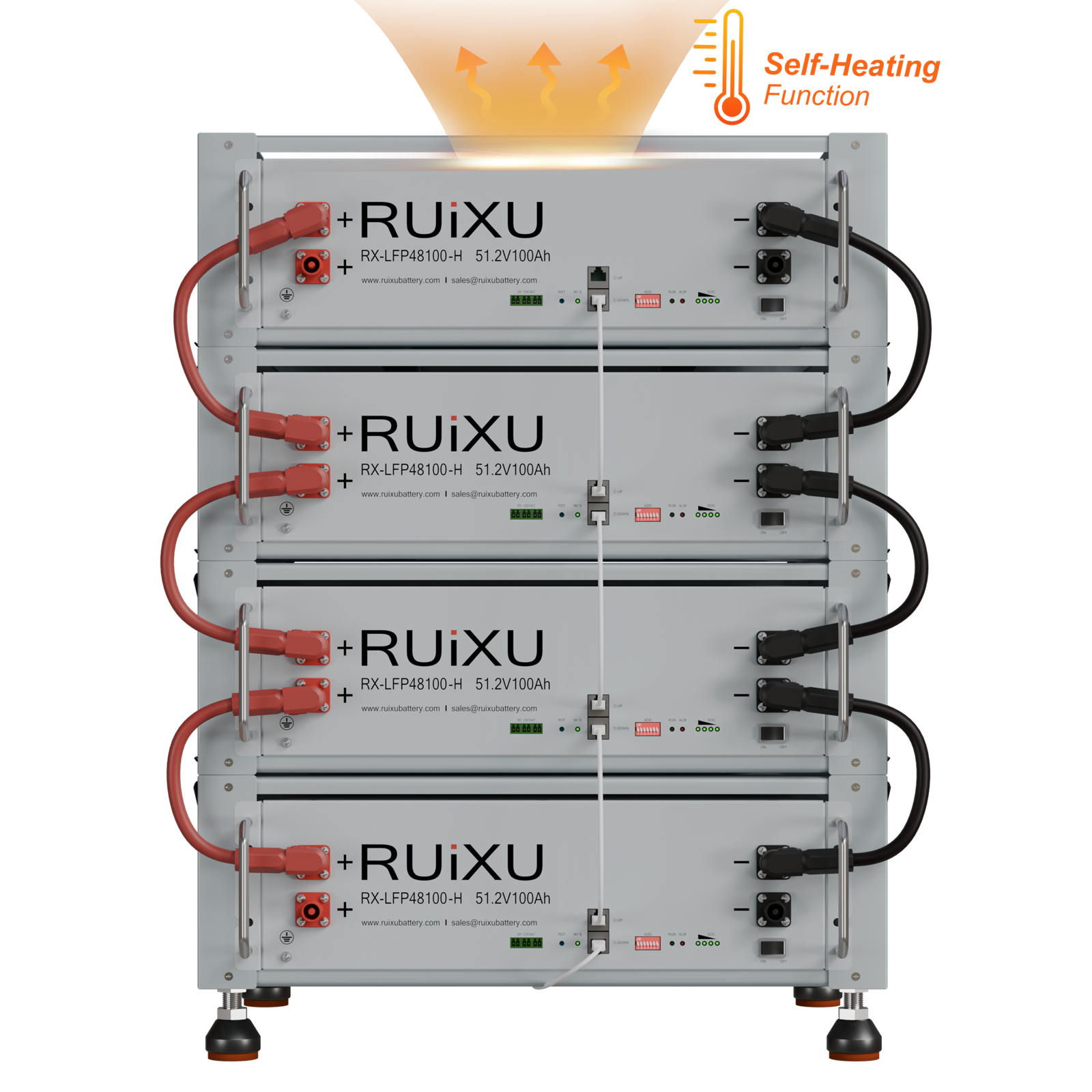

32 unitsParallel support, up to
Self-heating protects charging—it does not make the battery weatherproof
RUiXU lists an IP20 enclosure for indoor use. The heater draws from the charger and must operate within the specified temperature and charging conditions; do not expose the module to rain or outdoor moisture.
System fit
Confirm heater power, inverter protocol and indoor environment.
Verify 51.2V-class inverter compatibility, communication protocol, recommended charge/discharge settings, cold-temperature operation, battery count, cable architecture and protection. RUiXU lists approximately 103.6 lb per module and dimensions near 19 × 18.1 × 5.23 in.
Cold-weather chargingRUiXU states the heater can support charging down to -20°C (-4°F) when charger power and operating conditions meet its requirements.
Indoor installationIP20 means a dry, protected, ventilated location with adequate rack support and service clearances.
In the box
What this listing includes
- One RUiXU RX-LFP48100-H battery module
- One RJ45/CAT5e patch cable
- One ground cable
- One set of parallel 4 AWG battery cables
Installation materials, protection devices and other balance-of-system components are separate unless explicitly listed above.
Product confidence
10-year RUiXU battery warranty
RUiXU lists a 10-year warranty for its branded batteries, including the RX-LFP48100-H. Coverage, exclusions and remedies are governed by RUiXU’s current written warranty and require proof of purchase.
Common questions
RUiXU RX-LFP48100-H FAQ
What is the difference from RX-LFP48100?
The H model adds integrated self-heating for supported low-temperature charging; both use the 51.2V, 100Ah, 3U platform.
Can it charge below freezing?
RUiXU states it can safely charge down to -20°C (-4°F) using heater power from a charger, provided the full installation and settings follow current instructions.
Can I mix heated and non-heated modules?
Do not assume mixed-bank compatibility. Ask RUiXU or Torven to confirm exact models, firmware, current sharing and commissioning before combining batteries.
Can I mount it outdoors?
No. RUiXU lists IP20; install it in a dry, protected indoor enclosure or battery room.
Product Data
Technical Specifications
| Specification | Details |
|---|---|
| Product detail | Heater starts at 5 C or below and stops at 12 C or above |
| Recommended charge/discharge current | 50A |
| Maximum charge current | 70A; maximum discharge current: 100A |
| Cycle life | 6,000+ cycles at 90% DOD |
| Dimensions | 18.9 x 5.2 x 18.1 in; weight: approximately 103.6 lb |
| Enclosure | IP20; indoor use |
