Quick answer
For a measured lower-power 120V system around 3kW, a 24V hybrid inverter can be a practical fit. For higher continuous output, larger solar-plus-storage systems or whole-home-style backup, 48V is usually the better starting point because the same power requires roughly half the ideal battery current.
That rule does not choose the inverter by itself. Your simultaneous watts, startup surge, 120V versus 120/240V loads, battery discharge limits, PV voltage window, charging sources, system mode, certifications and exact model revision can override it.
A “48V inverter” describes its nominal battery platform—not automatically its AC output. Some 48V models output only 120V; others natively provide 120/240V split phase.
Start with watts, watt-hours and surge—not the voltage label
A 24V vs. 48V hybrid inverter comparison is useful only after the loads are defined. Record three different requirements:
Continuous power
Simultaneous running watts
Determines whether the inverter can operate the planned loads at the same time.
Starting power
Largest overlapping surge
Motors, pumps, compressors and tools may briefly draw far more than their running watts.
Stored energy
Watt-hours over time
Determines battery runtime. A larger inverter does not create more stored energy.
Load energy (Wh) = average watts × operating hours
Add each load. Use measured energy and real startup data when possible, then choose the outage-duration target.
A refrigerator may cycle rather than draw its nameplate power continuously. A well pump may run only a few minutes per hour but create a large starting event. Separate those facts before shopping. The Torven Power Planner can organize the load list, while the home battery-backup sizing guide covers the energy calculation in more detail.
What changes when you move from 24V to 48V?
For direct-current power, the ideal relationship is:
Power (W) = voltage (V) × current (A)
Ideal current (A) = power (W) ÷ nominal battery voltage (V)
At the same power, doubling nominal bank voltage halves the ideal current. Real battery current is higher because the inverter is not 100% efficient and because battery voltage changes with state of charge and load.

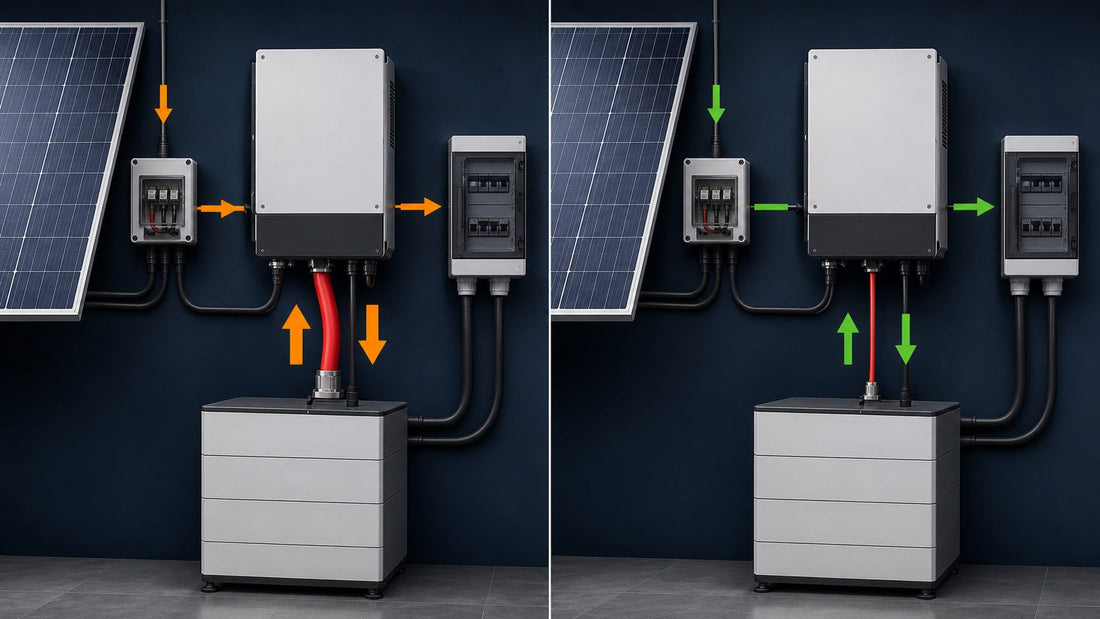

CSS-native visual · same 3,000W output, different DC current
24V battery path
3,000W ÷ 24V = 125A
Ideal current before conversion loss
48V battery path
3,000W ÷ 48V = 62.5A
Ideal current before conversion loss
The bar lengths compare current, not conductor size. Final ampacity, voltage-drop and protection calculations must use the actual equipment, conductor method, temperature and applicable code.
Worked example with an efficiency assumption
For an illustrative 3,000W AC load and a 90% inverter-efficiency assumption:
24V estimate
3,000 ÷ (24 × 0.90) = 138.9A
About 14A above the ideal calculation.
48V estimate
3,000 ÷ (48 × 0.90) = 69.4A
Still about half the 24V estimate.
These are teaching calculations—not conductor, fuse or battery recommendations. An inverter manual may specify a maximum DC current, minimum battery capacity, conductor range, torque, fuse class and disconnect arrangement. A battery's BMS must support both continuous current and surge without excessive voltage sag.
Why current affects loss and hardware
Resistive conductor loss follows Ploss = I²R. If the same 0.01Ω total circuit resistance were used only as an illustration, 125A would produce about 156W of resistive loss, while 62.5A would produce about 39W. Real systems will not necessarily use the same conductor or have the same resistance, so this example explains the direction of the effect—not a design result.
Higher current can affect the required BMS capability, busbars, cable size, lugs, disconnects, overcurrent protection, heat management and acceptable run length. It does not mean that every 48V inverter is more efficient than every 24V inverter; compare each model's efficiency curve and idle consumption at the expected load.
24V vs. 48V hybrid inverter comparison
| Decision factor | 24V platform | 48V platform |
|---|---|---|
| Useful starting range | Measured lower-power systems; a 3kW-class 120V design can be a reasonable candidate | Higher continuous output, larger battery banks and many split-phase/whole-home platforms |
| Ideal current at 3,000W | 125A before losses | 62.5A before losses |
| DC hardware pressure | Higher current for the same power can make BMS, conductor and protection constraints more demanding | Lower current for the same power can make higher-output designs more practical |
| Battery construction | Use a manufacturer-approved nominal 24V bank; do not improvise mixed batteries | Use a manufacturer-approved nominal 48V/51.2V platform inside the inverter's specified range |
| 120/240V output | Possible only when the exact inverter/system architecture explicitly supports it; many compact models are 120V only | More native split-phase choices, but many 48V models are still 120V only |
| PV input | Determined by the exact MPPT voltage/current window—not by battery voltage alone | Also model-specific; a 48V battery platform does not imply a 48V PV string |
| Best reason to choose it | The complete measured design fits a current, surge and 120V requirement without unnecessary platform change | The design needs more output/current headroom, a larger modular bank or a native split-phase model |
Do you need 120V or 120/240V split phase?
Battery voltage and AC output voltage are separate. A hybrid inverter may use a nominal 48V battery while producing 120V AC, or it may produce U.S.-style 120/240V split phase. Read the output architecture—not just the battery label.
CSS-native visual · U.S. 120/240V split phase
Hot leg 1
to neutral
Neutral
Hot leg 2
to neutral
Neutral
A 120V-only inverter provides neither the second opposing hot leg nor native 240V by itself.
Inventory loads by voltage before choosing
Common 120V loads include refrigerators, receptacles, lighting, internet equipment and many small appliances. Well pumps, central HVAC, electric dryers, ranges, shop equipment and EV charging may require 240V. Confirm the nameplate of each critical load; do not infer voltage from appliance type alone.
A single 120V inverter does not become split phase because it is connected to a 48V battery. Some products support a manufacturer-defined paired or parallel arrangement, but that requires the exact approved models, firmware, communications, phase configuration, protection and installation method. Never parallel unrelated inverter outputs.
The inverter is a system hub, not a stand-alone answer
CSS-native visual · possible hybrid-inverter paths
Inside PV window
If model and rules allow
Approved AC input only
Hybrid inverter
MPPT + inverter + charger + transfer/control functions vary by model
Exact voltage, current and protocol
120V or native 120/240V as specified
Every arrow is optional and model-specific. “Hybrid” does not promise utility export, generator support, AC coupling or whole-home transfer.
1. Match battery power and energy
Voltage compatibility is only the first filter. The battery bank must remain inside the inverter's operating range and support its discharge demand. For an early estimate:
Estimated battery current = AC load watts ÷ (battery voltage × assumed inverter efficiency)
Then compare that demand with the inverter's DC limit and the battery manufacturer's permitted continuous and surge current for the complete approved bank.
Do not assume that two batteries always provide exactly twice the usable current. Parallel operation must be approved; modules should be appropriately matched; cable layout, busbars, fusing, state of charge, BMS communication and current sharing matter.
Energy is a separate calculation. For example, an illustrative 8kWh load target with 90% usable capacity and 90% system efficiency requires 8 ÷ (0.90 × 0.90) ≈ 9.88kWh rated. Two approved 5.12kWh modules would provide 10.24kWh nameplate, but the design still has to pass the current, communication and parallel checks. Browse 48V battery options and 48V server-rack batteries as separate shopping paths—not automatic inverter pairings.
2. Keep PV voltage, PV current and array watts separate
A nominal 48V battery does not require a 48V solar string. The inverter's MPPT operating window and absolute maximum PV open-circuit voltage control the series-string design. The PV-input current and permitted array power control parallel strings and total array size.
String Voc ≈ module Voc × modules in series, then apply the module's cold-temperature correction. Stay below the inverter's absolute limit with required design margin.
Array current rises with parallel strings. Check per-MPPT current limits, connector limits and required code/manufacturer factors.
An array can be under the watt limit yet fail voltage or current limits. Test all three against the exact input or tracker.
3. Plan solar, grid and generator charging
Record maximum solar charge current, maximum AC charge current and any combined-charge ceiling. Individual ratings are not always additive. Confirm that the selected battery bank accepts the planned charge current and that charge voltage, temperature protection and BMS control match the battery instructions.
A generator input is not the same as a utility interconnection. Verify required voltage, frequency, waveform, neutral/ground treatment, minimum generator size and charging settings. Utility export adds interconnection approval, certified equipment, operating modes, metering and local utility requirements; the word “hybrid” alone does not authorize export.
4. Treat communications as revision-specific
“CAN” or “RS485” on two products does not establish compatibility. Confirm the exact inverter model, exact battery model, supported protocol, cable pinout, terminators, master/slave settings, firmware and manufacturer compatibility list. Open-loop voltage settings may be available on some systems, but they are not equivalent to verified closed-loop BMS communication.
5. Parallel only under the exact manual
Supported parallel operation can expand output or create a required phase arrangement, but it is not generic. Use identical approved inverter models and required communications, firmware, settings, phase assignments, AC/DC protection and cable topology. Check the manufacturer's permitted unit count and whether output increases, split phase is created, or both.
Current Torven 24V and 48V hybrid-inverter comparison
The models below were live in Torven's catalog when checked in August 2026. This is a published-specification comparison, not hands-on testing and not a compatibility promise. Verify the delivered label, current manual, availability and system design before ordering.
| Current Torven model | Battery | Rated AC output | AC architecture | Published PV input | Decision role |
|---|---|---|---|---|---|
| RICH SOLAR NOVA MAX 3K (RS-H3024) | 24V | 3,000W | 120V | 90–230V MPPT; 250V max Voc; 18A max input | Compact 24V off-grid candidate |
| Renogy 48V 3500W (RIV4835PCS family) | 48V | 3,500W | 120V | Up to 4,400W; 60–120V MPPT; 150V max input | Integrated 48V inverter, MPPT and AC charger |
| RICH SOLAR NOVA 6548 (RS-H6548) | 48V | 6,500W | 120V per unit | Up to 8,000W (4,000W × 2); 90–230V MPPT; 250V max Voc | Higher-output 120V off-grid platform; exact manual governs paired/parallel use |
| RICH SOLAR NOVA 12K (RS-H12K) | 48V | 10,000W | 120/240V or 120/208V split phase | Up to 12,000W; 120–550V operating range | Larger native split-phase hybrid platform; “12K” is PV input, not continuous AC output |
| RUiXU RX-12K | 48V | Up to 11.4kW | 120/240V split phase; 120/208V option | Up to 17.1kW; up to four MPPTs; 600V max PV | Whole-home-style hybrid architecture with an integrated 200A transfer relay |
Renogy revision check: do not merge the PCS and CSH1S specifications
Torven's current listing identifies RIV4835PCS-1SS-G2-US in the RIV4835PCS family. Renogy also publishes a newer RIV4835CSH1S product and manual with different specifications. The comparison above uses the PCS-family values shown on Torven's exact listing and Renogy's current PCS product page; it does not import CSH1S values. For a replacement or existing system, confirm the physical label and revision-specific manual before ordering.
NOVA MAX 3K
24V · 3,000W · 120V
A compact candidate when a measured 120V load plan fits the higher 24V-side current.
Check NOVA MAX 3K details →
Renogy 48V 3500W
48V · 3,500W · 120V
An integrated PCS-family inverter, MPPT and AC charger. Confirm the exact revision label.
Check exact Renogy listing →
NOVA 6548
48V · 6,500W · 120V/unit
Higher 120V output with manufacturer-defined pairing/parallel paths under the exact manual.
Check NOVA 6548 details →
NOVA 12K
48V · 10,000W · split phase
Native 120/240V or 120/208V architecture; the model name reflects 12kW PV input.
Check NOVA 12K details →
RUiXU RX-12K
48V · 11.4kW · split phase
A whole-home-style platform with a published 200A transfer relay and up to four MPPTs.
Check RX-12K details →Three worked selection scenarios
These examples demonstrate the decision process. They are not complete system designs, promises that a named product will start every listed load, or cross-component compatibility approvals.
Scenario 1 · compact cabin/RV
Up to 3kW, 120V-only loads
Illustrative plan: 2,100W simultaneous running load, a 4,200W short startup event and no 240V equipment.
Voltage screen: a 24V, 3kW-class model can remain in consideration, but 3,000W implies 125A ideal and about 139A at an assumed 90% efficiency.
Next checks: exact surge duration, 24V battery/BMS current, DC protection, runtime, 120V distribution and PV string limits.
Scenario 2 · workshop/cabin
6.5kW-class, still 120V
Illustrative plan: 4,800W simultaneous load, a 6,000W startup event and all supported loads verified as 120V.
Voltage screen: 48V is the practical starting point. At 5,000W and assumed 90% efficiency, estimated battery current is about 116A.
Next checks: inverter surge behavior, battery bank current, generator/AC input, 8kW-class PV limits and whether future 240V loads change the architecture.
Scenario 3 · home backup
10–11.4kW, native split phase
Illustrative plan: 7,500W simultaneous loads, a 240V well pump and an 11,000W overlapping startup event.
Voltage screen: use a 48V native 120/240V platform. A 10,000W load at assumed 90% efficiency is about 231A from a nominal 48V bank.
Next checks: complete load study, battery current/capacity, transfer/service architecture, certifications, utility rules, PV trackers, permitting and professional design.
Off-grid, backup and grid-interactive are different requirements
| Requirement | Question to answer | Do not assume |
|---|---|---|
| Off-grid operation | Can the inverter form stable AC power without utility present? | That it can legally export when utility power returns |
| Backup transfer | Which loads transfer, at what rating and with what listed equipment? | That every sensitive device will ride through the stated transfer time |
| Grid export | Is the exact model certified and approved for the utility's interconnection program? | That “hybrid” or a grid input means permission to sell energy |
| AC coupling | Does the exact architecture support the existing PV inverter and control method? | That any grid-tied inverter can be attached to the backup output |
| Generator charging | Does the input accept the generator's voltage, frequency, waveform and grounding arrangement? | That utility and generator inputs are interchangeable |
What to verify before ordering
- Simultaneous running watts
- Largest startup surge and duration
- 120V versus 120/240V loads
- Nominal battery voltage and operating range
- Continuous and surge battery current
- Required battery kWh and reserve
- Exact BMS protocol, cable and firmware
- PV MPPT range and cold-corrected Voc
- Per-tracker PV current and array watts
- Solar, AC and combined charge limits
- Generator-input requirements
- Off-grid, backup, export or AC-coupling mode
- Parallel/split-phase method and unit limit
- Environmental rating and clearances
- Included accessories and exact model revision
- Listing, utility, permit and code requirements
Calculate loads and runtimeCompare current inverter listings
Frequently asked questions
Is a 48V inverter more efficient than a 24V inverter?
Not automatically. For the same power, a 48V bank supplies roughly half the current, which can reduce resistive loss and make high-power DC hardware more practical. Actual inverter efficiency and idle draw remain model- and load-specific, so compare published efficiency curves and system losses.
Is 24V or 48V better for a 3,000W inverter?
Either can be technically possible when the exact system is designed for it. At 3,000W, ideal current is 125A at 24V and 62.5A at 48V before losses. A 24V platform can be reasonable for a measured compact system, while 48V offers more current headroom and may simplify future expansion.
How many batteries do I need for a 48V hybrid inverter?
There is no answer from inverter voltage alone. Size rated kWh from the load energy and runtime, then verify that the complete manufacturer-approved bank supports the inverter's continuous and surge current. Also check permitted parallel count, BMS communication, cables, busbars, fusing and minimum bank requirements.
Can a 48V inverter run 240V appliances?
Only if its AC output architecture explicitly provides 120/240V split phase or it is used in a manufacturer-approved configuration that does. Many 48V hybrid inverters—including some current models in this guide—output 120V only.
What does split phase mean?
In a typical U.S. 120/240V split-phase system, either hot leg to neutral supplies 120V, while the two opposing hot legs together supply 240V. The inverter and distribution/transfer equipment must be designed for that architecture.
Does a hybrid inverter automatically sell power to the grid?
No. Utility export requires an exact inverter and operating mode designed and certified for interconnection, plus utility approval, approved settings, metering and local requirements. Some hybrid inverters are off-grid or backup-only.
Can one RICH SOLAR NOVA 6548 supply 120/240V split phase?
The current model is specified for 120V output per unit. Do not treat one unit as native 120/240V. RICH SOLAR documents supported paired/parallel arrangements; use the exact manual, matching units and required configuration if evaluating that path, or select a native split-phase model.
Why is the NOVA 12K rated at 10,000W AC output?
RICH SOLAR's current “12K” name refers to the published maximum PV input of 12,000W. The listed continuous AC output is 10,000W. Use the 10,000W figure for continuous load planning and verify surge separately.
Can I mix any 48V battery with any 48V inverter?
No. Nominal voltage is only one compatibility check. Operating voltage, charge/discharge current, chemistry settings, BMS protocol, pinout, firmware, supported battery list, parallel configuration and warranties all matter. Obtain written model-specific confirmation when the pairing is not documented.
Sources and methodology
This guide uses elementary electrical relationships for the examples, current Torven catalog data, exact-model manufacturer pages/documents and U.S. government educational sources. Product comparisons are based on published specifications; Torven is not representing these as hands-on performance tests.
- U.S. Energy Information Administration: Measuring Electricity
- U.S. Department of Energy: Inverters and Grid Services Basics
- U.S. Department of Energy: Solar and Resilience Basics
- RICH SOLAR: NOVA 3K24 specification document
- RICH SOLAR: NOVA 6548 specifications and downloads
- RICH SOLAR: NOVA 12K specifications and downloads
- Renogy: RIV4835PCS-family 48V 3500W inverter-charger specifications
- RUiXU: RX-12K specifications and manual links
Catalog and sources checked August 2026. Specifications, availability, certifications and compatibility lists can change. The delivered label and current exact-model manual control; this guide does not replace professional system design, installation instructions or applicable codes.
