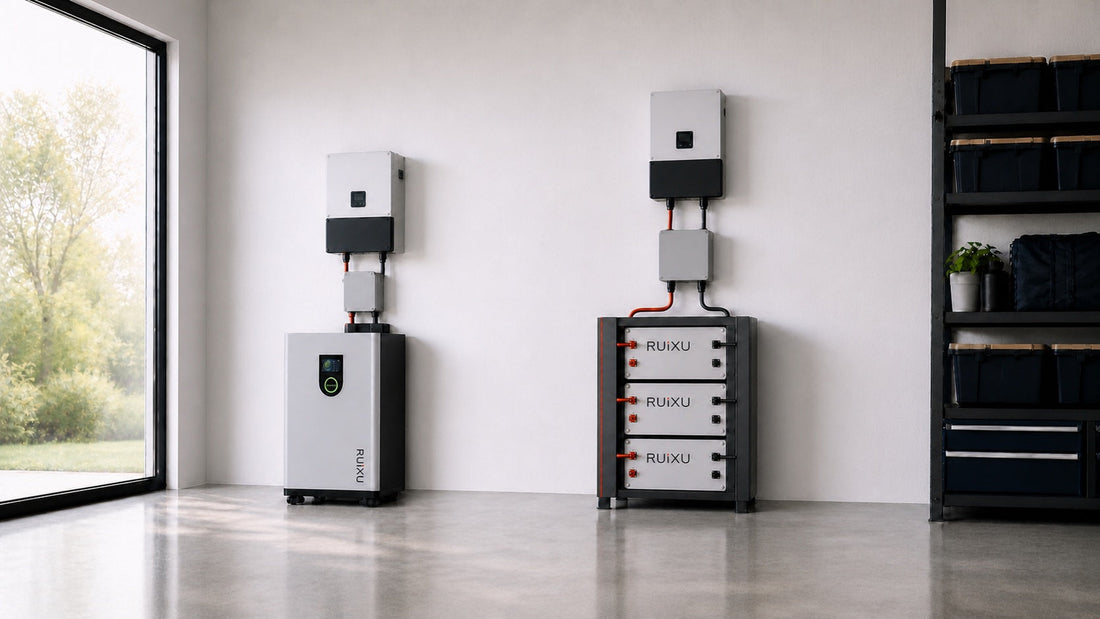

Concept illustration: A RUiXU Lithi2-16 and three RUiXU RX-LFP48100 rack modules are shown. Inverters, protection equipment, grounding, communications and cable routes are representative only; verify exact model compatibility and current manufacturer/installer requirements.
Quick answer
Choose a large wall/floor battery when one high-capacity enclosure, fewer module connections and a shallow profile fit the site. Choose server-rack batteries when 5.12kWh capacity steps, module-level service and a cabinet-based layout fit better.
For a concrete comparison, one 16.07kWh RUiXU Lithi2-16 is close in nominal energy to three 5.12kWh rack modules (15.36kWh). The energy is similar; the lifting plan, structural load, expansion steps, wiring, environmental rating and service strategy are not.
One large enclosure
Three modular enclosures
Concept illustration only—not a scale drawing, mounting detail or wiring diagram. A rack/cabinet, protection, disconnects, conductors and inverter are separate system decisions.
Fast choice: which constraint matters most?
Start near 15–16kWh
Either architecture can land in this range: one 16.07kWh Lithi2-16 or three matching 5.12kWh modules.
Grow in small steps
Rack modules make 5.12kWh additions possible when the manufacturer permits the exact expansion.
Shallow wall profile
A Lithi2-16 is published at 10 inches deep, but its 302 lb weight makes mounting structure—not floor area—the deciding issue.
Module-level service
A rack can provide front access and smaller replaceable units, but also creates more cables, addresses and connection points.
Wall/floor battery vs. server-rack battery: side by side
This table uses current manufacturer-published specifications to show how similar nominal energy can be packaged differently. Rack totals include batteries only unless noted; a real rack system adds a cabinet or bracket structure, busbars or approved daisy-chain hardware, protection, cabling and service clearances.
| Planning point | 1 × RUiXU Lithi2-16 | 3 × RUiXU RX-LFP48100 | 3 × RICH SOLAR ALPHA 5 PRO |
|---|---|---|---|
| Nominal platform | 51.2V, 314Ah | 51.2V, 100Ah per module | 51.2V, 100Ah per module |
| Nominal energy | 16.07kWh | 15.36kWh across three matching modules | 15.36kWh across three matching modules |
| Published unit size | 36.3 × 21.3 × 10 in, H × W × D, with wheels | 19 × 18.1 × 5.23 in, W × D × H, each | 17.7 × 17.8 × 5.2 in, each |
| Battery weight | About 302 lb | About 103.6 lb each; 310.8 lb total | 100.9 lb each; 302.7 lb total |
| Next nominal capacity step | Another approved 16.07kWh unit | Another approved 5.12kWh module | Another approved 5.12kWh module |
| Published environmental clue | IP55; RUiXU still recommends rain shelter and sunshade outdoors | Confirm the exact manual and enclosure; do not infer outdoor suitability from the form factor | IP21 on the current product page; plan a protected location |
| Service pattern | One enclosure; side inspection access is published | Three addressed modules and their shared connection architecture | Three 3U modules; optional six-slot cabinet platform |
The comparisons above are not an interchangeability statement. Manufacturer maximums do not establish the permitted quantity for a particular inverter, busbar, cabinet, conductor or site. Product revisions and manuals can change.
Footprint and structural loading: the hidden deciding factor
A catalog dimension is not an installation footprint. Add working clearance, cable bend radius, door swing, disconnect access, required spacing, service approach and the inverter or distribution equipment. Then ask where the weight actually lands.
Lithi2-16 floor path
Small rectangle, concentrated load
The battery's published body footprint is roughly 1.48 sq ft (21.3 × 10 in), but its 302 lb weight sits on wheels and the installation still needs anti-tip restraint, access and cable space.
Average pounds per square foot from the body outline is not a floor-design answer: casters create point loads, and floors, slabs and equipment pads behave differently.
Lithi2-16 wall path
About 337 lb before project hardware
The official RX-WMB bracket weighs 16 kg (about 35 lb). Battery plus bracket is therefore about 337 lb, before cables or project-specific attachment hardware.
Have the wall assembly, anchors, substrate, load path and required clearances designed or approved for the exact installation. Drywall alone is not a support plan.
Worked cabinet-load example
RICH SOLAR publishes the ALPHA 5 PRO at 100.9lb and its preassembled six-slot cabinet at 224.87lb.
Those are simple equipment-weight totals, not structural approval. Casters and leveling feet concentrate force, and the final design adds cables and other components. Verify floor capacity, anchorage, seismic requirements where applicable and the manufacturer's installation instructions.
Expansion and serviceability: big steps or small steps?
A larger single enclosure reduces the number of battery modules at the starting capacity. A rack architecture divides the bank into smaller units, which can make staged purchases and module-level service more practical. Neither benefit is automatic: expansion must stay inside the exact manufacturer's age, state-of-charge, firmware, module-count, wiring and communication rules.
RUiXU currently publishes support for up to 32 Lithi2-16 units in parallel and up to 32 RX-LFP48100 modules in parallel. Those are product-family maximums—not approval for 32 units with a particular inverter, busbar, conductor, building or permit. The smaller rack module still changes capacity in 5.12kWh increments, while the Lithi2-16 changes it in 16.07kWh increments.
Nominal capacity ladder
Illustrates nominal energy increments only. It does not approve parallel quantity, mixed ages, field additions, current capacity or a particular inverter configuration.
- fewer module addresses and branch connections;
- fewer inter-module communication links;
- one state-of-charge display and one service enclosure.
- smaller capacity increments;
- roughly 101–104 lb pieces instead of one 302 lb piece;
- module-level inspection or service in an approved design.
Worked sizing examples: compare energy first, then power
The battery's kWh answers “how long?” The bank's permitted current and the inverter's output answer “how much at once?” Run both checks before treating either form factor as a fit.
Required nominal kWh = load energy ÷ planned usable fraction ÷ estimated system efficiency
Use exact manufacturer limits for the final design; planning assumptions are not product ratings.
Example A: 10.5kWh of critical-load energy
Planning assumptions: 90% usable fraction and 90% AC-system efficiency.
10.5 ÷ 0.90 ÷ 0.90 = 12.96kWh nominal
On energy alone, one 16.07kWh Lithi2-16 or three matching 5.12kWh rack modules (15.36kWh) clear this illustrative target. That does not prove either can support the inverter's continuous current, startup surge, temperature, communication or installation requirements.
Example B: current behind a 10kW AC load
Simplified ideal current: 10,000W ÷ 51.2V = 195.3A.
At an illustrative 92% inverter efficiency: 10,000W ÷ 51.2V ÷ 0.92 = 212.3A, before other design allowances.
Use the inverter manual's DC input and surge data, then verify the exact battery/BMS, conductor, connector, busbar and protection limits. Do not treat a connector rating as a battery output rating or blindly multiply a per-module current by the module count.
Need a load estimate first? Build the appliance list in the Torven Power Planner, then use the home battery-backup sizing guide to account for runtime, reserve and losses.
Current, communications and connection hardware
One large battery and three smaller batteries create different DC layouts, but neither is a complete energy-storage system. The final architecture may include battery-level or branch protection, a main disconnect, approved busbars, equal-length conductors, communication harnesses, grounding, an inverter/charger and transfer equipment.
Connection-count concept
Module 2
Module 3Approved combining + protectionInverter
Topology varies by manufacturer and system. This diagram shows functional blocks only; it is not a wiring plan and intentionally does not specify cable or protection sizes.
Communication is exact-model work
RUiXU publishes CAN and RS485 support for both the Lithi2-16 and RX-LFP48100, and RICH SOLAR publishes CAN/RS485 protocol codes for the ALPHA 5 PRO. Those statements are useful starting points—not universal approval. Confirm all of the following for the exact battery-and-inverter pair:
CAN or RS485 profile and selected code
Correct port, pinout, cable and termination
Addresses, master unit and approved quantity
Battery/inverter firmware and documented settings
Model-specific hardware—not “48V accessories”
Hardware names can prevent expensive assumptions. RUiXU identifies the RX-WMB bracket for the Lithi2-16 and the RX9MP busbar pair for Lithi2-16 banks. Its official RX9MP page specifically directs users to the PP140 cable for that quick-connect busbar, available from Torven as the PP140 1/0 AWG cable pair.
For rack modules, RUiXU names a bracket rack for RX-LFP48100 batteries. RICH SOLAR's six-slot ALPHA 5 PRO cabinet is a separate, preassembled platform with published 600A busbars. In every case, confirm the delivered product revision, included parts and current installation manual before ordering the rest of the system.
Heating, weather exposure and installation environment
LiFePO4 charging limits matter in both architectures. A self-heating feature can help a battery remain within its documented charging conditions, but it does not erase the manual's temperature limits or make every enclosure suitable for rain, sun, condensation or corrosive air.
Lithi2-16
RUiXU publishes a self-heating feature and IP55 rating. It describes indoor/outdoor use but still recommends a rain shelter and sunshade outdoors.
Planning response: verify heater logic and power source, operating limits, site drainage, solar exposure, cable entry, clearances and local requirements.
Non-heated rack module
The exact RX-LFP48100 page compared here is the standard model. RICH SOLAR publishes the ALPHA 5 PRO as IP21 with a 32°F minimum charging temperature.
Planning response: use a protected location inside all published temperature and environmental limits; do not infer weather resistance from a cabinet photo.
Self-heating rack option
Some rack families offer a distinct self-heating model, such as RUiXU's RX-LFP48100-H. Treat it as a separate SKU with its own manual—not a feature assumed on the standard model.
Planning response: compare exact heater start/stop logic, charge source, battery consumption and enclosure rating.
For a deeper model-by-model rack comparison, read How to Choose a 48V Server Rack LiFePO4 Battery. If the inverter architecture is not settled, use the 24V vs. 48V Hybrid Inverter Guide before finalizing the battery bank.
Three practical product paths
Pre-purchase and installer-review checklist
- Critical-load kWh, reserve and outage target
- Continuous watts, surge and 120/240V needs
- Exact voltage and charge/cutoff window
- Battery/BMS charge and discharge current
- Approved matching module count
- CAN/RS485 profile, cable and pinout
- Battery and inverter firmware/settings
- Unit, rack/cabinet and total installed weight
- Wall structure, floor point loads and anchorage
- Service clearance and replacement path
- Temperature, heater logic and ingress rating
- Exact-model bracket, rack or cabinet
- Busbars, conductors, protection and disconnects
- Current manuals, listings, permits and code review
Choose from a load plan—not a product photo
Estimate energy and simultaneous power before choosing the enclosure.
Then compare structural support, expansion steps, current, communication and installation limits with the exact manuals.
Open the Power PlannerUse the home-sizing guideBrowse all guidesFrequently asked questions
Are wall-mount batteries better than server-rack batteries?
Neither form factor is universally better. A large wall/floor battery can provide substantial capacity in one enclosure with fewer module connections. Rack batteries can offer smaller capacity steps and module-level service. The correct choice depends on verified energy, current, inverter communication, structural support, environmental rating, service access and total installed architecture.
What is the closest rack-battery equivalent to one 16kWh battery?
Three matching 5.12kWh rack batteries provide 15.36kWh nominal, which is close to the Lithi2-16's published 16.07kWh. They are not functionally equivalent: BMS current, connections, communication, weight distribution, enclosure, expansion steps and environmental ratings still differ.
Can a 302 lb battery be mounted on any wall?
No. The wall assembly, attachment points, anchors, substrate and load path must support the exact battery, bracket and installation forces. RUiXU's RX-WMB alone weighs about 35 lb, bringing the battery-plus-bracket total to roughly 337 lb before project hardware. Have the structure and attachment design reviewed for the site.
Do I need a cabinet for server-rack batteries?
Use only a mounting and connection method approved for the exact module. Some systems use an enclosed cabinet with busbars; others may use manufacturer-specific bracket racks or documented daisy-chain configurations. A generic IT rack is not automatically suitable for battery weight, depth, terminals, fault current, ventilation or code requirements.
Can I mix wall batteries and rack batteries in one bank?
Do not mix brands, models, capacities, voltages or BMS platforms unless both manufacturers expressly document the exact configuration. A shared “48V” or 51.2V label does not establish electrical or communication compatibility.
Can I add batteries later?
Often, but only within the manufacturer's current rules for model, quantity, age, state of charge, firmware, cable topology, addressing and commissioning. Rack batteries create smaller nominal capacity steps, while another Lithi2-16 adds 16.07kWh at once. Plan the future rack/cabinet space, busbar capacity and inverter limits before buying the first unit.
Can the Lithi2-16 be installed outdoors?
RUiXU publishes an IP55 rating and describes indoor/outdoor use, while also recommending a rain shelter and sunshade outdoors. That does not replace the operating-temperature limits, cable-entry details, clearances, drainage, local code or installer review. Follow the current exact-model manual.
Does a self-heating battery solve cold-weather installation?
It can help maintain documented charging conditions, but heater trigger points, power source and operating limits vary. Self-heating does not establish outdoor suitability and does not remove the need to manage condensation, enclosure temperature, snow, sun and service access.
Will any CAN battery work with any CAN inverter?
No. The protocol profile, port, pinout, cable, termination, firmware, addressing and settings must match for the exact combination. Verify a current manufacturer compatibility statement or written approval rather than relying on connector shape.
Official manufacturer sources
- RUiXU Lithi2-16 official specifications and manuals
- RUiXU RX-LFP48100 official specifications and manuals
- RUiXU RX-WMB official bracket page
- RUiXU RX9MP busbar and PP140 cable guidance
- RUiXU bracket rack for RX-LFP48100
- RICH SOLAR ALPHA 5 PRO official specifications and downloads
- RICH SOLAR ALPHA 5 PRO six-slot cabinet specifications
Last reviewed August 2026. Claims were checked against the official manufacturer pages linked above; this is a published-specification comparison, not a laboratory or hands-on test. Product specifications, manuals, certifications and compatibility can change by revision. This guide provides planning information, not a structural design, wiring plan or final electrical design. Follow current manufacturer instructions and applicable codes, and have the installation completed or reviewed by qualified professionals.
