RICH SOLAR Battery Server Rack for ALPHA 5 PRO 6-Slot Enclosed Battery Cabinet
RICH SOLAR Battery Server Rack for ALPHA 5 PRO 6-Slot Enclosed Battery Cabinet
SKU: RS-SRA5P
- Regular price
- $1,599.99
- Regular price
- Sale price
- $1,599.99
- Unit price
- per
Couldn't load pickup availability
In stock — available to order
- Free standard shipping on eligible Lower-48 orders. See shipping details
- 30-day return requests for eligible items after delivery. Review the return policy
- Price Match Guarantee for qualifying identical offers. Check eligibility
- Warranty information is listed in this product's details.
A preassembled cabinet for a scalable 48V battery bank
Organize up to six ALPHA 5 Series batteries behind 600A covered busbars.

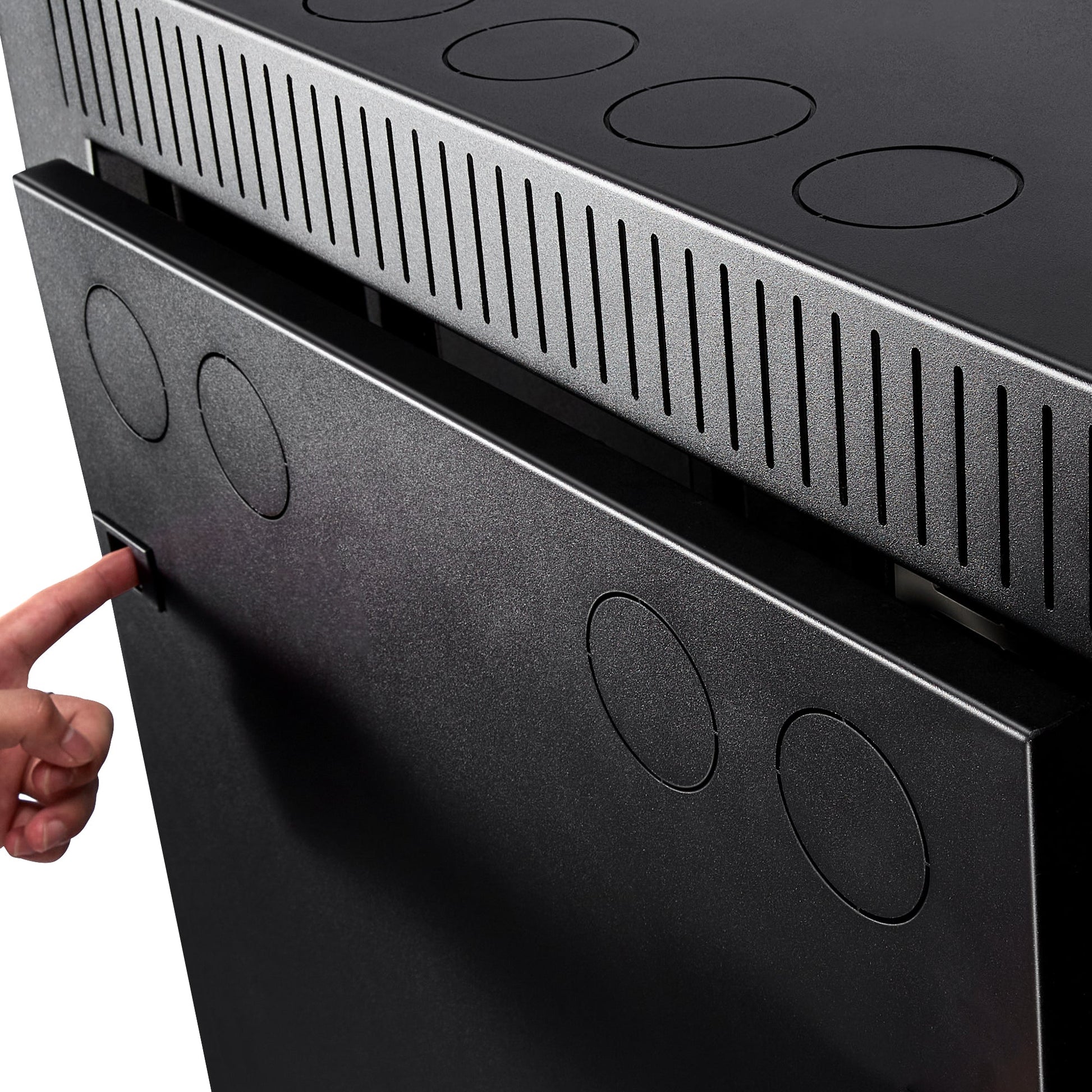

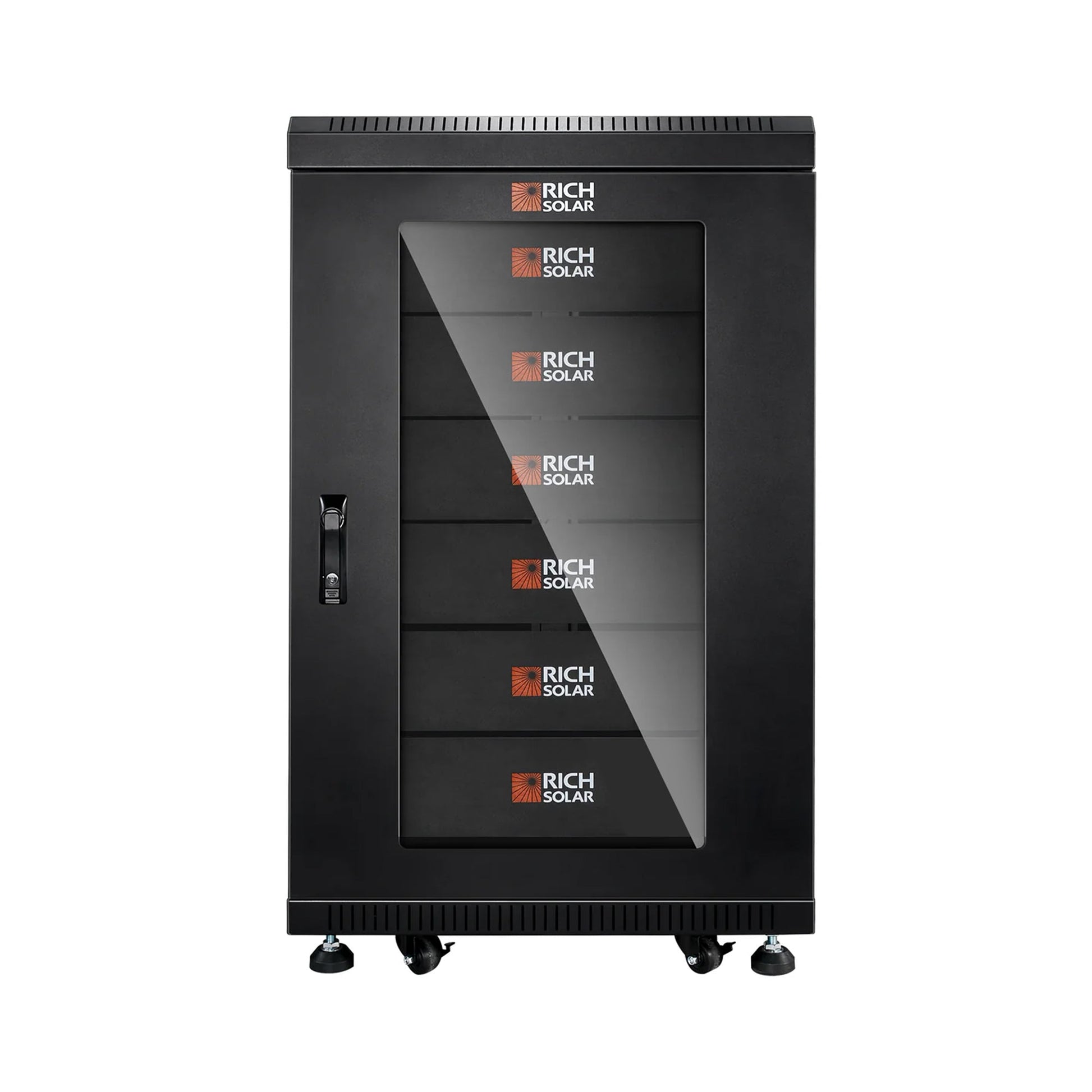

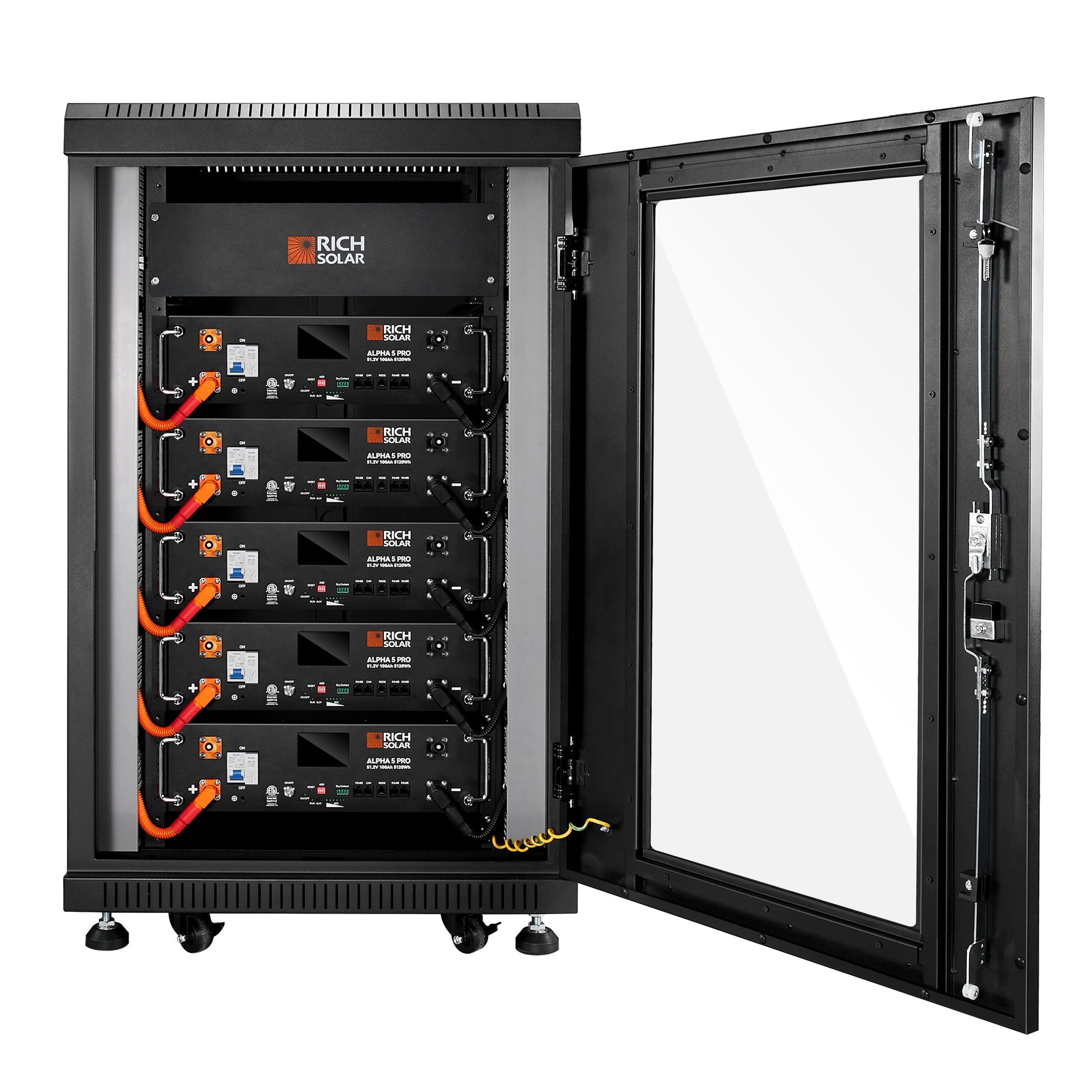

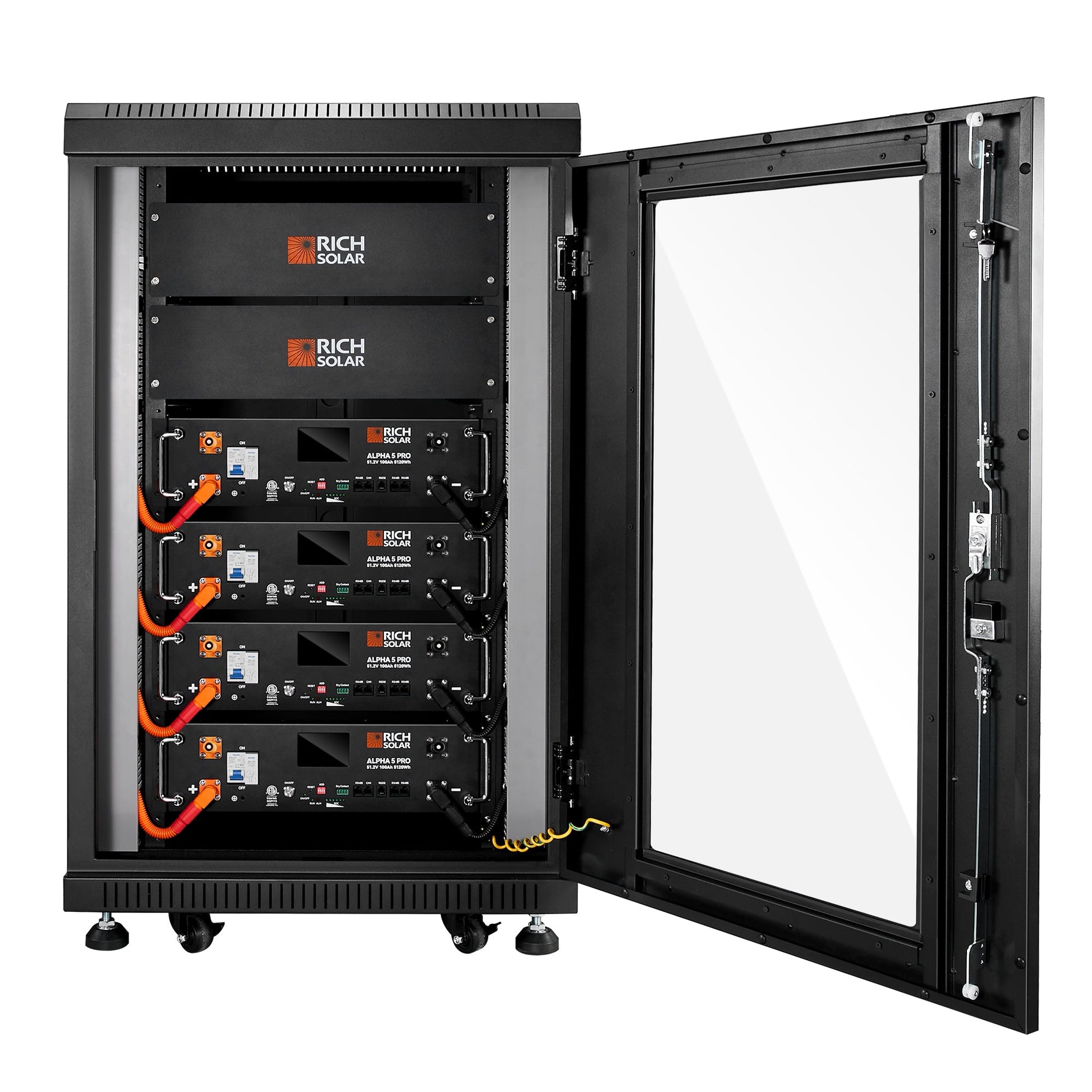

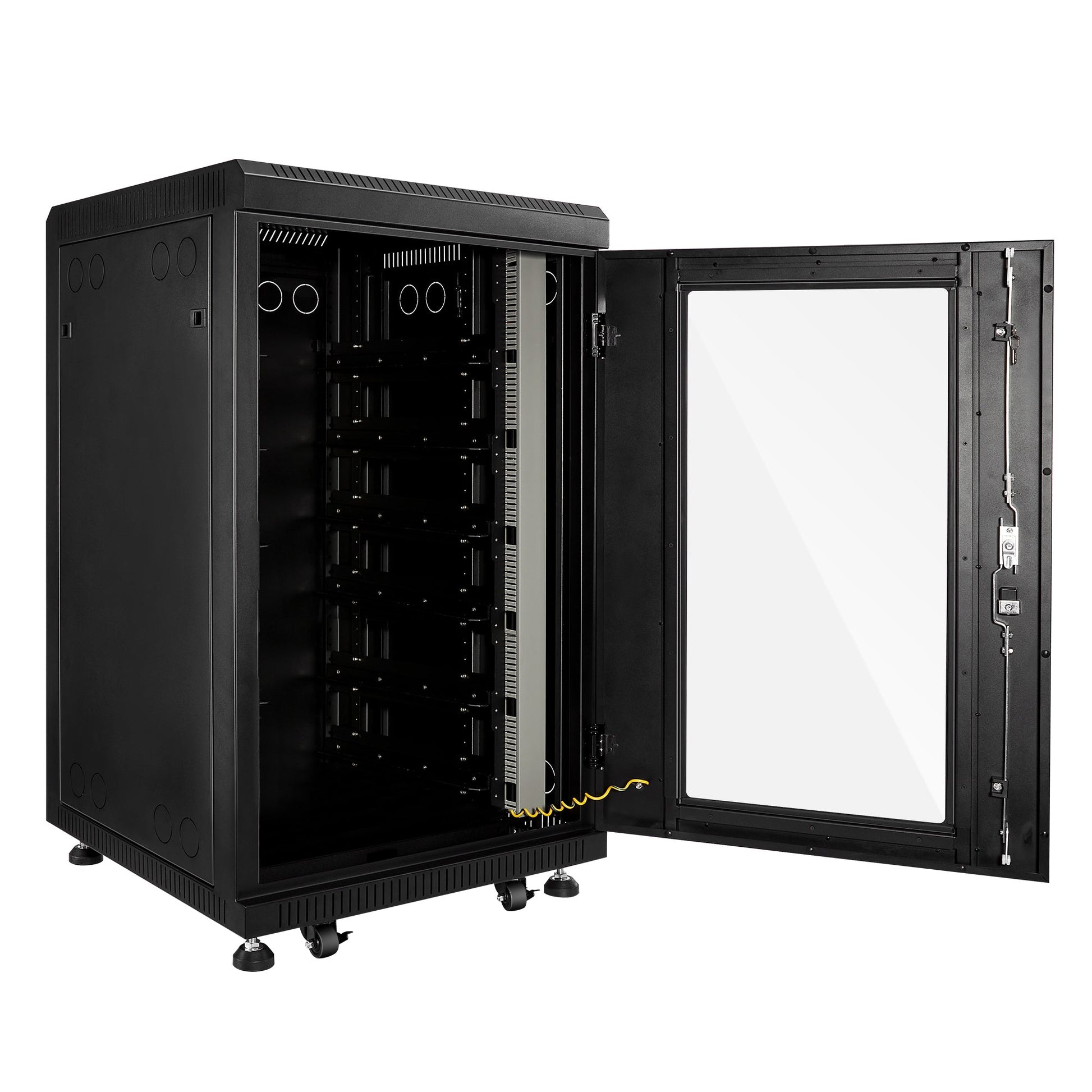

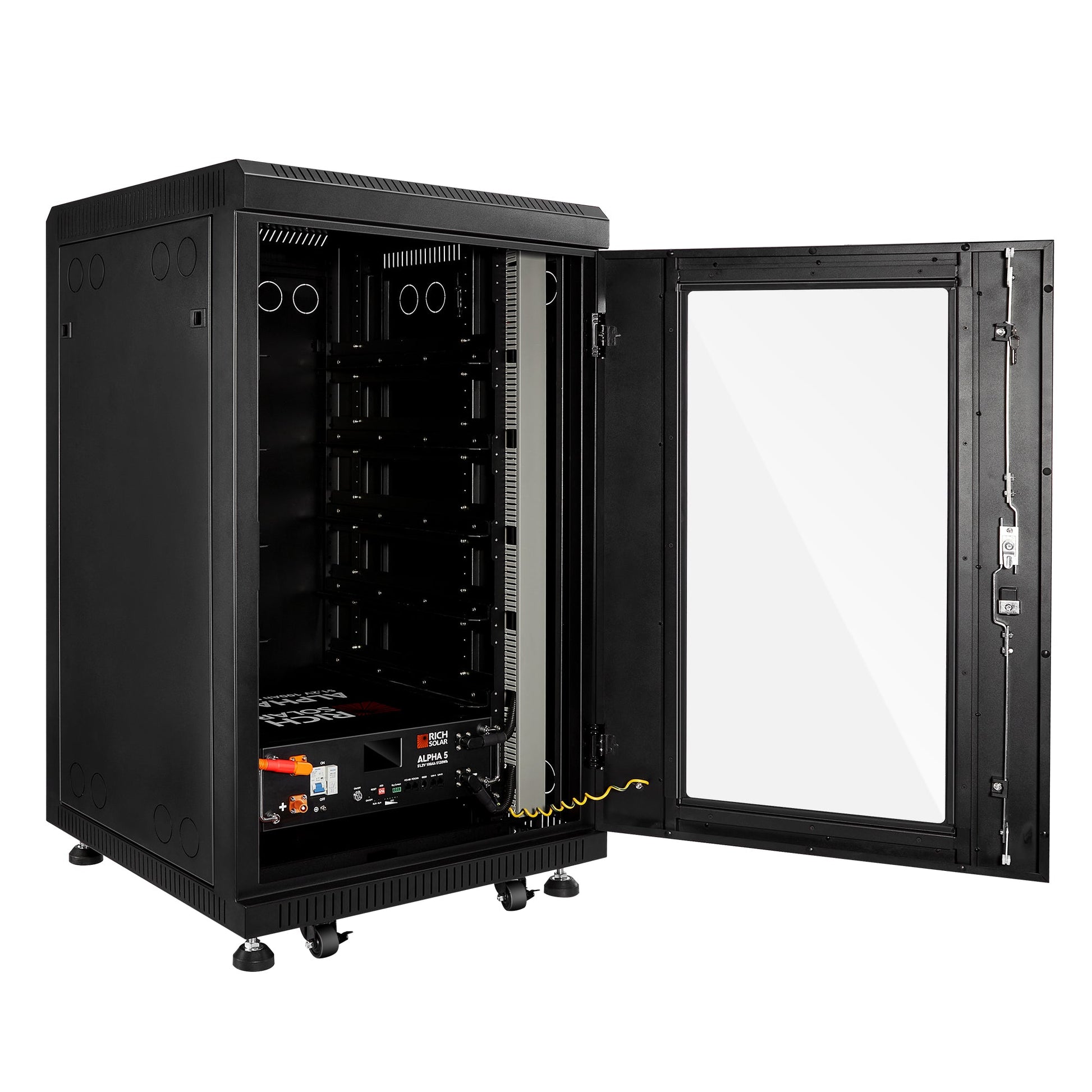

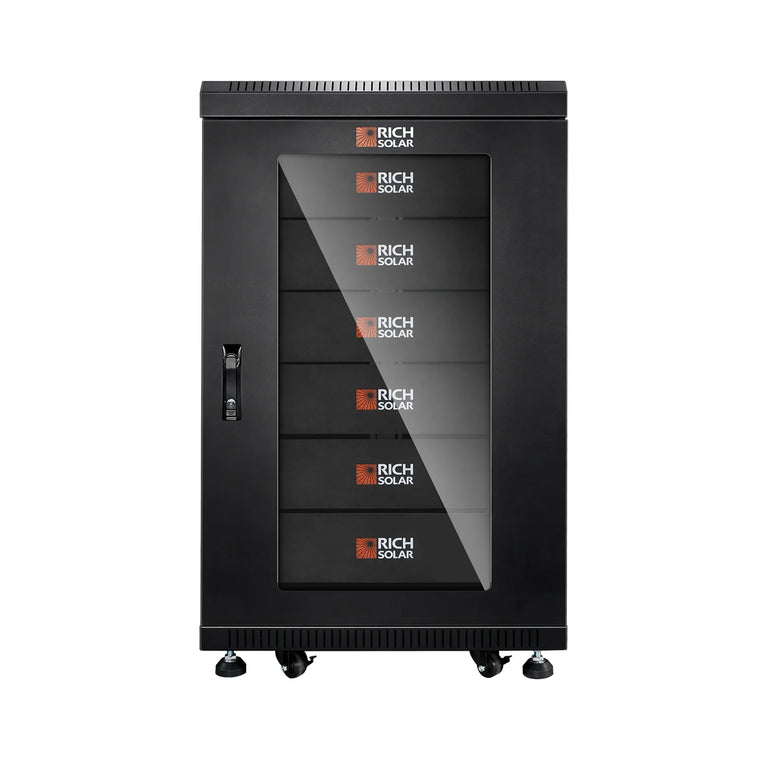

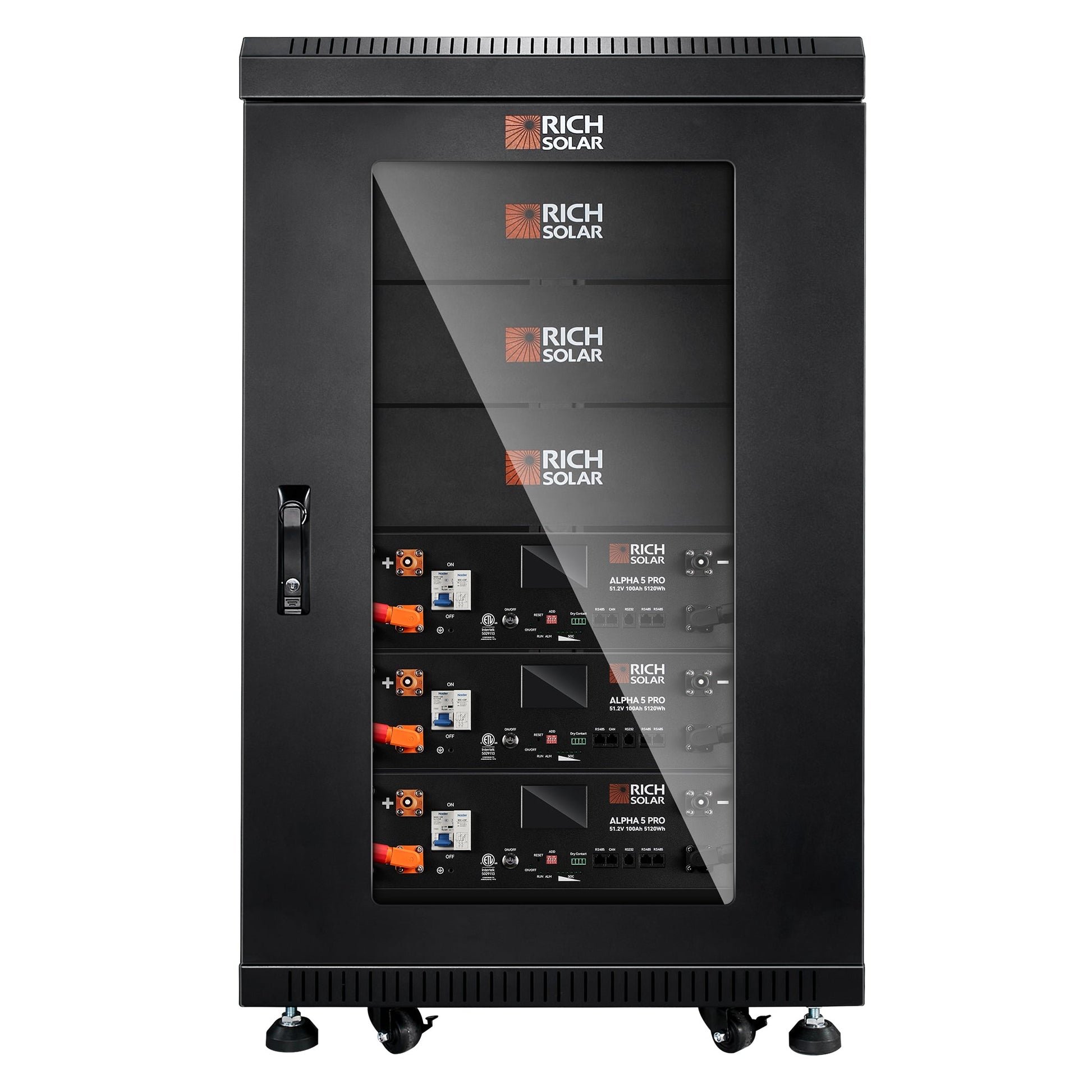

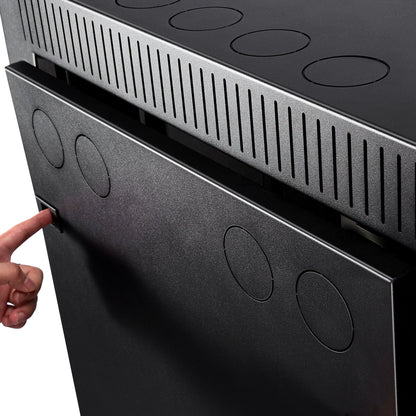

The RICH SOLAR RS-SRA5P is a six-slot enclosed server rack for ALPHA 5 Series batteries. It combines a welded steel frame, covered copper busbars, cable-entry paths, ventilation, casters and leveling feet so a high-capacity battery bank can be planned as one serviceable assembly.
At a glance
The cabinet ratings that set the installation envelope
Plan battery quantity, compatible interconnects, overcurrent protection, busbar loading, inverter cabling and floor loading separately. A 600A busbar rating does not authorize every battery or inverter configuration.
System fit
Confirm the batteries, floor and cable plan before delivery.
The cabinet is heavy before batteries are installed. Verify floor capacity, doorway and unloading clearances, service access, ventilation, environmental limits and the bending radius of every large conductor.
In the box
Manufacturer-listed package contents
- 1 × preassembled six-slot battery server rack (RS-SRA5P)
- 4 × swivel casters, with brakes on the front pair

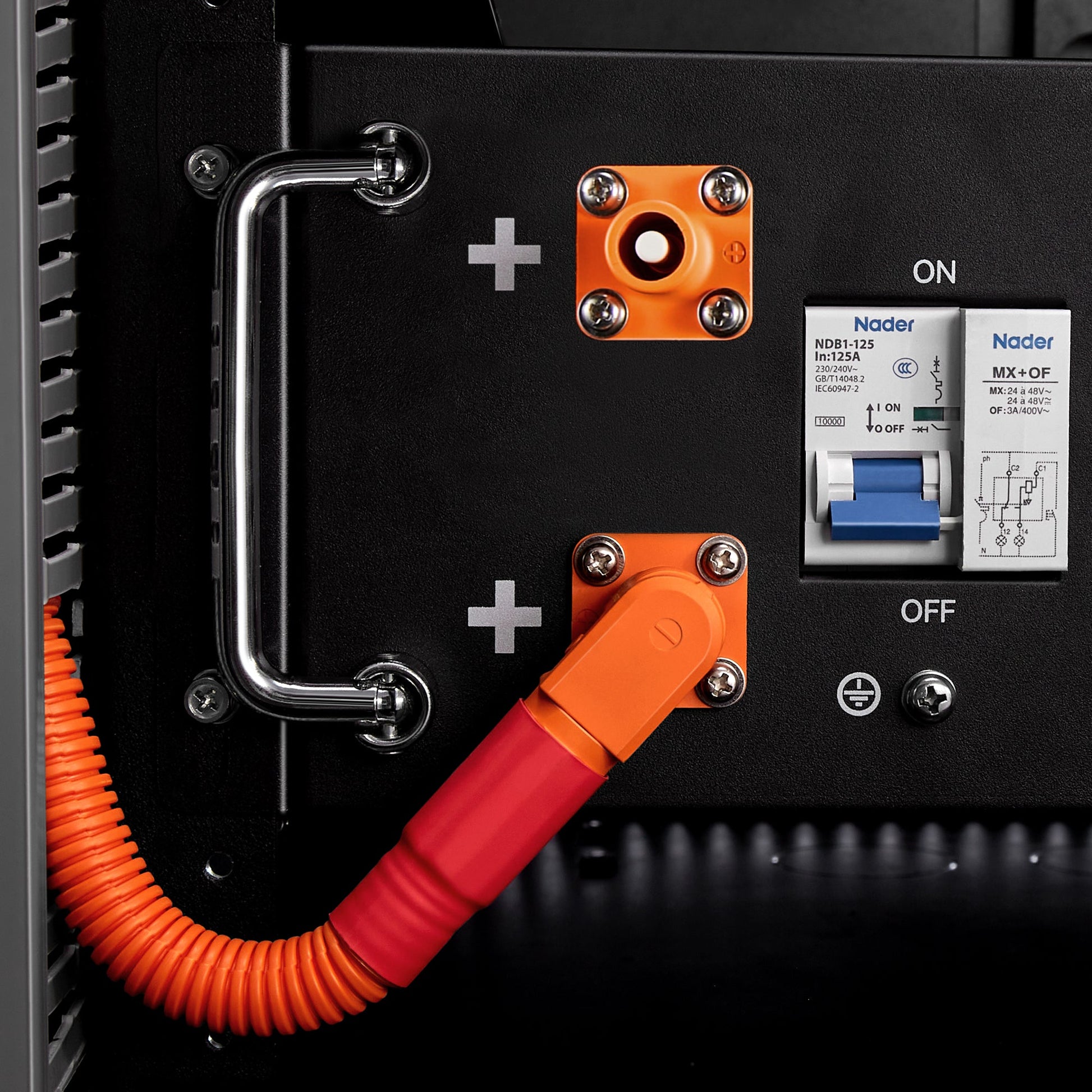

- Integrated 600A copper busbars with protective covers
ALPHA 5 batteries, battery cables, inverter cables, fuses or breakers, disconnects and installation labor are not included.
Product confidence
Five-year rack warranty listed by RICH SOLAR
RICH SOLAR lists a five-year warranty for the rack. Eligibility, remedies, installation conditions and exclusions follow the current written terms for the exact RS-SRA5P model.
Common questions
Six-slot rack planning questions
Are batteries included?
No. This listing is for the rack and its integrated cabinet hardware. Select the compatible ALPHA 5 Series batteries separately.
Can I install fewer than six batteries?

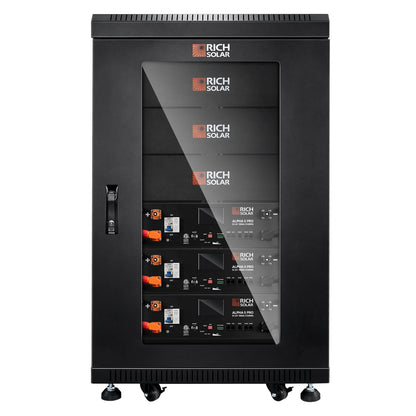

The rack supports up to six positions, but the allowed starting quantity and later expansion depend on the battery and inverter manuals, communication rules and balanced cabling.
Can I roll the cabinet after batteries are installed?

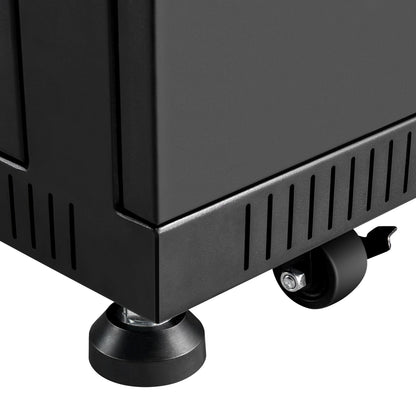

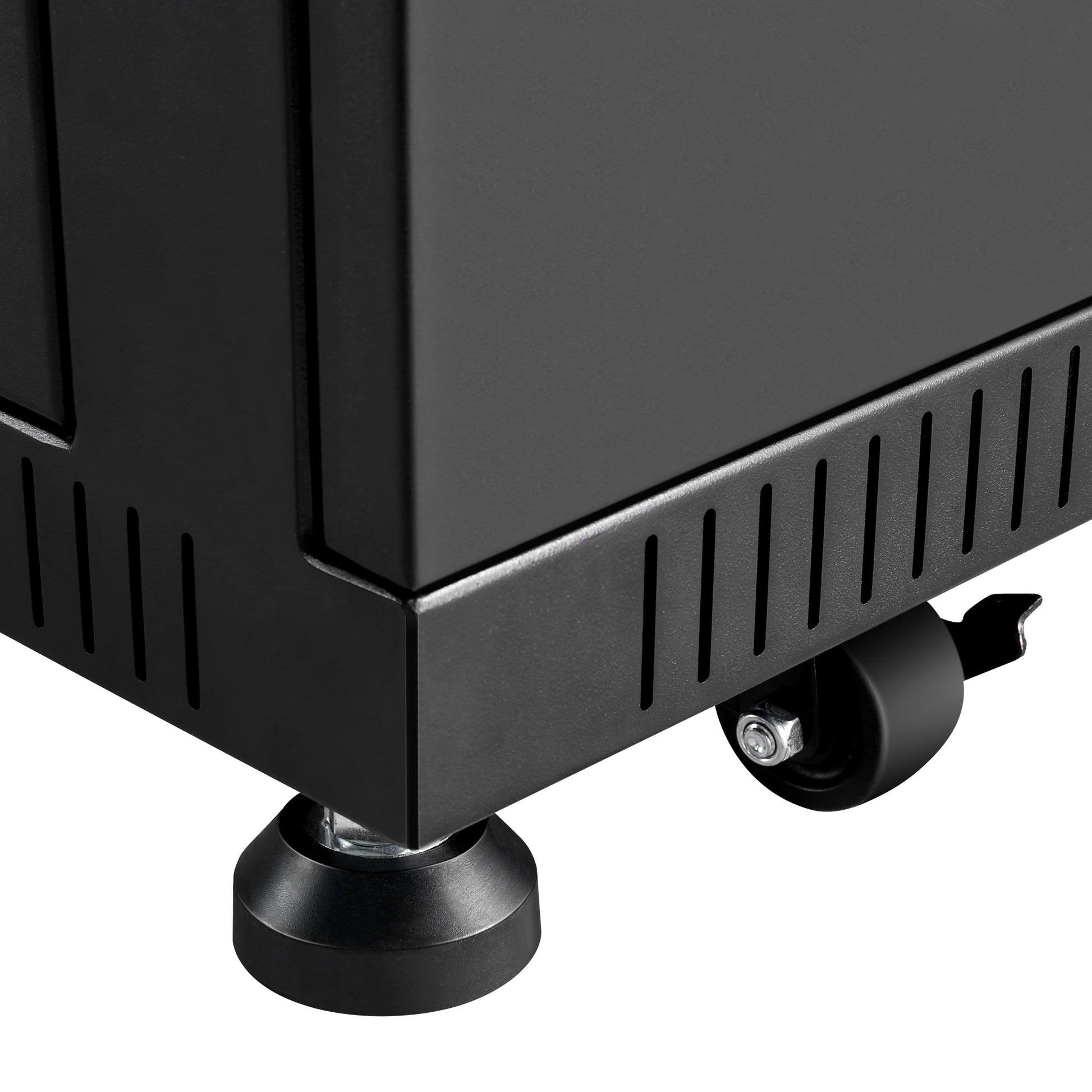

The casters help with positioning, but movement with batteries installed depends on total weight, floor condition, cable disconnection and safe-handling practices. Use the leveling feet for the final location.
Does the 600A busbar rating mean I can draw 600A continuously?
No. Every battery, cable, lug, fuse or breaker, disconnect and inverter connection has its own limit. The complete circuit is governed by its lowest-rated component and the approved system design.
Product Data
Technical Specifications
| Module In Parallel | 6 |
|---|---|
| Max Busbar Current | 600A |

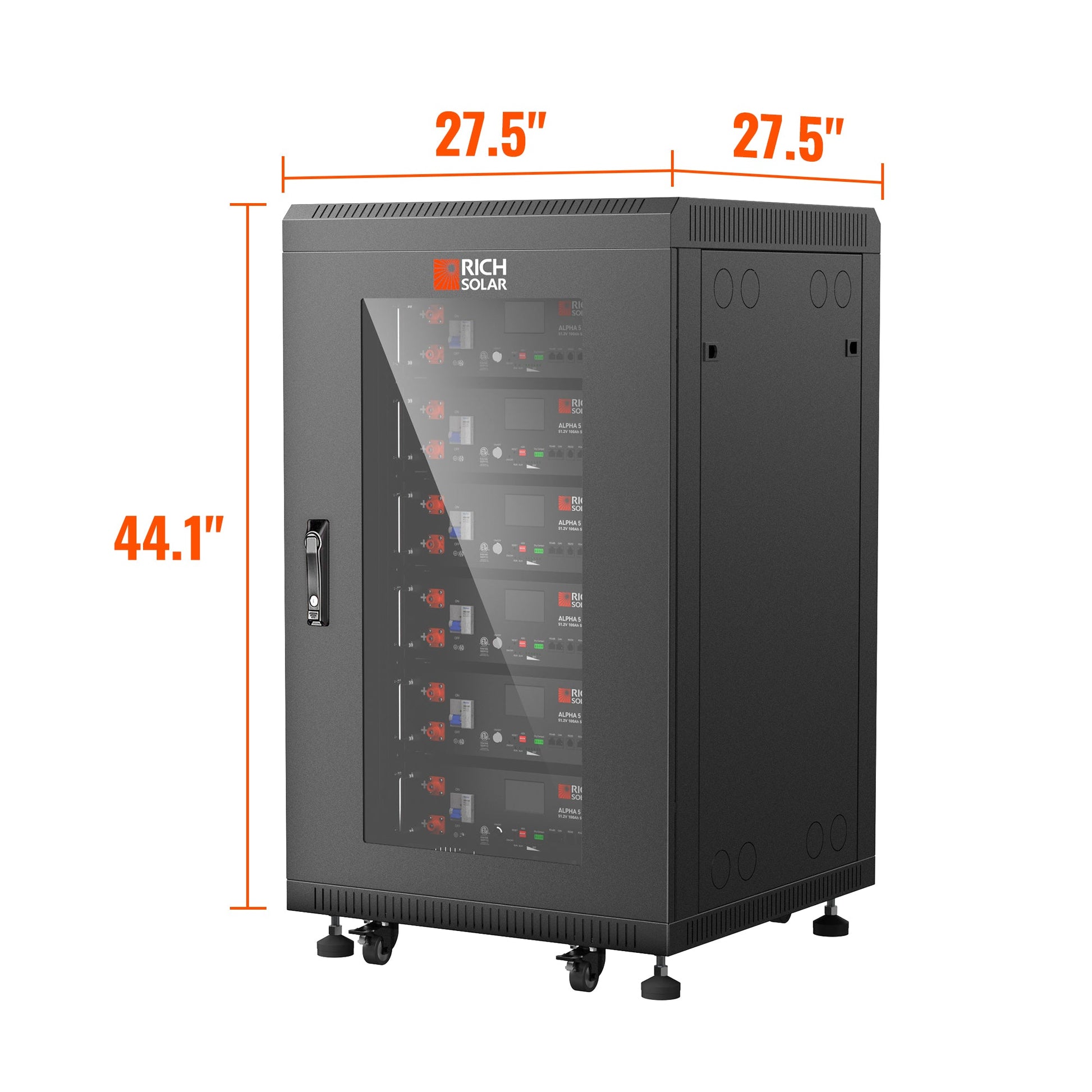

| Dimensions (W × D × H) | 27.56 × 27.56 × 44.09 in (70 × 70 × 112 cm) |
| Weight (with casters) | 224.87 lb (102 kg) |
| Operating Temperature | 4°F to 113°F (-20°C to 45°C) |
| Warranty | 5 Years |
Available configurations
| Option | SKU |
|---|---|
| ALPHA 5 PRO | RS-SRA5P |
Review the current manufacturer manual for your exact model before installation or use.
