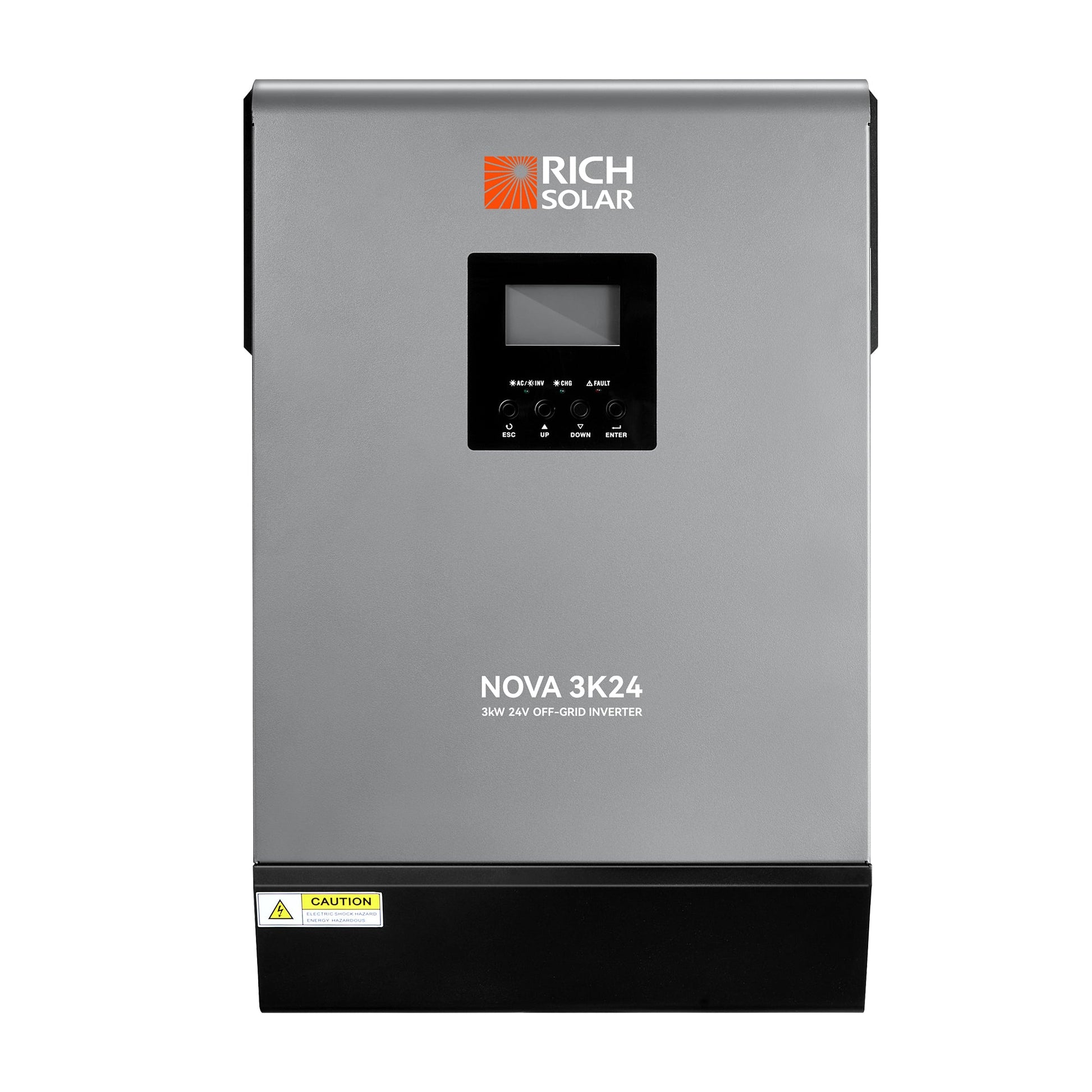

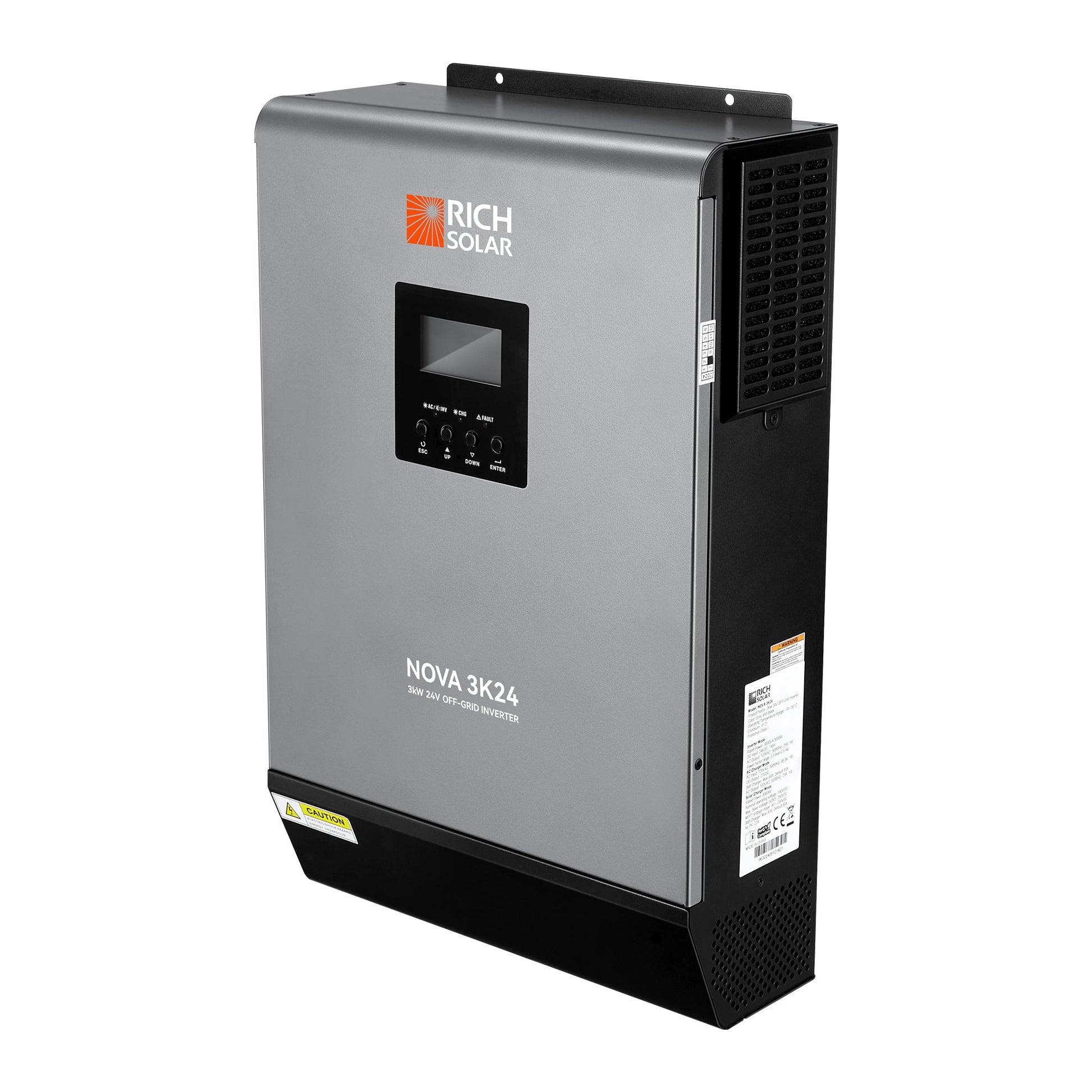

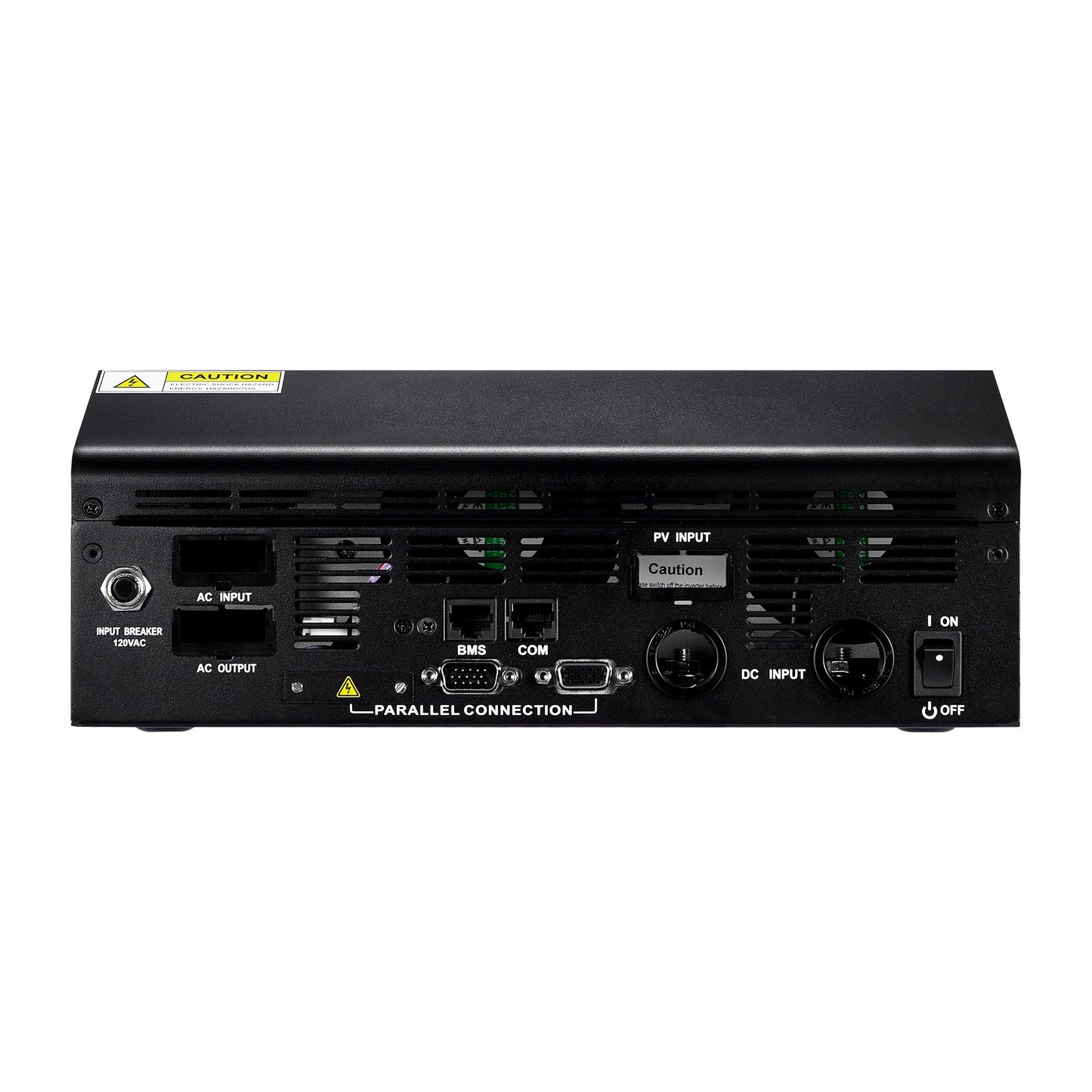

RICH SOLAR NOVA MAX 3K 3000W (3kW) 24V Off-Grid Hybrid Solar Inverter
RICH SOLAR NOVA MAX 3K 3000W (3kW) 24V Off-Grid Hybrid Solar Inverter
SKU: RS-H3024
- Regular price
- $799.99
- Regular price
- Sale price
- $799.99
- Unit price
- per
Couldn't load pickup availability
In stock — available to order
- Free standard shipping on eligible Lower-48 orders. See shipping details
- 30-day return requests for eligible items after delivery. Review the return policy
- Price Match Guarantee for qualifying identical offers. Check eligibility
- Warranty information is listed in this product's details.
Need help before ordering?
Call 888-495-5870
Contact our support team
Solar, battery and AC charging in one power-conversion platform
Build a 24V solar-plus-storage system around 3,000W of pure sine output.

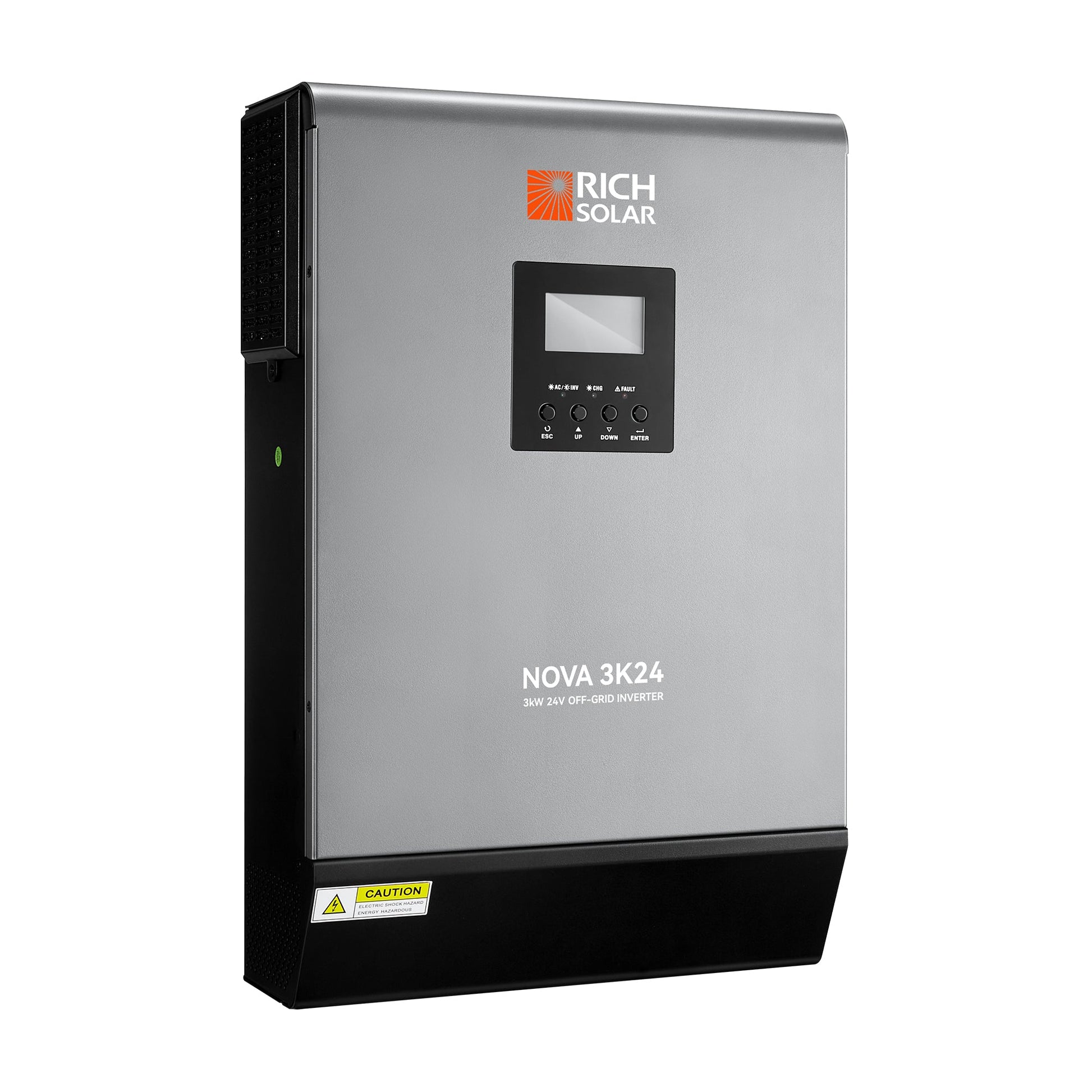

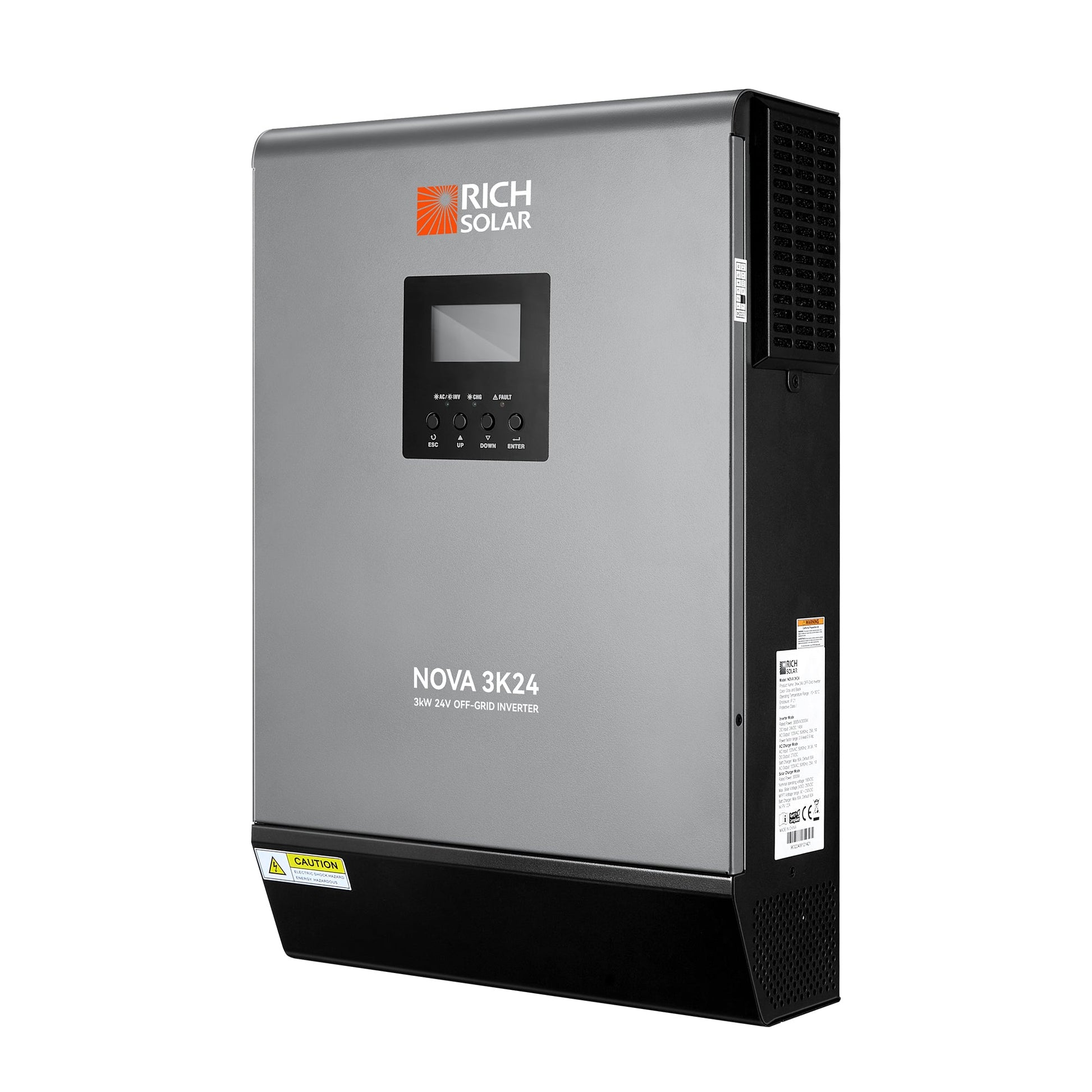

The RICH SOLAR NOVA MAX 3K is a 24V off-grid hybrid inverter for cabins, RVs, workshops and selected backup loads. It combines 3,000W of 120V pure sine AC output with solar and AC charging controls in one wall-mounted unit.
At a glance
Start with voltage, continuous output and surge
3,000WContinuous AC output
24VBattery voltage
120VAC output
2× rated power for 5 secondsPublished surge
A 3,000W inverter can demand roughly 125A before losses
At 24V, full output requires very high battery current. The battery bank, BMS, busbars, conductors, lugs, disconnect and overcurrent protection must all support the continuous and surge demand with acceptable voltage drop.
System fit
Design the battery and charging side before choosing loads.
Match a 24V battery bank to the inverter’s operating window and current demand, then confirm AC output, grounding, neutral treatment, transfer behavior and branch-circuit protection. The solar input is listed at 250V maximum open-circuit voltage, a 90–230V MPPT operating range and 18A maximum input current. Apply cold-weather voltage correction before finalizing a string.
Build a real load listAdd simultaneous running watts and the largest overlapping start-up surge. Include pumps, compressors, microwaves, induction loads, power tools and any sensitive electronics.
Plan the installationAllow for the 5.6 × 12.1 × 18.8 in enclosure, 26.5 lb weight, ventilation, service clearances, cable bend radius, environmental limits and a qualified electrical installation.
In the box
What this NOVA MAX 3K listing covers

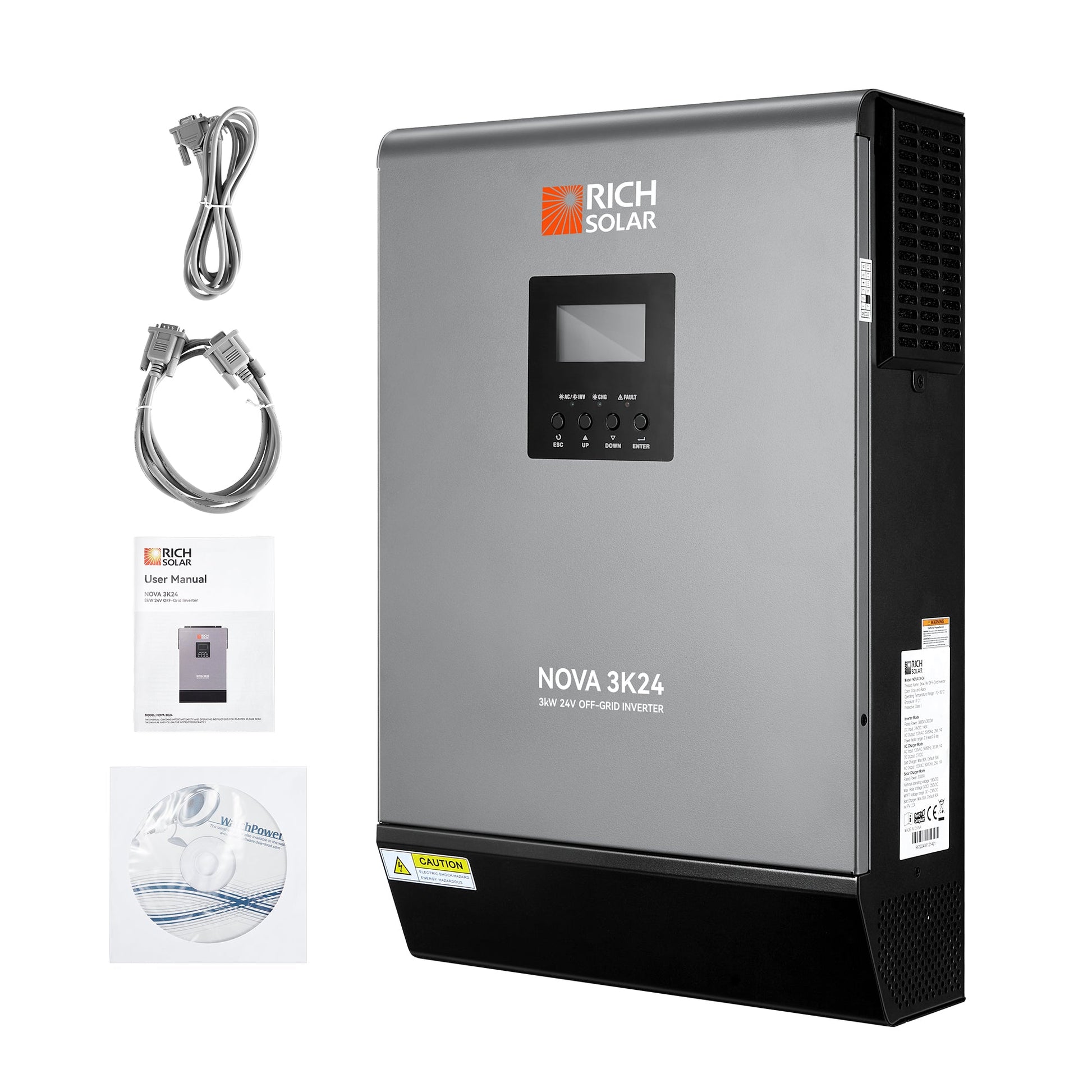

- 1 × RICH SOLAR NOVA MAX 3K inverter (RS-H3024)
Battery bank, PV modules, charge or PV disconnects, battery and AC cabling, overcurrent protection, distribution equipment, mounting hardware, remote accessories and installation labor are not listed as included.
Product confidence
Use the current RICH SOLAR warranty and installation requirements
Warranty eligibility and remedies depend on the written terms, product registration where required, correct system voltage, approved installation practices and operation within the electrical and environmental limits.
Common questions
NOVA MAX 3K system questions
How large should the battery bank be?
Size it from required runtime and current capability. At full 3,000W output, the inverter can draw roughly 125A at nominal voltage before losses, so one battery may not support the required current even when its energy rating looks large enough.
Will it run my air conditioner or well pump?
Only if continuous watts, start-up surge, voltage and frequency all fit—and the battery bank can supply the DC current without excessive sag. Use measured or manufacturer start-up data for the exact load.
Can it power 240V loads?
This model is listed for 120V output. Do not assume native 240V support; choose a compatible split-phase architecture when 240V appliances or service equipment are required.
Does it include the battery and solar panels?
No. This listing covers the inverter. Storage, solar generation, disconnects, protection, distribution and site-specific installation materials are separate.
Product Data
Technical Specifications
| Model | NOVA 3K24 |
|---|---|
| Rated Output Power | 3KVA / 3KW |
| Output Voltage Waveform | Pure Sine Wave |
| Output Voltage Regulation | 120 VAC±5% |
| Output Frequency | 60Hz / 50Hz |
| Peak Efficiency | 91% |
| Surge Capacity | 2* rated power for 5s |
| Nominal DC Voltage | 24 VDC |
| Max. PV Array Open Circuit Voltage | 250 VDC |
| PV Array MPPT Voltage Range | 90 VDC~230 VDC |
| Max. Input Current | 18A |
| Operation Temperature Range | 14°F ~ 104°F |
| Dimension (D*W*H) | 5.6*12.1*18.8in (142.4*307.8*477.6mm) |
| Net Weight | 26.5lb (12kg) |
Available configurations
| Option | SKU |
|---|---|
| Single configuration | RS-H3024 |
Manufacturer Documentation
Official Manuals, Specifications & Certifications
Use these current RICH SOLAR documents for installation, compatibility, limits, and revision-specific details. The delivered product label and its exact manual are the controlling sources.
NOVA MAX 3K | 3000 Watt (3kW) 24 Volt Off-Grid Hybrid Solar Inverter | Powerful 3000W 24V Hybrid Inverter for RVs, Trailers, Campers, Vans, Trucks, Overlanders, Boats | #1 Ranked 24V Hybrid InverterSpecification: NOVA 3K24 Specification 250625 (PDF)Manual: NOVA 3K24 User Manual 251013 (PDF)
Review RICH SOLAR’s current warranty terms
Review the current manufacturer manual for your exact model before installation or use.
