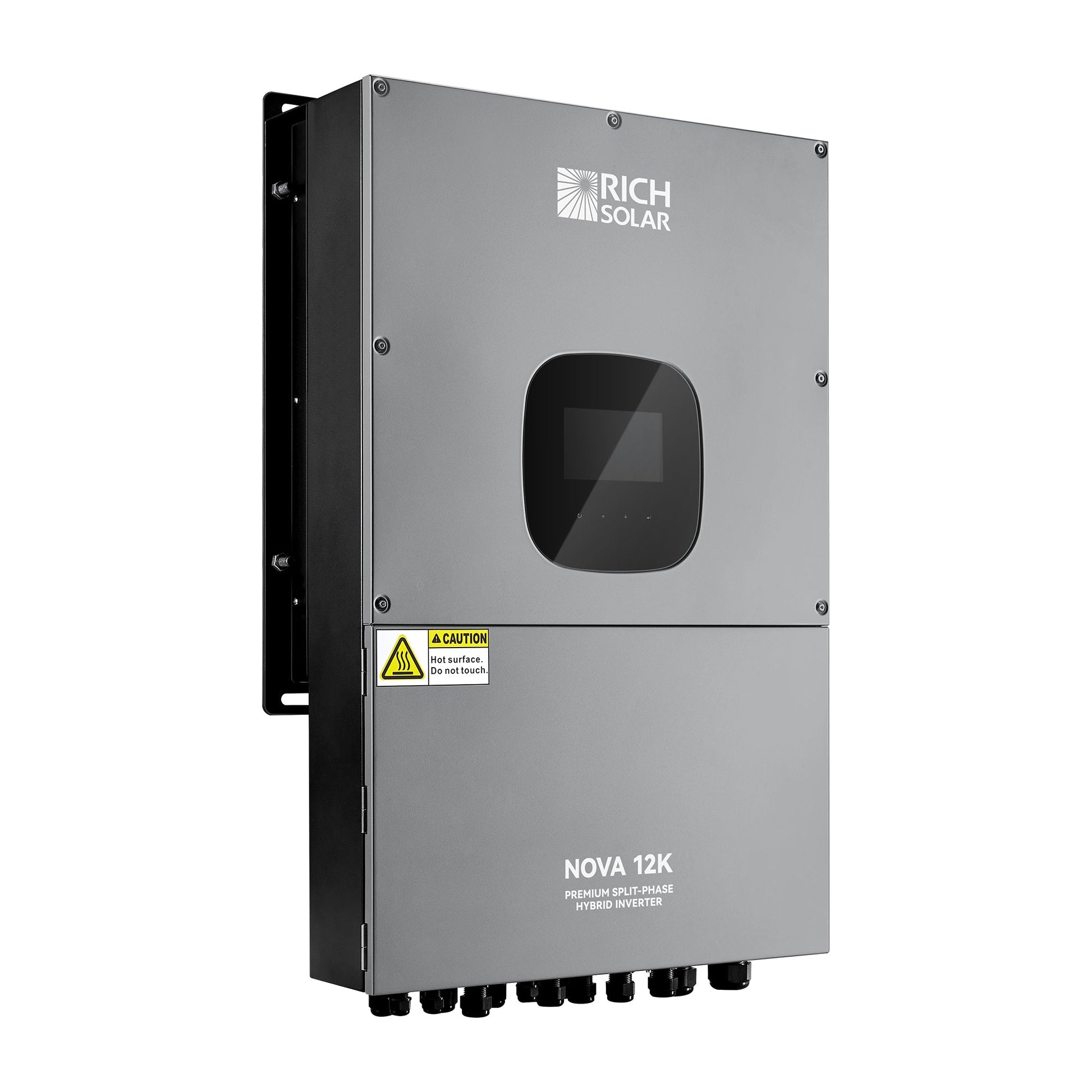

RICH SOLAR NOVA 12K 12000W 48V Split Phase Hybrid Inverter
RICH SOLAR NOVA 12K 12000W 48V Split Phase Hybrid Inverter
SKU: RS-H12K
- Regular price
- $2,999.99
- Regular price
- Sale price
- $2,999.99
- Unit price
- per
Couldn't load pickup availability
In stock — available to order
- Free standard shipping on eligible Lower-48 orders. See shipping details
- 30-day return requests for eligible items after delivery. Review the return policy
- Price Match Guarantee for qualifying identical offers. Check eligibility
- Warranty information is listed in this product's details.
Need help before ordering?
Call 888-495-5870
Contact our support team
Whole-system 48V power conversion
10,000W of 120/240V split-phase output with up to 12,000W of PV input.
The RICH SOLAR NOVA 12K is a 48V hybrid inverter for larger off-grid, backup and supported grid-interactive systems. It combines split-phase AC output, dual solar inputs, battery charging and system communications in one wall-mounted platform for cabins, ADUs, homes and agricultural sites.
At a glance
One platform for split-phase loads, solar and a 48V bank
10,000WRated AC output
12,000WMaximum PV input
120/240VSupported split-phase output
48VNominal battery system
“12K” refers to PV input—not continuous AC output
Model RS-H12K accepts up to 12,000W of PV under its published limits and delivers 10,000W / 10,000VA rated AC output. Size loads and protection from the 10,000W output rating.
Array and battery fit
Engineer both sides of the inverter before ordering.
PV inputPublished PV range is 120–550VDC with 125V startup. The two MPPT inputs are listed at 2 × 18A with 30A peak. Calculate cold-weather string Voc before installation.
Battery bankPublished battery range is 40–62VDC with up to 200A charging. Confirm the bank’s BMS, continuous and surge current, communications, conductors and protection.
At 10,000W output, battery-side current can exceed 200A after conversion losses. The final bank and conductor design must support the inverter’s actual operating mode and load profile without exceeding any component limit.
Installation and compliance
A hardwired power-conversion system—not a plug-in appliance
The NOVA 12K weighs 112 lb and measures 8.5 × 20.3 × 28.1 in. It requires a suitable wall, working clearances, ventilation, grounding, DC and AC disconnects, overcurrent protection and wiring sized to the applicable code and manufacturer instructions.
Grid interaction requires local approvalThe manufacturer lists UL 1741 SA/SB, CSA C22.2 No. 107.1, IEEE 1547 and CEC-related compliance. Utility interconnection and permitting still depend on the exact equipment revision, system design, local authority and utility requirements.
Product confidence
Documented certifications and current manufacturer support
RICH SOLAR publishes a product-specific specification, installation manual and certificate of compliance for RS-H12K. Warranty coverage, registration, eligibility and remedies are governed by RICH SOLAR’s current written terms.
Common questions
NOVA 12K FAQ
Is the AC output 12,000 watts?
No. The published rated AC output is 10,000W / 10,000VA. The 12,000W figure is the maximum PV input power.
Can it run both 120V and 240V loads?
It supports documented split-phase configurations. The panel, grounding, neutral and load distribution must be designed and commissioned according to the manual and applicable electrical code.
How many batteries do I need?
That depends on desired runtime, load profile, surge, bank current limits and charging strategy. Size the bank in both kWh and current—not capacity alone.
Can I install it myself?
This is high-power, hardwired equipment. Installation, permitting and commissioning should be handled by a qualified professional familiar with battery, PV, split-phase AC and local interconnection requirements.
Product Data
Technical Specifications
| Maximum PV input power | 12000W |
|---|---|
| Parallel capability | 6 units |
| Voltage range | 120–550VDC |
| Startup voltage | 125V |
| Mppt | Dual inputs — 2 × 18A (30A peak) |
| Rated output power | 10000VA/10000W |
| Nominal output voltage | 120VAC(P-N)/208VAC(P-P)/240VAC(P-P) |
| Output voltage range | 105.5–132VAC per phase |
| Nominal output current | 41.7A per phase |
| Battery DC voltage range | 40–62VDC/48VDC |
| Maximum solar charging current | 200A |
| Maximum AC charging current | 200A |
| Maximum charging current | 200A |
| Operating temperature range | -13°F to 140°F(>113°F derating) |
| Protection degree | IP65 |
| Communication port | RS232, RS485, Wi-Fi, USB |
| Dimension (LxWxH) | 8.5x20.3x28.1in/215x516x714mm |
| Net weight | 112lb/51kg |
Available configurations
| Option | SKU |
|---|---|
| Single configuration | RS-H12K |
Manufacturer Documentation
Official Manuals, Specifications & Certifications
Use these current RICH SOLAR documents for installation, compatibility, limits, and revision-specific details. The delivered product label and its exact manual are the controlling sources.
NOVA 12K | 12000 Watt 48V Split Phase Hybrid Inverter | 12000W PV Input, 10000W Continuous Output 120/240V | Premium 12000W 48V Hybrid Inverter for Cabins, ADUs, Tiny Homes, Residential, Agriculture, Off-Grid, On-Grid | UL 1741 CertifiedSpecification: NOVA 12K Specification Premium 250521 d8a9603a fa3f 451e 80cc 2122f6745b88 (PDF)Manual: NOVA 12K Manual 20250507 (PDF)Document: NOVA 12K 221100419TPE 001 COC RICH SOLAR INC 100012838AHM 001 (PDF)
Review RICH SOLAR’s current warranty terms
Review the current manufacturer manual for your exact model before installation or use.
