• Included SPH10048P 10kW 48V 120/240V split-phase off-grid inverter
  • Twelve included SG550WM 550W solar panels totaling 6.6kW
  • SunGoldPower PowerMax 314 Outdoor LiFePO4 battery included in the SGR-10K32P kit — quantity 2

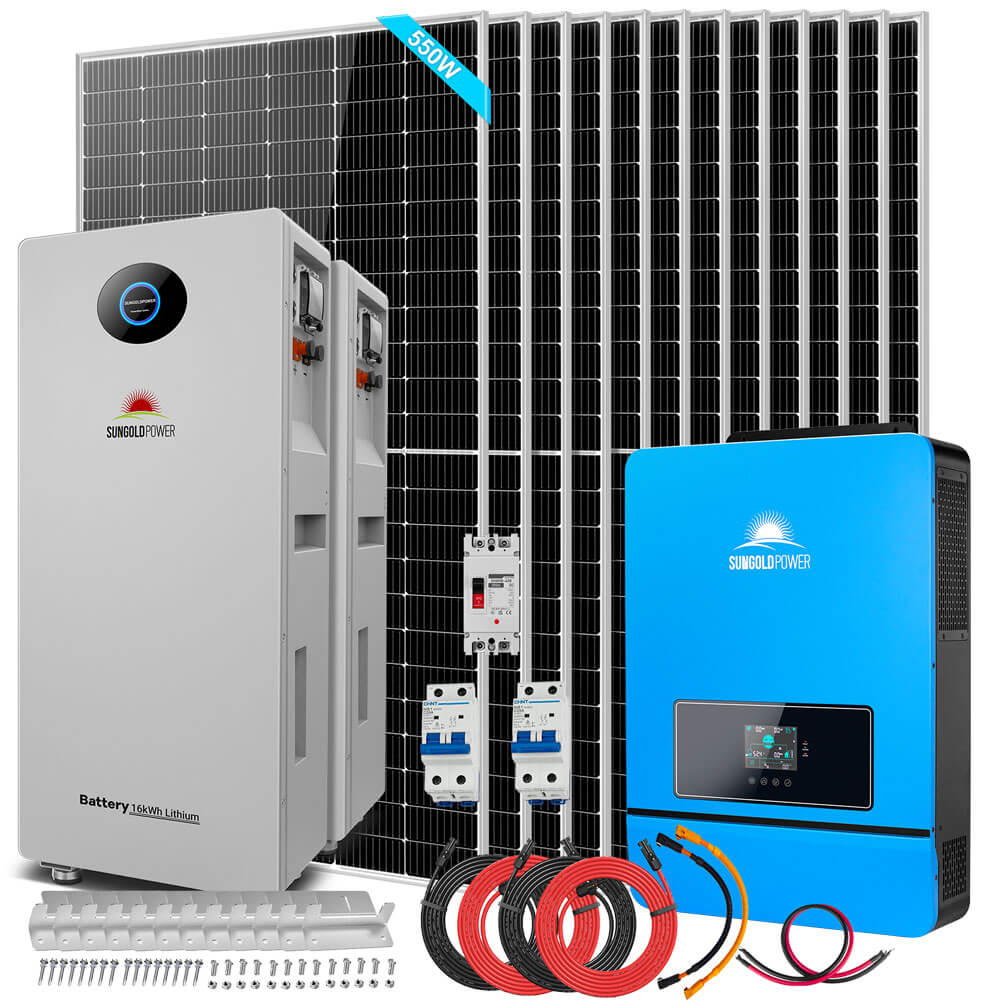

  • SunGoldPower SGR-10K32P 10kW off-grid solar kit with 12 panels, 2 PowerMax batteries, inverter, breakers and cables

SunGoldPower

SunGoldPower 10kW Off-Grid Solar Kit — 6.6kW Panels + 32.14kWh Batteries, 120/240V (SGR-10K32P)

SunGoldPower 10kW Off-Grid Solar Kit — 6.6kW Panels + 32.14kWh Batteries, 120/240V (SGR-10K32P)

SKU: SGR-10K32P

$10,686.00
$10,686.00
View Cart

In stock — available to order

Need help before ordering? Call 888-495-5870 Contact our support team

10kW off-grid core equipment package

10kW split-phase power, 6.6kW of solar, and 32.14kWh of outdoor-rated storage.

Compare the exact capacity, output, package contents and installation requirements before ordering SunGoldPower 10kW Off-Grid Solar Kit — 6.6kW Panels + 32.14kWh Batteries, 120/240V (SGR-10K32P).

10kW
120/240V inverter output
6.6kW
12 × 550W solar array
32.14kWh
rated battery energy
30.84kWh
listed usable battery energy

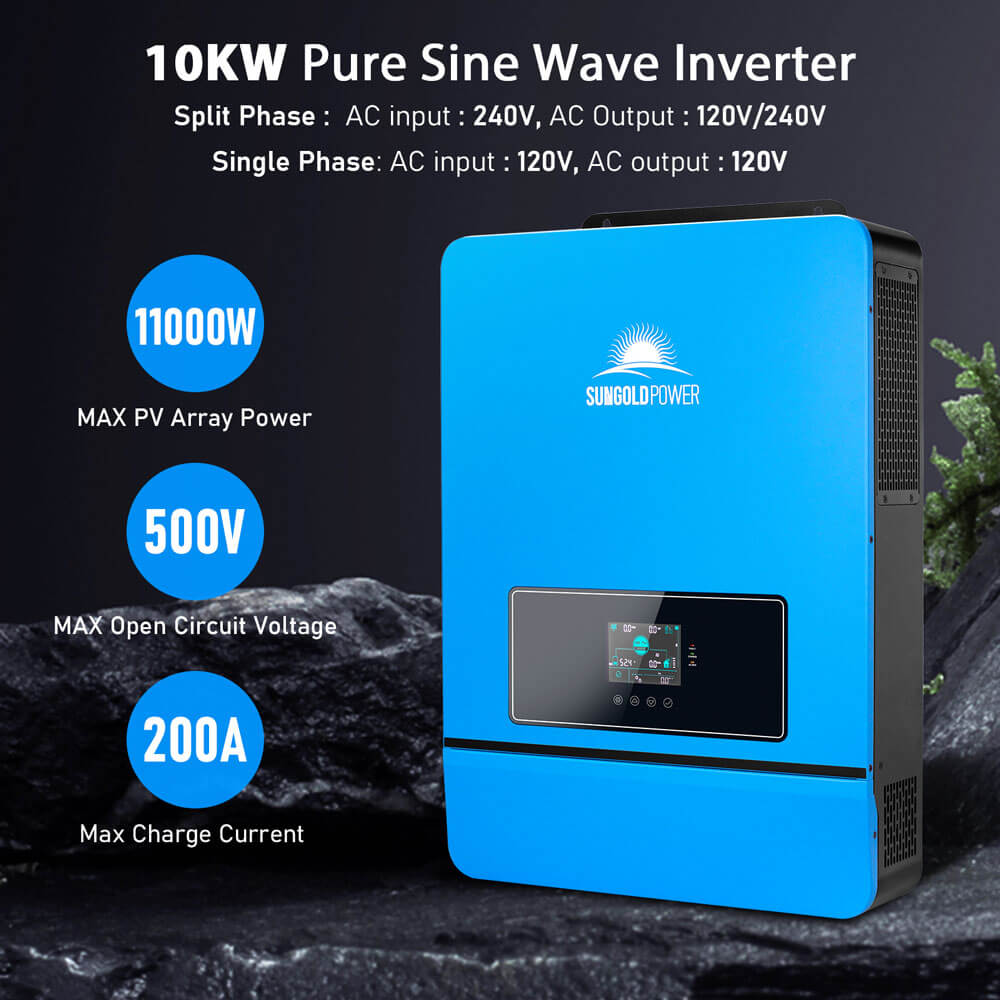

Included SPH10048P 10kW 48V 120/240V split-phase off-grid inverter
Included SPH10048P 10kW 48V 120/240V split-phase off-grid inverter

Why it earns a closer look

Useful capability, explained in buying language.

Mixed-voltage off-grid power

The included SPH10048P supplies native 120/240V split-phase output for appropriately sized home and shop loads.

Large storage from two outdoor batteries

Two PowerMax 314 units provide 32.14kWh rated and 30.84kWh listed usable energy before AC conversion losses.

High-output array with fewer panels

Twelve 550W modules produce 6.6kW STC while keeping module count manageable for a large system.

A transparent bill of materials

Breakers, cable items, panel brackets, and extension cables are listed separately from the site-specific materials that are not included.

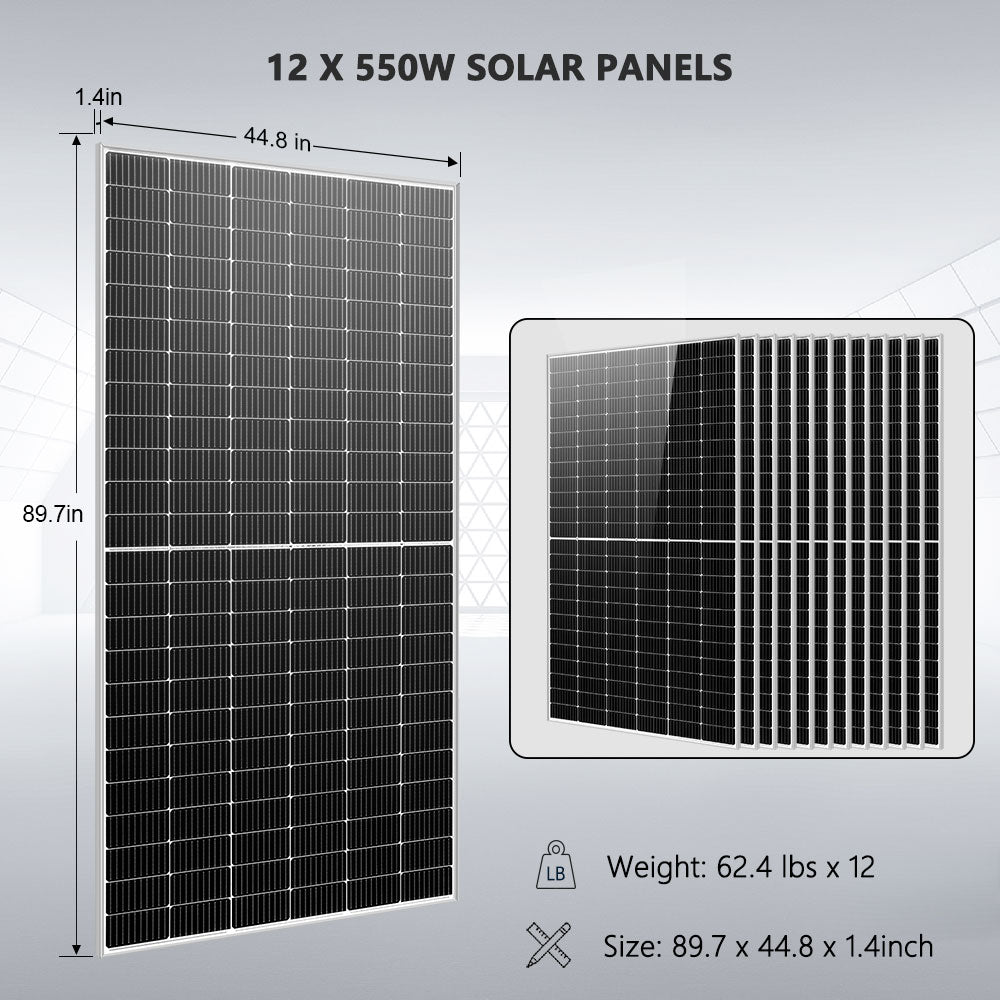

Twelve included SG550WM 550W solar panels totaling 6.6kW
Twelve included SG550WM 550W solar panels totaling 6.6kW

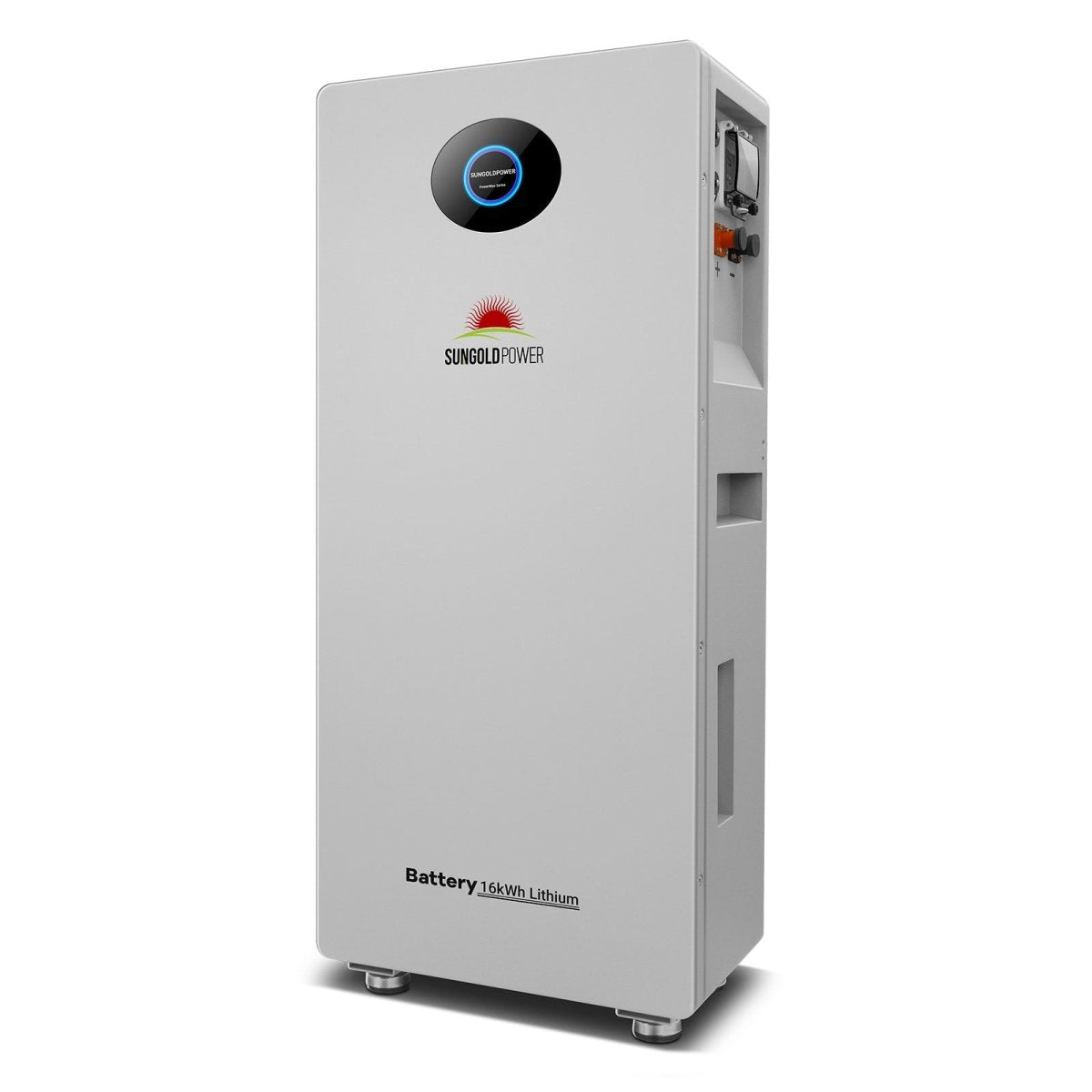

SunGoldPower PowerMax 314 Outdoor LiFePO4 battery included in the SGR-10K32P kit — quantity 2
The SGR-10K32P kit includes 2 × PowerMax 314 Outdoor batteries; this image shows one battery.

Where it fits

  • Large off-grid homes
  • Remote farms and workshops
  • Generator-assisted off-grid properties
  • High-capacity backup-oriented systems without utility export

System-fit guidance

Confirm voltage, phase, continuous and surge loads, solar-input limits, communications, environmental rating, code requirements and delivery access with the qualified installer before ordering.

What’s included

  • 1 × SPH10048P 10,000W 48V DC / 120/240V AC inverter
  • 12 × SG550WM 550W solar panels (6.6kW total)
  • 2 × PowerMax 314 Outdoor batteries (32.14kWh rated; 30.84kWh listed usable total)
  • 2 sets × 50 ft PV extension cables
  • 1 × battery parallel cable
  • 12 sets × panel Z-brackets
  • 1 × 200A DC breaker
  • 2 × 25A PV breakers
  • 1 × manufacturer-listed 1/0 AWG cable item

Typically still required

  • Roof rails or a complete ground-mount structure beyond the listed Z-brackets
  • Grounding, conduit, combiner/disconnect enclosures, surge protection, or service/load equipment beyond listed kit parts
  • Additional conductor length, lugs, busbars, and protection required by the final layout
  • Generator, fuel system, transfer equipment, or utility-export hardware
  • Engineering, permits, freight unloading, installation labor, or commissioning

Frequently asked questions

Does 10kW mean the kit includes 10kW of solar panels?
No. The inverter is rated 10kW AC. The included solar array is twelve 550W panels, totaling 6.6kW STC.
How much battery energy is actually available?
The two batteries provide 32.14kWh rated and 30.84kWh listed usable DC energy. Delivered AC energy will be lower after reserves, temperature effects, wiring losses, and inverter conversion.
Can it run an entire off-grid home?
Possibly, but the answer depends on peak load, 240V loads, motor surges, daily kWh use, climate, solar resource, generator strategy, and reserve targets. A load and production model is required.
Is everything needed for installation included?
No. The package includes the listed core equipment and selected breakers/cables/brackets. Most sites still need engineered racking, grounding, conduit, disconnect enclosures, service equipment, additional conductors, permits, and labor.
Why does Torven call out the battery cable and breaker sizing?
The official kit BOM lists a 200A breaker and 1/0 AWG cable item, while the current inverter manual recommends different full-output battery-circuit sizing. A qualified designer must validate the exact circuit, length, ampacity, and protection before installation.

Know what arrives—and what the installation still needs.

Send Torven Power your loads, existing equipment and project goals for pre-purchase fit guidance.

Specifications, images and package contents can change by hardware revision. The delivered model label, current manual, written warranty and permitted design control.
