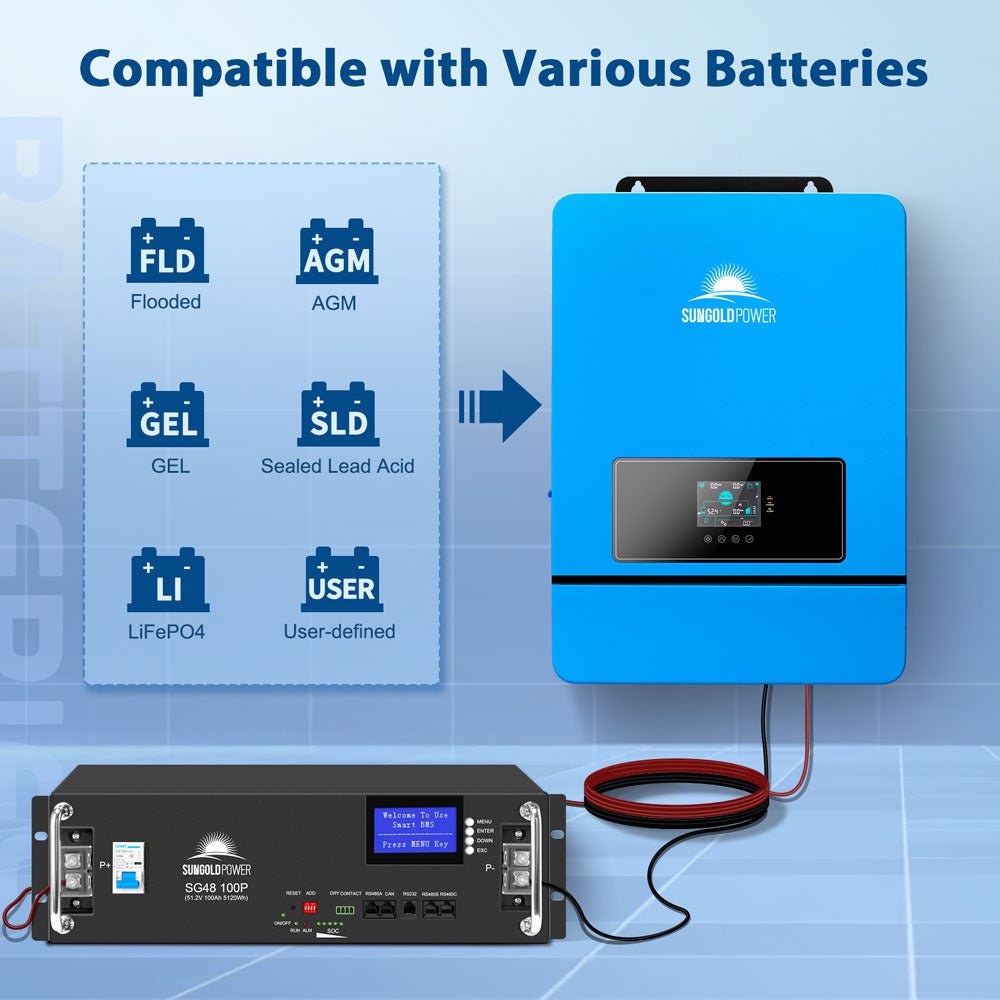

  • SPH10048P supported battery profiles shown with an SG48100P battery

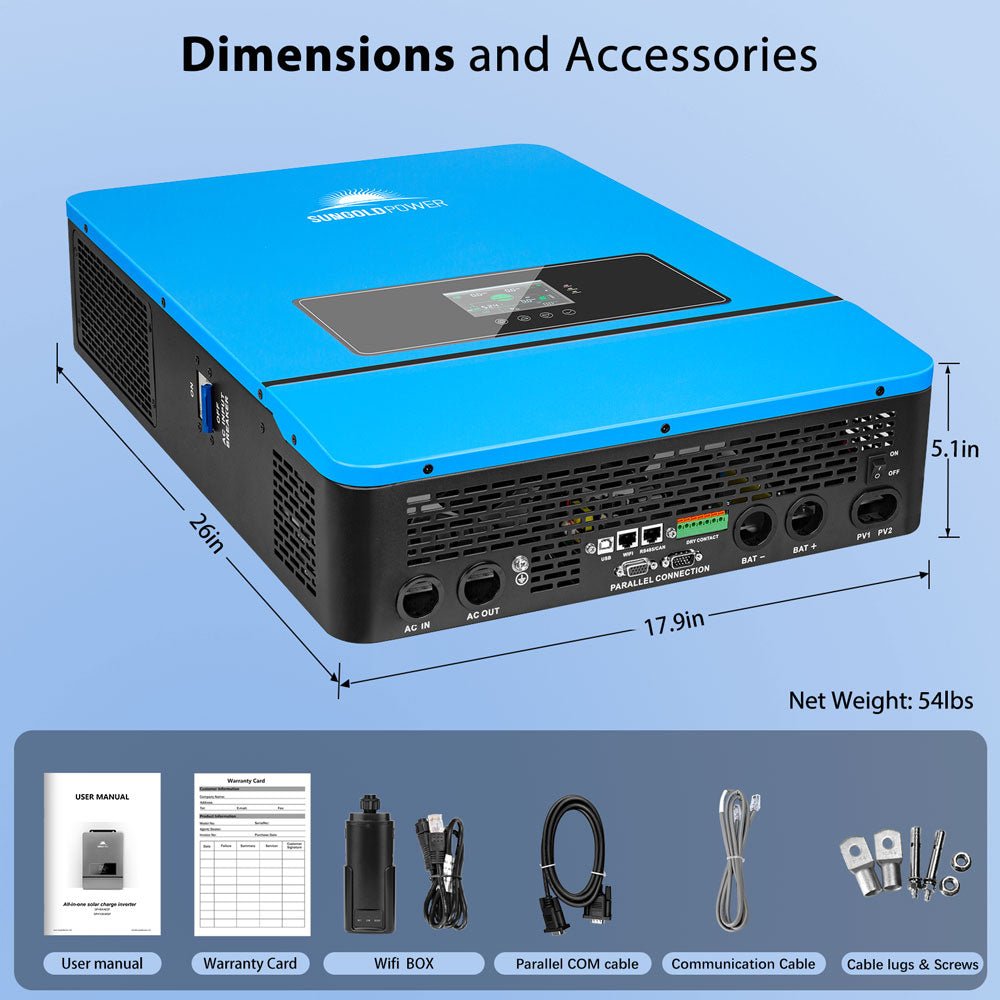

  • SPH10048P dimensions and included Wi-Fi box, cables, lugs, screws, manual, and warranty card

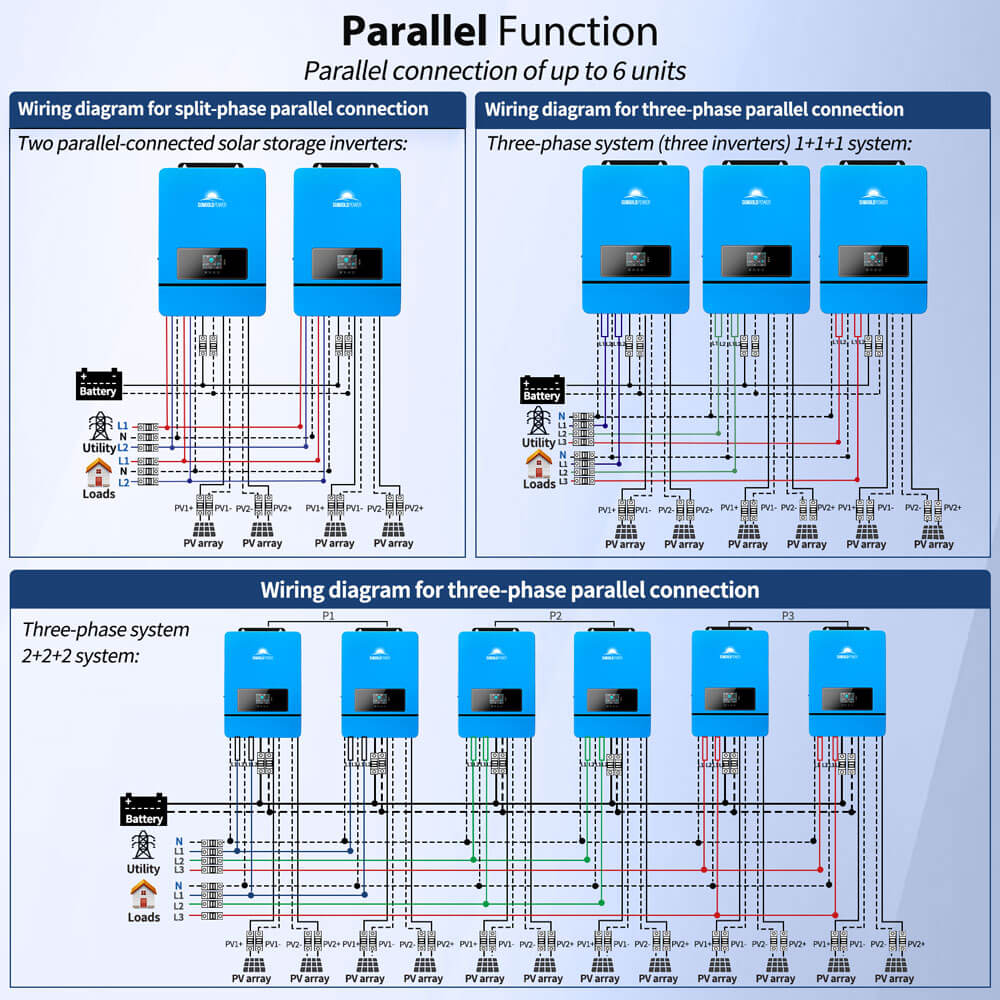

  • SPH10048P single-phase, split-phase, and three-phase parallel wiring examples

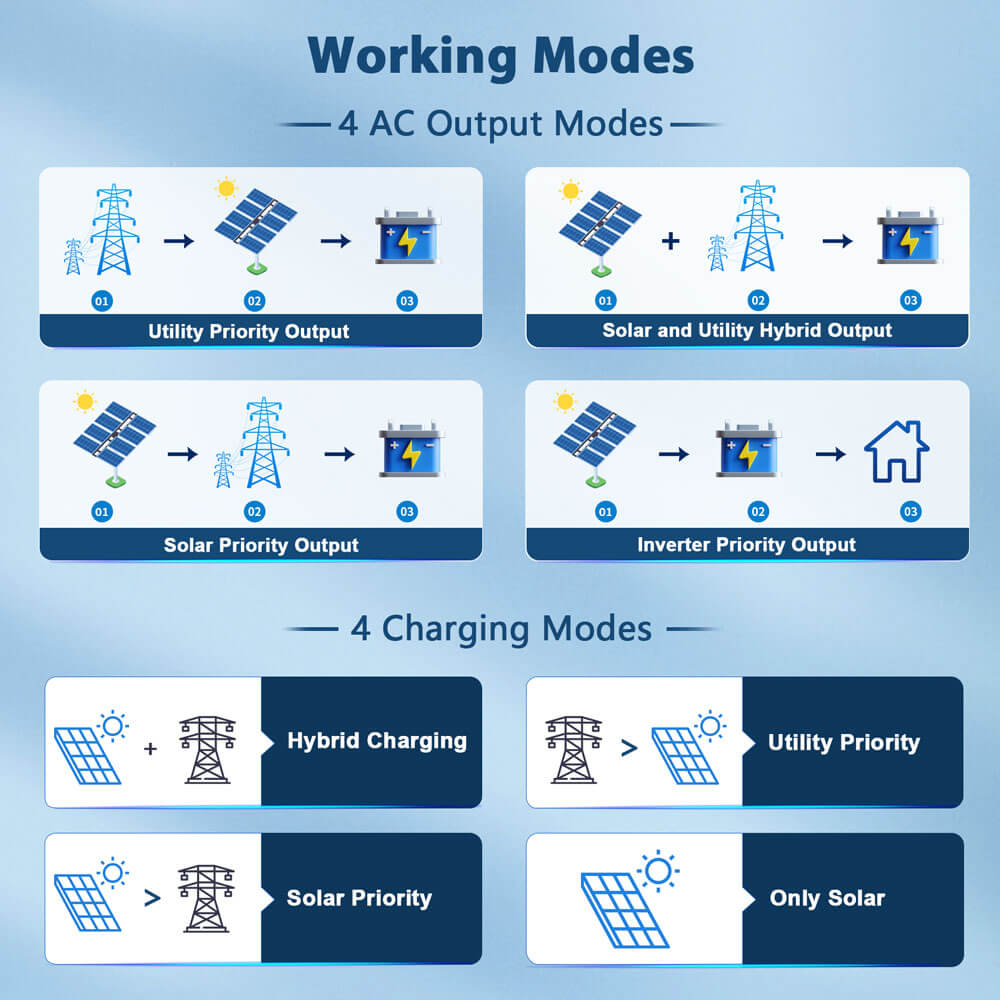

  • SPH10048P four charging priorities and four AC-output priorities

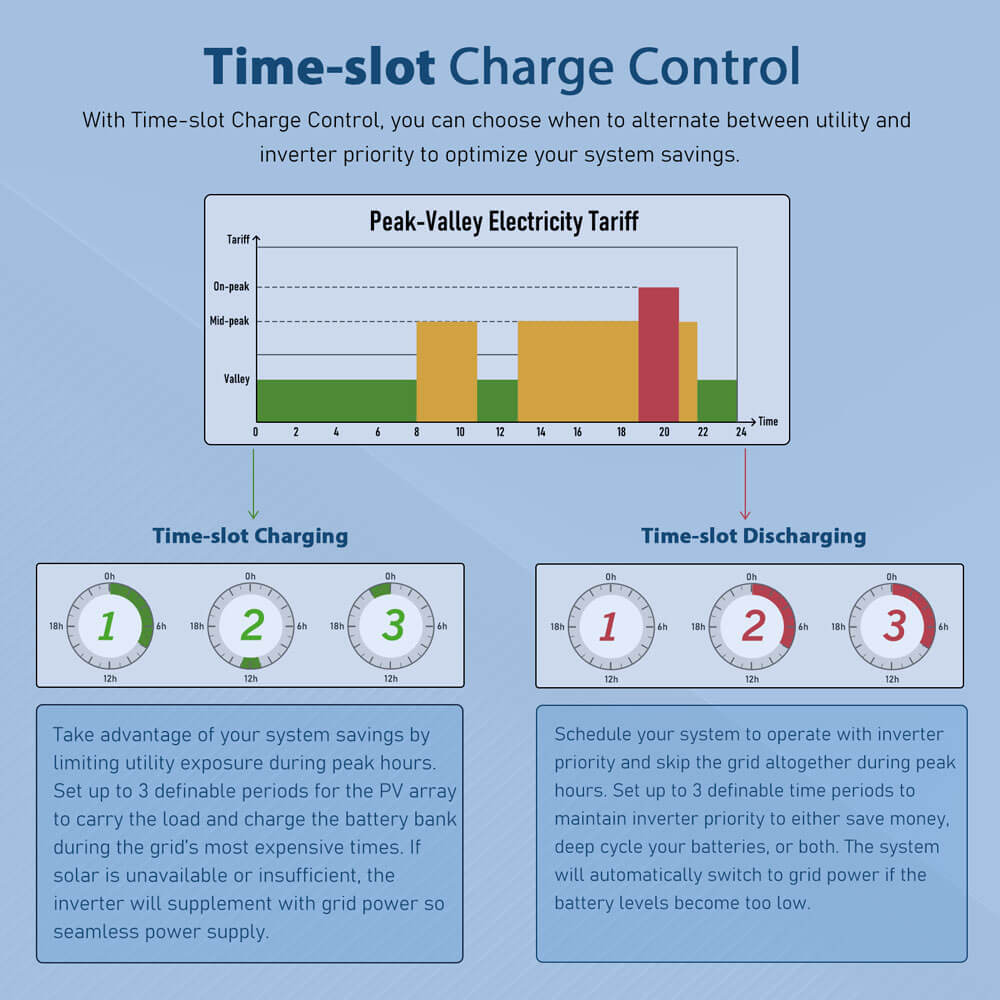

  • SPH10048P scheduled time-slot charging and discharging controls

SunGoldPower

SunGoldPower 10kW 48V Off-Grid Inverter Charger, 120/240V Split Phase — SPH10048P

SunGoldPower 10kW 48V Off-Grid Inverter Charger, 120/240V Split Phase — SPH10048P

SKU: SPH10048P

$1,580.00
$1,580.00
View Cart

In stock — available to order

Need help before ordering? Call 888-495-5870 Contact our support team

10kW native split-phase off-grid inverter

One inverter for 120V and 240V loads—without pretending it is a net-metering model.

Compare the exact capacity, output, package contents and installation requirements before ordering SunGoldPower 10kW 48V Off-Grid Inverter Charger, 120/240V Split Phase — SPH10048P.

10kW
continuous output
20kW
surge rating
11kW
maximum PV array
120/240V
native split-phase output

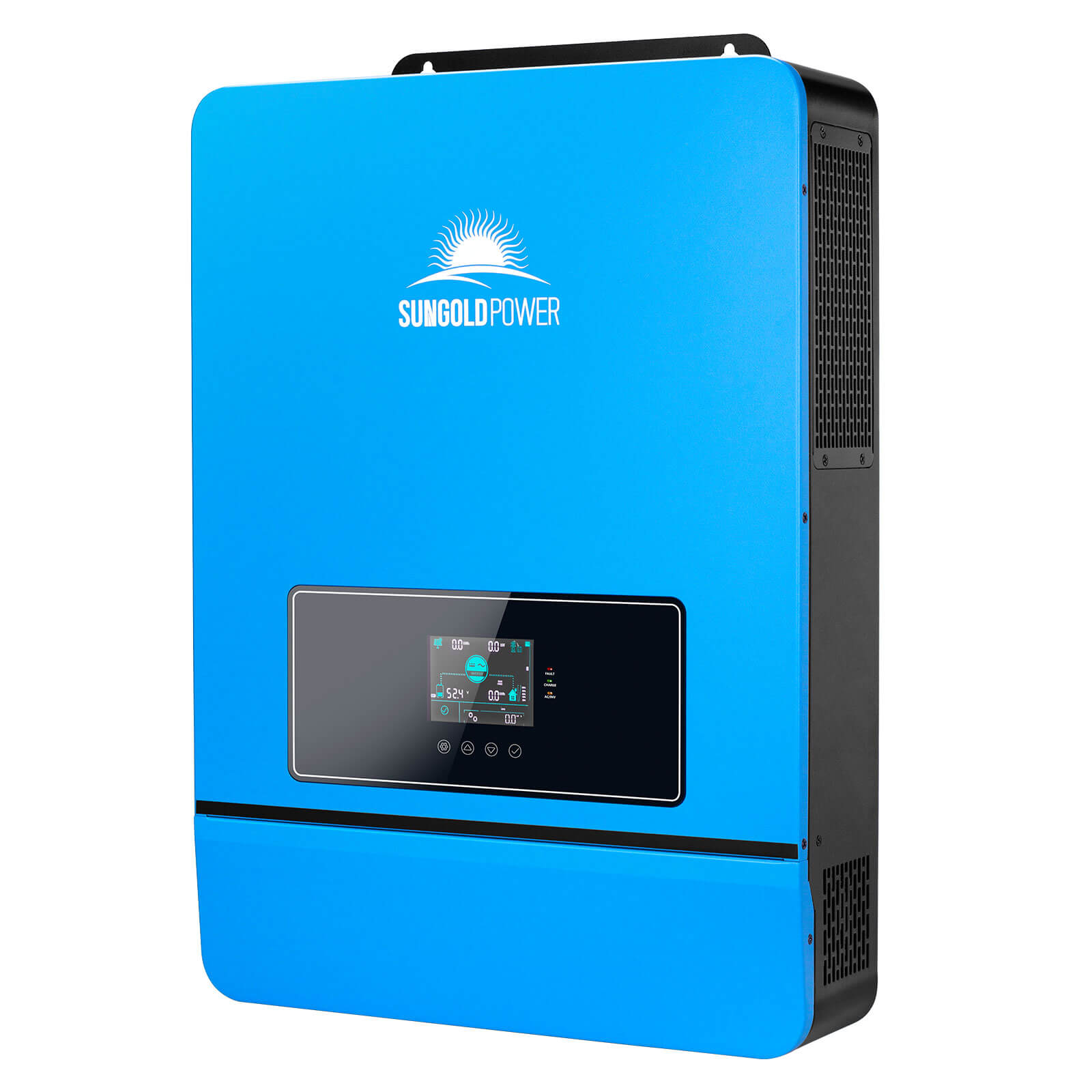

SunGoldPower SPH10048P 10kW 48V split-phase off-grid inverter, front view
SunGoldPower SPH10048P 10kW 48V split-phase off-grid inverter, front view

Why it earns a closer look

Useful capability, explained in buying language.

Mixed-voltage loads from one unit

Native split phase serves 120V and 240V loads without requiring two 120V inverters just to create split phase.

Dual MPPT solar input

Two trackers provide more layout flexibility while supporting up to 11kW of correctly sized PV.

High charging capacity

Up to 200A combined charging supports substantial 48V battery banks when the batteries and conductors can accept it.

Included monitoring hardware

The current package image shows a Wi-Fi box plus communication and parallel cables for setup and monitoring.

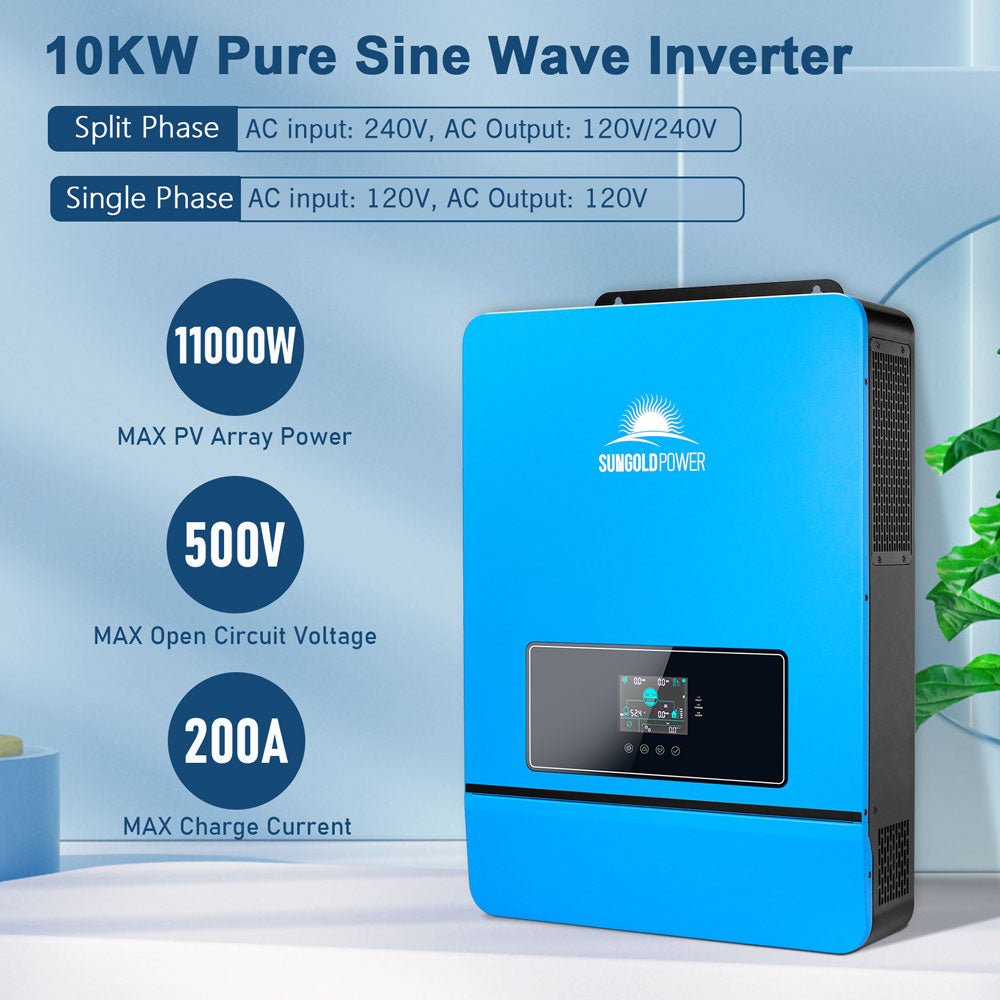

SPH10048P 10kW output, 11kW PV, 500V PV limit, and 200A charging overview
SPH10048P 10kW output, 11kW PV, 500V PV limit, and 200A charging overview

Where it fits

  • Off-grid homes with 120V and 240V loads
  • Remote shops and farms
  • Generator-assisted battery systems
  • Large backup-oriented systems without utility export

System-fit guidance

Confirm voltage, phase, continuous and surge loads, solar-input limits, communications, environmental rating, code requirements and delivery access with the qualified installer before ordering.

What’s included

  • 1 × SPH10048P inverter charger
  • 1 × user manual
  • 1 × warranty card
  • 1 × Wi-Fi box and lead shown in the official package image
  • 1 × parallel communication cable
  • 1 × communication cable
  • 1 set × cable lugs and screws

Typically still required

  • Battery bank and battery conductors
  • Solar panels, racking, PV wire, or combiner
  • External AC/DC breakers, disconnects, conduit, grounding, or surge protection
  • Load center, transfer/service equipment, or generator
  • Engineering, permits, installation labor, or utility interconnection

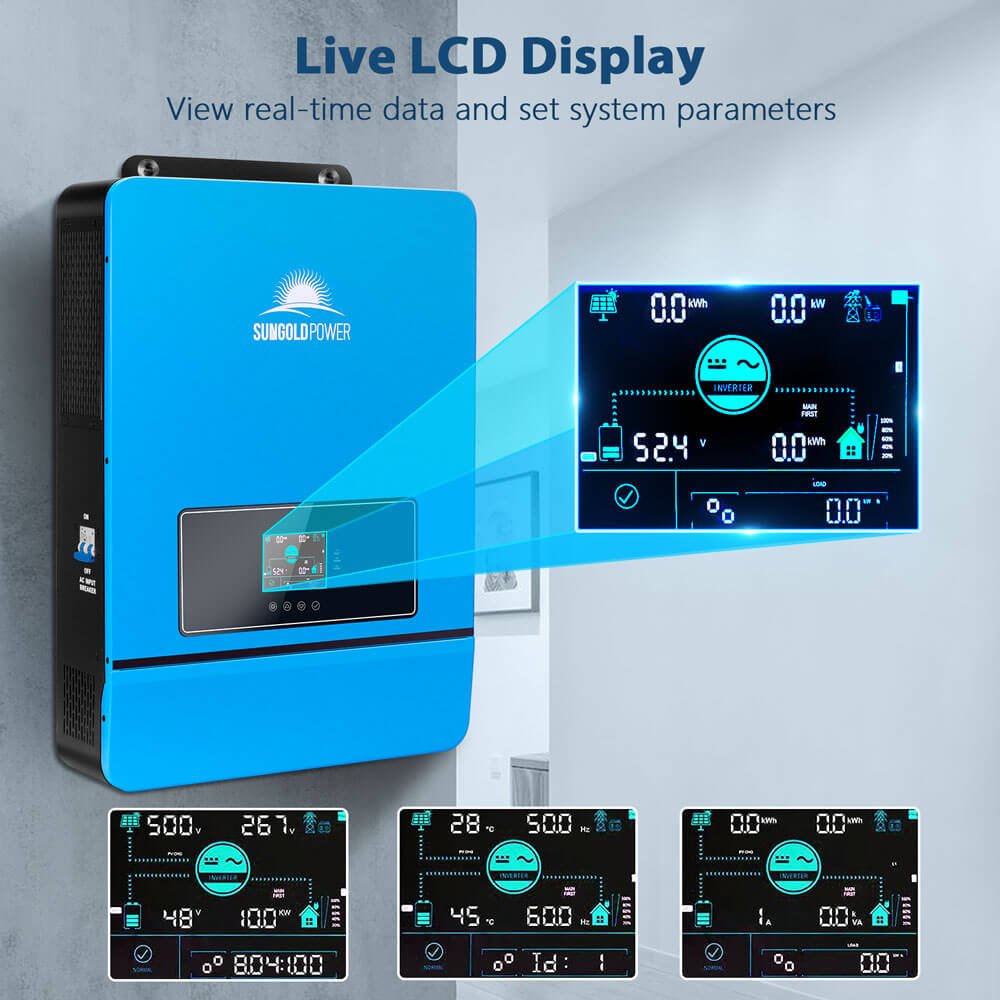

SPH10048P live LCD display and system-status screens
SPH10048P live LCD display and system-status screens

Frequently asked questions

Does one SPH10048P provide both 120V and 240V?
Yes. One unit provides native 120/240V split-phase output and can also be configured for 120V single-phase operation.
Is this a utility grid-tie inverter?
No utility-export or net-metering claim is made. The verified certificate identifies it as a stand-alone inverter; grid or generator input may be used for bypass and charging.
How much PV can I connect?
The manual lists up to 11kW across two MPPT inputs. Each string still has to meet the 500V absolute Voc, 125–425V MPPT, 22A-per-input, and cold-weather limits.
Can I parallel more inverters?
The manual supports up to six properly configured units. Phase assignment, communications, AC protection, battery conductors, and output architecture require an engineered design.
Can it be mounted outdoors?
No. The current enclosure rating is IP20, so install it indoors in a protected, ventilated location within the specified temperature and humidity limits.

Know what arrives—and what the installation still needs.

Send Torven Power your loads, existing equipment and project goals for pre-purchase fit guidance.

Specifications, images and package contents can change by hardware revision. The delivered model label, current manual, written warranty and permitted design control.
