RICH SOLAR 13kW Off-Grid Solar Kit — 20.48kWh, Selectable Panel Packages
RICH SOLAR 13kW Off-Grid Solar Kit — 20.48kWh, Selectable Panel Packages
SKU: RS-CBK1301A
- Regular price
- $20,999.99
- Regular price
- Sale price
- $20,999.99
- Unit price
- per
Couldn't load pickup availability
- Free shipping in the Lower 48. No order minimum. See shipping details
- 30-day returns — contact Torven and we will help you get started. Review the return policy
- Price Match Guarantee for qualifying identical offers. Check eligibility
- Warranty information is listed in this product's details.
Out of stock
13kW 120/240V output • 20.48kWh storage • four configurations
A high-capacity off-grid platform for professionally engineered residential, cabin, farm, workshop, and backup-power projects.
Every configuration includes two NOVA 6548 hybrid inverters and four ALPHA 5 PRO batteries. Choose a 12.3kW, 12.8kW, or 12.7kW solar package—or the no-panel option—and the product gallery will show the configuration tied to your selection. Torven Power can help confirm the itemized package before the order is processed.
At a glance
The numbers that define this system
The selector also lists 32 × 400W, 38 × 335W and no-panel configurations. Do not use the 30 × 410 dimensions, stringing or included-item assumptions for another selected option.
What it can support
Serious mixed 120V and 240V load plans—without a blanket whole-home promise.
A properly designed system can support combinations of refrigeration, lighting, internet and office equipment, kitchen appliances, laundry, pumps, many shop tools, and appropriately sized 240V equipment or HVAC. Final fit depends on simultaneous running watts, motor-starting surge, load balance across both 120V legs, battery reserve, and the permitted installation design.
| Average AC load | Illustrative runtime | What the example assumes |
|---|---|---|
| 1kW | About 14.7 hours | 20.48kWh nominal × 80% selected usable fraction × 90% conversion efficiency = about 14.75kWh AC. No solar input; excludes surge, standby use, temperature, and aging. |
| 3kW | About 4.9 hours | |
| 5kW | About 3.0 hours |
Planning illustration only—not a runtime guarantee. RICH SOLAR estimates about 44.3kWh per day for the 30 × 410W option under four peak-sun-hours; model the exact site and losses before purchase.
System fit
Use engineered drawings—not a generic wiring diagram—for a system this size.
Array strings, conductor ampacity, combiner and disconnect ratings, rapid shutdown, racking, wind/snow loads, battery protection, transfer equipment and grounding require site-specific engineering and permits.
In the box
What stays included—and what changes with the selected panel option

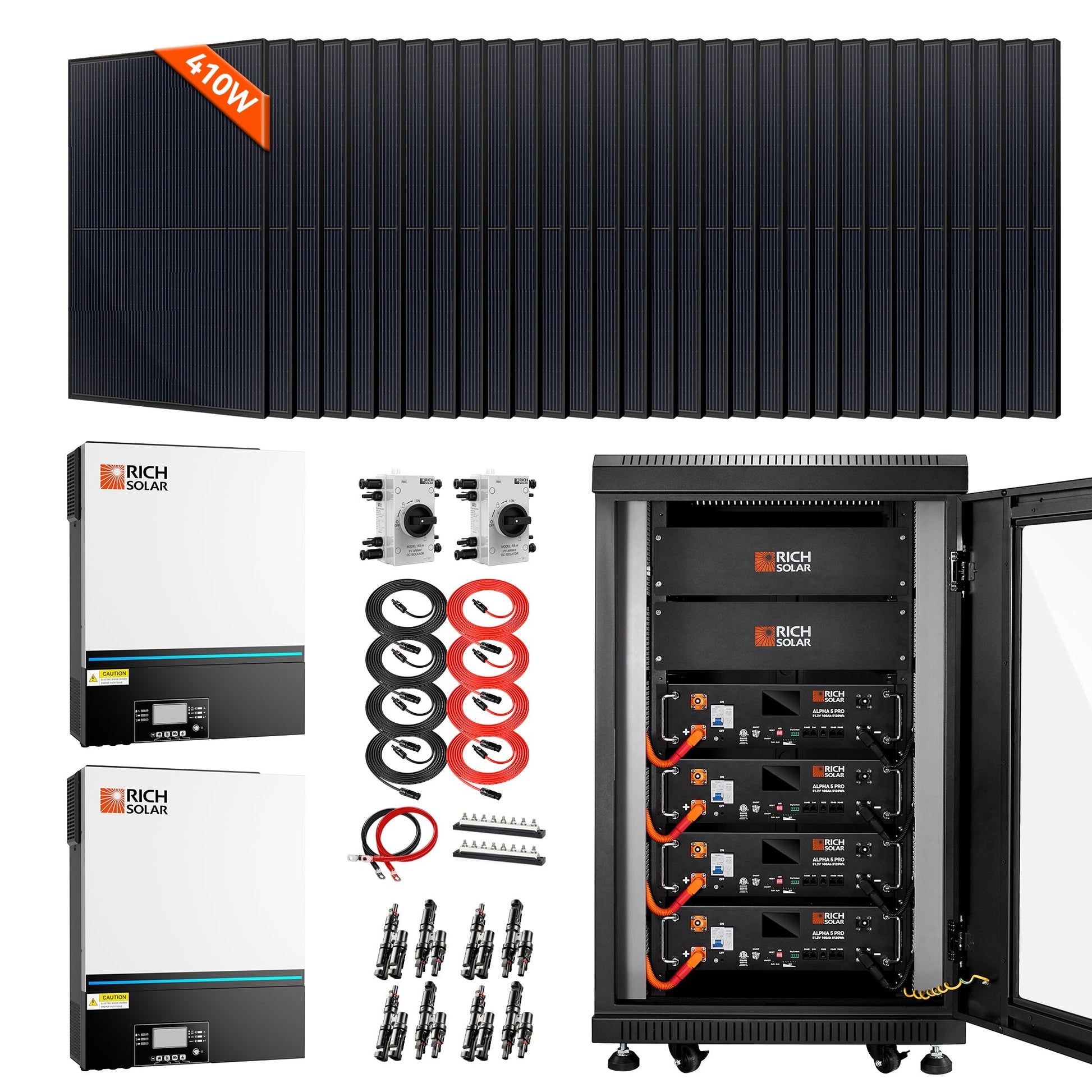

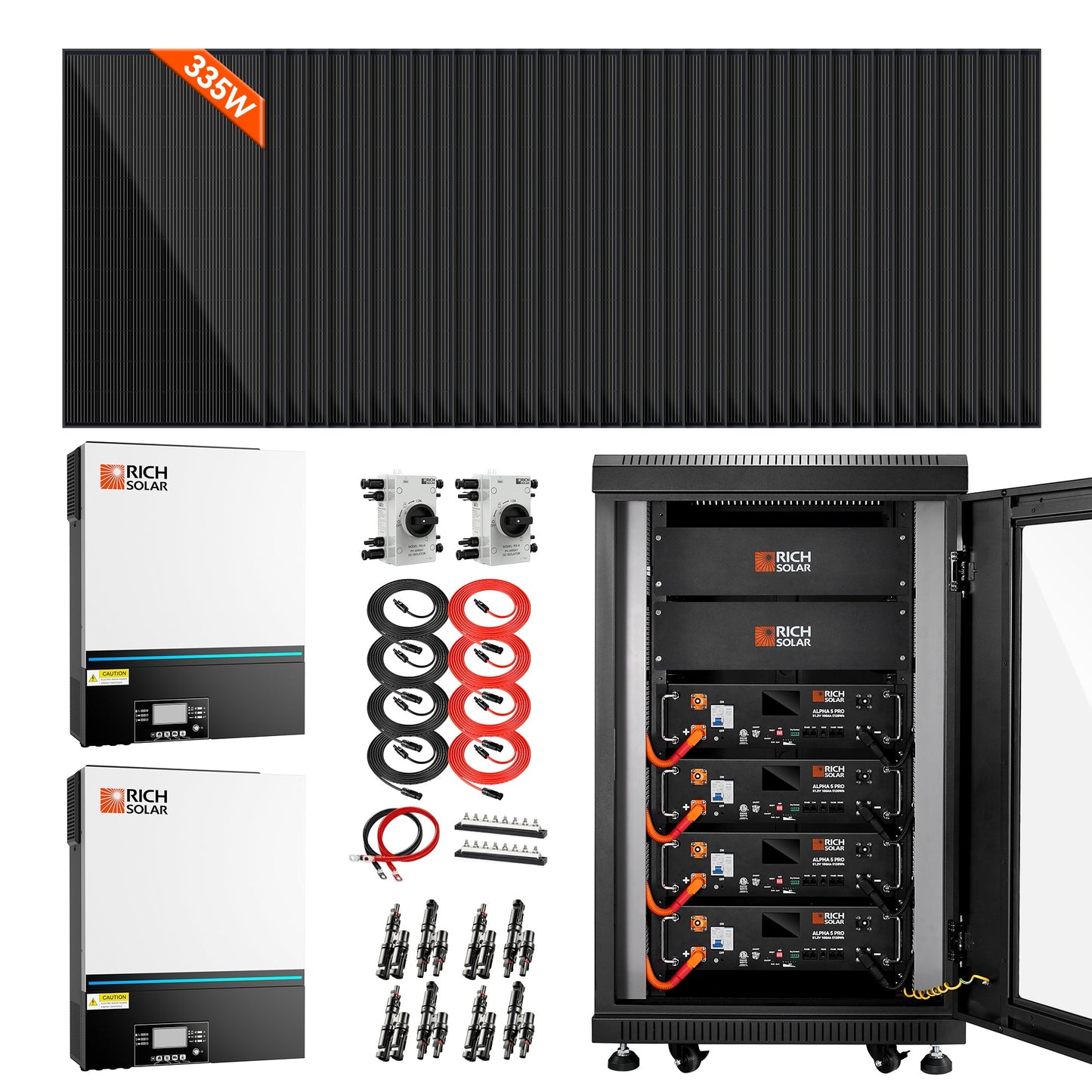

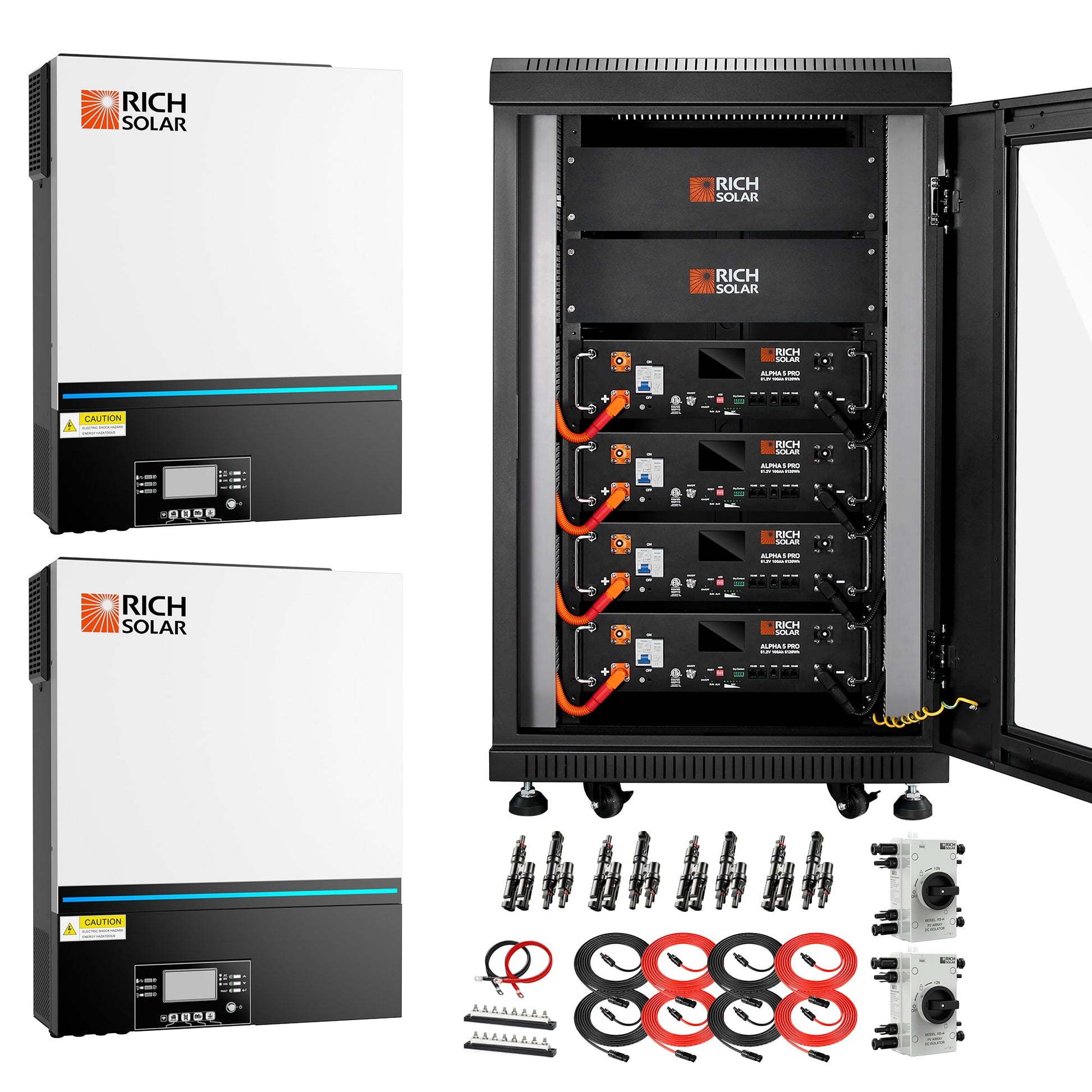

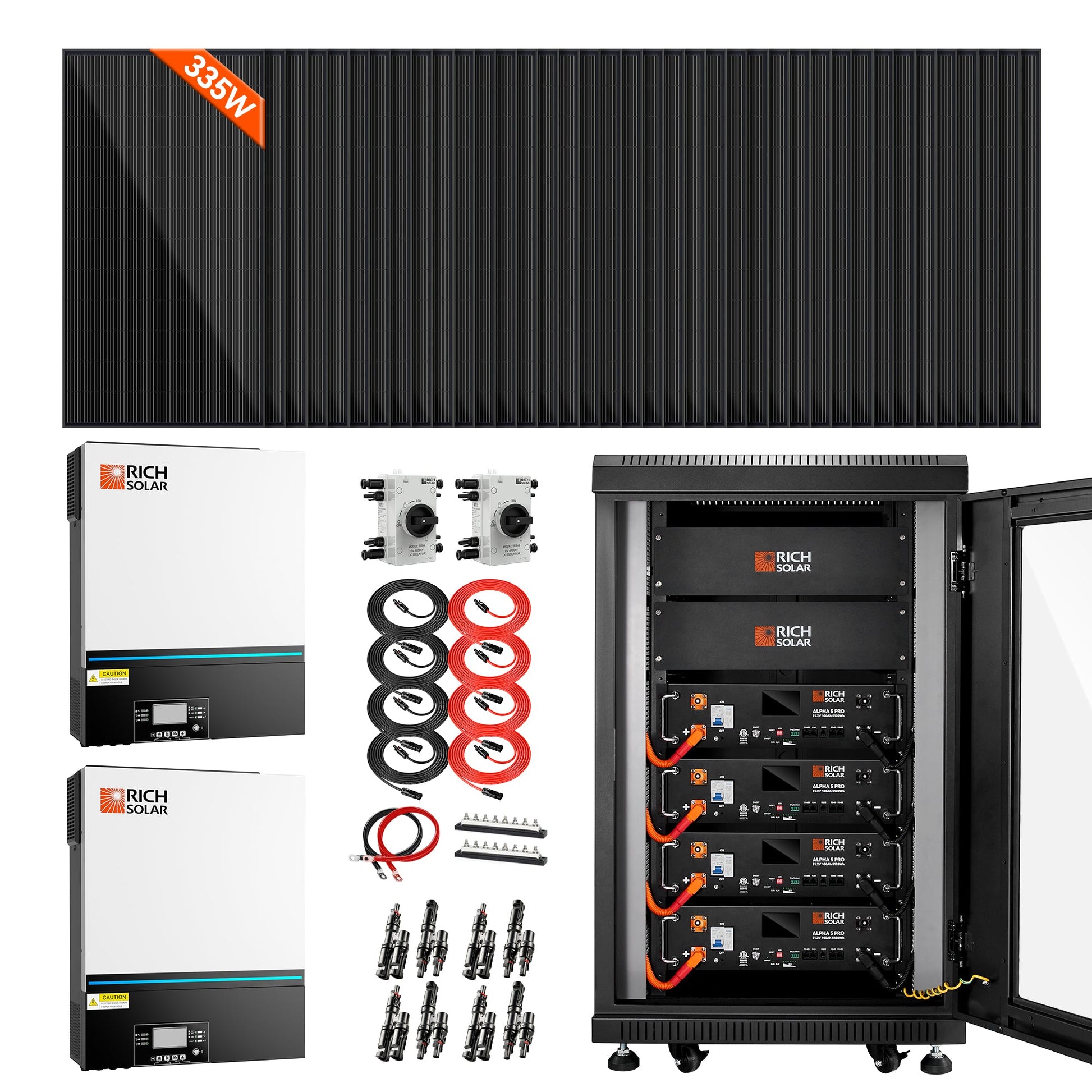

- Selected solar package: 30 × 410W, 32 × 400W, 38 × 335W, or no panels
- 2 × NOVA 6548 6,500W 48V hybrid inverters (RS-H6548)
- 4 × ALPHA 5 PRO 5.12kWh rack batteries (RS-B5121P)
- 2 × RS-i4 PV DC disconnects and 2 × 600A busbars
- Published 2/0 AWG battery and 10AWG PV extension cable sets
- Battery rack as listed by RICH SOLAR; confirm the exact rack model for the selected configuration
Panel model and count change with the selected option; the no-panel configuration omits the array. Confirm the rack model, cable lengths, connectors, protection, and every delivered component before approving construction documents.
Product confidence
Published coverage across the panel, battery and inverter system.
RICH SOLAR’s current limited warranty lists 25-year power-output and 10-year workmanship coverage for rigid panels, 10-year coverage for ALPHA PRO batteries and three-year coverage for hybrid inverters. Coverage is component-based and prorated; proof of purchase, installation, care requirements, exclusions, claim authorization, freight allocation, and the manufacturer’s written remedies control.
Read the Torven-hosted warranty summary and claim checklist →
Common questions
Before you build around this product
Is 13,000W the solar-array size?
No. The 30 × 410W configuration is 12.3kW of PV. The 13,000W headline refers to the combined rated inverter output from two 6.5kW units.
How much storage is included?
Four 5.12kWh ALPHA 5 PRO modules provide 20.48kWh nominal. Usable energy varies with system settings and operating conditions.
Can I select a different panel package?
The product has 32 × 400W, 38 × 335W and no-panel variants. Each changes the array design and included equipment. Choose the intended option at checkout, or contact Torven Power for an itemized component check before ordering.
What can this system power?
It can be designed around combinations of common 120V loads and appropriately sized 240V loads, including refrigeration, lighting, electronics, pumps, appliances, HVAC, and shop equipment. It is not a promise that every large load can run at once; verify running watts, starting surge, leg balance, and daily energy.
How long will the batteries run my loads?
Start with 20.48kWh nominal, then subtract the selected battery reserve and expected conversion and operating losses. Divide the remaining AC energy by average load in kW. Solar production, surge, standby use, temperature, and aging change the result.
Is installation included?
No installation labor or permitting is listed. A project of this size should be designed and installed by qualified professionals.
Complete-system checkout
Lock down the selected-variant bill of materials before checkout.
Torven can turn this large kit into a clearer order-ready plan. Ask for a written itemized list naming the selected panels, inverters, batteries, exact included rack, cable quantities and lengths, connectors, protection, and shipment plan.
Roof or ground racking, grounding, rapid shutdown, final string protection, service equipment, engineering, permits, installation, and final on-site placement are site-specific unless they are named in Torven’s written package list.
REQUEST MY ITEMIZED BOMProduct Data
Technical Specifications
| Manufacturer model | RICH SOLAR 13,000W 120/240V off-grid kit with selectable panel packages and 20.48kWh nominal storage |
|---|---|
| Listed SKU count | 4 |
Available configurations
| Option | SKU |
|---|---|
| 30 x 410 Watt - 12.3KW Total | RS-CBK1301A |
| 32 x 400 Watt - 12.8KW Total | RS-CBK1301B |
| 38 x 335 Watt - 12.7KW Total | RS-CBK1301C |
| No Panel | RS-CBK1301D |
Major component specifications by option: choose 30 × MEGA 410 panels, 32 × MEGA 400 panels, 38 × MEGA 335 PRO panels, or the No Panel option. The inverter and battery specifications apply to every configuration.
30-panel option: MEGA 410 410W Solar Panel Pallet (RS-M410)
| Maximum Power(Pmax) | 410W |
|---|---|
| Maximum Power Voltage(Vmp) | 31.3V |
| Maximum Power Current(Imp) | 13.1A |
| Open Circuit Voltage(Voc) | 37.5V |
| Short Circuit Current(Isc) | 13.8A |
| Maximum System Voltage(Vmax) | 1500VDC |
| Temperature Range | -40°F ~ 185°F |
| Max Series Fuse Rating | 25A |
| Weight | 45.2 lb |
| Dimensions | 67.8 x 44.7 x 1.2 in |
32-panel option: MEGA 400 400W Solar Panel Pallet (RS-M400)
| Maximum Power (PMAX) | 400W |
|---|---|
| Maximum Power Voltage (VMP) | 31.0V |
| Maximum Power Current (IMP) | 12.9A |
| Open Circuit Voltage (VOC) | 37.1V |
| Short Circuit Current (ISC) | 13.7A |
| Maximum System Voltage (VMAX) | 1500VDC |
| Temperature Range | -40 ~ +185°F |
| Maximum Series Fuse Rating | 25A |
| Dimensions | 67.8 x 44.7 x 1.2 in |
| Weight | 45.2 lbs |
38-panel option: MEGA 335 PRO 335W Solar Panel Pallet (RS-M335P)
| Maximum Power(Pmax) | 335W |
|---|---|
| Maximum Power Voltage(Vmp) | 29.2V |
| Maximum Power Current(Imp) | 11.5A |
| Open Circuit Voltage(Voc) | 36.9V |
| Short Circuit Current(Isc) | 11.8A |
| Maximum System Voltage(Vmax) | 1500VDC |
| Temperature Range | -40°F ~ 185°F |
| Max Series Fuse Rating | 20A |
| Dimensions | 69.3 x 34.7 x 1.2 in |
| Weight | 35.2 lb |
2 × NOVA 6548 6500W (6.5kW) 48V Off-Grid Hybrid Solar Inverter (RS-H6548)
| Model | RS-H6548 |
|---|---|
| Rated Inverter Power | 6500VA/6500W |
| Parallel Capability | Yes, 6 units |
| Voltage | 120 VAC |
| Selectable Voltage Range | 90–140 VAC (For Computers), 80–140 VAC (For Home Appliances) |
| Frequency Range | 50 Hz/60 Hz (Auto Sensing) |
| AC Voltage Regulation (Batt. Mode) | 120 VAC ± 5% |
| Surge Power | 2* rated power for 5 seconds |
| Efficiency (Peak) | 91% |
| Transfer Time | 10 ms (For Personal Computers), 20 ms (For Home Appliances) |
| Waveform | Pure Sine Wave |
| Optional DC Voltage | 12 VDC ± 7%, 100W |
| Battery Voltage | 48 VDC |
| Float Charging Voltage | 54 VDC |
| Overcharge Protection | 66 VDC |
| Solar Charger Type | MPPT |
| Maximum PV Array Power | 8000W (4000W x 2) |
| MPPT Operating Voltage Range | 90 ~ 230 VDC |
| Maximum PV Array Open Circuit Voltage | 250 VDC |
| Maximum Solar Charge Current | 120A |
| Maximum AC Charge Current | 120A |
| Maximum Charge Current | 120A |
| Dimensions (D X W X H) | 5.8 x 17.0 x 21.8 in |
| Net Weight | 40.6 lb |
| Communication Interface | USB/RS232/RS485/WiFi/Dry-contact |
| Humidity | 5% to 95% Relative Humidity (Non-condensing) |
| Operating Temperature | -14°F to 104°F |
| Storage Temperature | 5°F to 140°F |
| Compliance Safety | UL 1741 by TUV |
4 × ALPHA 5 PRO 51.2V 100Ah Rack Battery (RS-B5121P)
| Exact component | ALPHA 5 PRO LiFePO4 battery (4 included) |
|---|---|
| Per-battery rating | 51.2V, 100Ah, 5.12kWh nominal |
| Combined nominal energy | 20.48kWh |
| Dimensions / weight per battery | 17.7 × 17.8 × 5.2 in; 99.20 lb |
| Cycle-life test statement | At least 7,000 cycles with at least 70% retained capacity at 25°C ±2°C, as stated in the current Torven-hosted specification |
Review the current manufacturer manual for the delivered hardware revision before installation or use.
Manufacturer Documentation
Official Manuals, Specifications & Certifications
Use these current RICH SOLAR documents for installation, compatibility, limits, and revision-specific details. The delivered product label and its exact manual are the controlling sources.
