RICH SOLAR Y Branch Parallel Connectors 3-to-1 3-to-1 Weatherproof Parallel Connectors for Solar Panels
RICH SOLAR Y Branch Parallel Connectors 3-to-1 3-to-1 Weatherproof Parallel Connectors for Solar Panels
SKU: RS-T3
- Regular price
- $15.99
- Regular price
- Sale price
- $15.99
- Unit price
- per
Estimated delivery: Calculating arrival dates…
For in-stock orders placed today. Standard Lower 48 delivery; availability and carrier scheduling may affect arrival.
Couldn't load pickup availability
In stock — available to order
- Free shipping in the Lower 48. No order minimum. See shipping details
- 30-day returns — contact Torven and we will help you get started. Review the return policy
- Price Match Guarantee for qualifying identical offers. Check eligibility
A positive-and-negative 3-branch pair for a planned parallel array
Combine 3 compatible solar branches through a 30A-rated RS-T3 parallel connectors set.

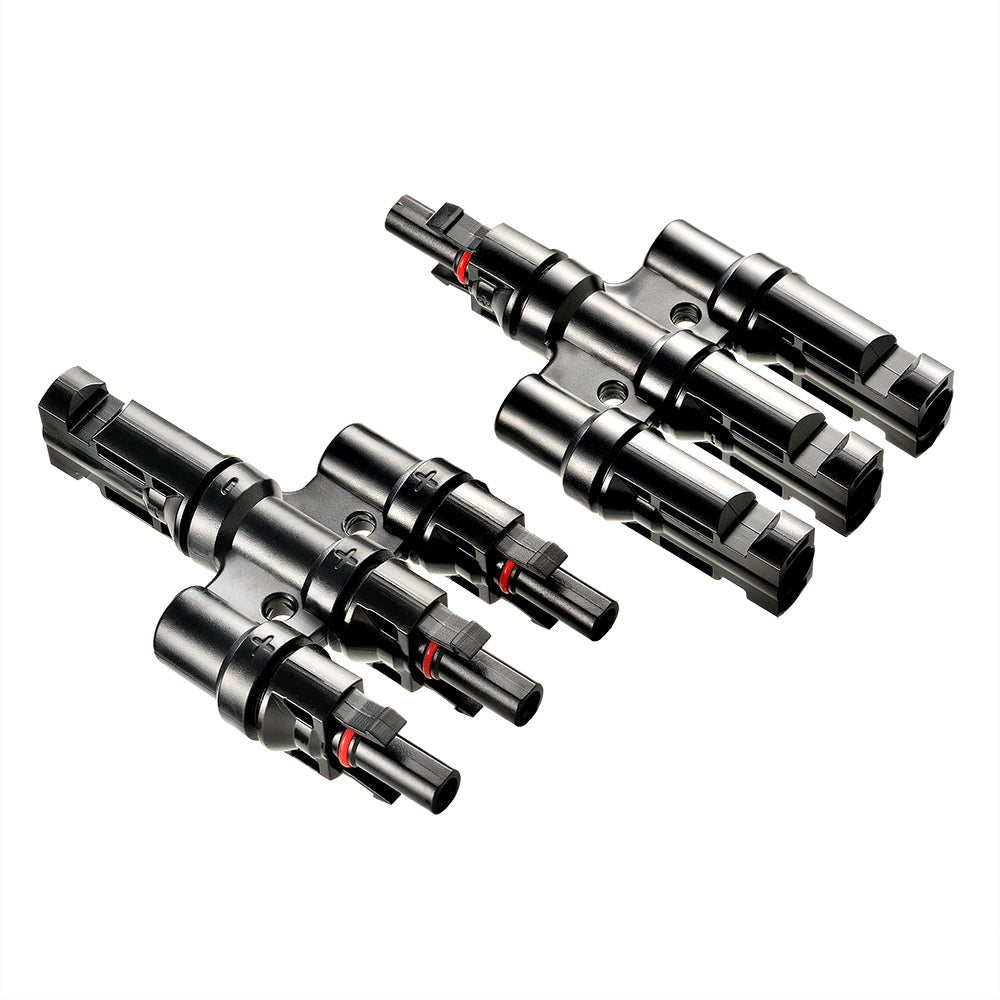

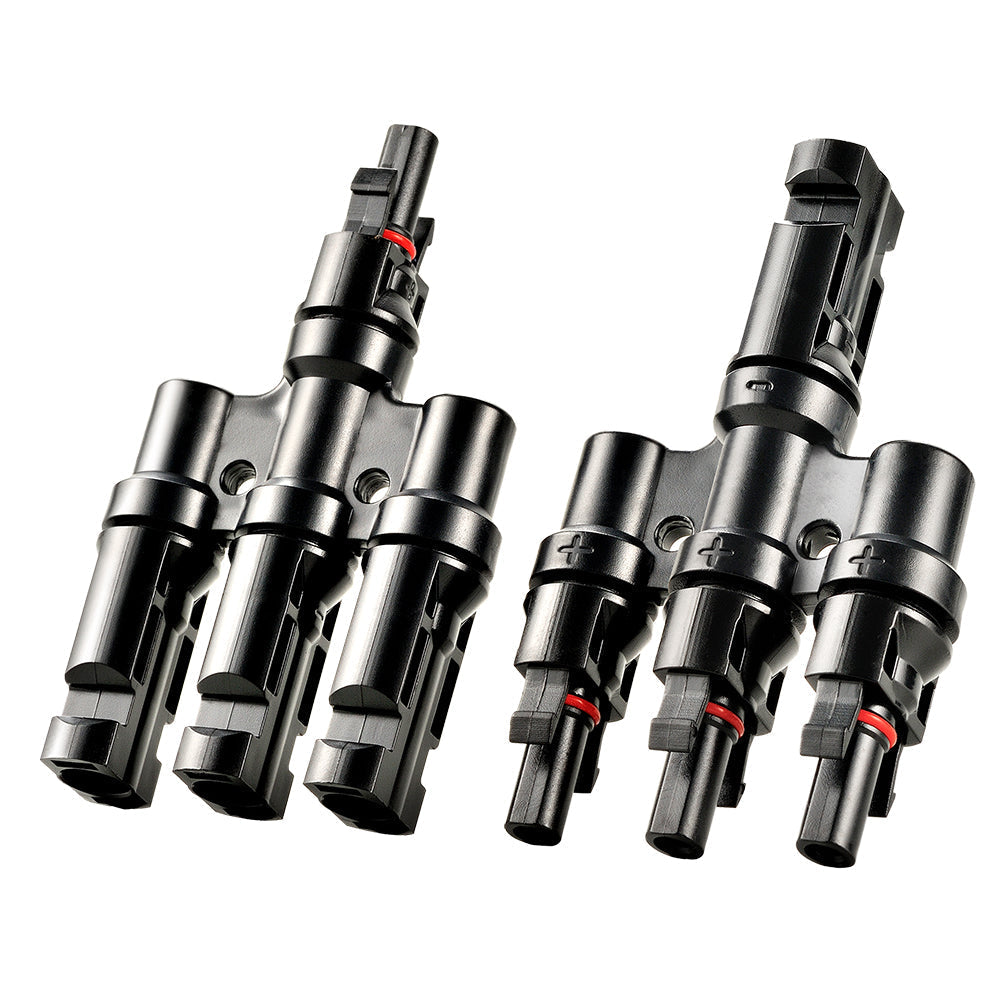

The RICH SOLAR RS-T3 parallel connectors combines 3 compatible panel branches into one positive and one negative output using a compact molded branch body. The manufacturer publishes a 30A current rating, 1,000VDC maximum voltage, IP67 protection and a -40°F to 194°F temperature range for the assembled connector set.
At a glance
Parallel wiring changes current—not branch voltage
The sum of branch operating and fault current must remain inside the 30A connector rating, downstream conductor and controller limits. Also check each panel's maximum-series-fuse rating to determine whether branch fuses are required.
System fit
Use electrically compatible panels and matching connector families.
Confirm each branch's Vmp, Voc, Imp and Isc, then calculate the complete 3-branch current. Compare connector family and polarity, 10AWG / 12AWG conductor fit, downstream cable size, controller limits, branch protection and cold-weather voltage.
In the box
What this RS-T3 parallel connectors listing covers
- 1 × positive 3-to-1 branch unit
- 1 × negative 3-to-1 branch unit
Solar panels, extension cables, branch fuses, disconnects, combiner box, charge controller and installation labor are not listed as included.
Product confidence
Keep every connector matched, clean and fully seated
Outdoor reliability depends on connector compatibility, correct polarity, full engagement, sealing, strain relief and routing. Follow the current panel, connector and downstream-equipment instructions.
Common questions
3-branch parallel-array questions
What happens to voltage and current in parallel?
Branch voltage stays near the voltage of one matched panel while current adds across branches. Use exact panel ratings for the calculation.
Can I connect any 3 solar panels?
No. Their operating voltages and connector systems must be compatible, and total current must remain inside every connector, cable and controller limit.
Do I need a fuse on each branch?
It depends on panel maximum-series-fuse ratings, the number of parallel sources, available reverse current and local requirements. Complete the protection design before assembly.
Does IP67 make an open connector waterproof?
No. The rating applies under the stated mated conditions. Cap and protect unused or disconnected ends from water, dirt and contact damage.
Product Data
Technical Specifications
| Rated Current | 30A |
|---|---|
| Maximum Voltage | 1000VDC |
| Waterproof | IP67 |
| Wire Range | 10AWG, 12AWG |
| Insulation Material | PPO + PA |
| Contact Material | Tinned Copper |
| Temperature Range | -40°F ~ +194°F |
| Safety Class | II |
Available configurations
| Option | SKU |
|---|---|
| Single configuration | RS-T3 |
Review the current manufacturer manual for your exact model before installation or use.
