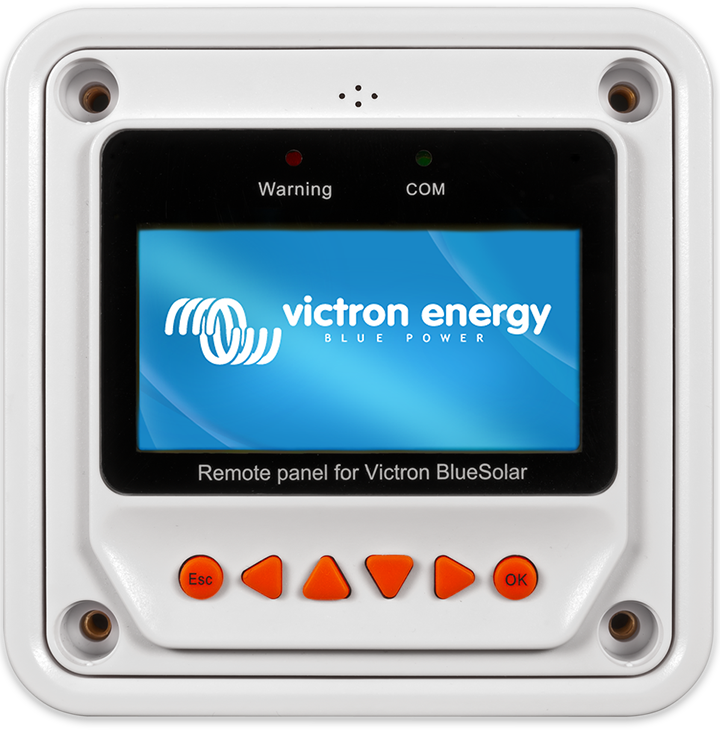

Victron Remote Panel for BlueSolar PWM-Pro — SCC900300000

Monitor and configure a BlueSolar PWM-Pro installation

Put the controller display where you can read it

The SCC900300000 BlueSolar Pro Remote Panel provides a separate LCD display and controls for compatible BlueSolar PWM-Pro 12/24V charge controllers in the 5A, 10A, 20A and 30A range. It gives the installation a dedicated local interface for reviewing supported charging and load information and accessing controller settings.

Use the supported monitoring pages

The manufacturer manual describes solar, battery and load measurements, day/night indication, battery-status and load-status icons. Warning and communication LEDs provide additional status information, and the audible alarm can be enabled or disabled. The readings available come from the connected controller; the panel does not add a separate measurement shunt.

Understand the state-of-charge limitation

The manual requires the correct battery capacity to be configured for the battery state-of-charge icon. It also requires all loads to be connected to the controller’s load output rather than directly to the battery for that function. A system with loads bypassing the controller needs an appropriate separate monitoring design; do not treat this icon as a universal measurement of every battery current.

Match the connection and software settings

The panel connects to the PWM-Pro controller using a standard RJ45 UTP cable. Plan the required cable route and length from the controller to the chosen display position. Use the exact manual for connection and mounting, and check the battery’s charging requirements before changing protected controller parameters. An RJ45 connector is not evidence that the panel is an Ethernet device.

Choose a protected display location

Victron instructs users to keep the panel away from rain, severe dust, vibration, corrosive gas and intense electromagnetic interference. Follow the mounting dimensions and allow rear connector access. This is the PWM-Pro remote panel, not the MPPT Control, a GX Touch display or an inverter remote panel.

Package and buying questions

What product does this listing supply?

One SCC900300000 BlueSolar Pro Remote Panel. The compatible charge controller, battery, solar array and project-specific installation equipment are separate. A standard RJ45 UTP connection is required; select the cable length for the planned installation.

Will it work with a SmartSolar MPPT controller?

This exact panel is specified for BlueSolar PWM-Pro controllers. Use the monitor or interface supported by the exact MPPT model instead.

Does it provide internet monitoring?

No. It is a local wired panel. Remote internet monitoring requires a different supported system arrangement.

Compare solar charge controllers · Browse compatible system accessories

Manufacturer specifications and installation guidance · Ask Torven Power about compatibility
