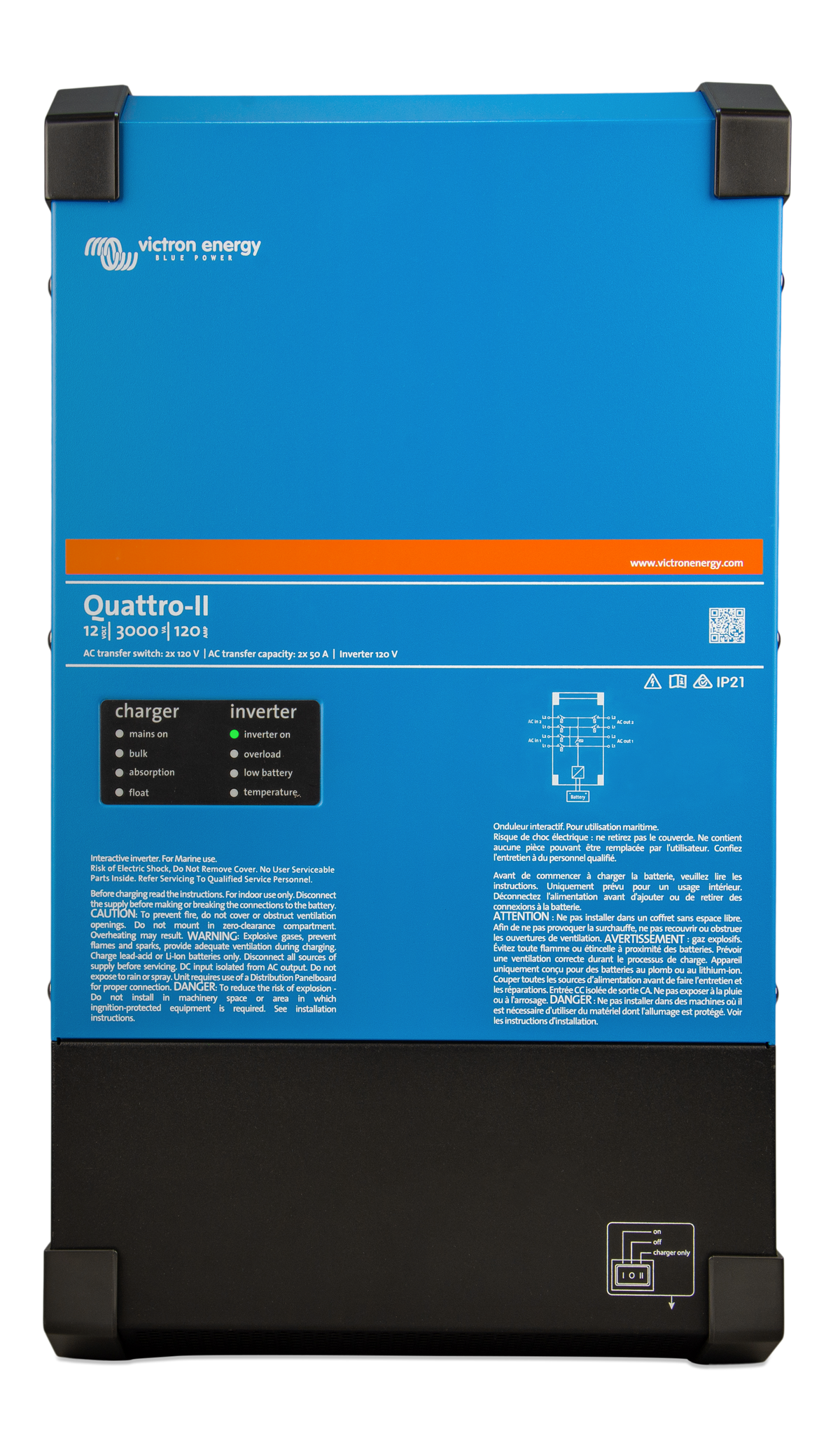

Victron Quattro-II 12/3000/120-50/50 2x120V Inverter/Charger — QUA122305130
Victron Quattro-II 12/3000/120-50/50 2x120V Inverter/Charger — QUA122305130
SKU: QUA122305130
- Regular price
- $1,234.20
- Regular price
- Sale price
- $1,234.20
- Unit price
- per
Couldn't load pickup availability
- Free shipping in the Lower 48. No order minimum. See shipping details
- 30-day returns — contact Torven and we will help you get started. Review the return policy
- Price Match Guarantee for qualifying identical offers. Check eligibility
- Warranty information is listed in this product's details.
Out of stock
Two AC sources. One 12V inverter/charger.
The Quattro-II 2x120V manages shore and generator inputs, battery charging and 120V backup power for compatible RV, marine and independent power systems.
Power and charging in one unit
Model QUA122305130 supplies 3,000VA or 2,400W continuously at 25°C, with 5,500W peak capability. Its charger provides up to 120A to a compatible 12V battery bank. PowerControl and PowerAssist manage a limited AC source on L1.
Understand the 2x120V output
Battery inverter mode provides 120V only. L1 and L2 are connected in phase in that mode. A 240V load requires a suitable external 120/240V source; this unit does not generate 240V from batteries. With external AC available, pass-through follows the source configuration. The auxiliary output switches off when external AC is absent.
Plan the complete installation
Two independent AC inputs allow automatic source selection. Each leg has a 50A input rating. Batteries, appropriately rated DC protection, cabling and system configuration are separate. Optional GX equipment provides remote monitoring, while a VE.Bus Smart Dongle provides Bluetooth access. Have the installer verify battery chemistry, charger settings, grounding and the AC distribution design.
Included and supporting resources
This listing is for one Quattro-II inverter/charger. Review the manufacturer manual for installation requirements and accessory selection.
Official manuals and product resources · Current technical specifications · Compare inverters · Plan your power system · Check compatibility
Product Data
Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer SKU | QUA122305130 |
| Model | Quattro-II 12/3000/120-50/50 2x120V |
| Battery system | 12V nominal; DC input 9.5–17V |
| Continuous output at 25°C | 3000VA / 2400W |
| Continuous output at 40°C / 65°C | 2200W / 1700W |
| Peak power | 5500W |
| Output in battery inverter mode | 120VAC ±2%; 60Hz ±0.1%; L1 and L2 in phase |
| External AC input | 120V single phase or 120/240V split phase |
| Maximum AC input current | 50A per leg |
| Battery charger | Up to 120A |
| Auxiliary AC output | External AC only; 50A |
| Communication | VE.Bus; optional monitoring accessories sold separately |
| Enclosure | IP21; protected indoor installation |
| Dimensions H × W × D | 579 × 319 × 168mm |
| Weight | 23.8kg / 52lb |
| Package | One inverter/charger; system components separate |
