Victron Inverter Control Remote Panel — REC030001210

Choose the UTP control version deliberately

REC030001210 is the Inverter Control panel for the documented UTP remote monitoring and control connection. It is different from the Inverter Control VE.Direct panel. A connector shape or a shared Phoenix family name does not establish compatibility. Check the exact inverter model and its remote-control port before ordering.

Check the manufacturer model list

Victron lists 12/1200, 12/1600, 12/2000, 12/3000, 12/5000, 24/1200, 24/1600, 24/2000, 24/3000, 24/5000, 48/3000 and 48/5000 for this panel. The inverter must also have the specified UTP remote monitoring/control socket. The panel is not a universal remote for every Victron inverter or inverter/charger.

See inverter status at the panel

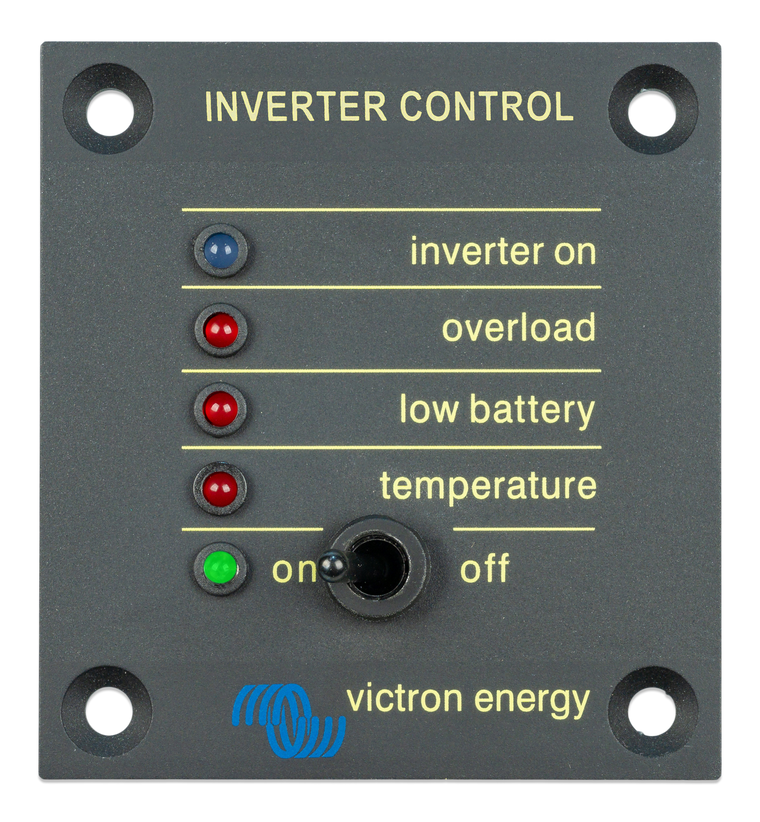

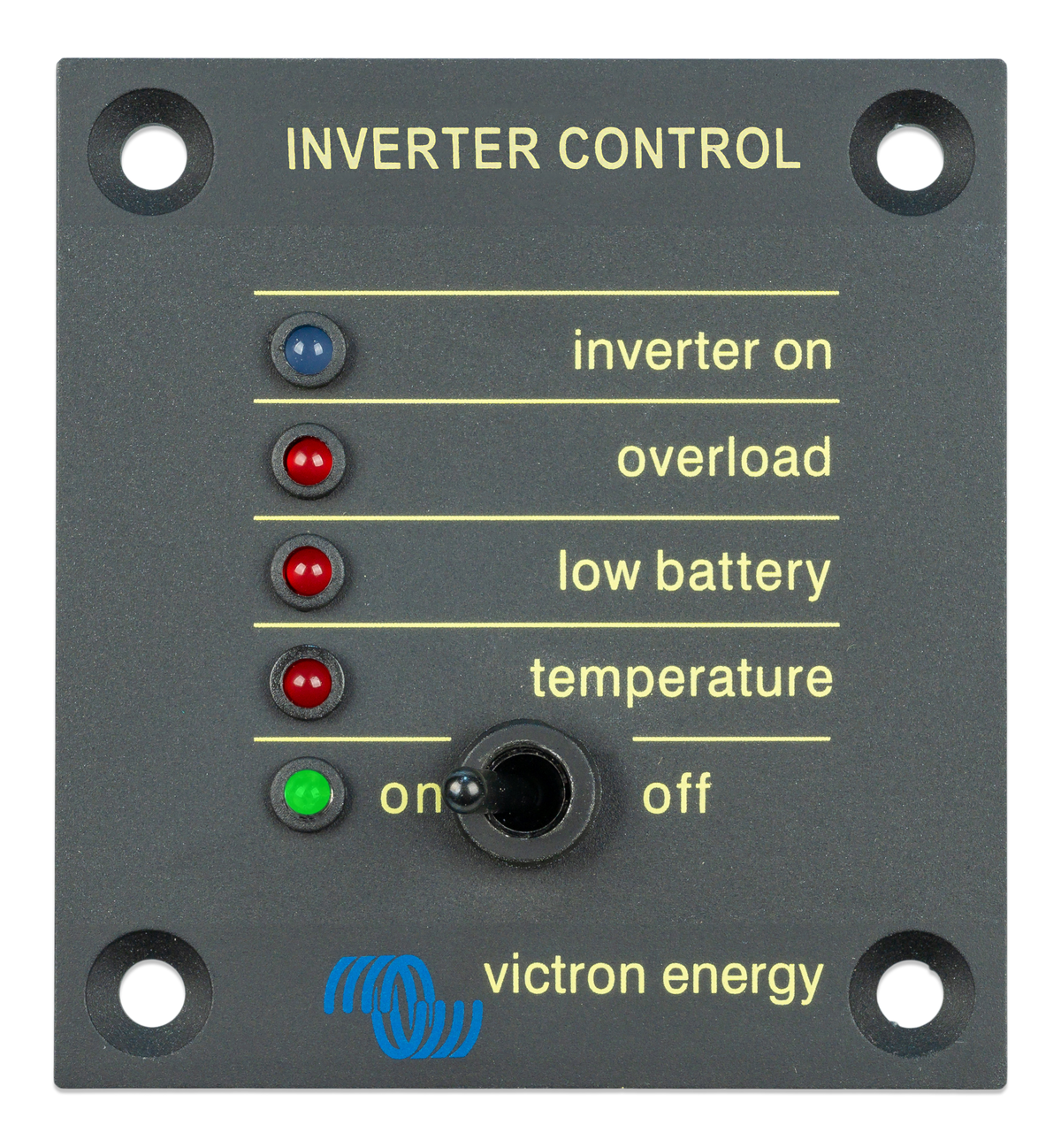

The manufacturer photo shows inverter-on, overload, low-battery and temperature indications alongside the on/off control. These indications put useful operating information at the panel location. They do not turn the accessory into a battery monitor, energy meter or network-connected monitoring display. Use the appropriate additional monitoring hardware if those functions are required.

Automatic dimming for lower-light locations

Victron states that the LED brightness is automatically reduced at night. This can help when the panel is fitted near a sleeping area or another space where a bright status display would be distracting. Choose a visible, accessible mounting location while respecting the panel and connected inverter installation instructions.

Understand the MultiPlus use case

Victron describes use with a MultiPlus inverter/charger when automatic transfer-switch operation is desired without charger operation. That is a specific operating requirement and should be checked against the exact MultiPlus documentation. If you need normal charging control or adjustable shore-current management, confirm the correct control accessory instead of assuming this panel supplies those functions.

Plan the panel opening and connection

The supplier lists 65 × 60 × 40mm overall dimensions. Use the linked exact REC030001210 drawing for mounting-hole and cutout details; overall size is not the required cutout. One remote panel is supplied. Confirm the required UTP connection cable and route separately, and do not assume a cable or wall enclosure is included unless the package explicitly specifies it.

Plan the complete installation

Match the exact model to the equipment, electrical limits and physical space in your project. Product-family names alone do not establish compatibility. Review the linked manufacturer instructions before ordering, and ask Torven Power if the proposed combination is unclear. Batteries, solar panels, inverters, cables, protective devices and installation labor are separate unless explicitly listed as included.

Buying and installation support

Use the specification table to compare this exact SKU with your system plan. Installation should follow the manufacturer instructions and applicable local requirements. Keep the model number, purchase record and commissioning details with your system documents so future service and replacement decisions use the correct equipment. Availability is shown separately on this page; a published listing does not imply a delivery date.

Read the manufacturer documentation · Confirm your system with Torven Power · Plan your power system · Explore compatible system categories
