Victron Battery Indicator Panel M8 30A — BPC900110114

Read a simple charging-status indication

The colored indicator gives a quick visual guide to the condition of a compatible 12V lead-acid battery. It can help you decide when to connect the charger during storage or between trips. It is a voltage-based indication, rather than a precision remaining-capacity meter or a substitute for an amp-hour battery monitor.

For 12V lead-acid batteries only

The manufacturer specifies flooded, GEL and AGM 12V lead-acid batteries. Do not apply the indicator’s color thresholds to lithium batteries or a 24V or 48V bank. Different chemistries have different voltage characteristics. The accessory is intended for compatible Blue Smart and Blue Power IP65 chargers; the charger itself is not included.

Let the battery settle before interpreting the lights

Victron advises allowing approximately 30 minutes after battery use for the battery to return to a steady condition. Voltage immediately after charging or while supplying a load can give a misleading impression of state of charge. Read the indication with the operating conditions in mind and follow the battery manufacturer’s charging guidance.

Understand the manufacturer color bands

The manual associates green with approximately 80–100%, orange with 60–80% and red with 40–60% battery state. No light indicates below 40% and the need for immediate charging to reduce sulfation risk. These bands are the manufacturer’s guide for supported lead-acid batteries; they are not an accurate percentage readout for every battery or operating condition.

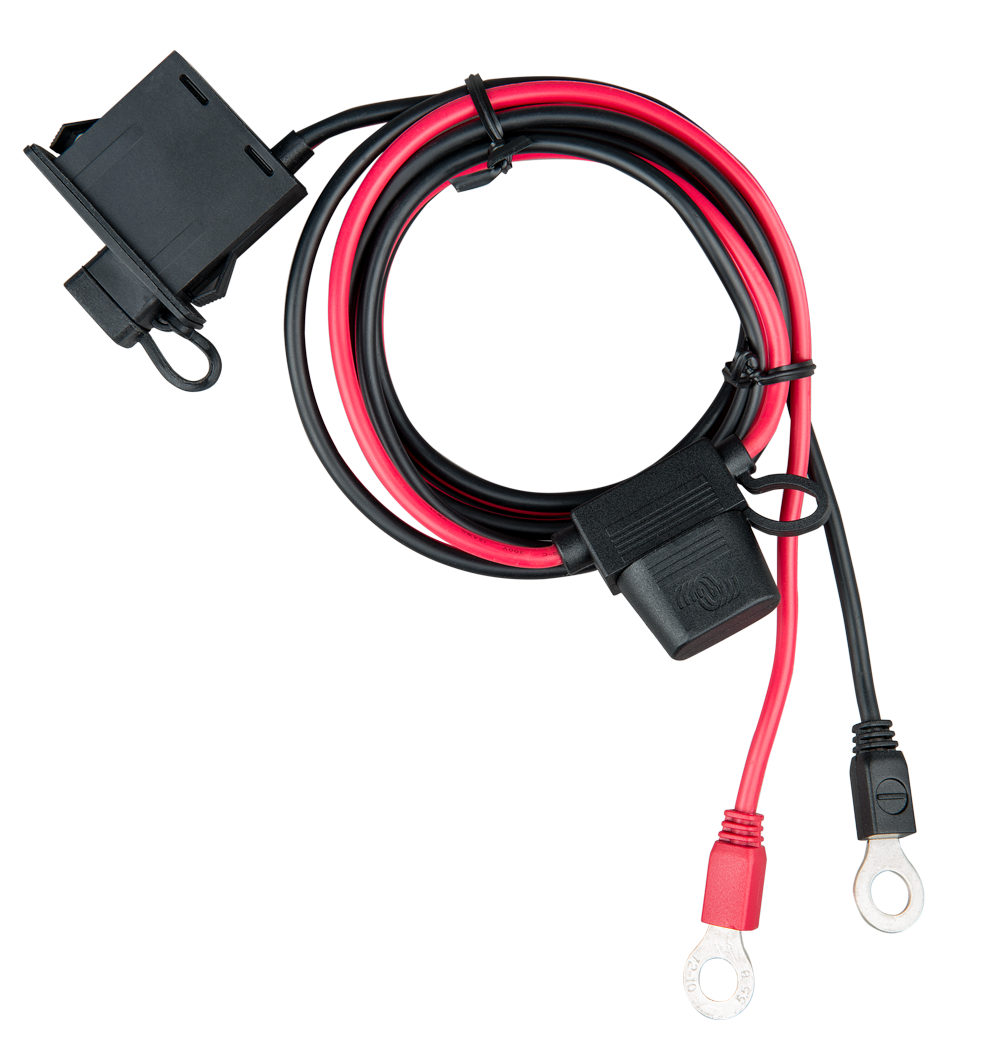

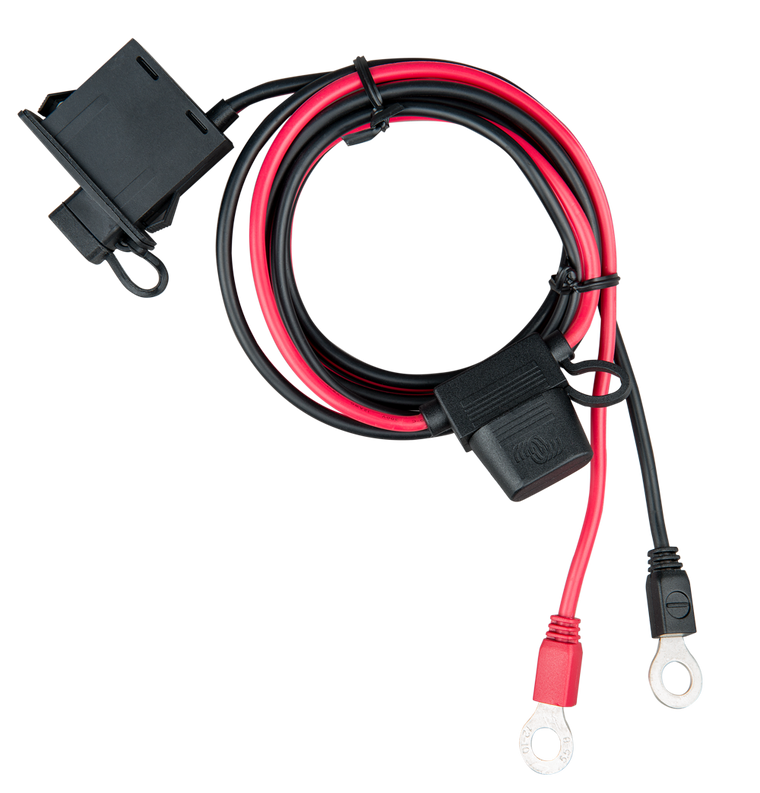

Use the M8 fused charging lead correctly

This model has M8 eyelet battery connections, a 30A ATO fuse and 1.5m cable length. The manual lists 3.3mm² / AWG12 cable, 30A maximum current and 0.9mA back-current drain. The fuse rating does not mean the accessory is a 30A charger. Confirm the charger connector, battery terminal hardware and cable route before fitting the lead.

Choose the right physical format

The panel version places the indication at a panel location using its longer 1.5m lead. Overall size is listed as 45 × 26 × 50mm. Use the exact manufacturer dimension drawing and installation instructions to determine the required opening; the overall housing dimensions are not a cutout template. Leave room behind the panel for the connection and cable bend.

What is included?

One exact battery-indicator accessory with its M8 eyelet lead and documented 30A ATO fuse is offered. The charger and battery are separate purchases. The manufacturer lists IP65 protection for the accessory; the complete charging installation must still follow the charger and battery environmental instructions. Check compatibility before adding it to an existing charging setup.

Plan the complete installation

Match the exact model to the equipment, electrical limits and physical space in your project. Product-family names alone do not establish compatibility. Review the linked manufacturer instructions before ordering, and ask Torven Power if the proposed combination is unclear. Batteries, solar panels, inverters, cables, protective devices and installation labor are separate unless explicitly listed as included.

Buying and installation support

Use the specification table to compare this exact SKU with your system plan. Installation should follow the manufacturer instructions and applicable local requirements. Keep the model number, purchase record and commissioning details with your system documents so future service and replacement decisions use the correct equipment. Availability is shown separately on this page; a published listing does not imply a delivery date.
