600A DC POWER DISTRIBUTION

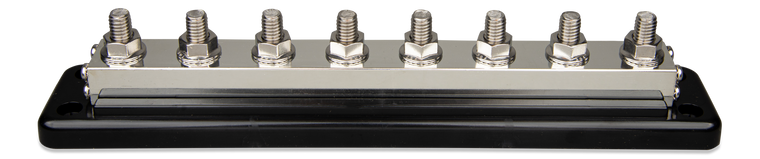

Victron 600A 8P Busbar with Cover
Organize battery and DC equipment connections with 8 high-current posts and eight low-current screw terminals.
Choose the 8-post 600A busbar
Victron VBB160080010 is one 600A DC distribution busbar with an included black ABS protection cover. The 8P designation identifies its 8 high-current connection posts. Eight smaller screw terminals provide additional connection points.
One common electrical connection
All terminals on this busbar are electrically common. Use separate, correctly identified busbars for positive and negative circuits. This listing contains one bar, not a positive-and-negative pair.
Match the complete installation
Check system voltage, combined current, cable lugs, cable routing and external circuit protection before ordering. The maximum rating is 600A at up to 70V DC. A busbar distributes power; it does not provide fusing, a disconnect switch or battery management.
Plan space and protected connections
The included cover helps shield the terminals. The main posts use 3/8-inch / 9.53mm terminals, with a manufacturer-recommended torque of 20Nm. The smaller #8 screw connections use 2Nm. Follow the official datasheet and exact model drawing for mounting and clearances.
What's included?
One VBB160080010 busbar and its removable ABS cover. Batteries, cables, cable lugs, fuses and other system equipment are separate. Manufacturer photos show the bar with its cover removed to make the connections visible.
Official 600A busbar datasheet · Compare battery accessories · Plan your battery system · Ask Torven Power about your setup
Product Data
Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | Victron Energy |
| Manufacturer SKU | VBB160080010 |
| Maximum current | 600A |
| Maximum voltage | 70V DC |
| High-current posts | 8 |
| Low-current screw connections | 8 |
| Main terminal diameter | 3/8 inch / 9.53mm |
| Main terminal recommended torque | 20Nm |
| Small screw diameter | #8 / 4.2mm |
| Small screw recommended torque | 2Nm |
| Terminal and nut material | Stainless steel |
| Conductive busbar | Tin-plated copper, 19 × 24mm |
| Base | Black ABS, UL94 V-0 material rating |
| Included cover | Black ABS, UL94 V-2 material rating |
| Dimensions with cover (H × W × D) | 65 × 327 × 86mm |
| Package | One busbar with cover; not a positive/negative pair |
| Manufacturer warranty | Five-year limited warranty; written terms apply |
