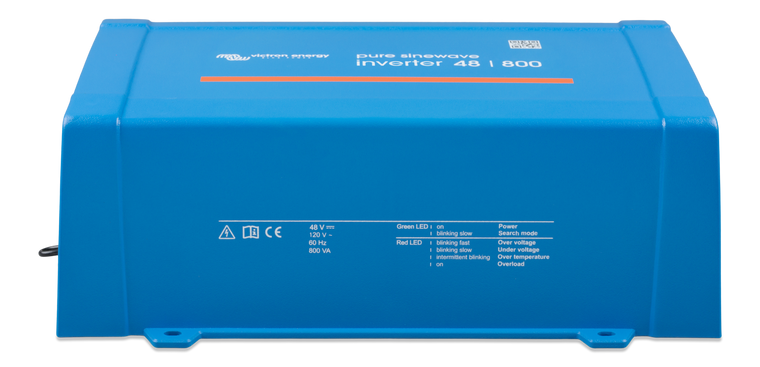

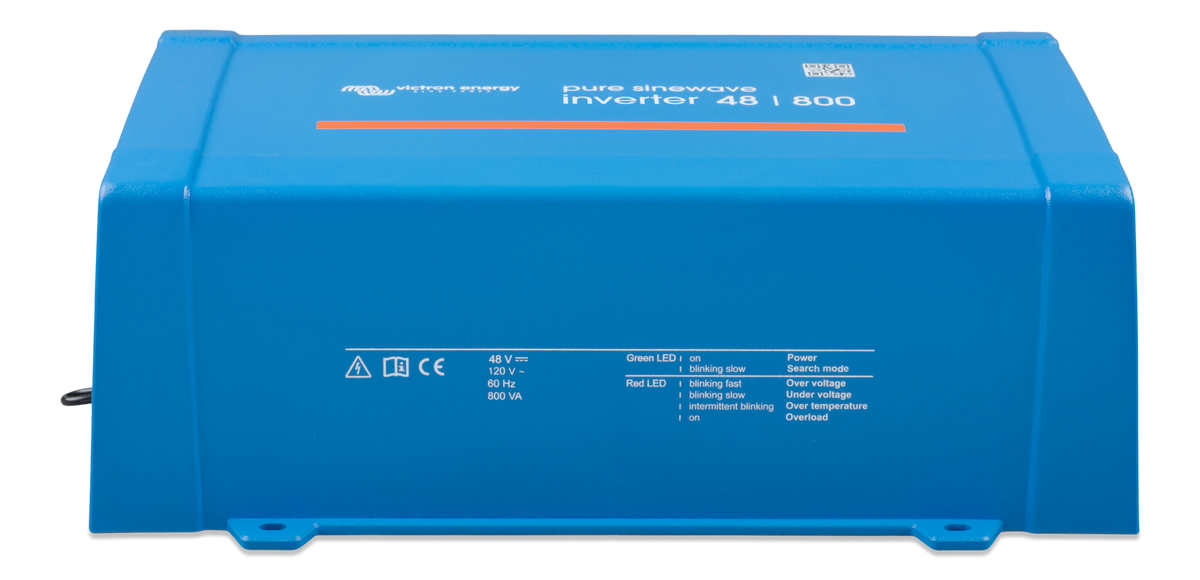

Victron 48/800 120V VE.Direct NEMA 5-15R Pure Sine Wave Inverter — PIN481800500
Victron 48/800 120V VE.Direct NEMA 5-15R Pure Sine Wave Inverter — PIN481800500
SKU: PIN481800500
- Regular price
- $225.25
- Regular price
- Sale price
- $225.25
- Unit price
- per
Couldn't load pickup availability
- Free shipping in the Lower 48. No order minimum. See shipping details
- 30-day returns — contact Torven and we will help you get started. Review the return policy
- Price Match Guarantee for qualifying identical offers. Check eligibility
- Warranty information is listed in this product's details.
Out of stock
120V pure sine wave power for your 48V battery system.
The Victron 48/800 VE.Direct NEMA 5-15R inverter provides 800VA / 650W continuous output at 25°C, with a 1500W peak rating for starting loads.
Match the battery and outlet to your system
Exact model PIN481800500 pairs a nominal 48V DC battery input with a 120V AC NEMA 5-15R outlet. This is the standard NEMA 5-15R outlet version. Confirm the complete installation and grounding with a qualified installer.
Understand usable output
The continuous real-power rating is 650W at 25°C and 560W at 40°C. The 800VA figure describes apparent power. Choose loads within both ratings and check their starting demand.
Configure through VE.Direct
ECO mode reduces idle draw by periodically checking for a load. VE.Direct supports settings and monitoring with a separately purchased USB interface or Bluetooth Smart dongle; wireless connectivity requires the dongle.
What to plan before ordering
This listing is for one inverter. Batteries, DC cables, external protection, charging equipment and monitoring interfaces are separate. It has no built-in battery charger or automatic AC transfer switch. Follow the manufacturer manual for cable sizing, mounting clearances and NEMA 5-15R grounding. Select external battery protection and cable sizes according to the official installation manual.
Manufacturer ratings and outlet options · Installation manual · Plan your power system · Compare inverters · Confirm system fit
Product Data
Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer / SKU | Victron Energy / PIN481800500 |
| Nominal battery voltage | 48V DC |
| DC input range | 36.8–62V DC |
| AC output | 120V AC; 60Hz; NEMA 5-15R outlet |
| Continuous output at 25°C | 800VA / 650W |
| Continuous output at 40°C | 560W |
| Peak power | 1500W |
| Maximum efficiency | 91% |
| Zero-load consumption | 9.5W |
| Communication | VE.Direct; interfaces sold separately |
| Remote on/off | Supported |
| Battery connection | Screw terminals |
| Listing scope | One inverter; batteries, cables and system accessories separate |
