150A DC POWER DISTRIBUTION

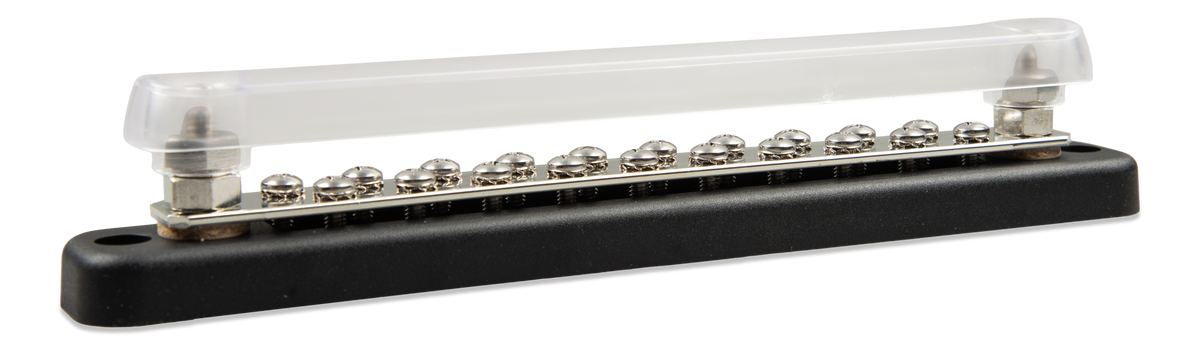

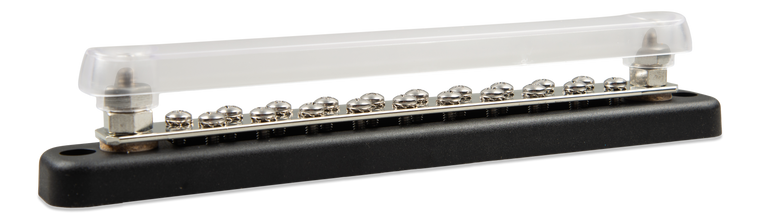

Victron 150A 2P / 20 Screws Busbar with Cover
Organize DC connections with 2 high-current posts and 20 smaller screw connections and an included protective cover.
Choose the correct connection layout
Victron VBB115022020 is one 150A DC distribution busbar with 2 high-current posts and 20 smaller screw connections and a removable clear polycarbonate cover. Match this exact SKU to the number and size of connections your installation needs.
One common electrical connection
All terminals on this bar are electrically common. Use separate, correctly identified busbars for positive and negative circuits. This listing contains one bar with cover, not a positive-and-negative pair.
Check ratings and terminal fit
The maximum rating is 150A at up to 70V DC. The main terminals measure 1/4 inch / 6.35mm, with a manufacturer-recommended main-terminal torque of 7Nm. Check total current, cable size, lug fit and mounting space before ordering. A busbar does not provide fusing, a disconnect or battery management.
What's included?
One VBB115022020 busbar and its clear polycarbonate cover. Cables, cable lugs, fuses, batteries and other system equipment are separate. Follow the official datasheet for installation dimensions and requirements.
Official model-family datasheet · Compare battery accessories · Plan your battery system · Ask Torven Power about your setup
Product Data
Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | Victron Energy |
| Manufacturer SKU | VBB115022020 |
| Maximum current | 150A |
| Maximum voltage | 70V DC |
| High-current posts | 2 |
| Additional screw connections | 20 |
| Small screw size | 8-32 / 4.2mm |
| Main terminal diameter | 1/4 inch / 6.35mm |
| Main terminal recommended torque | 7Nm |
| Terminal material | Stainless steel |
| Hex nut material | Tin-plated copper |
| Conductive strip | Tin-plated copper, 2.4 × 19mm |
| Base | Black ABS, UL94 V-0 material rating |
| Included cover | clear polycarbonate, UL94 HB material rating |
| Dimensions with cover (H × W × D) | 45 × 232 × 32mm |
| Package | One busbar with cover; not a positive/negative pair |
| Manufacturer warranty | Five-year limited warranty; written terms apply |
