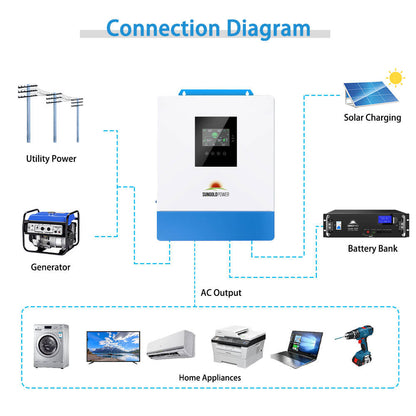

  • SPH5048P solar, utility or generator, battery, and load connection diagram

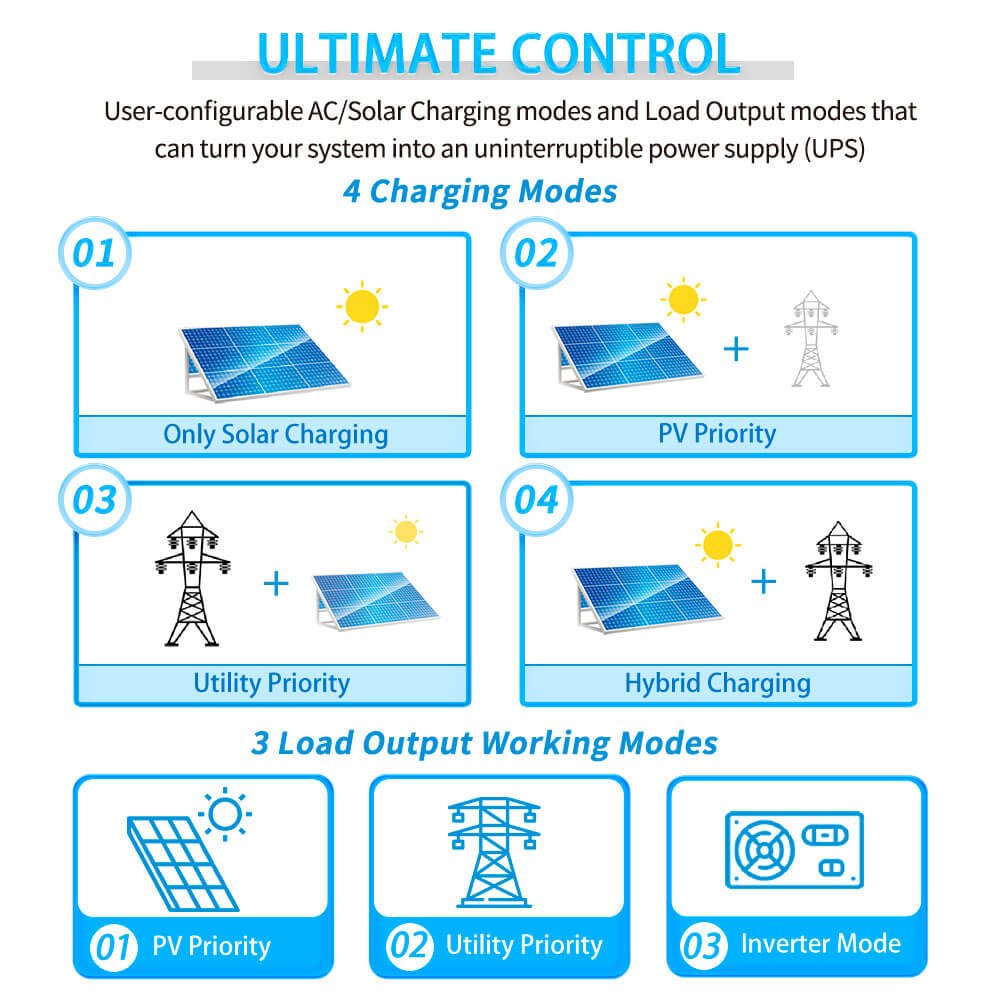

  • SPH5048P charging-priority and load-output operating modes
  • SPH5048P dimensions and included manual, warranty card, and communication cables

SunGoldPower

SunGoldPower 5kW 48V Off-Grid Inverter Charger, 120V Output — SPH5048P

SunGoldPower 5kW 48V Off-Grid Inverter Charger, 120V Output — SPH5048P

SKU: SPH5048P

$750.00
$750.00
View Cart

In stock — available to order

Need help before ordering? Call 888-495-5870 Contact our support team

5kW 48V inverter charger for 120V systems

Solar, battery, and AC charging in one off-grid power center.

Compare the exact capacity, output, package contents and installation requirements before ordering SunGoldPower 5kW 48V Off-Grid Inverter Charger, 120V Output — SPH5048P.

5kW
continuous 120V output
10kVA
surge rating
5.5kW
maximum PV array
100A
maximum MPPT charging

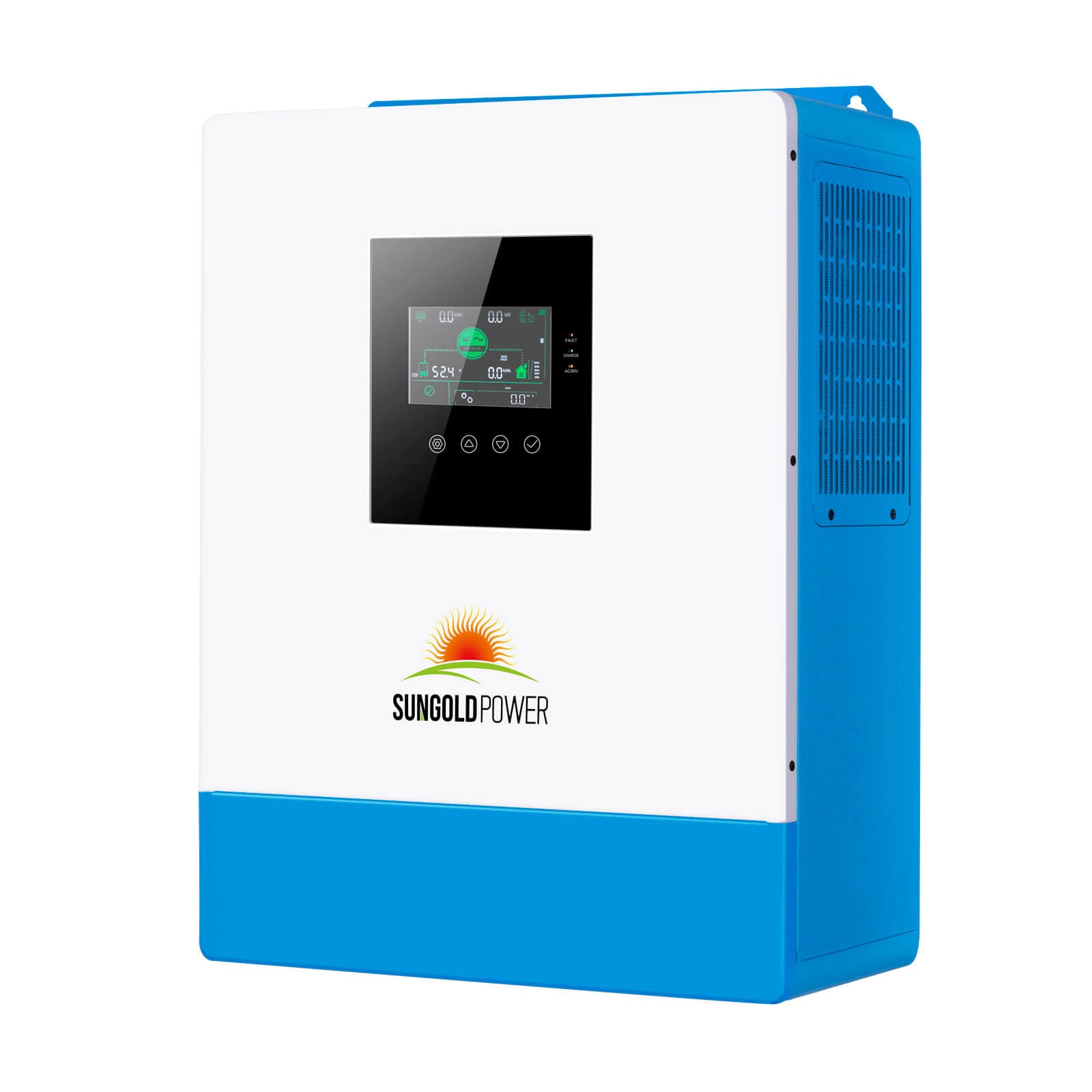

SunGoldPower SPH5048P 5kW 48V off-grid inverter charger, front view
SunGoldPower SPH5048P 5kW 48V off-grid inverter charger, front view

Why it earns a closer look

Useful capability, explained in buying language.

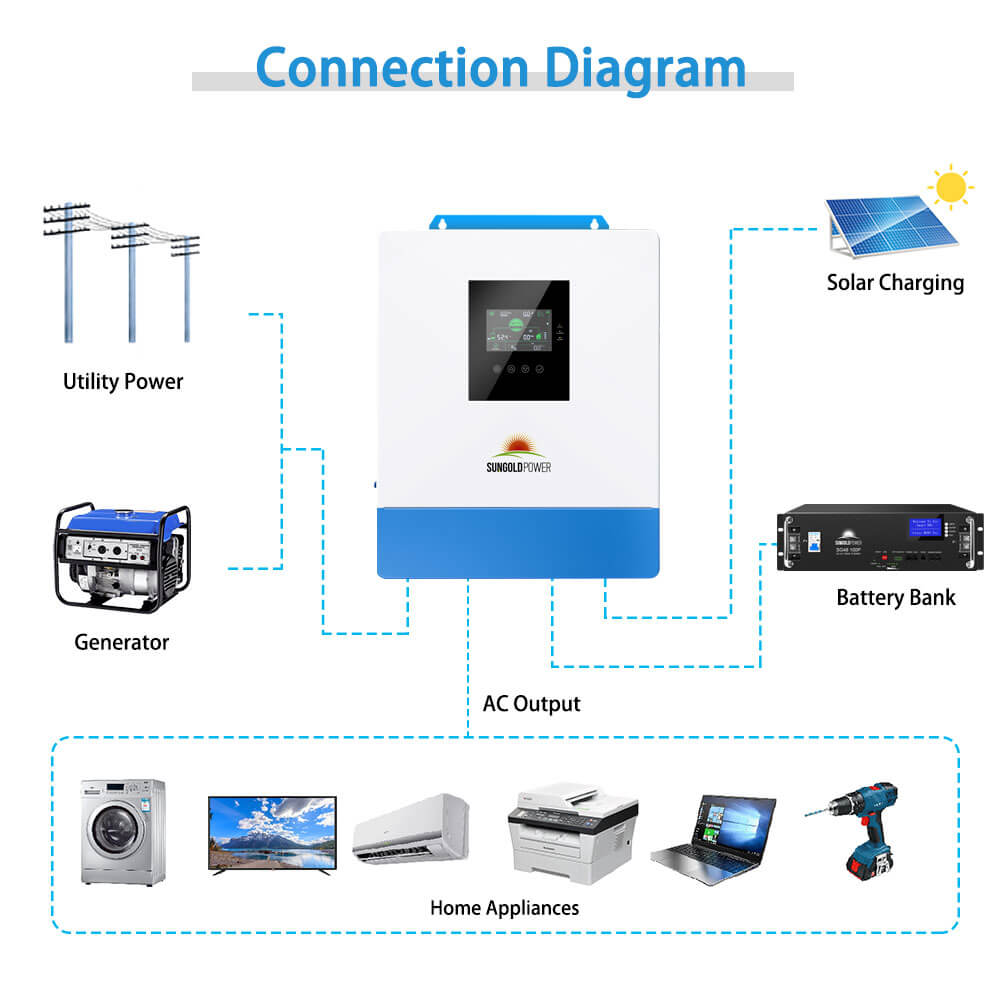

One enclosure, three power paths

The inverter combines pure-sine AC output, solar charging, and AC-source charging/bypass.

Strong motor-start headroom

A 10kVA surge rating and 4HP loaded-motor rating support properly sized compressor and tool loads.

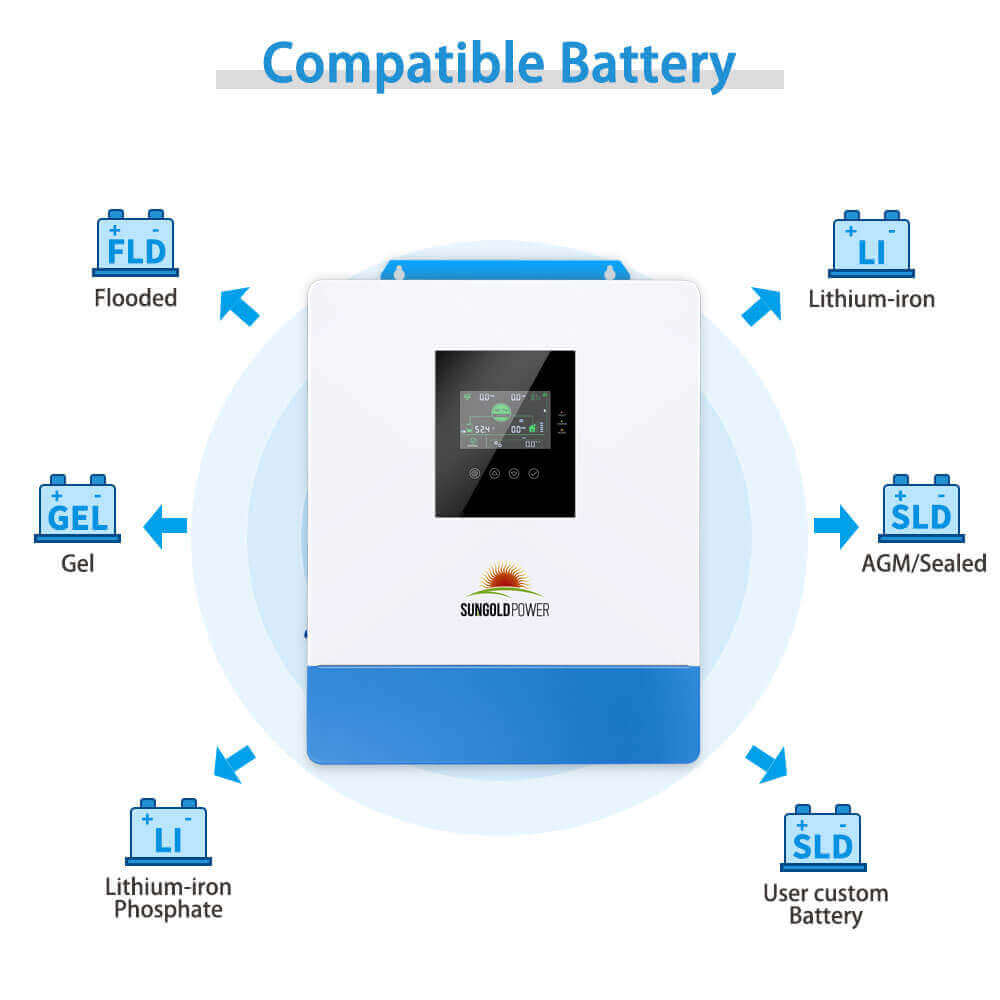

Flexible battery settings

Lithium and lead-acid profiles plus user-defined settings support many 48V systems after compatibility review.

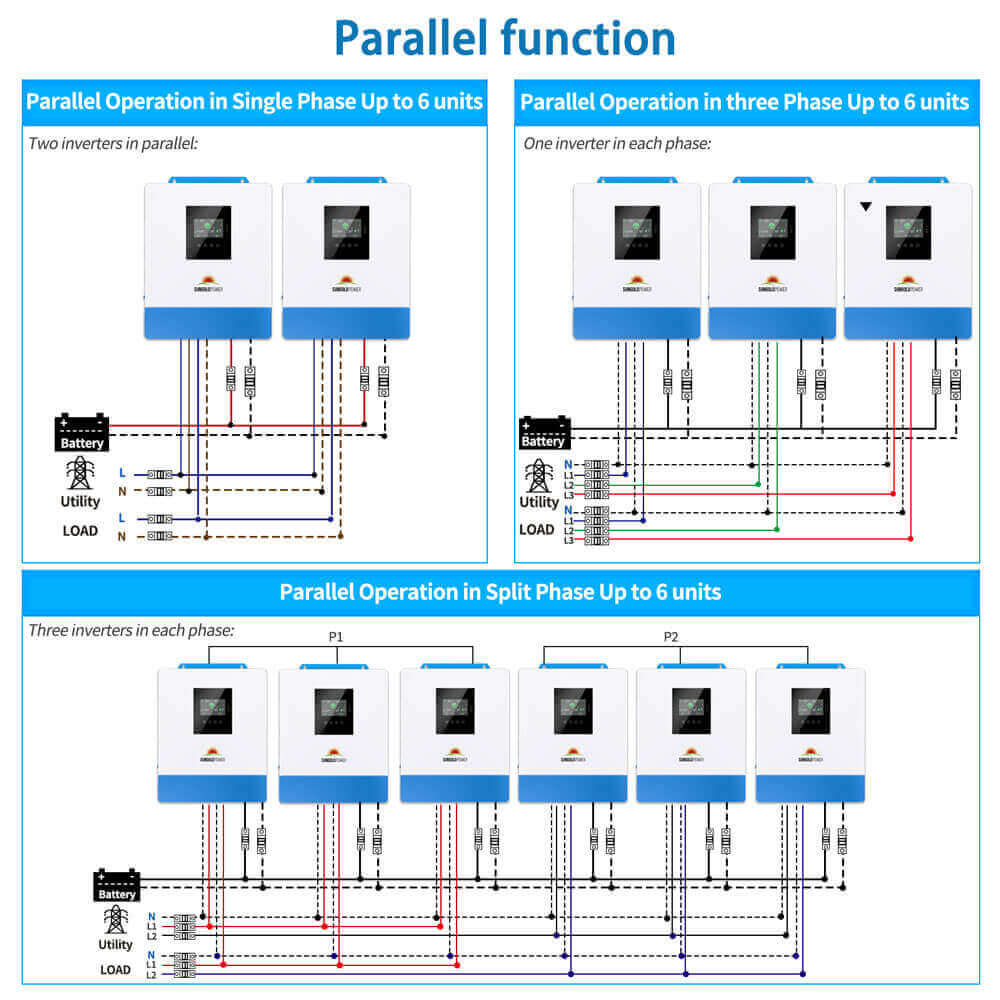

Expandable architecture

Up to six units can be configured for higher output and multi-phase arrangements when installed exactly to the manual.

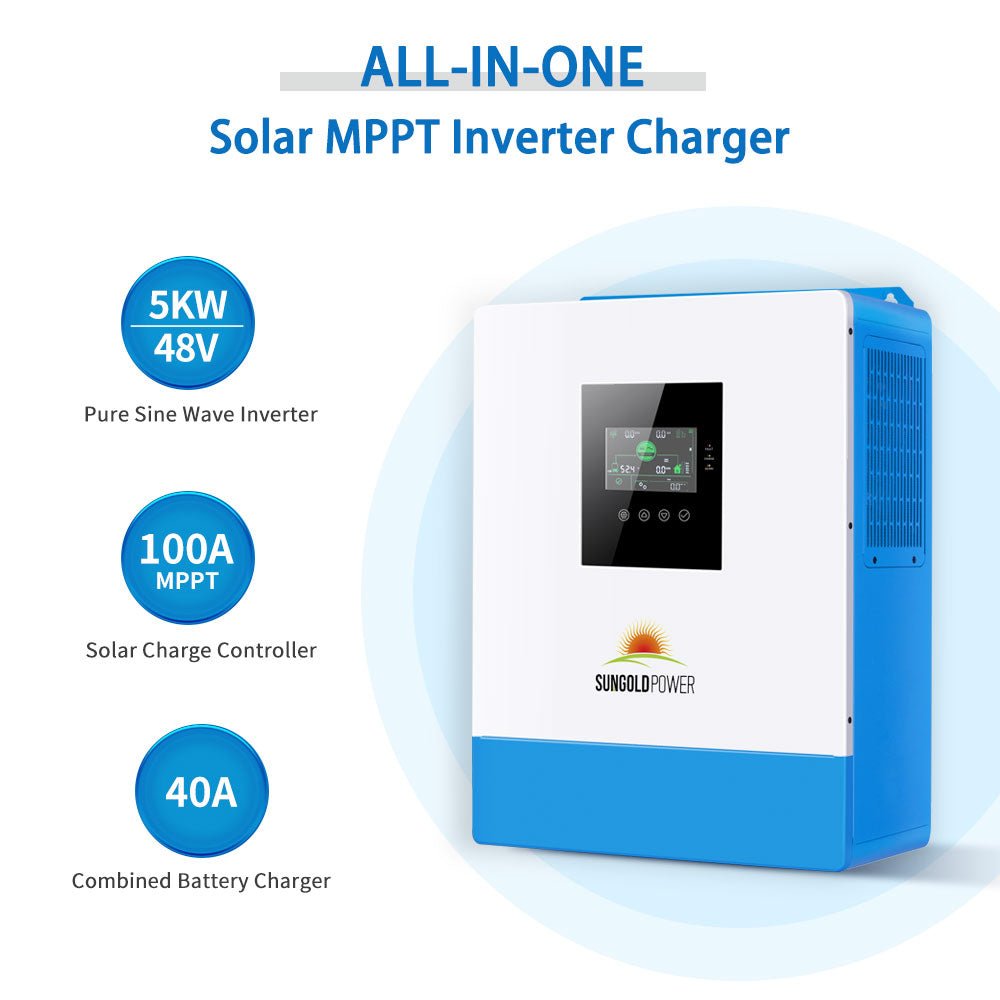

SPH5048P all-in-one 5kW inverter, 100A MPPT, and 40A AC charger overview
SPH5048P all-in-one 5kW inverter, 100A MPPT, and 40A AC charger overview

Where it fits

  • 120V off-grid cabins and tiny homes
  • Remote workshops and tool loads
  • Generator-assisted solar systems
  • Critical-load backup without utility export

System-fit guidance

Confirm voltage, phase, continuous and surge loads, solar-input limits, communications, environmental rating, code requirements and delivery access with the qualified installer before ordering.

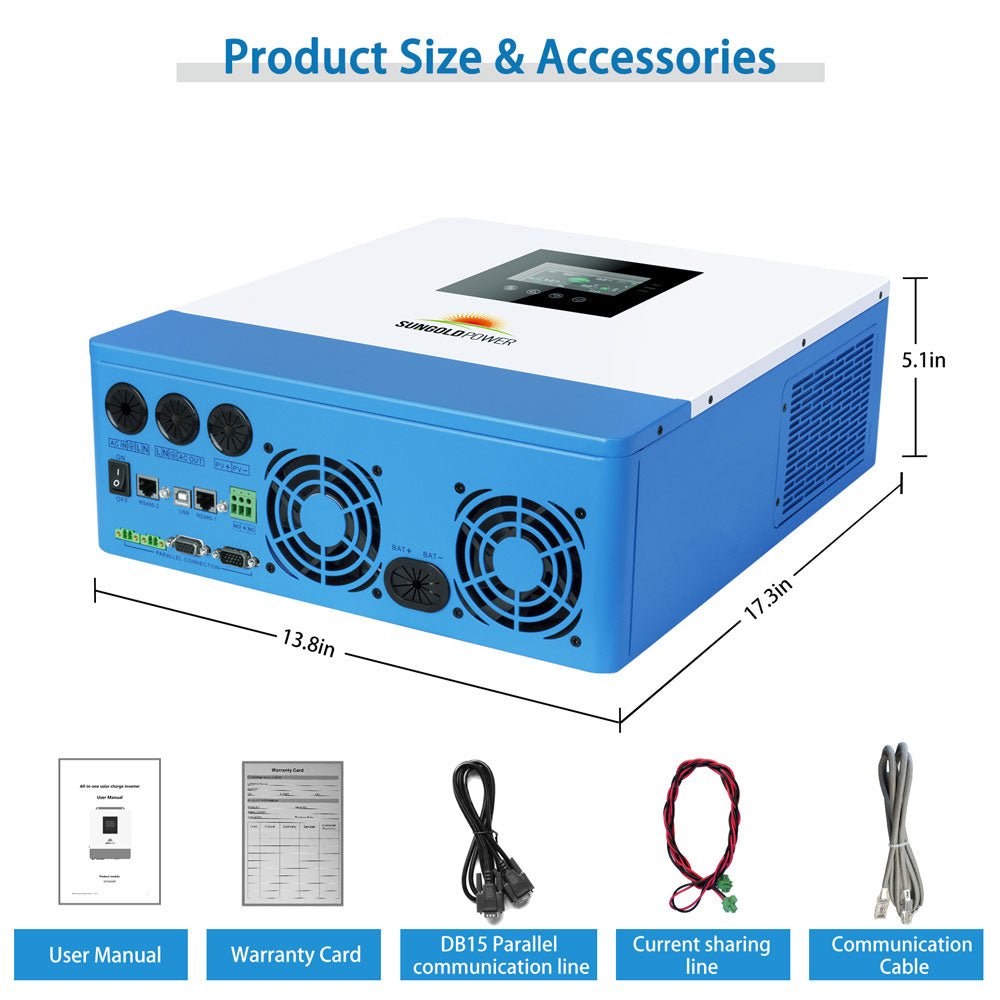

What’s included

  • 1 × SPH5048P inverter charger
  • 1 × user manual
  • 1 × warranty card
  • 1 × DB15 parallel communication cable
  • 1 × current-sharing cable
  • 1 × communication cable

Typically still required

  • Battery bank or battery cables
  • Solar panels, racking, PV wire, or combiner
  • External AC/DC breakers, disconnects, conduit, grounding, or surge protection
  • Wi-Fi/GPRS monitoring module unless separately confirmed
  • Engineering, permits, installation labor, or utility interconnection

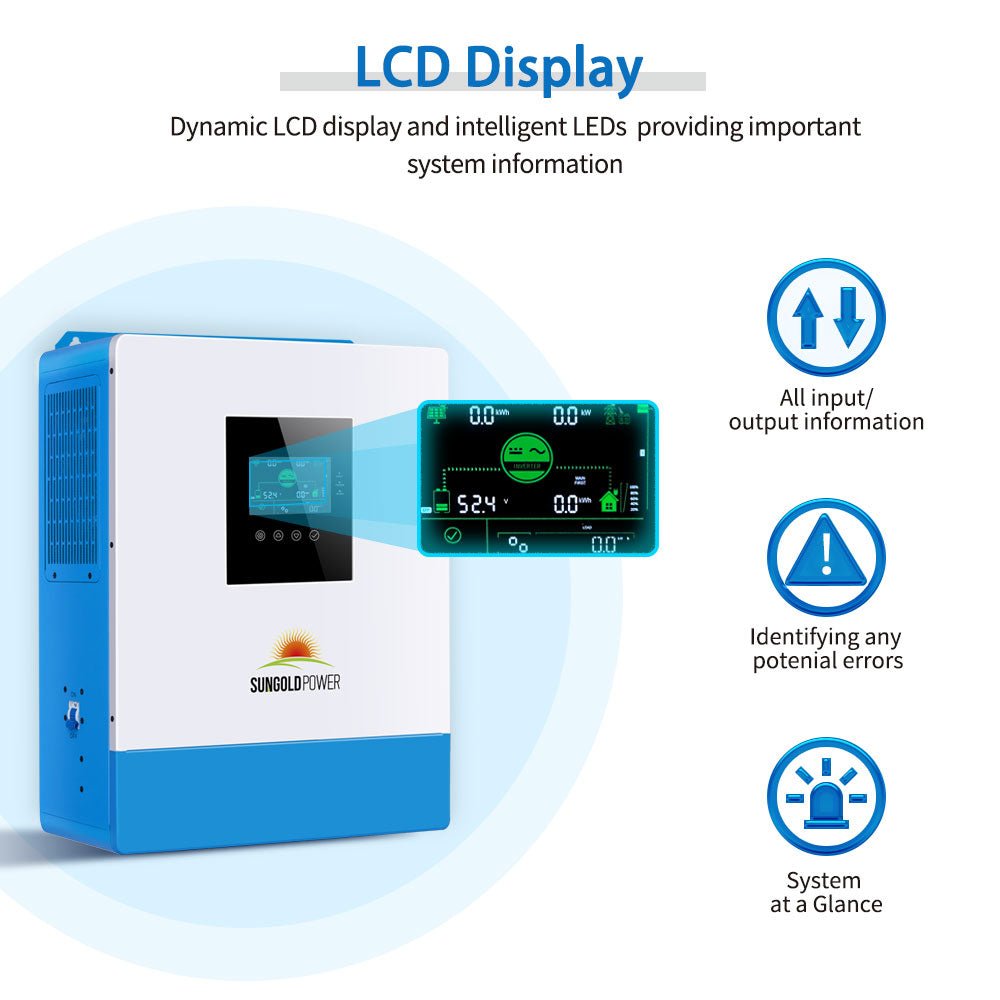

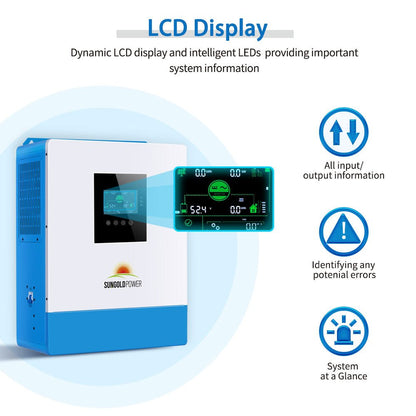

SPH5048P LCD display and system-status indicators
SPH5048P LCD display and system-status indicators

Frequently asked questions

Does one inverter provide 120/240V split phase?
No. One SPH5048P provides 120V. Split-phase output requires at least two correctly configured compatible units, or a native 120/240V model such as the SPH10048P.
Can it send solar power back to the utility?
No utility-export or net-metering claim is made. It is documented as a stand-alone inverter; AC input can be used for bypass and battery charging.
How much solar can I connect?
The current documentation lists up to 5.5kW, but the final array must also stay within the 500V absolute Voc limit, 120–450V MPPT range, 22A input-current limit, and cold-weather correction.
Will it communicate with my lithium battery?
RS485 is available, but closed-loop operation depends on the exact battery protocol, firmware, and cable pinout. Otherwise, approved open-loop voltage settings may be required.
Is Wi-Fi included?
The current official package image does not show a Wi-Fi module for SPH5048P. Treat Wi-Fi/GPRS as optional unless SunGoldPower confirms the exact shipment includes it.

Know what arrives—and what the installation still needs.

Send Torven Power your loads, existing equipment and project goals for pre-purchase fit guidance.

Specifications, images and package contents can change by hardware revision. The delivered model label, current manual, written warranty and permitted design control.
