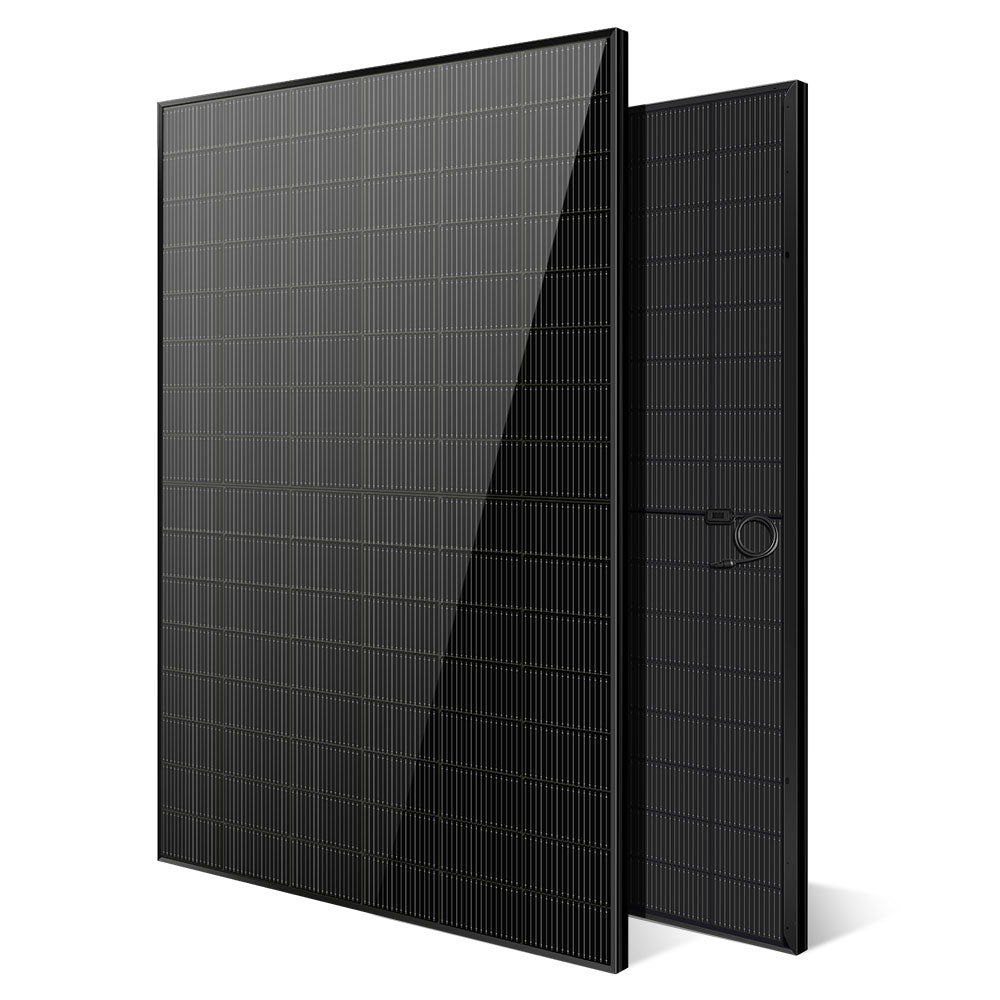

SunGoldPower 450W Bifacial N-Type Solar Panel Packs (2–20 Panels) — SGN-450-BDG5
SunGoldPower 450W Bifacial N-Type Solar Panel Packs (2–20 Panels) — SGN-450-BDG5
SKU: SGN-450-BDG5-X2
- Regular price
- $845.00
- Regular price
- Sale price
- $845.00
- Unit price
- per
Couldn't load pickup availability
In stock — available to order
- Free standard shipping on eligible Lower-48 orders. See shipping details
- 30-day return requests for eligible items after delivery. Review the return policy
- Price Match Guarantee for qualifying identical offers. Check eligibility
- Warranty information is listed in this product's details.
High-efficiency panels sized clearly by pack count and total watts.
Compare the exact capacity, output, package contents and installation requirements before ordering SunGoldPower 450W Bifacial N-Type Solar Panel Packs (2–20 Panels) — SGN-450-BDG5.
Why it earns a closer look
Useful capability, explained in buying language.
More watts in a compact format

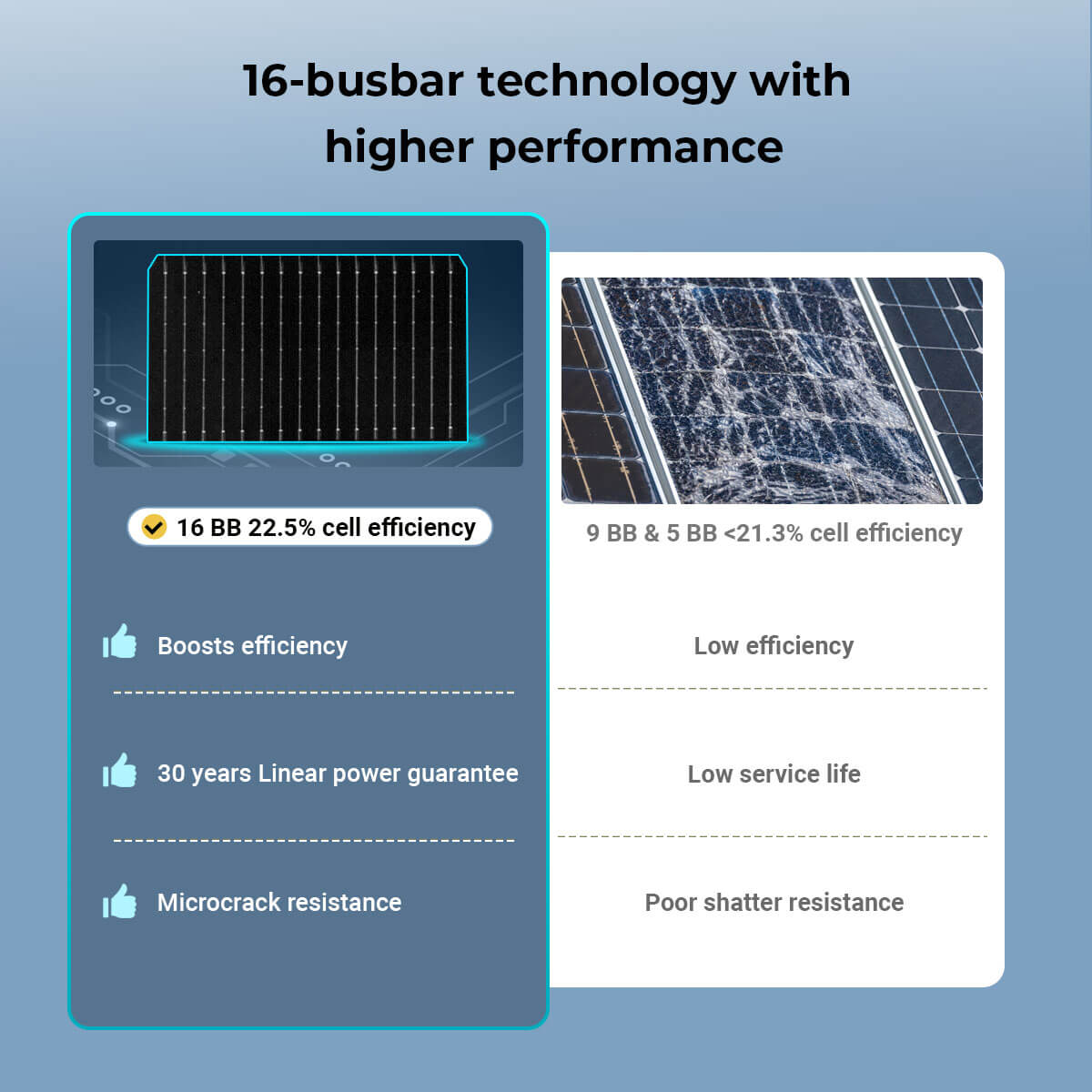

A 450W rating and 22.5% efficiency help build meaningful array capacity without stepping up to a nearly 90-inch module.
Bifacial upside without inflated math
Rear-side production can add energy in favorable layouts, but the page keeps base capacity and site-dependent gain separate.
Electrical details buyers can design around
Voc, Vmp, current, fuse rating, temperature coefficients, and 1500V system rating are presented together for string planning.
Pack choices that say what arrives
Each option is merchandised by panel count and total STC watts so the buyer does not have to decode a vague quantity selector.
Where it fits
- Residential roof arrays after structural and code review
- Ground-mount arrays with rear-side clearance
- Cabins and off-grid systems
- Compatible array expansions after string-size review
System-fit guidance
Confirm voltage, phase, continuous and surge loads, solar-input limits, communications, environmental rating, code requirements and delivery access with the qualified installer before ordering.
What’s included

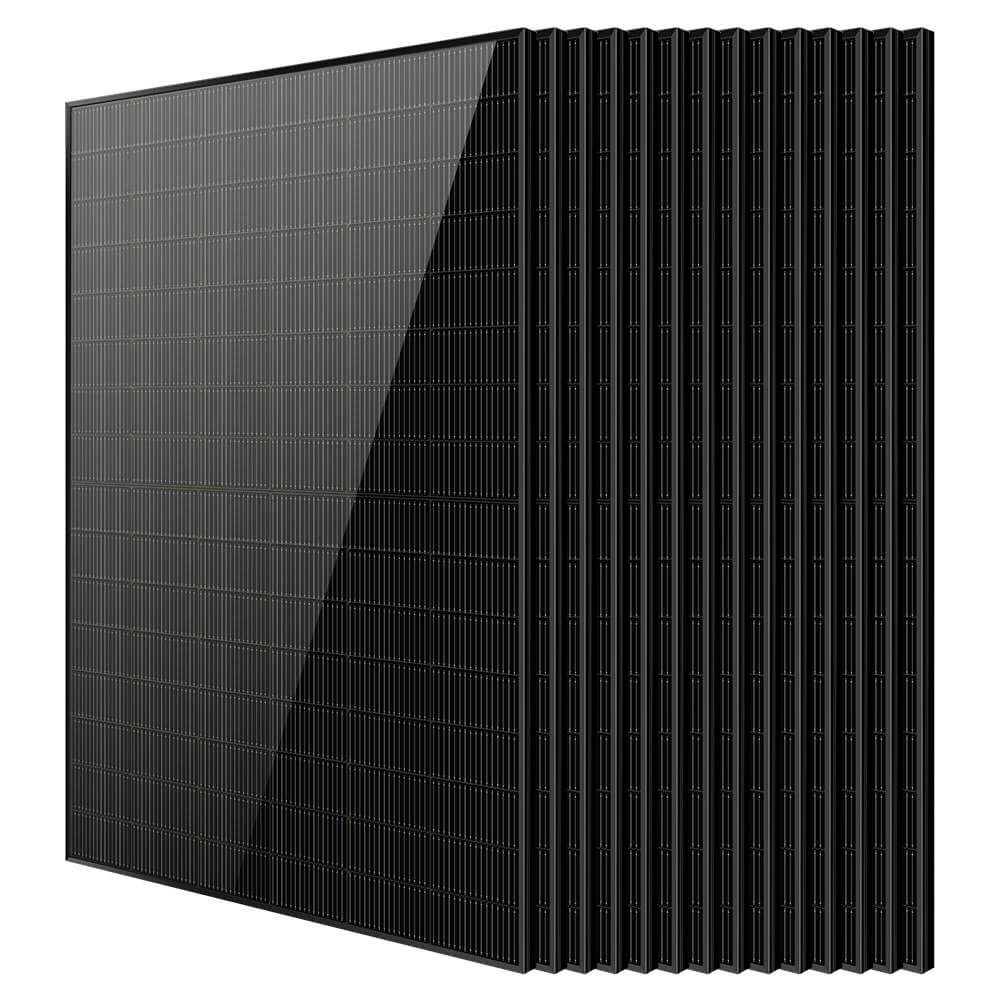

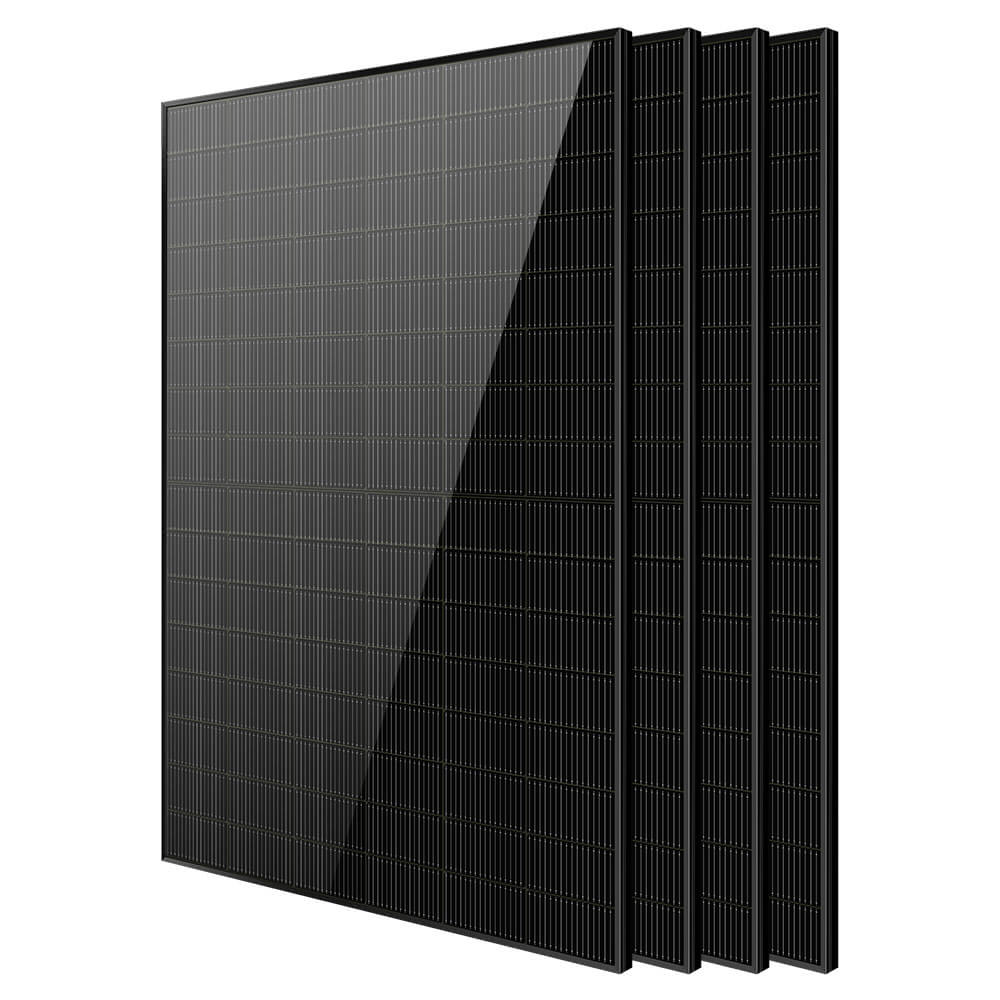

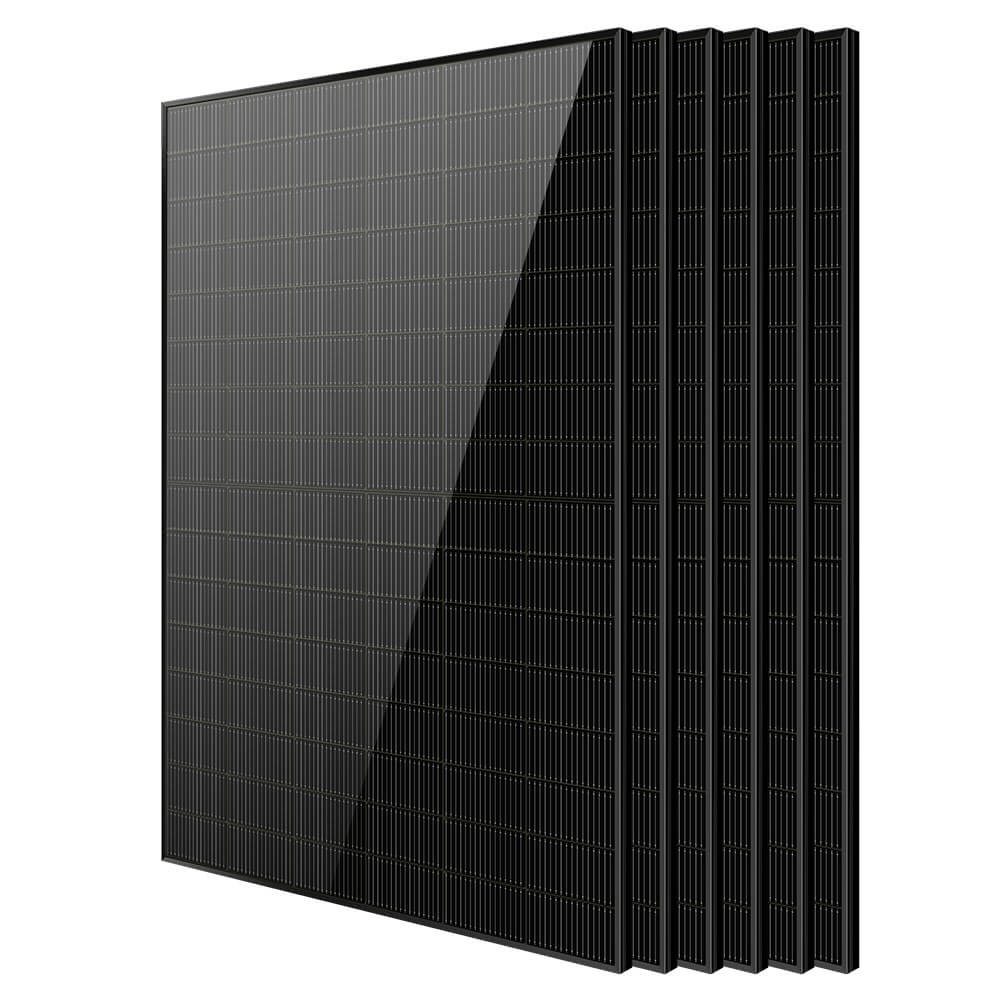

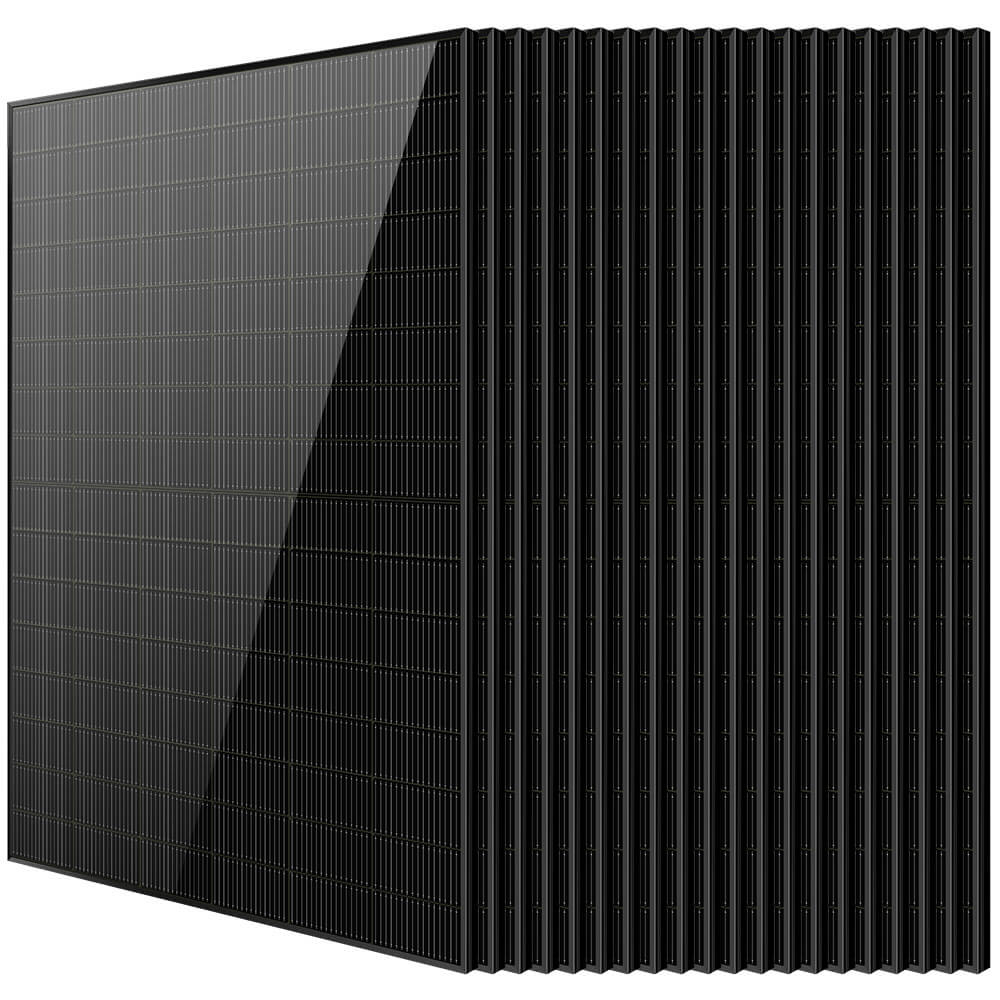

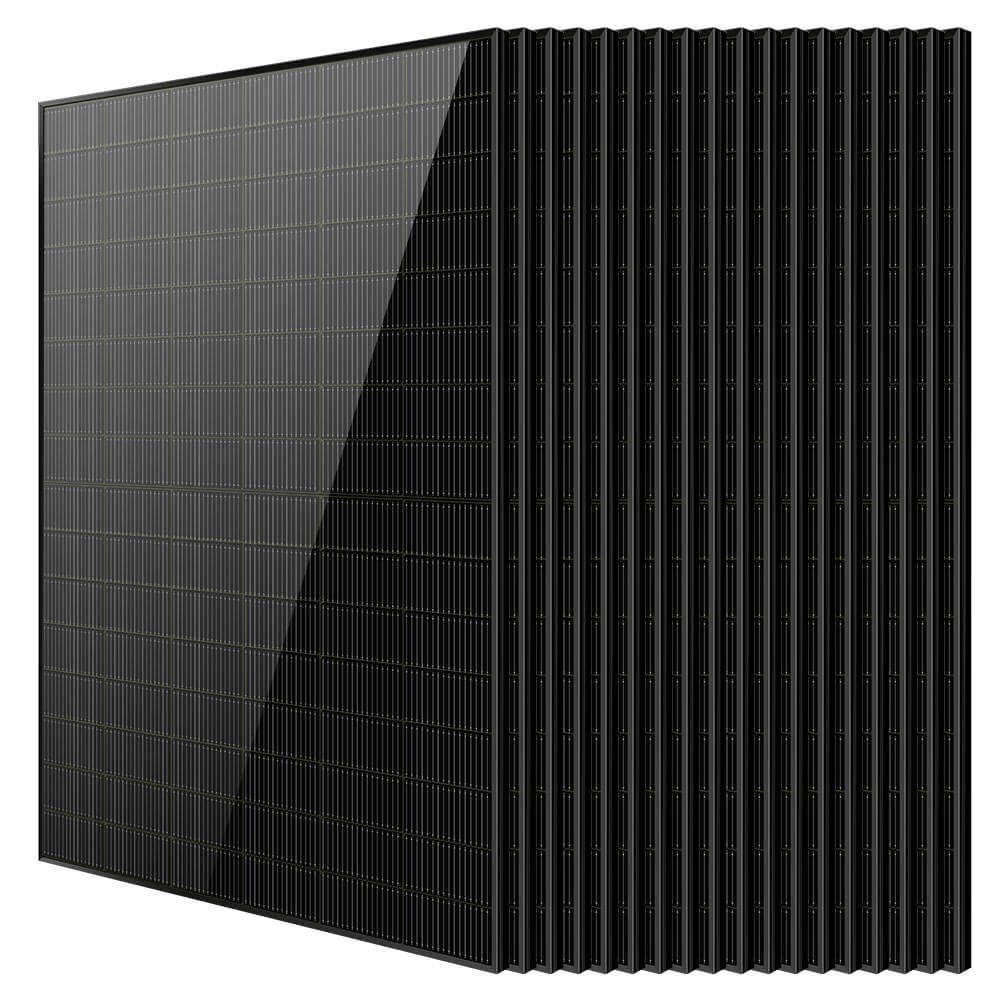

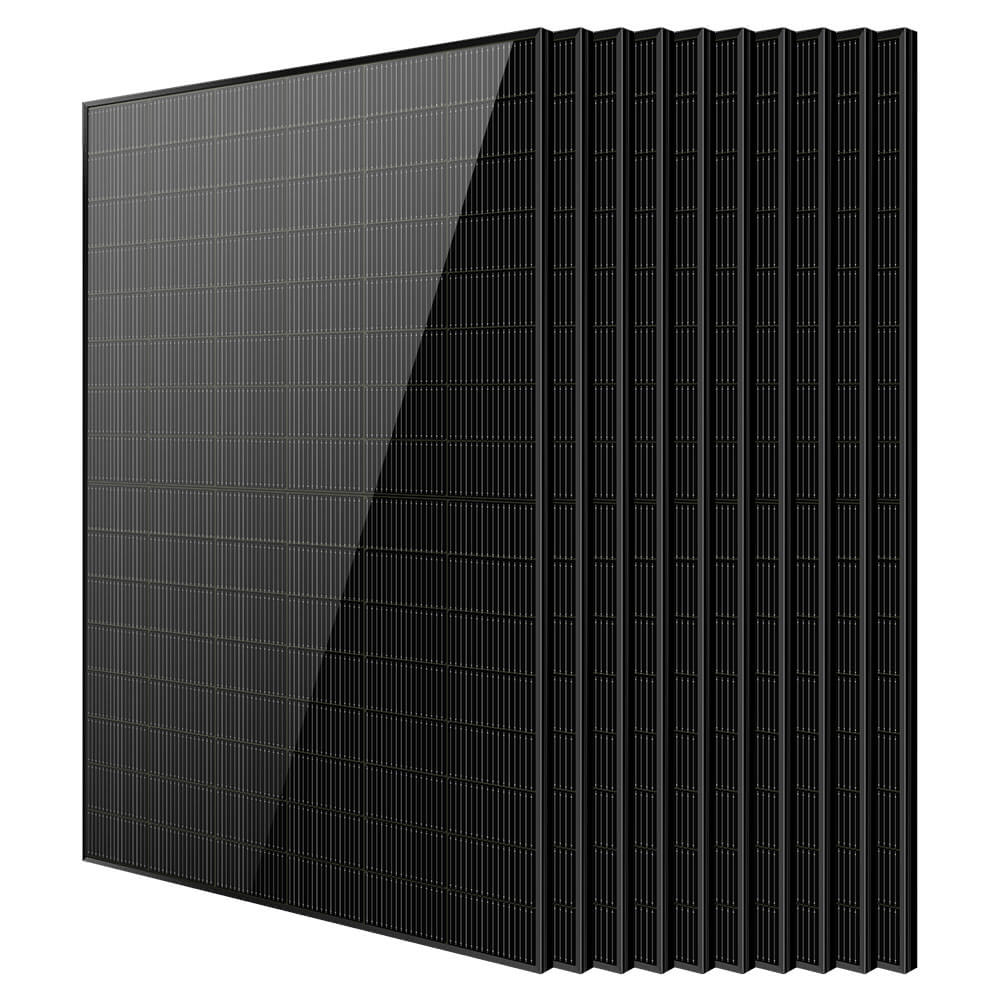

- Selected quantity of SGN-450-BDG5 450W modules: 2, 4, 6, 8, 10, 12, 14, 16, 18, or 20 panels
Typically still required
- Racking, rails, clamps, or roof/ground attachments
- Inverter, optimizer, microinverter, or charge controller
- PV wire extensions, combiner, disconnects, grounding, or surge protection
- Freight unloading equipment, engineering, permits, or installation labor
Frequently asked questions
What exactly do I get in the base option?
Does each 450W panel make 585W because it is bifacial?
Will these work with my inverter or charge controller?
Are mounting hardware and extension cables included?
How large and heavy is each panel?
Know what arrives—and what the installation still needs.
Send Torven Power your loads, existing equipment and project goals for pre-purchase fit guidance.
Specifications, images and package contents can change by hardware revision. The delivered model label, current manual, written warranty and permitted design control.
Product Data
Technical Specifications
SGN-450-BDG5 panel — Electrical ratings at STC / NMOT
| Rated maximum power (Pmax) | 450W STC / 338W NMOT |
|---|---|
| Voltage at maximum power (Vmp) | 30.08V STC |
| Current at maximum power (Imp) | 14.97A STC |
| Open-circuit voltage (Voc) | 35.03V STC |
| Short-circuit current (Isc) | 16.05A STC |
| Module efficiency | 22.5% |
| Power tolerance | 0 to +5W |
| Bifaciality factor | 80% ±10% |
| Maximum system voltage | 1500V DC |
| Maximum series-fuse rating | 30A |
SGN-450-BDG5 panel — Construction and dimensions

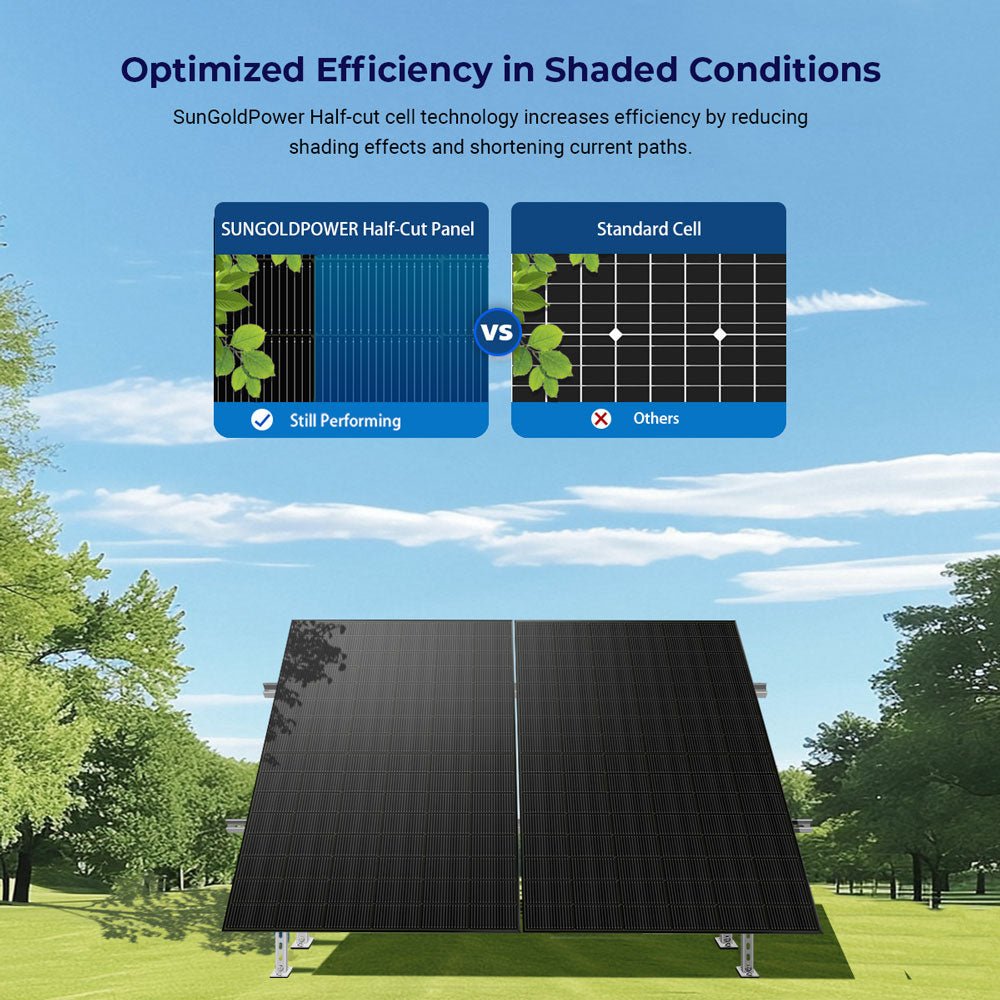

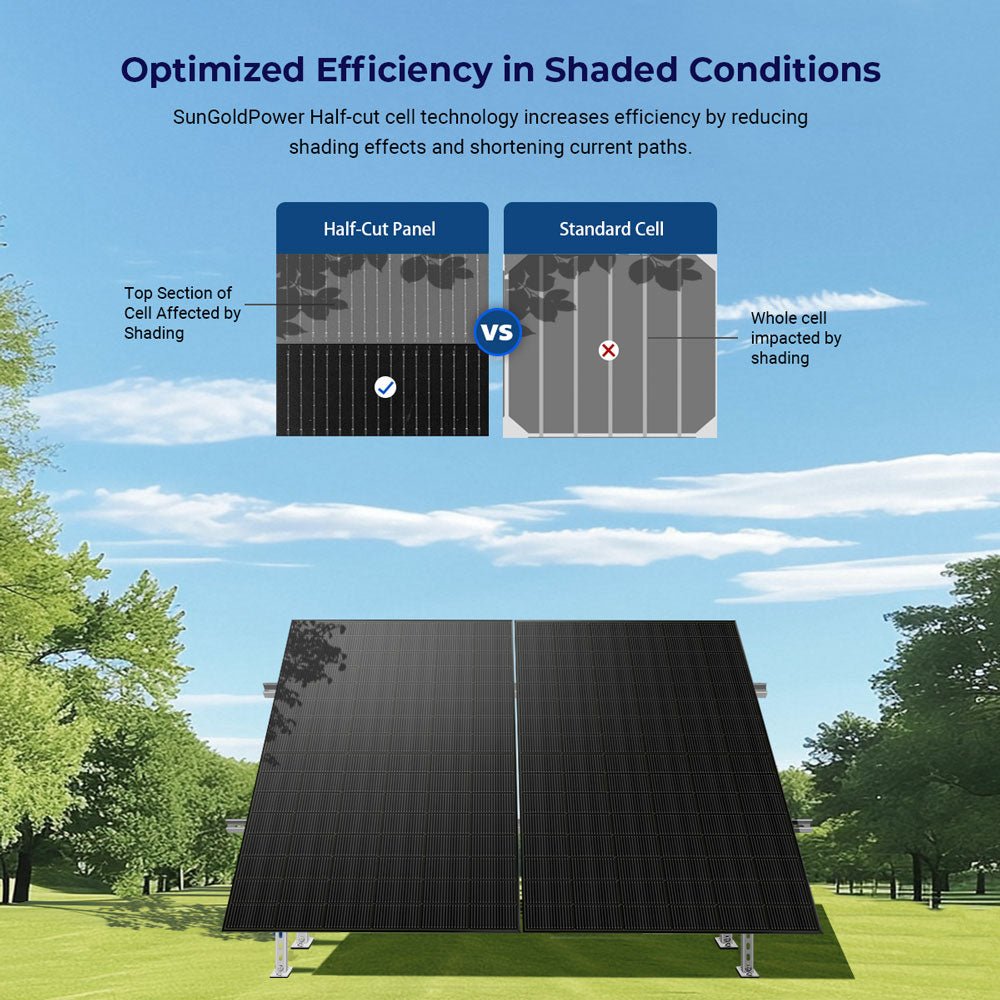

| Cell type | N-type monocrystalline, 96 half cells |
|---|---|
| Glass | 2.0mm front glass / 2.0mm rear glass |
| Frame | Black anodized aluminum alloy |

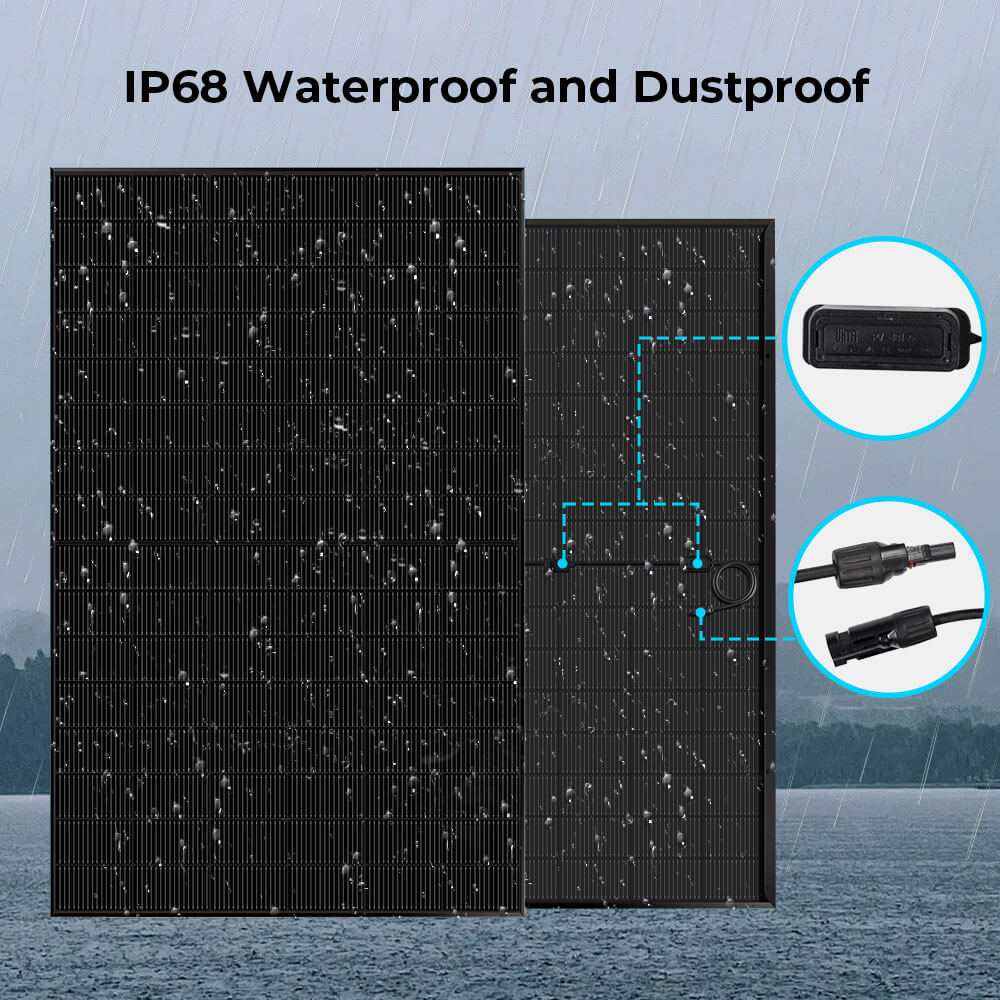

| Junction box | IP68 |
| Connector | MC4-compatible |
| Cable | 4mm² / 12AWG |

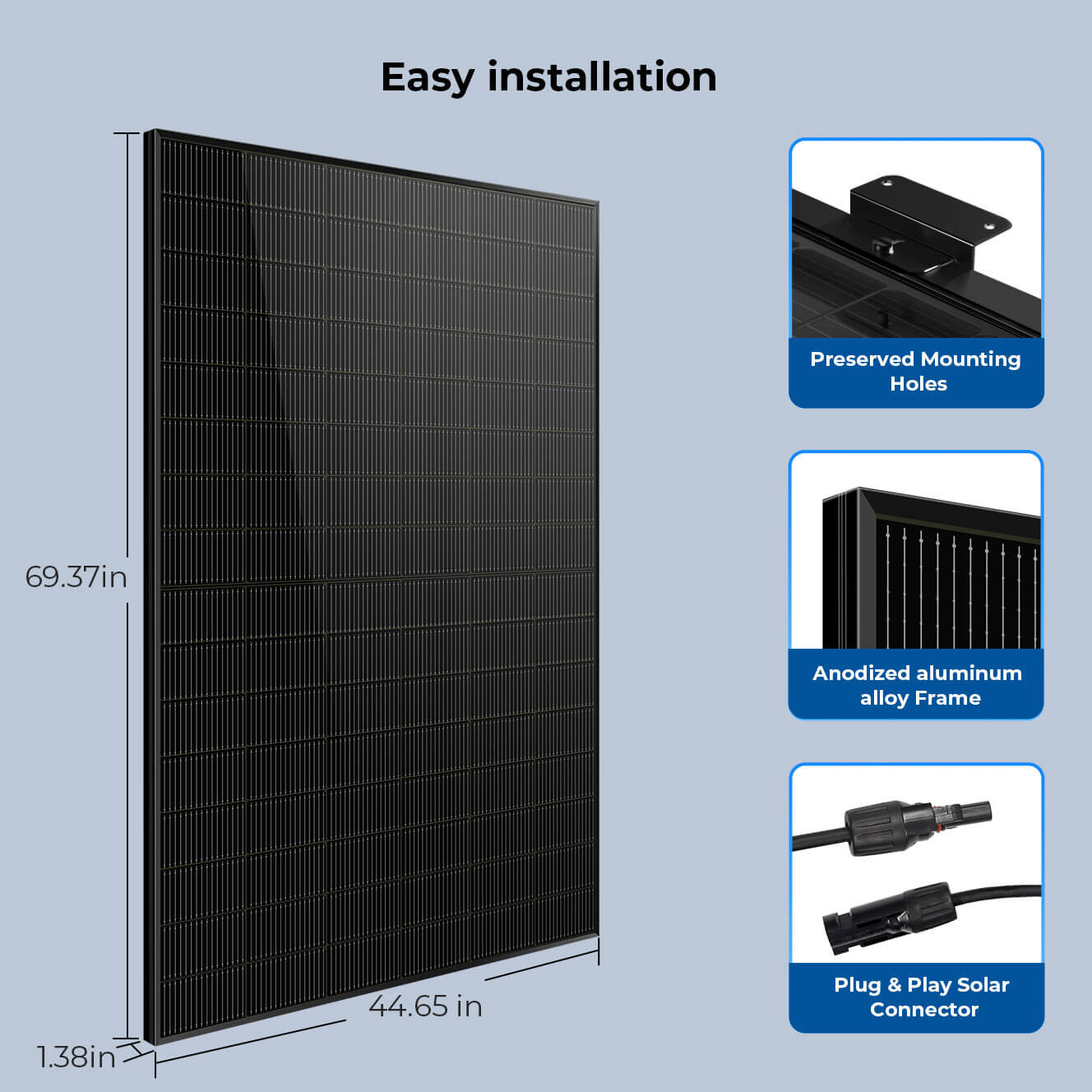

| Dimensions | 69.37 × 44.65 × 1.38 in |
| Weight | 53.35 lb per panel |
SGN-450-BDG5 panel — Environmental and mechanical
| Operating temperature | -40°F to 185°F (-40°C to 85°C) |
|---|---|
| Nominal module operating temperature | 43°C ±2°C |
| Pmax temperature coefficient | -0.29%/K |
| Voc temperature coefficient | -0.28%/K |
| Isc temperature coefficient | +0.04%/K |
| Front / rear design load | 5400Pa / 2400Pa |
| Hail test | 35mm hailstone |
| Fire classification | Type 29 |
SGN-450-BDG5 panel — Documentation and warranty
| Safety documentation | UL 61730 certificate covering applicable SGN/SGP models |
|---|---|
| CEC status | Model represented by manufacturer as CEC listed |
| Product warranty | 12 years in the current datasheet |
| Linear output warranty | 30 years in the current datasheet |
Verify the delivered model and hardware revision against the current manual and installation requirements.
