A lockable DC isolation point for a planned PV circuit
Disconnect 1 solar string through a 2-pole, 40A enclosure.

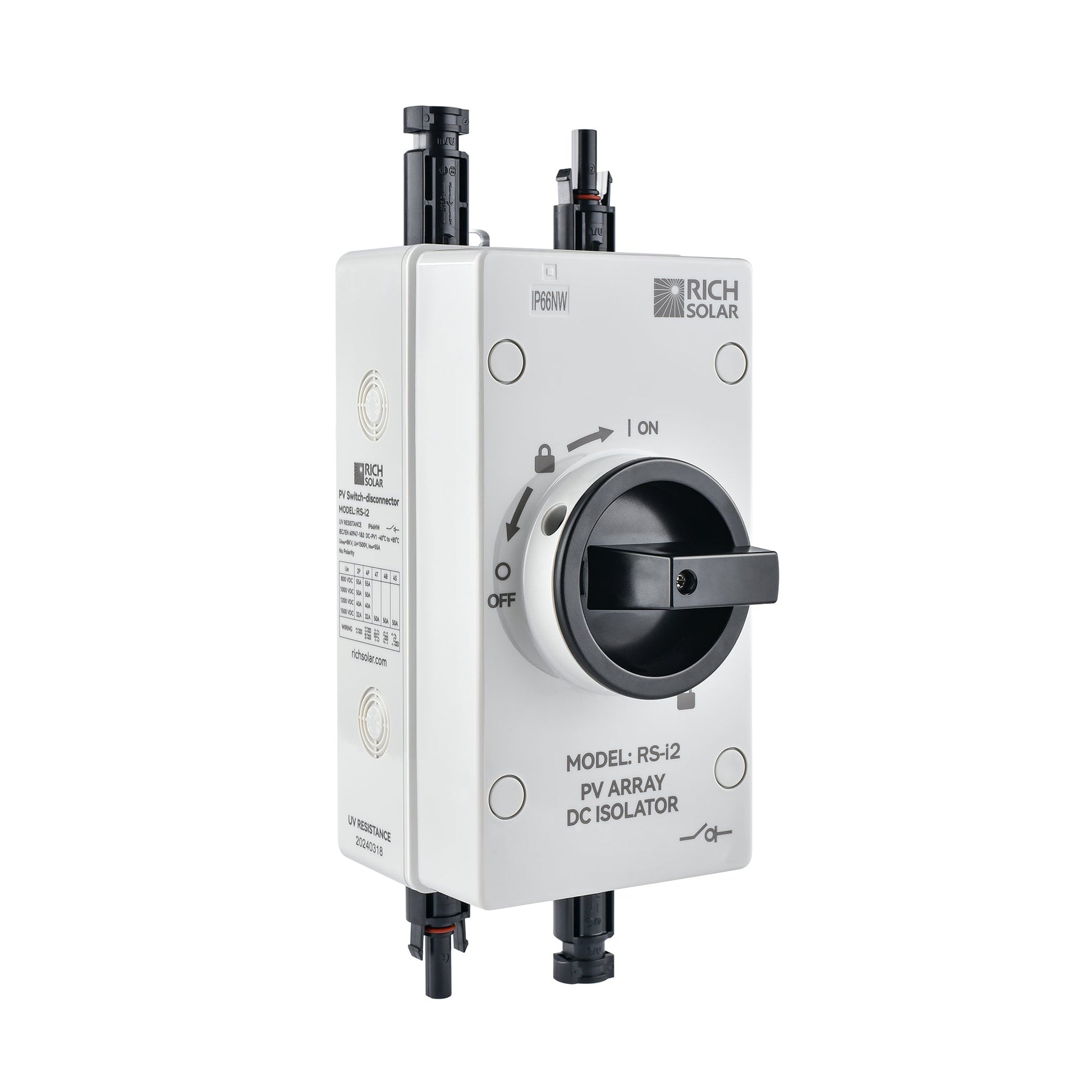

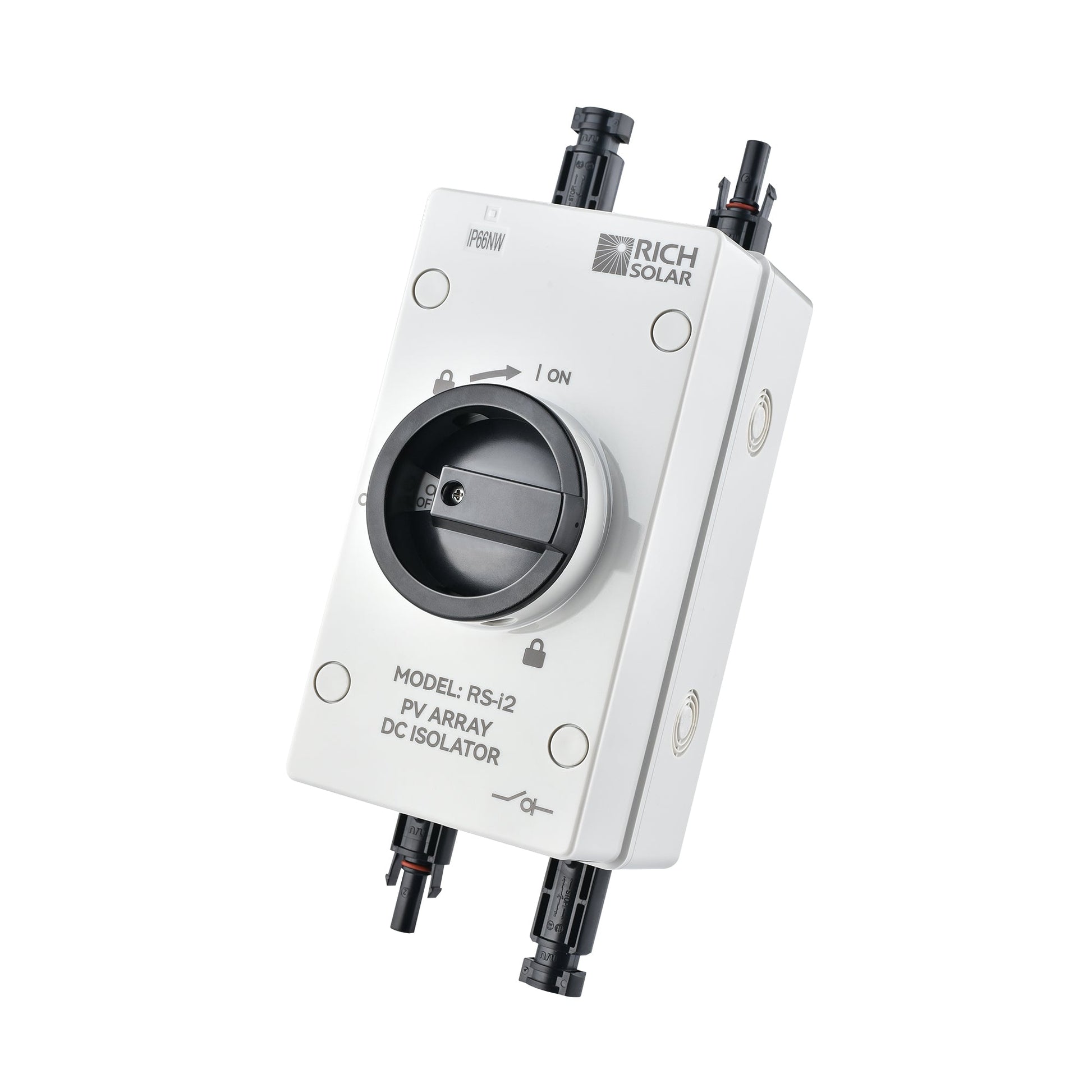

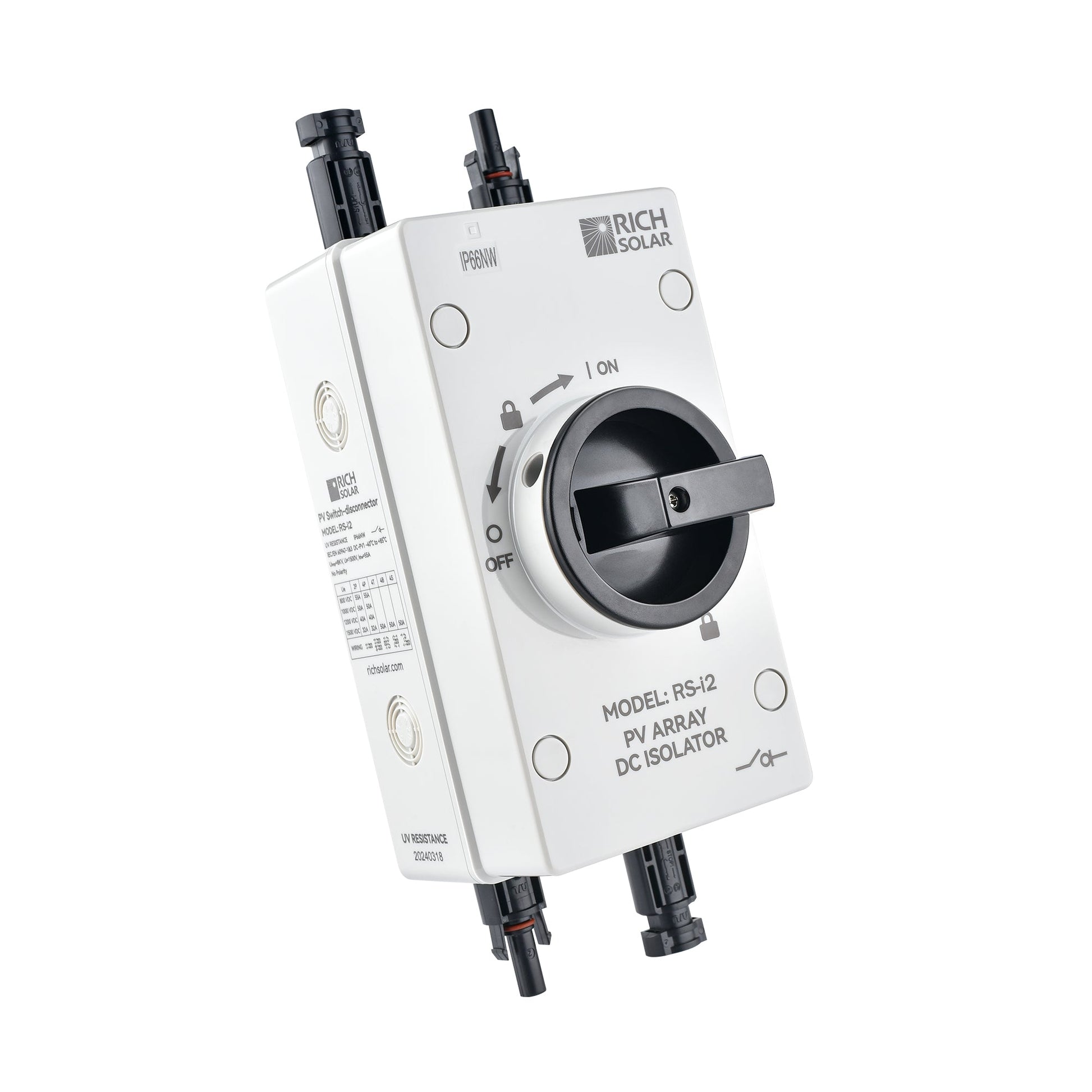

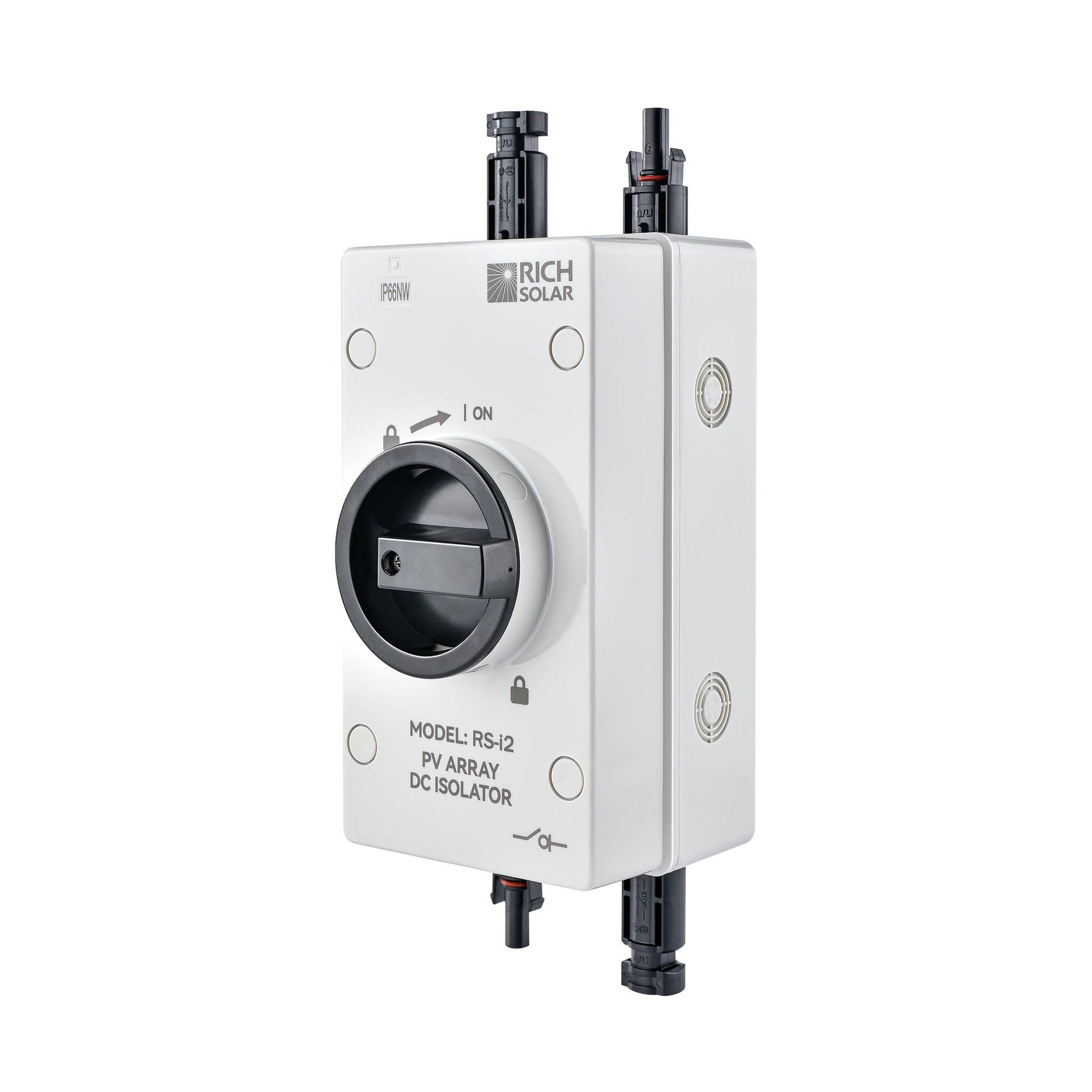

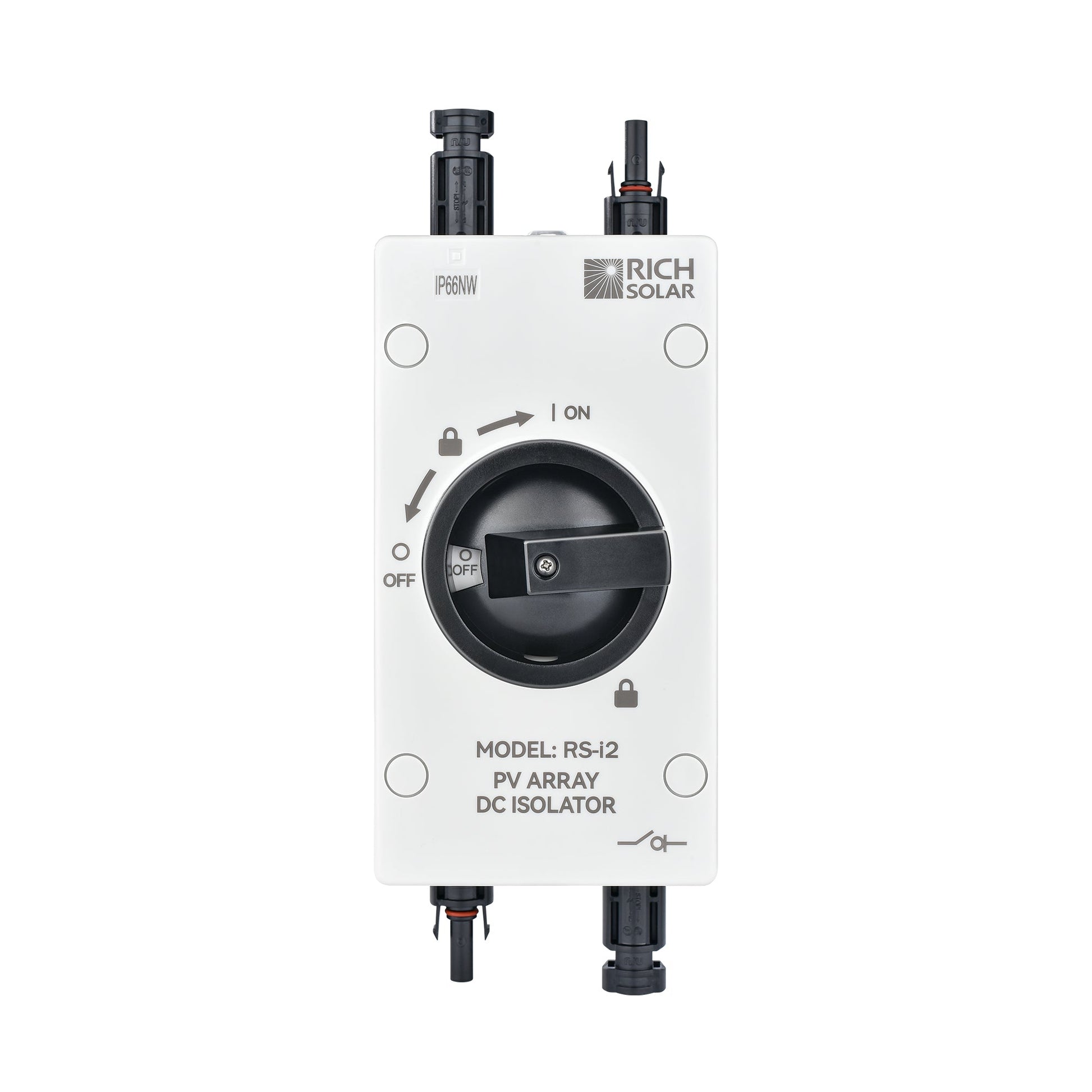

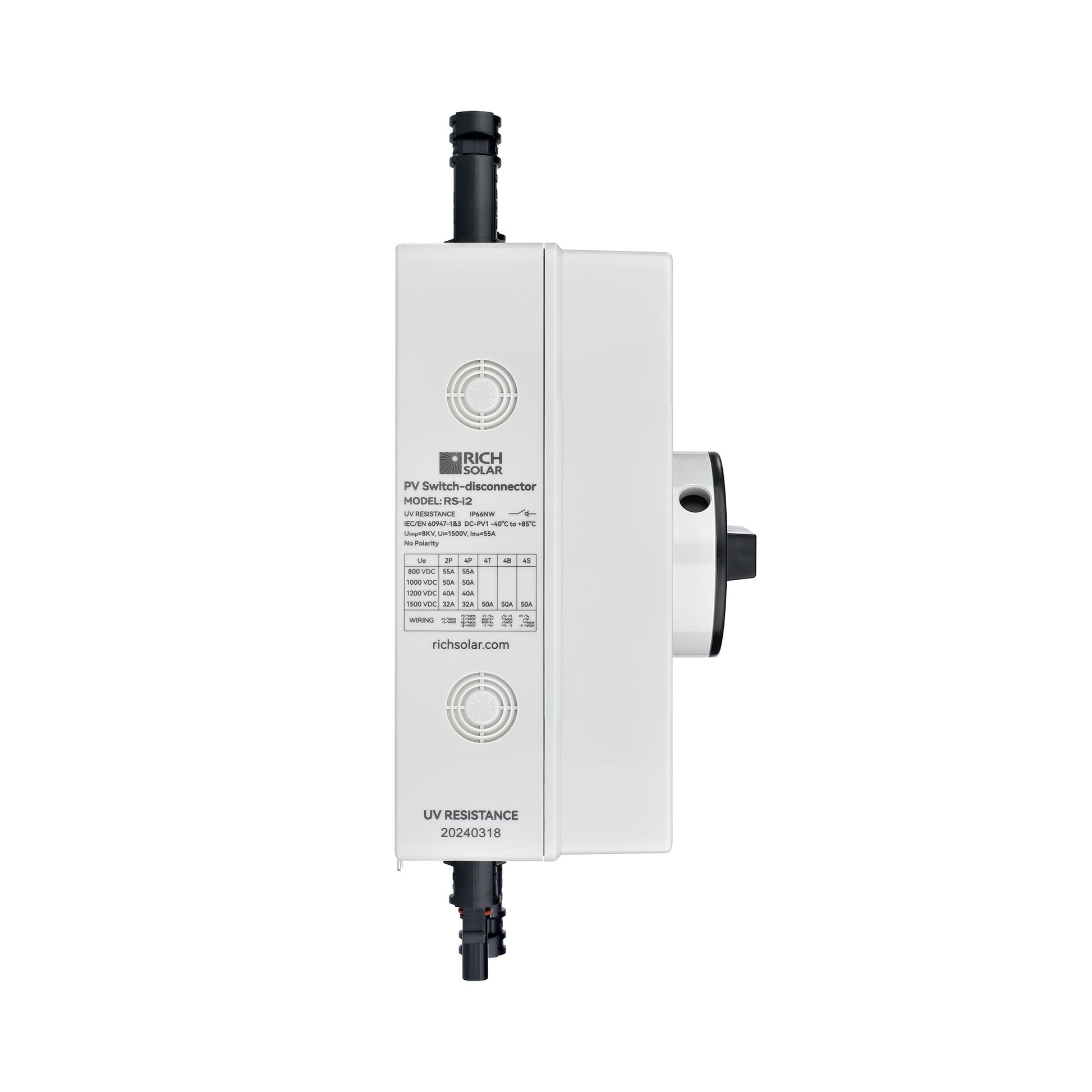

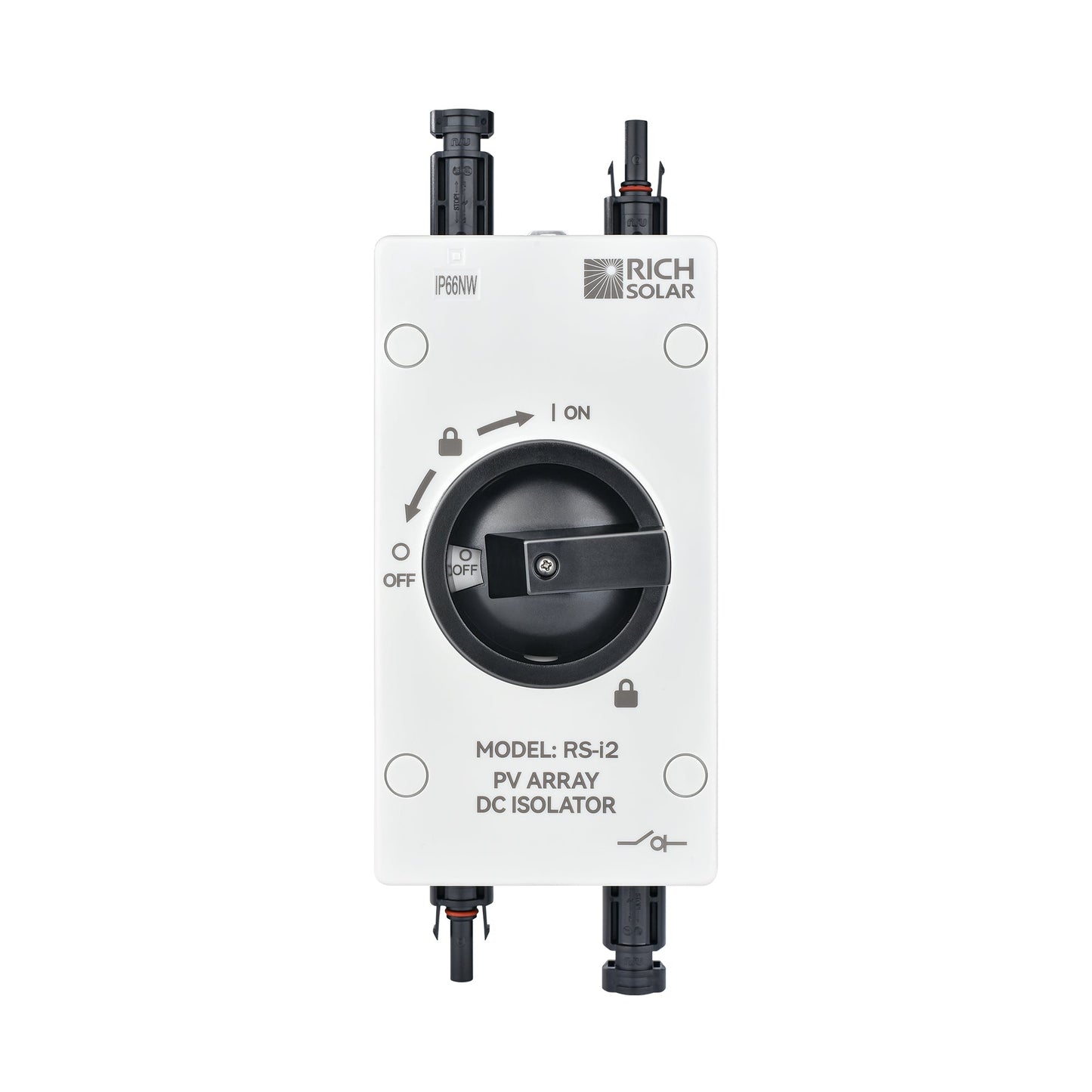

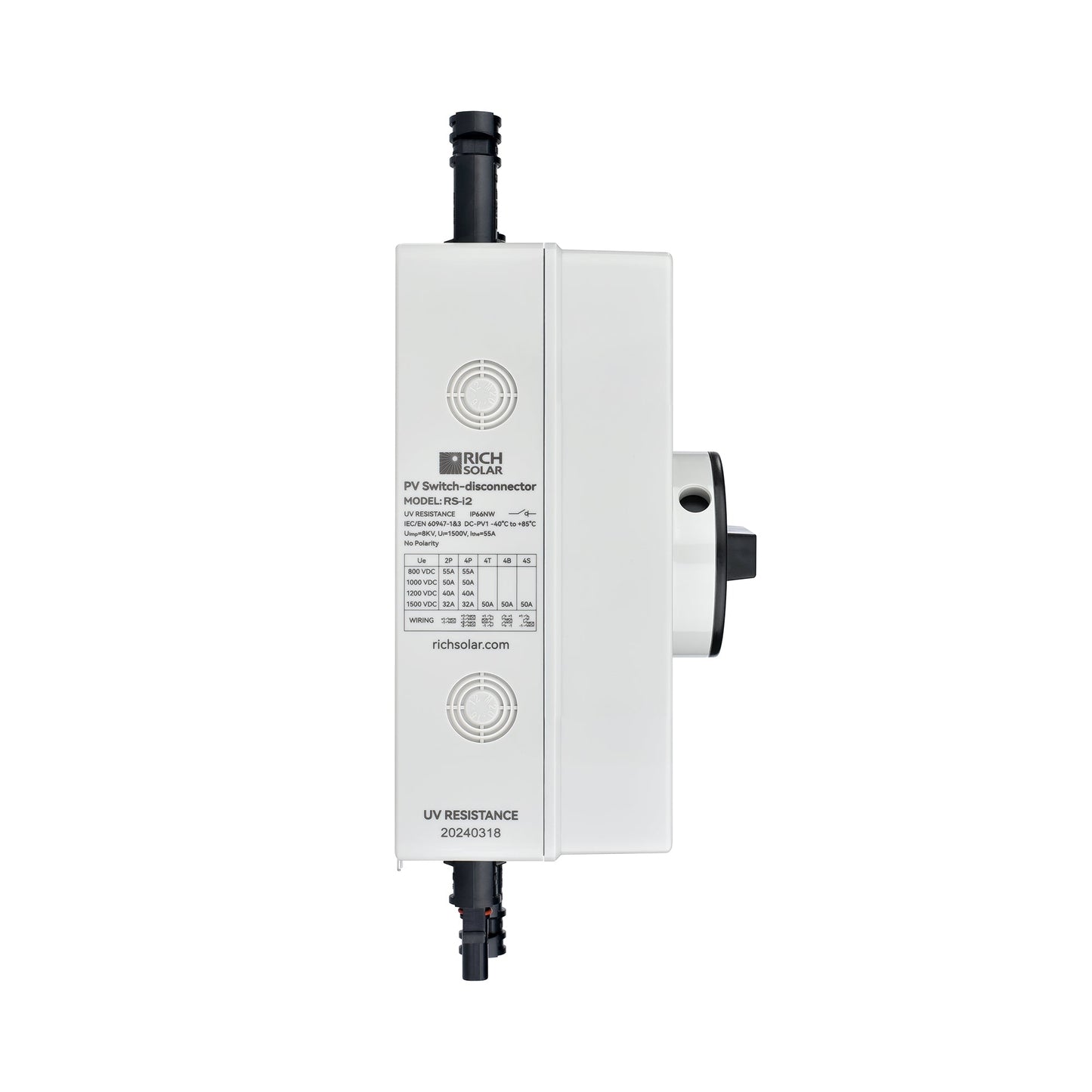

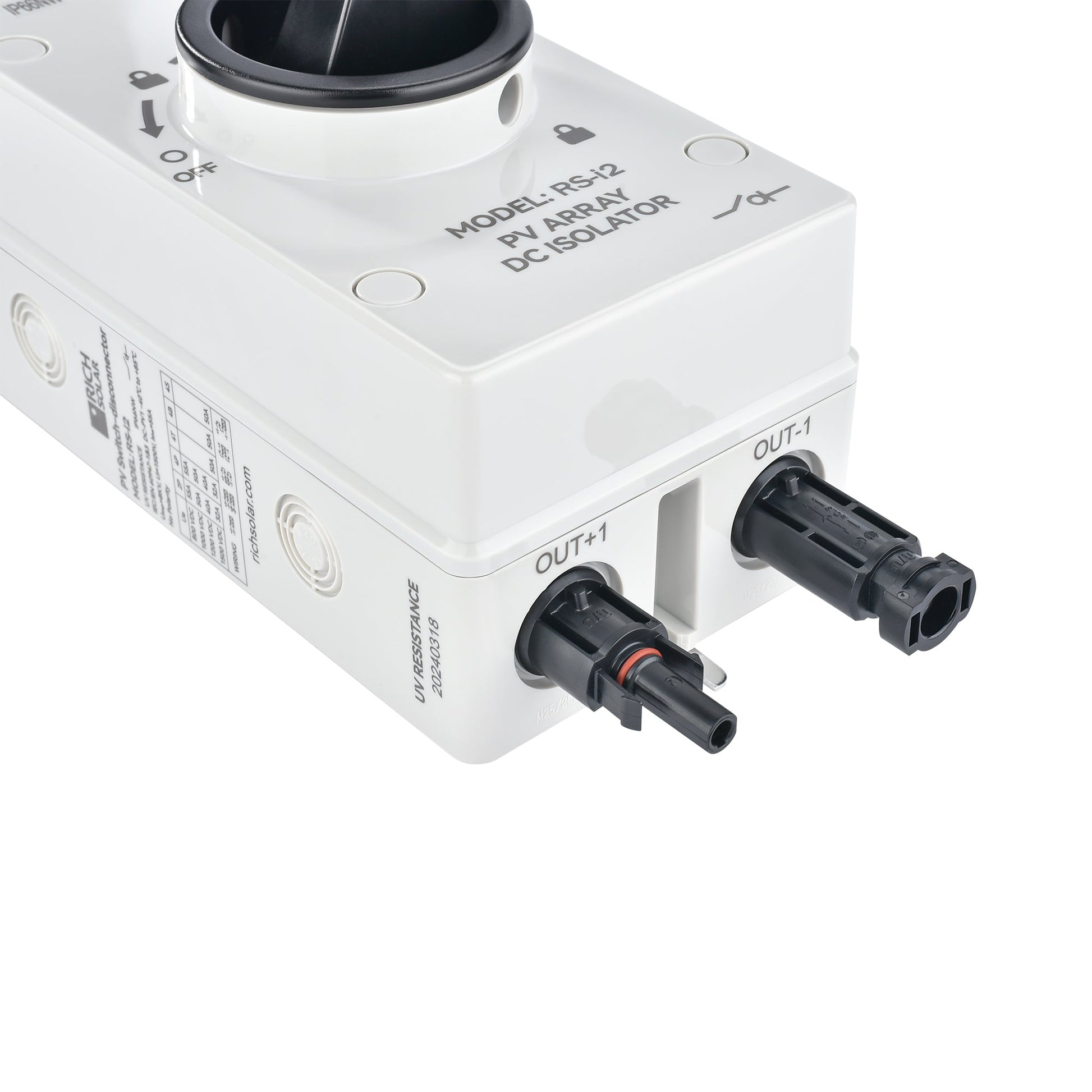

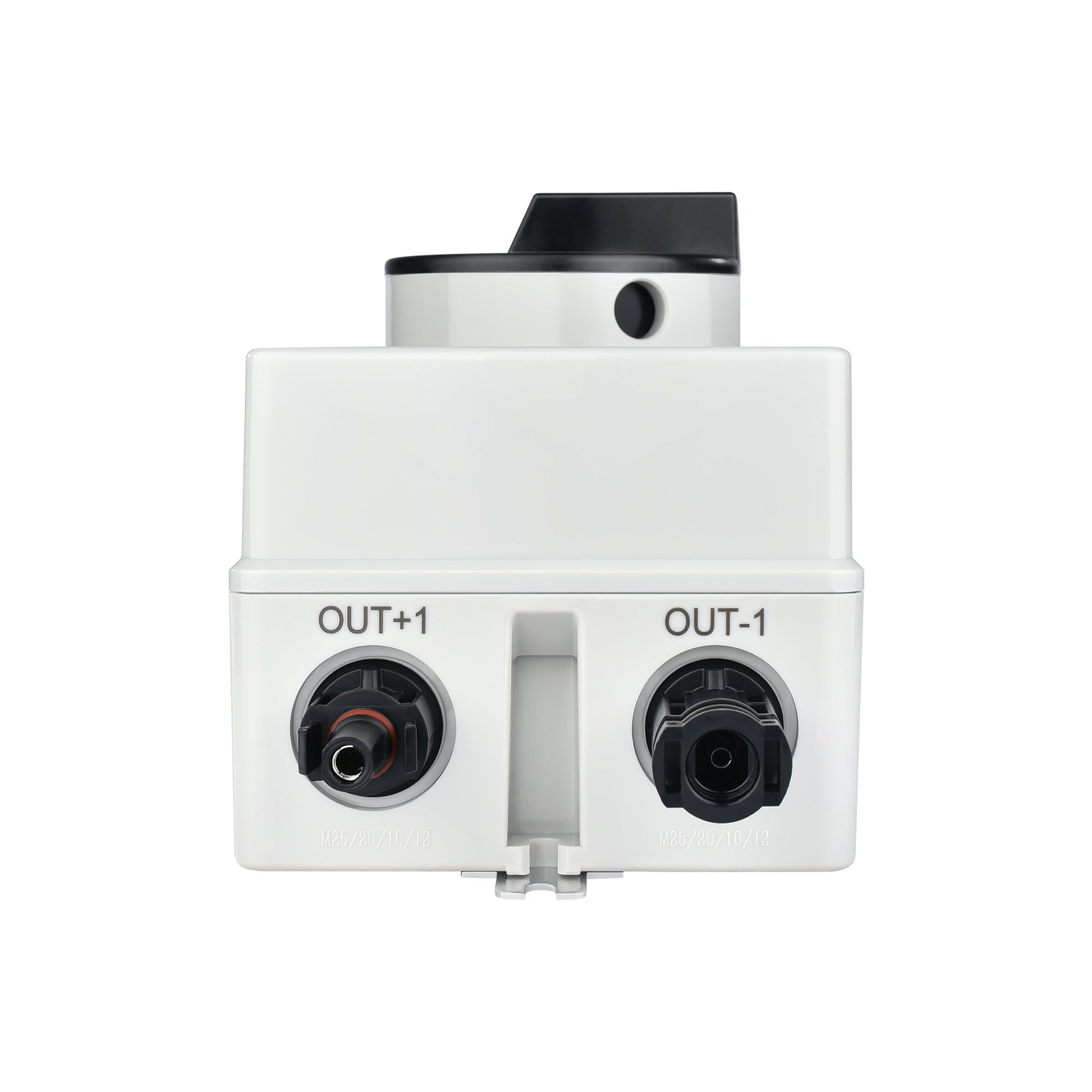

The RICH SOLAR RS-i2 is an outdoor PV DC quick-disconnect with 2 poles arranged for 1 solar string. Its published ratings include 1,500V insulation voltage, 40A thermal current, IP66NW ingress protection and arc suppression in under 3 milliseconds.
At a glance
The ratings that must match the exact PV circuit
The final string voltage, operating current, fault current, conductor size and switching arrangement must fit the disconnect, connected equipment and local code. Follow the current wiring diagram and use a qualified installer for high-voltage DC work.
System fit
Place the disconnect where the circuit can be safely isolated and serviced.
Allow for the 9.8 × 3.8 × 4.3 in enclosure, 1.3 lb weight, conductor bend radius, weatherproof cable entries and required clearances. Confirm DC polarity, pole arrangement, enclosure orientation, grounding and whether the site requires additional rapid-shutdown or emergency-disconnect equipment.
In the box
What this RS-i2 listing covers
- 1 × RICH SOLAR RS-i2 PV DC quick-disconnect
PV wire, cable glands beyond the packaged parts, array combiners, overcurrent protection, rapid-shutdown equipment, labels and installation labor are not listed as included.
Product confidence
CE compliance and a three-year warranty are listed
Installation method, conductor preparation, torque, operating conditions and warranty remedies follow RICH SOLAR's current instructions and written terms for the exact disconnect.
Common questions
RS-i2 system questions
Can I use it for any 1,500V solar array?
No. Insulation voltage is only one rating. The circuit must also fit the device's current, pole, string, switching, enclosure and code requirements.
Does it replace a fuse, breaker or rapid shutdown?
Not automatically. A disconnect provides isolation; overcurrent protection and rapid-shutdown functions are separate design requirements unless explicitly covered by listed equipment.
Can it be installed outdoors?
RICH SOLAR lists IP66NW protection. Correct mounting, cable entries, seals, drainage, UV exposure and service clearances still matter.
Who should install a high-voltage PV disconnect?
Use a qualified solar or electrical professional familiar with DC arc hazards, conductor polarity, torque, lockout, labeling and local requirements.
Product Data
Technical Specifications
| Rated Thermal Current (Ith) | 40A |
|---|---|
| Rated Insulation Voltage (Ui) | 1500V |
| Poles / Circuit | 2P in series |
| Supported PV Strings | 1 PV string |
| Impulse Withstand Voltage | 8 kV |
| Arc Suppression Time | <3 ms |
| IP Rating | IP66NW |
| Operating Temperature | -40℉ to 158℉ |
| Housing Material | Flame-retardant PC (UL94 V-0) |
| Dimensions (HxWxD) | 9.8x3.8x4.3 in (249.4x97.6x110 mm) |
| Certifications | CE |
| Warranty | 3 years |
Available configurations
| Option | SKU |
|---|---|
| Single configuration | RS-i2 |
Review the current manufacturer manual for your exact model before installation or use.
