RICH SOLAR

RICH SOLAR Solar Connectors Solar Panel Connectors with Male and Female Connection

RICH SOLAR Solar Connectors Solar Panel Connectors with Male and Female Connection

SKU: RS-SC5P

$11.99
$11.99
View Cart

In stock — available to order

Need help before ordering? Call 888-495-5870 Contact our support team

Five field-termination pairs for compatible 10AWG or 12AWG PV cable

Build up to five matched solar-cable connections with tinned-copper contacts.

This RICH SOLAR connector package includes five male and five female solar-connector bodies for field termination on compatible 10AWG or 12AWG PV cable. The manufacturer publishes a 30A current rating, 1,000VDC maximum voltage and IP67 protection under stated assembled conditions.

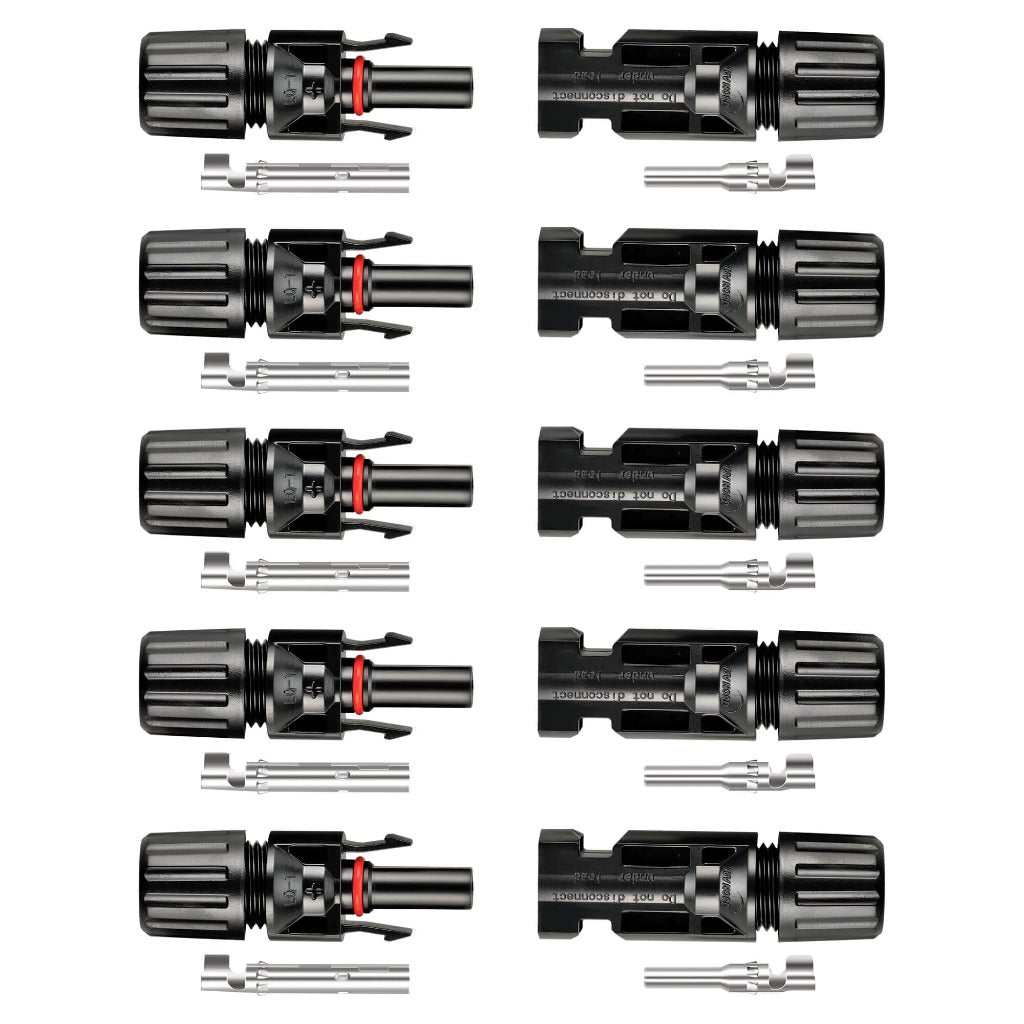

RICH SOLAR solar connector kit with five male and five female pairs

At a glance

The ten pieces make five mating pairs

5 male + 5 femalePackage
10AWG / 12AWGWire range
30ARated current
1,000VDCMaximum voltage
Field connectors require the correct crimp tool and matched mate

Do not mix connector brands or copy a crimp by appearance. Use contacts, strip length, dies, torque and assembly steps approved for this exact connector and cable construction, then verify polarity and pull strength.

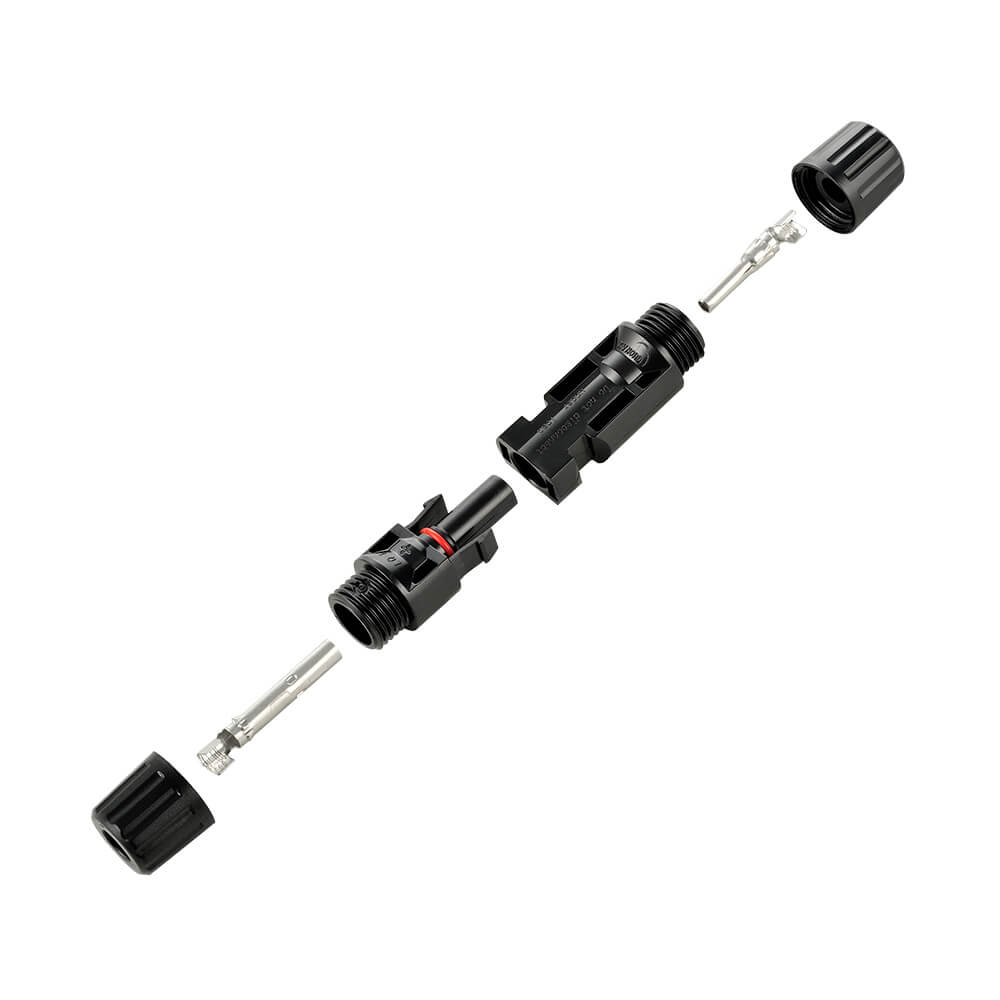

RICH SOLAR field-termination solar connector components

Why it stands out

Project-ready quantity for multiple PV terminations

Five complete pairsTerminate up to five positive/negative connection points or keep matched spares for the same approved connector system.
10AWG or 12AWG fitUse only with cable construction and outside diameter allowed by the current connector instructions.
Outdoor-rated materialsPA/PC insulation, tinned-copper contacts and IP67 assembled protection support correctly built PV connections.

System fit

Treat every termination as a safety-critical connection.

Confirm cable gauge and construction, connector compatibility, polarity, stripping, crimp die, insertion depth, seal compression and cable support. Inspect and test every finished connection before energizing the array.

Strong use casesRepair, extension and custom-length PV wiring using approved 10AWG or 12AWG cable and a connector system specifically allowed to mate.
Required tools and checksCorrect stripping and crimp tools, assembly wrench where specified, polarity tester, pull check, visual inspection and protection from live PV voltage.

In the box

What this connector package includes

  • 5 × male solar-connector assemblies
  • 5 × female solar-connector assemblies

PV cable, crimp and stripping tools, assembly wrench, disconnects, fuses, junction boxes and installation labor are not listed as included.

Product confidence

Do not mix unmatched solar-connector brands

Similar housings do not prove mating compatibility. Mixed contacts or seals can overheat or leak. Use an approved same-family connection and follow the current assembly instructions.

Common questions

Field-termination connector questions

How many complete connections can I make?

The package contains five male and five female assemblies, providing five mating pairs when used as directed.

Can I crimp them with pliers?

No. Use the connector maker's approved stripping and crimp tooling for the exact contact and cable gauge.

Will they mate with every solar panel connector?

No universal compatibility is guaranteed. Match the exact connector family and do not mix brands solely because the housings fit.

Can I assemble connectors while the panel is in sunlight?

PV leads may be energized in sunlight. Isolate or cover sources and follow safe PV work procedures before cutting or terminating conductors.

RICH SOLAR Solar Connectors Solar Panel Connectors with Male and Female Connection RICH SOLAR RICH SOLAR Solar Connectors Solar Panel Connectors with Male and Female Connection
