RICH SOLAR Single Pole Waterproof Circuit Breaker Waterproof Thermal Type Breaker
RICH SOLAR Single Pole Waterproof Circuit Breaker Waterproof Thermal Type Breaker
SKU: RS-CB40
- Regular price
- $27.99
- Regular price
- Sale price
- $27.99
- Unit price
- per
Couldn't load pickup availability
In stock — available to order
- Free standard shipping on eligible Lower-48 orders. See shipping details
- 30-day return requests for eligible items after delivery. Review the return policy
- Price Match Guarantee for qualifying identical offers. Check eligibility
- Warranty information is listed in this product's details.
Manual-reset DC protection in eight Torven current options
Choose 40A through 250A for a correctly sized 30V/48V DC circuit.

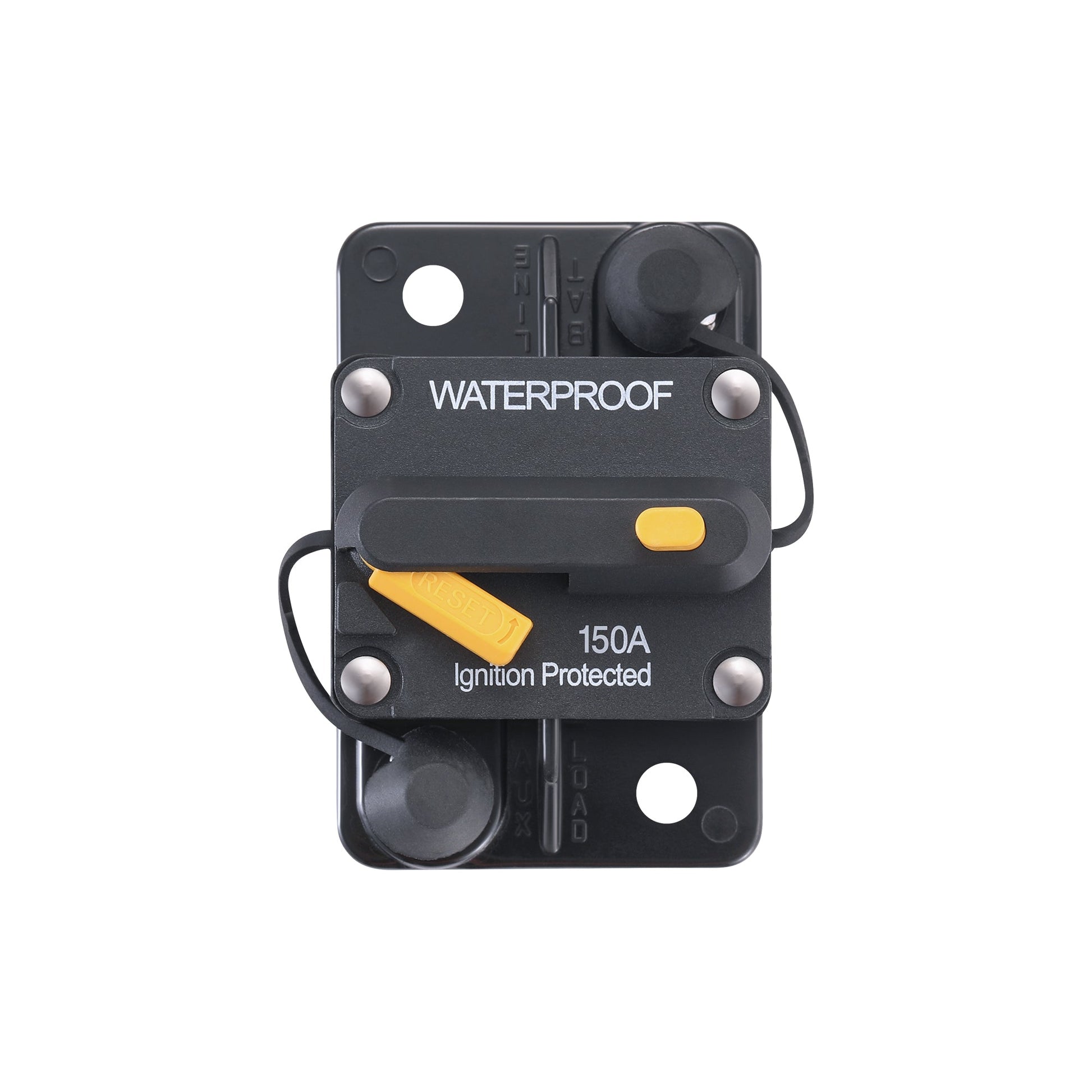

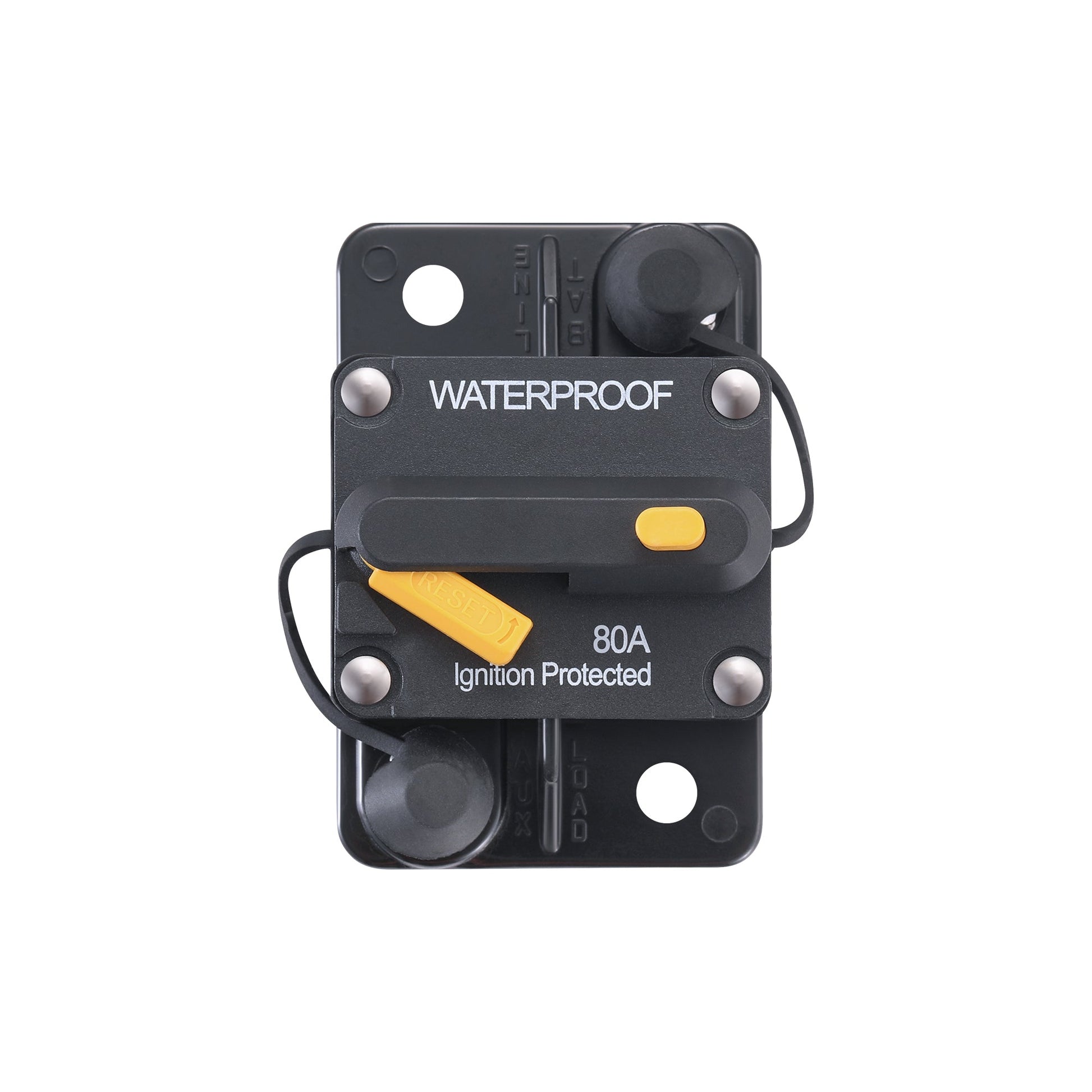

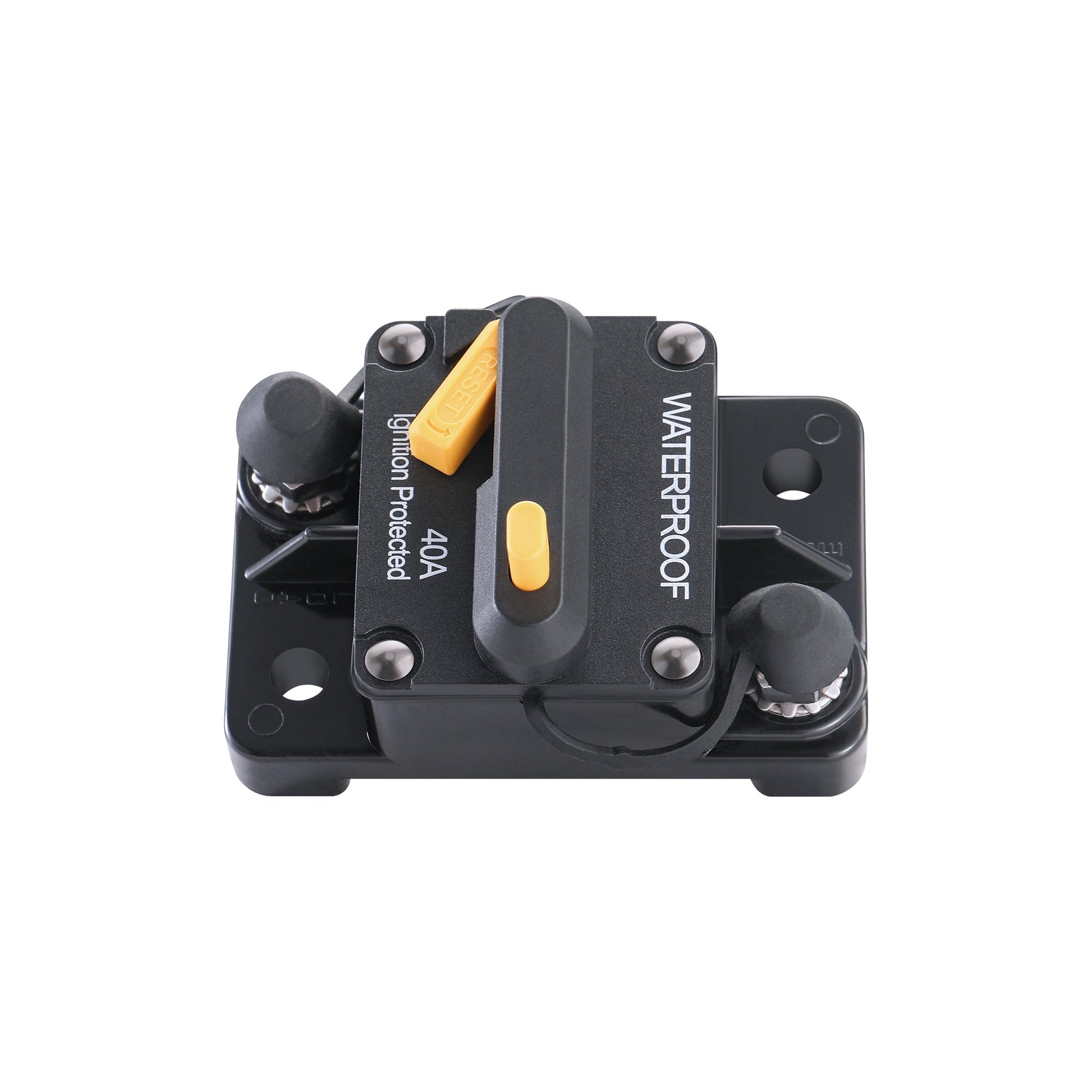

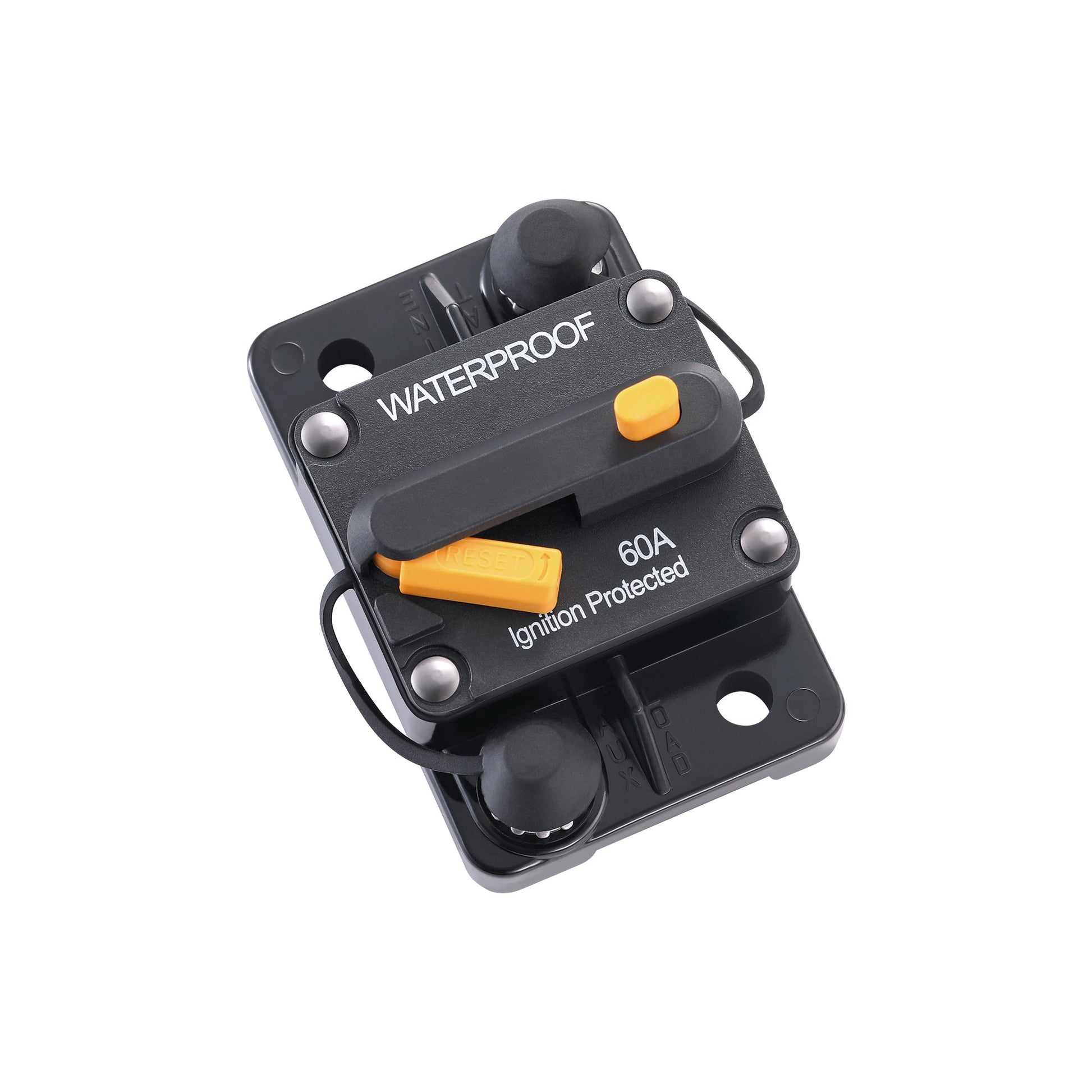

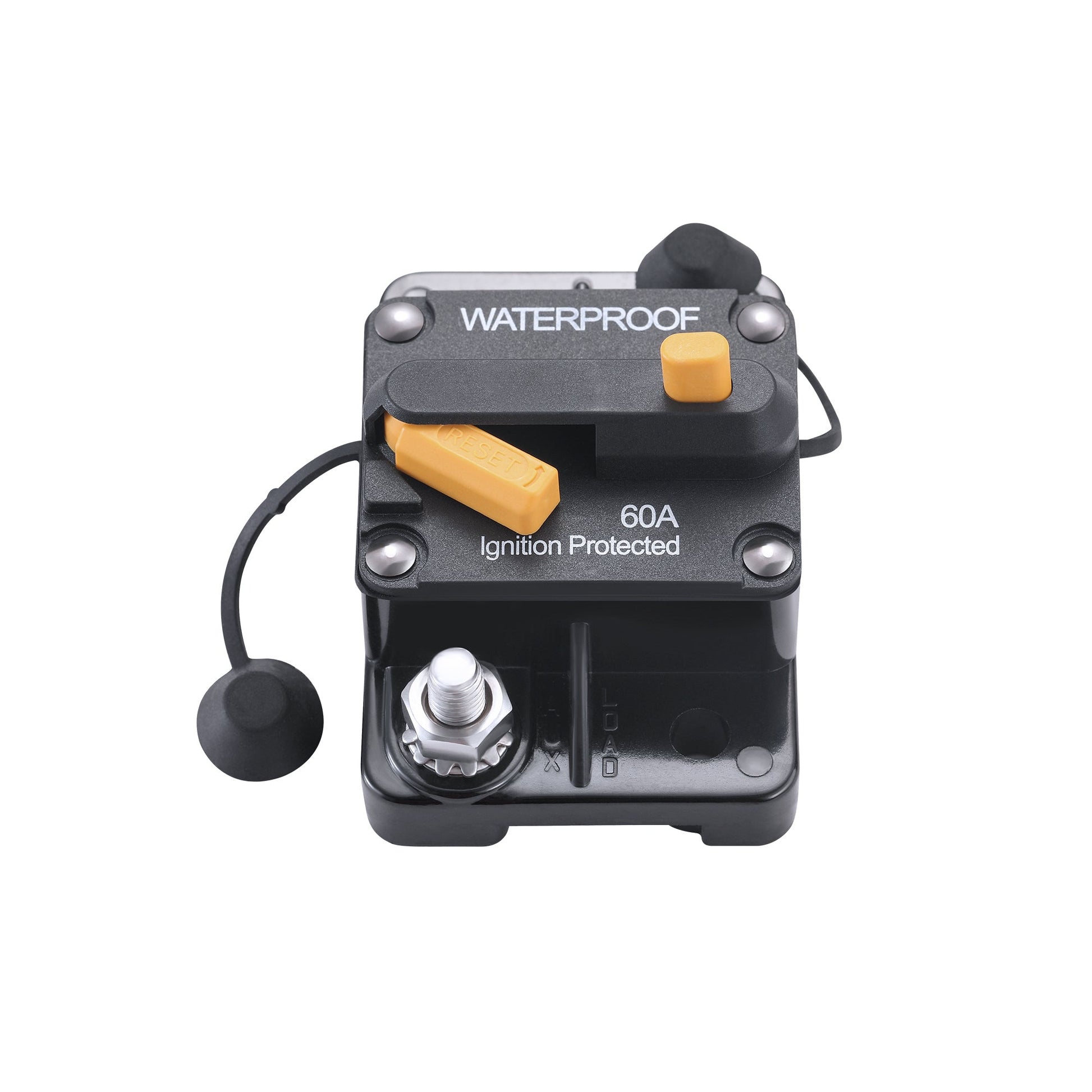

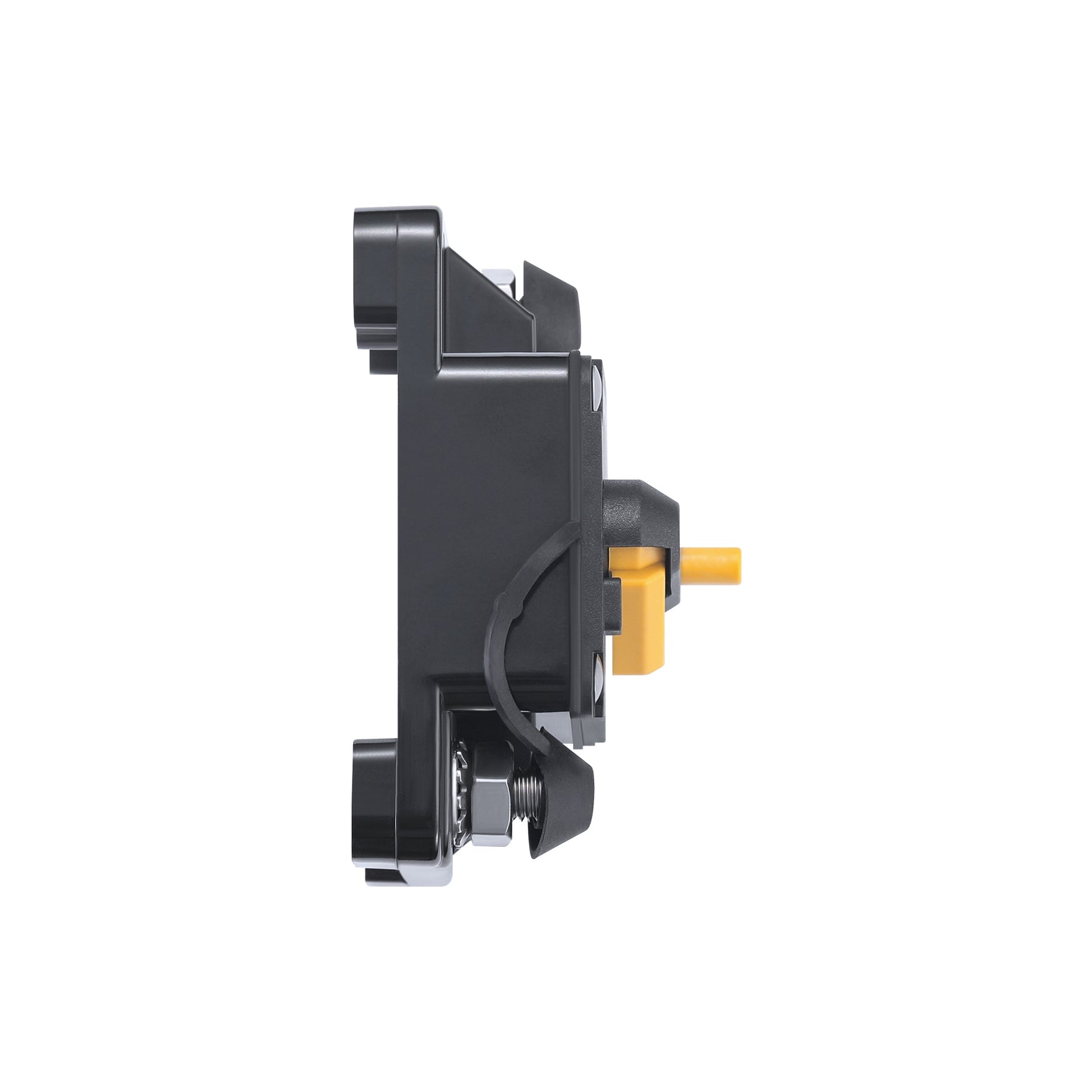

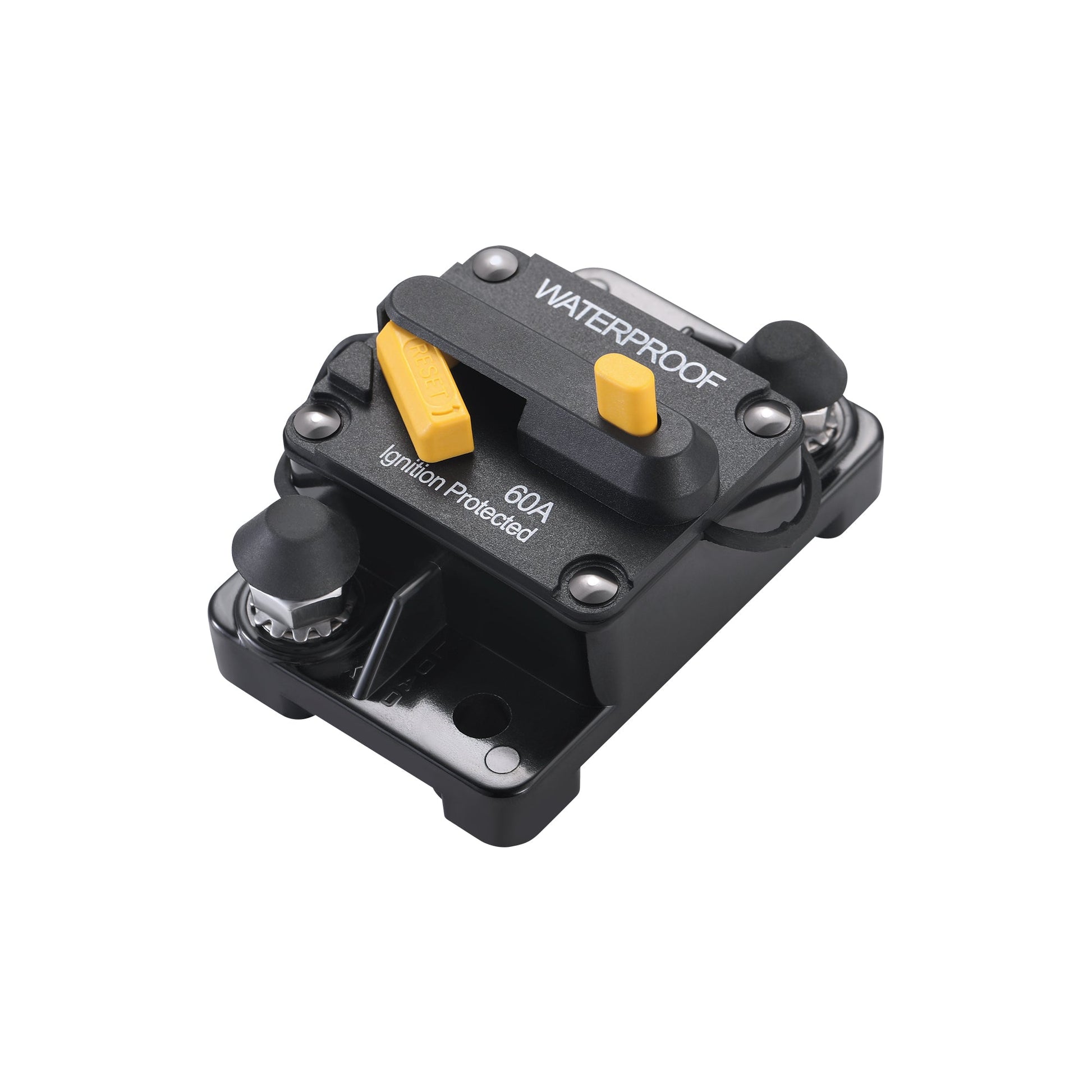

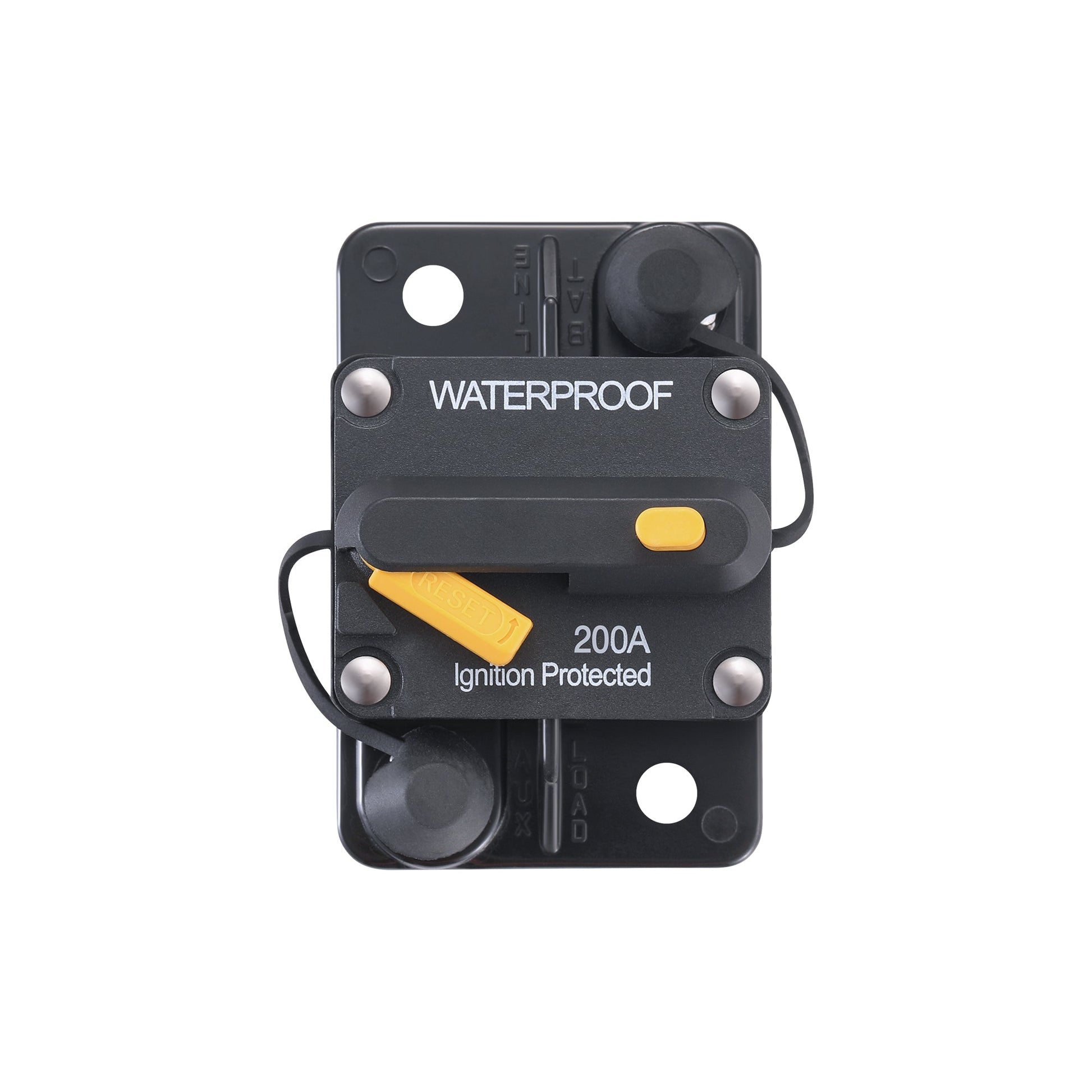

The RICH SOLAR single-pole thermal breaker is offered by Torven Power in 40A, 60A, 80A, 100A, 120A, 150A, 200A and 250A variants. It combines manual push-to-trip operation, reset capability, IP67 sealing and a 3,000A interrupt rating at 30VDC for compatible battery, vehicle and marine circuits.
At a glance
Select the exact breaker—not just the closest amp label
High-capacity batteries can deliver extreme short-circuit current. Confirm circuit voltage, available fault current, conductor ampacity, terminal size, continuous-load derating and the exact breaker's markings with a qualified installer.
System fit
Coordinate the breaker with every conductor and terminal.
RICH SOLAR lists 30VDC and 48VDC ratings, SAE J1625/J1171, ABYC E-11 and CE compliance. Confirm the selected model's terminal studs, mounting style, torque and voltage marking before installation.
In the box
What the selected breaker variant covers
- 1 × selected RICH SOLAR single-pole waterproof breaker: 40A, 60A, 80A, 100A, 120A, 150A, 200A or 250A
Battery cable, lugs, boots, mounting hardware beyond packaged parts, busbars, additional disconnects and installation labor are not listed as included.
Product confidence
Use the exact variant markings for final design
Electrical ratings, stud size, torque, mounting and warranty remedies follow the current RICH SOLAR documentation for the selected breaker.
Common questions
Single-pole breaker selection questions
Which amperage should I choose?
Choose from conductor ampacity, continuous load, surge behavior and equipment requirements. Do not oversize the breaker to stop nuisance trips.
Can it protect a high-capacity lithium battery circuit?
Only if circuit voltage, available fault current, continuous and surge current, interrupt rating and conductor size all fit. Lithium banks may require higher interrupt capability.
Can I use it as an on/off switch?
The push-to-trip and reset functions provide manual isolation, but switching frequency and service use must remain within the current device instructions.
Why is there no 30A Torven variant?
The current Torven selector offers 40A through 250A. Choose only an option shown on this listing; use a different listed protective device when the circuit requires 30A.
Product Data
Technical Specifications
| Rating | 25-250A, 30VDC; 48VDC |
|---|---|
| Interrupt Rating | 3000A @30VDC |
| Operating Temperature Rating | -25°F (-32°C) to 180°F (82°C) |
| Storage Temperature Rating | -30°F (-34°C) to 300°F (149°C) |
| Materials | Black UL-rated 94V0 thermoplastic. Thermoplastic elastomer stud insulators are provided on covered units with F-style (Surface-mount) bases. |
| Marking | Standard marking includes amp ratings and part numbers. Custom markings are also available |
| Termination | 1/4-28 or 3/8-16 threaded studs |
| Torque Rating | S 50 in-lbs (5.6N·m) max |
| Mounting Torque Rating | Panel or surface-mount options; 50 in-lbs (5.6N·m) max. The threaded insert option has a max torque of 25 in-lbs (2.8N·m) |
| Ingress Protection Rating | IP67 |
| Compliance | SAE J1625; ABYC E-11; CE; SAE J1171 (ignition protected) |
Available configurations
| Option | SKU |
|---|---|
| 100A | RS-CB100 |
| 120A | RS-CB120 |
| 150A | RS-CB150 |
| 200A | RS-CB200 |
| 250A | RS-CB250 |
| 40A | RS-CB40 |
| 60A | RS-CB60 |
| 80A | RS-CB80 |
Review the current manufacturer manual for your exact model before installation or use.
