RUiXU

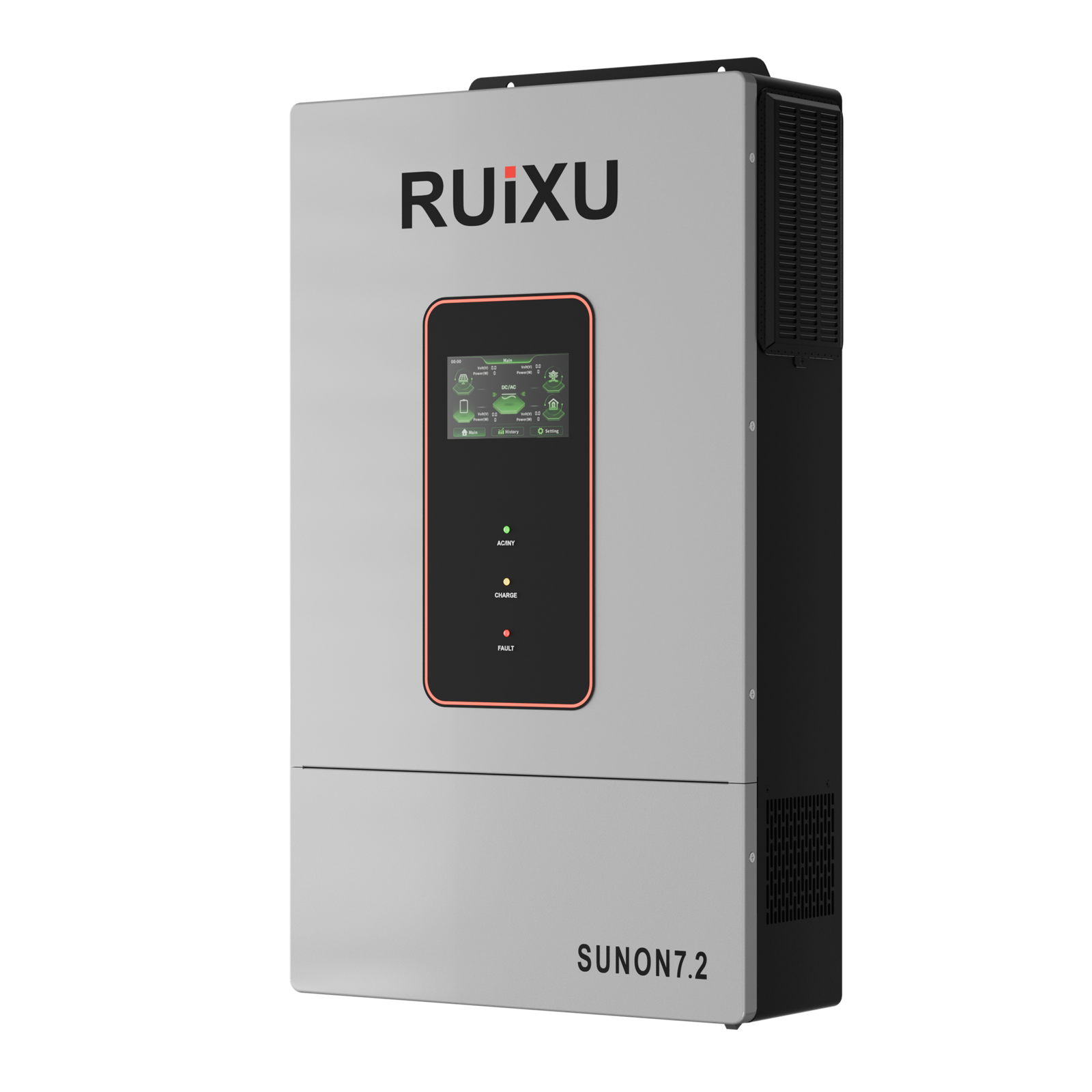

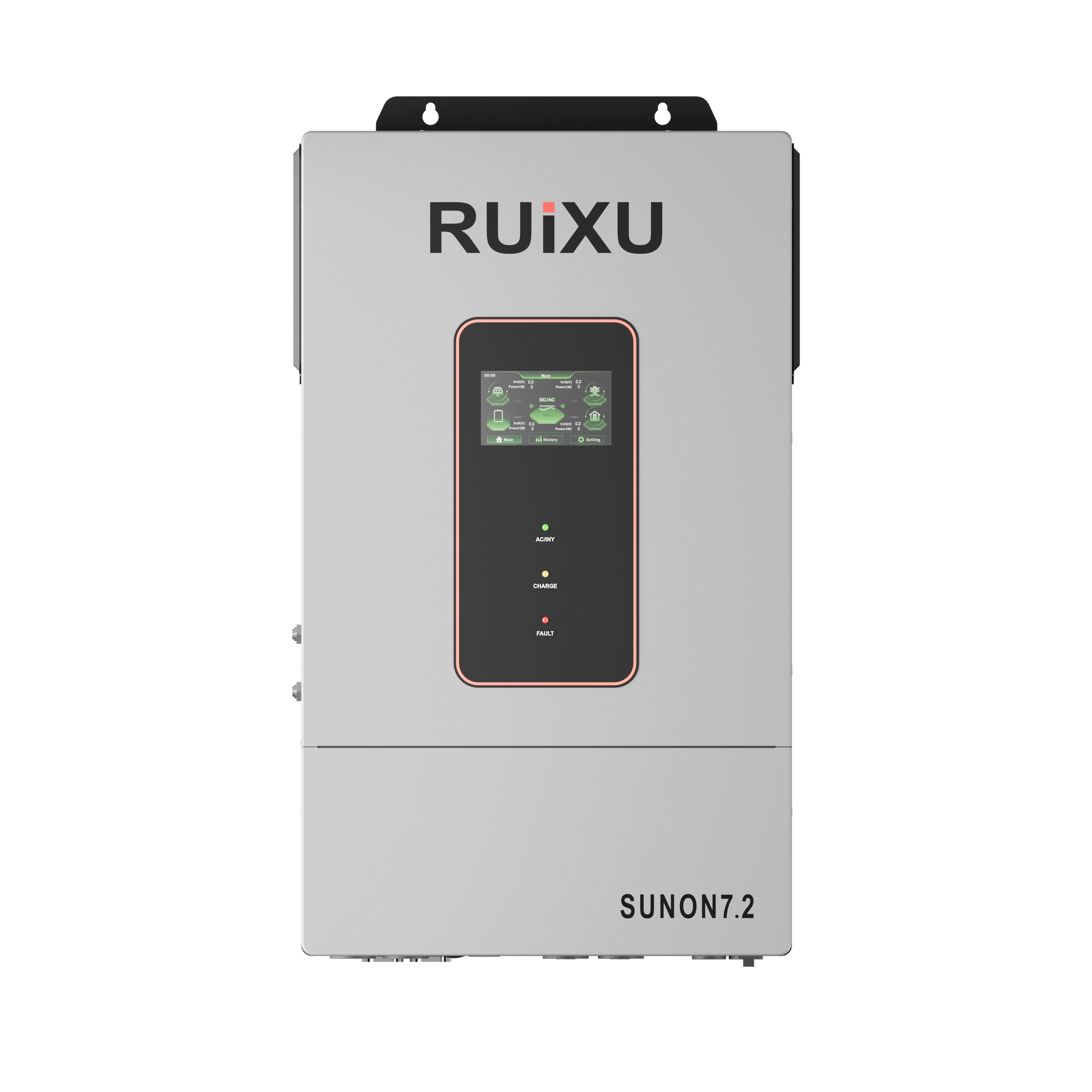

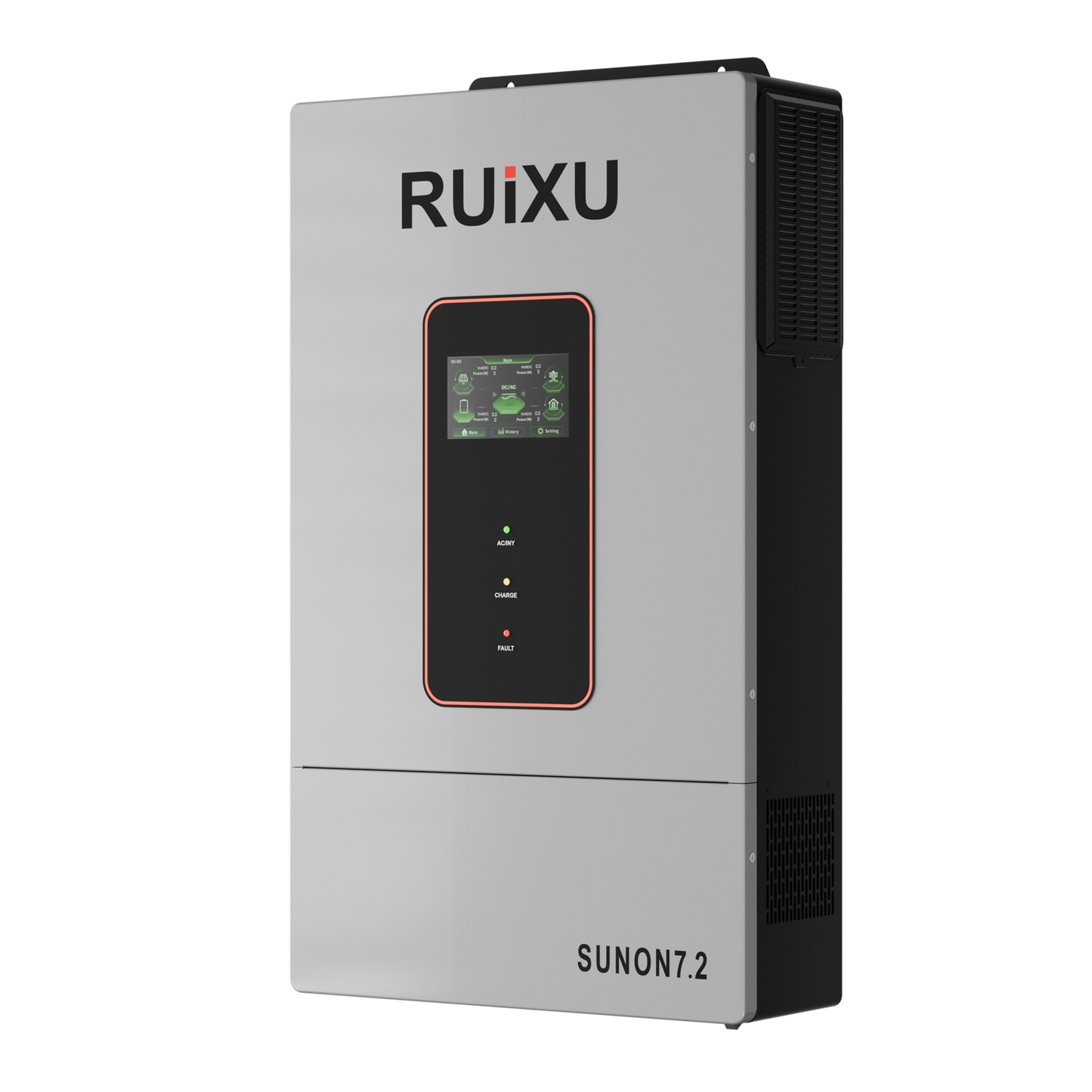

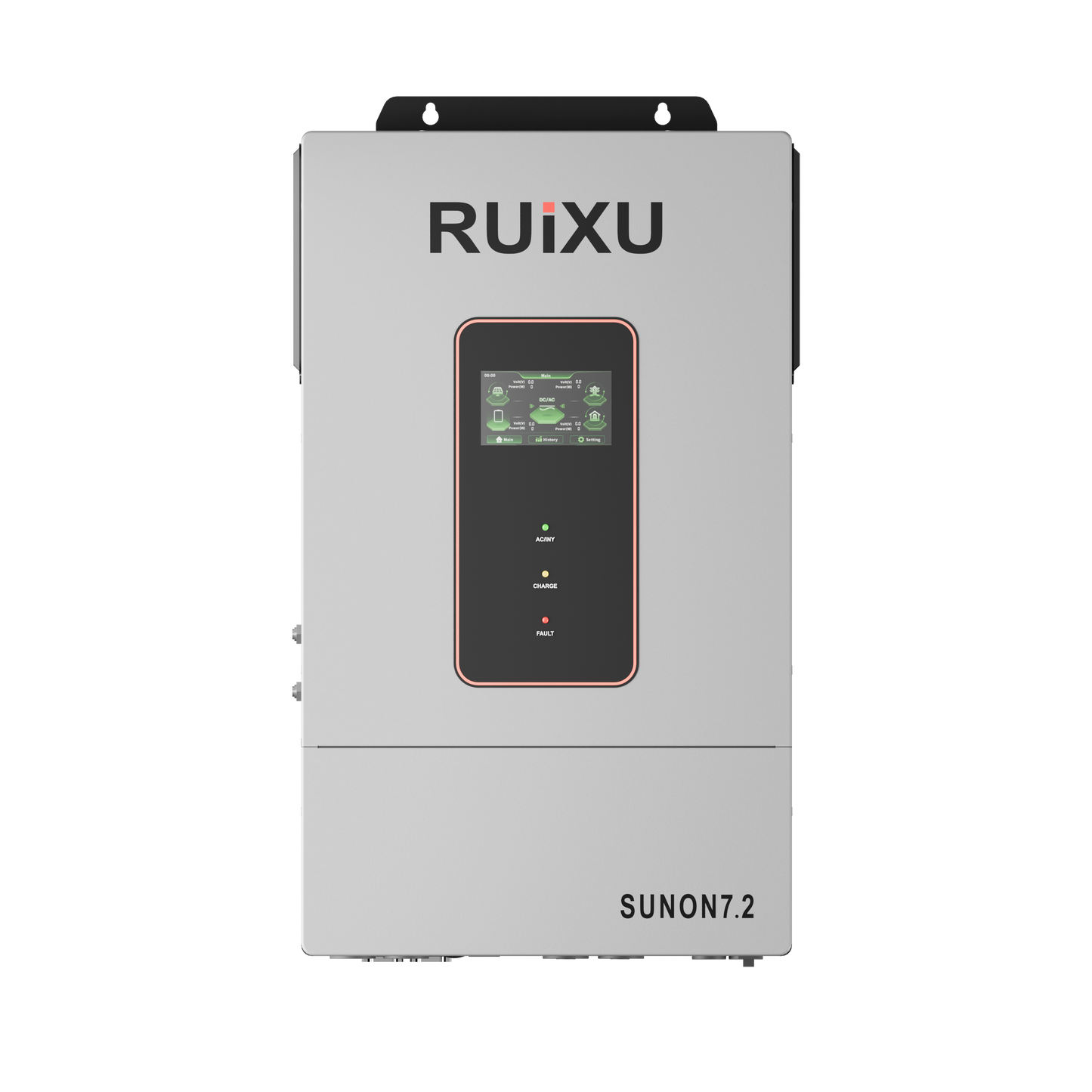

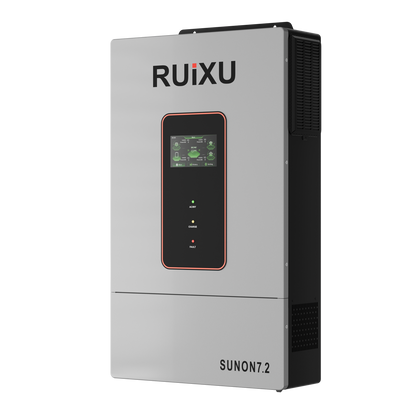

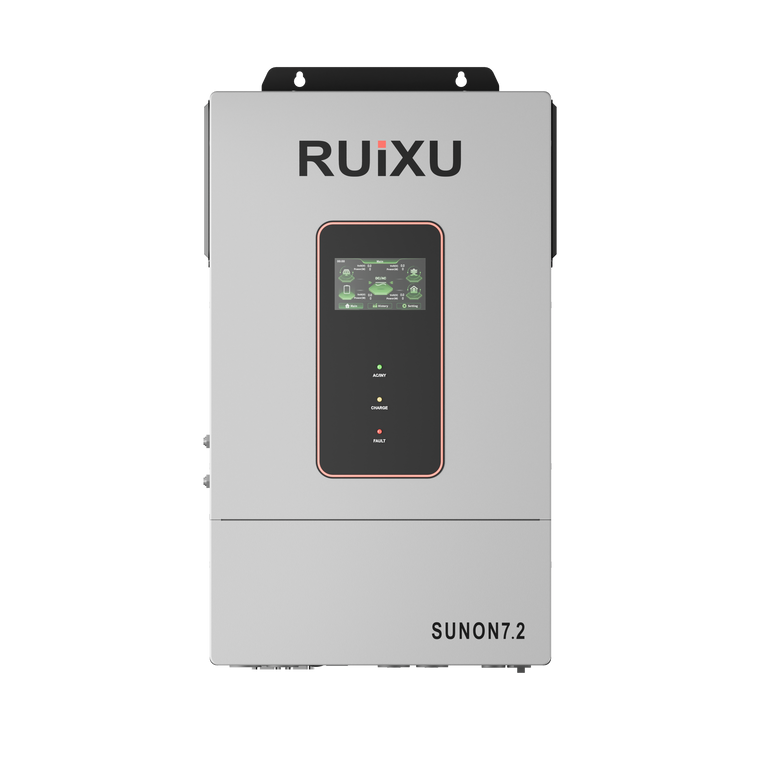

RUiXU SUNON7.2 7.2kW Split-Phase Off-Grid Inverter
RUiXU SUNON7.2 7.2kW Split-Phase Off-Grid Inverter
SKU: RUIXU-SUNON7-2
- Regular price
- $1,036.00
- Regular price
- $1,219.00
- Sale price
- $1,036.00
- Unit price
- per
Couldn't load pickup availability
In stock — available to order
- Free standard shipping on eligible Lower-48 orders. See shipping details
- 30-day return requests for eligible items after delivery. Review the return policy
- Price Match Guarantee for qualifying identical offers. Check eligibility
- Warranty information is listed in this product's details.
7.2kW split-phase off-grid inverter/charger
Cover everyday 120V loads and selected 240V equipment from one 48V power center.
The RUiXU SUNON7.2 combines 7.2kW of 120/240V split-phase output, dual solar MPPTs and solar/grid battery charging in one indoor off-grid inverter. It fits medium-size cabins, homes and workshops that need more capability than a 120V-only system without stepping up to the 12kW class.
At a glance
The numbers that shape the system decision
List the 120V and 240V loads, their starting surges and expected run times. A 7.2kW nameplate does not mean every appliance can start or run together.
System fit
Check PV voltage, battery current and motor starting surge.
Confirm the 40–60V battery range, BMS communication, maximum charge current, continuous and surge loads, AC input and all protection. RUiXU lists 500V maximum PV open-circuit voltage and a 90–450V MPPT range.
In the box
What this listing includes
- One RUiXU SUNON7.2 inverter/charger
- One 200 cm CAT6 battery communication cable
- Operation manual
- Wi-Fi dongle
Installation materials, protection devices and other balance-of-system components are separate unless explicitly listed above.
Product confidence
Design documentation and manufacturer support
RUiXU publishes model-specific technical documents and support resources for the RUiXU SUNON7.2. Have the final design, settings and installation reviewed by a qualified professional; any manufacturer coverage is governed by RUiXU’s current written terms.
Common questions
RUiXU SUNON7.2 FAQ
Can SUNON7.2 run 240V equipment?
It provides 120/240V split-phase output, but the specific load, starting surge and total simultaneous demand must fit the engineered system.
Is it a utility sell-back inverter?
Do not use it for grid export. It is sold as an off-grid inverter with AC input and charging functions.
How large can the solar array be?
RUiXU lists up to 9kW PV input. The installer must also keep every string within the inverter’s voltage and current limits.
Can I parallel units later?
RUiXU lists up to six units in parallel. Expansion requires compatible units, firmware, wiring, protection and configuration under the current manual.
Product Data
Technical Specifications
| Specification | Details |
|---|---|
| Battery voltage range | 40-60V |
| Maximum solar/mixed charge current | 150A |
| Maximum PV open-circuit voltage | 500V; MPPT range: 90-450V |
| Dimensions | 580 x 409 x 127 mm |
| Weight | approximately 42.77 lb (19.4 kg) |
| Enclosure | IP20; indoor use |
Why Buy From Us
Shop with confidence at Torven Power.
Clear policies and real support before and after your purchase.
Ordering Information
Shipping & Returns
Shipping: Free standard shipping is included to eligible Lower-48 addresses. Large power equipment may arrive in multiple packages or by freight and may require a carrier appointment. Processing and delivery estimates are not guaranteed; contact Torven Power before ordering if you need the product by a specific date.
Returns: Review the current Return & Refund Policy for eligibility, timing, condition, freight, and restocking terms.
Warranty: 3-year manufacturer warranty.
