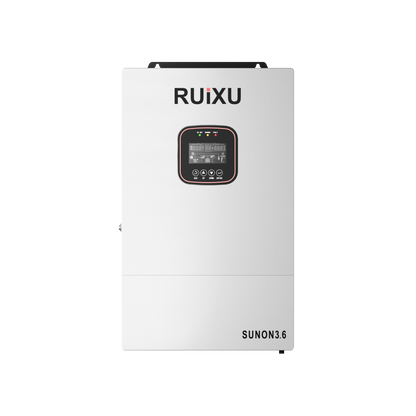

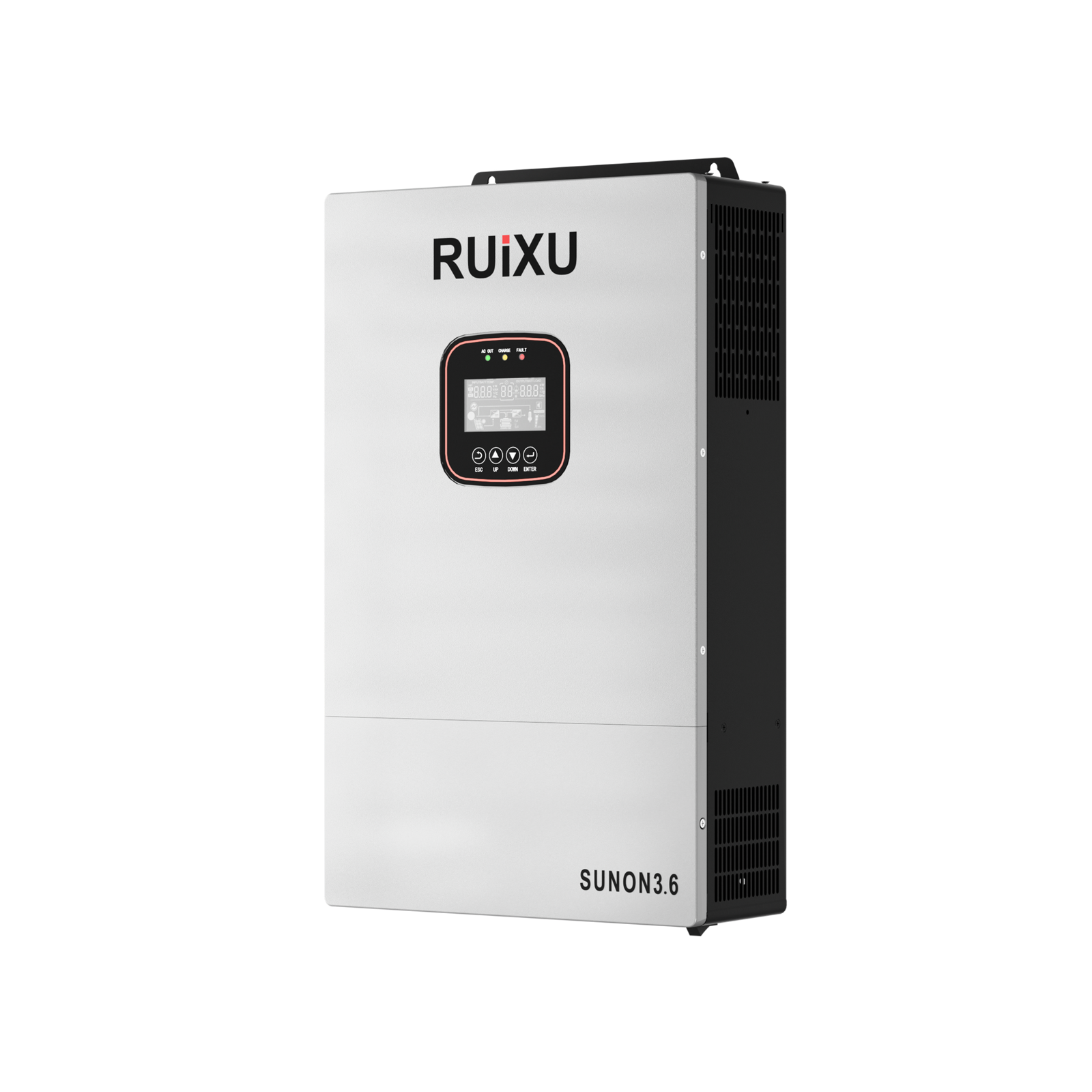

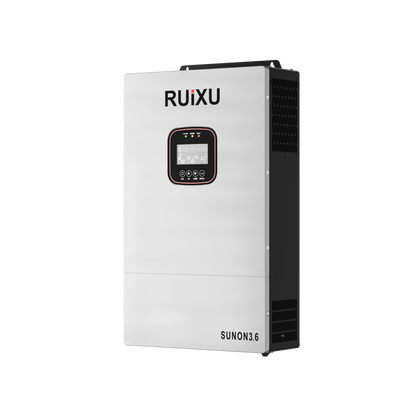

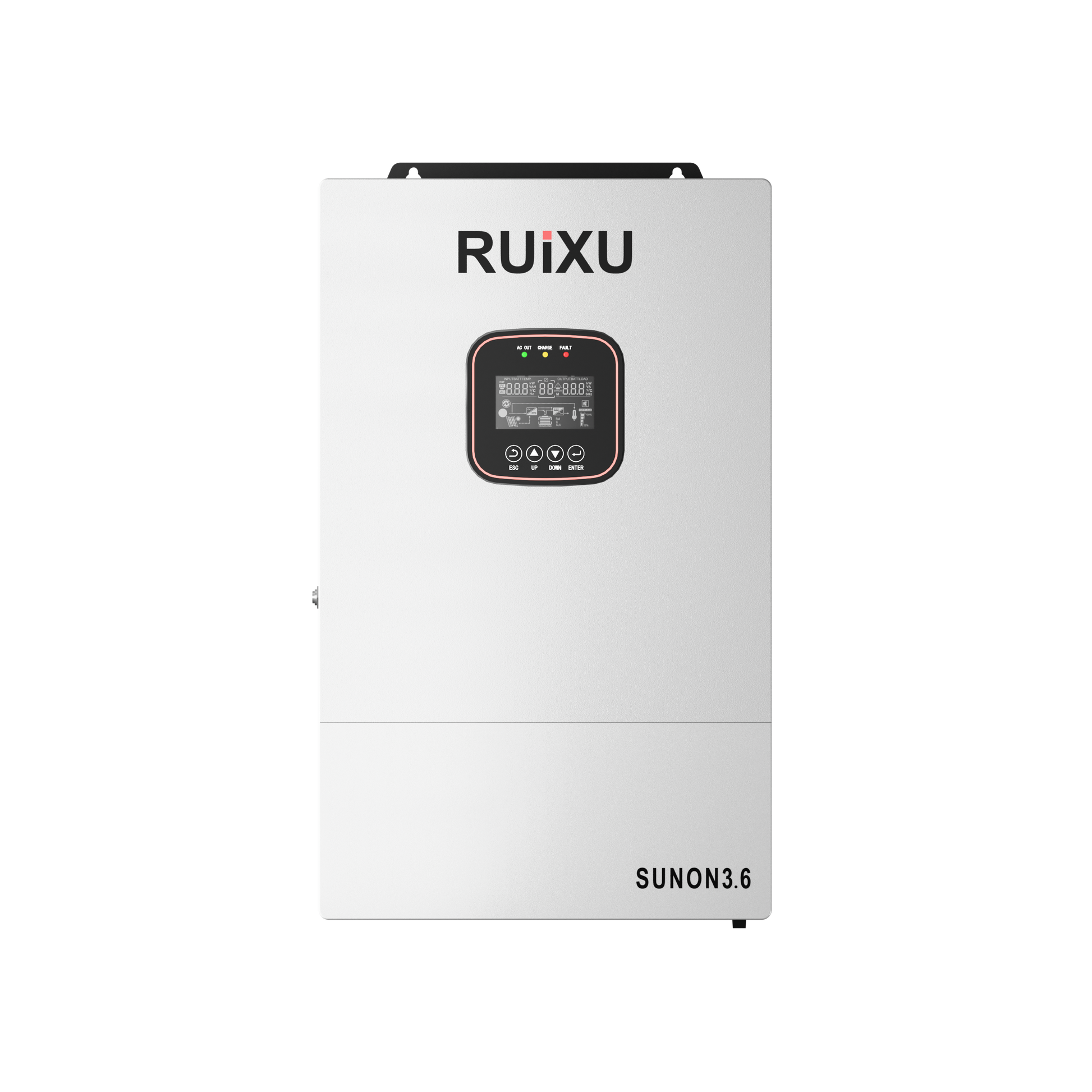

RUiXU SUNON3.6 3.6kW Single-Phase Off-Grid Inverter
RUiXU SUNON3.6 3.6kW Single-Phase Off-Grid Inverter
SKU: RUIXU-SUNON3-6
- Regular price
- $519.00
- Regular price
- Sale price
- $519.00
- Unit price
- per
Couldn't load pickup availability
In stock — available to order
- Free standard shipping on eligible Lower-48 orders. See shipping details
- 30-day return requests for eligible items after delivery. Review the return policy
- Price Match Guarantee for qualifying identical offers. Check eligibility
- Warranty information is listed in this product's details.
3.6kW 120V off-grid inverter/charger
Build a compact 120V solar-and-battery system without overbuying split-phase hardware.
The RUiXU SUNON3.6 combines a 3.6kW pure sine wave inverter, one high-voltage solar MPPT and battery/grid charging in a compact 48V-class platform. It is a focused fit for cabins, mobile workspaces and backup circuits built around 120V loads.
At a glance
The numbers that shape the system decision
SUNON3.6 is not a one-unit 120/240V split-phase solution. Choose it only when the designed loads and distribution match its 120V output architecture.
System fit
Match every load and PV string to the compact platform.
Confirm 40–60V battery range, BMS communication, continuous and surge loads, AC input, conductor sizes and protection. RUiXU lists 300V maximum PV open-circuit voltage and a 90–260V MPPT range.
In the box
What this listing includes
- One RUiXU SUNON3.6 inverter/charger
- One 200 cm CAT6 battery communication cable
- Operation manual
- Wi-Fi dongle
Installation materials, protection devices and other balance-of-system components are separate unless explicitly listed above.
Product confidence
Design documentation and manufacturer support
RUiXU publishes model-specific technical documents and support resources for the RUiXU SUNON3.6. Have the final design, settings and installation reviewed by a qualified professional; any manufacturer coverage is governed by RUiXU’s current written terms.
Common questions
RUiXU SUNON3.6 FAQ
Does SUNON3.6 provide 240V split phase?
No. RUiXU lists this model as 120V single phase. Choose SUNON7.2 or SUNON12 only after confirming the larger system requirements.
Can it export power to the utility?
Do not use it as a grid-export inverter. It is sold as an off-grid inverter with AC input and charging functions.
Will 3.6kW start every 120V appliance?
No. Check each load’s continuous draw and starting surge, then size the inverter and battery bank for simultaneous operation.
Can I use any 48V battery?
Not automatically. Confirm voltage, current capability, communication protocol and written model compatibility.
Product Data
Technical Specifications
| Specification | Details |
|---|---|
| Battery voltage range | 40-60V |
| Maximum solar/mixed charge current | 80A |
| Maximum PV open-circuit voltage | 300V; MPPT range: 90-260V |
| Dimensions | 428 x 330 x 110 mm |
| Weight | approximately 17.86 lb (8.1 kg) |
| Enclosure | IP20; indoor use |
