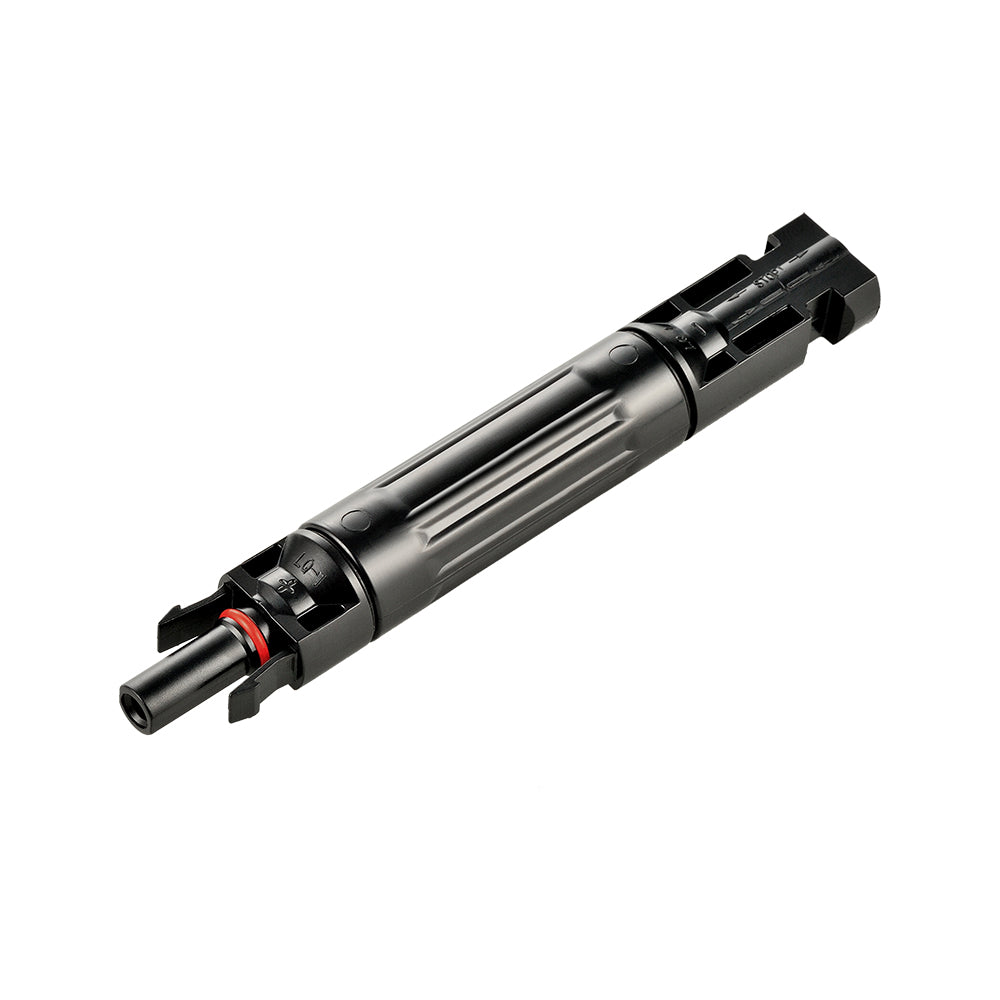

  • RICH SOLAR Waterproof Inline Fuse Holder — 10A, 15A, 20A or 30A — official product image 2
  • RICH SOLAR Waterproof Inline Fuse Holder — 10A, 15A, 20A or 30A — official product image 3
  • RICH SOLAR Waterproof Inline Fuse Holder — 10A, 15A, 20A or 30A — official product image 4

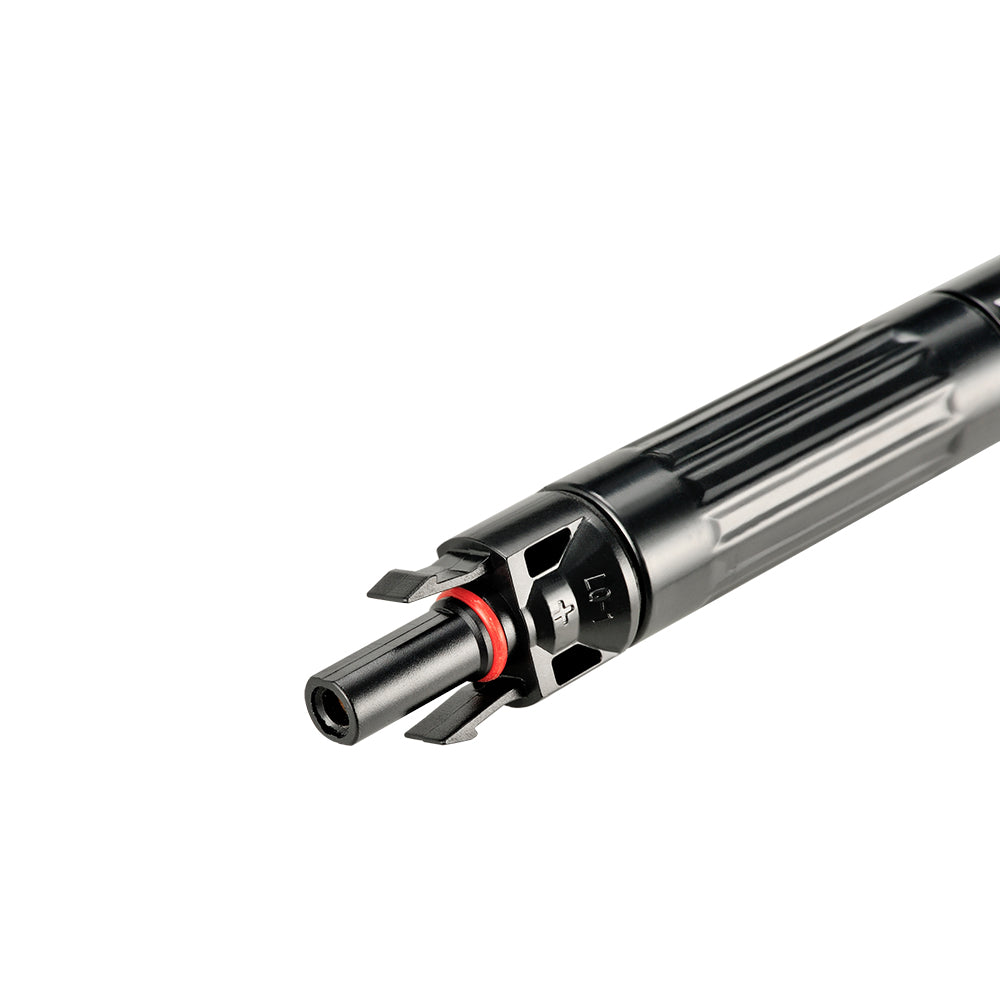

  • RICH SOLAR Waterproof Inline Fuse Holder — 10A, 15A, 20A or 30A — official product image 5

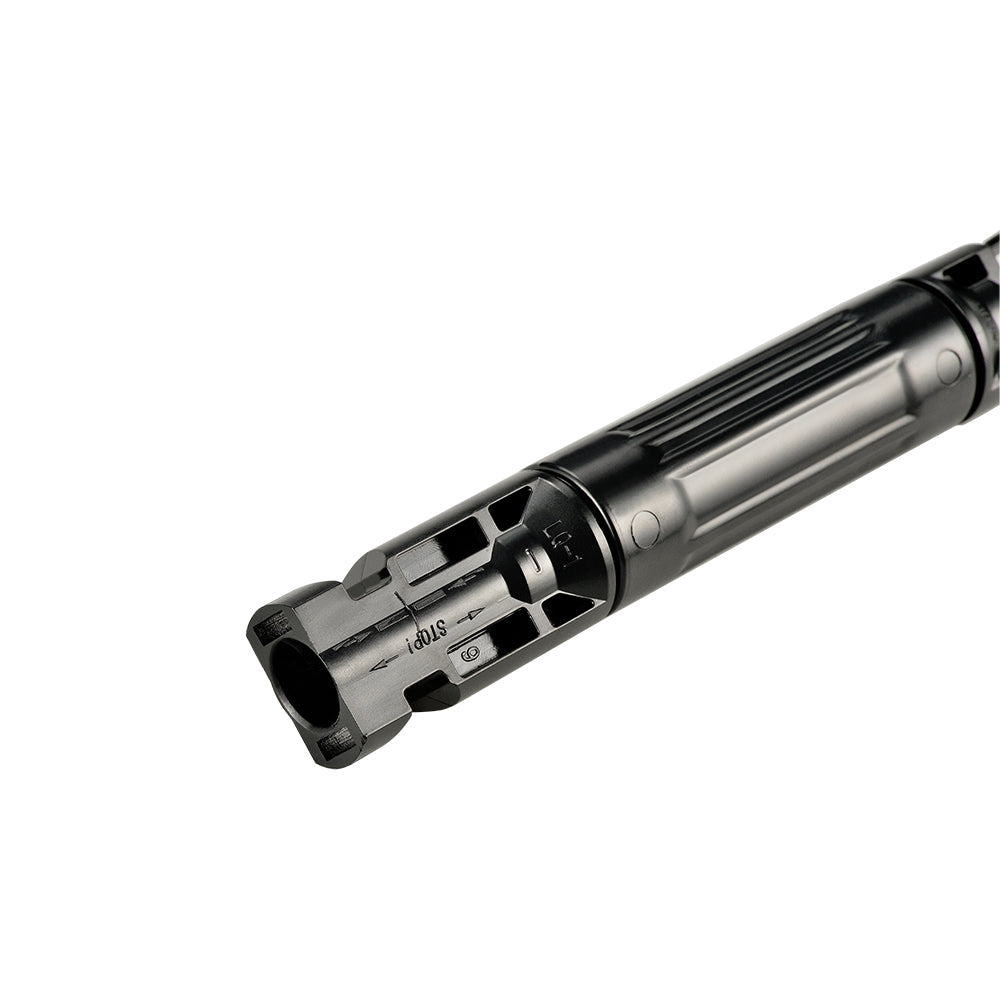

  • RICH SOLAR Waterproof Inline Fuse Holder — 10A, 15A, 20A or 30A — official product image 6

RICH SOLAR

RICH SOLAR Waterproof Inline Fuse Holder — 10A, 15A, 20A or 30A

RICH SOLAR Waterproof Inline Fuse Holder — 10A, 15A, 20A or 30A

SKU: RS-SC10F

$15.99
$15.99
View Cart

In stock — available to order

Need help before ordering? Call 888-495-5870 Contact our support team

Replaceable single-circuit PV protection in four amperage choices

Choose a 10A, 15A, 20A or 30A inline fuse for a compatible solar branch.

The RICH SOLAR waterproof inline holder places a replaceable 10A, 15A, 20A or 30A fuse between solar-connector leads. The manufacturer publishes a 1,000VDC rating, IP67 protection under stated mated conditions and UL94-V0 insulation for a correctly sized single PV circuit.

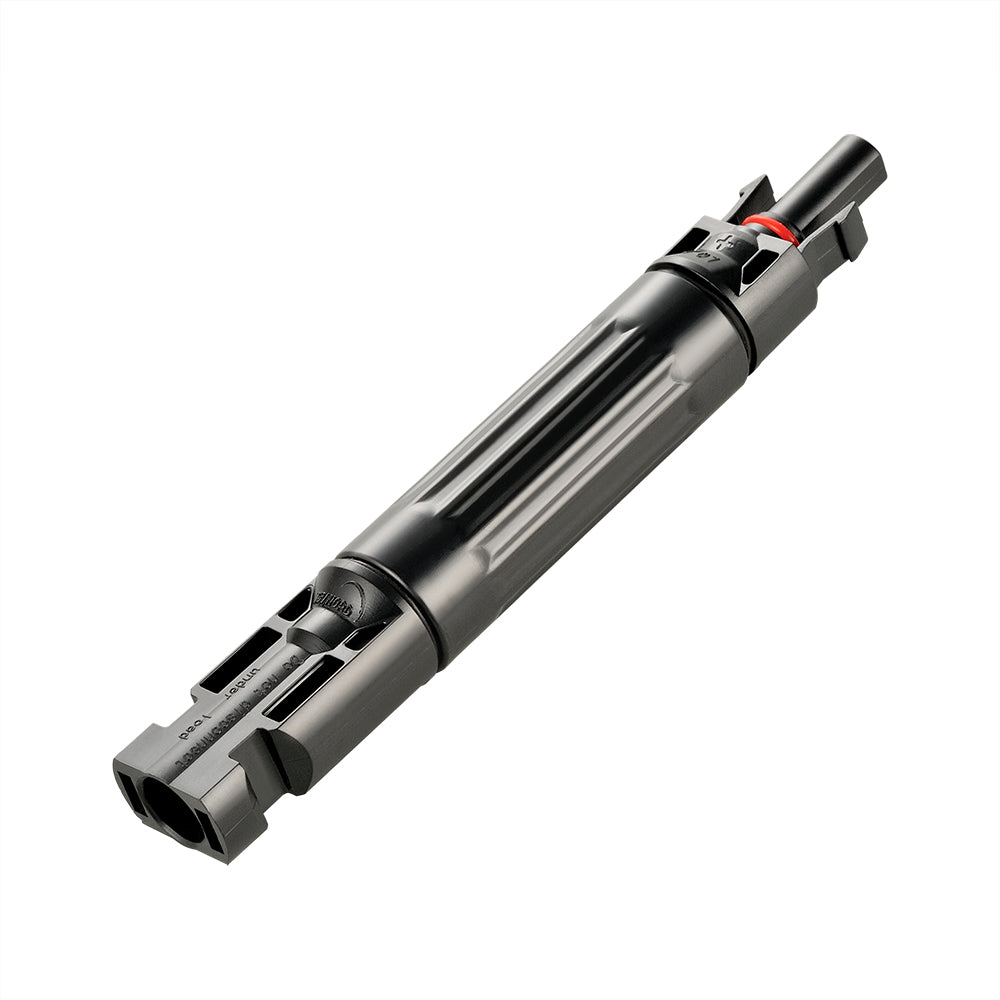

RICH SOLAR inline solar fuse holder

At a glance

Select the fuse from the circuit design

10A / 15A / 20A / 30AFuse options
1,000VDCRated voltage
IP67Ingress
ReplaceableFuse
The fuse must not exceed the panel's series-fuse rating

Check the module label, branch short-circuit current, number of parallel sources, conductor ampacity and downstream equipment. The holder's 1,000V rating does not establish the allowed array voltage by itself.

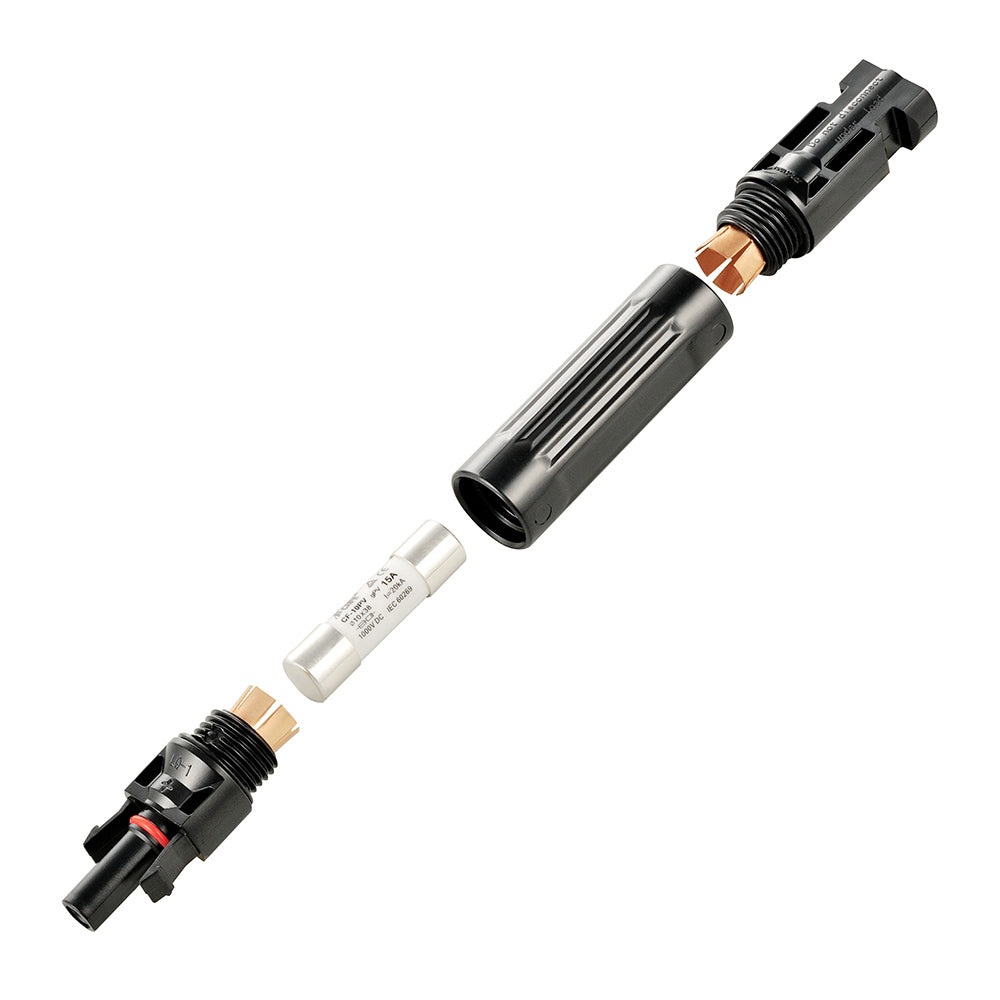

RICH SOLAR replaceable waterproof PV fuse holder components

Why it stands out

Plug-style branch protection that remains serviceable

Four current choicesChoose the exact 10A, 15A, 20A or 30A option required by the panel and branch design.
Replaceable fuse elementThe fuse can be replaced after the cause of an overcurrent condition has been found and corrected.
Mated outdoor connectionThe manufacturer lists IP67 protection, PPO insulation and silver-plated copper contacts for the correctly assembled holder.

System fit

Locate and rate the fuse for the complete array.

Confirm polarity, connector family, module maximum-series-fuse rating, branch Isc, reverse-current exposure, conductor size, system voltage and a safe service location. Do not open a fuse holder while the array is energized.

Strong use casesIndividual solar branches that require 10A–30A series protection and use a compatible connector system.
Installer checksFuse current and type, DC voltage, interrupt capability, connector match, branch wiring, parallel-source count, accessible disconnect and replacement procedure.

In the box

What the selected inline option includes

  • 1 × RICH SOLAR inline solar fuse holder

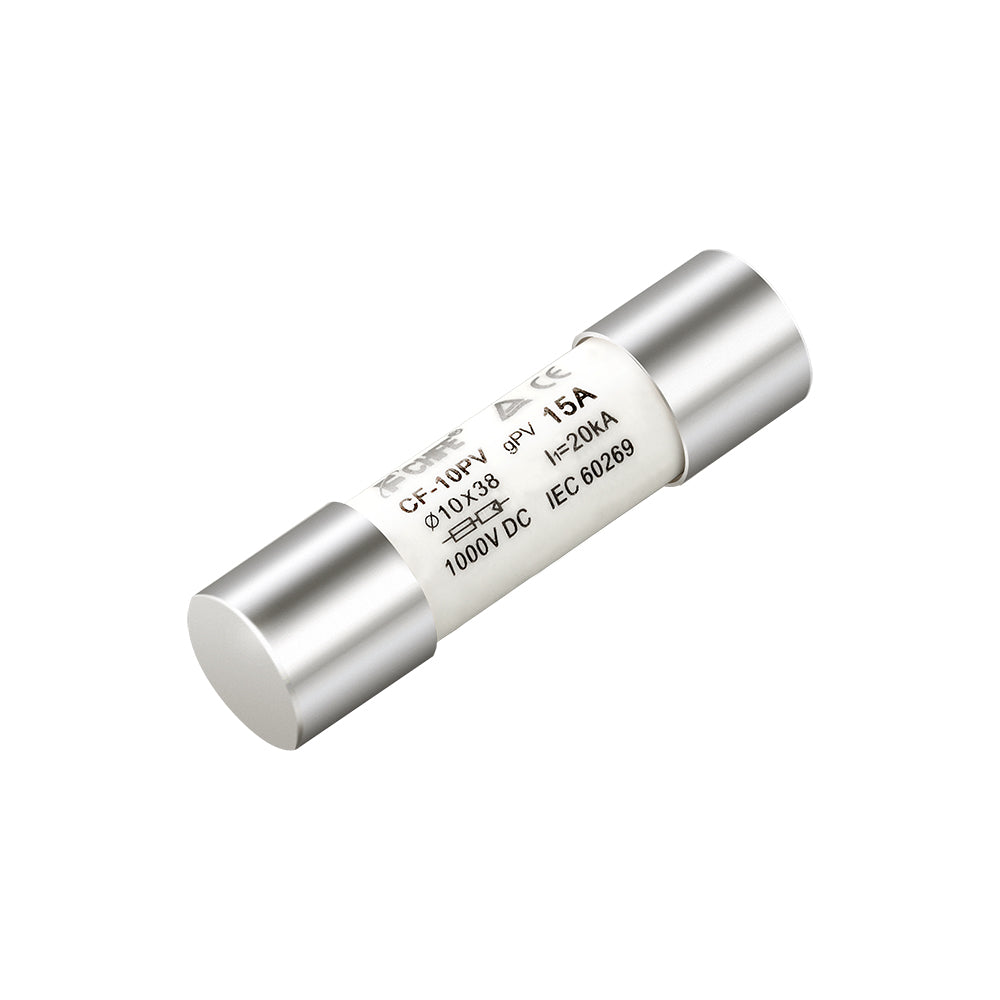

  • 1 × selected 10A, 15A, 20A or 30A fuse

Spare fuse, panels, branch adapters, extension cable, combiner box, disconnect and installation labor are not listed as included.

Product confidence

De-energize the array before servicing

PV conductors can remain energized in sunlight. Follow the current panel and fuse-holder instructions, isolate sources and verify the circuit before opening or replacing the fuse.

Common questions

Inline PV fuse questions

Which amperage should I choose?

Use the panel maximum-series-fuse rating, branch short-circuit current, conductor ampacity and code requirements. Do not choose the largest option by default.

Do I need one on every solar panel?

It depends on the number of parallel branches and possible reverse current. A qualified designer should determine branch protection for the exact array.

Can I replace the fuse in the holder?

Yes, the fuse is replaceable. Isolate and verify the circuit first, then install the same approved type and rating after correcting the fault.

Can I disconnect it in full sun?

Do not open or separate PV protection under load unless the equipment is specifically rated and the current procedure allows it. Isolate the array safely first.
