Renogy

Renogy RNG-BatteryCb-12in-4 - 12In 4AWG Copper Battery Interconnect Cable for 5/16 in Lugs

Renogy RNG-BatteryCb-12in-4 - 12In 4AWG Copper Battery Interconnect Cable for 5/16 in Lugs

SKU: RNG-BATTERYCB-12IN-4-G1-US

$12.99
$12.99

Notify me when this product is available:

View Cart
Need help before ordering? Call 888-495-5870 Contact our support team

Out of stock

A short 4AWG link for matching battery banks

Connect adjacent batteries with one 12-inch M8 interconnect cable.

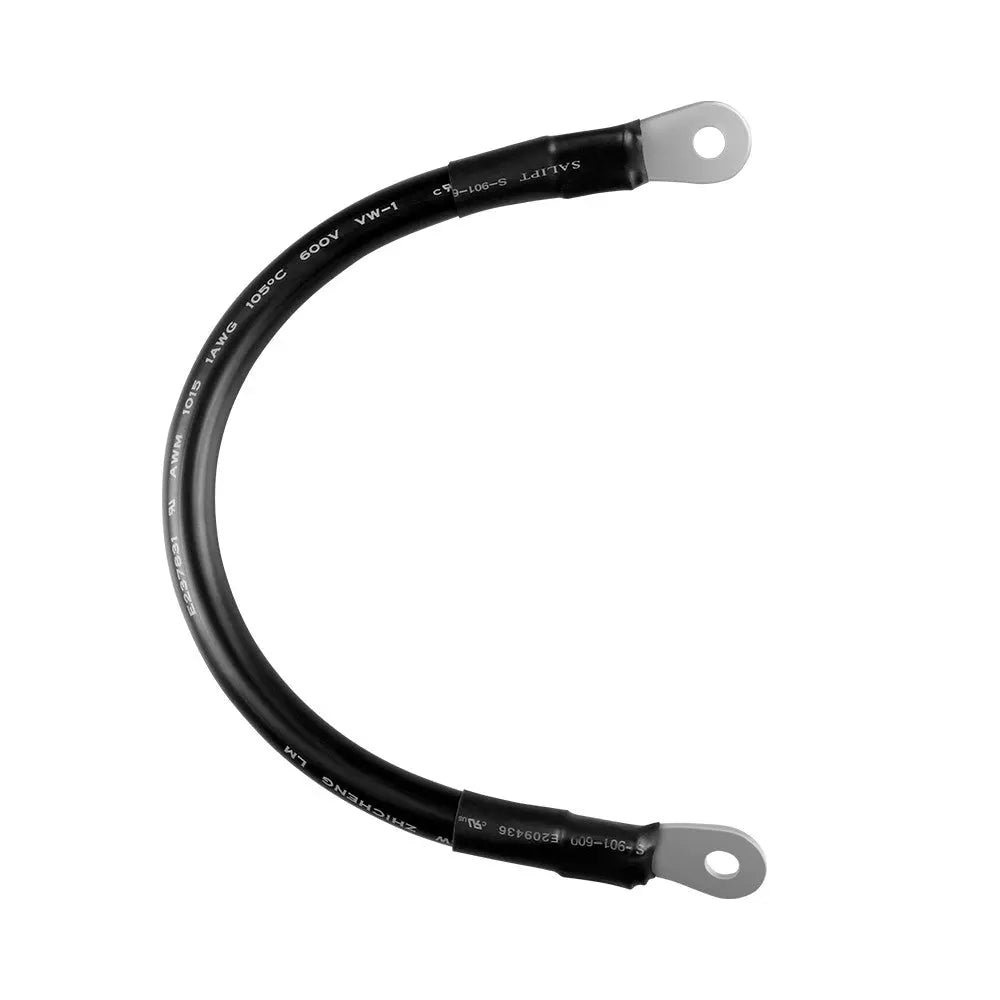

The Renogy RNG-BATTERYCB-12IN-4 is a single 12 in 4AWG copper battery interconnect with 5/16 in M8 ring lugs. It is intended for short links between compatible batteries in a properly designed series or parallel bank.

Renogy RNG-BatteryCb-12in-4 - 12In 4AWG Copper Battery Interconnect Cable for 5/16 in Lugs — product view

At a glance

Verified numbers for the exact product family

12 inCable length
4AWGConductor size
5/16 inM8 ring-lug opening
1 cableQuantity in this listing

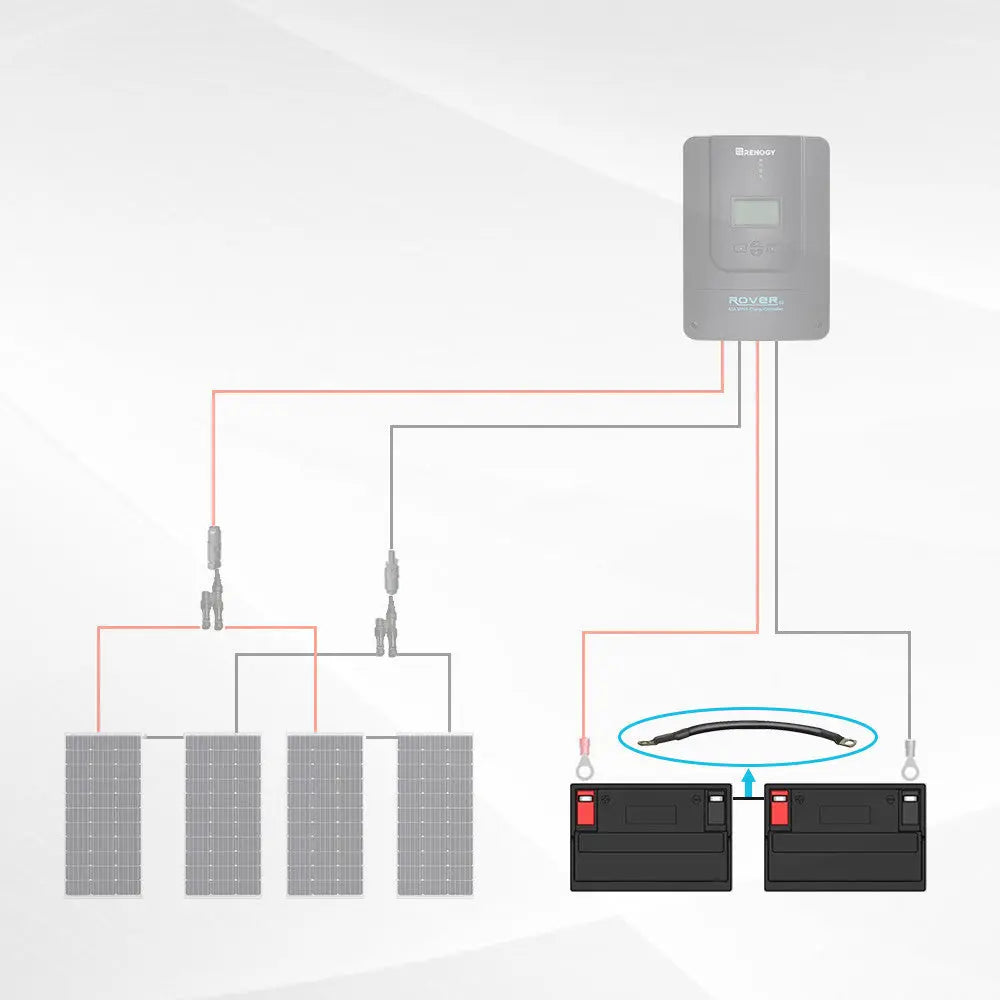

One series link and one parallel pair are not the same purchase

A single cable can make one series connection. A parallel connection normally needs both positive and negative conductors, so confirm the bank diagram and required cable quantity before ordering.

Renogy RNG-BatteryCb-12in-4 - 12In 4AWG Copper Battery Interconnect Cable for 5/16 in Lugs — product detail or use-case view

Why this Renogy product

A finished short cable for compact battery layouts

Factory-crimped lugsPre-installed M8 ring terminals avoid field-crimping this short interconnect.

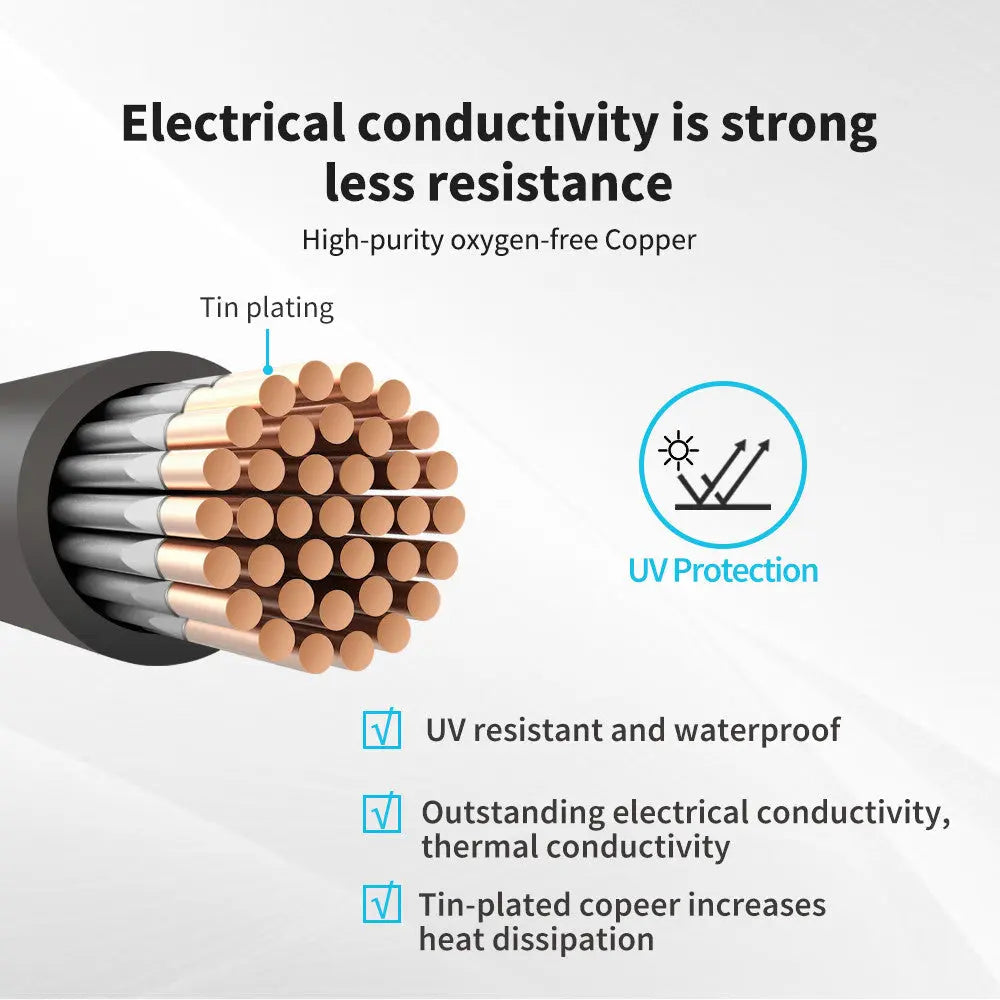

Tinned copperRenogy specifies tin-coated copper conductors for corrosion resistance in supported installations.
Compact routingThe 12 in length limits unnecessary cable in adjacent-battery arrangements.

System fit

Use identical cable paths and batteries in a balanced bank.

Confirm cable ampacity for the bank current, temperature and installation method. Use matching batteries and protect the overall bank according to battery and equipment instructions; this short cable does not replace the main bank fuse.

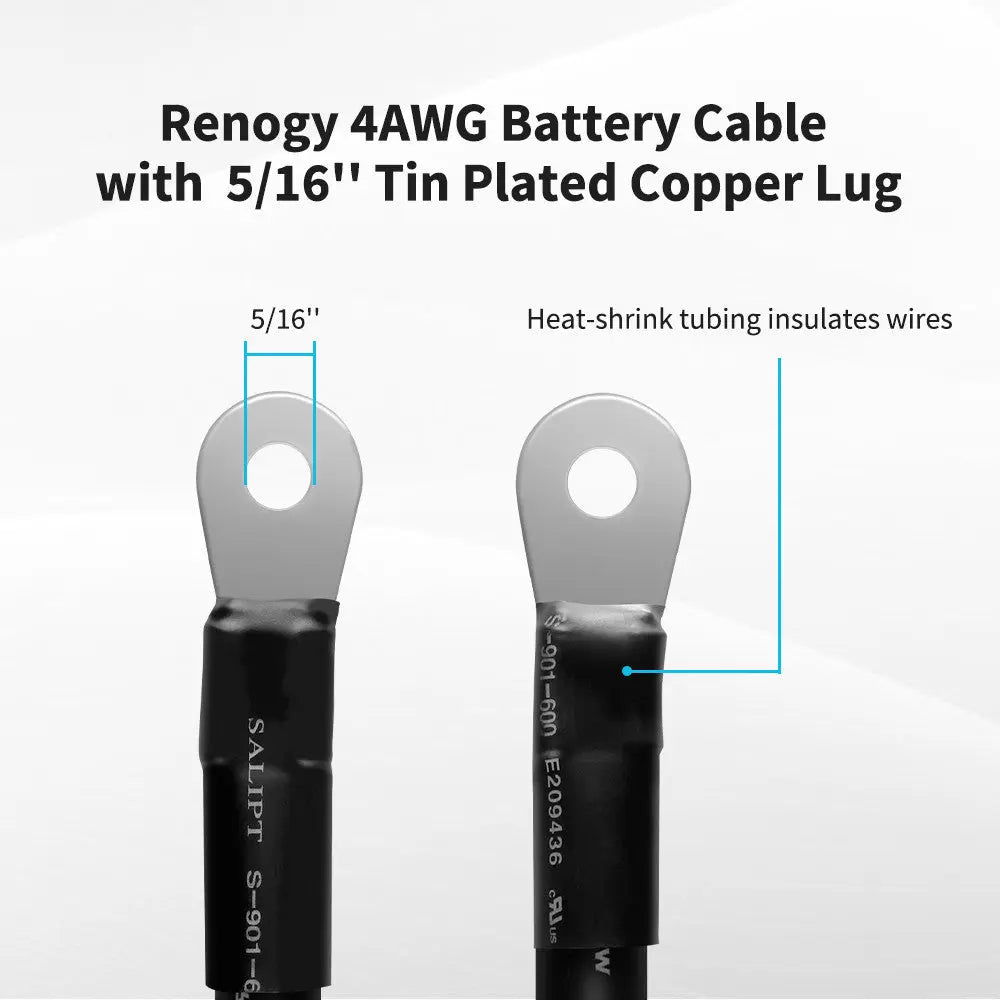

Terminal fitThe 5/16 in lugs are intended for M8 studs. Verify every battery terminal before purchase.

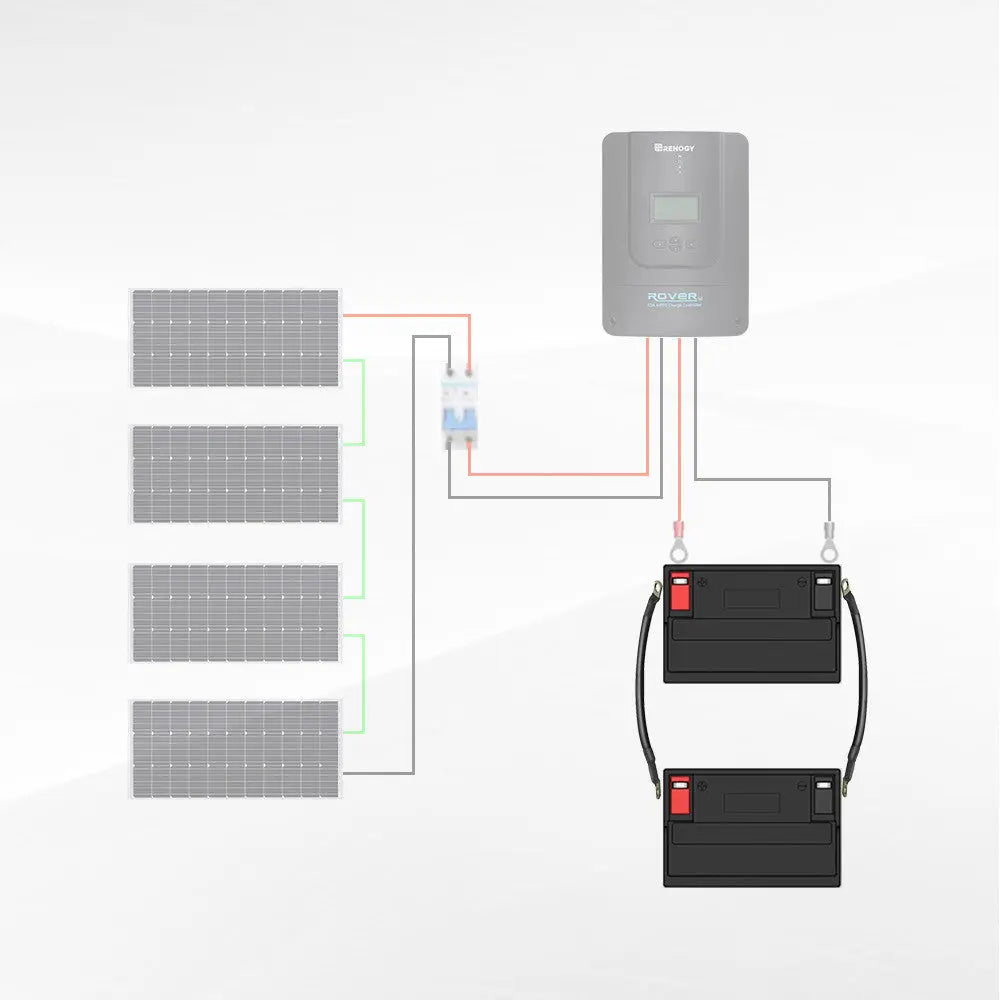

Bank balanceParallel banks benefit from equal-length, equal-gauge positive and negative paths so current shares more evenly.

In the box

What this listing is documented to include

  • One 12 in Renogy 4AWG battery interconnect cable with two 5/16 in / M8 ring lugs

A second cable, main battery cables, fuses, busbars, terminal covers and batteries are not included.

Product confidence

One-year battery-cable warranty

Renogy lists a 1-year material-and-workmanship warranty for this accessory. Eligibility, exclusions and remedies follow the current written terms for the exact item.

Common questions

Buyer FAQ

Does the listing include one cable or a pair?

It includes one cable. Check your bank diagram to determine whether you need one or multiple interconnects.

Will it fit 3/8 in studs?

The listed lugs are 5/16 in / M8. Do not assume they fit a larger stud correctly.

Can it connect batteries in parallel?

It can be part of a parallel bank, but parallel wiring normally requires matching positive and negative interconnect paths.

Is 4AWG large enough for my inverter?

That depends on current, cable length, temperature, bundling and equipment requirements. Size the complete circuit from the applicable manual and code.
