Renogy REGO Super Panel (Monitor)

Renogy REGO Super Panel (Monitor)

SKU: RMS-LP4-G2-US

$239.99
$239.99
View Cart

In stock — available to order

Need help before ordering? Call 888-495-5870 Contact our support team

In stock

Renogy ONE M1 energy monitoring and control

Bring compatible Renogy equipment and three DC control channels onto one 4-inch panel.

Torven's RMS-LP4-G2 listing is the Renogy ONE M1 smart panel. It combines a local energy dashboard, wired and wireless device communication, remote app access and three low-voltage relay channels for a connected RV or off-grid installation.

Renogy REGO Super Panel (Monitor) — product view

At a glance

Verified numbers for the exact product family

4 in480 × 480 touchscreen
3DC relay channels
8–16VPower-port input range
2 yearsListed warranty
This is the legacy M1—not the smaller ONE Core

M1 is a 7.16 × 3.42 in flush-mount panel with three direct DC load channels. The current ONE Core has a different enclosure, power range and connection architecture. Plan around the RMS-LP4-G2 manual.

Renogy REGO Super Panel (Monitor) — product detail or use-case view

Why this Renogy product

One dashboard for a compatible Renogy ecosystem

Consolidated monitoringView supported battery, controller and inverter data through Bluetooth, RS485 or RV-C connections instead of separate local displays.

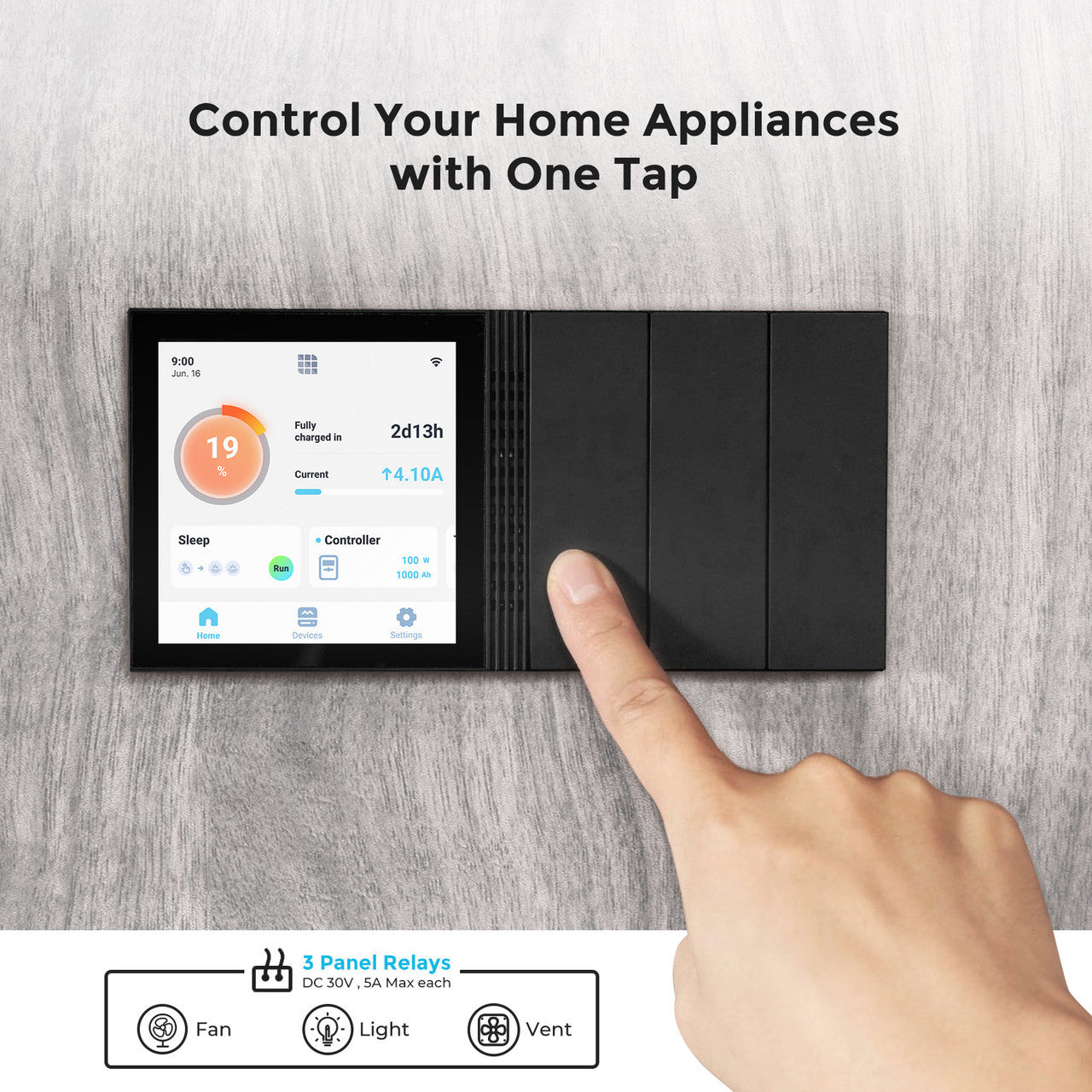

Connected livingThree relay channels can switch compatible DC loads up to the documented per-channel limit through the panel or configured scenes.

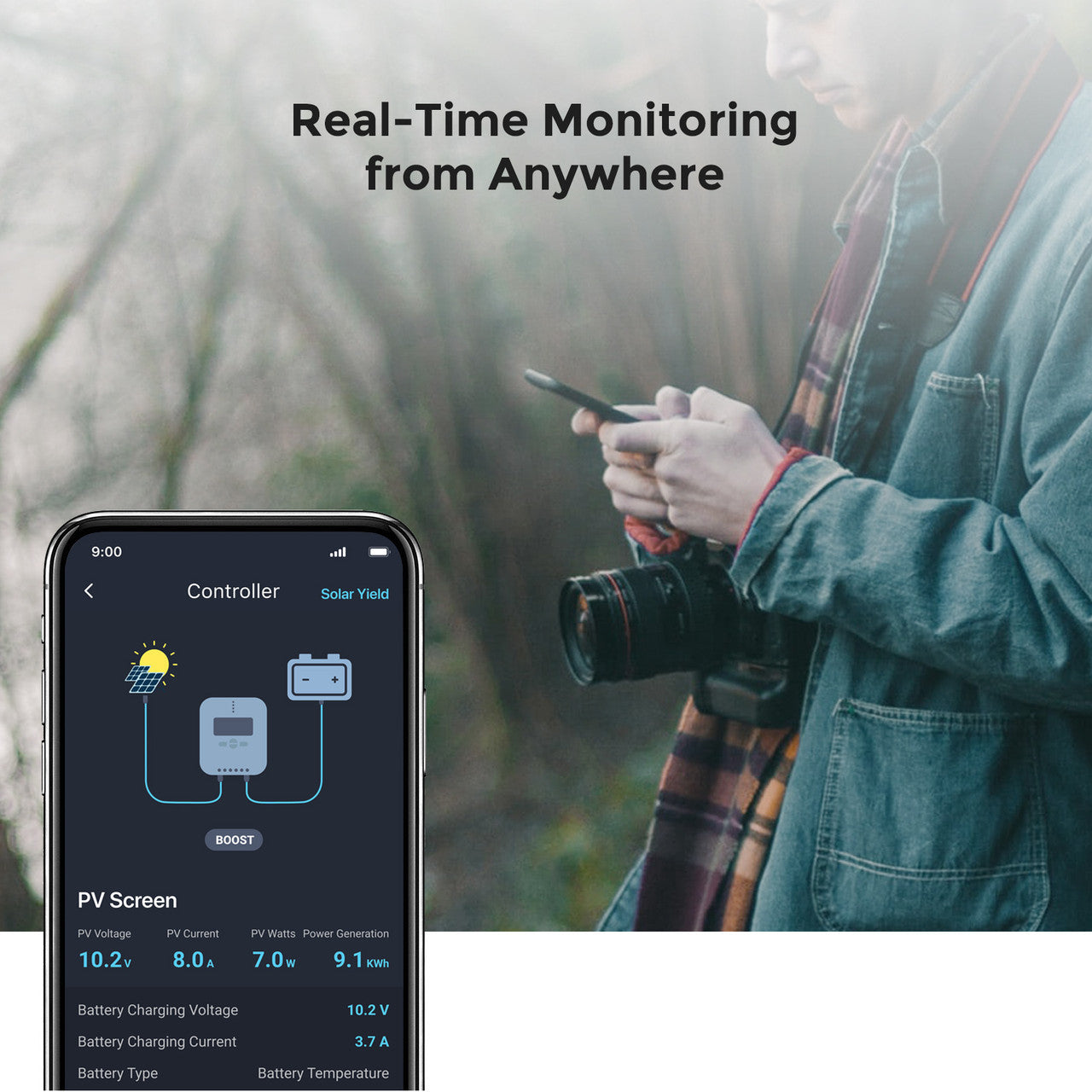

Remote visibilityA 2.4GHz Wi-Fi connection can upload supported system data for access through Renogy's app services when internet connectivity is available.

System fit

Confirm every device, protocol and cable before treating M1 as the system hub.

RMS-LP4-G2 supports RJ45 CAN/RS485, Bluetooth and Zigbee communication, but an RJ45-shaped connector does not guarantee protocol compatibility. Match each connected Renogy model to the current interoperability list and use the exact communication cable specified for that device.

Power and relaysThe power port accepts 8–16V DC; each direct load channel is limited to 30V DC and 5A. Add appropriate branch protection and do not use the relays for AC loads.
Indoor flush mountInstall vertically indoors, away from water, heat and large metal obstructions, with rear clearance for the enclosure and wiring.

In the box

What this listing is documented to include

  • Renogy ONE M1 smart panel, model RMS-LP4-G2
  • 12V power cable
  • Quick guide with mounting template

Device-specific RS485, CAN or RV-C cables, sensors, smart accessories, internet service, branch protection and controlled DC loads are not documented as included with Torven's panel-only SKU.

Product confidence

Two-year smart-monitoring warranty

Renogy lists a 2-year material-and-workmanship warranty for RMS-LP4-G2. Eligibility, exclusions and remedies follow the current written warranty.

Common questions

Buyer FAQ

Is this the Renogy ONE Core?

No. RMS-LP4-G2 is the larger Renogy ONE M1. The M1 and Core use different enclosures, power ranges and connection layouts.

Can it control AC appliances directly?

No. Its three direct load channels are low-voltage DC relay outputs rated up to 30V DC and 5A per channel; AC control requires properly designed external equipment.

Will any RJ45 Renogy product connect?

Not necessarily. Connector shape, pinout and protocol must all match. Check the exact device and cable in Renogy's current compatibility documentation.

Does remote monitoring work without internet?

Local panel functions and configured Zigbee scenes can operate without cloud access, but off-site app monitoring requires the necessary network and service connectivity.
