• Renogy ONE Core (G3 Version)

Renogy

Renogy ONE Core

Renogy ONE Core

SKU: RSHGWSN-W02W-G3-US

$199.99
$199.99
View Cart

In stock — available to order

Need help before ordering? Call 888-495-5870 Contact our support team

In stock

Compact G3 command center for connected Renogy systems

Monitor compatible equipment on a 4-inch touchscreen with Wi-Fi, Bluetooth, RS485 and CAN.

Renogy ONE Core G3 is a compact energy monitor and smart-automation hub for compatible RV and off-grid equipment. It combines a local 4-inch display, multi-protocol communication, app and portal access, RV leveling assistance and supported Zigbee scenes in a flush-mount enclosure.

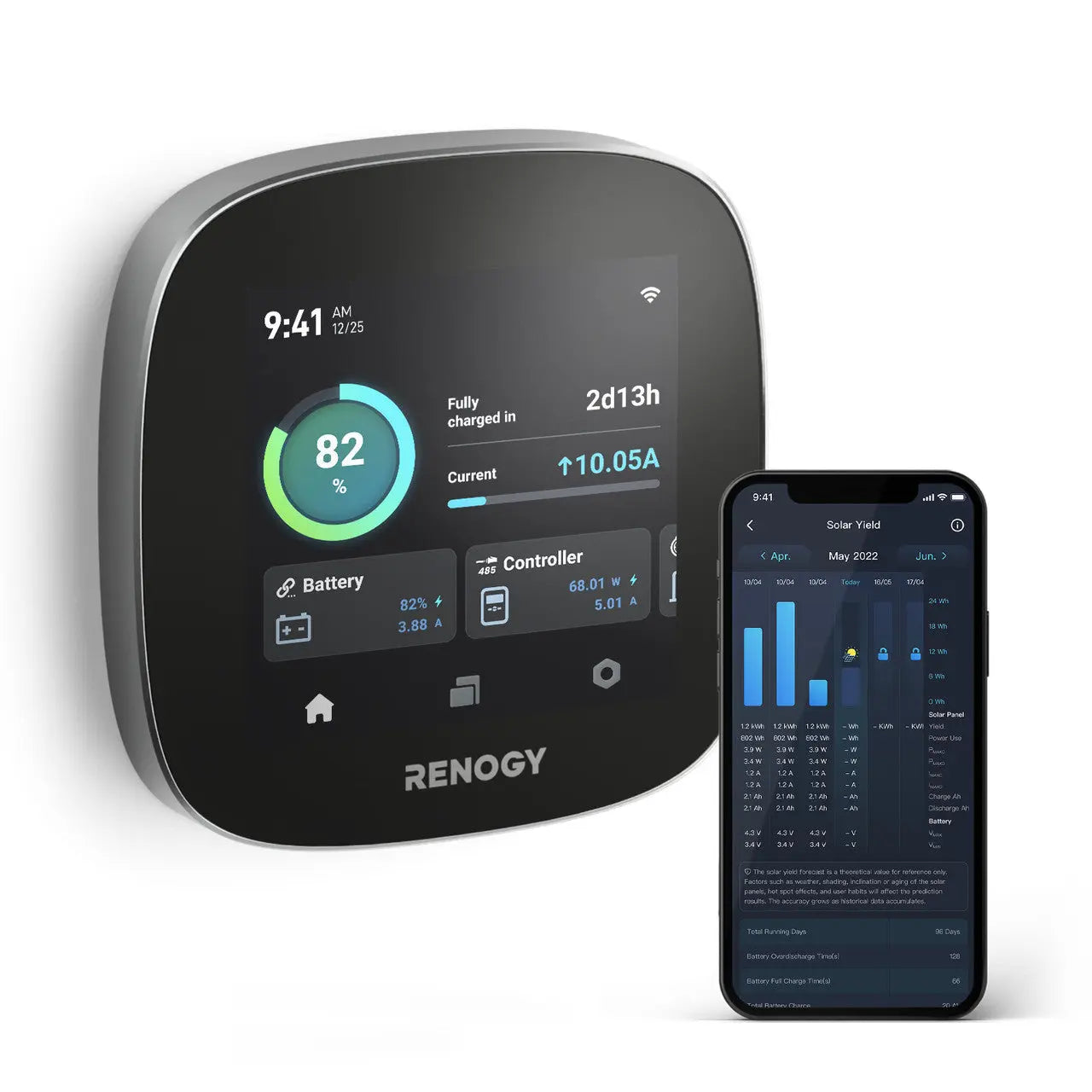

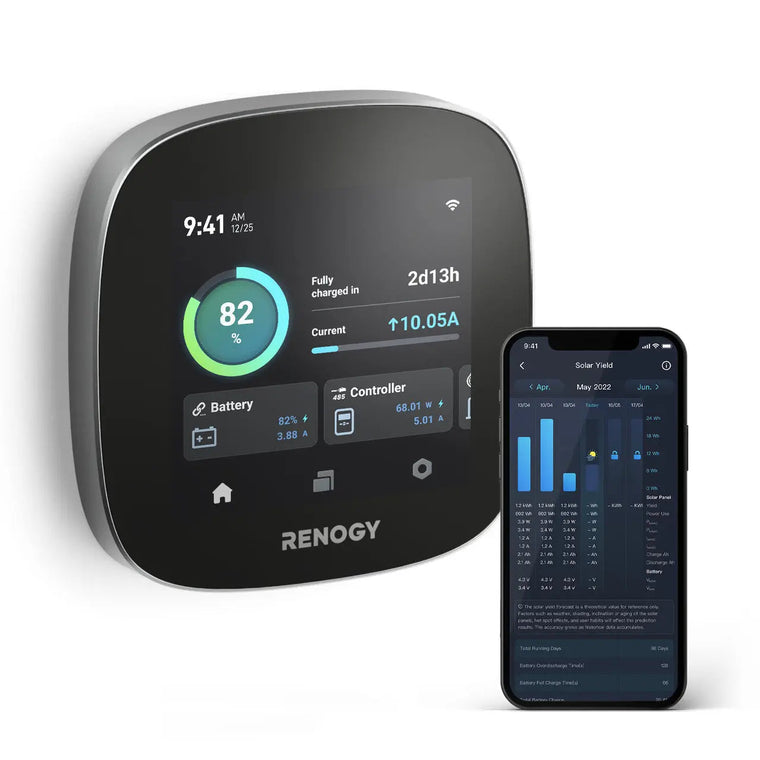

Renogy ONE Core — product view

At a glance

Verified numbers for the exact product family

4 in480 × 480 touchscreen
8–35VPower-port input
2.4/5GHzSupported Wi-Fi bands
0.28 lbListed weight
Compatibility is model-specific

ONE Core can communicate through Bluetooth, RS485, CAN and Zigbee, but it does not turn every Renogy or third-party device into a compatible device. Verify the exact model, port, protocol, firmware and cable before purchase.

Why this Renogy product

A small control surface with broad connection options

Local and remote visibilityReview compatible energy data on the panel and use Renogy's app and portal services for supported remote monitoring when a network is available.
G3 connectivityThe G3 specification lists dual-band Wi-Fi, Bluetooth LE/Mesh, Zigbee 3.0, RS485, CAN and RV-C support.
Smart scenesCompatible Renogy-authorized Zigbee accessories can participate in locally stored automation scenes, even if Wi-Fi is temporarily unavailable.

System fit

Plan power, communications and the 55mm mounting opening before installation.

ONE Core G3 accepts 8–35V DC through its power port or 5V through USB-C. It is a monitor and gateway, not a battery shunt or high-current switching device. Follow the G3 manual for mounting clearances, wiring and supported connections.

Battery monitoringA shunt is not included. Direct battery data requires a compatible Renogy battery or the appropriate external module or Shunt 300 configuration.
Network noteG3 supports 2.4GHz and 5GHz Wi-Fi, but Renogy states that WPA3 is not supported.

In the box

What this listing is documented to include

  • Renogy ONE Core G3
  • Quick guide
  • 5m power cable
  • Four M3.5 × 14mm mounting screws plus one spare

Battery shunt, device-specific communication cables, smart sensors, internet service and controlled power equipment are not listed as included.

Product confidence

Two-year ONE Core warranty

Renogy lists a 2-year material-and-workmanship warranty for RSHGWSN-W02W-G3. Current written terms and proof-of-purchase requirements apply.

Common questions

Buyer FAQ

Does it include a battery shunt?

No. Renogy states that a shunt is not included; a compatible battery connection or separate supported shunt is required for the intended battery data.

Does G3 support 5GHz Wi-Fi?

Yes. The G3 specification lists both 2.4GHz and 5GHz Wi-Fi, but Renogy states that WPA3 is not supported.

Can it monitor third-party Zigbee devices?

Renogy does not guarantee third-party Zigbee compatibility and recommends authorized compatible accessories.

Is it the same as Renogy ONE M1?

No. ONE Core G3 is smaller and has a different power and connection architecture. Use the RSHGWSN-W02W-G3 documentation for this listing.
