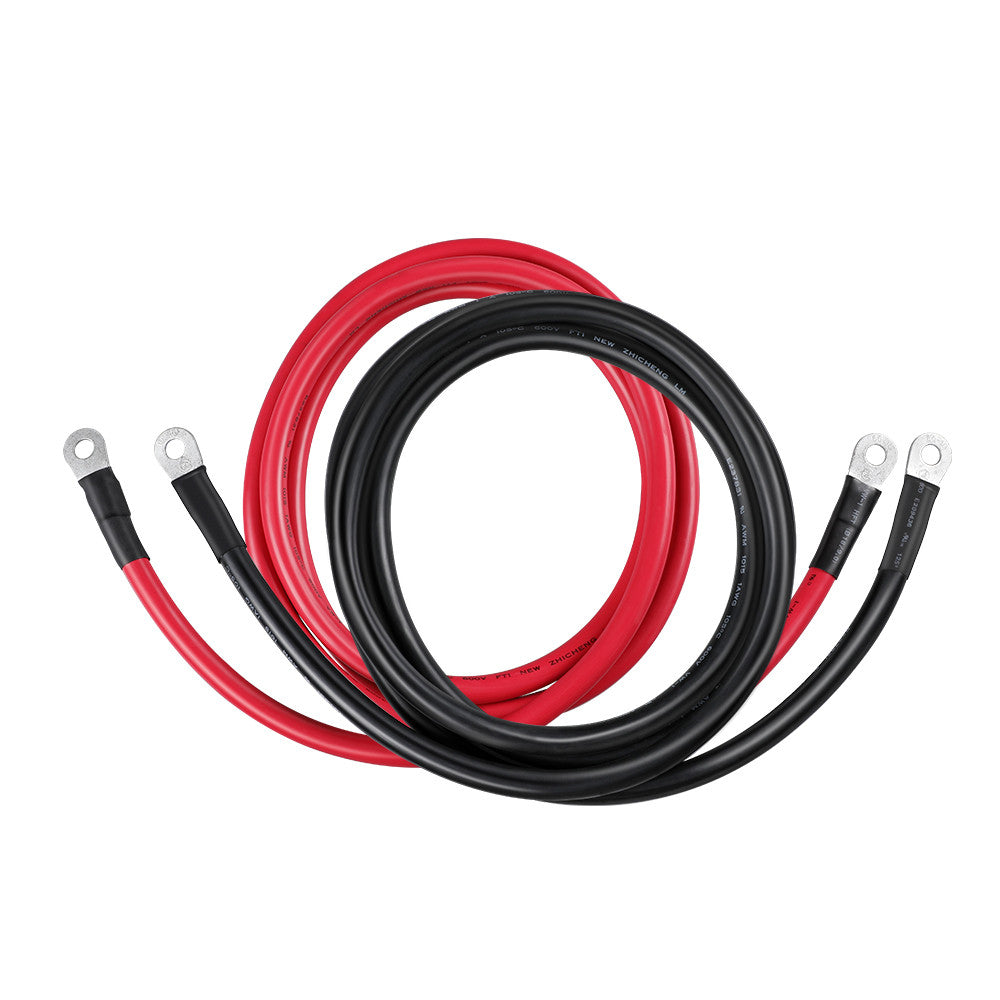

• Red and black Renogy 5-foot 2/0AWG battery cables with ring lugs, coiled together

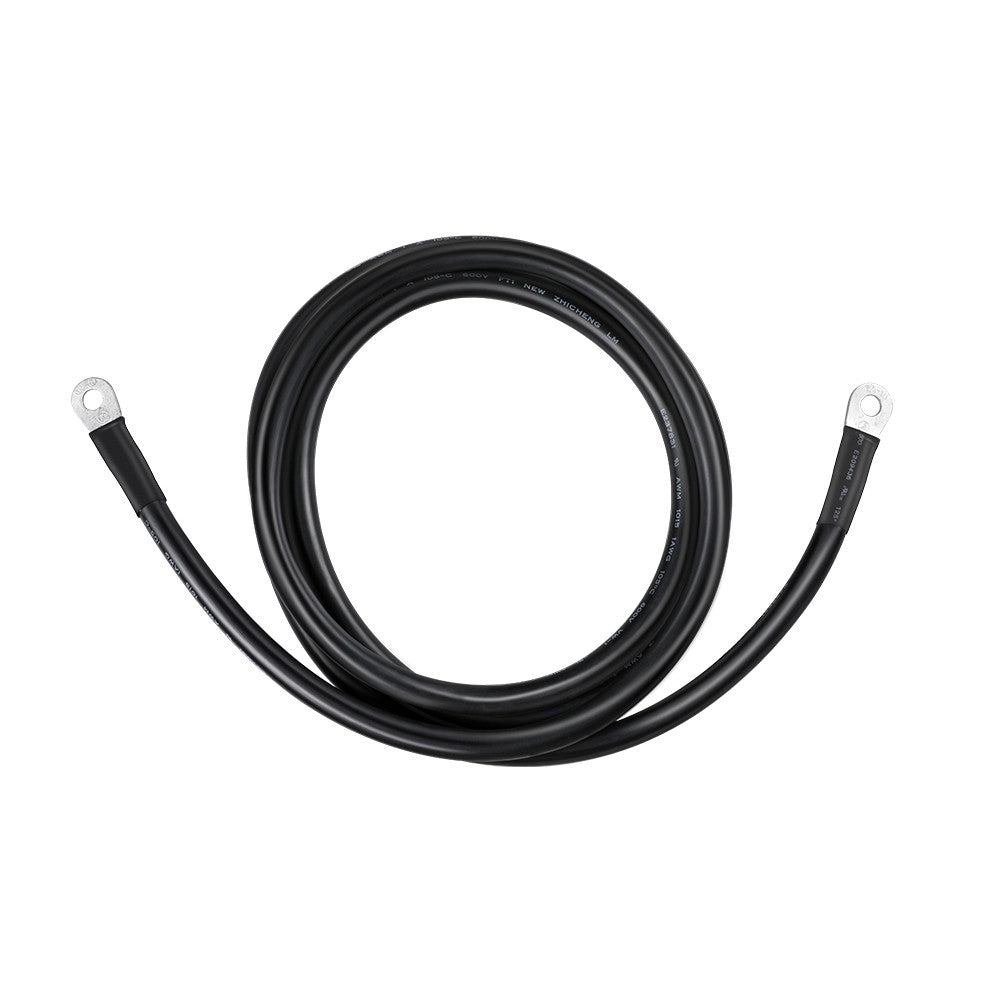

  • Black Renogy 5-foot 2/0AWG battery cable with ring lugs, coiled

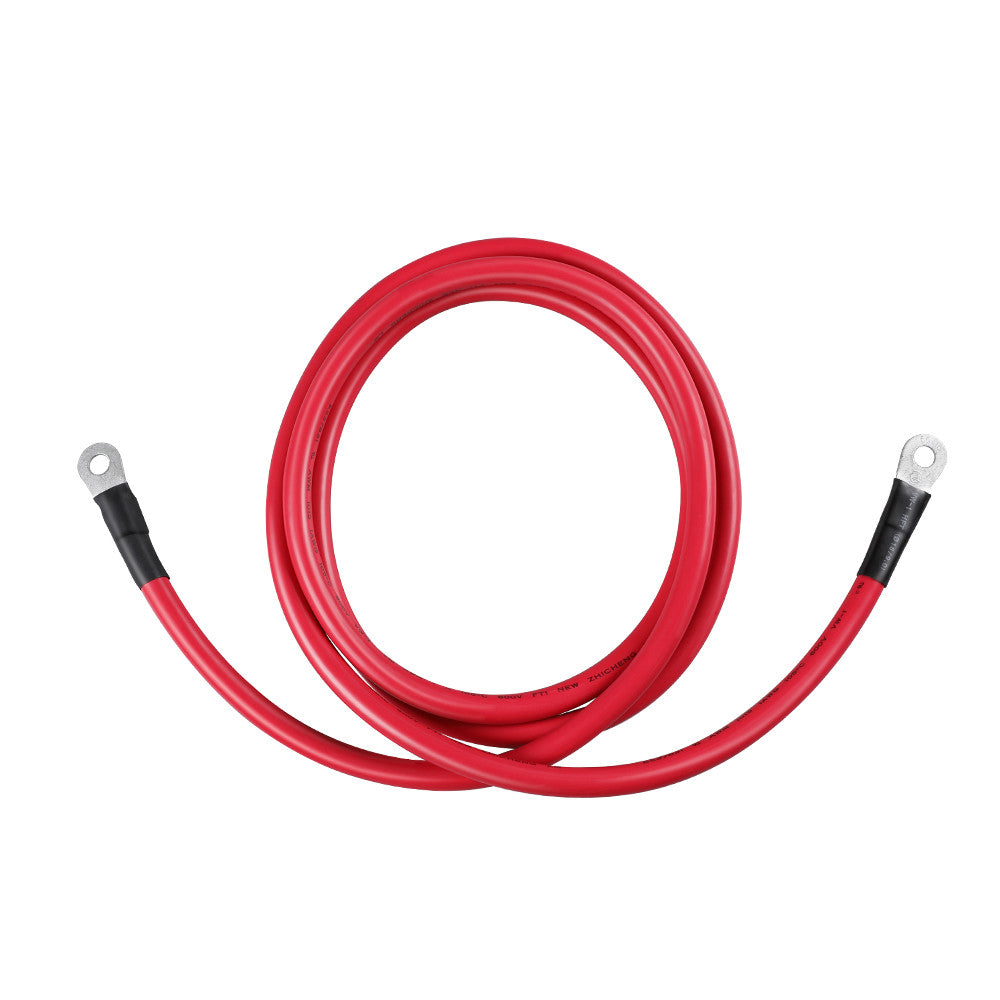

  • Red Renogy 5-foot 2/0AWG battery cable with ring lugs, coiled
  • Red and black Renogy 5-foot 2/0AWG ring-lug cables displayed separately

Renogy

Renogy 5FT 2/0AWG Battery Cable (Ring Lug - Ring Lug)

Renogy 5FT 2/0AWG Battery Cable (Ring Lug - Ring Lug)

SKU: RPC0520BC-G1-US

$69.99
$69.99

Notify me when this product is available:

View Cart
Need help before ordering? Call 888-495-5870 Contact our support team

Out of stock

A matched high-current cable pair for a shorter DC run

Connect a compatible battery bank and inverter with 5 ft, 2/0 AWG conductors.

Renogy RPC0520BC is a red-and-black battery-inverter cable pair with 2/0 AWG tinned-copper conductors, a 5 ft length, and 3/8 in ring lugs. It gives builders a pre-terminated positive and negative path while leaving final cable sizing, circuit protection, and terminal compatibility to the requirements of the complete system.

Renogy RPC0520BC 5 ft 2/0 AWG red and black battery inverter cable pair
Official Renogy image for the RPC0520BC 5 ft, 2/0 AWG red-and-black cable pair.

Verified configuration

The exact numbers to check against your installation

5 ftLength of each cable
2/0 AWGConductor size
3/8 inRing-lug opening
600 VPublished cable rating
Gauge is only one part of correct cable sizing

Check the inverter manufacturer’s continuous and surge-current requirements, the system voltage, the full positive-and-negative route, allowable voltage drop, ambient temperature, bundling, and overcurrent protection before installation.

Why this cable pair

Pre-terminated conductors for a clean battery-to-inverter connection

Positive and negative pairRed and black conductors make polarity easier to identify throughout the DC path.
Tinned-copper constructionRenogy specifies high-purity, oxygen-free tinned-copper wire with a PVC insulated jacket.
Finished ring-lug endsHeat-shrink-covered 3/8 in ring-lug terminations avoid field-crimping large 2/0 AWG conductors.

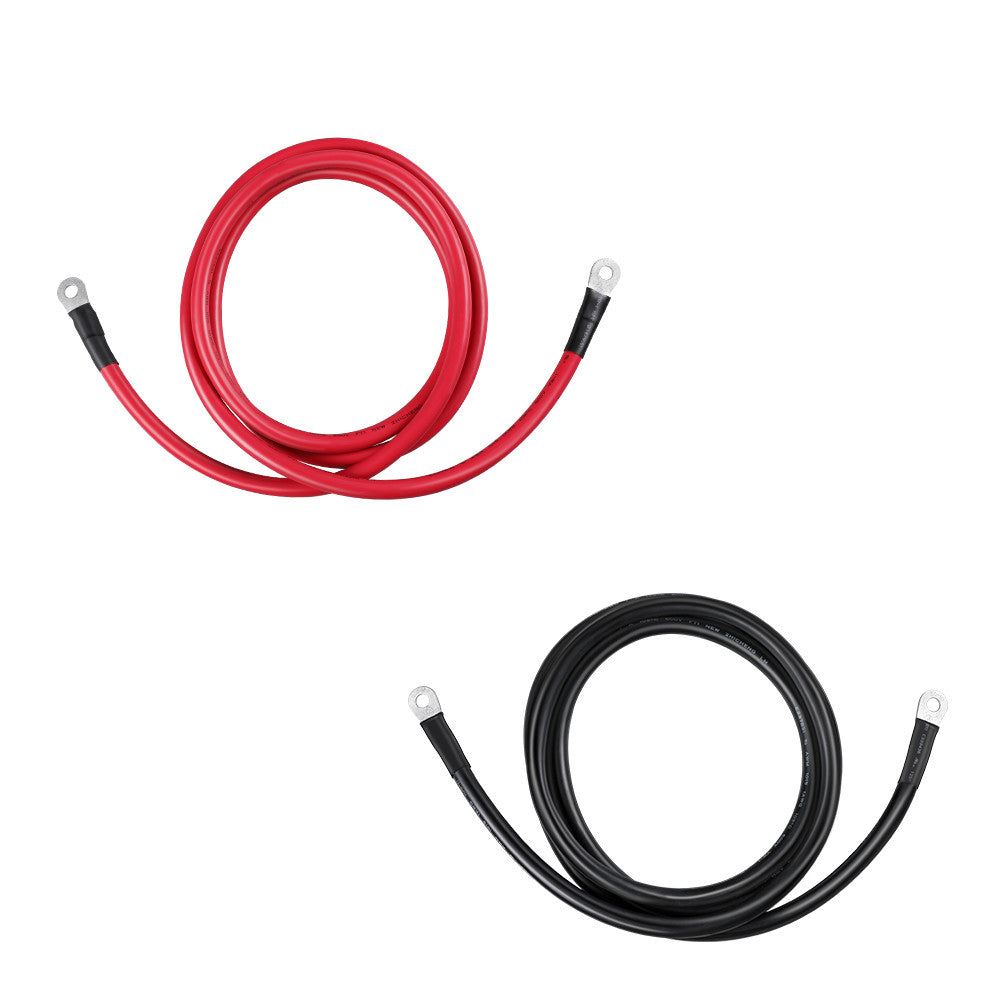

Separate red and black Renogy RPC0520BC battery inverter cables with ring lugs
The listing covers one red cable and one black cable; both are 5 ft long, 2/0 AWG, and terminated with 3/8 in ring lugs.

System-fit checklist

Confirm the route, studs, and protection before connecting power.

Measure the installed pathAllow room for bend radius, strain relief, service access, and a route that avoids sharp edges and heat sources.
Match every terminalVerify that each battery, busbar, disconnect, fuse holder, and inverter stud accepts a 3/8 in ring lug and the required terminal stack.
Coordinate circuit protectionSelect and place the fuse or breaker according to the inverter, battery, cable, and applicable installation requirements.
Respect the environmentRenogy publishes an operating range of -40°C to 105°C (-40°F to 221°F); installation conditions can still reduce allowable current.

Package scope

What is included

  • One red 5 ft, 2/0 AWG cable with a 3/8 in ring lug at each end
  • One black 5 ft, 2/0 AWG cable with a 3/8 in ring lug at each end

The cable pair does not include a battery, inverter, busbar, disconnect, fuse or breaker, terminal covers, or mounting hardware.

Published standards and coverage

UL and RoHS listed by Renogy, with one-year accessory coverage

Renogy’s exact RPC0520BC product record lists UL and RoHS compliance and a one-year material warranty for the accessory. Eligibility, exclusions, and remedies follow Renogy’s current written warranty terms.

Common questions

Buyer FAQ

Does this listing include both positive and negative cables?

Yes. The package is one red cable and one black cable, each 5 ft long and made with 2/0 AWG conductors.

What size studs do the ring lugs fit?

Renogy specifies 3/8 in ring lugs. Verify the actual stud diameter, terminal stack, cover clearance, and required torque at every connection point.

Is 2/0 AWG suitable for every inverter?

No. Required conductor size depends on battery voltage, continuous and surge current, total round-trip distance, voltage-drop target, temperature, bundling, and the inverter manufacturer’s instructions.

Does the cable pair include a fuse or breaker?

No. Circuit protection is selected separately and must be coordinated with the battery, inverter, cable, and applicable installation requirements.
