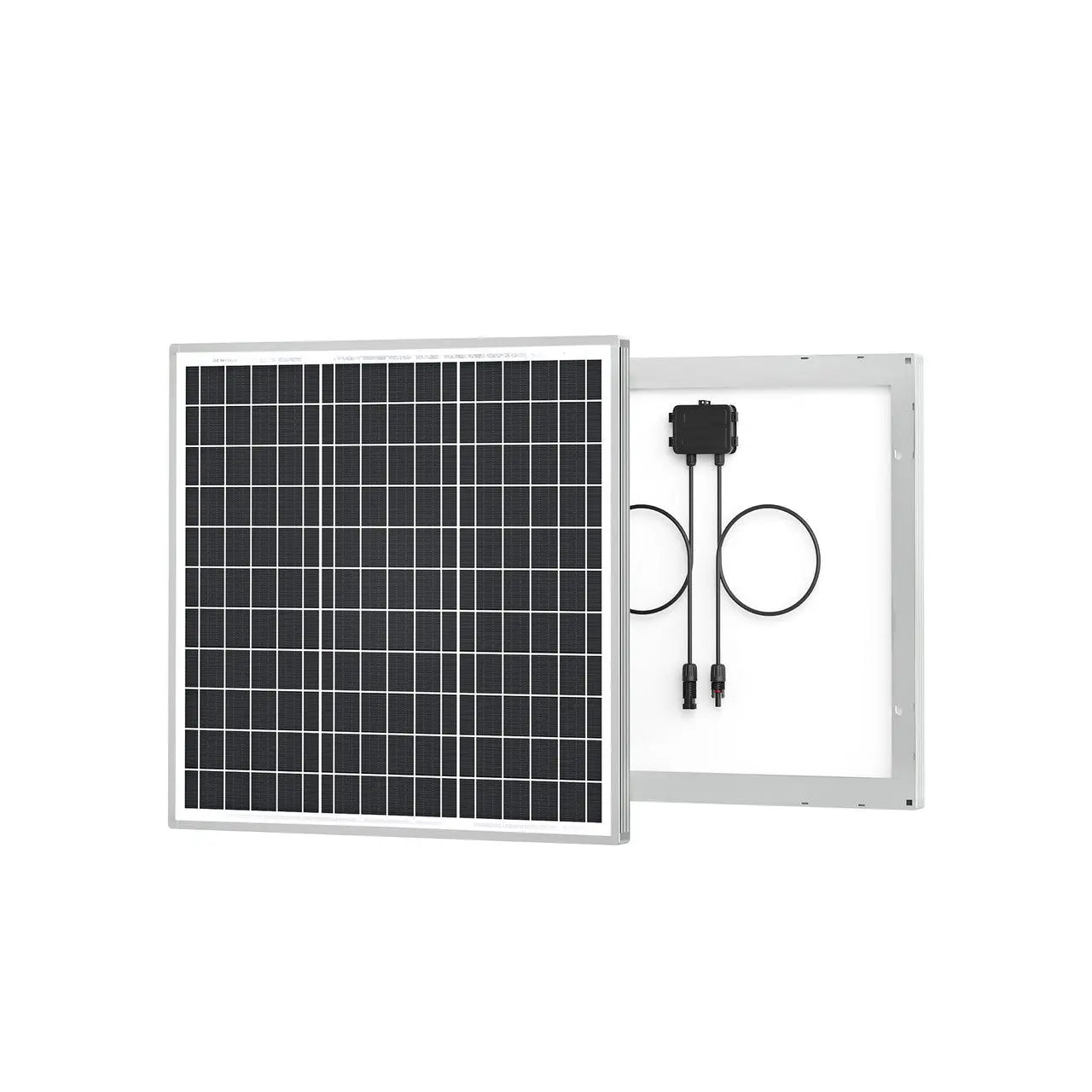

• Renogy compact 50W rigid solar panel shown from the front and back
  • Renogy compact 50W panel dimensions, cell detail, and corrosion-resistant frame
  • Renogy compact 50W panel junction box, connectors, drainage, and mounting holes

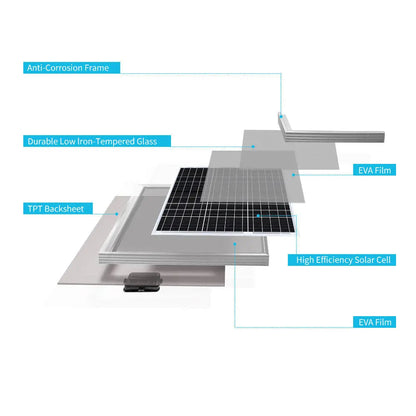

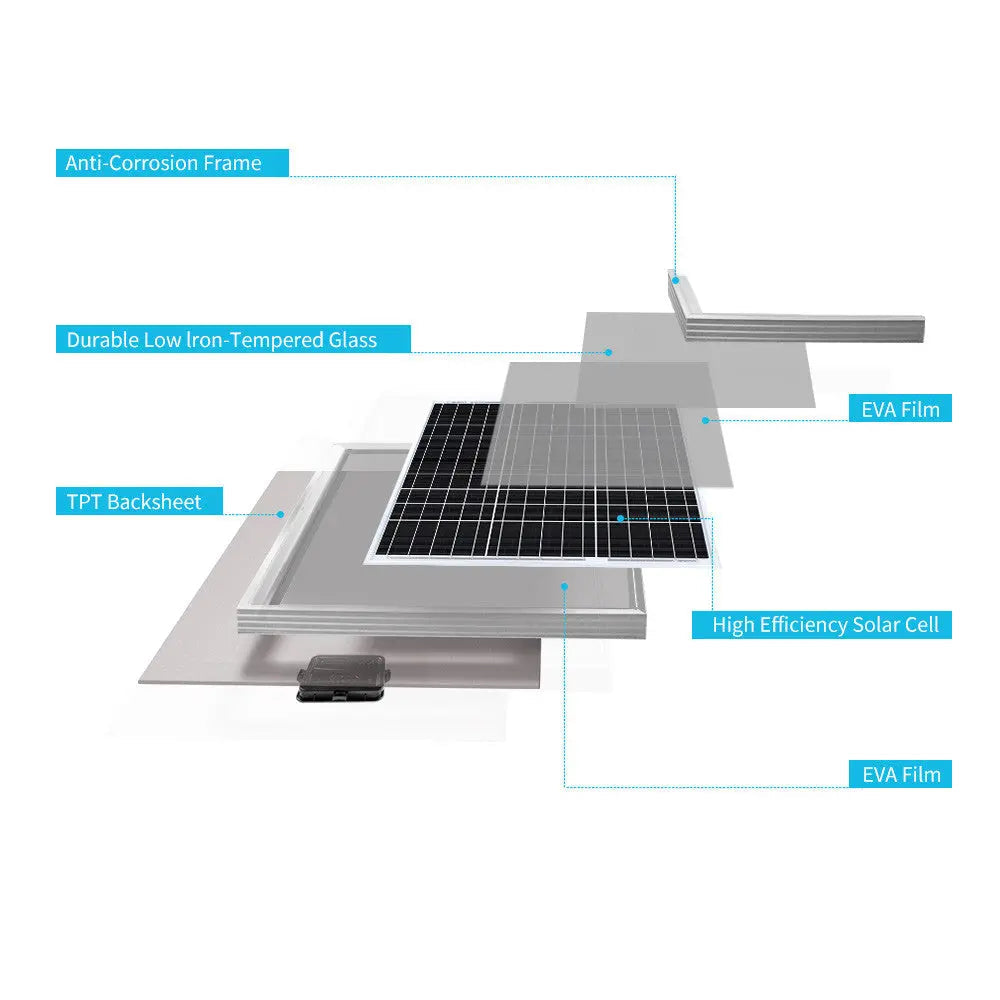

  • Exploded construction layers of the Renogy compact 50W solar panel
  • Wiring diagram connecting a compact 50W panel, controller, battery, and inverter

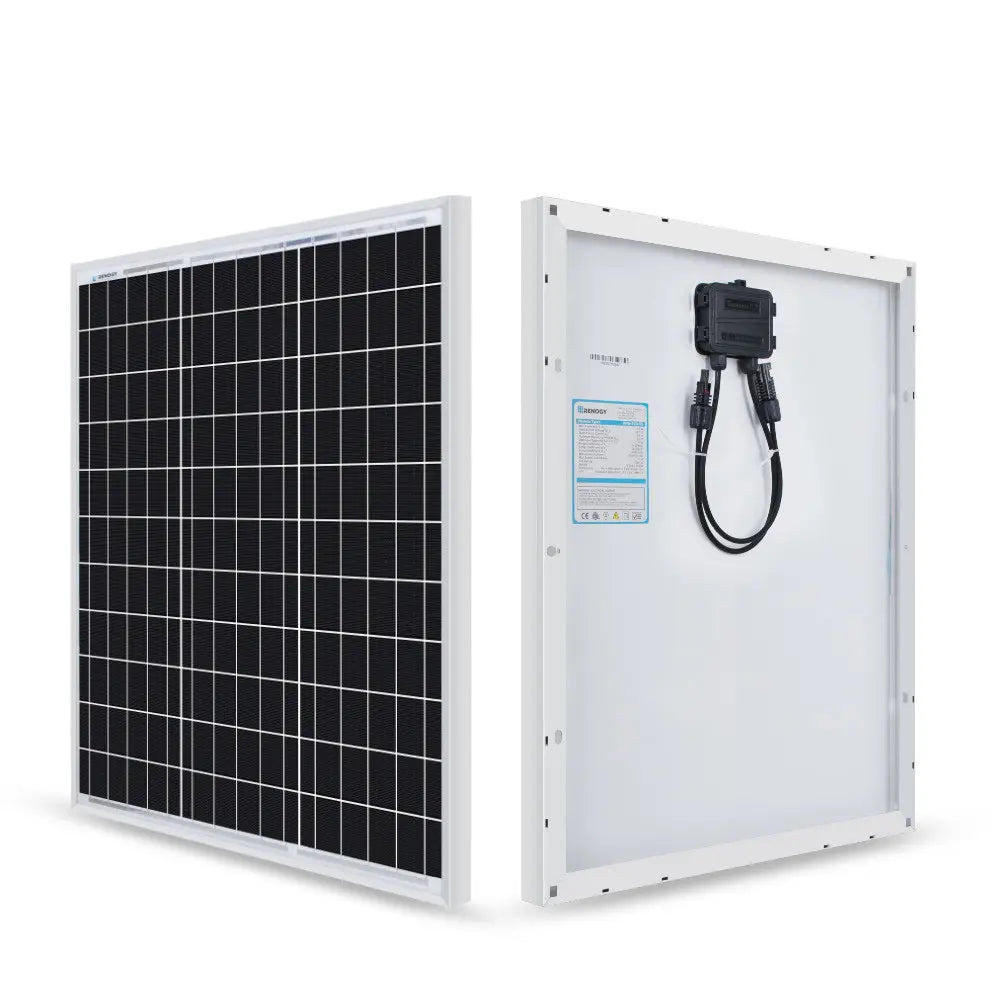

  • Renogy compact 50W solar panel shown from front and rear at an angle

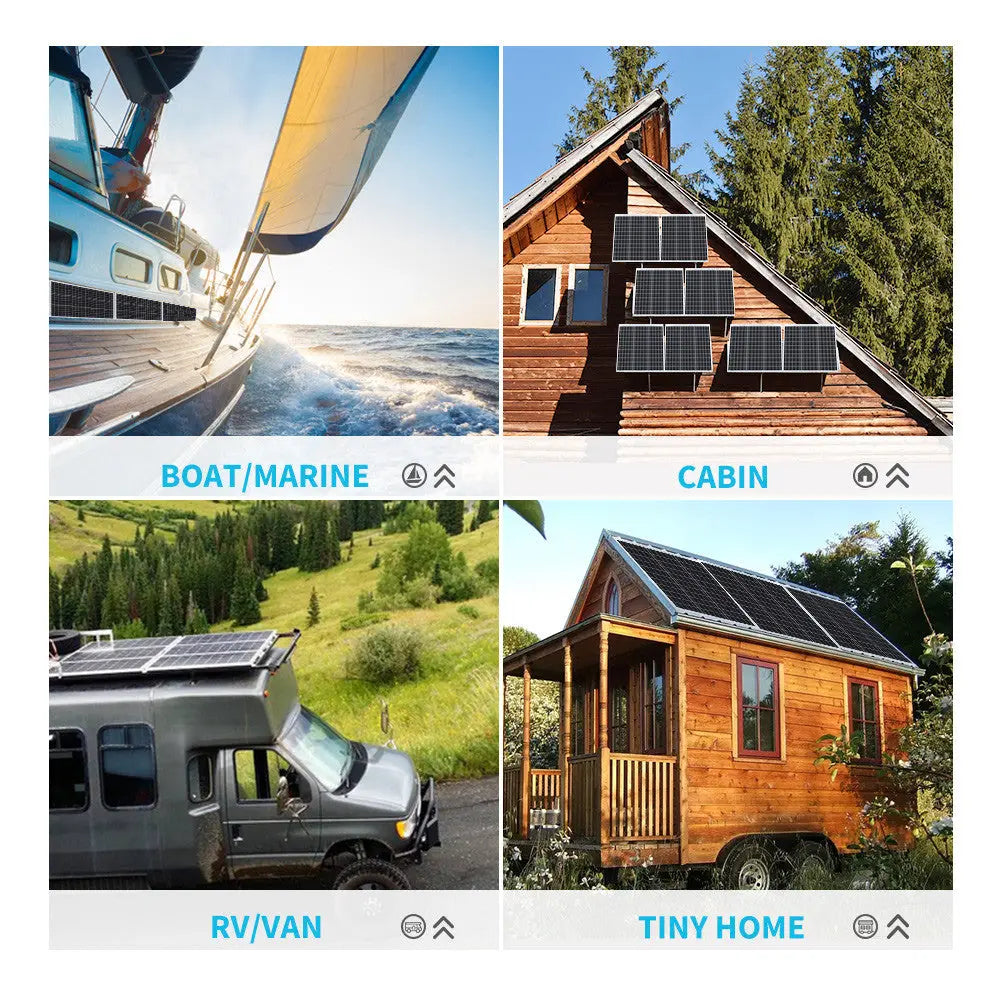

  • Renogy compact 50W panel applications on a boat, cabin, van, and tiny home

Renogy

Renogy 50W Rigid Solar Panel(Compact Design)

Renogy 50W Rigid Solar Panel(Compact Design)

SKU: RNG-50D-SS-G2-US

$54.99
$54.99
View Cart

In stock — available to order

Need help before ordering? Call 888-495-5870 Contact our support team

In stock

Compact 50W solar for small 12V charging systems

Add a rigid monocrystalline panel where roof or rack space is limited.

The Renogy RNG-50D-SS G2 is a compact 50W rigid solar panel for battery maintainers, small RV and marine systems, gates, sensors and other modest off-grid loads. Its aluminum frame and pre-attached output leads are intended for a correctly mounted outdoor array.

Renogy 50W Rigid Solar Panel(Compact Design) — product view

At a glance

Verified numbers for the exact product family

50WRated maximum power
18.6VVoltage at maximum power
2.69ACurrent at maximum power
7.72 lbPanel weight
A panel is a charging source—not a direct battery connection

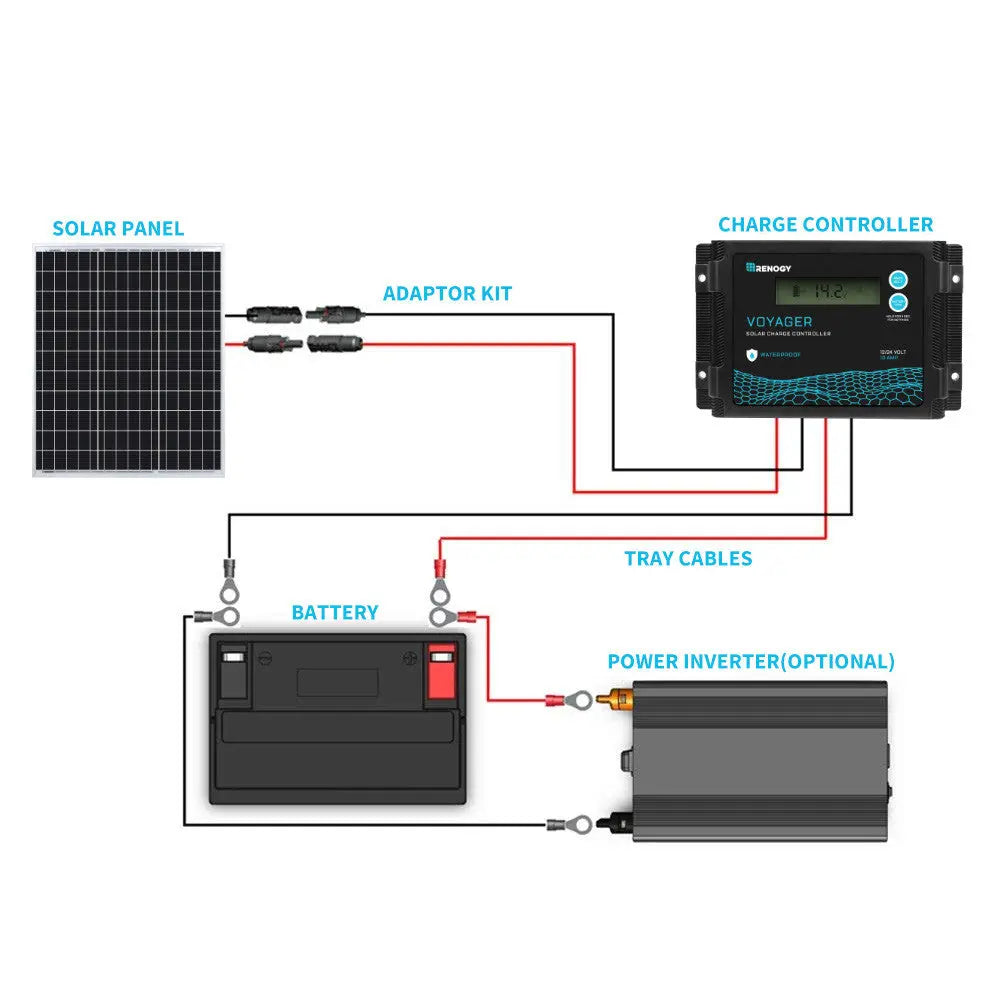

Use a compatible charge controller between the panel and battery. The controller, battery chemistry, wiring and protection must all match the system.

Renogy 50W Rigid Solar Panel(Compact Design) — product detail or use-case view

Why this Renogy product

A small rigid module for low-power solar jobs

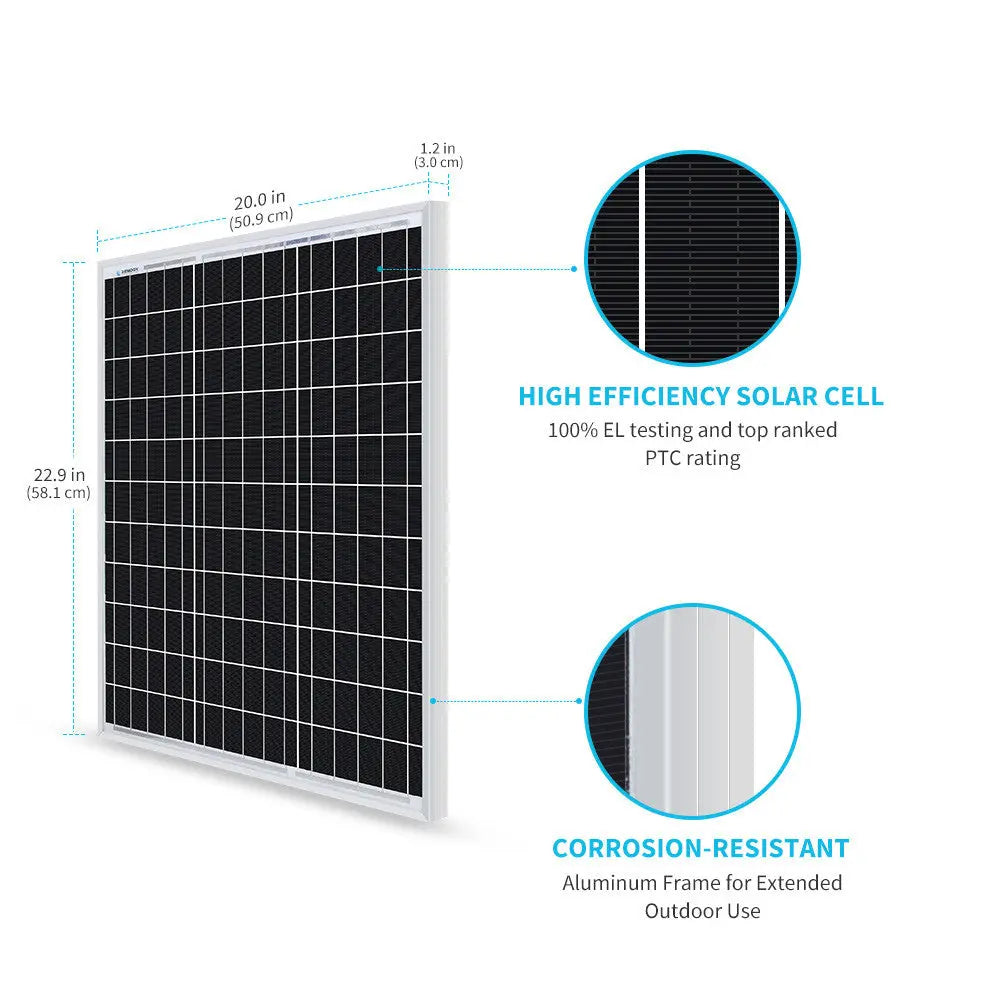

Compact footprintThe 22.9 × 20.0 in frame fits installations that cannot accommodate a standard 100W-class panel.

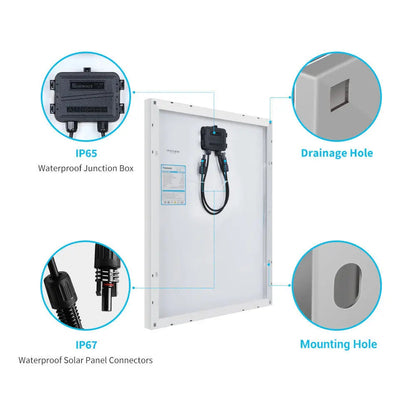

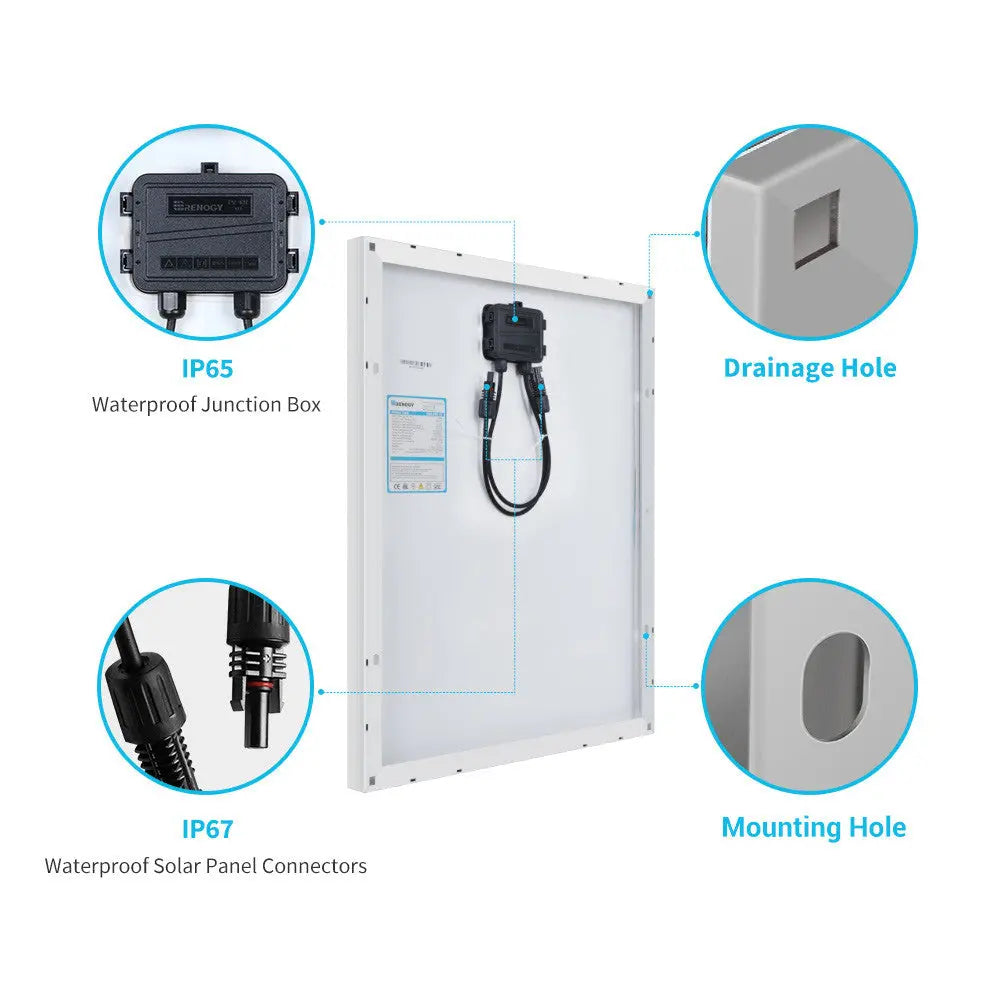

Outdoor constructionRenogy lists an IP65 junction box, IP67 connectors and a black anodized aluminum frame.
Simple array expansionMultiple matching panels can be configured in series or parallel when the completed array remains inside the connected equipment's limits.

System fit

Size the controller from array voltage, current and cold-weather conditions.

The exact G2 panel is rated 22.3V Voc, 2.94A Isc, 18.6V Vmp and 2.69A Imp. Add voltage in series and current in parallel, then account for cold-temperature Voc and the controller's power, current and protection limits.

MountingSupport the frame at approved points and select hardware for the structure, wind, vibration and local conditions.
Real productionThe 50W rating is measured under standard test conditions. Heat, shade, angle, dirt and system losses reduce actual output.

In the box

What this listing is documented to include

  • One Renogy RNG-50D-SS G2 50W monocrystalline rigid solar panel
  • Factory output leads with solar connectors

Mounting hardware, extension cables, charge controller, fuses, battery and inverter are not listed as included.

Product confidence

Long-term panel coverage

Renogy's written panel terms provide separate material-and-workmanship and power-output coverage. Exact years, output thresholds, eligibility and remedies follow the current warranty for RNG-50D-SS G2.

Common questions

Buyer FAQ

Can I connect this directly to a 12V battery?

No. Use a compatible solar charge controller and appropriate protection between the panel and battery.

How much energy will it make each day?

Daily energy depends on usable sun hours, shade, orientation, temperature and system losses. Multiply real panel output by site-specific sun hours for a planning estimate.

Can I combine it with another panel?

Yes, if the panels and wiring configuration remain within the controller's voltage, current and power limits. Matching modules simplify array behavior.

Does it include mounting brackets?

No. The panel, factory leads and connectors are included; mounting and balance-of-system parts are separate.
