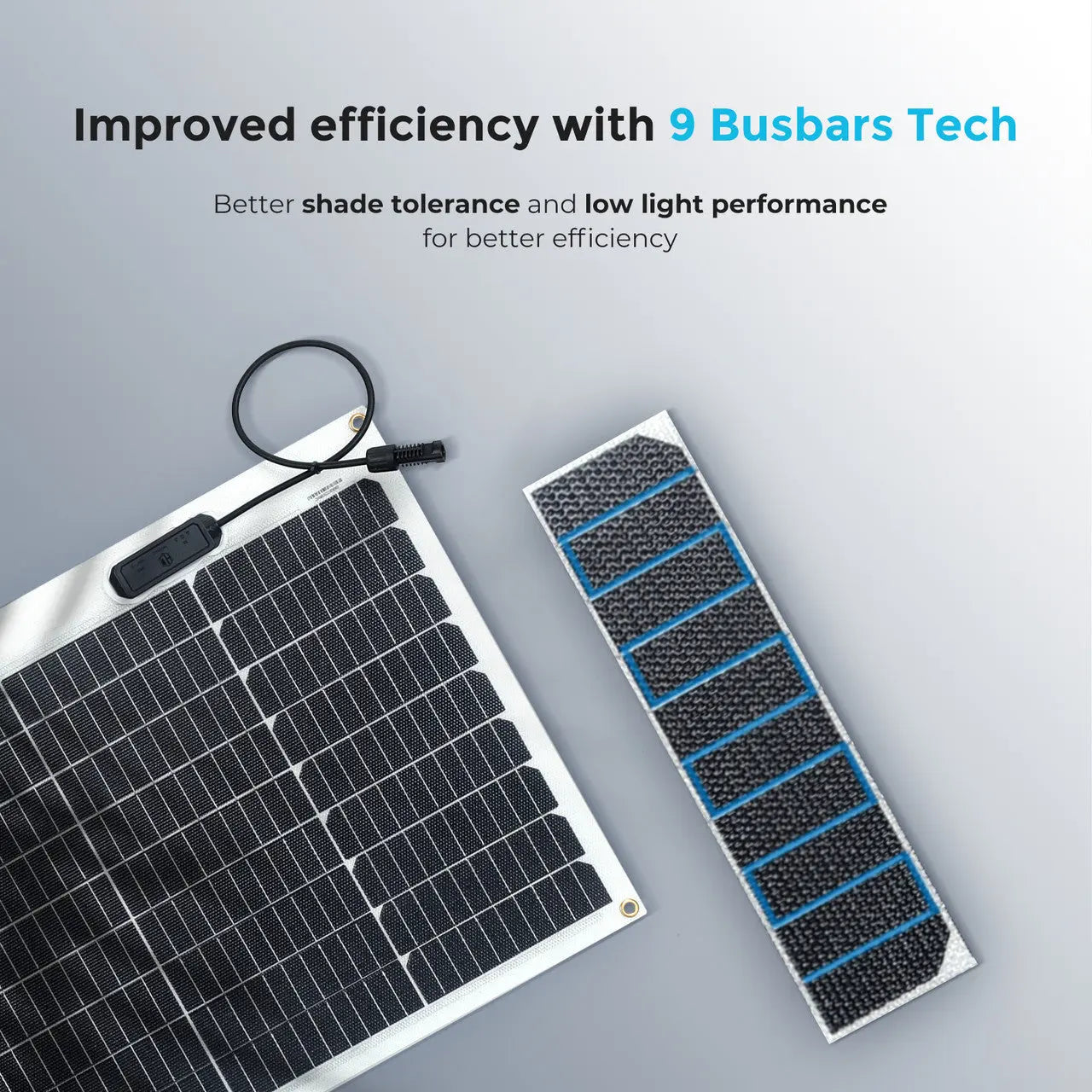

  • Nine-busbar cell technology diagram for the Renogy 50W flexible solar panel
  • Exploded layer diagram of the Renogy 50W flexible solar panel construction
  • Renogy 50W flexible panel dimensions, connectors, and reinforced mounting holes
  • Warranty and output coverage graphic for the Renogy 50W flexible solar panel

Renogy

Renogy 50 WATT 12 VOLT FLEXIBLE MONOCRYSTALLINE SOLAR PANEL

Renogy 50 WATT 12 VOLT FLEXIBLE MONOCRYSTALLINE SOLAR PANEL

SKU: RNG-50DB-H-G3-US

$79.99
$79.99

Estimated delivery: Calculating arrival dates…

For in-stock orders placed today. Standard Lower 48 delivery; availability and carrier scheduling may affect arrival.

View Cart

In stock — available to order

Need a hand? Call 888-495-5870 Contact our support team

In stock

Compact 50W solar for supported curved surfaces

Fit a lightweight 50W laminate where a small rigid panel cannot sit flat.

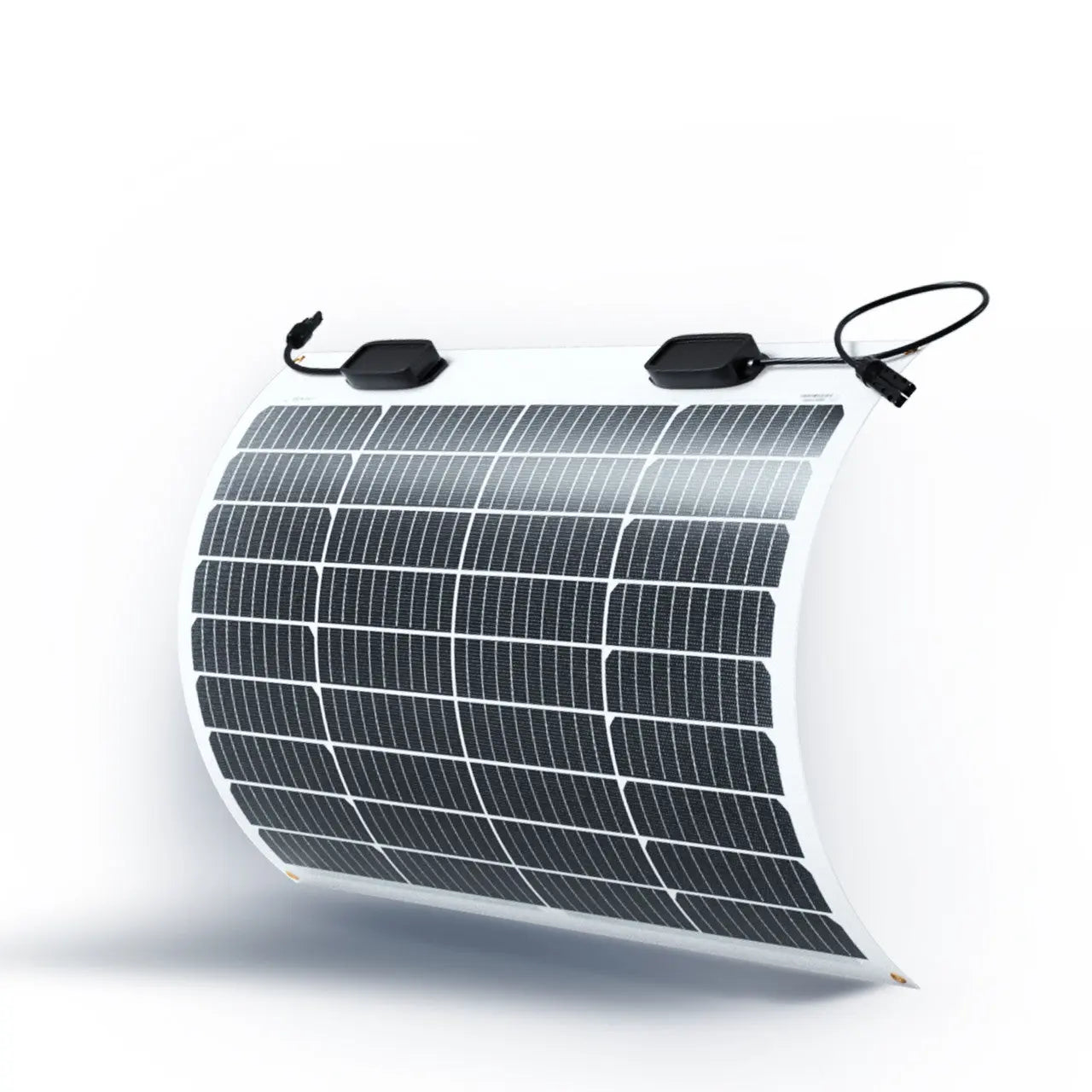

The Renogy RNG-50DB-H is a compact flexible monocrystalline panel for small RV, marine, shed, sensor and maintenance-charging systems. Its frameless laminate weighs about 3.1 lb and can follow a supported gentle curve within Renogy's documented limit.

Renogy 50 WATT 12 VOLT FLEXIBLE MONOCRYSTALLINE SOLAR PANEL — product view

At a glance

Verified G3 nameplate numbers

50WSTC nameplate power
20.3VCurrent official Vmp
24.3VCurrent official Voc
3.1 lbCurrent official weight
Small panel, complete solar system

The panel still requires a compatible charge controller, battery-side protection and correctly sized wiring for battery charging. Do not connect it directly to a battery.

Renogy 50 WATT 12 VOLT FLEXIBLE MONOCRYSTALLINE SOLAR PANEL — product detail or use-case view

Why this Renogy product

Useful solar input for narrow and lightly loaded roofs

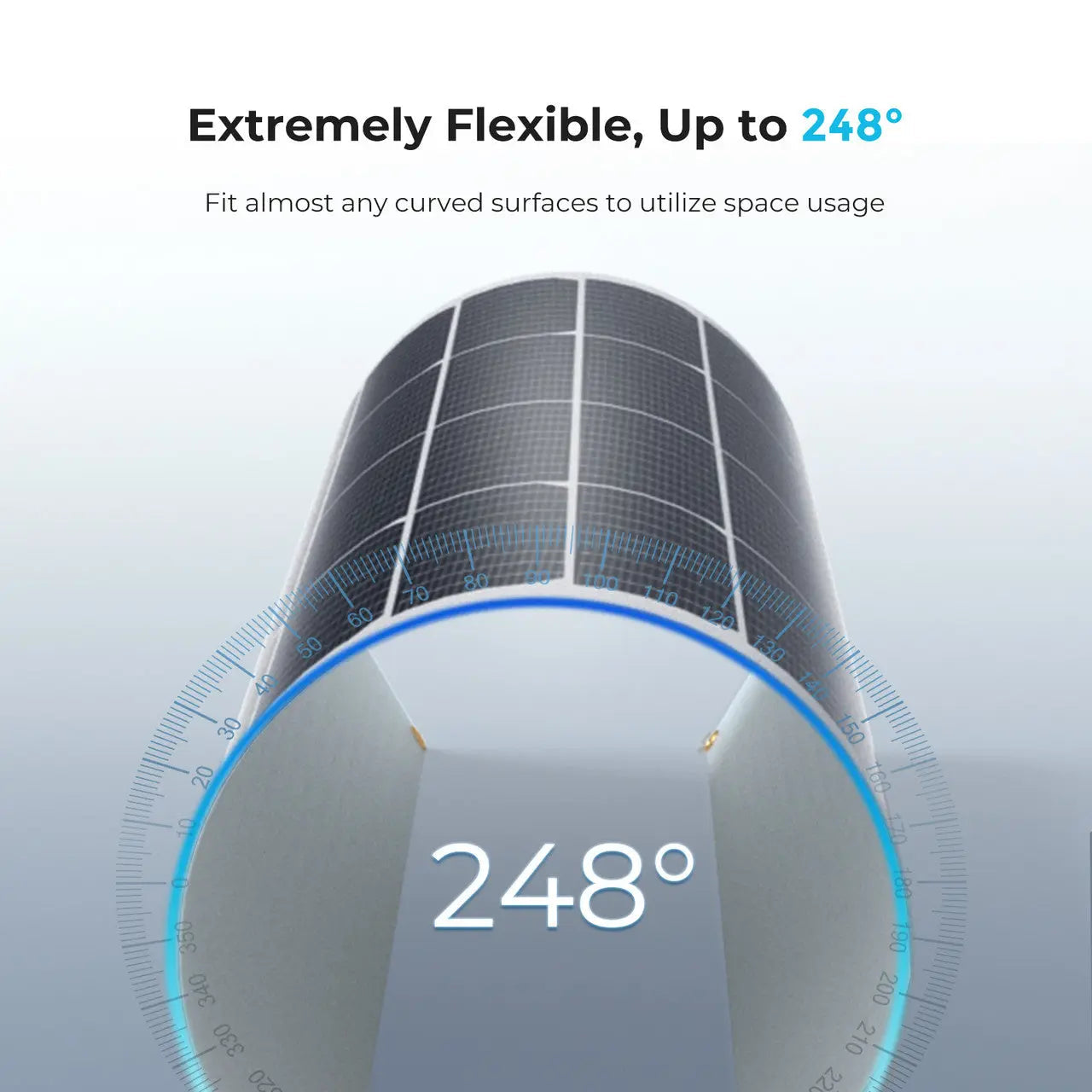

Flexible profileRenogy markets up to 248 degrees of curvature for a properly supported installation.

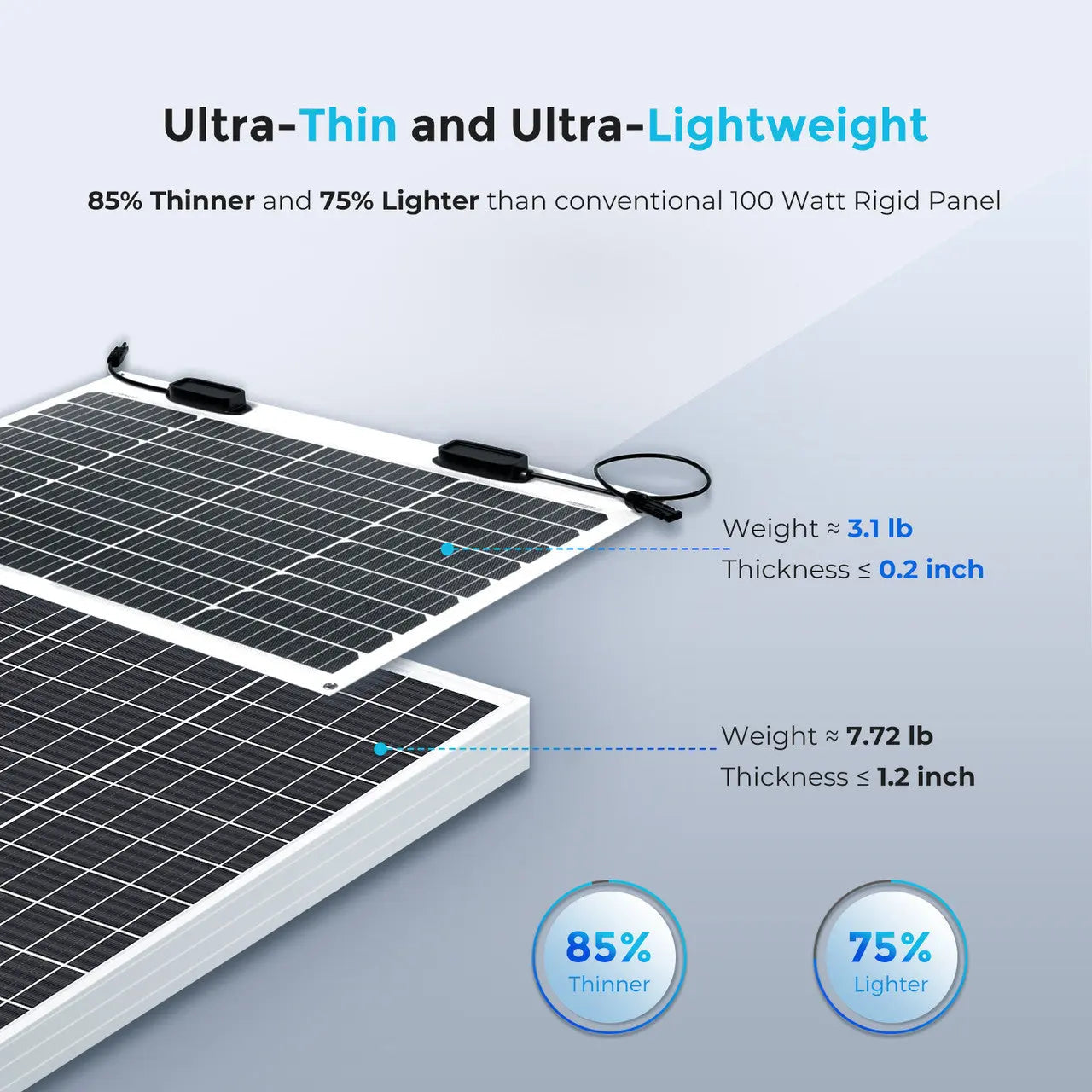

Low weightAt roughly 3.1 lb, it is 60% lighter than the rigid counterpart cited by Renogy.

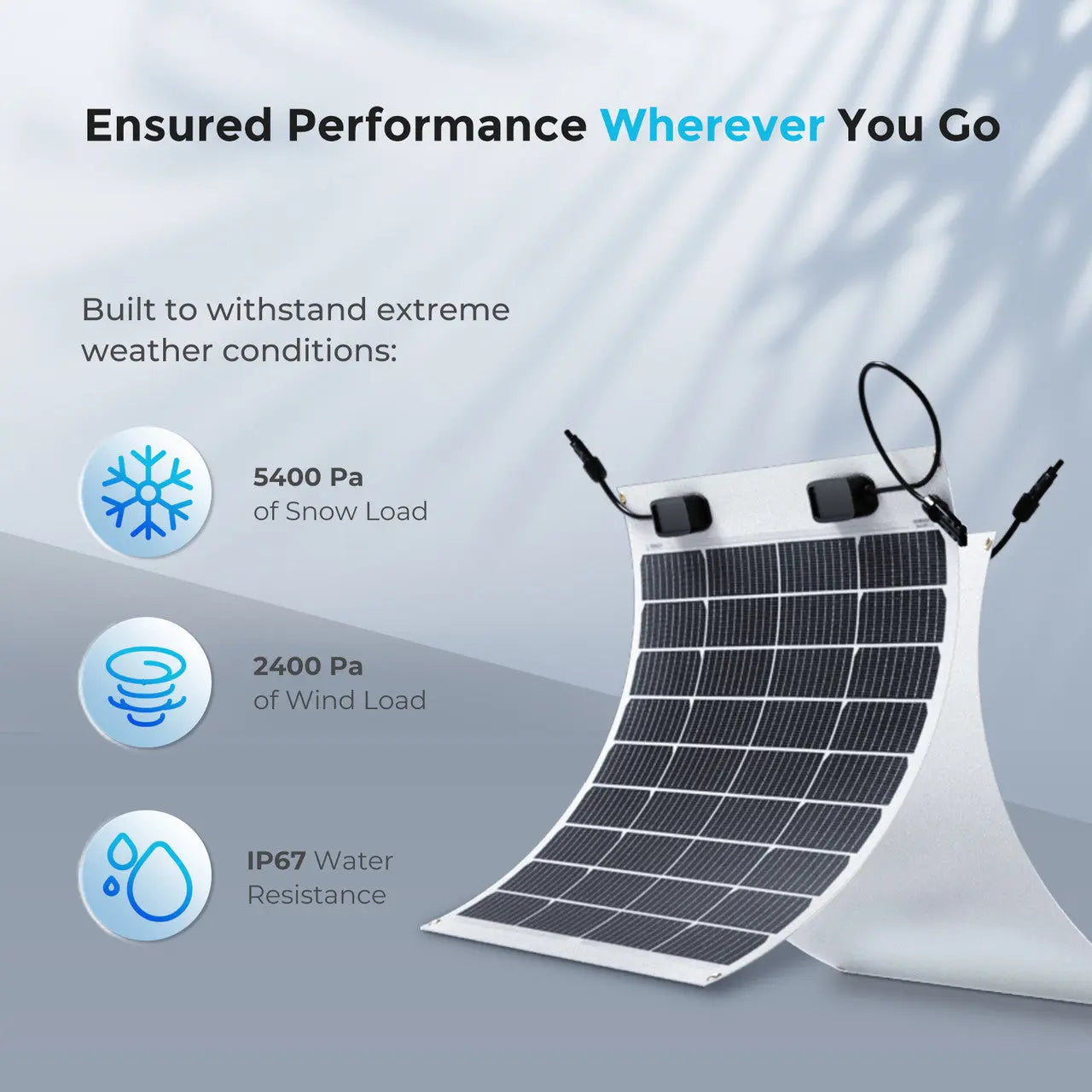

Outdoor constructionRenogy lists an IP68 junction box and IP67 solar connectors on the current version.

System fit

Mount it as a supported laminate, not a foldable mat.

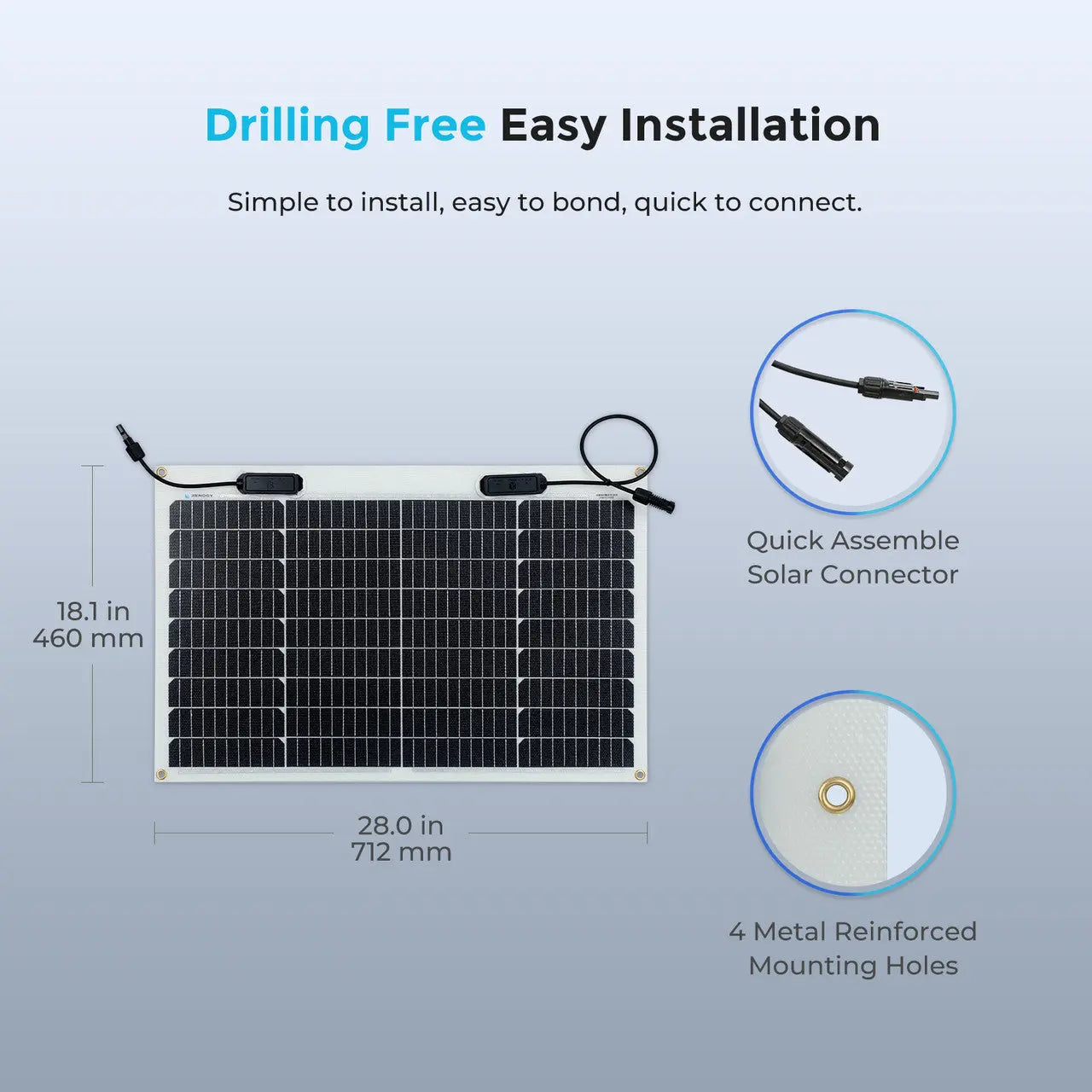

Renogy's exact G3 data sheet lists 28.0 × 18.1 × 0.2 in, 20.3V Vmp, 2.47A Imp, 24.3V Voc and 2.75A Isc. Use those values with the full array's cold-weather voltage, parallel current and controller limits.

Physical supportUse a smooth, compatible and ventilated mounting surface; avoid sharp bends, repeated flexing, foot traffic and concentrated fastener stress.
Array designAdd series voltage and parallel current across the full array, including cold-weather Voc, before choosing a controller and protection.

In the box

What this listing is documented to include

  • One Renogy 50W flexible monocrystalline solar panel
  • Factory output leads with solar connectors

Adhesive or fasteners, extension cable, charge controller, battery and electrical protection are not listed as included.

Product confidence

Five-year product coverage

Renogy publishes 5-year material-and-workmanship coverage for the current 50W flexible panel. Eligibility, installation requirements, exclusions and remedies follow Renogy's current written terms.

Common questions

Buyer FAQ

Can it connect directly to a battery?

No. Use a compatible solar charge controller and properly sized wiring and protection.

Can I roll it up after each trip?

No. Flexible panels are intended to conform to a supported curve during installation, not repeated rolling or folding.

Can I use it on a boat?

Renogy markets marine and outdoor use, but the installation still needs compatible materials, sealed penetrations, ventilation and protection from abrasion and foot traffic.

How much energy will it make per day?

That depends on sun hours, temperature, orientation, shade, dirt and system losses. The 50W nameplate is an STC laboratory rating, not a daily energy guarantee.
