Renogy

Renogy 320W N-Type Monocrystalline Solar Panels (2–10 Pack)

Renogy 320W N-Type Monocrystalline Solar Panels (2–10 Pack)

SKU: RSP320DC-BKx2-G1-US

$599.99
$599.99
View Cart

In stock — available to order

Need help before ordering? Call 888-495-5870 Contact our support team

Compact N-Type power from 640W to 3,200W

Build the right array with 2, 4, 6, 8 or 10 matching panels.

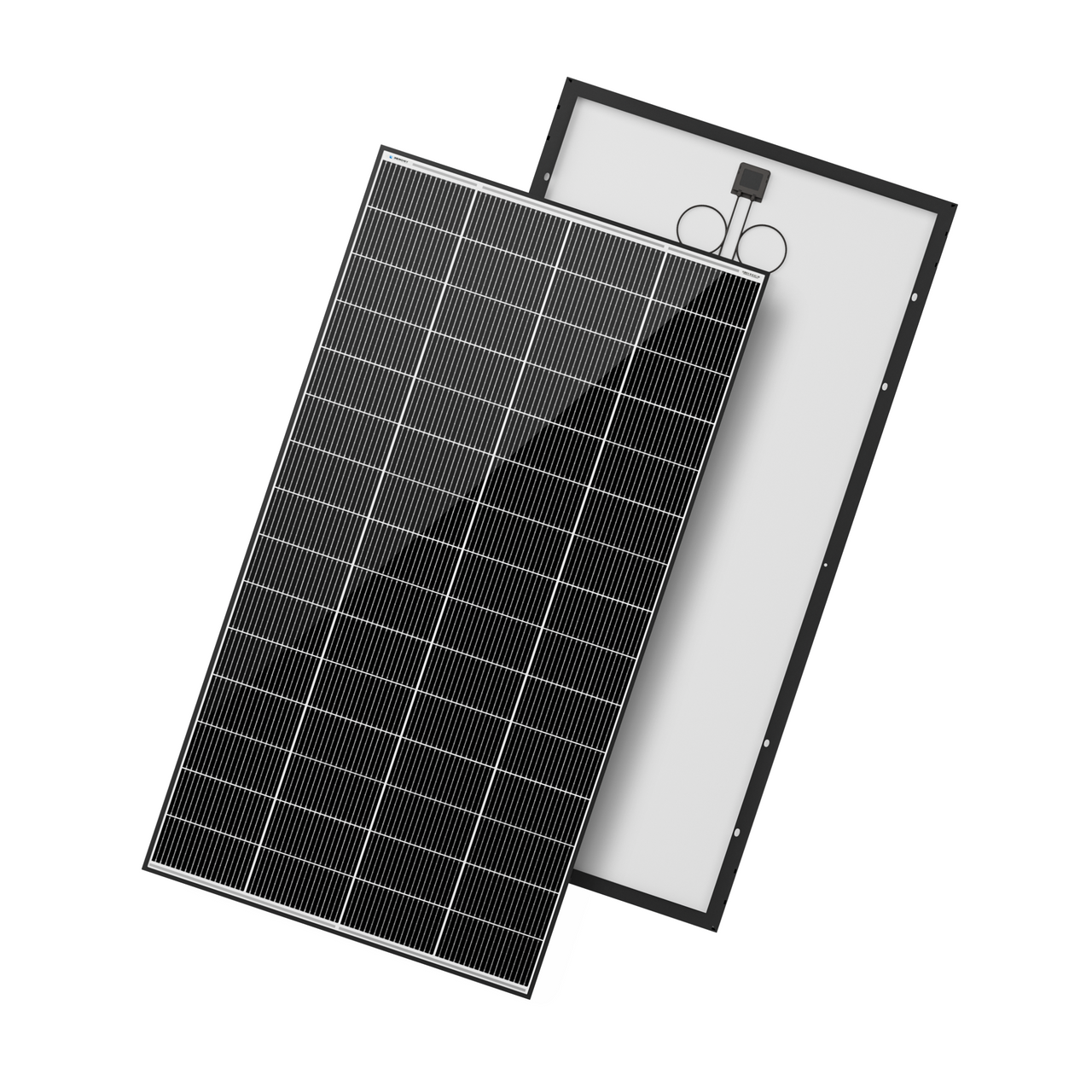

Choose a 2-, 4-, 6-, 8- or 10-panel pack of Renogy RSP320DC-BK modules. Each panel delivers 320W of rated output with N-Type monocrystalline cells, a compact footprint and a black frame for RV, cabin, ground-mount and off-grid solar projects.

640W–3.2kWRated output by selected pack
22.2%Module efficiency
32.9 lbWeight per panel
43.82VVoc per panel

More power from a smaller panel footprint

Each 320W module measures 64.6 × 34.7 × 1.4 inches. Renogy pairs N-Type cells with an 18-busbar design for strong conversion efficiency and improved performance in high temperatures. The IP68-rated junction box is built for long-term outdoor use.

Electrical specifications per panel

Maximum power 320W
Operating voltage / current 37.85V Vmp / 8.46A Imp
Open-circuit voltage / short-circuit current 43.82V Voc / 8.92A Isc
Maximum system voltage 1000V DC
Maximum series fuse 20A

Confirm system compatibility before ordering

Series wiring raises array voltage; parallel wiring raises array current. Check cold-weather Voc, controller or inverter input limits, conductor sizing, overcurrent protection, connector compatibility and mounting dimensions for the complete array. Do not mix panels with materially different electrical characteristics in the same string without a qualified system design.

What's included

  • The selected quantity of Renogy RSP320DC-BK 320W N-Type monocrystalline rigid solar panels
  • Factory output leads and solar connectors on each panel

Racking, roof attachments, extension cables, branch connectors, charge controller, inverter and batteries are not listed as included.

Warranty and ordering notes

Warranty coverage is governed by Renogy’s current written warranty for the exact model and purchase date. Review the current warranty document before ordering. This is an oversized product, so freight, remote-area or expedited charges may apply. Torven Power will contact you for approval before processing any additional shipping charge.

Pack options

Choose the array size that fits your project.

Pack Option Rated output
2 Panels 640W
4 Panels 1,280W
6 Panels 1,920W
8 Panels 2,560W
10 Panels 3,200W

Each option contains the selected number of matching 320W panels. Larger packs may arrive in multiple cartons.
