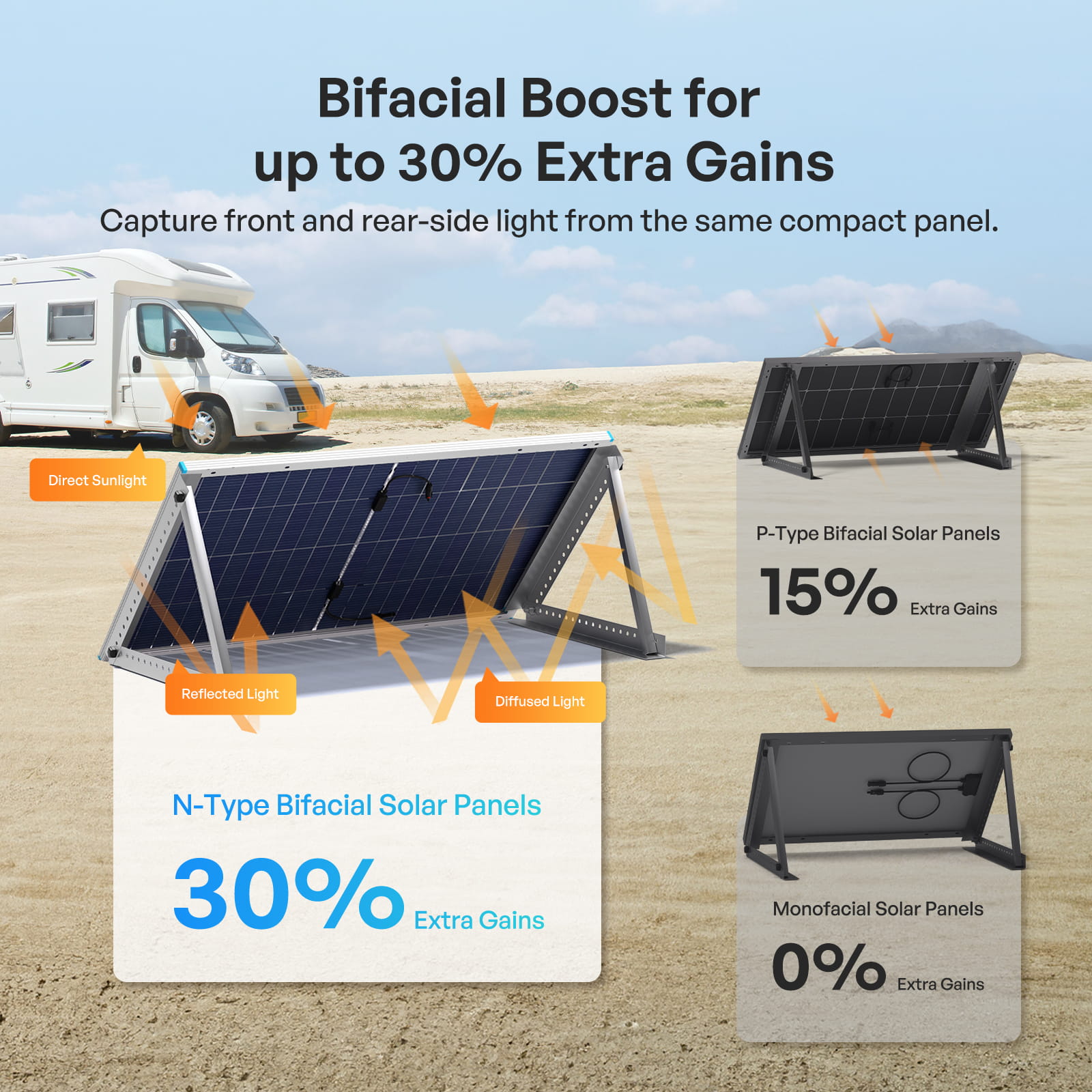

Bifacial energy collection
The front captures direct sunlight while the rear can use reflected light. Renogy states that favorable installations can produce up to 30% additional energy harvest, but actual gain is site dependent.
Renogy
Renogy 200W N-Type Bifacial Solar Panel
Renogy 200W N-Type Bifacial Solar Panel
SKU: RSP200DCT-G1-US
- Regular price
- $199.99
- Regular price
- Sale price
- $199.99
- Unit price
- per
Couldn't load pickup availability
In stock — available to order
- Free standard shipping on eligible Lower-48 orders. See shipping details
- 30-day return requests for eligible items after delivery. Review the return policy
- Price Match Guarantee for qualifying identical offers. Check eligibility
- Warranty information is listed in this product's details.
Need help before ordering?
Call 888-495-5870
Contact our support team
In stock
Compact bifacial solar generation
200 watts of N-Type output with rear-side energy potential.
The Renogy RSP200DCT is a compact rigid panel for RV, cabin, marine and off-grid arrays where module efficiency, manageable dimensions and bifacial construction matter.
200WRated front-side output
19.9%Module efficiency
29.6VOpen-circuit voltage
IP68Junction-box rating
More usable energy from a compact mounting footprint

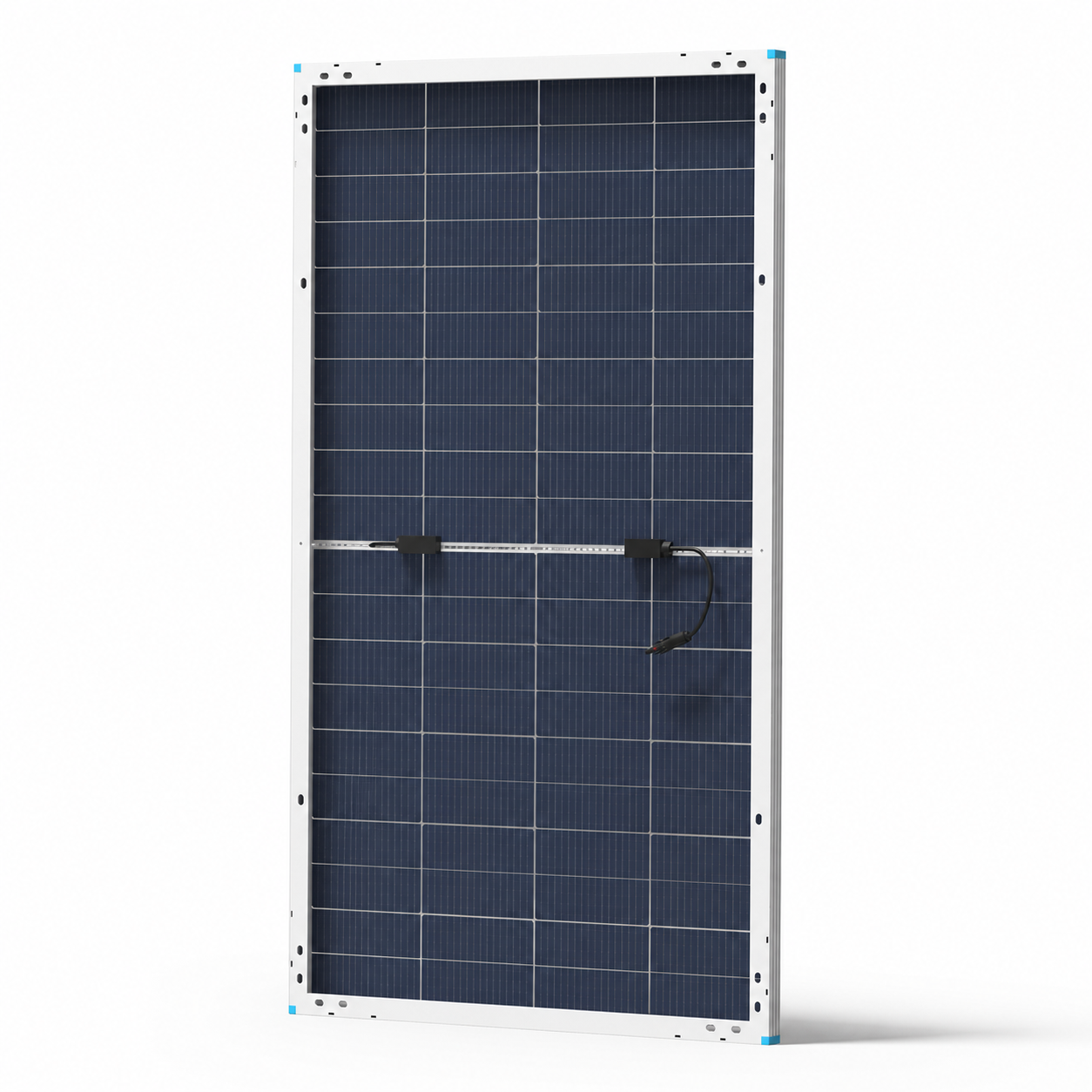

The RSP200DCT produces 200W from the front under standard test conditions while its transparent rear construction can collect reflected light that reaches the back of the cells. That makes it especially useful on raised or tilted mounts over brighter surfaces. Rear-side contribution varies with clearance, angle, surface reflectivity, shade and weather; this remains a 200W-rated module, not a guaranteed 260W panel.

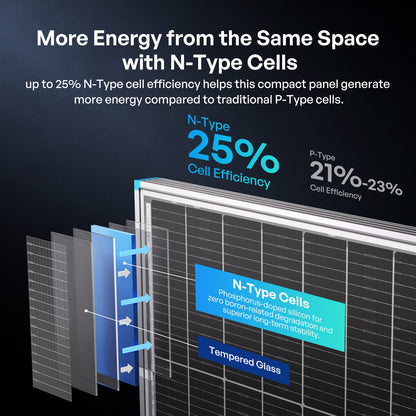

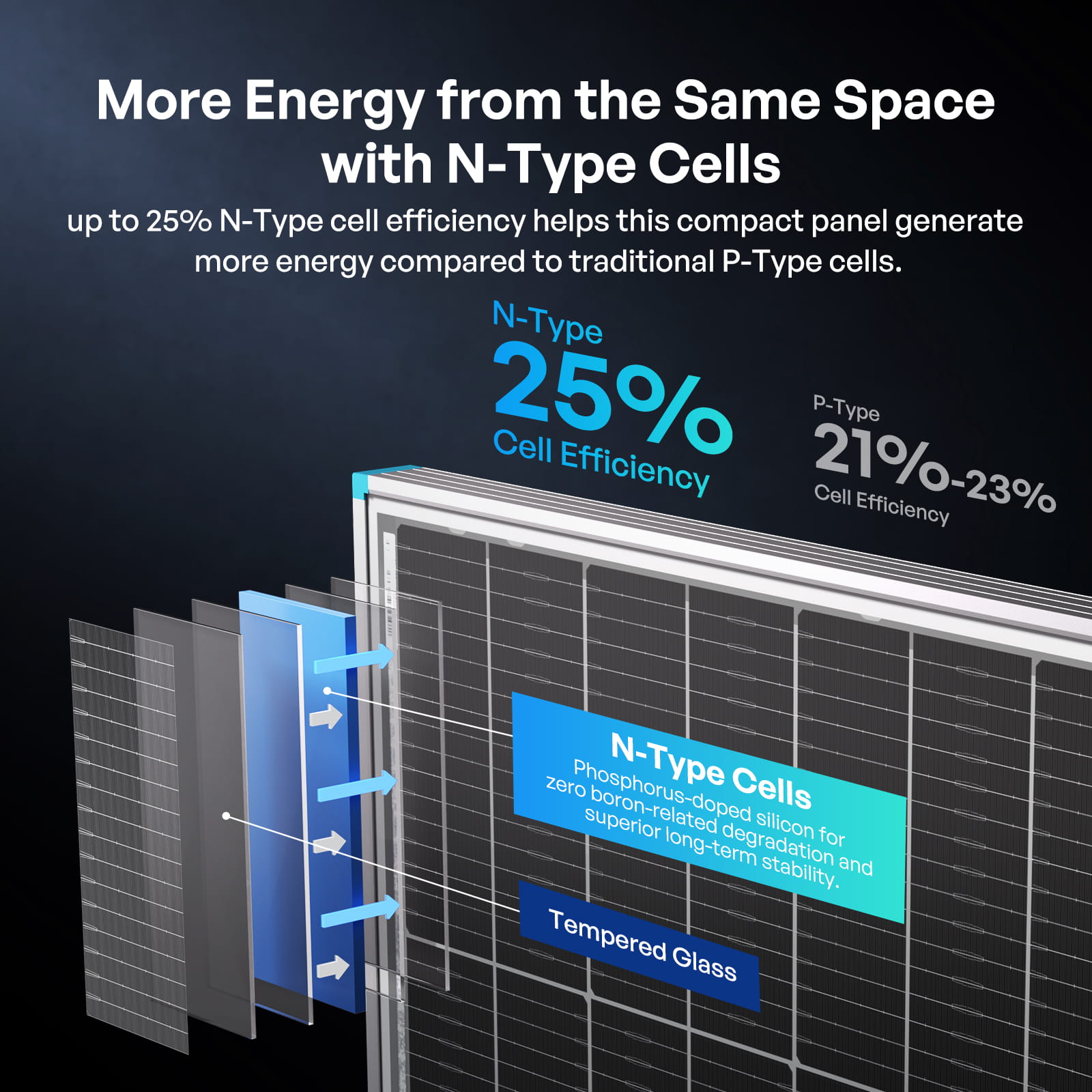

N-Type 16-busbar cells
N-Type monocrystalline construction and a 16BB layout support a 19.9% module-efficiency rating in a relatively compact rigid panel.
Two independent power zones
The half-cut, two-zone design allows the unshaded section to keep contributing when partial shade affects the other section.
Built for permanent mounting
An aluminum frame, pre-drilled mounting points and an IP68-rated junction box support properly designed RV, marine, cabin and ground-mount installations.
Best fit for
- RV, boat, cabin and small off-grid arrays with limited panel space
- Raised or tilted mounts with airflow and rear clearance

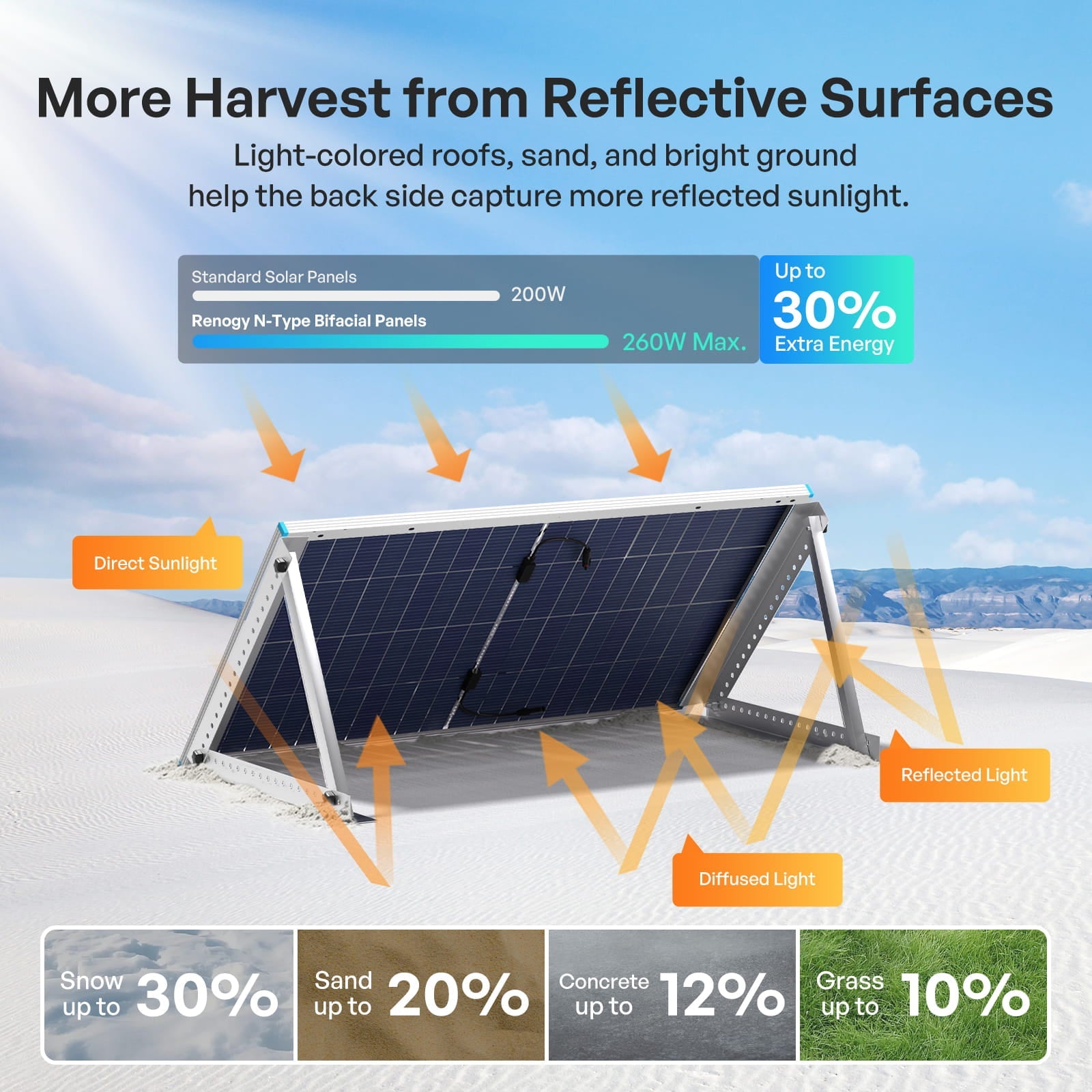

- Installations above snow, light roofing, concrete or other reflective surfaces
- Buyers who want a compact 200W rigid panel and can verify controller fit
Check before ordering
- Use a compatible solar charge controller or inverter; never connect the panel directly to a battery
- Check cold-corrected array Voc, total Isc, PV-input limits and maximum series-fuse requirements
- Confirm mounting dimensions, connector compatibility, wire size and overcurrent protection
- Do not mix it into an existing string based on wattage alone; compare Vmp, Imp, Voc and Isc
Bifacial reality checkA flush mount against a dark surface may provide little rear-side benefit. Give the back of the panel exposure to reflected light if bifacial gain is an important part of your design.
What's in the box
- One Renogy 200W N-Type bifacial rigid solar panel (RSP200DCT-US)
Mounting hardware, cabling, adapters, protection devices, controllers, inverters and batteries are included only when specifically listed above.
Buyer Questions
Frequently asked questions
Is this a 200W or 260W solar panel?
It is rated at 200W under standard test conditions. Favorable rear-side reflection can add energy harvest, but the result is not guaranteed and depends on installation conditions.
Will bifacial technology help on a flat, dark RV roof?
The panel will operate, but rear-side gain may be limited. Clearance, tilt and a brighter reflective surface increase the opportunity for rear collection.
Can it charge a 12V battery?
Yes, through a correctly sized compatible charge controller. Do not connect the panel directly to a battery.
Should I wire several panels in series or parallel?
Series wiring adds voltage and parallel wiring adds current. The correct layout depends on controller limits, battery voltage, temperature, cable distance and panel count.
Can I add it to an existing solar string?
Only after comparing the electrical characteristics of every module and checking the controller, inverter or optimizer design. Matching wattage alone is not enough.
Product Data
Technical Specifications
| Specification | Details |
|---|---|
| Product | Renogy 200W N-Type Bifacial Solar Panel |
| Torven SKU | RSP200DCT-G1-US |
| Renogy model / MPN | RSP200DCT-US |
| Rated maximum power | 200W STC |
| Cell technology | N-Type monocrystalline, bifacial, 16BB |
| Vmp / Imp | 25V / 8A |
| Voc / Isc | 29.6V / 8.7A |
| Module efficiency | 19.9% |
| Maximum system voltage | 600V DC |
| Maximum series fuse | 25A |
| Operating temperature | -40°F to 185°F |
| Dimensions | 51.7 × 30.1 × 1.2 in |
| Net weight | 22.71 lb |
| Junction box / connectors | IP68 |
| Materials warranty | 10 years, subject to Renogy's current written terms |
| Output warranty | 25 years, subject to Renogy's current written terms |
Installation note: Confirm the current Renogy manual and every connected component's limits before installation. Electrical values are stated at standard test conditions unless noted otherwise.
Need help checking fit? Contact Torven Power with your battery voltage, controller or power-station model, planned panel count and wiring layout.
