• 100A/300A Red/Black Busbar Renogy

Renogy

Renogy 100A Busbar

Renogy 100A Busbar

SKU: RPD100RBB-G1-US

$27.48
$27.48

Notify me when this product is available:

View Cart
Need help before ordering? Call 888-495-5870 Contact our support team

Out of stock

A compact 100A DC distribution point

Organize compatible battery and equipment conductors on one covered busbar.

The Renogy RPD100RBB is a 100A busbar for consolidating compatible low-voltage DC connections. Its nickel-plated brass conductor, reinforced housing and removable inspection windows support cleaner distribution in RV, marine and small off-grid systems.

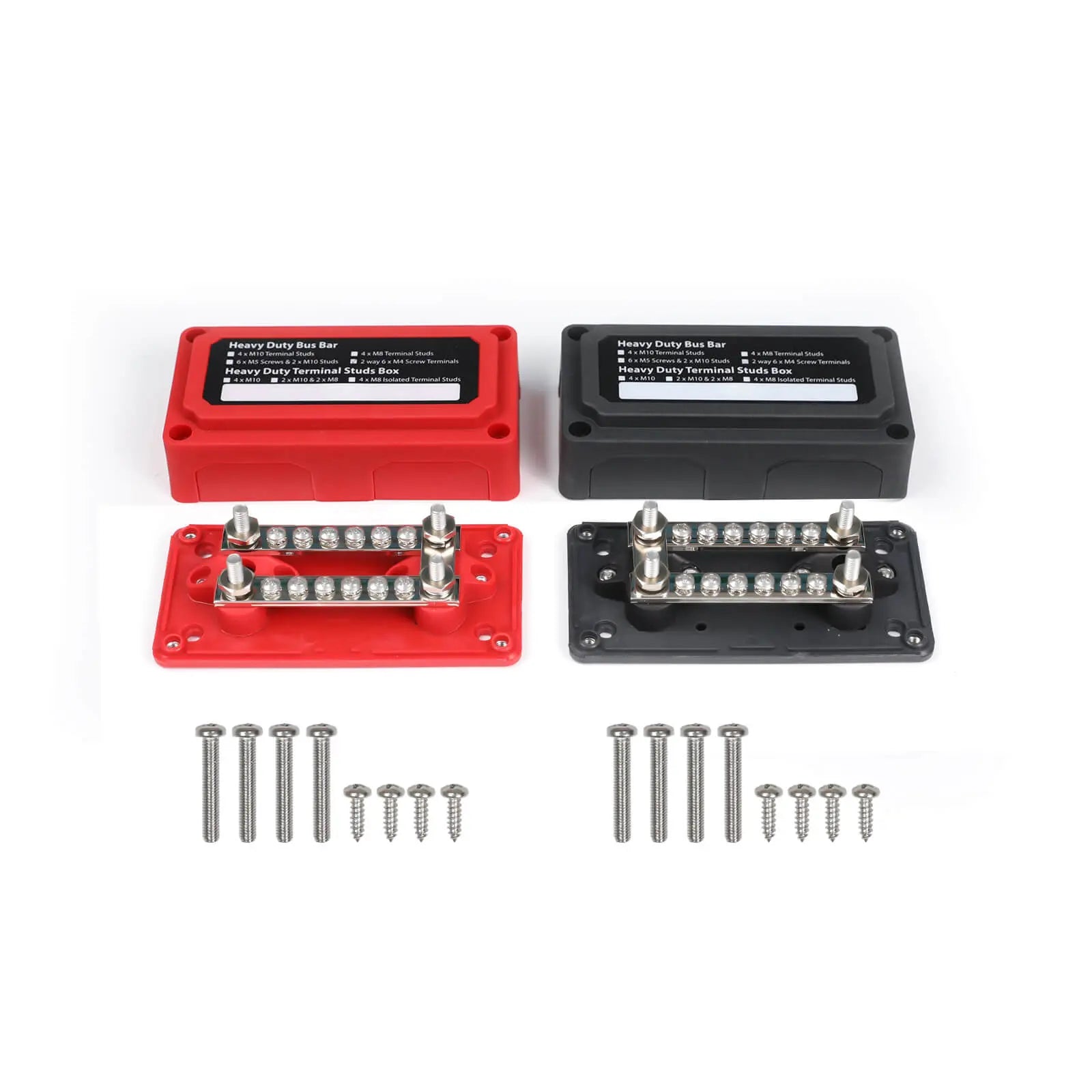

Renogy 100A Busbar — product view

At a glance

Verified numbers for the exact product family

100ARated current
48V DCMaximum listed voltage
5.43 inOverall listed length
1 busbarQuantity in this listing
A busbar distributes power—it does not protect every branch

Add the required source and branch overcurrent protection. Never treat the busbar cover or current label as a substitute for fuses, breakers, conductor sizing and terminal covers elsewhere in the system.

Why this Renogy product

Cleaner connection management for a modest DC system

Central landing pointMultiple compatible conductors can share one organized distribution node rather than stacking every lug on a battery terminal.
Nickel-plated brassThe current-carrying bar uses corrosion-resistant plated brass for approved installations.
Service accessRemovable cover windows allow inspection while helping shield energized hardware.

System fit

Check both total current and every terminal connection.

Keep combined continuous current within 100A and the system at or below 48V DC. Size each branch conductor and protection device independently, use compatible lugs and torque every connection to the current instructions.

PolarityUse the busbar for one polarity only and identify it clearly. Do not place positive and negative conductors on the same bar.
MountingInstall on a stable, nonconductive surface with clearance for cable bend radius, covers and service access.

In the box

What this listing is documented to include

  • One Renogy 100A busbar
  • Protective cover and mounting hardware documented for the listing

Branch fuses or breakers, cables, lugs, second-polarity busbar and enclosure are not included.

Product confidence

One-year busbar warranty

Renogy lists a 1-year material-and-workmanship warranty for this accessory. Eligibility, exclusions and remedies follow the current written terms for the exact item.

Common questions

Buyer FAQ

Does this replace my fuses?

No. A busbar distributes current; the source and each branch still need protection required by the circuit design.

Can I use it for both positive and negative?

Use one busbar for one polarity. A two-polarity system normally uses separate positive and negative bars.

Is it suitable above 100A?

No. Keep the complete connection within the exact busbar's current and voltage ratings.

Which color will arrive?

This Torven listing does not clearly expose a color option. If cover color matters for an existing installation, ask Torven Power to confirm the exact RPD100RBB configuration before ordering.

Renogy 100A Busbar Renogy Renogy 100A Busbar

Torven Power Planner

Not sure this product fits your setup?

Build a personalized power plan before you order. We’ll estimate the capacity, output, voltage, runtime, and solar input your setup needs—then connect you with real products from our catalog.

  1. Tell us what you need to power.
  2. Set your runtime and solar goals.
  3. Review products matched to your answers.
BUILD MY POWER PLAN  → ASK A POWER SPECIALIST

Planner results are estimates. Confirm product compatibility and installation requirements before purchase.
