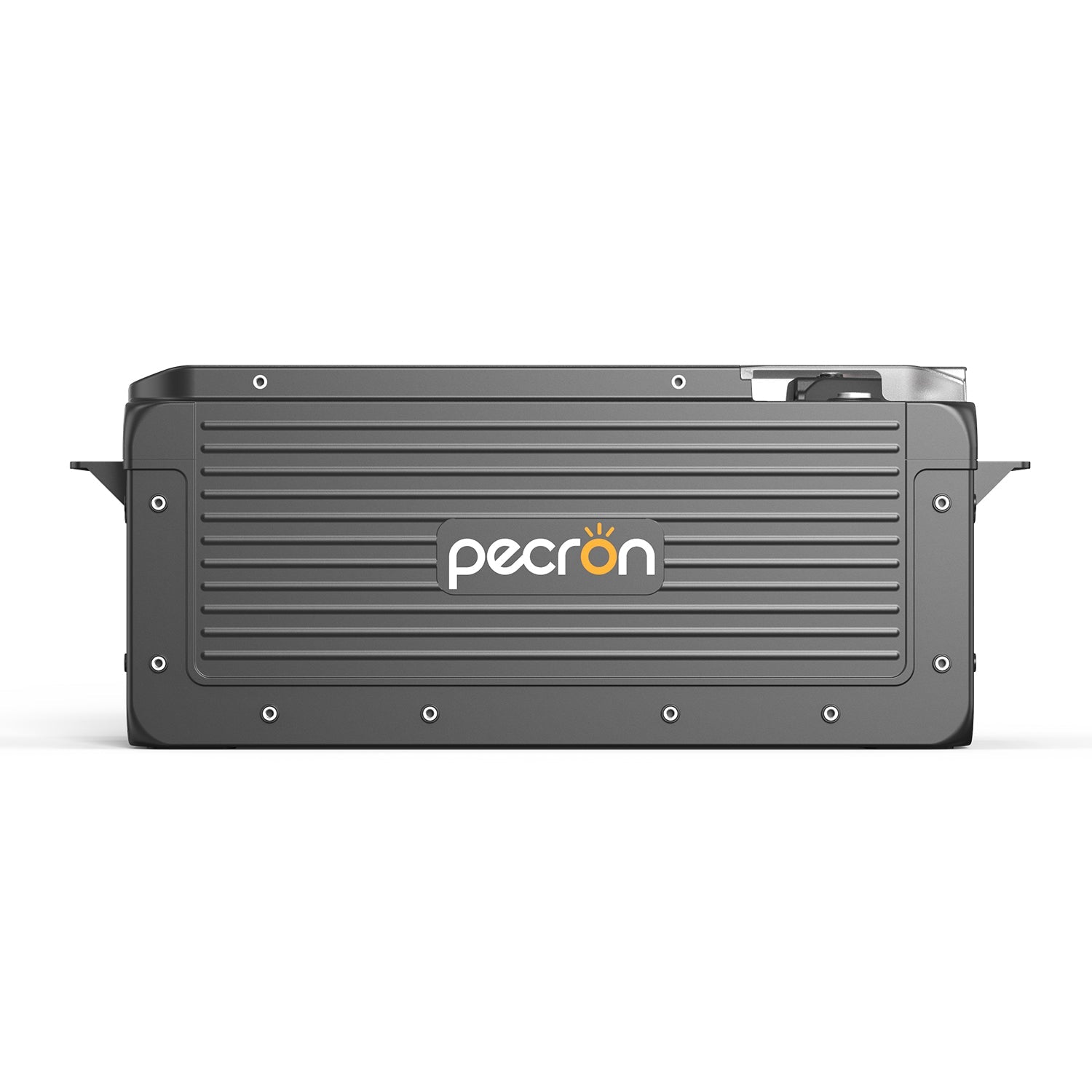

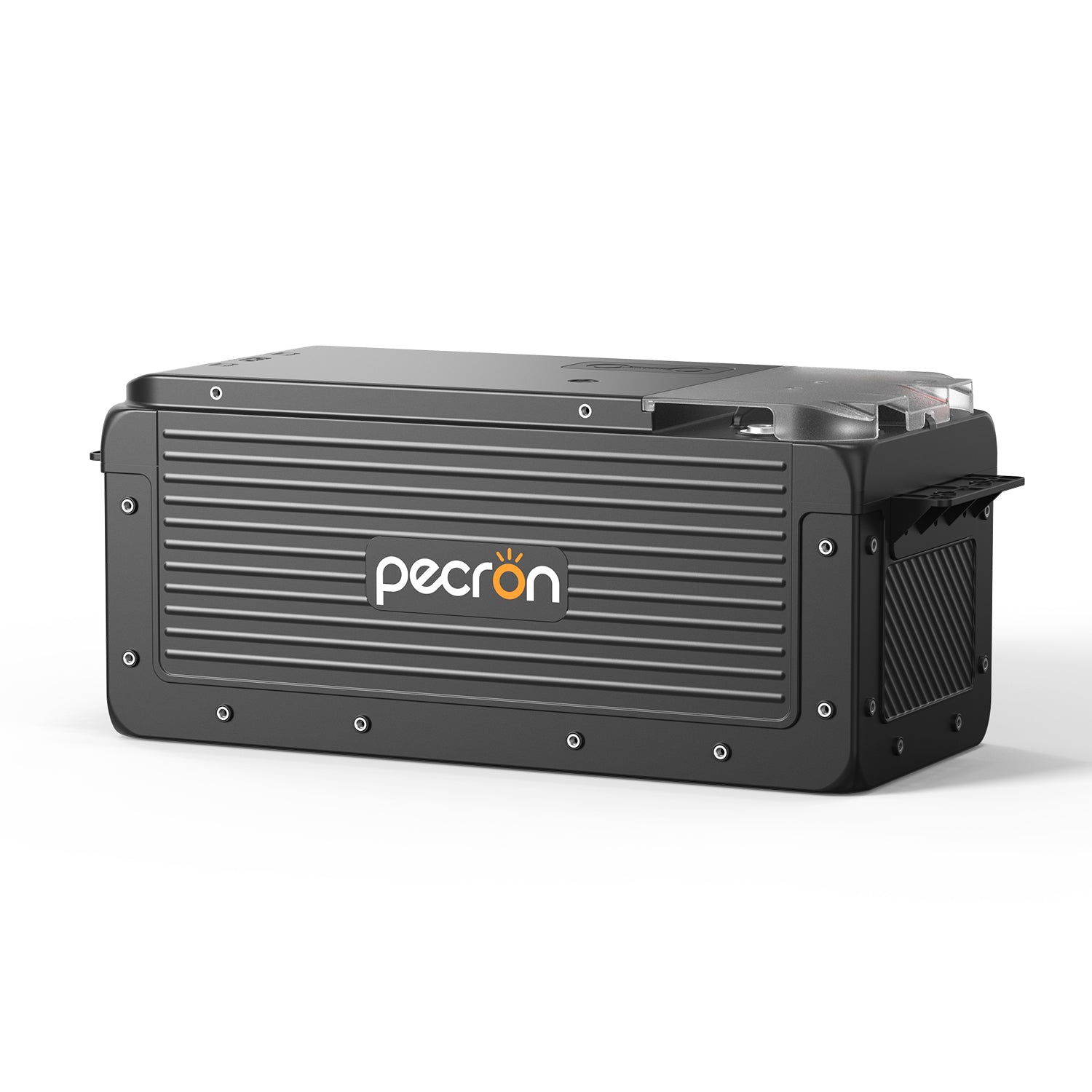

PECRON WB12200 12.8V 200Ah 2560Wh LiFePO4 Battery
PECRON WB12200 12.8V 200Ah 2560Wh LiFePO4 Battery
SKU: PECRON-WB12200
- Regular price
- $399.00
- Regular price
- Sale price
- $399.00
- Unit price
- per
Estimated delivery: Calculating arrival dates…
For in-stock orders placed today. Standard Lower 48 delivery; availability and carrier scheduling may affect arrival.
Couldn't load pickup availability
In stock — available to order
- Free shipping in the Lower 48. No order minimum. See shipping details
- 30-day returns — contact Torven and we will help you get started. Review the return policy
- Price Match Guarantee for qualifying identical offers. Check eligibility
- Warranty information is listed in this product's details.
A high-capacity 12V battery built for real system work
2,560Wh of LiFePO4 storage—with the BMS, heating and connections already planned in.

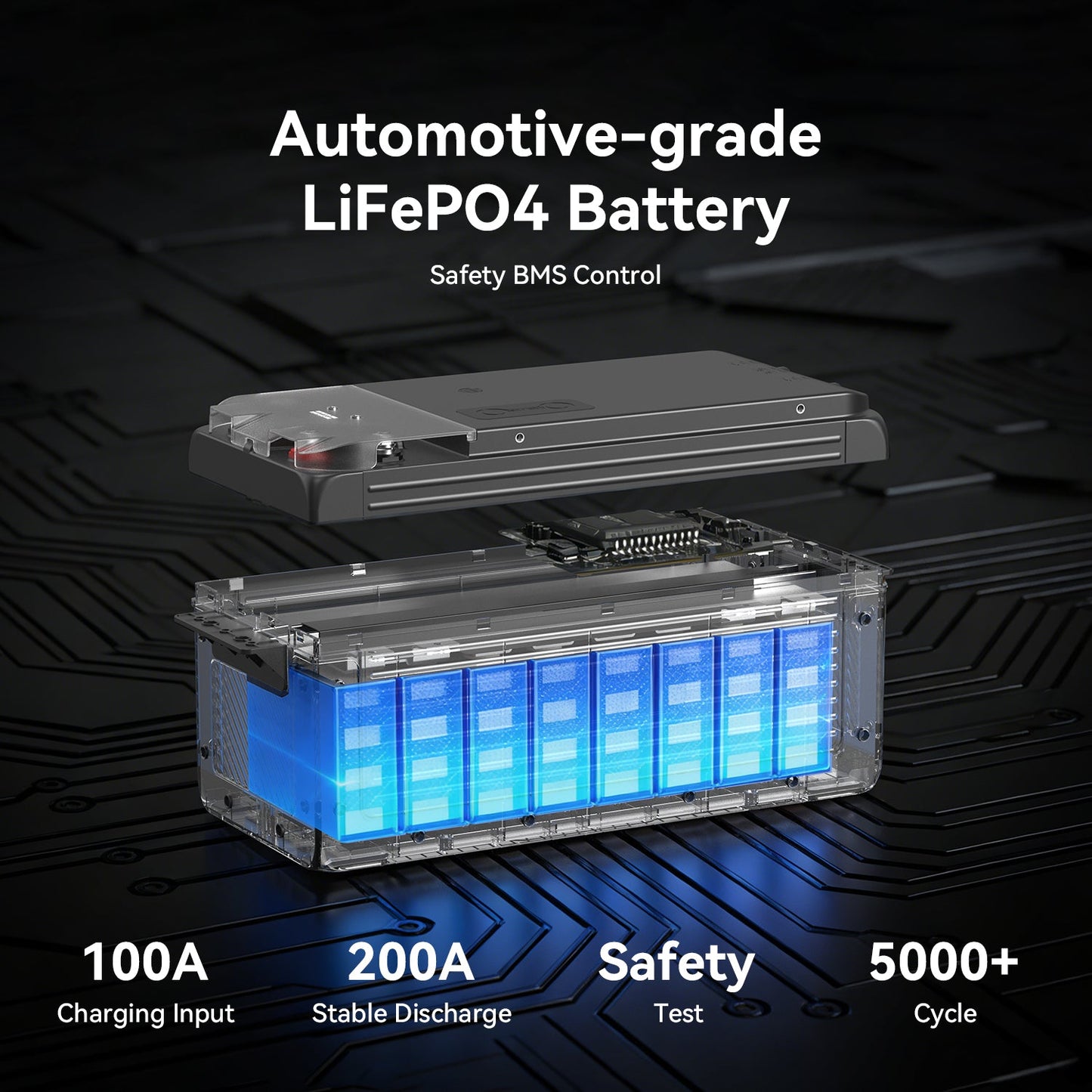

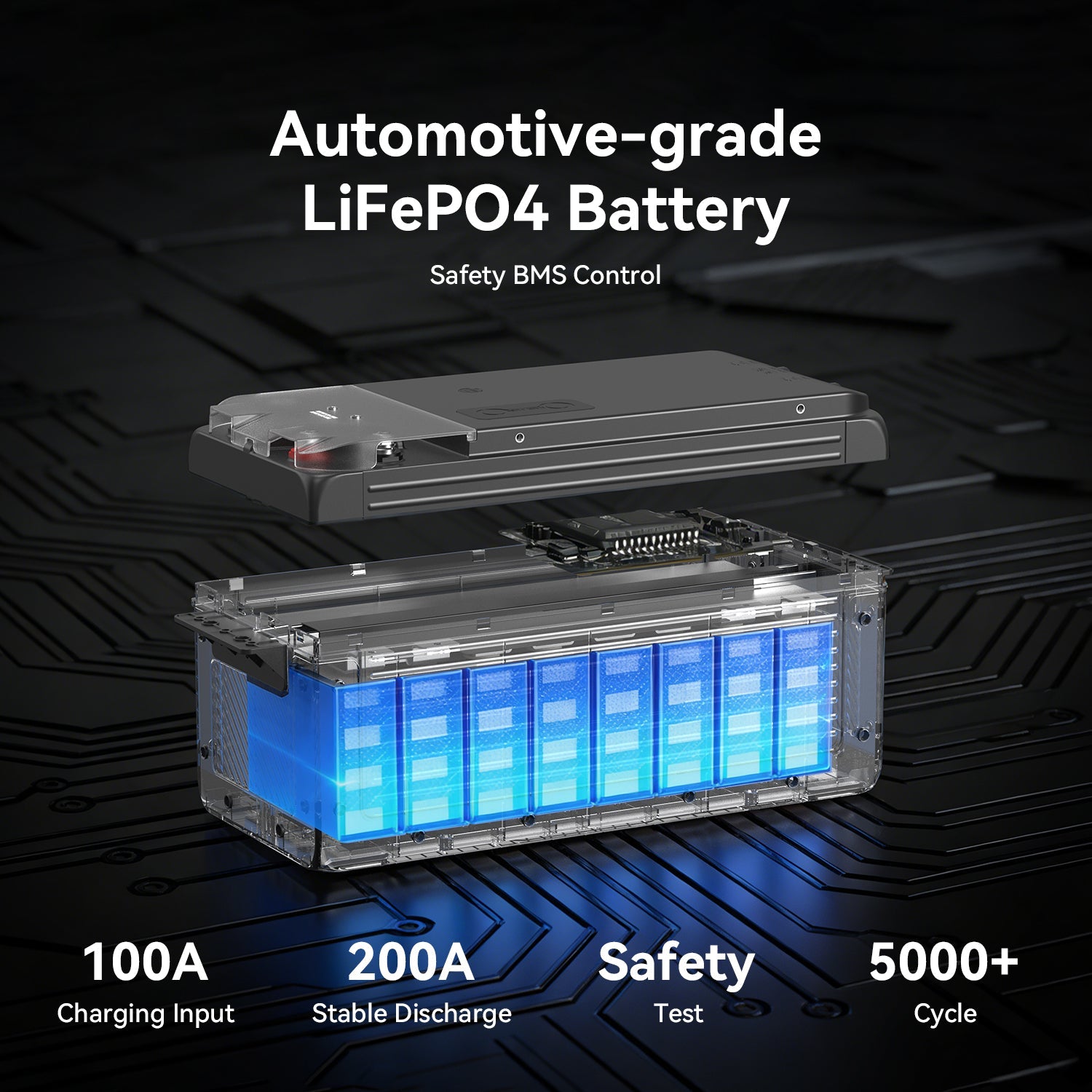

The PECRON WB12200 is a 12.8V, 200Ah deep-cycle battery for correctly designed RV, marine, cabin, solar and backup systems. Its integrated BMS, automatic battery heating, app monitoring, covered terminals and high-current connection options make it more system-ready than a basic drop-in battery case.
At a glance
The core numbers for sizing a 12V system
An inverter, charger, solar charge controller, correctly sized cables, overcurrent protection and disconnects may be required for your application. Do not use it as an engine-starting battery unless PECRON’s written documentation expressly approves that application.

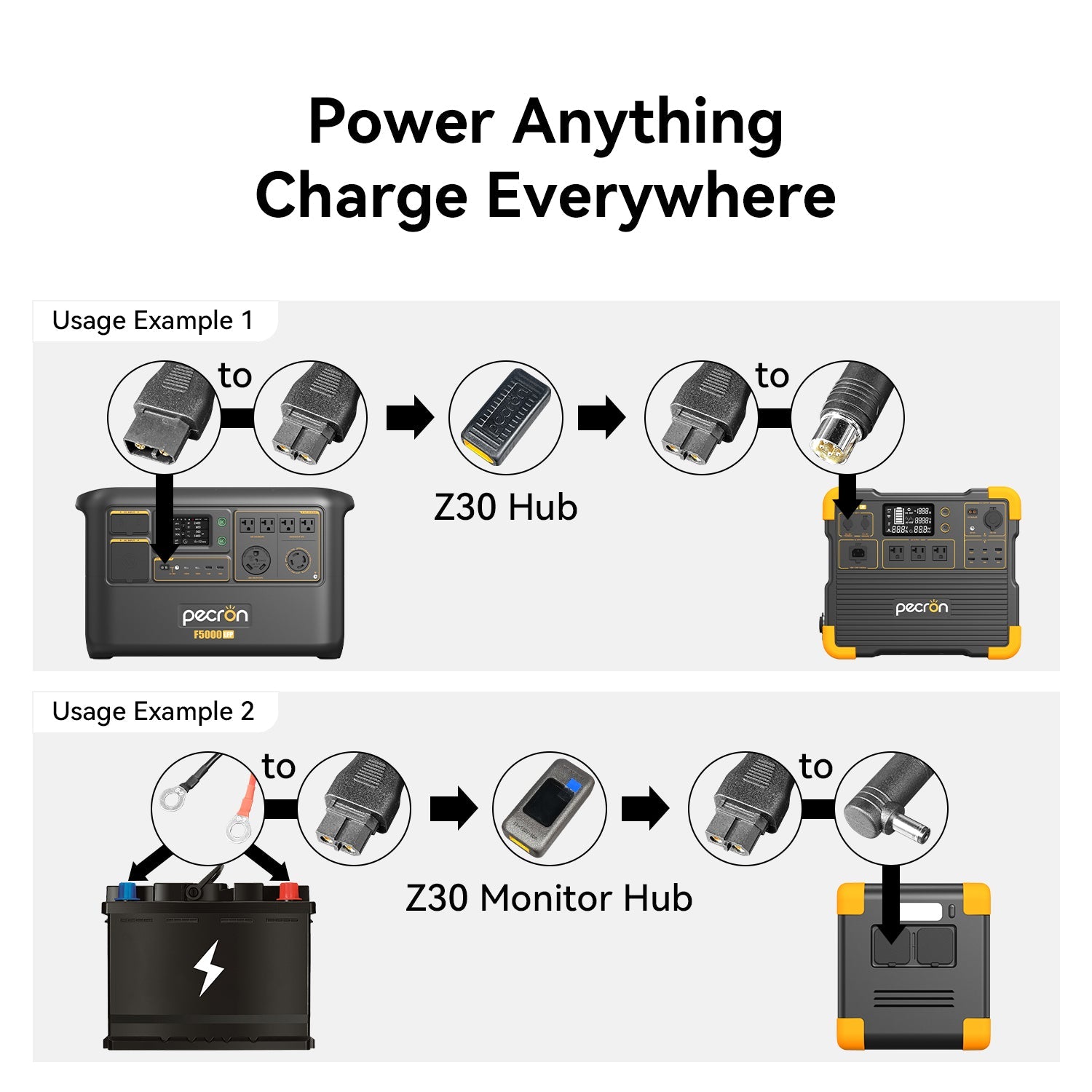

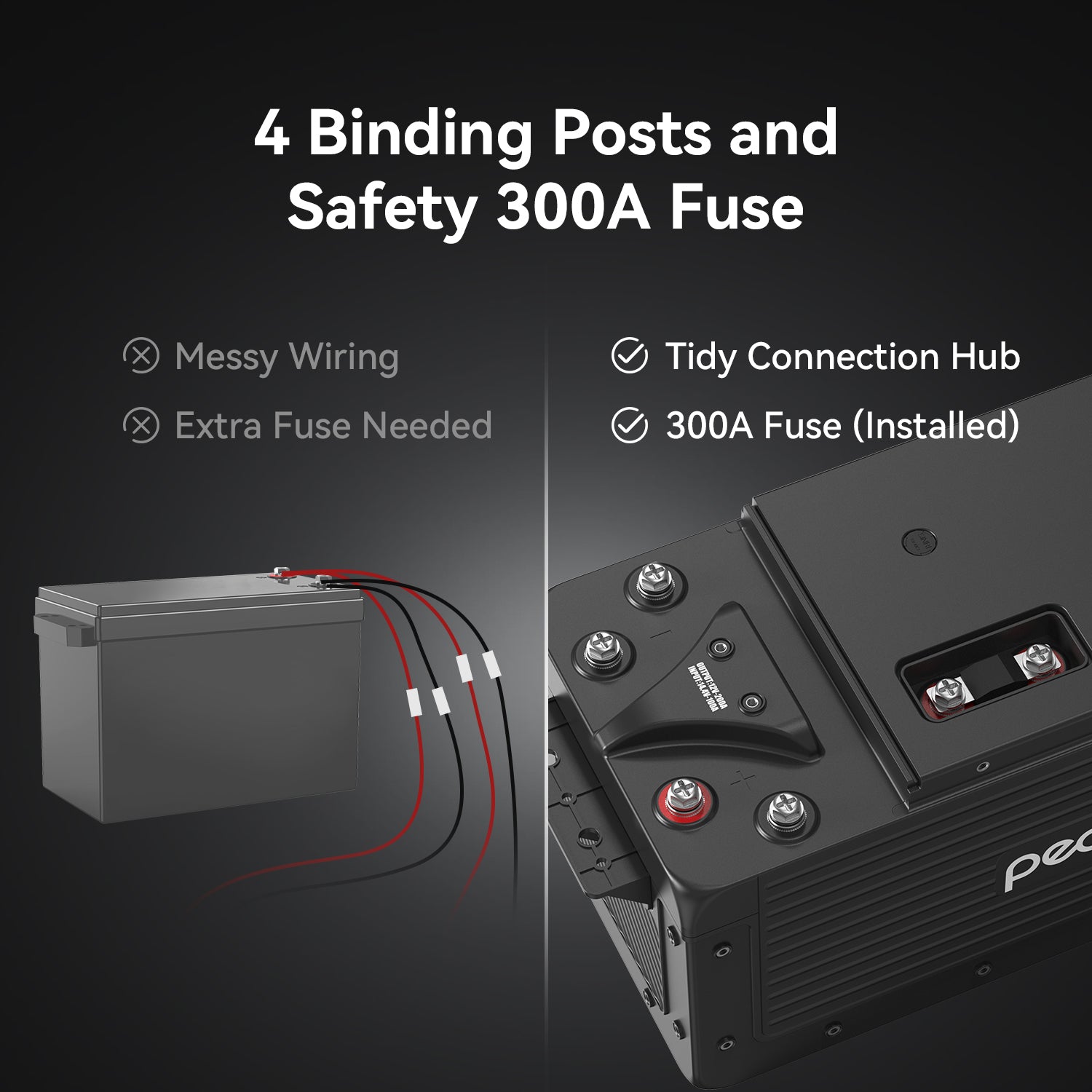

Connection architecture
High-current posts for the system, XT90 for a second path

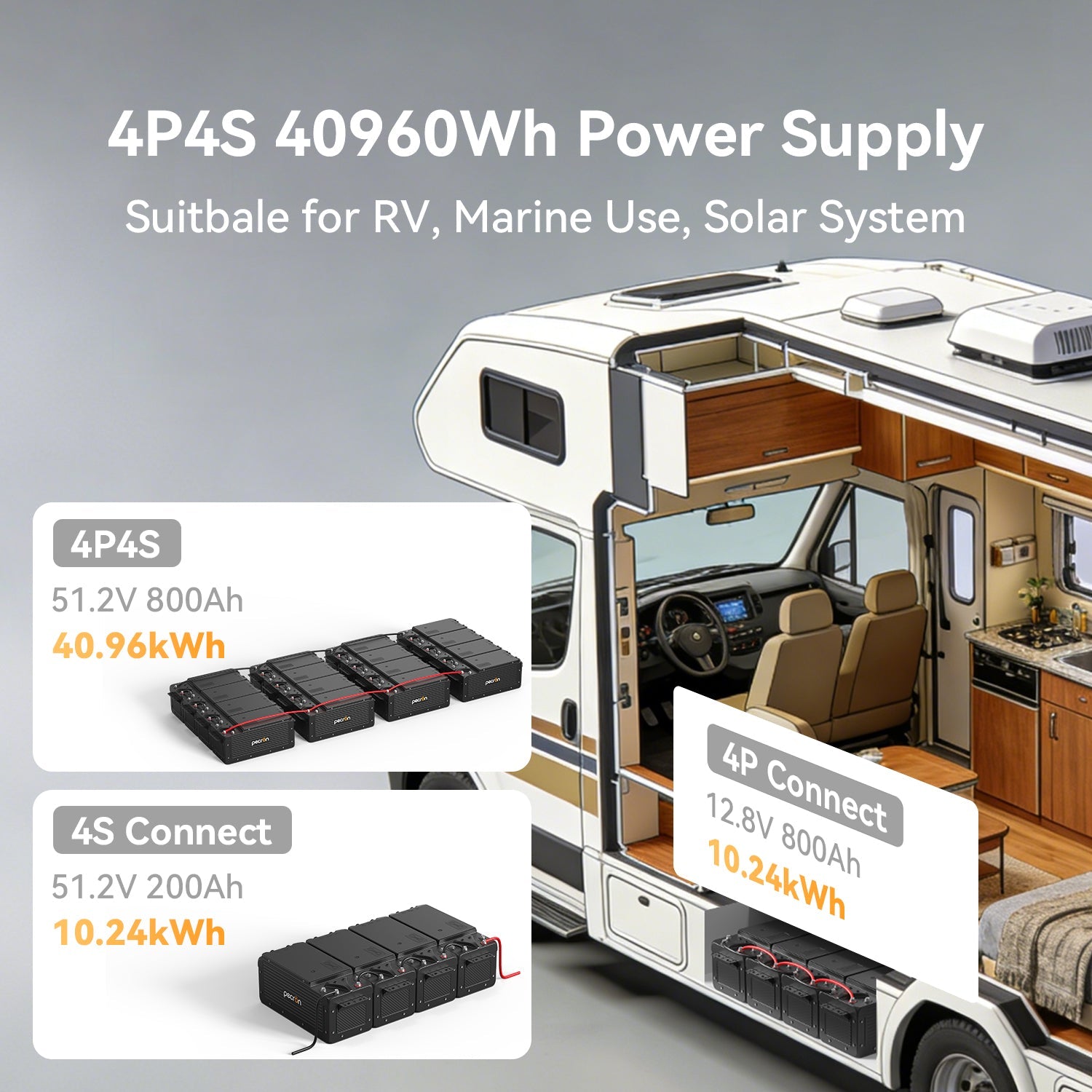

Where it fits
A flexible storage block for custom 12V builds
PECRON advertises multi-battery expansion, but series and parallel limits, matching requirements and required connection hardware must come from the current WB12200 manual. Do not mix battery models, capacities, ages or states of charge unless the manufacturer expressly permits it.
Designed for repeated cycling
3,500 cycles to 80%+ capacity
PECRON rates the WB12200 to retain at least 80% capacity after 3,500 cycles. It carries an IP54 rating, which means protection against limited dust ingress and water spray—not waterproof or submersible construction. PECRON lists a 3+2-year warranty under its current written terms.
Before installation
Five checks that matter more than the amp-hour label
- Voltage: verify every charger, inverter and 12V load is compatible with a 12.8V LiFePO4 battery.
- Current: calculate continuous and surge current before selecting cable, fuse and disconnect ratings.
- Mounting: secure the 48.5 lb battery against movement and protect the terminals from accidental short circuits.
- Temperature: PECRON lists −4°F to 113°F for charging and 32°F to 113°F for discharge and storage.
- Environment: keep the battery dry and ventilated; IP54 does not make it suitable for immersion or unprotected exposure.
Common questions
WB12200 FAQ
Can I connect an appliance directly to this battery?
Only a correctly rated 12V DC load should be connected through appropriate wiring and protection. Standard household AC appliances require a compatible inverter sized for both continuous and startup demand.
Can I charge it directly from a solar panel?
Not without a properly configured solar charge controller. The controller must accept the panel array and provide the LiFePO4 charging profile and limits specified for the WB12200.
Does automatic heating mean I can ignore cold-weather limits?
No. Follow PECRON’s current manual for heater activation and temperature limits. The published range is −4°F to 113°F for charging and 32°F to 113°F for discharge and storage.
Is it waterproof?
No. IP54 is not an immersion rating. Install the battery in a protected location and keep the terminals, connectors and electronics away from standing water.
Product Data
Technical Specifications
| Specification | Details |
|---|---|
| Battery capacity | 2,560Wh (12.8V / 200Ah) |
| Battery chemistry | LiFePO4; 3,500 cycles to 80% capacity |
| Main DC output | Binding posts, 10-14.4V DC, 200A max |
| XT90 output | Up to 50A |
| Charging input | Binding posts, 14.2V DC, 100A max; XT90 50A max |
| Protection and controls | BMS, smart app, automatic heating, 300A fuse |
| Ingress rating | IP54 |

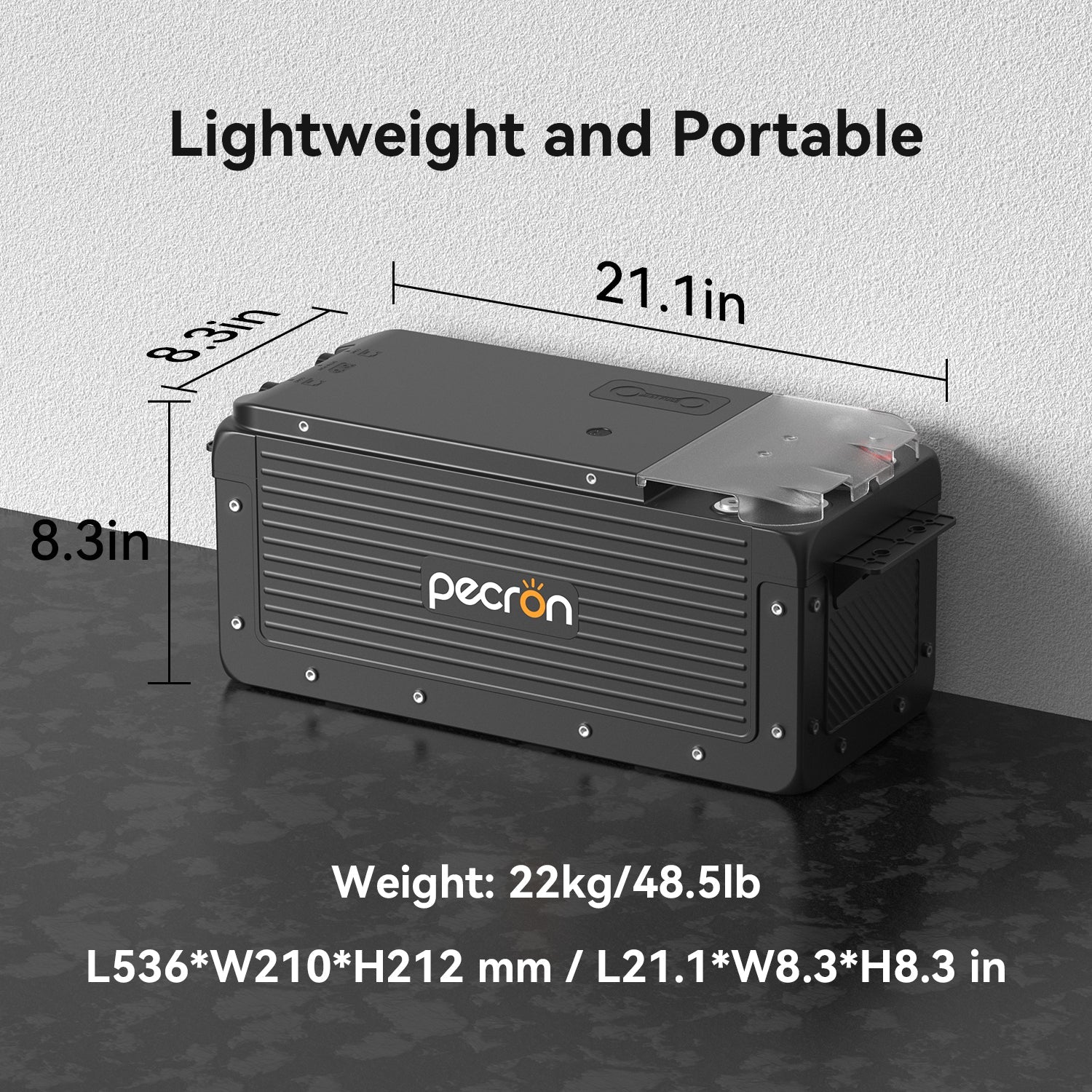

| Dimensions | 21.1 x 8.3 x 8.3 in |
| Weight | Approximately 48.5 lb |
| Warranty | 5 years (3 years plus 2-year extension; registration may be required) |
