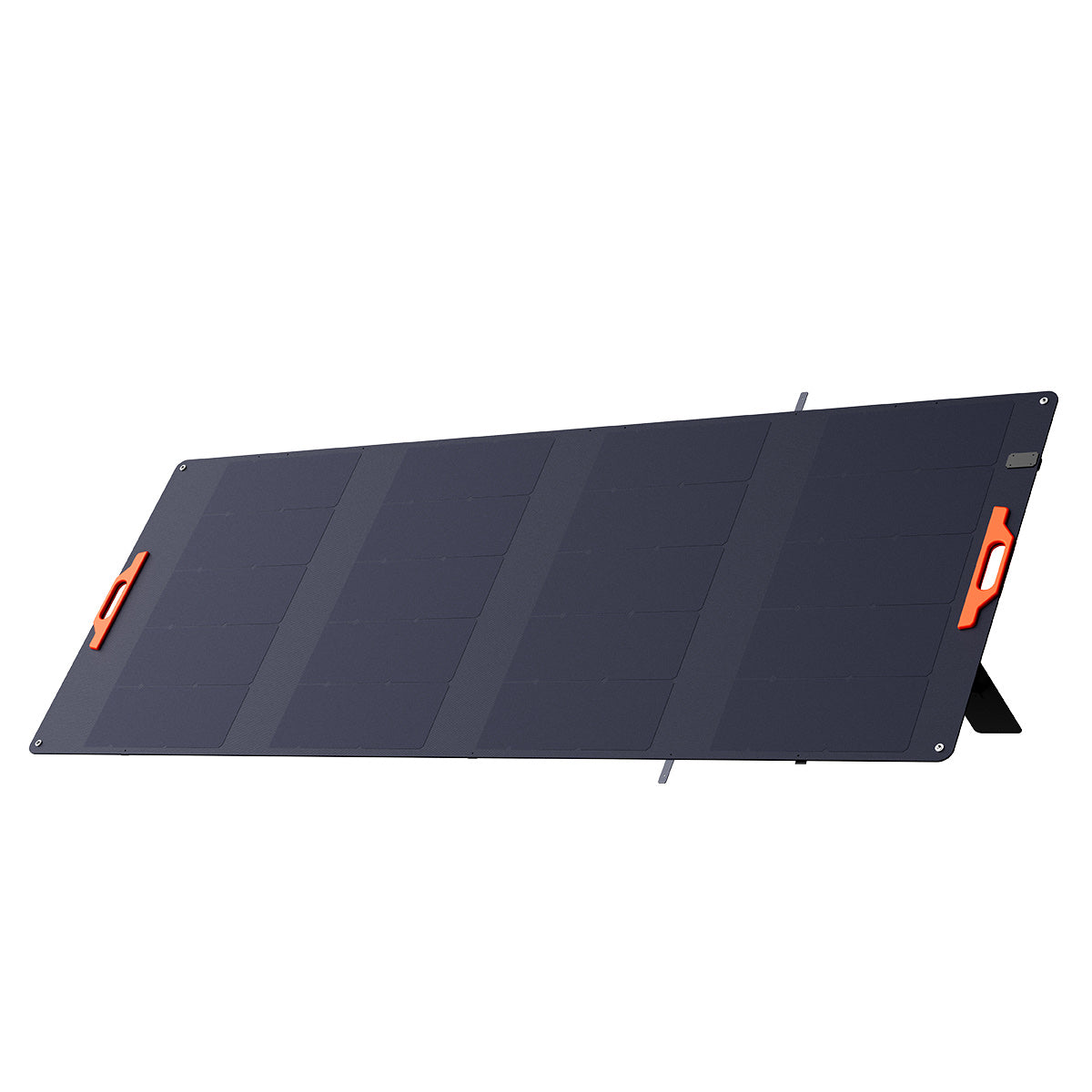

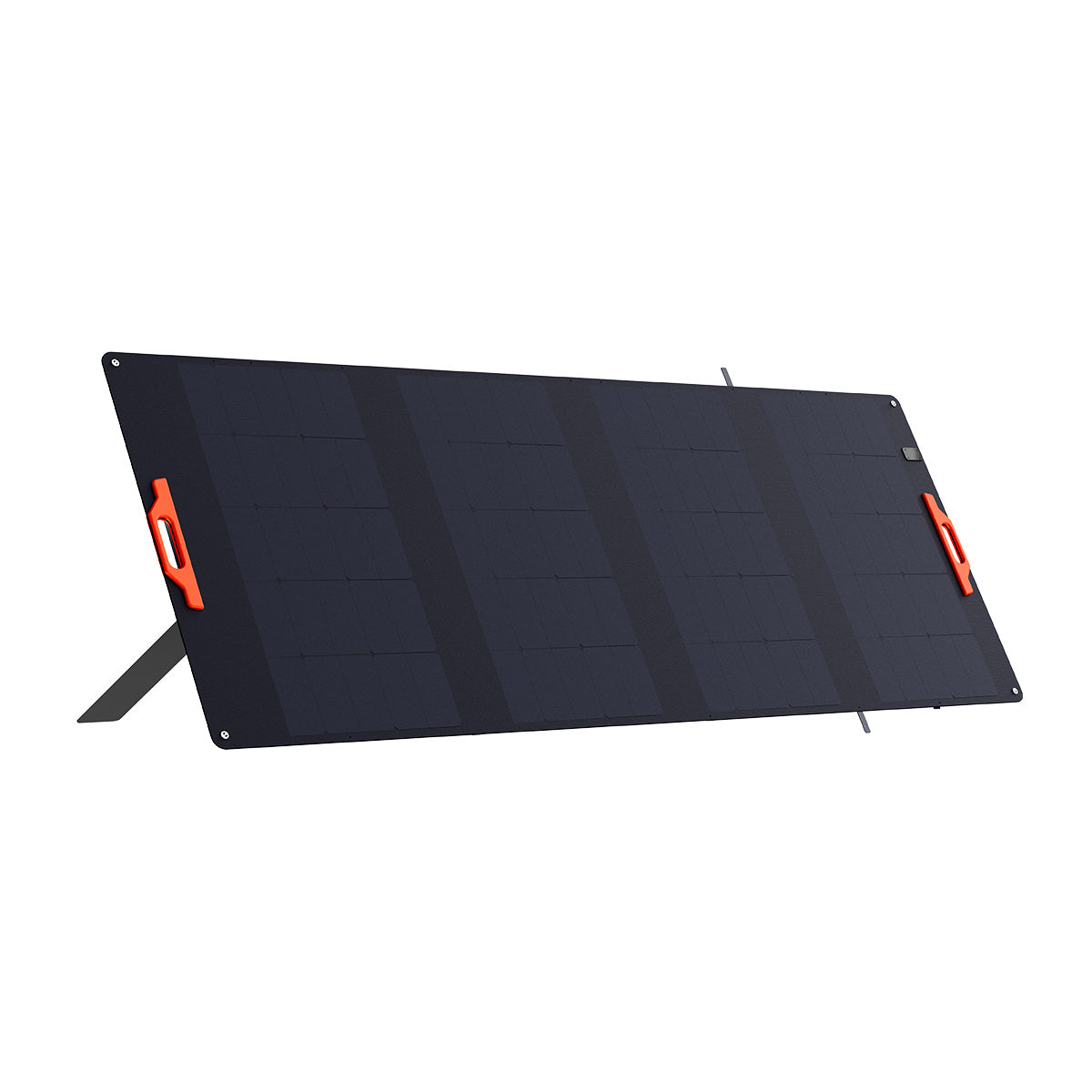

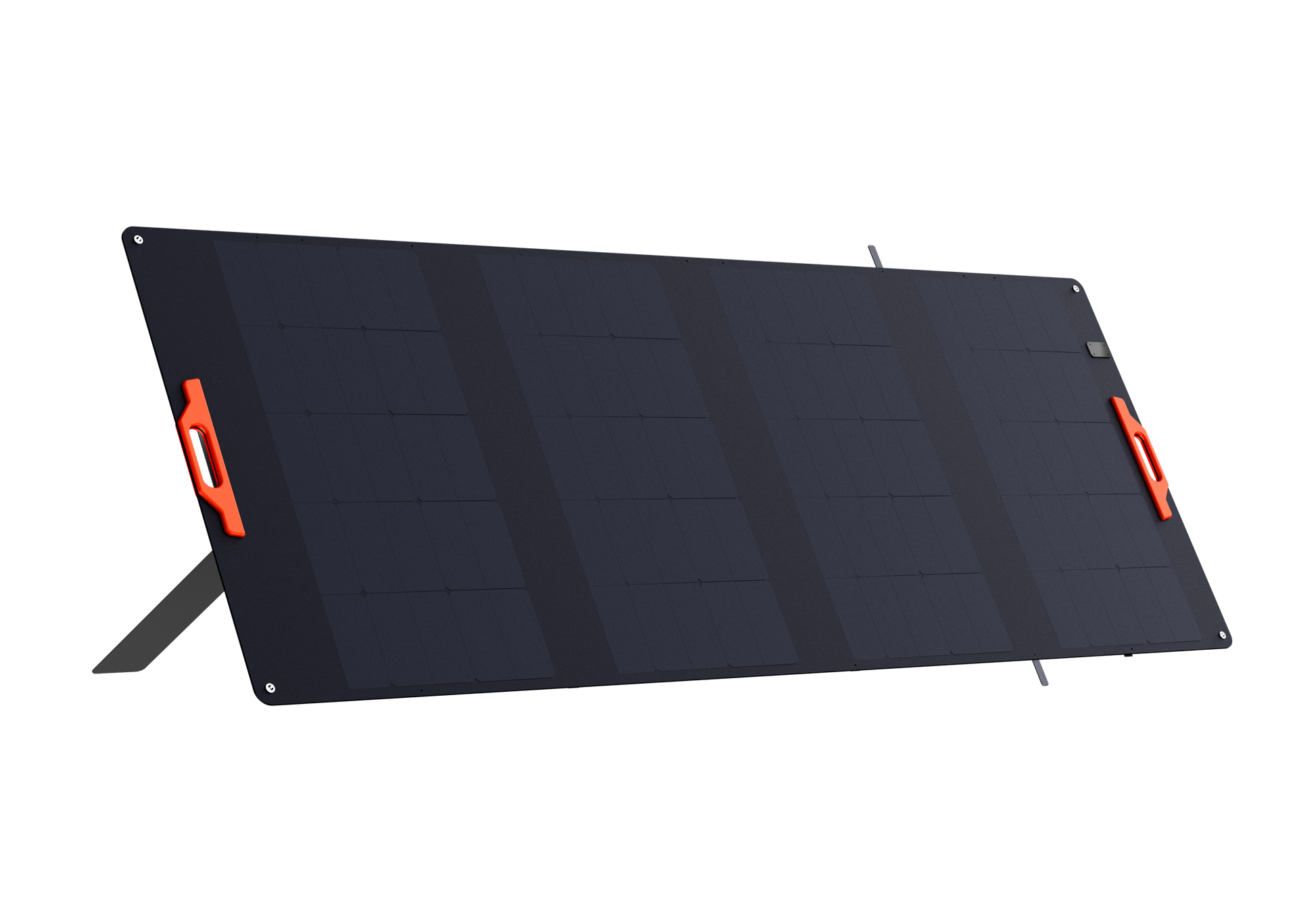

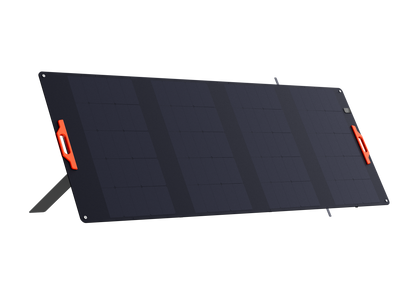

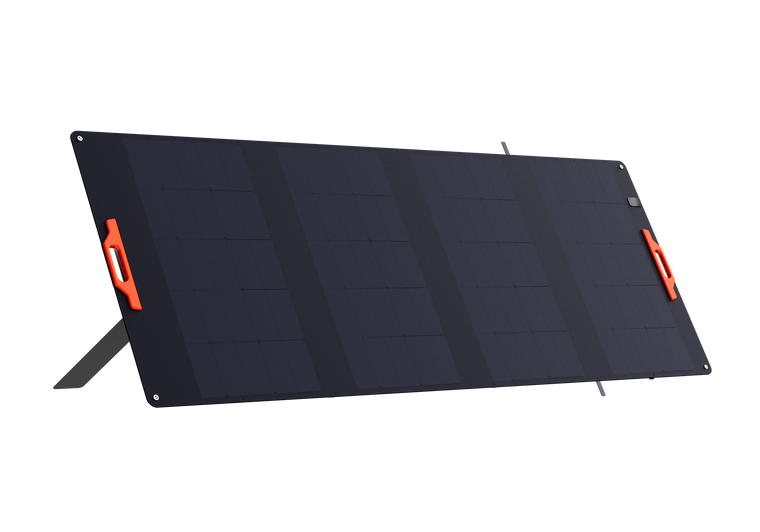

OSCAL PM400 SE 400W Foldable Solar Panel
OSCAL PM400 SE 400W Foldable Solar Panel
SKU: OSCAL-PM400SE-US
- Regular price
- $499.00
- Regular price
- Sale price
- $499.00
- Unit price
- per
Couldn't load pickup availability
In stock — available to order
- Free standard shipping on eligible Lower-48 orders. See shipping details
- 30-day return requests for eligible items after delivery. Review the return policy
- Price Match Guarantee for qualifying identical offers. Check eligibility
Bring more solar capacity to the setup
The OSCAL PM400 SE is an exact 400W ±10% SE-model foldable panel with a maximum-power operating point of 36V ±10% / 11.1A ±10%, 24.60% monocrystalline cell efficiency, ETFE lamination, MC4 connection, and an IP67 panel rating.
At a glance
Vmp 36V ±10%; Imp 11.1A ±10%
Monocrystalline silicon cells
Match 36V / 11.1A operating point, polarity, and receiving-device limits
Panel rating; protect connections and attached equipment
Practical power, clearly explained
400W ±10% power class
The PM400 SE is the larger-output SE panel in the current SE range, giving compatible solar systems more panel capacity from a single foldable unit. Actual output varies with conditions and system limits.
Efficient monocrystalline construction
Current OSCAL specifications list 24.60% cell efficiency, monocrystalline silicon cells, and an ETFE laminated surface.

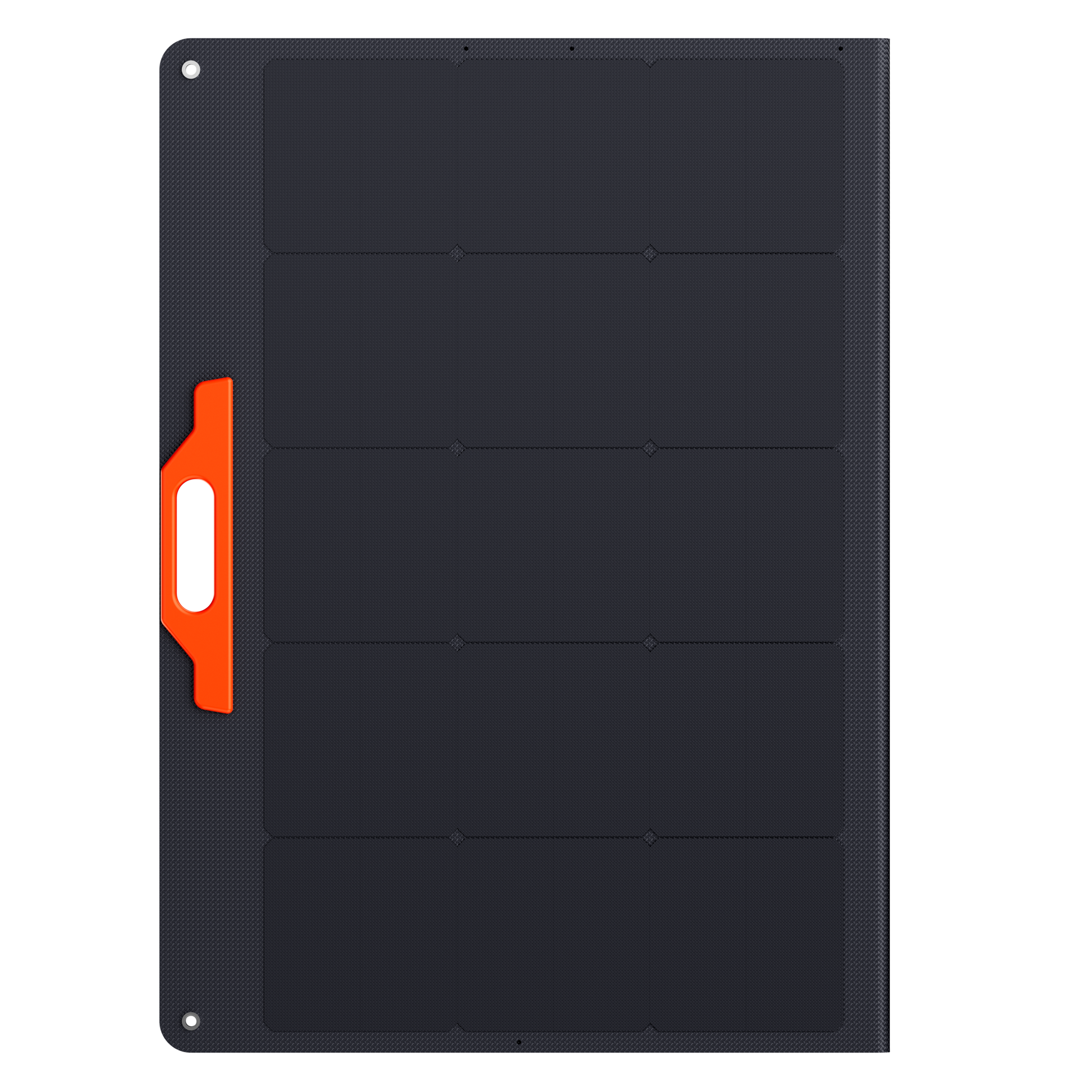

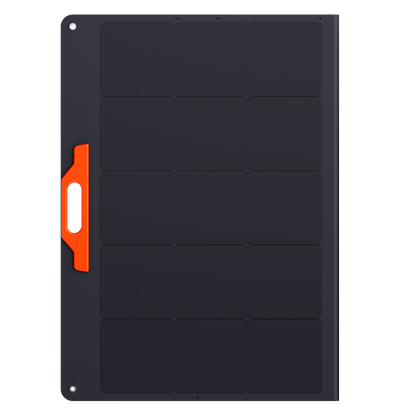

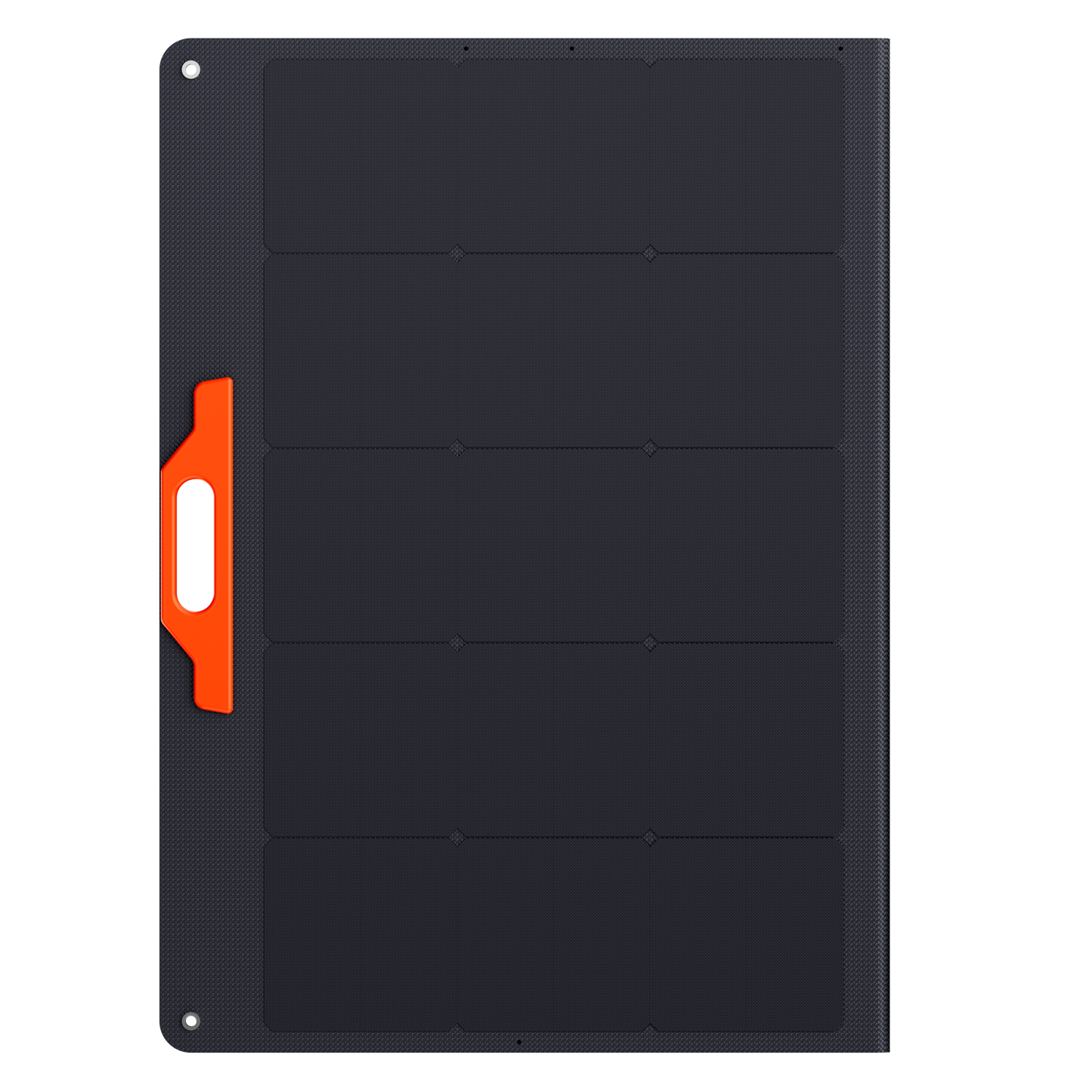

Folds for storage between uses

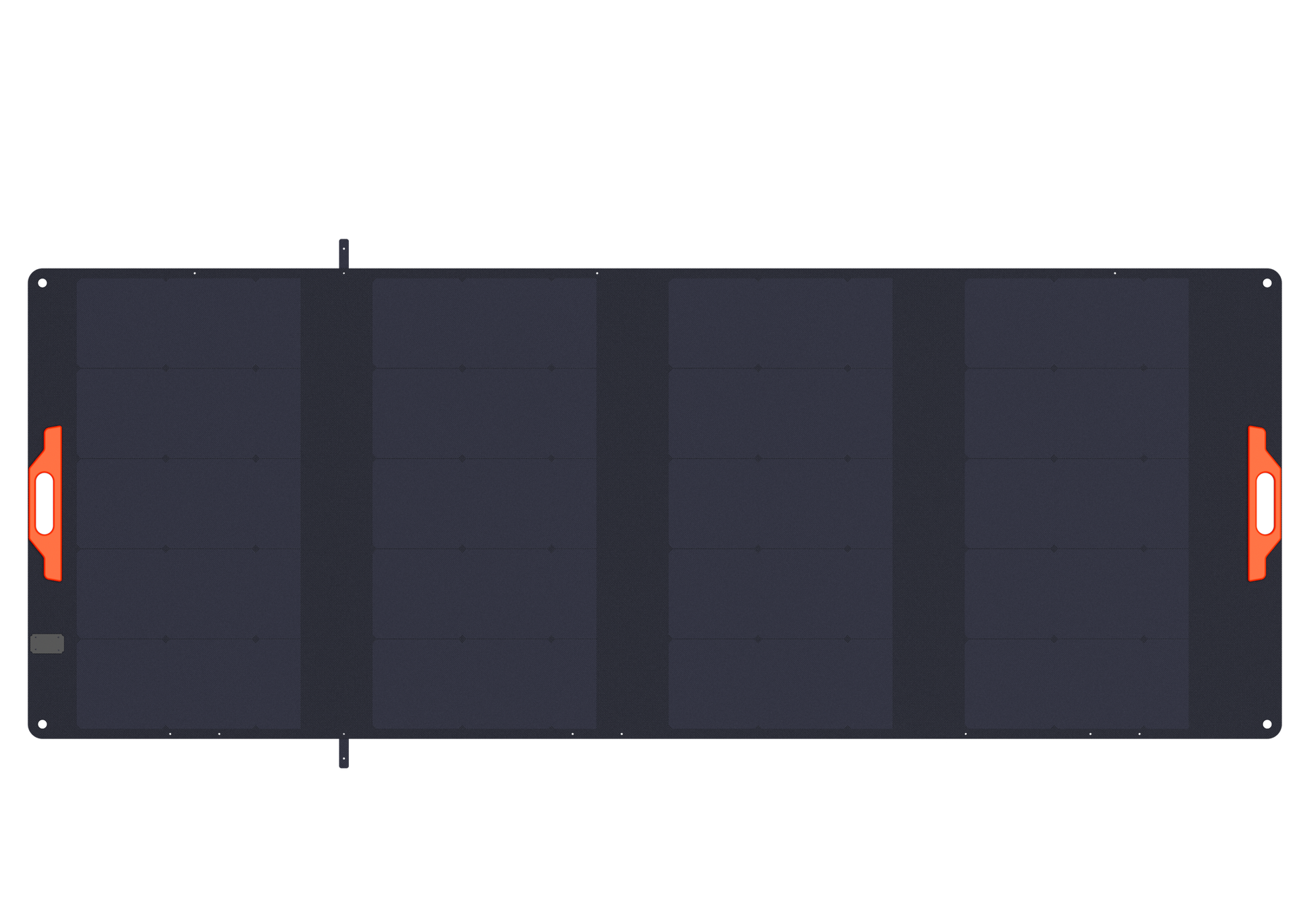

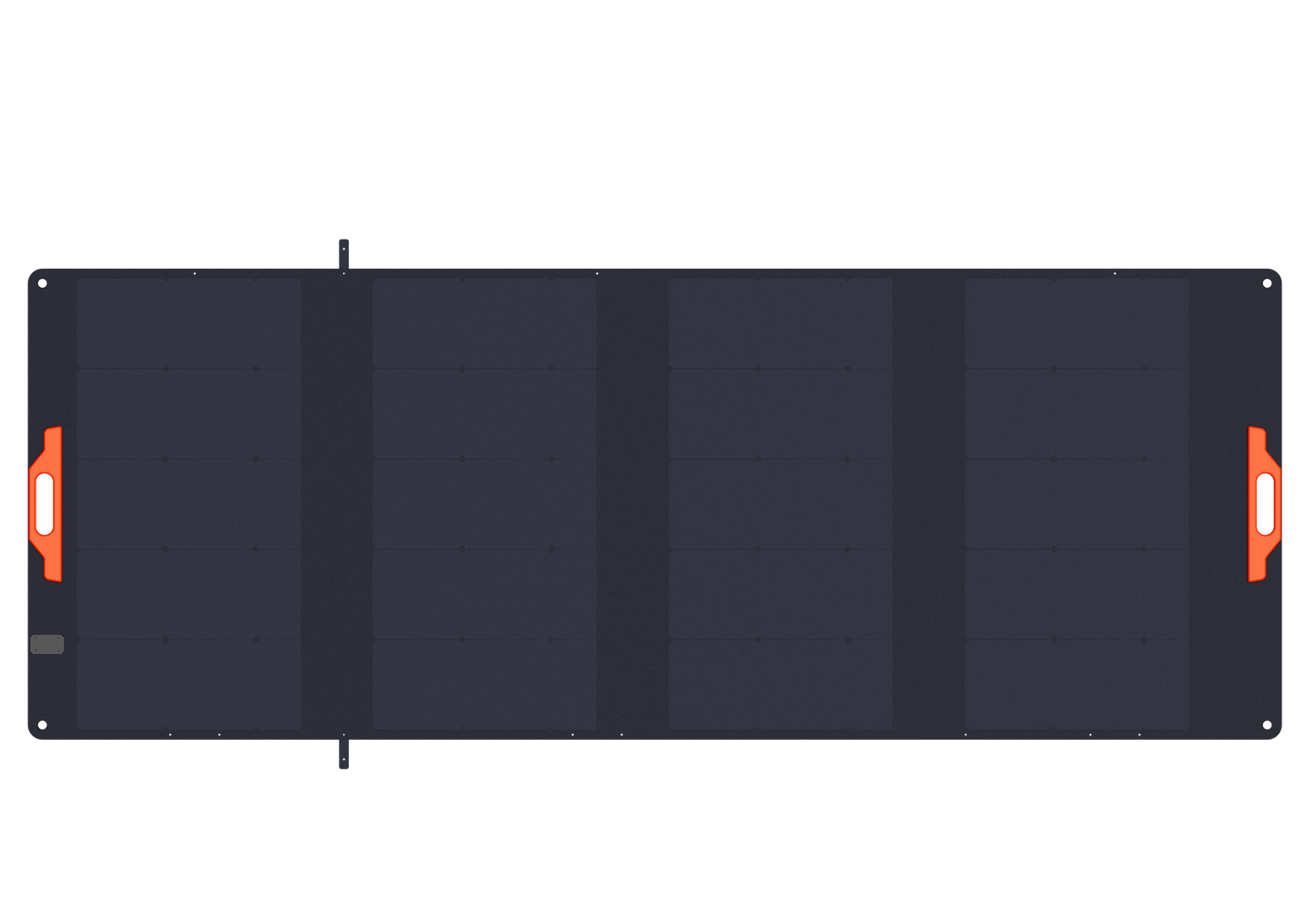

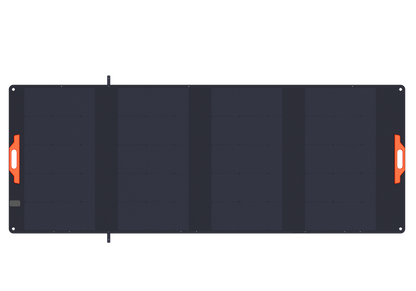

The panel measures 2555 × 959 × 21 mm unfolded and 959 × 674 × 50 mm folded, with a listed weight of 11 kg.
Higher-capacity portable solar, with fit confirmed first
Use the OSCAL PM400 SE only with a solar input that accepts its 36V ±10% maximum-power voltage, 11.1A ±10% maximum-power current, 43.2V ±10% open-circuit voltage, 13.3A ±10% short-circuit current, MC4 connection, and polarity. Wattage alone does not establish compatibility.

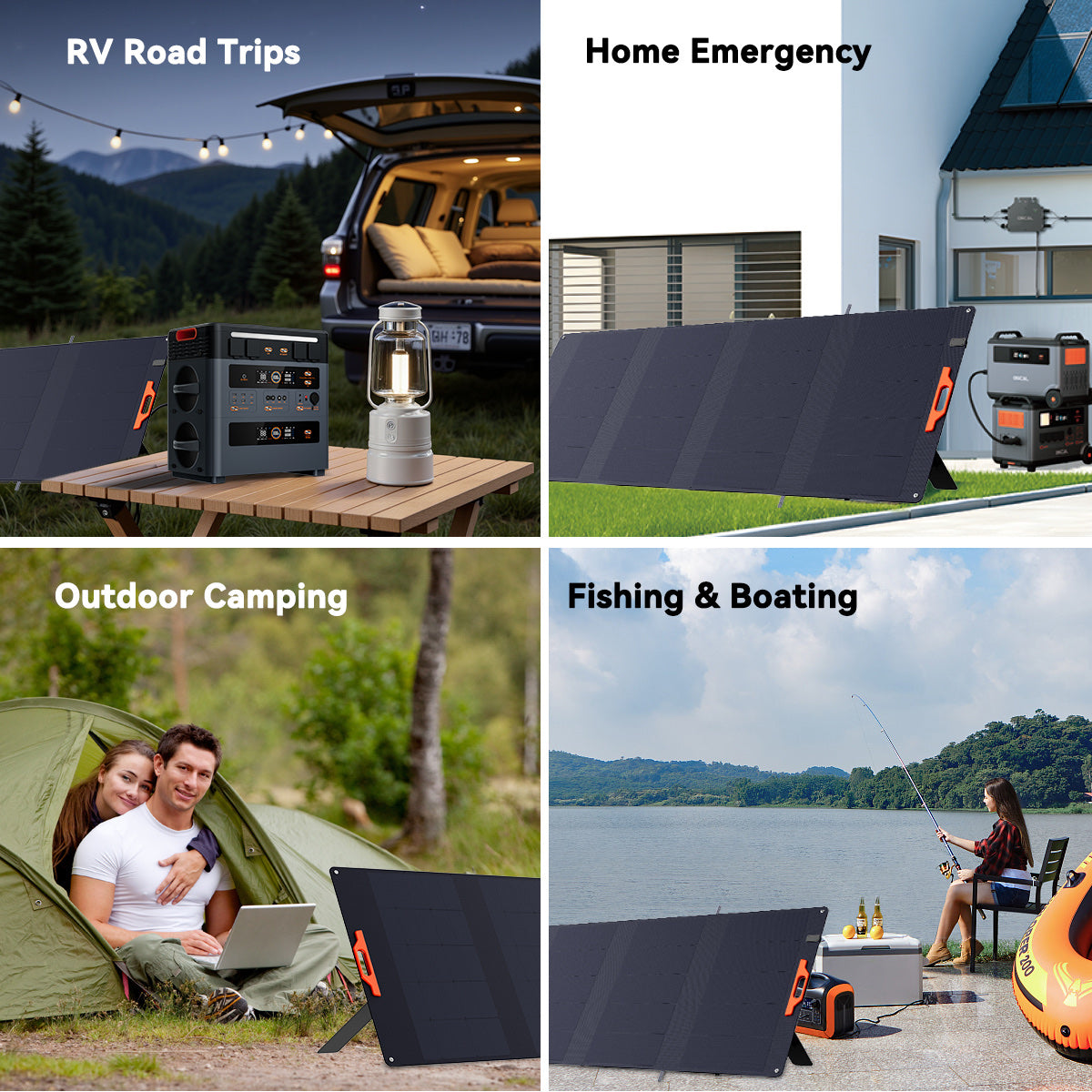

- Portable power-station charging when the 36V / 11.1A operating point and MC4 connection fit
- Camping or road-trip setups that prioritize more panel power over the smaller PM200 SE footprint
- Home emergency-power preparation with a compatible solar charge input
Confirm fit before checkout
Exact OSCAL PM400 SE electrical specification: 400W ±10%, Vmp 36V ±10%, Imp 11.1A ±10%, Voc 43.2V ±10%, and Isc 13.3A ±10%. Confirm polarity, receiving-device limits, and included adapters before connection.
Construction and connection details
OSCAL's current exact-model table identifies 400W ±10%, Vmp 36V ±10%, Imp 11.1A ±10%, Voc 43.2V ±10%, Isc 13.3A ±10%, MC4, 24.60% cell efficiency, ETFE, and IP67 for the PM400 SE.
Frequently asked questions
What is the PM400 SE maximum power?
The exact OSCAL PM400 SE specification is 400W ±10%. Its maximum-power operating point is 36V ±10% and 11.1A ±10%. Actual output varies with sunlight, temperature, angle, shading, and receiving-system limits.
How large is the panel when folded?
It measures 959 × 674 × 50mm folded, 2,555 × 959 × 21mm unfolded, and weighs 11kg.
Will it connect to my portable power station?
The panel uses MC4 and is specified at Vmp 36V ±10%, Imp 11.1A ±10%, Voc 43.2V ±10%, and Isc 13.3A ±10%. Confirm the receiving device accepts those limits and verify polarity and any required adapter before connection.
Can it be used in wet conditions?
The panel is listed at IP67. That rating does not automatically apply to connectors, adapters, or the receiving device, so protect all connections and follow the current instructions.
Specifications
| Model | OSCAL PM400 SE |
|---|---|
| Maximum power | 400W ±10% |
| Voltage at maximum power (Vmp) | 36V ±10% |
| Current at maximum power (Imp) | 11.1A ±10% |
| Open-circuit voltage (Voc) | 43.2V ±10% |
| Short-circuit current (Isc) | 13.3A ±10% |
| Cell type | Monocrystalline silicon |
| Cell efficiency | 24.60% |
| Surface | ETFE |
| Connection | MC4 |
| Panel rating | IP67 |
| Operating temperature | −10°C to 65°C |
| Unfolded size | 2,555 × 959 × 21 mm |
| Folded size | 959 × 674 × 50 mm |
| Weight | 11 kg |
Specifications apply to the identified SE model. Match voltage, current, polarity, connector, and receiving-device limits before connection.
