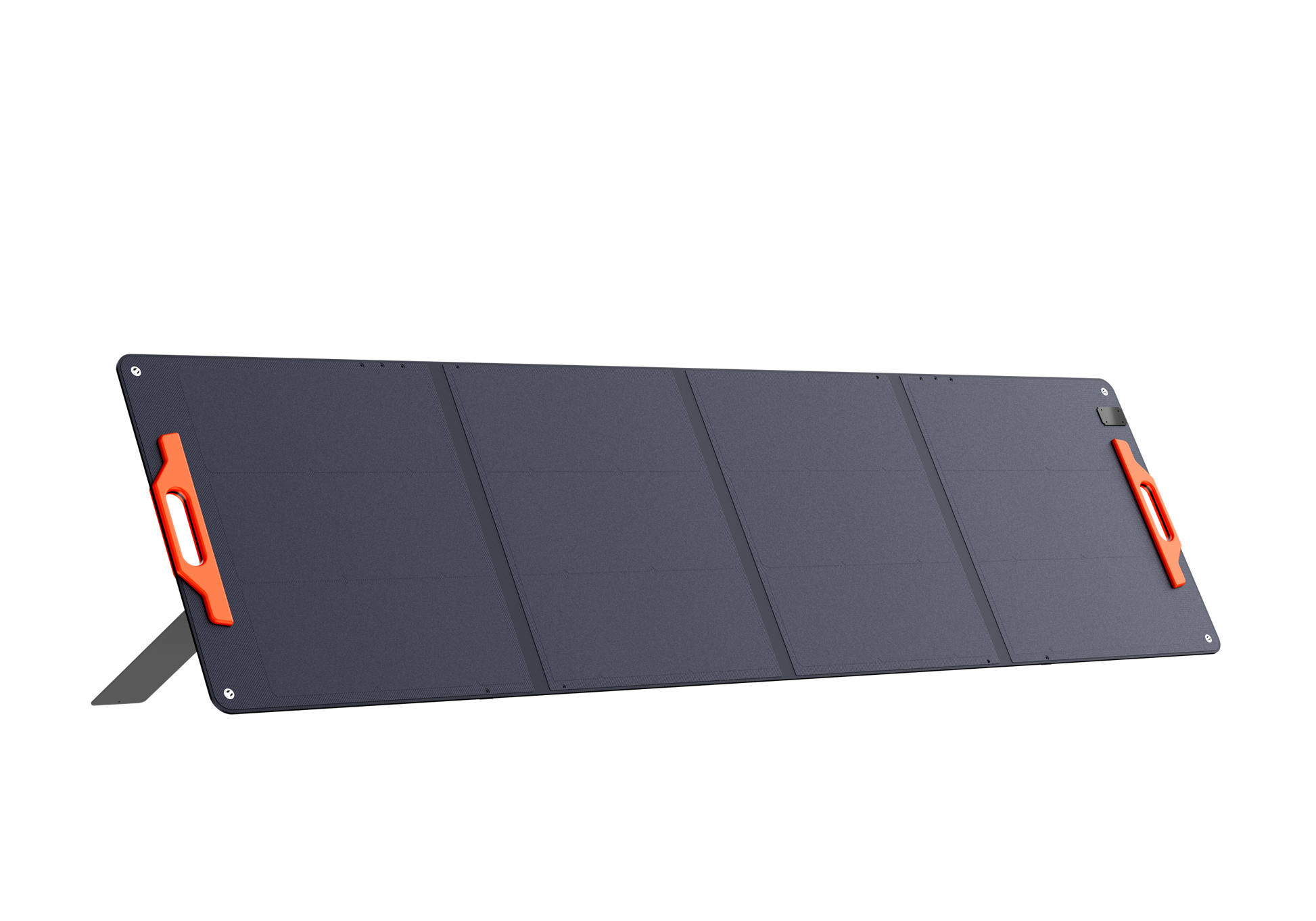

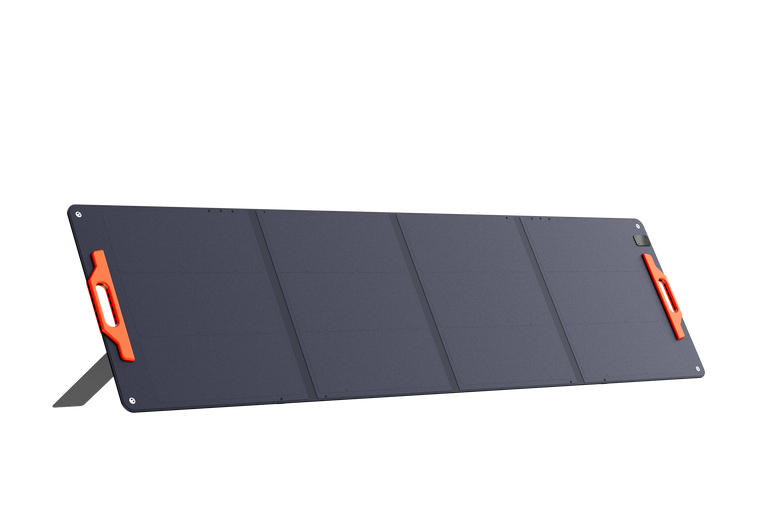

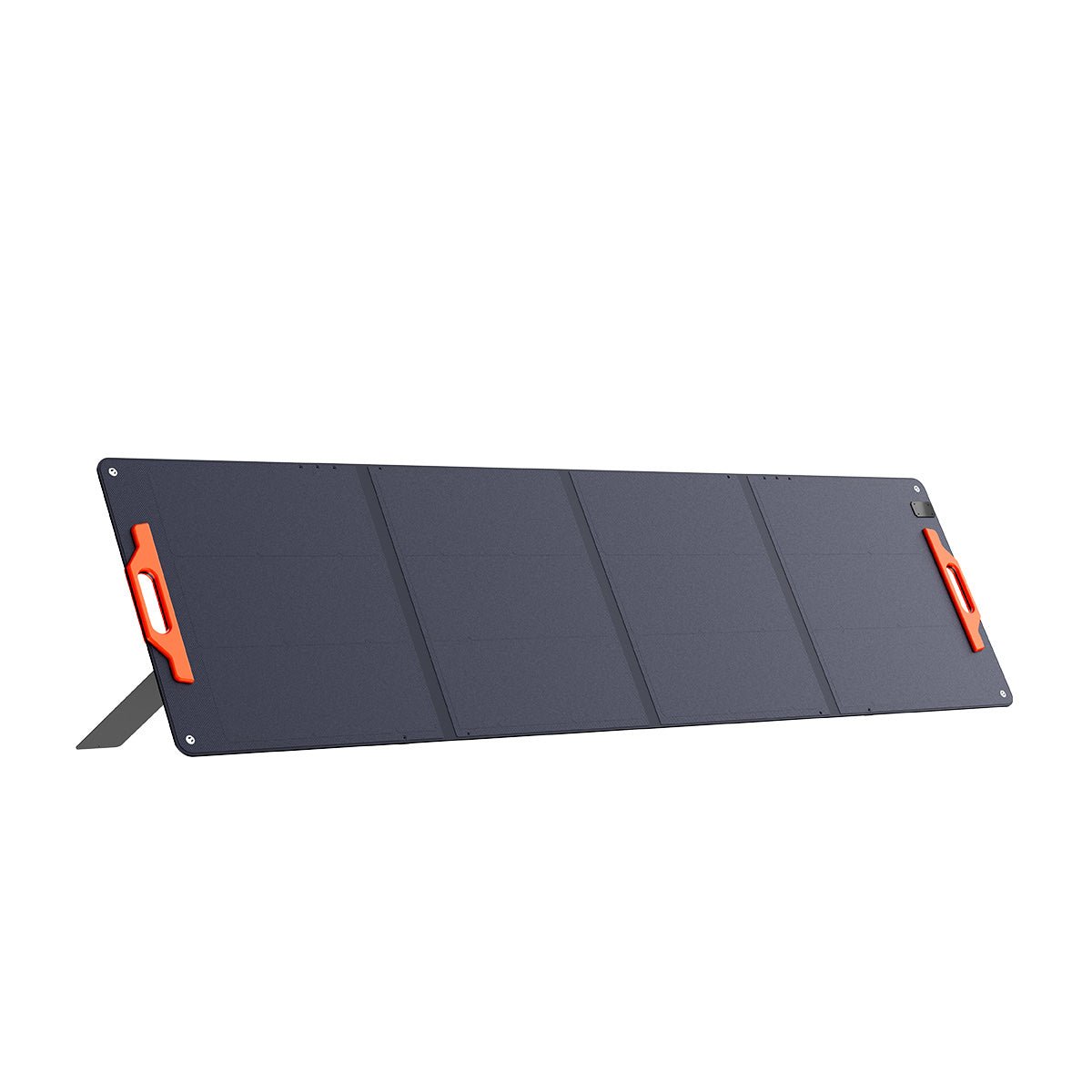

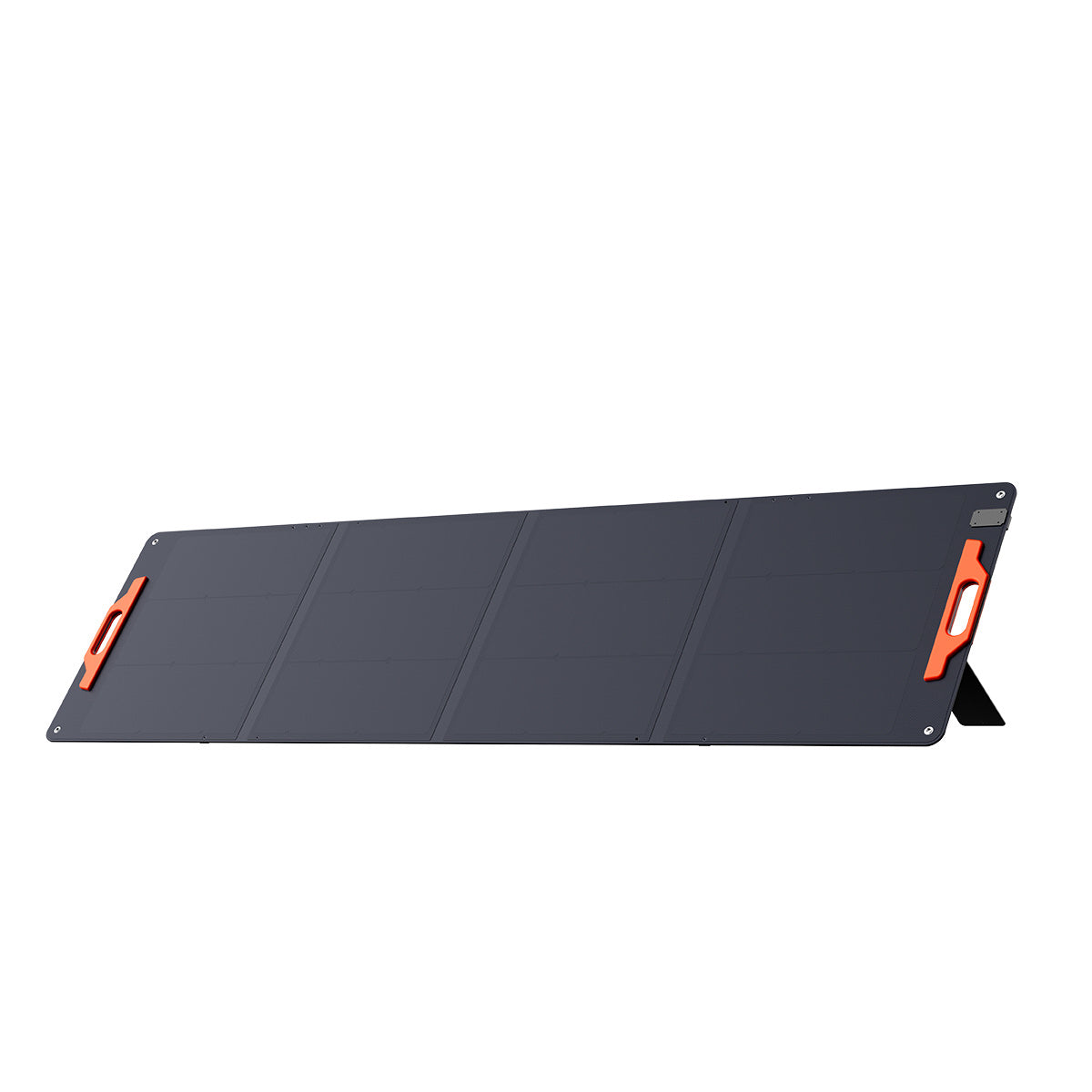

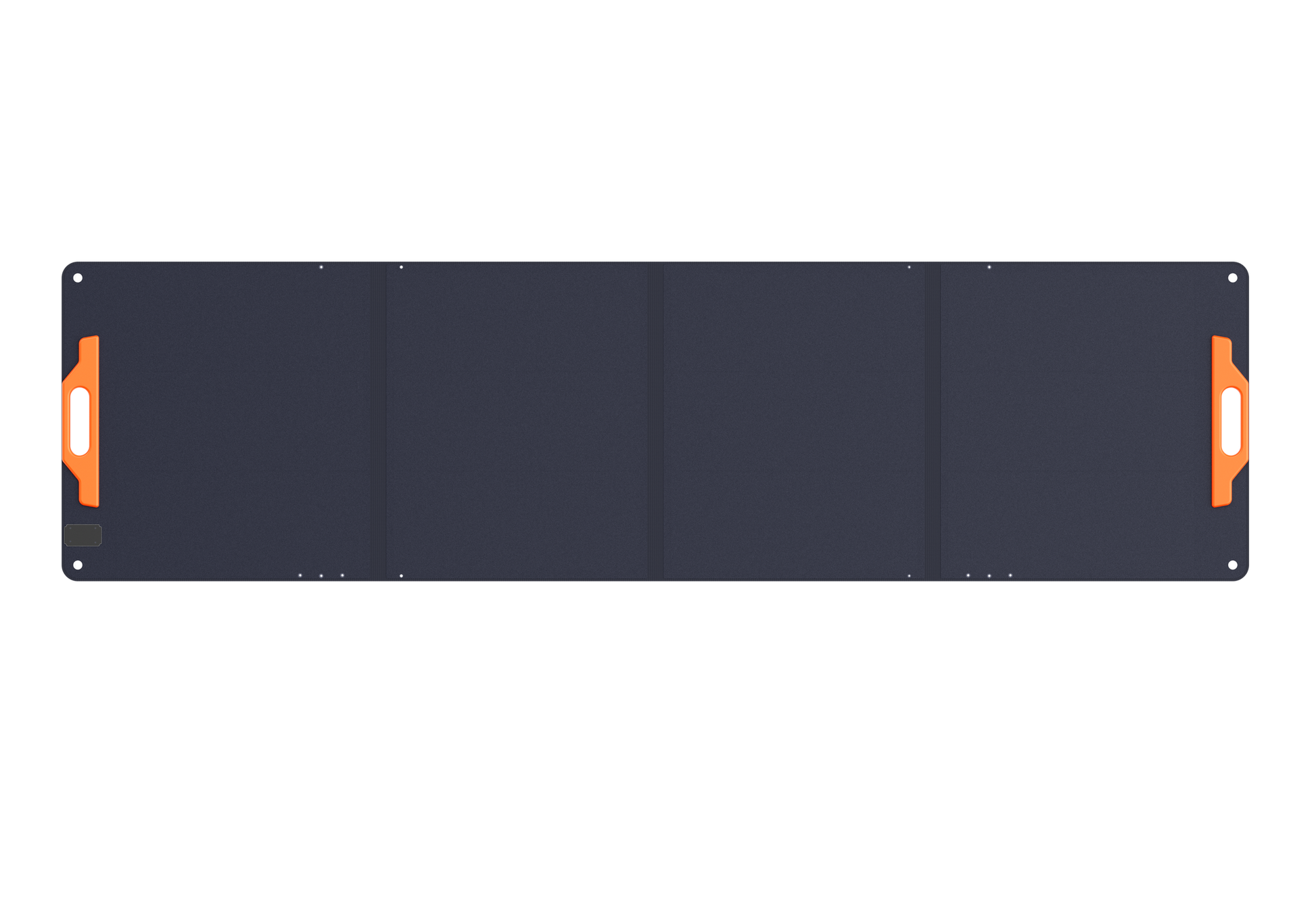

OSCAL PM200 SE 200W Foldable Solar Panel
OSCAL PM200 SE 200W Foldable Solar Panel
SKU: OSCAL-PM200SE-US
- Regular price
- $239.00
- Regular price
- Sale price
- $239.00
- Unit price
- per
Couldn't load pickup availability
In stock — available to order
- Free standard shipping on eligible Lower-48 orders. See shipping details
- 30-day return requests for eligible items after delivery. Review the return policy
- Price Match Guarantee for qualifying identical offers. Check eligibility
Pack more solar potential into less storage space
The OSCAL PM200 SE is an exact 200W ±10% SE-model foldable panel with a maximum-power operating point of 18V ±10% / 11.1A ±10%, 24.60% monocrystalline cell efficiency, ETFE lamination, MC4 connection, and an IP67 panel rating.
At a glance
Vmp 18V ±10%; Imp 11.1A ±10%
Monocrystalline silicon cells
Match 18V / 11.1A operating point, polarity, and receiving-device limits
Panel rating; protect connections and attached equipment
Practical power, clearly explained
High-efficiency monocrystalline cells
Current OSCAL specifications list 24.60% cell efficiency in a monocrystalline silicon design, giving the PM200 SE a strong power-to-panel-area story without inventing an energy-yield guarantee.

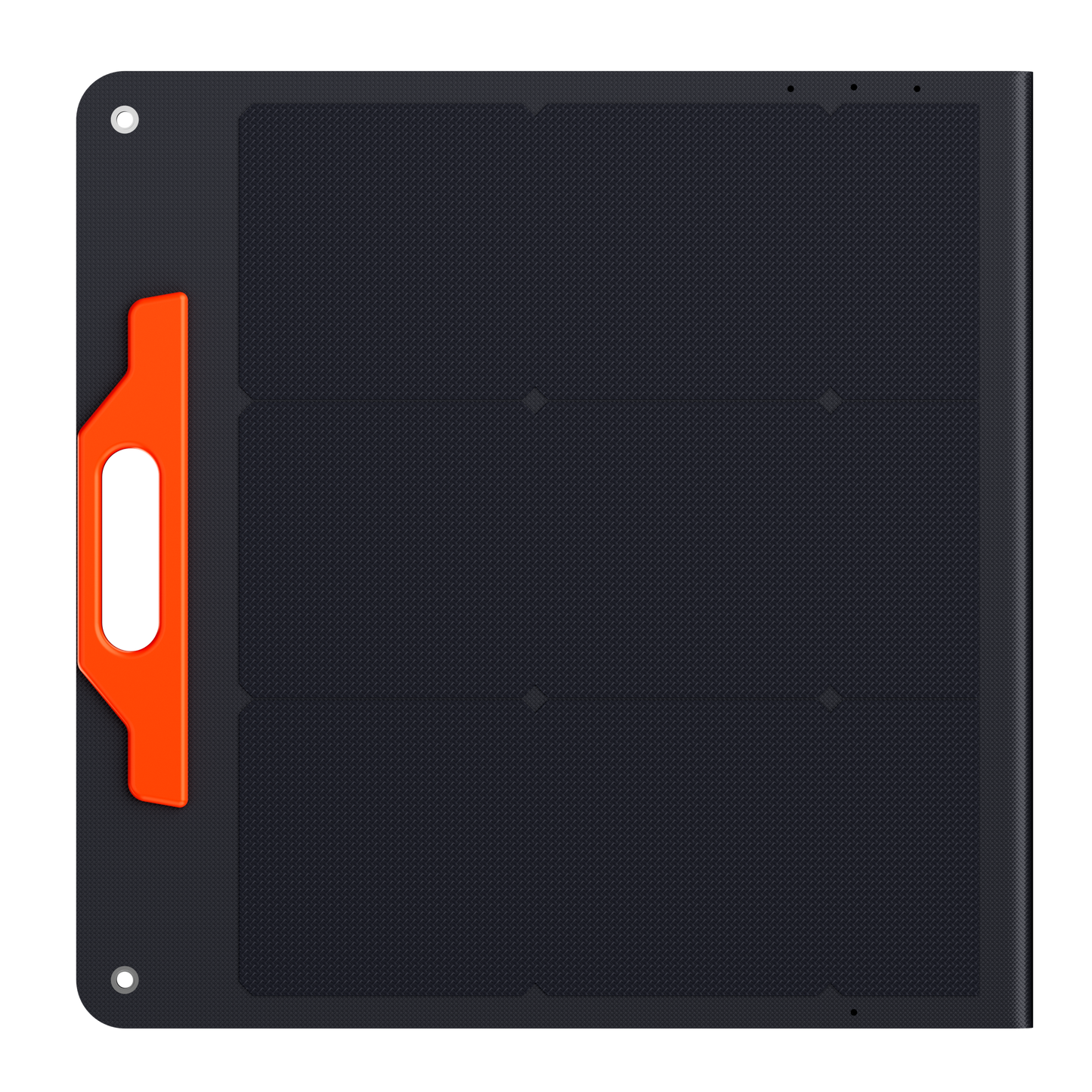

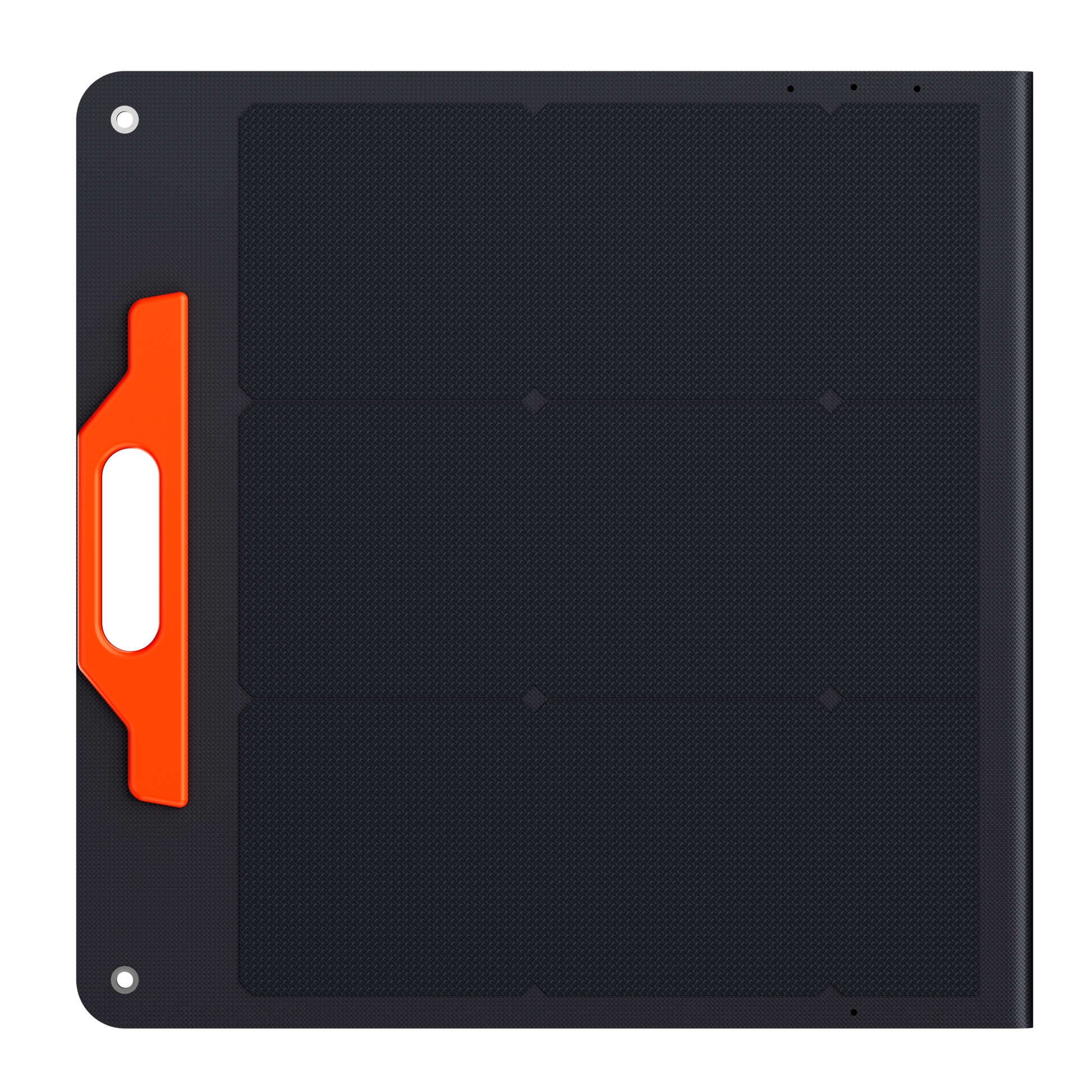

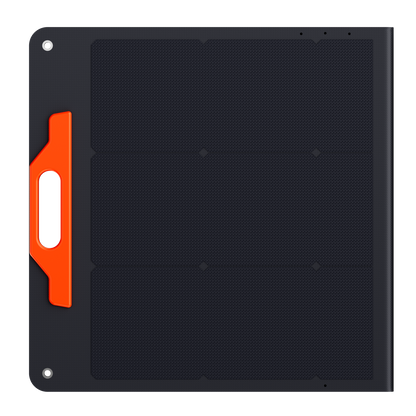

Folds down for transport

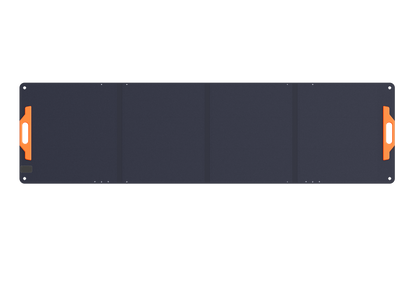

The panel measures 2195 × 591 × 21 mm unfolded and 591 × 585 × 50 mm folded, with a listed weight of 7.4 kg.
Made for changing outdoor conditions
ETFE lamination, an IP67 panel rating, and a listed operating range of -10°C to +65°C support outdoor use when the panel and its connections are deployed according to the current instructions.

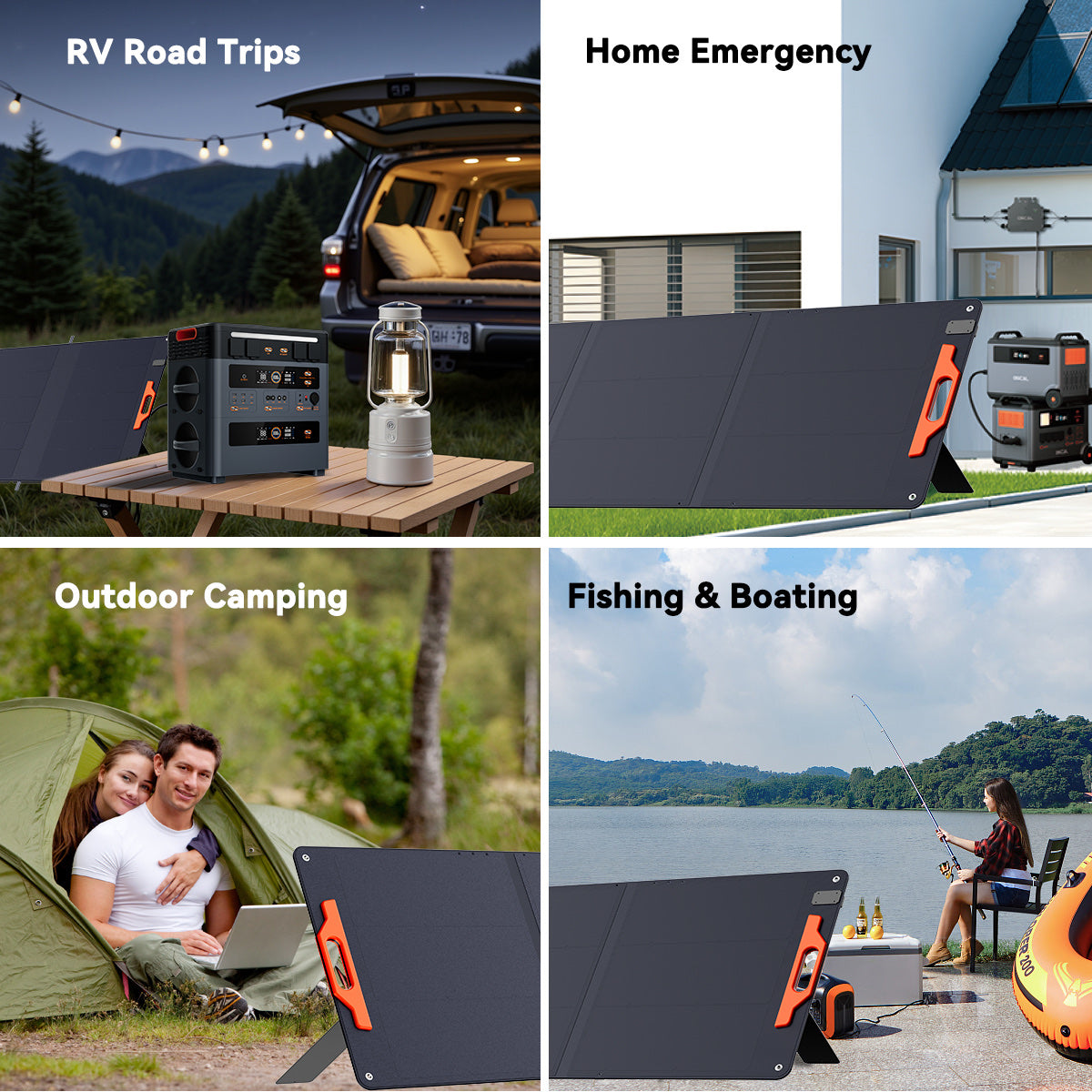

Portable solar for travel and backup setups
Use the OSCAL PM200 SE only with a solar input that accepts its 18V ±10% maximum-power voltage, 11.1A ±10% maximum-power current, 21.6V ±10% open-circuit voltage, 13.3A ±10% short-circuit current, MC4 connection, and polarity. Wattage alone does not establish compatibility.
- Portable power-station charging when the 18V / 11.1A operating point and MC4 connection fit
- Camping and road-trip solar setups where folded size and weight matter
- Home emergency-power preparation with a compatible solar charge input
Confirm fit before checkout
Exact OSCAL PM200 SE electrical specification: 200W ±10%, Vmp 18V ±10%, Imp 11.1A ±10%, Voc 21.6V ±10%, and Isc 13.3A ±10%. Confirm polarity, receiving-device limits, and included adapters before connection.
Construction and connection details
OSCAL's current exact-model table identifies 200W ±10%, Vmp 18V ±10%, Imp 11.1A ±10%, Voc 21.6V ±10%, Isc 13.3A ±10%, MC4, 24.60% cell efficiency, ETFE, and IP67 for the PM200 SE.
Frequently asked questions
What is the PM200 SE maximum power?
The exact OSCAL PM200 SE specification is 200W ±10%. Its maximum-power operating point is 18V ±10% and 11.1A ±10%. Actual output varies with sunlight, temperature, angle, shading, and receiving-system limits.
How large is the panel when folded?
It measures 591 × 585 × 50mm folded, 2,195 × 591 × 21mm unfolded, and weighs 7.4kg.
Will it connect to my portable power station?
The panel uses MC4 and is specified at Vmp 18V ±10%, Imp 11.1A ±10%, Voc 21.6V ±10%, and Isc 13.3A ±10%. Confirm the receiving device accepts those limits and verify polarity and any required adapter before connection.
Can it be used in wet conditions?
The panel is listed at IP67. That rating does not automatically apply to connectors, adapters, or the receiving device, so protect all connections and follow the current instructions.
Specifications
| Model | OSCAL PM200 SE |
|---|---|
| Maximum power | 200W ±10% |
| Voltage at maximum power (Vmp) | 18V ±10% |
| Current at maximum power (Imp) | 11.1A ±10% |
| Open-circuit voltage (Voc) | 21.6V ±10% |
| Short-circuit current (Isc) | 13.3A ±10% |
| Cell type | Monocrystalline silicon |
| Cell efficiency | 24.60% |
| Surface | ETFE |
| Connection | MC4 |
| Panel rating | IP67 |
| Operating temperature | −10°C to 65°C |
| Unfolded size | 2,195 × 591 × 21 mm |
| Folded size | 591 × 585 × 50 mm |
| Weight | 7.4 kg |
Specifications apply to the identified SE model. Match voltage, current, polarity, connector, and receiving-device limits before connection.
