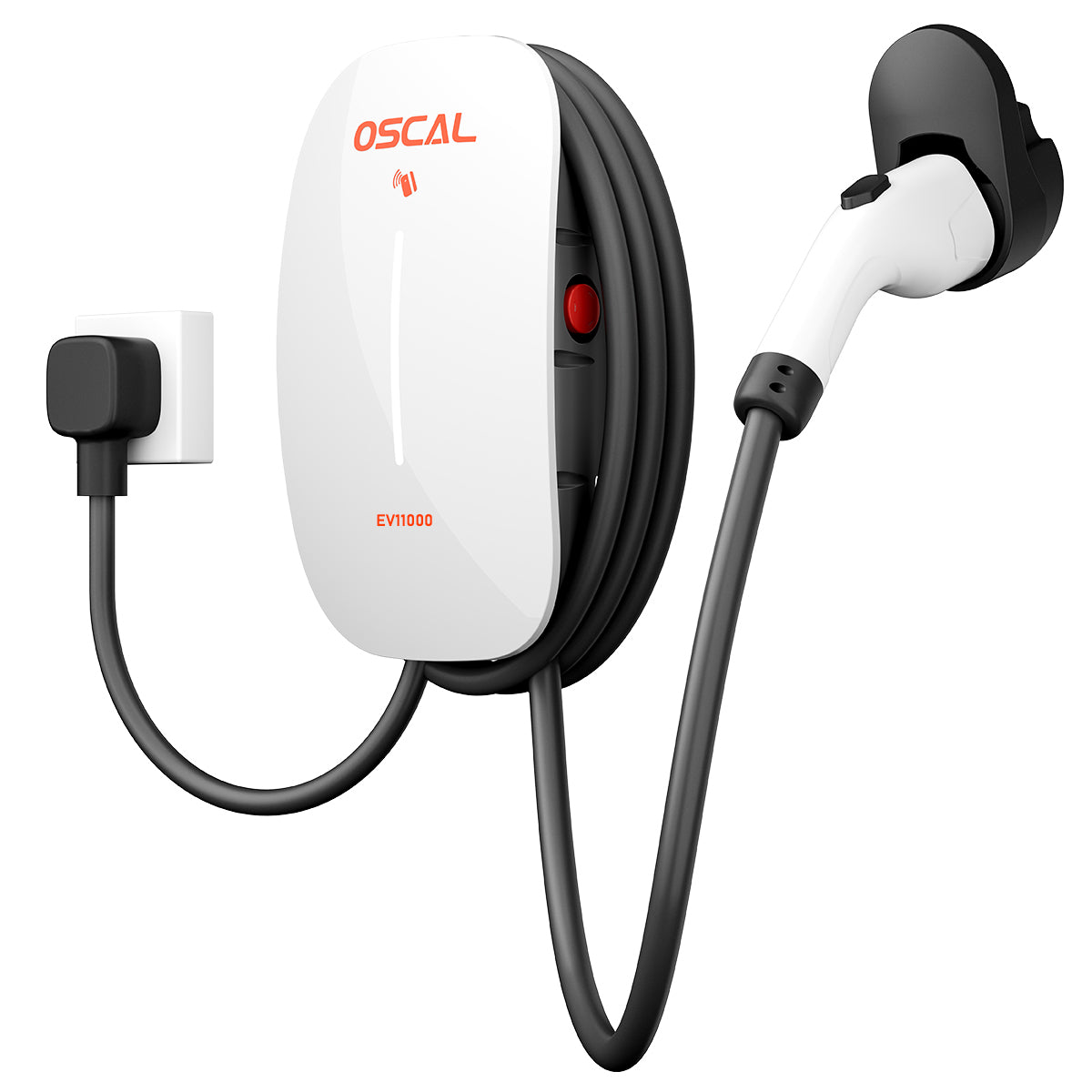

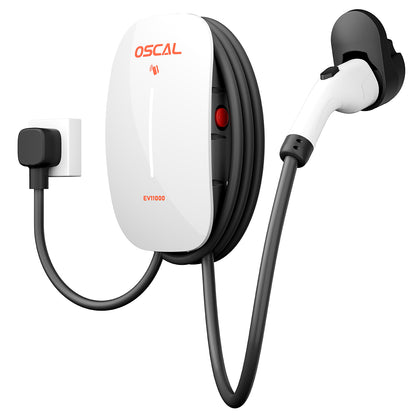

• OSCAL EV11000 white SAE J1772 Level 2 charger with wall unit, cable, and handle holder

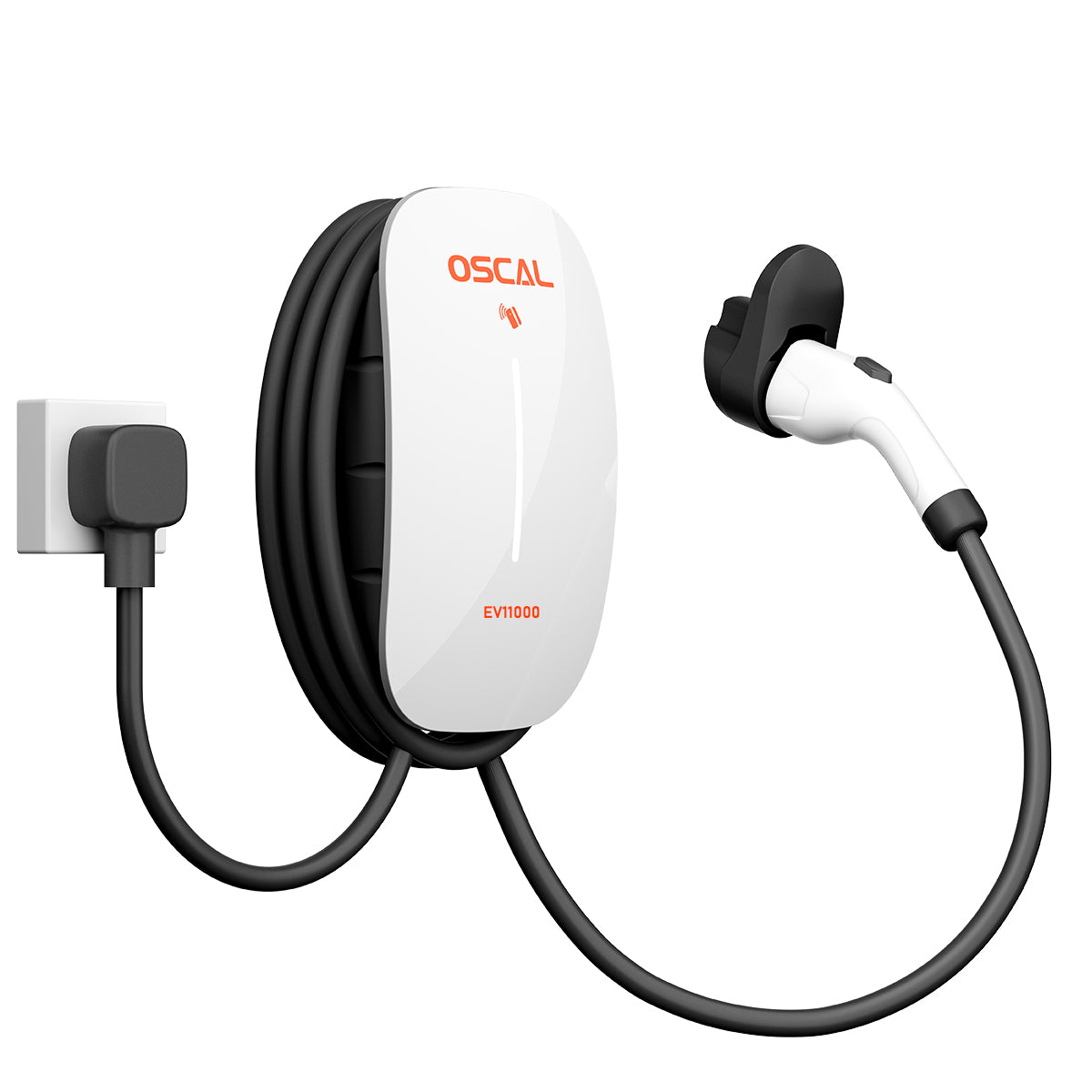

  • OSCAL EV11000 white 11kW Level 2 wall charger shown from a three-quarter angle

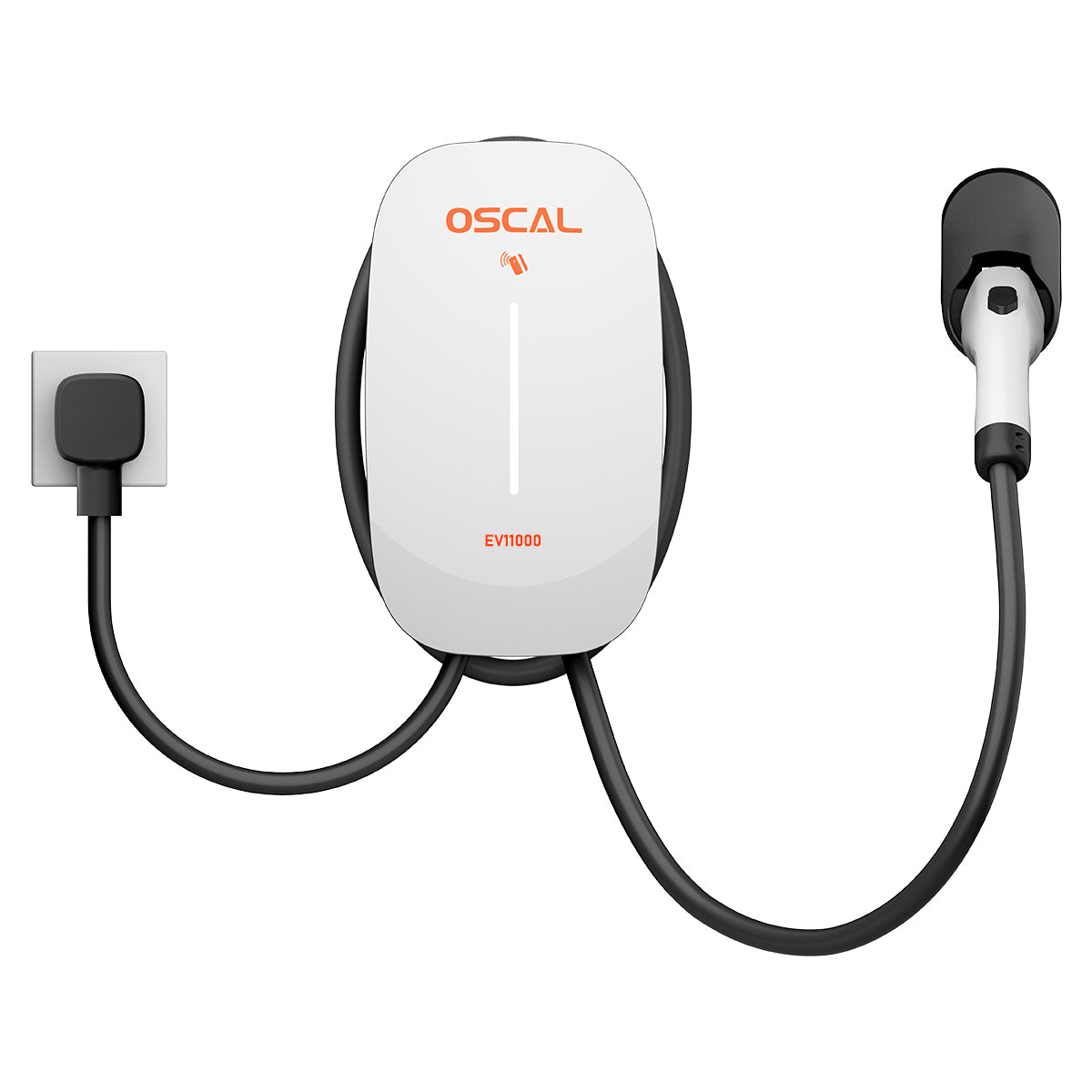

  • OSCAL EV11000 white EV charger front view with cable and charging handle

OSCAL

OSCAL EV11000 48A 11kW J1772 Level 2 EV Charger

OSCAL EV11000 48A 11kW J1772 Level 2 EV Charger

SKU: OSCAL-EV11000-US

$399.00
$399.00
View Cart

In stock — available to order

Need help before ordering? Call 888-495-5870 Contact our support team

Smart Level 2 EV charging

Flexible 240V charging, managed your way

The U.S.-market OSCAL EV11000 is a wall-mounted Level 2 charger with an SAE J1772 charging connector for a compatible 240V single-phase installation. It delivers up to 11kW and 48A, lets you adjust current from 8A to 48A, and adds Wi-Fi app scheduling, charging-session monitoring, RFID access, and a dedicated emergency-stop control.

At a glance

Maximum output
Up to 11kW

Level 2 charging on a suitable 240V installation

Adjustable current
8A–48A

Match the selected current to the approved circuit and vehicle

Connected control
Wi-Fi + app

Schedule sessions and monitor charging activity

Enclosure rating
IP65

Use and site the charger according to the current installation instructions

Everyday charging, made simpler

Power, access, and timing in one wall-mounted unit

Set the current for the site

Adjustable 8A to 48A charging gives an installer a practical range for matching the charger setting to the approved electrical circuit and the vehicle. Actual charging power is limited by the vehicle, selected current, and installation.

Schedule and monitor in the app

Use the Wi-Fi-connected app to plan charging sessions and check charging activity, making it easier to charge around household routines or off-peak rate periods.

Control access directly

Two included RFID cards support convenient authorized use, while the accessible emergency-stop button provides a direct way to stop operation when needed.

Where it fits

Home, shared parking, and workplace charging

Its 8A–48A adjustment, five-meter charging cable, app tools, and RFID access suit properly designed residential and light-commercial charging locations. The filed U.S. configuration is 240V single-phase, 60Hz, with wall-mounted installation by a qualified electrician.

  • 240V single-phase Level 2 charging
  • Wi-Fi scheduling and charging monitoring
  • RFID access for households or shared locations
  • IP65 enclosure and -30°C to 50°C operating range

Confirm compatibility and installation before ordering

The U.S. EV11000 configuration uses an SAE J1772 vehicle connector for a wall-mounted 240V single-phase installation. A qualified electrician should verify the available electrical service, branch circuit, protective equipment, conductor sizing, mounting location, and permitted current setting, then install and commission the charger according to the current U.S. production instructions and applicable local code.

What is included

EV charger main unit
With 5m SAE J1772 charging cable
Wall-mount hardware
Bracket and installation accessories
Access and storage
Two RFID cards and charging-gun holder
Documentation
User manual

Site-specific electrical components or adapters are not implied. Your installer should confirm everything required for the chosen configuration.

Frequently asked questions

How fast can the EV11000 charge?

It is rated for up to 11kW and 48A on a suitable 240V single-phase installation. Actual charging power depends on the vehicle onboard charger, the approved circuit capacity, and the current selected on the EV11000.

Will it work with my vehicle?

The U.S. configuration uses an SAE J1772 connector. Confirm the vehicle inlet and installation plan before ordering; vehicle acceptance rate and any manufacturer-approved adapter can affect compatibility and charging speed.

What can I control through the app and RFID cards?

The Wi-Fi app supports scheduling and charging monitoring. Two RFID cards are included for convenient access control, which is useful in multi-driver households and shared parking areas.

Can the EV11000 be installed outdoors?

The enclosure is rated IP65 and the stated operating range is -30°C to 50°C. A qualified electrician should still choose an appropriate mounting location and install the unit, cable, connector, and electrical protection according to the current manual and local code.
