RICH SOLAR NOVA 6K 6500W (6.5kW) 48V Off-Grid Hybrid Solar Inverter

RICH SOLAR NOVA 6K 6500W (6.5kW) 48V Off-Grid Hybrid Solar Inverter

SKU: RS-H6548V5

$1,299.99
$1,299.99

Estimated delivery: Calculating arrival dates…

For in-stock orders placed today. Standard Lower 48 delivery; availability and carrier scheduling may affect arrival.

View Cart

In stock — available to order

  • Free shipping in the Lower 48. No order minimum. See shipping details
  • 30-day returns — contact Torven and we will help you get started. Review the return policy
  • Price Match Guarantee for qualifying identical offers. Check eligibility
  • Warranty information is listed in this product's details.
Need a hand? Call 888-495-5870 Contact our support team

Solar, battery and AC charging in one power-conversion platform

Build a 48V solar-plus-storage system around 6,500W of pure sine output.

The RICH SOLAR NOVA 6K is a 48V off-grid hybrid inverter for cabins, RVs, workshops and selected backup loads. It combines 6,500W of 120V pure sine AC output with solar and AC charging controls in one wall-mounted unit.

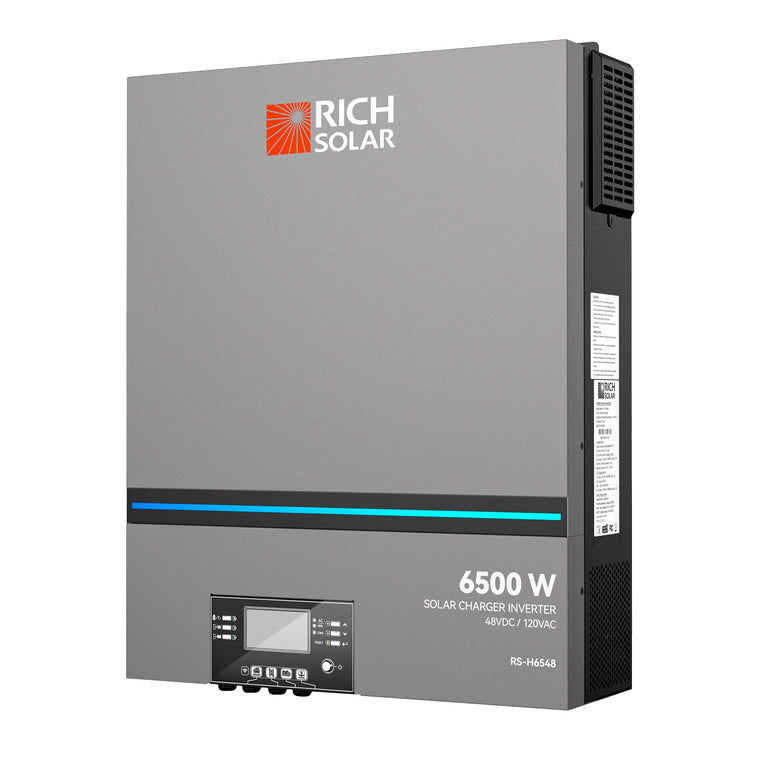

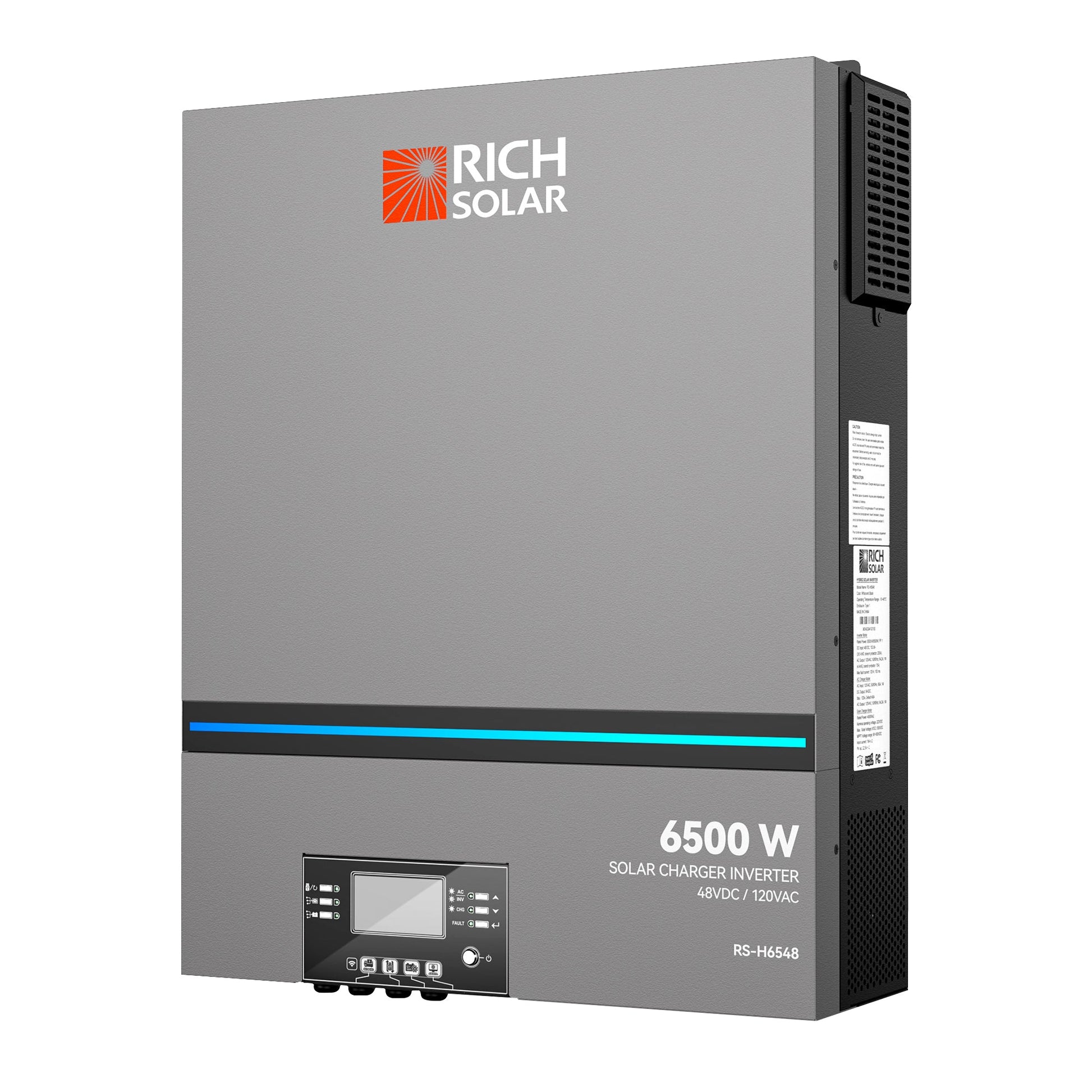

RICH SOLAR NOVA 6K 6500W 48V hybrid inverter

At a glance

Start with voltage, continuous output and surge

6,500WContinuous AC output
48VBattery voltage
120VAC output
2× rated power for 5 secondsPublished surge
A 6,500W inverter can demand roughly 135A before losses

At 48V, full output requires very high battery current. The battery bank, BMS, busbars, conductors, lugs, disconnect and overcurrent protection must all support the continuous and surge demand with acceptable voltage drop.

Why it stands out

Power conversion built for planned off-grid loads

Pure sine AC outputRun compatible electronics, appliances and motor loads with a waveform designed for normal 120V-class equipment.
Surge headroomThe published surge rating is 2× rated power for 5 seconds; compare it with measured motor and compressor start-up demand rather than the running-watt label alone.
Monitoring and system controlsBuilt-in Wi-Fi, a detachable LCD module and RS485, CAN-bus and RS232 communication support system monitoring and compatible battery integration.

System fit

Design the battery and charging side before choosing loads.

Match a 48V battery bank to the inverter’s operating window and current demand, then confirm AC output, grounding, neutral treatment, transfer behavior and branch-circuit protection. The product title identifies a 550V PV input design, while the displayed specification excerpt does not state the full MPPT window. Use the current RS-H6548V5 manual for string voltage, current and tracker limits.

Build a real load listAdd simultaneous running watts and the largest overlapping start-up surge. Include pumps, compressors, microwaves, induction loads, power tools and any sensitive electronics.
Plan the installationAllow for the 5.8 × 17.0 × 22.66 in (24.43 in with extension box) enclosure, 41 lb weight, ventilation, service clearances, cable bend radius, environmental limits and a qualified electrical installation.

In the box

What this NOVA 6K listing covers

  • 1 × RICH SOLAR NOVA 6K inverter (RS-H6548V5)

Battery bank, PV modules, charge or PV disconnects, battery and AC cabling, overcurrent protection, distribution equipment, mounting hardware, remote accessories and installation labor are not listed as included.

Product confidence

Use the current RICH SOLAR warranty and installation requirements

Warranty eligibility and remedies depend on the written terms, product registration where required, correct system voltage, approved installation practices and operation within the electrical and environmental limits.

Common questions

NOVA 6K system questions

How large should the battery bank be?

Size it from required runtime and current capability. At full 6,500W output, the inverter can draw roughly 135A at nominal voltage before losses, so one battery may not support the required current even when its energy rating looks large enough.

Will it run my air conditioner or well pump?

Only if continuous watts, start-up surge, voltage and frequency all fit—and the battery bank can supply the DC current without excessive sag. Use measured or manufacturer start-up data for the exact load.

Can it power 240V loads?

This model is listed for 120V output. Do not assume native 240V support; choose a compatible split-phase architecture when 240V appliances or service equipment are required.

Does it include the battery and solar panels?

No. This listing covers the inverter. Storage, solar generation, disconnects, protection, distribution and site-specific installation materials are separate.
