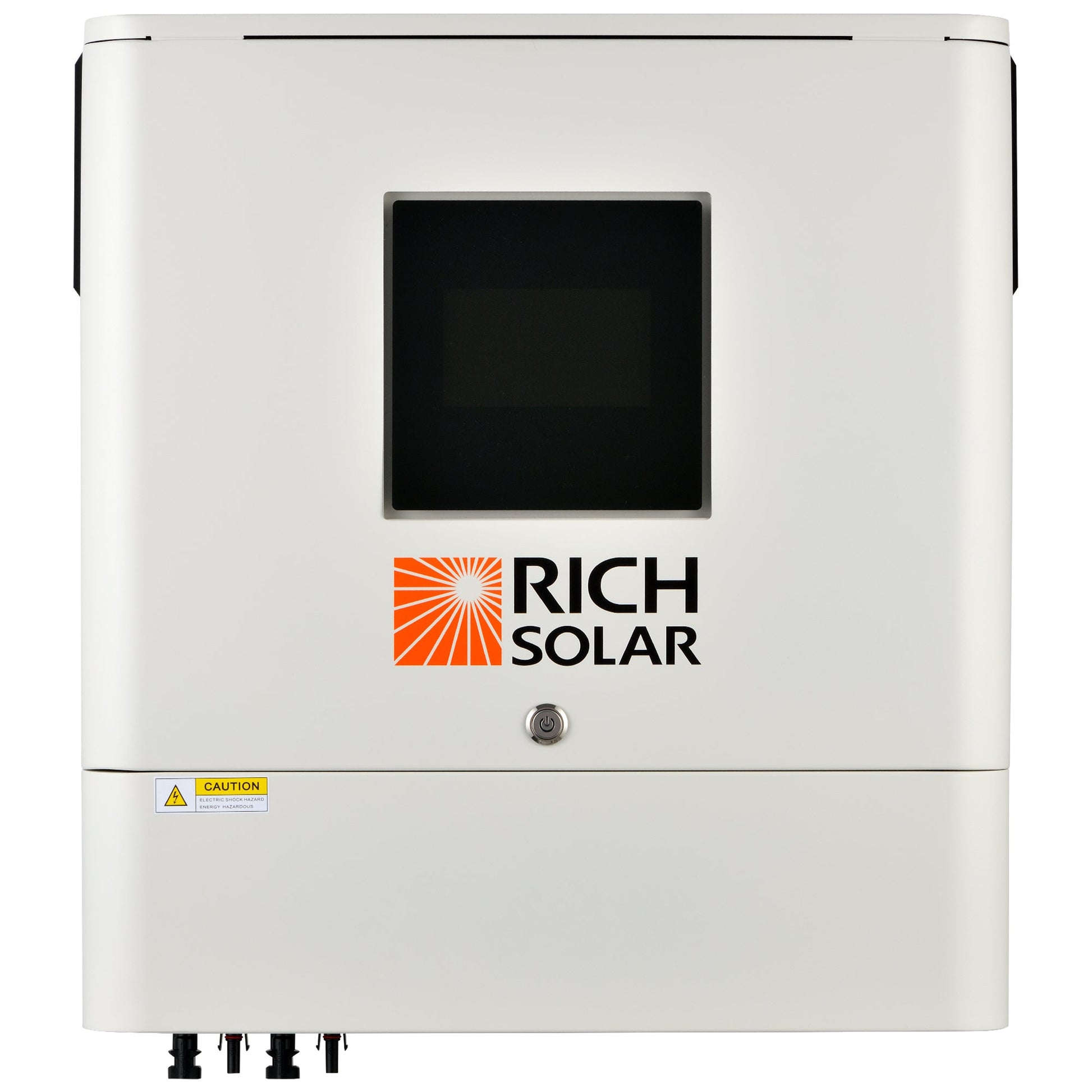

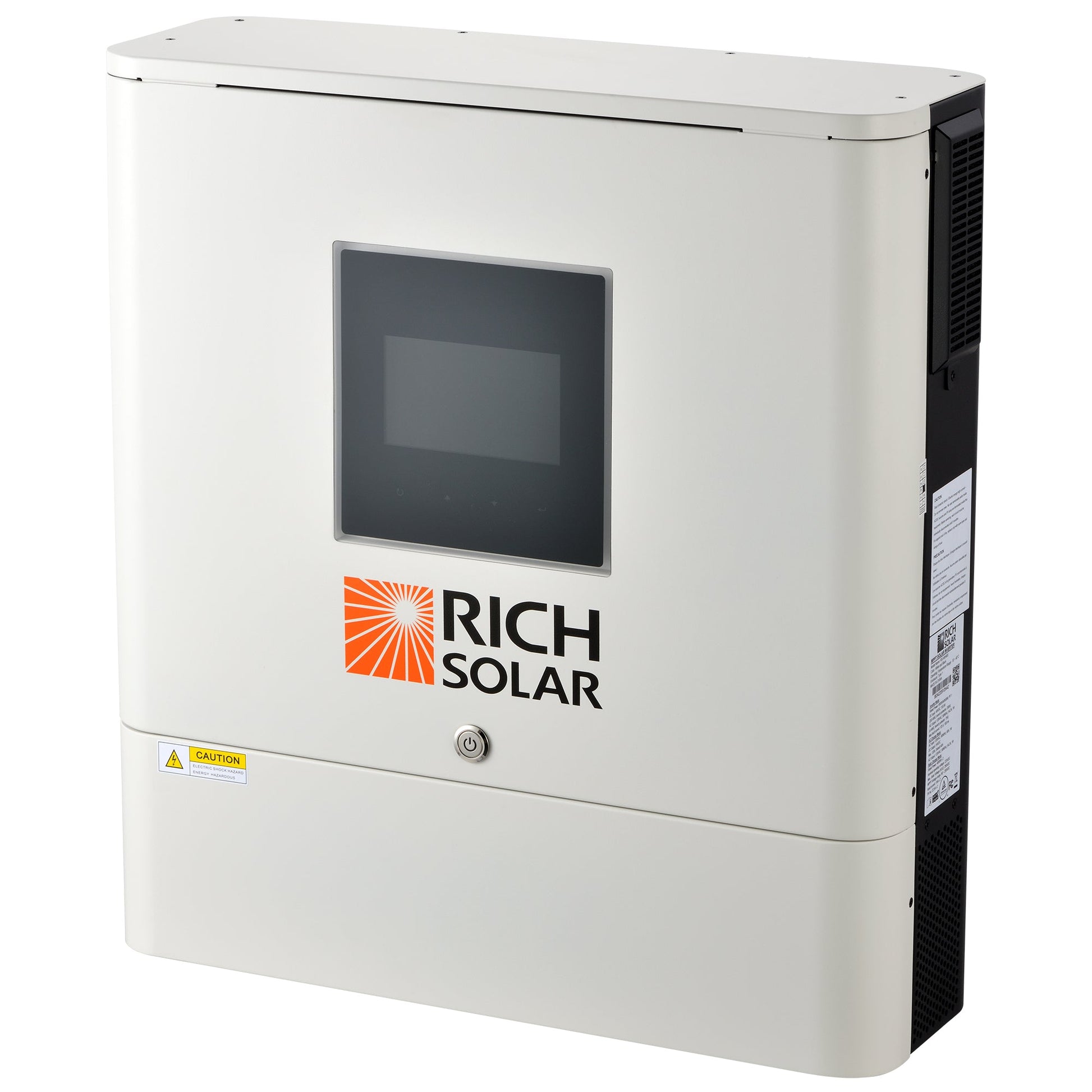

RICH SOLAR NOVA 6500S 6500W (6.5kW) 48V Off-Grid Hybrid Solar Inverter
RICH SOLAR NOVA 6500S 6500W (6.5kW) 48V Off-Grid Hybrid Solar Inverter
SKU: RS-H6548S
- Regular price
- $1,299.99
- Regular price
- Sale price
- $1,299.99
- Unit price
- per
Couldn't load pickup availability
In stock — available to order
- Free standard shipping on eligible Lower-48 orders. See shipping details
- 30-day return requests for eligible items after delivery. Review the return policy
- Price Match Guarantee for qualifying identical offers. Check eligibility
- Warranty information is listed in this product's details.

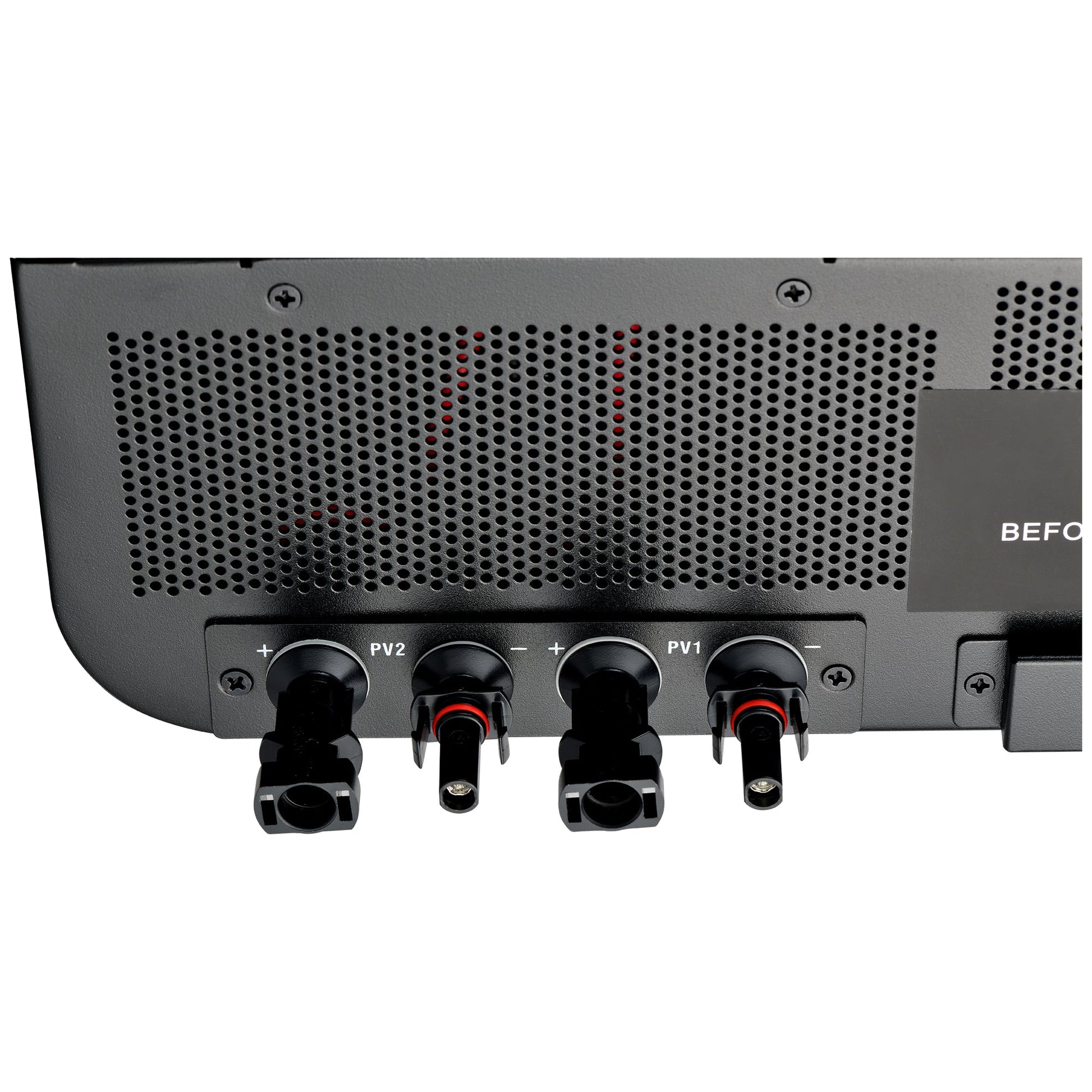

6.5kW hybrid inverter with dual 4kW MPPT inputs
Manage solar, batteries, utility or generator power from one 48V inverter platform.

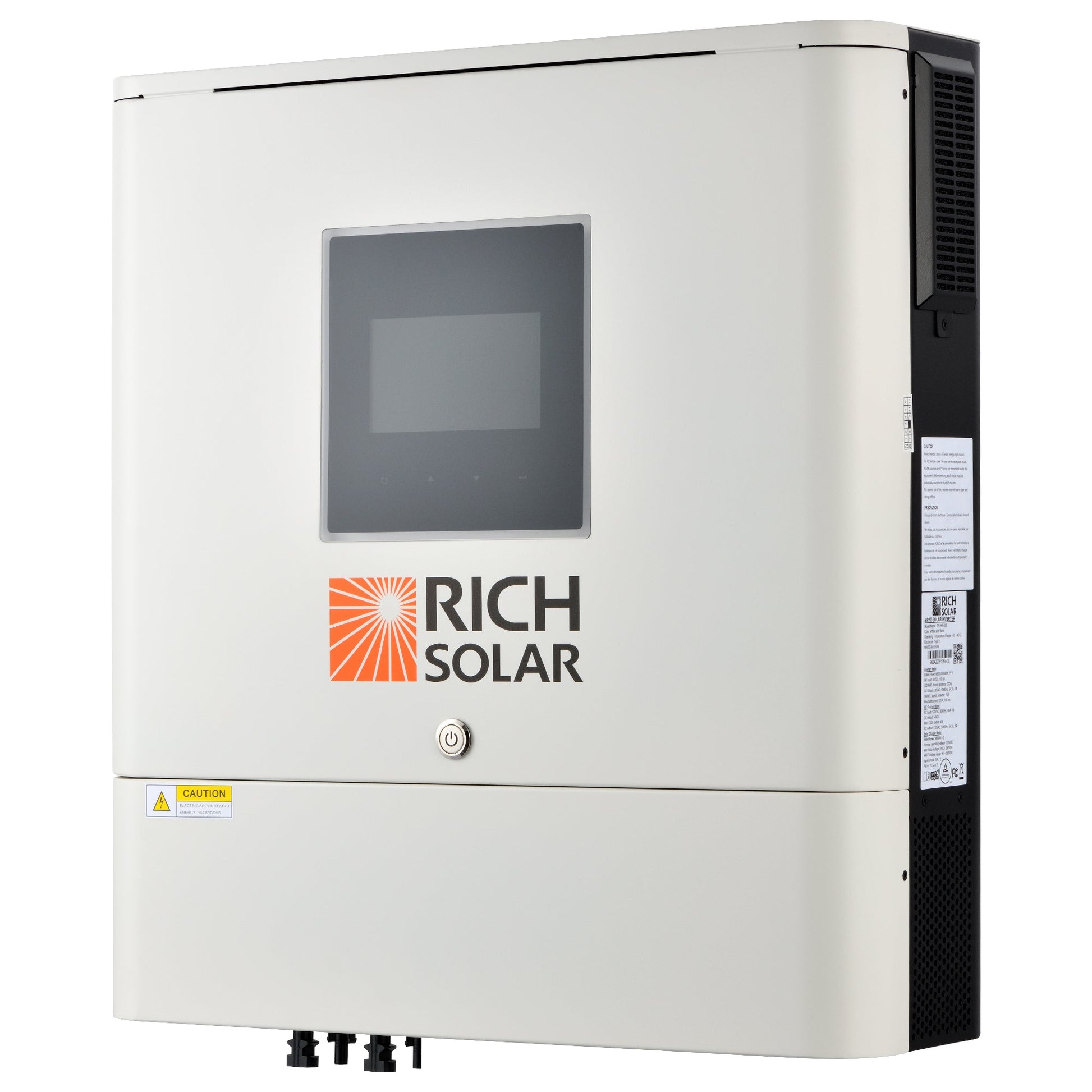

The RICH SOLAR NOVA 6500S is a 6,500W, 48V off-grid hybrid inverter with 13,000VA surge, two MPPT inputs, built-in Wi-Fi, battery-optional operation and parallel capability. It provides 120V AC from one unit and can be expanded into supported multi-inverter configurations.
At a glance
The numbers that define this system
A single NOVA 6500S is specified for 120V AC. 120/240V split phase requires supported paired/parallel configuration, communication and programming exactly as documented.
System fit
Verify PV strings, battery protocol and AC architecture before purchase.
Confirm 48V battery charge parameters, BMS communication, maximum PV current, cold-weather string Voc, generator/utility input, transfer expectations and whether one or multiple units are required for the loads.
In the box
What the current product configuration includes
- RICH SOLAR NOVA 6500S hybrid inverter (RS-H6548S)
- Integrated dual-MPPT solar charger
- Integrated AC battery charger and transfer function

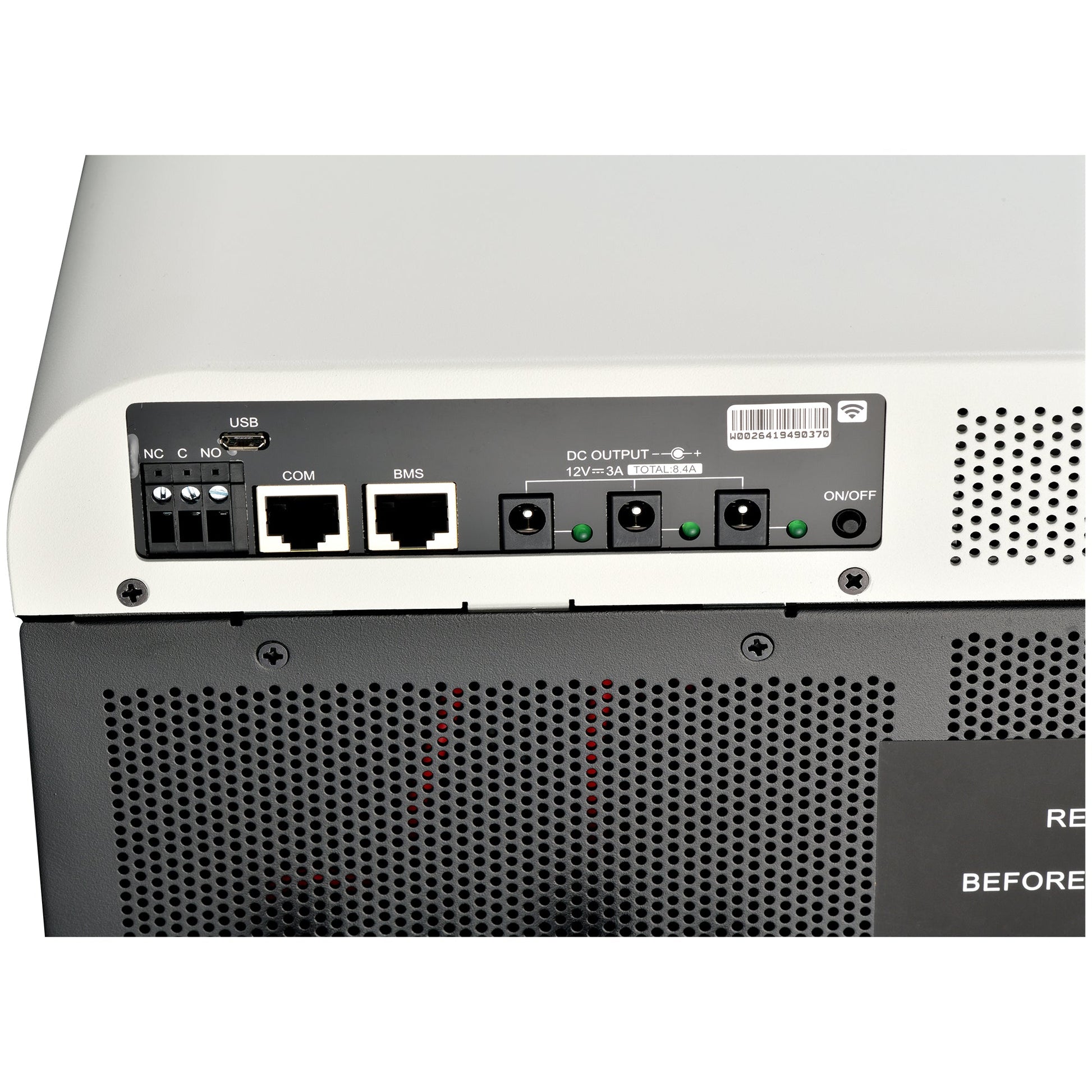

- Built-in Wi-Fi, RGB status indication and communication ports

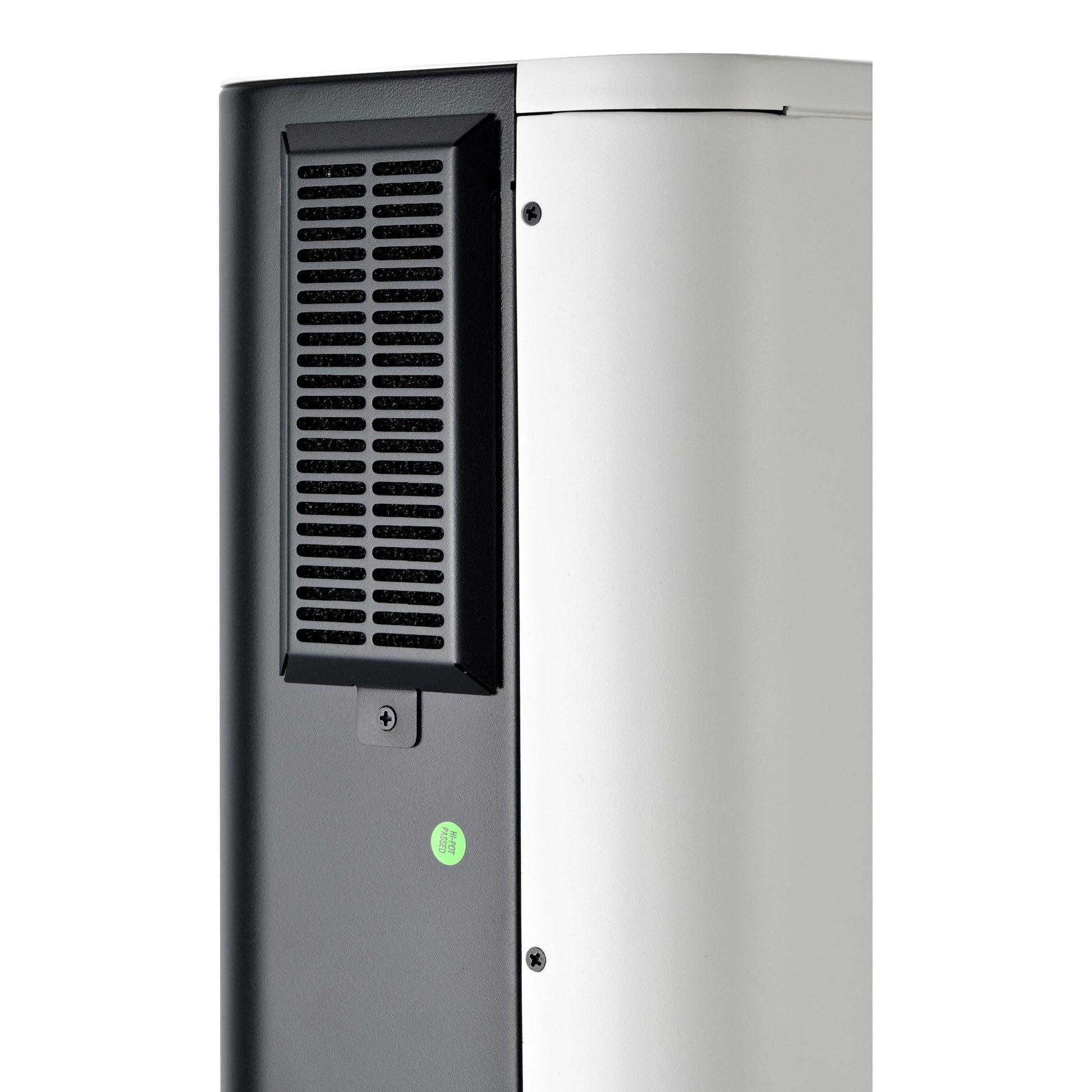

- Replaceable cooling-fan and anti-dust features described by RICH SOLAR
Battery, PV modules, PV disconnects and protection, AC distribution, parallel kits, remote equipment and installation materials are not listed as included. Contact Torven Power before ordering if you need an itemized accessory check.
Product confidence
Three-year manufacturer warranty.
RICH SOLAR currently states a three-year warranty for the NOVA 6500S. The written terms, registration, installation, environmental conditions and exclusions control eligibility.
Common questions
Before you build around this product
Does one NOVA 6500S provide 240V?
No. One unit is specified for 120V AC. A supported multi-unit configuration is needed for 120/240V split-phase operation.
Can it operate without a battery?
RICH SOLAR describes battery-optional operation for lighter loads and stable solar input. Confirm operating limits and behavior in the current manual before designing a batteryless system.
What PV voltage can I use?
The MPPT range is 90–230V DC and maximum open-circuit voltage is 250V DC. Cold-weather Voc must remain below the absolute maximum.
Is it a grid-tie inverter that exports power?
It is marketed as an off-grid hybrid inverter. Do not assume utility export or net-metering approval; confirm local interconnection and listed operating modes.
Product Data
Technical Specifications
| Model | RS-H6548S |
|---|---|
| Rated Inverter Power | 6500VA/6500W |
| Parallel Capability | Yes, 6 units |
| Voltage | 120 VAC |
| Selectable Voltage Range | 90-140 VAC (For Computers), 80-140 VAC (For Home Appliances) |
| Frequency Range | 50 Hz/60 Hz (Auto Sensing) |
| AC Voltage Regulation (Batt. Mode) | 120 VAC ± 5% |
| Surge Power | 13000VA |
| Efficiency (Peak) | 91% |
| Transfer Time | 10 ms (For Personal Computers), 20 ms (For Home Appliances) |
| Waveform | Pure Sine Wave |
| No Load Power Consumption | <75W |
| DC Voltage | 12 VDC ± 5%, 100W |
| Battery Voltage | 48 VDC |
| Float Charging Voltage | 54 VDC |
| Overcharge Protection | 66 VDC |
| Solar Charger Type | MPPT |
| Maximum PV Array Power | 8000W (4000W x 2) |
| MPPT Operating Voltage Range | 90 ~ 230 VDC |
| Maximum PV Array Open Circuit Voltage | 250 VDC |
| Maximum Solar Charge Current | 120A |
| Maximum AC Charge Current | 120A |
| Maximum Charge Current | 120A |
| Dimension (D x W x H) | 6.2 x 19.8 x 20.9 in |
| Net Weight | 44 lb |
| Communication Interface | USB/RS232/RS485/Wi-Fi/Dry-contact |
| Humidity | 5% to 95% Relative Humidity (Non-condensing) |
| Operating Temperature | 14°F to 104°F |
| Storage Temperature | 5°F to 140°F |
| Compliance Safety | UL |
Available configurations
| Option | SKU |
|---|---|
| Single configuration | RS-H6548S |
Review the current manufacturer manual for your exact model before installation or use.
Manufacturer Documentation
Official Manuals, Specifications & Certifications
Use these current RICH SOLAR documents for installation, compatibility, limits, and revision-specific details. The delivered product label and its exact manual are the controlling sources.
