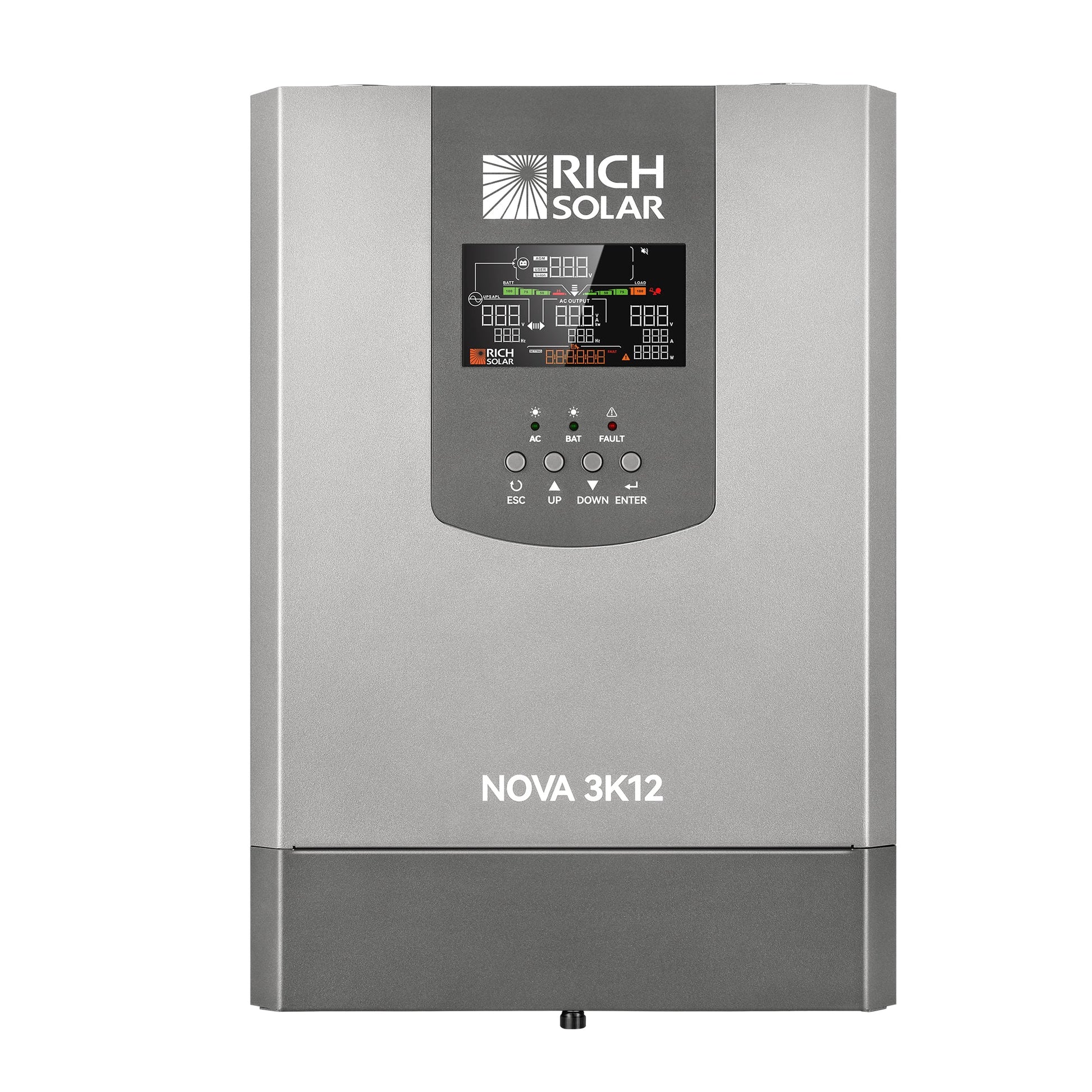

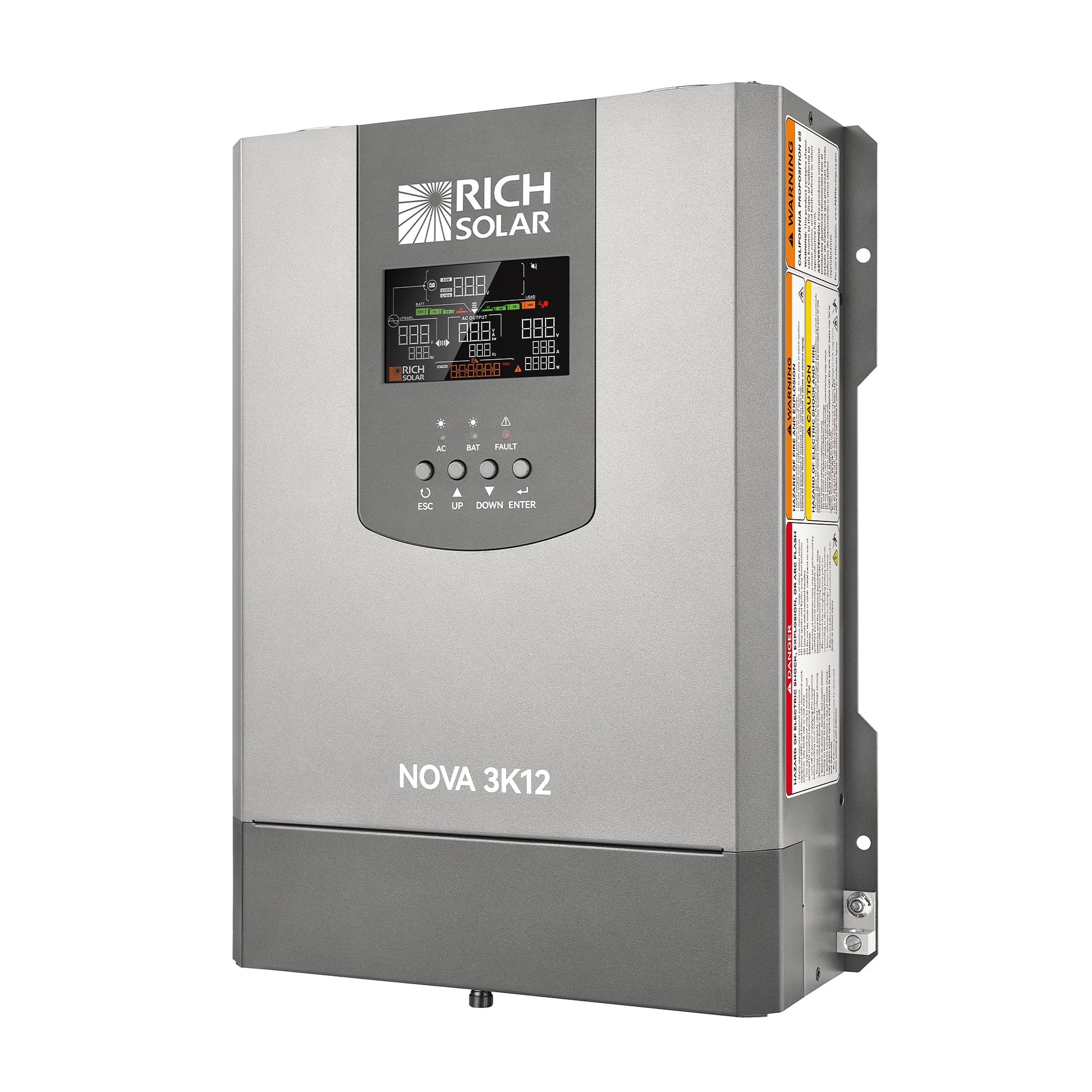

RICH SOLAR NOVA 3K12 3000W 12V Pure Sine Wave Inverter with Built-in Transfer Switch
RICH SOLAR NOVA 3K12 3000W 12V Pure Sine Wave Inverter with Built-in Transfer Switch
SKU: RS-V3P12TS
- Regular price
- $569.99
- Regular price
- Sale price
- $569.99
- Unit price
- per
Couldn't load pickup availability
In stock — available to order
- Free standard shipping on eligible Lower-48 orders. See shipping details
- 30-day return requests for eligible items after delivery. Review the return policy
- Price Match Guarantee for qualifying identical offers. Check eligibility
- Warranty information is listed in this product's details.
High-output 12V AC power with automatic source transfer
Convert a properly sized 12V battery bank into 3,000W of clean 120V power.
The RICH SOLAR NOVA 3K12 is a 12V pure sine inverter with an integrated transfer switch for RVs, vans, trailers and off-grid systems. It supplies 3,000W continuous 120V output and can transfer between incoming AC and battery power in 20 milliseconds or less.
At a glance
Start with voltage, continuous output and surge
At 12V, full output requires very high battery current. The battery bank, BMS, busbars, conductors, lugs, disconnect and overcurrent protection must all support the continuous and surge demand with acceptable voltage drop.
System fit
Design the battery and charging side before choosing loads.
Match a 12V battery bank to the inverter’s operating window and current demand, then confirm AC output, grounding, neutral treatment, transfer behavior and branch-circuit protection. This inverter does not include a solar charge controller. Plan charging equipment separately for the battery bank.
In the box
What this NOVA 3K12 listing covers
- 1 × RICH SOLAR NOVA 3K12 inverter (RS-V3P12TS)
Battery bank, PV modules, charge or PV disconnects, battery and AC cabling, overcurrent protection, distribution equipment, mounting hardware, remote accessories and installation labor are not listed as included.
Product confidence
Use the current RICH SOLAR warranty and installation requirements
Warranty eligibility and remedies depend on the written terms, product registration where required, correct system voltage, approved installation practices and operation within the electrical and environmental limits.
Common questions
NOVA 3K12 system questions
How large should the battery bank be?
Size it from required runtime and current capability. At full 3,000W output, the inverter can draw roughly 250A at nominal voltage before losses, so one battery may not support the required current even when its energy rating looks large enough.
Will it run my air conditioner or well pump?
Only if continuous watts, start-up surge, voltage and frequency all fit—and the battery bank can supply the DC current without excessive sag. Use measured or manufacturer start-up data for the exact load.
Can it power 240V loads?
This model is listed for 120V output. Do not assume native 240V support; choose a compatible split-phase architecture when 240V appliances or service equipment are required.
Does it include the battery and solar panels?
No. This listing covers the inverter. Storage, solar generation, disconnects, protection, distribution and site-specific installation materials are separate.
Product Data
Technical Specifications
| Model | NOVA 3K12 |
|---|---|
| Rated Output Power | 3000W |
| Peak Power | 6000W (5s) |
| DC Input Voltage | 12VDC (Max 18V) |
| Communication | RS232 / RS485 |

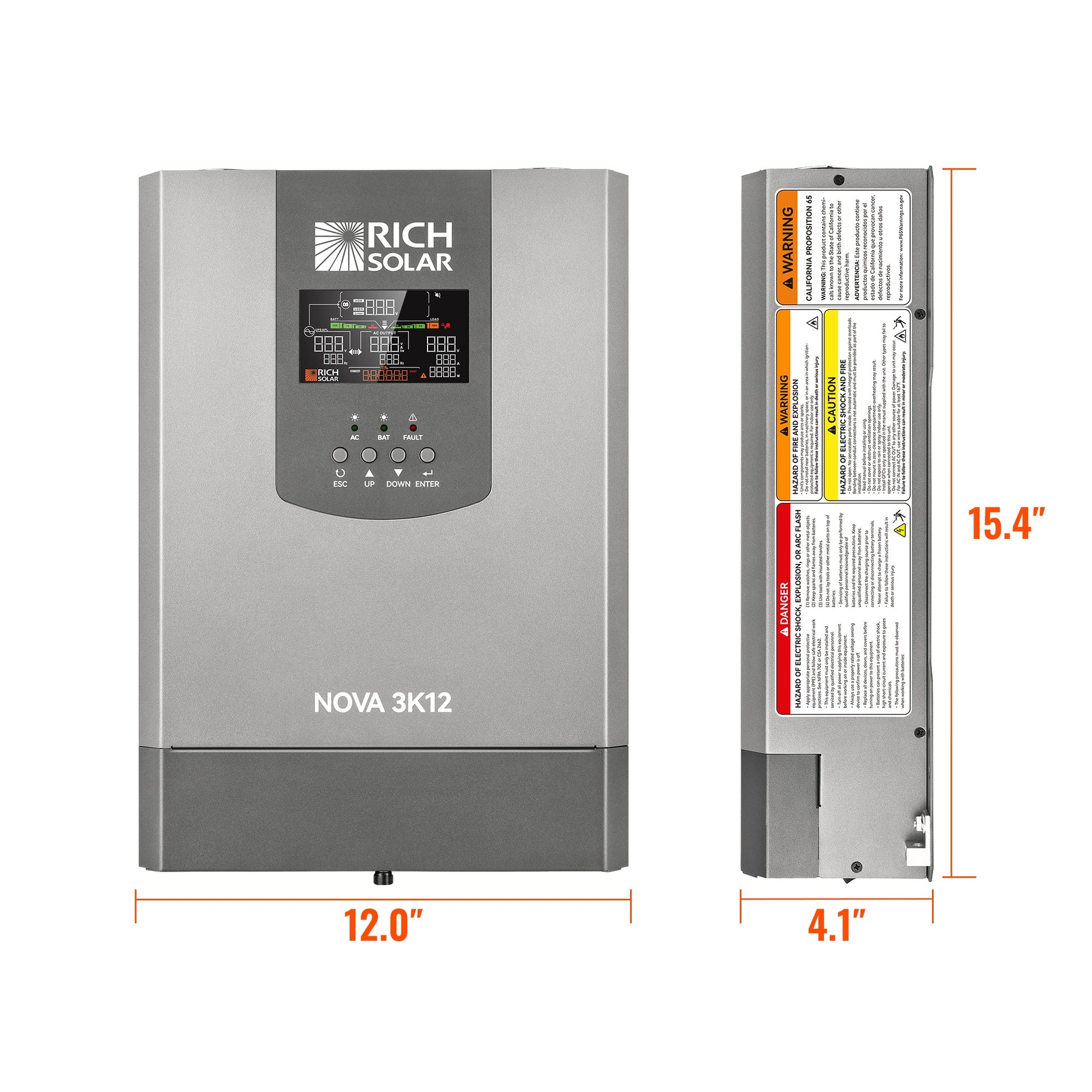

| Dimension (LxWxH) | 15.6x12.0x4.1 in |
| Net Weight | 17.6 lb |
| Nominal Voltage (AC INPUT) | 120VAC |
| Operation Range | 80-140 VAC full power |
| AC Input Frequency | 50/60 Hz selectable |
| Frequency Range | 45 ~ 70 Hz |
| Nominal Voltage (AC OUTPUT) | 120VAC |
| Voltage Regulation (Batt. Mode) | 120VAC ± 5% |
| Output Frequency | 50Hz or 60Hz selectable ± 1% |
| THD (Batt. Mode) | <5% |
| Peak Efficiency | 91% |
| Waveform | Pure sine wave |
| Transfer Time | ≤ 20ms |
| Transfer Modes | Normal / Fast |
| Nominal DC Voltage (BATTERY) | 12VDC |
| DC Input Power Operating Voltage Range | 10-17VDC |
| Battery Compatibility | 12V deep-cycle (min. 100Ah), LiFePO4 (with BMS) |

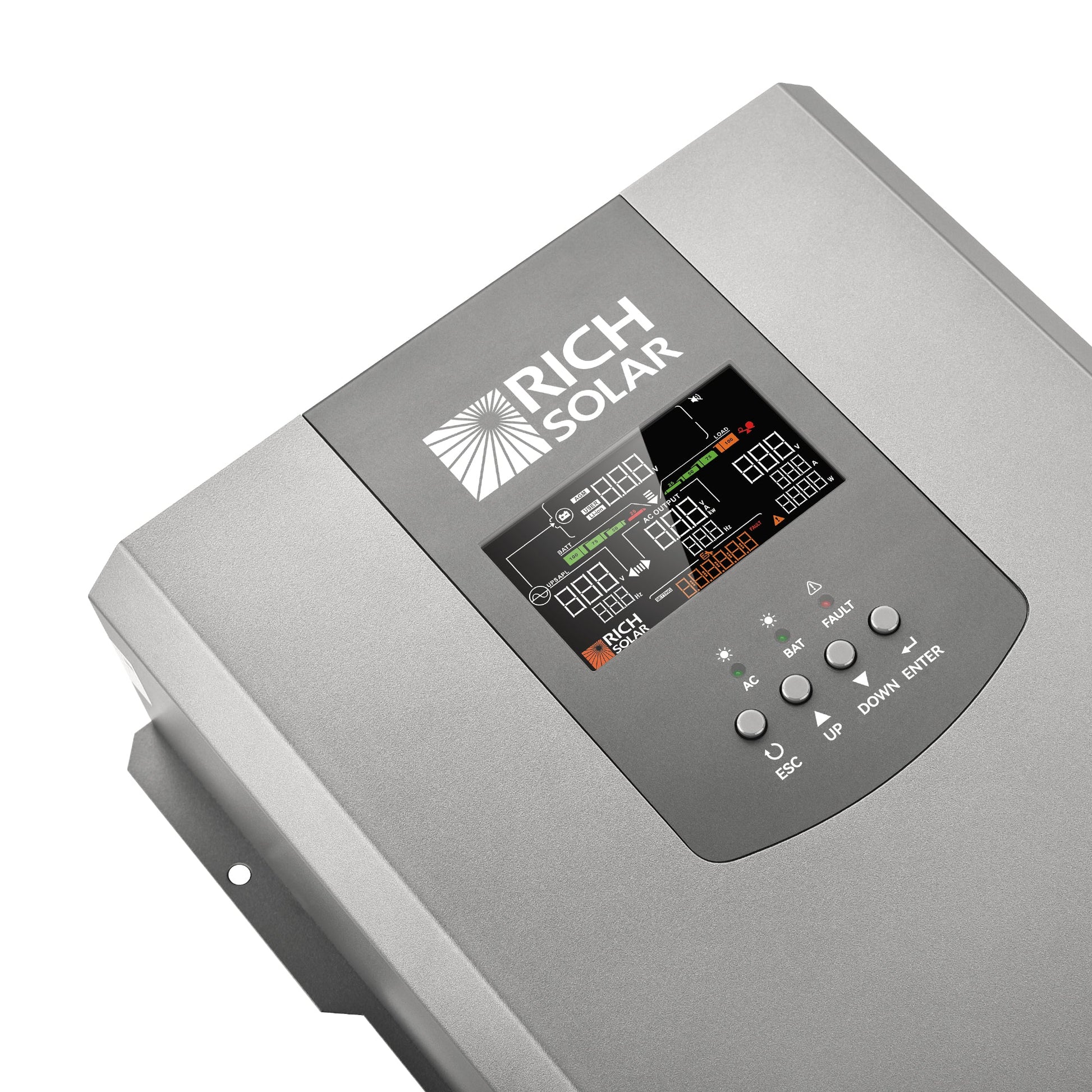

| Line Mode | Green LED on |
| Battery Mode | Amber LED on |
| Warning With Output | Red LED flashing |
| Fault Without Output | Red LED on |
| Humidity | 5% to 95% Relative Humidity (Non-condensing) |
| Operating Temperature | -40°F ~ 160°F (-4°F ~ 122°F with full power) |
| EMC Compliance | UL458 complies with FCC Part 15 |
Available configurations
| Option | SKU |
|---|---|
| Single configuration | RS-V3P12TS |
Manufacturer Documentation
Official Manuals, Specifications & Certifications
Use these current RICH SOLAR documents for installation, compatibility, limits, and revision-specific details. The delivered product label and its exact manual are the controlling sources.
Review the current manufacturer manual for your exact model before installation or use.
