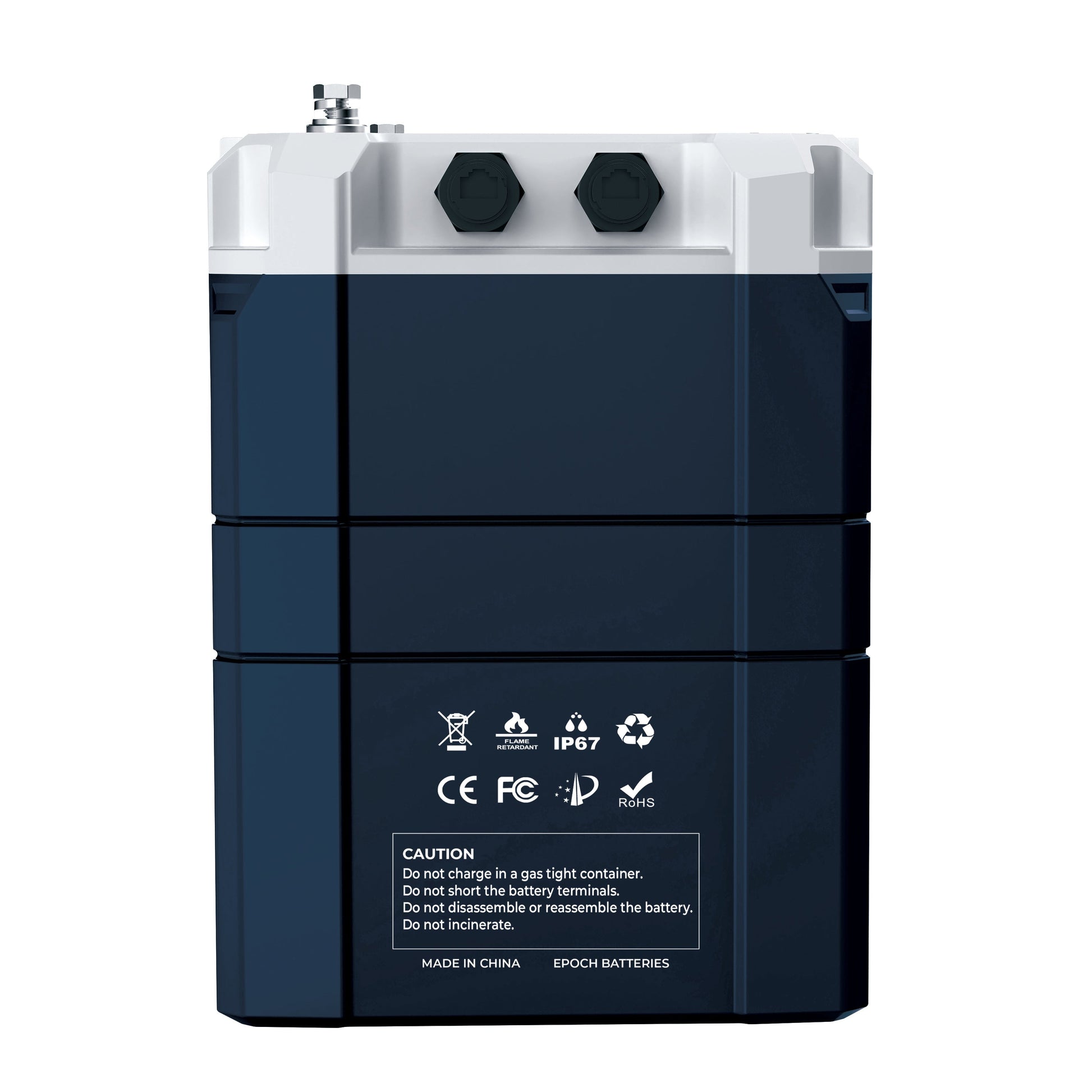

  • Epoch 24V 230Ah V2 Elite Series LiFePO4 Battery (5.89kWh) - official product image 6

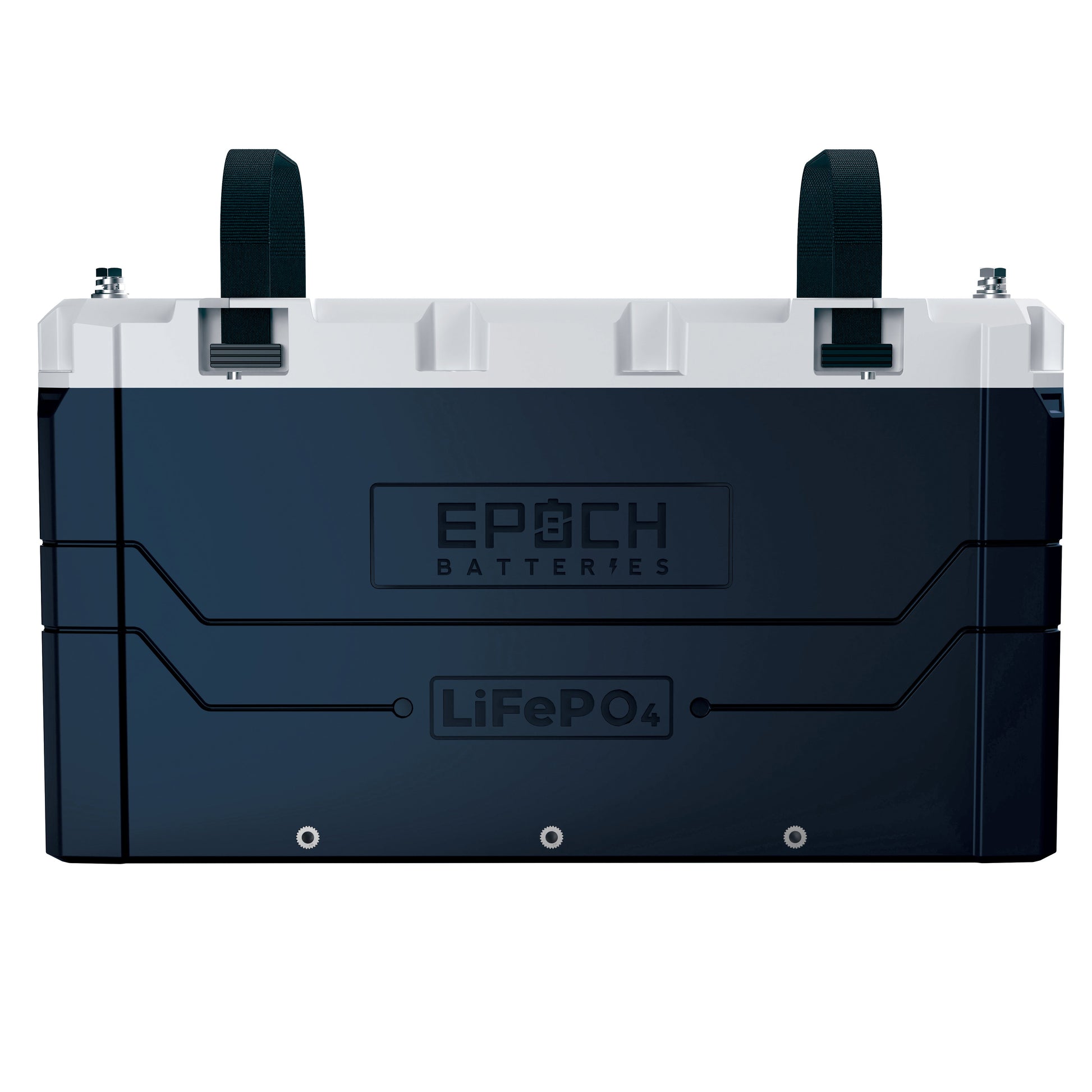

  • Epoch 24V 230Ah V2 Elite Series LiFePO4 Battery (5.89kWh) - official product image 7

Epoch Batteries

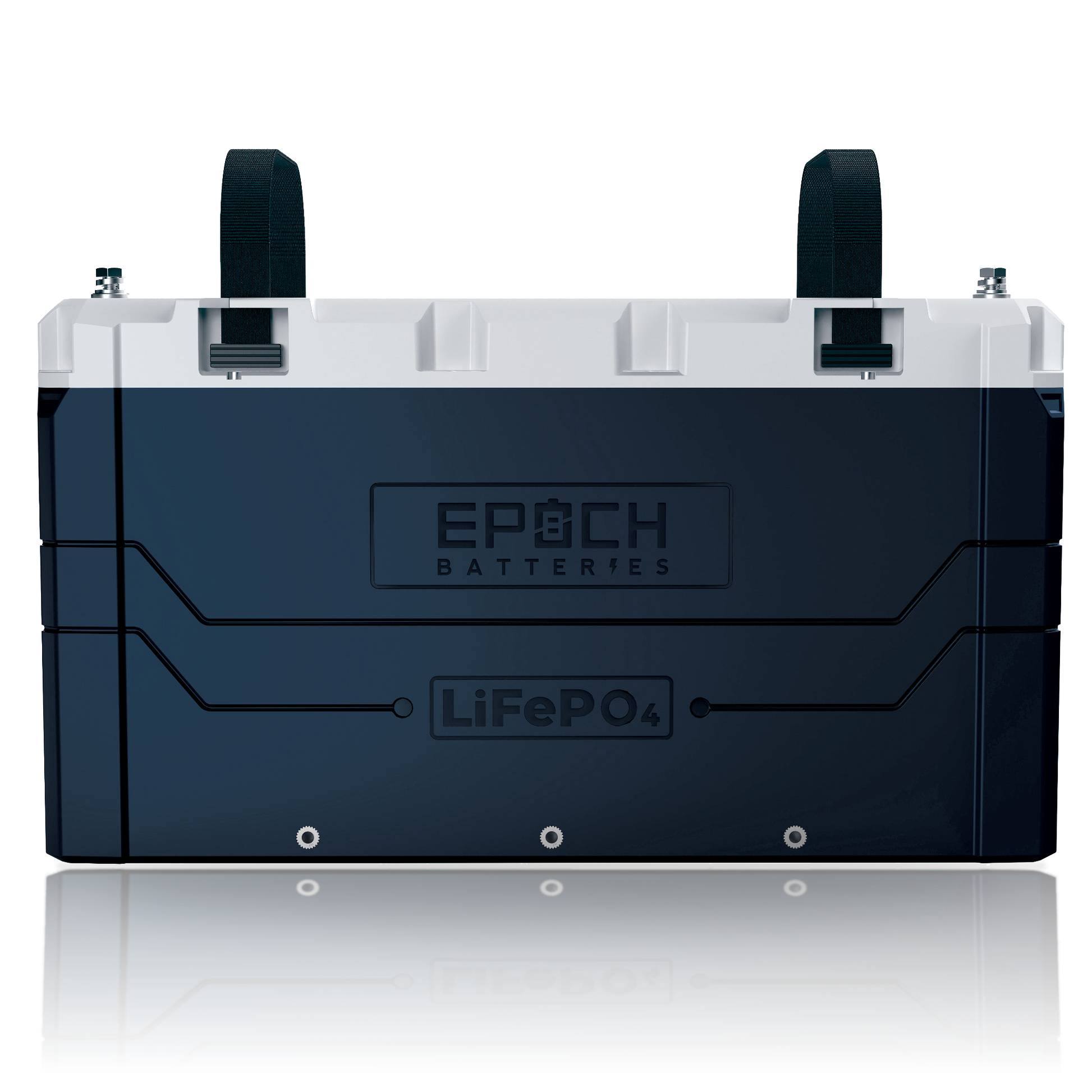

Epoch 24V 230Ah V2 Elite Series LiFePO4 Battery (5.89kWh)

Epoch 24V 230Ah V2 Elite Series LiFePO4 Battery (5.89kWh)

SKU: C24230A

$2,399.00
$2,399.00
View Cart

In stock — available to order

Need help before ordering? Call 888-495-5870 Contact our support team

Smart 24V power for integrated systems

A 5.89kWh 24V battery built to communicate, not just store energy.

The Epoch C24230A V2 Elite pairs 230Ah of LiFePO4 capacity with native Victron CAN communication, Bluetooth monitoring, internal heating and an IP67 enclosure. It is built for premium 24V marine, RV and off-grid systems where system visibility matters as much as runtime.

Epoch C24230A 24V 230Ah V2 Elite Series LiFePO4 battery
5.89kWhNominal energy
110AContinuous output
IP67Sealed enclosure
16 maxParallel batteries

Why V2 Elite

More visibility and control for a premium 24V bank

Native Victron communication

CAN communication can share state of charge, alarms and BMS limits with compatible Victron GX systems when the harness, DIP switches, port speed, DVCC and firmware are configured correctly.

Bluetooth bank visibility

Use the Epoch app to view state of charge, voltage, temperature, cycle data and battery alerts from a phone without opening the battery compartment.

Cold-weather charging support

Internal heating uses incoming charge energy to warm cells before charging resumes in freezing conditions, subject to BMS and charger limits.

External controls

A mountable on/off switch and detailed battery gauge make core status and control easier to reach when the battery is tucked into a protected bay.

Built for demanding 24V house-power systems

  • Marine house banks: support onboard electronics, pumps, refrigeration and comfort loads with a sealed battery and system communication.
  • High-thrust trolling motors: match motor voltage, current and runtime requirements before installation.
  • RV and overland systems: build around native 24V storage for lower current at a given power level than a comparable 12V design.
  • Off-grid solar: pair with a compatible 24V inverter/charger or a properly configured Victron ecosystem.

Fit and system check

Commission the battery and the communication network together

Use 110A as the verified continuous design value: Epoch's current product page and older manual disagree on some higher peak and charge figures. Confirm the installed label and latest model documentation before sizing surge loads or charging above this continuous value.

  • Physical size is 20.86 × 8.65 × 12.06 in and weight is 97 lb. Confirm tray, hold-down, lifting path, service access and terminal clearance.
  • For non-Victron systems, Epoch lists 28.4V absorption, at least 15 minutes absorption per battery, 27.0V float, equalization off and no temperature compensation.
  • Up to two matched batteries may be connected in series and up to sixteen in parallel under Epoch's current configuration rules; mixed series-parallel banks require explicit support.
  • IP67 is a controlled dust and temporary-immersion rating, not approval for permanent submersion or careless washdown.
  • Use a qualified installer for cables, busbars, protection, disconnects, torque, Victron settings and commissioning records.

Manufacturer protection

3,500+ cycles and an 11-year Epoch warranty

Epoch lists 3,500+ cycles and an 11-year manufacturer warranty for the C24230A. Register within 90 days for full coverage and follow the current warranty's installation, use and claim requirements.

Common questions

Will it work with my Victron system?

It supports compatible Victron GX integration. Confirm the GX model, communication port, cable, port speed, firmware, DIP settings and DVCC configuration before purchase.

Can this battery start an engine?

No. It is a deep-cycle house-power battery, not a cranking battery.

Can I expand the bank?

Yes. Epoch lists up to sixteen matched units in parallel and up to two in series. Follow the latest manual for topology, communication, state-of-charge matching and branch protection.

Why choose V2 Elite over Essential?

V2 Elite adds a sealed IP67 enclosure, Victron CAN communication, external controls and more advanced system integration. Choose Essential when lower price matters more than those features.

Building a smart 24V system?

Send Torven Power your inverter or motor, Victron components, charging sources, available space and loads for a first-pass compatibility review.
