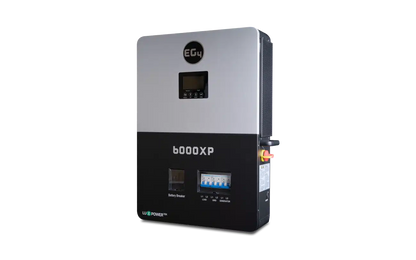

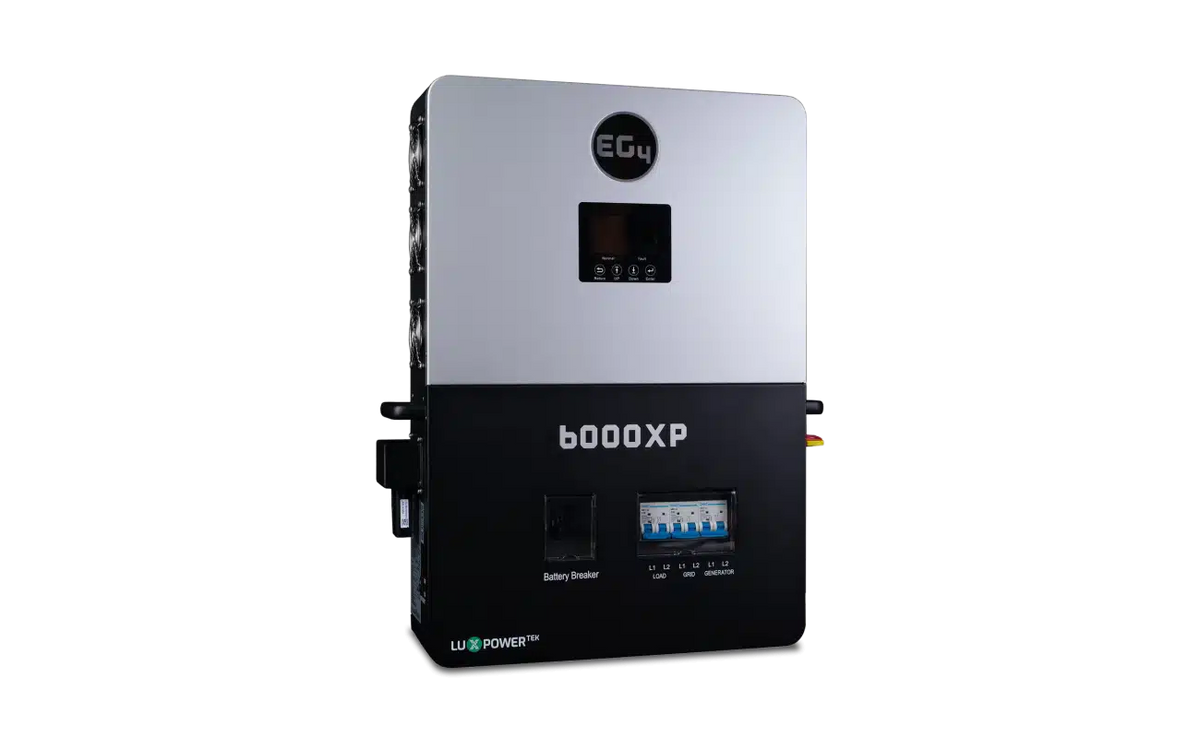

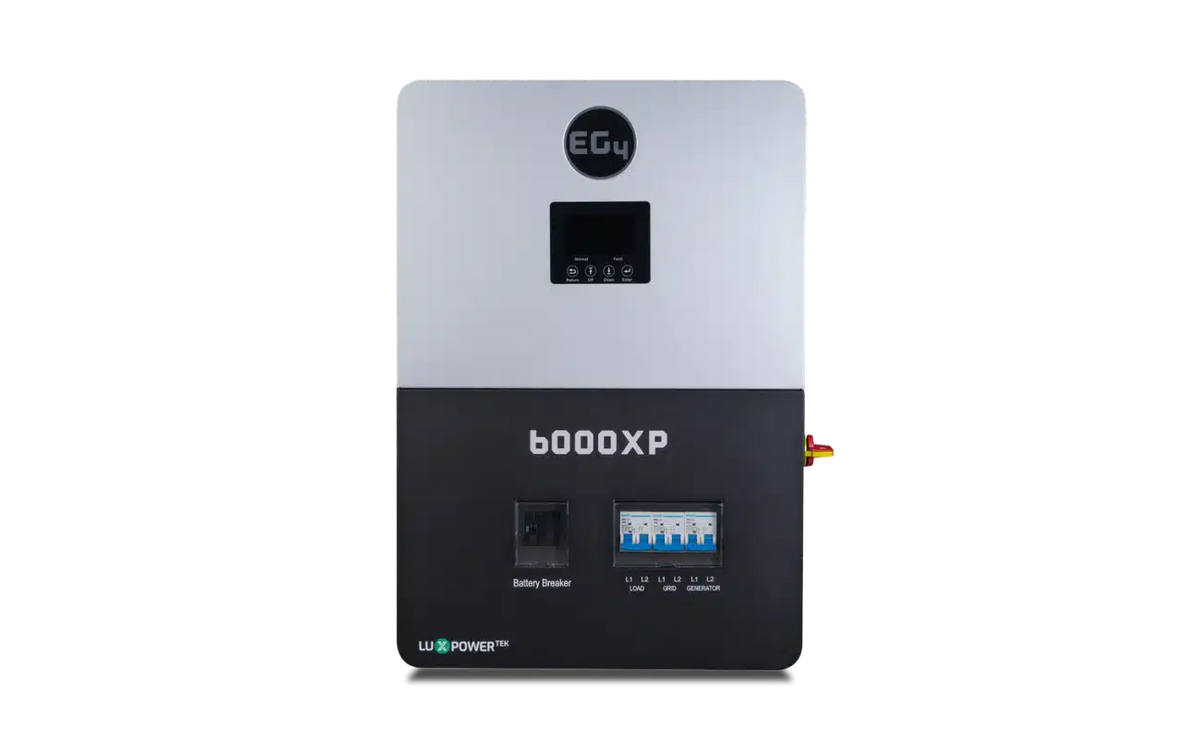

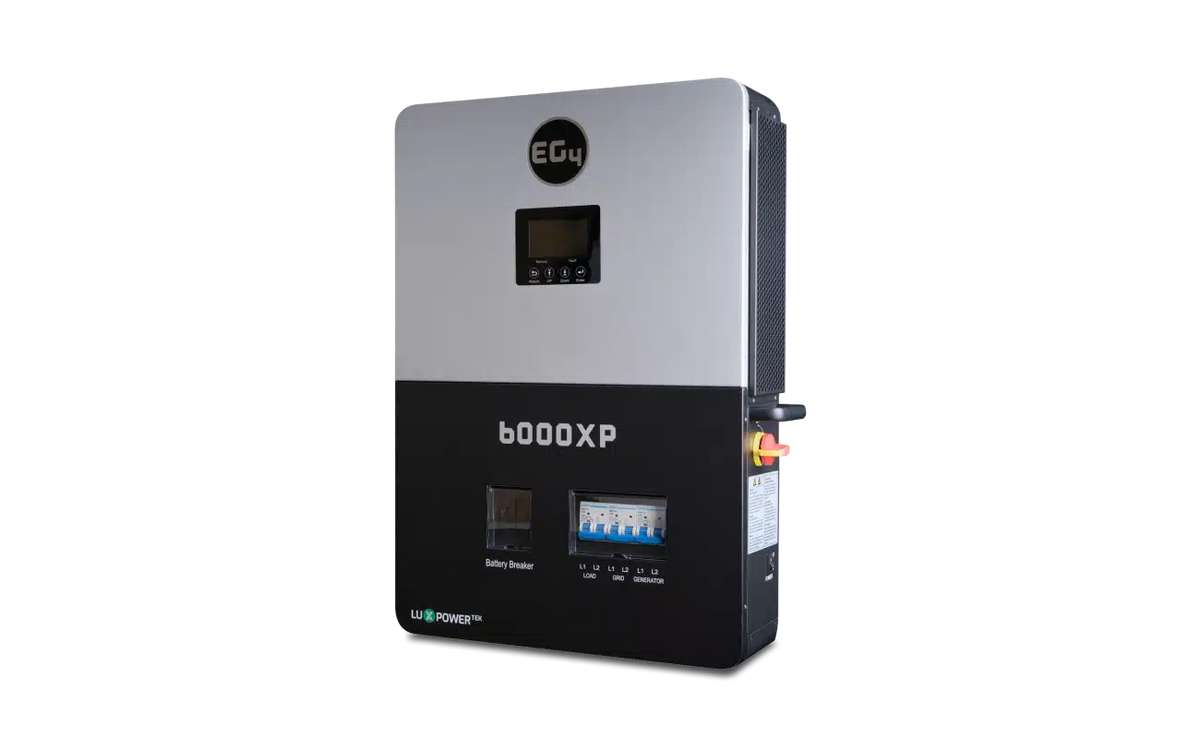

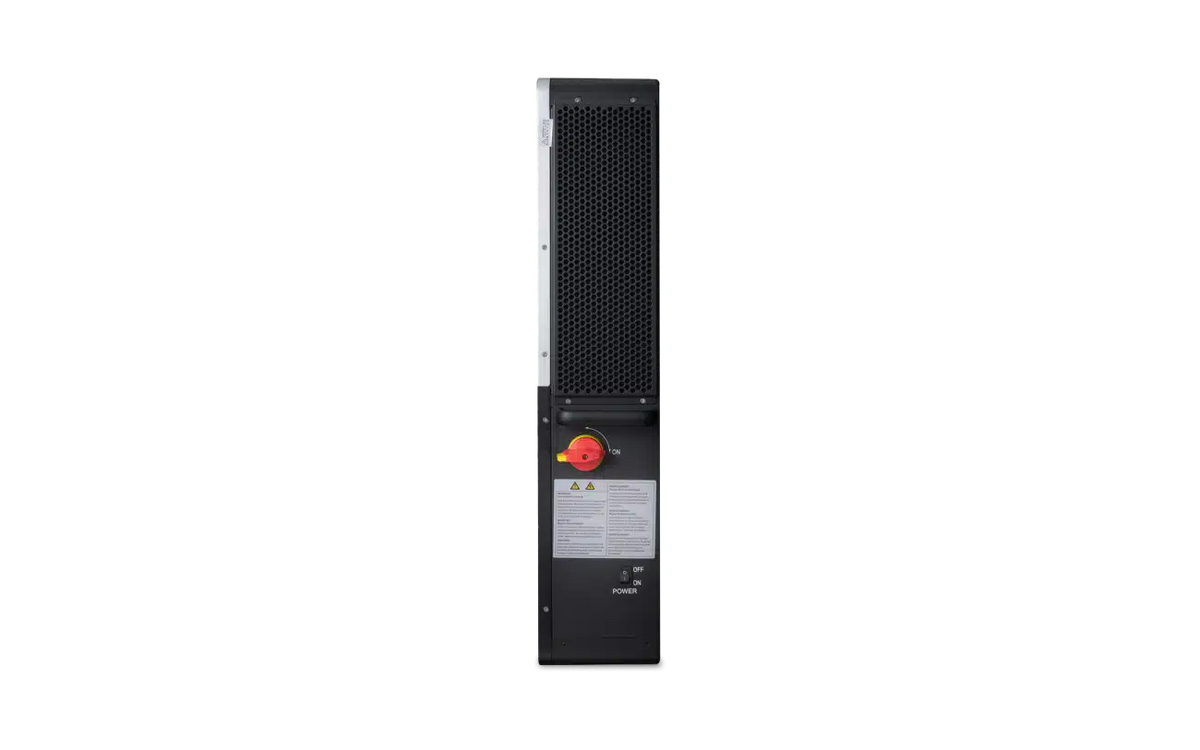

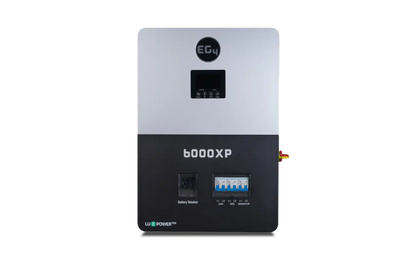

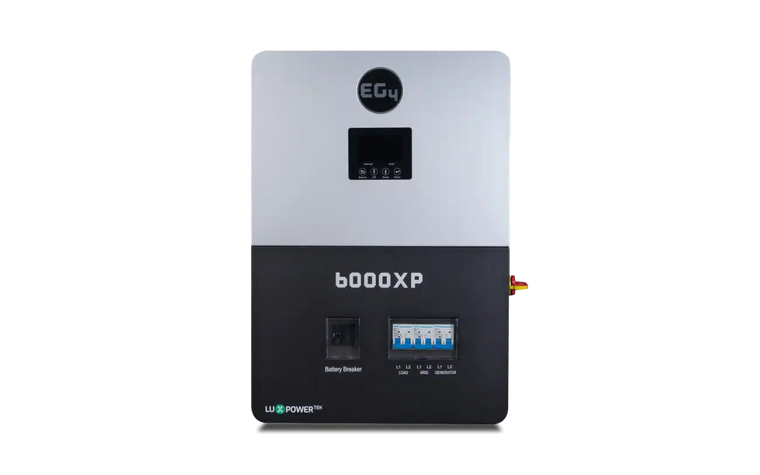

EG4 6000XP 48V 6kW Off-Grid Inverter
EG4 6000XP 48V 6kW Off-Grid Inverter
SKU: INV026
- Regular price
- $1,499.99
- Regular price
- Sale price
- $1,499.99
- Unit price
- per
Estimated delivery: Calculating arrival dates…
For in-stock orders placed today. Standard Lower 48 delivery; availability and carrier scheduling may affect arrival.
Couldn't load pickup availability
In stock — available to order
- Free shipping in the Lower 48. No order minimum. See shipping details
- 30-day returns — contact Torven and we will help you get started. Review the return policy
- Price Match Guarantee for qualifying identical offers. Check eligibility
- Warranty information is listed in this product's details.
OFF-GRID POWER & ENERGY STORAGE
6kW split-phase power for an off-grid build.
The EG4 6000XP is an inverter/charger for compatible 48V battery systems, supplying 6kW of rated AC power and accepting up to 8kW of utilized solar input. Its 120/240V split-phase output supports both standard circuits and appropriately sized 240V loads.
Capability that matters to your project
Split-phase output
6kW rated output per inverter supplies 120/240V loads. Balance the 120V circuits and check motor startup demand separately.
Two solar trackers
Two MPPT channels accept up to 8kW of utilized PV per inverter. Design each string to the voltage and current limits in the Specifications tab.
AC charging and backup sources
Use the approved AC-input arrangement to supplement solar charging. Confirm input protection, transfer arrangements and generator compatibility against the current manual.
What’s included
- 1 × EG4 6000XP inverter
Confirm the exact accessory packing list with Torven Power. Images illustrate the configuration; loose cables, communications accessories and mounting hardware are included only when itemized for the order.
Plan the installation
Solar panels, array racking, installation labor and permits are selected separately. Your installer must specify conductors, disconnects, grounding, overcurrent protection and any required transfer equipment. Match battery discharge capability and charging limits to the inverter settings.
These are off-grid inverter configurations. AC grid input for charging or bypass does not establish permission to export power to a utility. A battery-and-inverter bundle also does not establish whole-system UL 9540 certification.
Frequently asked questions
Can I add another inverter later?
Parallel expansion must follow the exact model manual, compatible hardware and firmware, approved communications wiring and commissioned settings. Confirm the design before adding units.
Are solar panels included?
No. Select panels, racking and site-specific electrical equipment separately.
What warranty applies?
The inverter has a 5-year limited manufacturer warranty. Registration, installation and exclusions follow the current written manufacturer terms.
How is availability confirmed?
Contact Torven Power for current supplier stock, dispatch timing and delivery requirements for this exact SKU before planning installation.
Get help choosing the right configuration
Send your load list, existing equipment and delivery ZIP code to Torven Power, or start with the Power Planner.
System specifications
| Listing SKU | INV026 |
|---|---|
| Configuration | 1 × EG4 6000XP inverter |
| Inverter quantity | 1 |
| Rated AC output per inverter | 6kW |
| AC output | 120/240V split phase |
| Nominal battery system | 48V class |
| Inverter protection | IP20 / indoor installation |
| Inverter warranty | 5-year limited manufacturer warranty |
EG4 6000XP inverter specifications
| Continuous output current | 25A per line at 240V |
|---|---|
| Continuous 120V line power | 3,000W per line |
| Surge output | 12,000W for approximately 3.5 seconds; 11,000W for approximately 5 seconds |
| Battery operating range | 46.4–60V DC for lithium batteries |
| Maximum battery discharge current | 140A |
| Maximum charging current | 125A PV; 115A AC at 48V |
| Recommended battery capacity | More than 200Ah per inverter |
| Utilized solar power | 8,000W (4,000W per MPPT) |
| MPPT trackers / inputs | 2 trackers; 1 input per tracker |
| MPPT operating range | 120–385V DC |
| PV operating input range | 100–480V DC |
| PV input current | 17A per MPPT |
| AC bypass | 50A |
| Transfer time | Less than 15ms single unit / 30ms parallel |
| Dimensions (W × H × D) | 18 × 25.5 × 5.25 inches |
| Weight | 52.9 lb |
| Communications | RS485 / CAN / Wi-Fi |
Manuals and product documents
The delivered model label and current installation manual control. Confirm hardware revision before applying settings. Specifications are subject to change.
